Oracle19C低版本一天遭遇两BUG（ORA-04031/ORA-600）

昨天帮朋友看一个系统异常卡顿的案例，在这里分享给大家

环境：Exadata X8M 数据库版本19.11

1.系统报错信息

表象为系统卡顿，页面无法刷出，登陆到主机上看到节点1 系统等待存在大量的 cursor: pin S wait on X等待

查看两个节点的alert log 看到有大量的ORA-04031报错

2025-04-15T14:43:53.522183+08:00
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_m000_342669.trc:
ORA-00604: error occurred at recursive SQL level 1
ORA-01000: maximum open cursors exceeded
2025-04-15T14:44:50.515707+08:00
DDE: Problem Key 'ORA 4031' was completely flood controlled (0x6)
Further messages for this problem key will be suppressed for up to 10 minutes
2025-04-15T14:46:29.968518+08:00
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_mz08_287162.trc:
ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^2798","kglseshtTable")
2025-04-15T14:46:30.005517+08:00
Process MZ08 died, see its trace filetrace file信息
Trace file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_mz08_287162.trc
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.11.0.0.0
*** 2025-04-15T14:46:29.968405+08:00 (CDB$ROOT(1))
<error barrier> at 0x7ffceea153e8 placed ksv.c@7147
ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^2798","kglseshtTable")
OPIRIP: Uncaught error 447. Error stack:*** 2025-04-15T14:46:29.969405+08:00
ORA-00447: fatal error in background process
ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^2798","kglseshtTable")

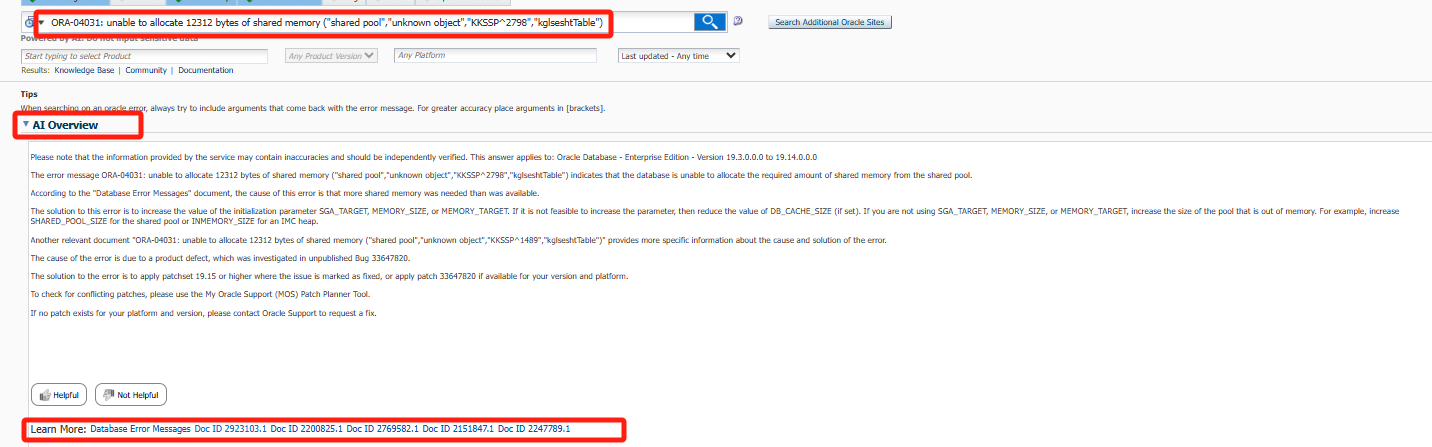

MOS新加AI搜索能力

ORA-04031涉及到的bug非常多，遇到这类问题优先查MOS，这里简单介绍一下MOS新推出的 AI搜索能力，可以根据你提供的报错比较精准的给出搜索结果，并根据相关性将引用的文档列出来，这个功能非常好

根据AI的提示简单翻译一下

请注意：服务提供的信息可能存在不准确之处，应进行独立验证。本解答适用于：Oracle Database - Enterprise Edition - 版本19.3.0.0.0至19.14.0.0.0

错误消息ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^2798","kglseshtTable")表明数据库无法从共享池分配所需的共享内存。

根据《数据库错误消息》文档，该错误的成因是所需共享内存超过了当前可用量。

解决方案如下：

增加初始化参数SGA_TARGET、MEMORY_SIZE或MEMORY_TARGET的值
若无法增加上述参数，则降低DB_CACHE_SIZE的值（如已设置）
若未使用SGA_TARGET、MEMORY_SIZE或MEMORY_TARGET，则增加对应内存池的大小：
- 共享池不足时增加SHARED_POOL_SIZE
- IMC堆不足时增加INMEMORY_SIZE

另一份相关文档《ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^1489","kglseshtTable")》提供了更具体的错误分析。

该错误由产品缺陷引起，已在未公开的Bug 33647820中记录。解决方案为：

应用19.15或更高版本的补丁集（该问题已标记为修复）
或应用适用于您版本和平台的补丁33647820（如存在）

检查补丁冲突请使用My Oracle Support (MOS)的Patch Planner工具。若对应平台和版本无可用补丁，请联系Oracle技术支持申请修复。

2.原因

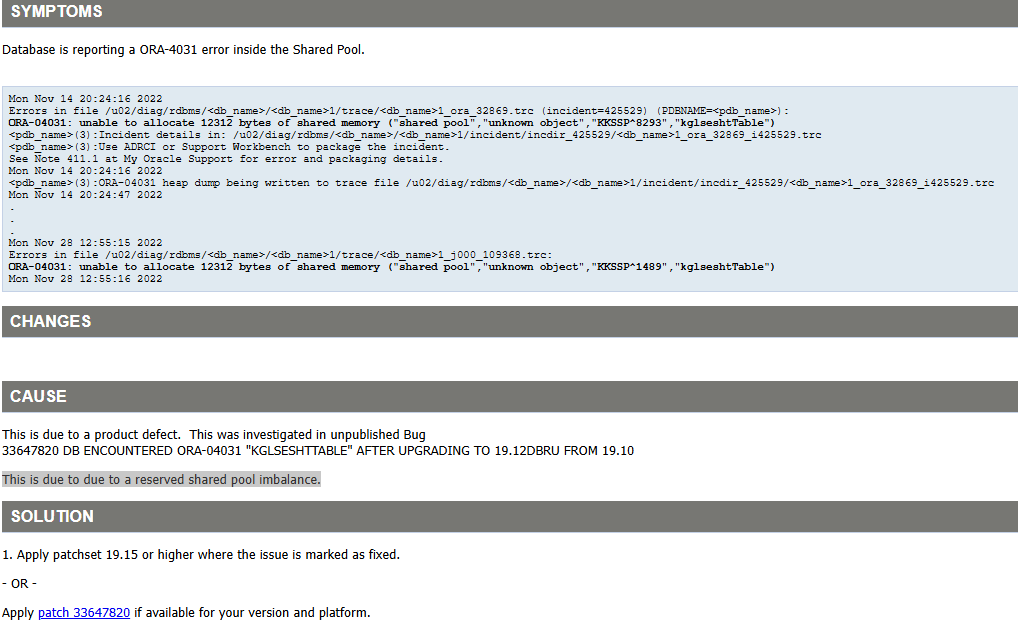

很明显这个报错是因为触发了一个为 unpublished 的Bug ，根据文档 ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^1489","kglseshtTable") (Doc ID 2923103.1)

这个报错和文档中的描述完全一致，大概猜测是数据库实例运行太久造成的share pool imbalance，该问题在19.15被解决，19.15之前版本BUG还是挺多的，如果有条件可以考虑升级到19.20+

话说Exadata稳定性还是非常强大的，这台机器从入场至今1387天（接近四年了），没有重启过，出问题这个实例也没有重启过，如果不是这次遭遇BUG 应该还能跑很久。

3.解决方案

根据以上MOS的信息，有一下几种处理方式

紧急处理方式，强制刷新share pool

alter system flush shared_pool;

或者重启数据库很多内存相关的bug可以通过重启数据库来解决，毕竟打补丁现在来不及；我这里选择的处理方案是轮流重启两个节点；

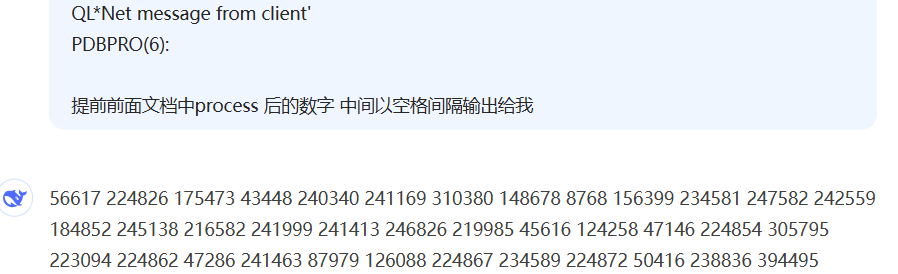

然而因为这个实例已经运行了太久 shutdown用了好长时间，并有大量pid 都需要手动kill，一下报出几百个PID，还好现在AI比较强大直接将这部分log丢给deepseek，让它把pid筛选出来就好了。

PDBPRO(6):Active process 279643 user 'grid' program 'oracle@test.com.cn', waiting for 'SQL*Net message from client'
PDBPRO(6):
PDBPRO(6):Active process 124660 user 'grid' program 'oracle@test.com.cn', waiting for 'SQL*Net message from client'
PDBPRO(6):
PDBPRO(6):Active process 246421 user 'grid' program 'oracle@test.com.cn', waiting for 'SQL*Net message from client'
PDBPRO(6):
PDBPRO(6):Active process 224818 user 'grid' program 'oracle@test.com.cn', waiting for 'read by other session'
PDBPRO(6):
PDBPRO(6):Active process 124650 user 'grid' program 'oracle@test.com.cn', waiting for 'SQL*Net message from client'
PDBPRO(6):

4.重启再遇到BUG

节点2重启正常，但是在节点1重启时发现只能mount 无法OPEN 关键部分报错如下

ALTER DATABASE OPEN /* db agent *//* {0:4:346} */2025-04-15T19:47:52.586367+08:00
CTWR started with pid=89, OS id=33744
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_ctwr_33744.trc  (incident=246935) (PDBNAME=CDB$ROOT):
ORA-04031: unable to allocate 52011112 bytes of shared memory ("large pool","unknown object","large pool","CTWR dba buffer")
Incident details in: /u01/app/oracle/diag/rdbms/test1/test11/incident/incdir_246935/test11_ctwr_33744_i246935.trc
Use ADRCI or Support Workbench to package the incident.
See Note 411.1 at My Oracle Support for error and packaging details.
2025-04-15T19:47:53.513579+08:00
ORA-04031 heap dump being written to trace file /u01/app/oracle/diag/rdbms/test1/test11/incident/incdir_246935/test11_ctwr_33744_i246935.trc
2025-04-15T19:47:54.106979+08:00
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_ctwr_33744.trc  (incident=246936) (PDBNAME=CDB$ROOT):
ORA-00600: internal error code, arguments: [krcpasb_initial_alloc_failure], [3250176], [], [], [], [], [], [], [], [], [], []
ORA-04031: unable to allocate 52011112 bytes of shared memory ("large pool","unknown object","large pool","CTWR dba buffer")
Incident details in: /u01/app/oracle/diag/rdbms/test1/test11/incident/incdir_246936/test11_ctwr_33744_i246936.trc
Use ADRCI or Support Workbench to package the incident.
See Note 411.1 at My Oracle Support for error and packaging details.
2025-04-15T19:47:54.598420+08:00
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_ctwr_33744.trc:
ORA-00600: internal error code, arguments: [krcpasb_initial_alloc_failure], [3250176], [], [], [], [], [], [], [], [], [], []
ORA-04031: unable to allocate 52011112 bytes of shared memory ("large pool","unknown object","large pool","CTWR dba buffer")
2025-04-15T19:47:54.598589+08:00
The change tracking error 600.
2025-04-15T19:47:54.598742+08:00
Stopping background process CTWR
2025-04-15T19:47:54.599120+08:00
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_ctwr_33744.trc:
ORA-00600: internal error code, arguments: [krcpasb_initial_alloc_failure], [3250176], [], [], [], [], [], [], [], [], [], []
ORA-04031: unable to allocate 52011112 bytes of shared memory ("large pool","unknown object","large pool","CTWR dba buffer")
2025-04-15T19:47:54.600494+08:00
Dumping diagnostic data in directory=[cdmp_20250415194754], requested by (instance=1, osid=33744 (CTWR)), summary=[incident=246936].
Errors in file /u01/app/oracle/diag/rdbms/test1/test11/trace/test11_ctwr_33744.trc  (incident=246937) (PDBNAME=CDB$ROOT):
ORA-487 [] [] [] [] [] [] [] [] [] [] [] []
Incident details in: /u01/app/oracle/diag/rdbms/test1/test11/incident/incdir_246937/test11_ctwr_33744_i246937.trc

错误发生在启动 CTWR（Change Tracking Writer）进程时，最终导致 实例终止（instance crash）

4.1 CTWR 进程启动失败

CTWR 是 Change Tracking Writer，用于实现 增量备份变更跟踪（Block Change Tracking） 功能。它启动时尝试在 large pool 中分配大块内存失败，引发了 ORA-4031：

"large pool", "CTWR dba buffer"

4.2 ORA-00600 + ORA-4031 的组合说明这是一个严重的系统级错误

ORA-00600 [krcpasb_initial_alloc_failure] 是 内部内存分配失败
错误位置在 Oracle kernel 模块 krcp* 系列，属于 change tracking 内部模块
后续的 进程中止、系统状态转储、实例终止 都是级联故障结果

4.3是否命中 Oracle 官方 Bug？

查MOS 很快找到和这个报错和BUG Bug 32428097 高度一致！

Bug 32428097 - ORA-600 [krcpasb_initial_alloc_failure] during CTWR startup

说明：

Oracle 19.x 在使用 change tracking 时，CTWR 在启动期间分配内存失败，触发 ORA-04031 + ORA-00600 + 实例崩溃。
这是 Oracle 确认的回归问题（Regression Bug）在19.13修复。
常见于：
- 大量数据变更（如恢复、测试环境还原）
- large pool 不足
- 某些版本升级后首次启用 change tracking

4.4解决方案

暂时关闭block change track

ALTER DATABASE DISABLE BLOCK CHANGE TRACKING;

5.总结

截止至2025年4月16日 Oracle19C已经更新至19.27，我认为至少在未来五年内，19c仍然会是主力版本；当然拉如果没有遭遇BUG，理论上可以不打补丁的，但是为了系统的稳定，仍然建议将19C升级至19.20+ （保守点19.15+）

附录oracle各版本支持时间线。

参考文档：

ORA-04031: unable to allocate 12312 bytes of shared memory ("shared pool","unknown object","KKSSP^1489","kglseshtTable") (Doc ID 2923103.1)

Bug 32428097 - BCT: CTWR crashes during "_bct_public_dba_buffer_size" reset with ORA-00600 [krcpasb_initial_alloc_failure] & ORA-4031 (Doc ID 32428097.8)

Release Schedule of Current Database Releases (Doc ID 742060.1)
