经过一周多时间，基于python+pytest+excel+allure框架的接口自动化测试初版已基本实现，包括基本配置读取、用例读取、用例执行、sql读取执行、前置数据准备、后置数据清理以及测试报告生成等，环境独立运行、项目独立运行、用例独立运行、jenkins集成、邮件发送暂未实现，再后期版本会再次推出，现在把整个框架设计思路和想法分享给大家来参考和借鉴。希望大家也能提供更好的思路和方法帮助我进行优化改进。
实战项目是三端交互的项目，所以在设计思路上要考虑多项目如何交互，目前只写了1个项目的，其它2个项目都预留了位置，后期直接添加就可以，思路一样。

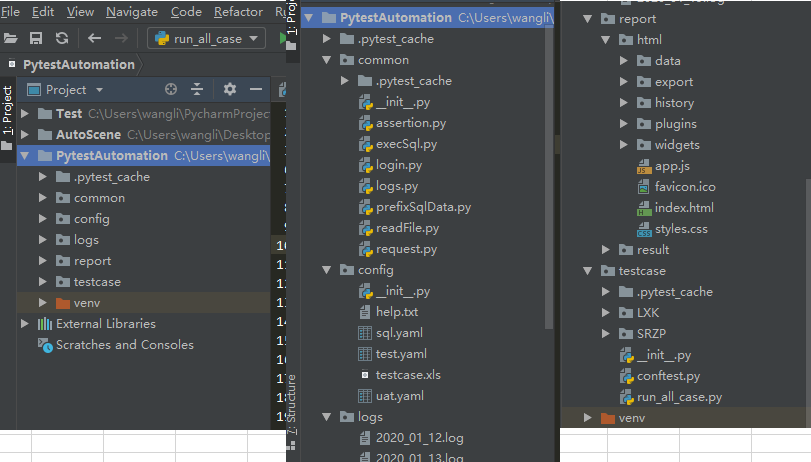

一、整个代码目录及介绍
common
request.py 封装post、get请求方法，供所有地方调用
login.py 封装各项目、各种方式的登录方法，供所有地方调用
readFile.py 封装读取yaml中配置文件、excel中测试用例方法，供所有地方调用
execSql.py 封装sql操作增、删、改、查方法，供所有地方调用
prefixSqlData.py 封装前置、后置公共sql，供所有地方调用
assertion.py 封装断言方法，供所有用例中调用
logs.py 封装日志方法，供所有地方调用
config
sql.yaml 前置数据sql语句、后置清理sql语句等
test.yaml test环境数据库配置、接口域名、测试账号、登录接口数据等
uat.yaml uat环境数据库配置、接口域名、测试账号、登录接口数据等
testcase.xls 测试用例等
testcase
项目1
用例1、用例2
项目2
用例1、用例2
testcase.xls 接口测试用例等
conftest.py 放置了登录获取token供所有用例调用
run_all_case.py 执行所有测试用例并生成测试报告
logs
每天的日志数据
report
html 测试报告index.html
二、yaml文件基本配置
项目一:url: 'https://www.baidu.com/'headers:Content-Type: 'application/json'Authorization: 'token'account:a_account: '17900000000'b_account: '18000000000'c_account: '19900000000'c_account1: '19900000001'c_login:method: posturl: '/user/login'param:type: "7"login_from: 7mobile: "18888888888"code: "123456"c_sms_code:method: posturl: '/1.0/users/login'mysql:host: 127.0.0.1user: testpwd: testtest_db: user项目二:url: 'https://www.baidu.com/'三、yaml文件sql配置
项目一:查id:- select_list- select id from A.B where create_mobile={}查用户id:- select_list- select id from A.B where mobile={}查团队id:- select_list- select id from A.B where company_user_id=(select id from A.B where mobile={})查C端用户id:- select_list- select user_id from A.B where mobile in({})解除用户:- update- update A.B set status=2 where mobile={}项目二:查id:- select_list- select id from A.B where create_mobile={}查用户id:- select_list- select id from A.B where mobile={}查团队id:- select_list- select id from A.B where company_user_id=(select id from A.B where mobile={})查C端用户id:- select_list- select user_id from A.B where mobile in({})解除用户:- update- update A.B set status=2 where mobile={}四、读取yaml文件、excel用例文件
#!/usr/bin/env python
# _*_coding:utf-8_*_
import yaml,os,sys,xlwt,xlrd
from common.logs import Logclass ReadFile(object):log = Log()_instance=Nonedef __new__(cls,*args,**kwargs):if cls._instance is None:cls._instance=super().__new__(cls)return cls._instancedef __init__(self):self.excel_path = os.path.join(os.path.dirname(os.path.dirname(__file__)), 'config/testcase.xls')self.yaml_path = os.path.join(os.path.dirname(os.path.dirname(__file__)), 'config/test.yaml')self.sql_yaml_path = os.path.join(os.path.dirname(os.path.dirname(__file__)), 'config/sql.yaml')def read_yaml(self,path_type):"""读yaml文件:return:"""try:if path_type=='yaml_path':file_path=self.yaml_pathelif path_type=='sql_yaml_path':file_path=self.sql_yaml_pathwith open(file_path,'r',encoding='utf-8') as f:return yaml.load(f.read())except Exception as e:self.log.error("读yaml文件报错{}".format(e))def read_excel(self,sheet_name,function,casename=None):"""读取excel:param sheet_name::param function::return:"""try:book=xlrd.open_workbook(self.excel_path)sheet=book.sheet_by_name(sheet_name)param=[]for i in range(0,sheet.nrows):if casename==None:if sheet.row_values(i)[0]==function and sheet.row_values(i)[3]==1:param.append(sheet.row_values(i))else:if sheet.row_values(i)[0]==function and sheet.row_values(i)[1]==casename and sheet.row_values(i)[3]==1:param.append(sheet.row_values(i))return paramexcept Exception as e:self.log.error("读取excel报错{}".format(e))if __name__ == '__main__':test=ReadFile()print(test.read_excel('lxk','我的','全部页面'))五、用例模板如下

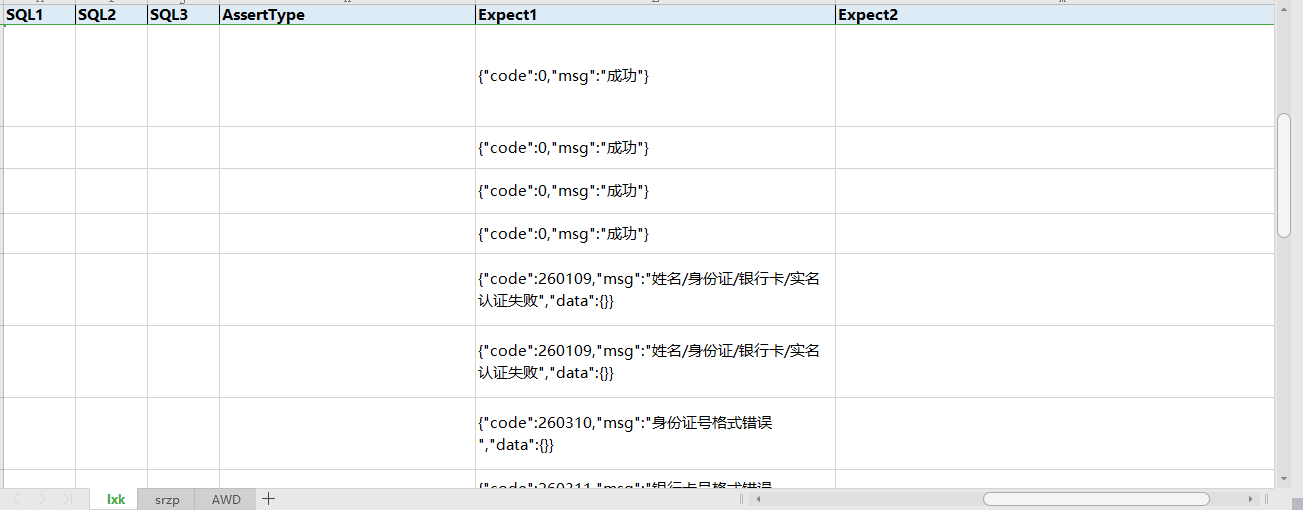

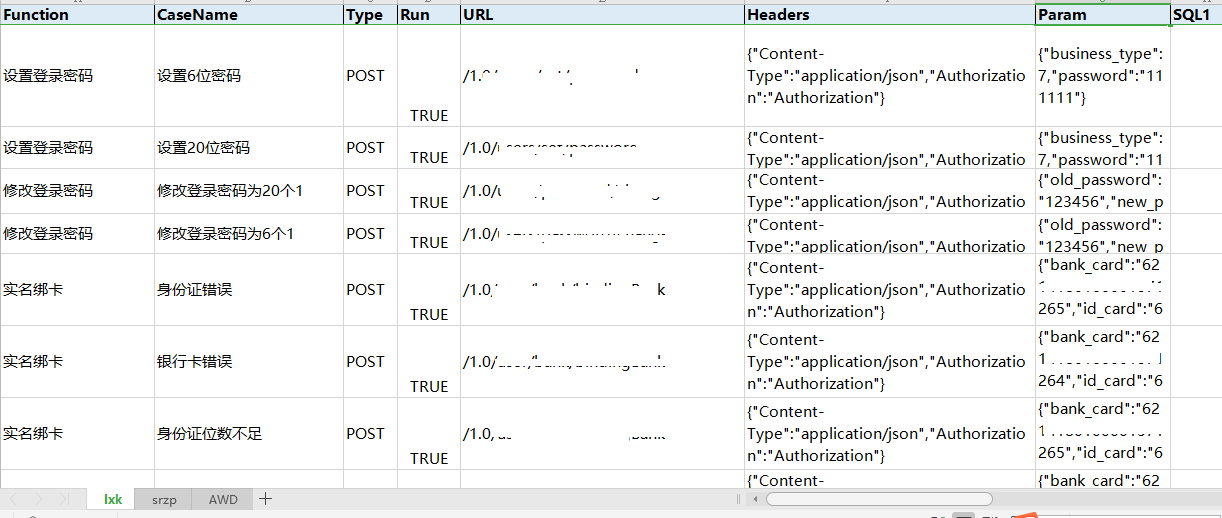

根据每个sheet存放不同项目的测试用例，然后根据再根据sheet去读取对应项目模块的测试用例
Function模块、CaseName测试用例名、Type请求类型、Run是否执行、URL接口地址、Headers请求头、Param请求参数、SQL1、SQL2、SQL3测试中需用到的前置数据或后置数据、AssertType断言类型，因为接口返回的响应数据可能会多种多样，所以这里断言分了几种情况、Expect1预期结果1、Expect2预期结果2、Expect3预期结果3
六、request方法
#!/usr/bin/env python
# _*_coding:utf-8_*_
import requests,urllib3
from urllib3 import encode_multipart_formdata
from common.logs import Logclass RunMethod(object):"""request"""log = Log()urllib3.disable_warnings()def post_main(self,url,data,header,file=None):"""post请求:param url::param data::param header::param file::return:"""res=Noneif file!=None:res=requests.post(url=url,json=data,headers=header,verify=False)else:res = requests.post(url=url, json=data,headers=header, files=file, verify=False)return res.json()def get_main(self,url,header,param=None):"""get请求:param url::param header::param param::return:"""res=Noneif param!=None:res=requests.get(url=url,headers=header,verify=False)else:res = requests.get(url=url, headers=header, json=param,verify=False)return res.json()def run_main(self,method,url,header,data=None,file=None):"""被调用主request:param method::param url::param header::param data::param file::return:"""try:res=Noneif method=='post' or method=='POST' or method=='Post':res=self.post_main(url,data,header,file=None)elif method=='get' or method=='GET' or method=='Get':res=self.get_main(url,header,param=None)else:return "request传参错误"return resexcept Exception as e:self.log.error("请求方法报错{}".farmat(e))
if __name__ == '__main__':print(111)七、登录方法
#!/usr/bin/env python
# _*_coding:utf-8_*_
from common import request
from common.readFile import ReadFile
from common.logs import Logclass Login(object):"""登录"""log = Log()request = request.RunMethod()def __init__(self):self.yaml_data = ReadFile().read_yaml('yaml_path')['lxk']self.header = self.yaml_data['headers']self.url = self.yaml_data['url']self.lxk_c_url = self.yaml_data['c_login']['url']self.lxk_c_method = self.yaml_data['c_login']['method']self.lxk_c_param = self.yaml_data['c_login']['param']def lxk_c_login(self,project,mobile):"""蓝薪卡C端登录:param project::param mobile::return:"""try:if project=='lxk_c':self.lxk_c_param['mobile']=mobileresult=self.request.run_main(self.lxk_c_method, self.url+self.lxk_c_url, self.header, self.lxk_c_param)elif project=='lxk_a':passelif project=='lxk_b':passreturn resultexcept Exception as e:self.log.error('登录报错{}'.format(e))if __name__ == '__main__':test=Login()print(test.lxk_c_login('lxk_c','18221124104'))
八、操作sql方法
#!/usr/bin/env python
# _*_coding:utf-8_*_
from common.readFile import ReadFile
import pymysql
import sys
from common.logs import Logclass ExecSql(object):"""执行sql语句类"""log = Log()_instance=Nonedef __new__(cls,*args,**kwargs):if cls._instance is None:cls._instance=super().__new__(cls)return cls._instancedef __init__(self):"""初始化mysql配置:param platform_name:"""#self.sql_conf = self._get_sql_conf(platform_name)self.sql_conf=Nonedef _get_sql_conf(self, project):"""获取mysql配置:param platform_name::return:"""try:return ReadFile().read_yaml('yaml_path')[project]['mysql']except:self.log.error("找不到对应项目：{0}".format(project))def connect_db(self):"""连接mysql:return:"""host = self.sql_conf['host']user = self.sql_conf['user']pwd = self.sql_conf['pwd']test_db = self.sql_conf['test_db']try:self.conn = pymysql.connect(host=host, user=user, password=pwd, db=test_db, port=3306, charset="utf8")except Exception as e:self.log.error("连接mysql失败：{0}".format(e))def get_cursor(self):"""获取游标:return:"""self.cursor=self.conn.cursor()return self.cursordef exec_sql(self,project,sql_type,sql):"""执行sql语句:param sql_type::param sql::return:"""self.sql_conf = self._get_sql_conf(project)try:if sql_type == 'select_one':self.connect_db()cursor = self.get_cursor()cursor.execute(sql)result = cursor.fetchone()elif sql_type == 'select_list':self.connect_db()cursor = self.get_cursor()cursor.execute(sql)result = cursor.fetchall()elif sql_type == 'update' or sql_type == 'del' or sql_type == 'insert':self.connect_db()result = self.get_cursor().execute(sql)self.conn.commit()self.cursor.close()self.conn.close()return resultexcept Exception as e:self.log.error("执行sql语句报错：{0}".format(e))if __name__ == '__main__':test = ExecSql()a=test.exec_sql('lxk',"select_list","sql)print(aaa)九、日志方法
#!/usr/bin/env python
# _*_coding:utf-8 _*_
import os, time, logging
log_path=os.path.join(os.path.dirname(os.path.dirname(os.path.realpath(__file__))), 'logs')
if not os.path.exists(log_path): os.mkdir(log_path)class Log(object):"""log日志类"""def __init__(self):self.logname = os.path.join(log_path, '%s.log' % time.strftime('%Y_%m_%d'))self.logger = logging.getLogger()self.logger.setLevel(logging.DEBUG)self.formatter = logging.Formatter('[%(asctime)s]-%(filename)s]-%(levelname)s:%(message)s')def __console(self, level, message):fh=logging.FileHandler(self.logname, 'a', 'utf-8')fh.setLevel(logging.DEBUG)fh.setFormatter(self.formatter)self.logger.addHandler(fh)ch = logging.StreamHandler()ch.setLevel(logging.INFO)ch.setFormatter(self.formatter)self.logger.addHandler(ch)if level == 'info':self.logger.info(message)elif level == 'debug':self.logger.debug(message)elif level == 'warning':self.logger.warning(message)elif level == 'error':self.logger.error(message)self.logger.removeHandler(ch)self.logger.removeHandler(fh)fh.close()def debug(self, message):self.__console('debug', message)def info(self, message):self.__console('info', message)def warning(self, message):self.__console('warning', message)def error(self, message):self.__console('error', message)if __name__ == '__main__':log = Log()log.info("---测试---")十、断言方法
#!/usr/bin/env python
# _*_coding:utf-8_*_
from common.execSql import ExecSql
from common.logs import Logclass Assertion(object):log=Log()sql_values_list = []response_values = []def __init__(self):self.test=ExecSql().exec_sqldef get_sql_data(self,project,sql_type,sql):'''查询sql数据组合list:param project::param sql_type::param sql::return:'''try:sql_values=self.test(project,sql_type,sql)for i in sql_values:for j in i:self.sql_values_list.append(j)except Exception as e:self.log.error("查询sql数据组合list报错{}".format(e))def get_response_data(self,response_data, keys=[]):'''获取接口响应数据组合list:param response_data::param keys::return:'''try:if isinstance(response_data, list):for value in response_data:if isinstance(value, list) or isinstance(value, dict):self.get_response_data(value, keys)elif isinstance(response_data, dict):for i, j in sorted(response_data.items()):if i in keys:self.response_values.append(j)else:self.get_response_data(j, keys)else:passexcept Exception as e:self.log.error("获取接口响应数据组合list报错{}".format(e))def asser(self,function,casename,expect,response_data,assert_type=None):'''断言:param assert_type::param expect::param response_data::return:'''try:if assert_type=='type1':assert self.sql_values_list==self.response_valuesself.log.info("查询sql数据组合list为{}".format(self.sql_values_list))self.log.info("接口响应数据组合list为{}".format(self.response_values))assert eval(expect)['code'] == response_data['code']assert eval(expect)['msg'] == response_data['msg']self.log.info("{}——{}【PASS】".format(function,casename))except Exception as e:self.log.error("{}——{}【PASS】{}".format(function,casename,e))if __name__ == '__main__':# sql="sql"# test=Assertion()# test.get_sql_data(self,project,sql_type,sql)self.log.error("查询sql数据组合list报错{}".format(e))十一、conftest登录获取token
#!/usr/bin/env python
# _*_coding:utf-8_*_
import pytest,os,yaml,requests
from common.readFile import ReadFile
from common.login import Loginyaml_data=ReadFile().read_yaml('yaml_path')@pytest.fixture(scope='session')
def get_lxk_c_headers():"""登录获取token更新headers:return:"""headers=yaml_data['lxk']['headers']token=Login().lxk_c_login('lxk_c',yaml_data['lxk']['account']['c_account'])['data']['token']headers['Authorization']=tokenreturn headers十二、测试用例方法
#!/usr/bin/env python
# _*_coding:utf-8_*_import pytest
from common.readFile import ReadFile
from common.request import RunMethod
from common.assertion import Assertion
from common.execSql import ExecSql
from common.prefixSqlData import MakeSqlData
import alluredata = ReadFile().read_excel('lxk', '我的报名')@pytest.mark.parametrize('function,casename,type,run,url,hearders,param,sql1,sql2,sql3,asserttype,expect1,expect2,expect3',data)
class Test(object):'''我的报名'''request = RunMethod().run_mainassertion = Assertion()exec_sql = ExecSql().exec_sqlyaml_data = ReadFile().read_yaml('yaml_path')['lxk']sql_yaml_data = ReadFile().read_yaml('sql_yaml_path')['lxk']prefix_sql_data = MakeSqlData('lxk').make_sql_datadef setup_class(self):'''数据初始化:return:'''prefix_data=self.prefix_sql_data(self.yaml_data['account']['b_account'], self.yaml_data['account']['c_account'])company_id = self.exec_sql('lxk', self.sql_yaml_data['查企业id'][0], self.sql_yaml_data['查企业id'][1].format(self.yaml_data['account']['b_account']))[0][0]task_id = self.exec_sql('lxk', self.sql_yaml_data['查任务id'][0], self.sql_yaml_data['查任务id'][1].format(self.yaml_data['account']['b_account']))[0][0]self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],1))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],2))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],3))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],4))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],5))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'],7))self.exec_sql('lxk', self.sql_yaml_data['报名任务'][0], self.sql_yaml_data['报名任务'][1].format(prefix_data['user_id'], task_id, company_id,self.yaml_data['account']['c_account'], 8))def teardown_class(self):'''数据清理:return:'''self.exec_sql('lxk', self.sql_yaml_data['删除已报名任务'][0], self.sql_yaml_data['删除已报名任务'][1].format(self.yaml_data['account']['c_account']))self.exec_sql('lxk', self.sql_yaml_data['解除用户团队'][0], self.sql_yaml_data['解除用户团队'][1].format(self.yaml_data['account']['c_account']))#@allure.feature('蓝薪卡')@allure.story('lxk_我的报名')def test_apply_task(self,get_lxk_c_headers,function,casename,type,run,url,hearders,param,sql1,sql2,sql3,asserttype,expect1,expect2,expect3):'''我的报名:param get_lxk_c_headers::param function::param casename::param type::param run::param url::param hearders::param param::param sql1::param sql2::param sql3::param asserttype::param expect1::param expect2::param expect3::return:'''response_data = self.request(type,self.yaml_data['url']+url,get_lxk_c_headers,eval(param))self.assertion.get_sql_data('lxk',eval(sql1)[0],eval(sql1)[1].format(self.yaml_data['account']['c_account']))self.assertion.get_response_data(response_data,eval(expect2))self.assertion.asser(function,casename,expect1,response_data,asserttype)if __name__ == "__main__":pytest.main(["-s", "test_001_applyTask.py"])十三、run_all_case主程序执行入口
#!/usr/bin/env python
# _*_coding:utf-8_*_
import pytest,os,allure
if __name__ == "__main__":pytest.main(['-s',''])#生成测试报告jsonpytest.main(["-s", "-q", '--alluredir', 'C:/Users/wangli/PycharmProjects/PytestAutomation/report/result'])#将测试报告转为html格式split='allure '+'generate '+'C:/Users/wangli/PycharmProjects/PytestAutomation/report/result '+'-o '+'C:/Users/wangli/PycharmProjects/PytestAutomation/report/html '+'--clean'os.system('cd C:/Users/wangli/PycharmProjects/PytestAutomation/report')os.system(split)print(split)

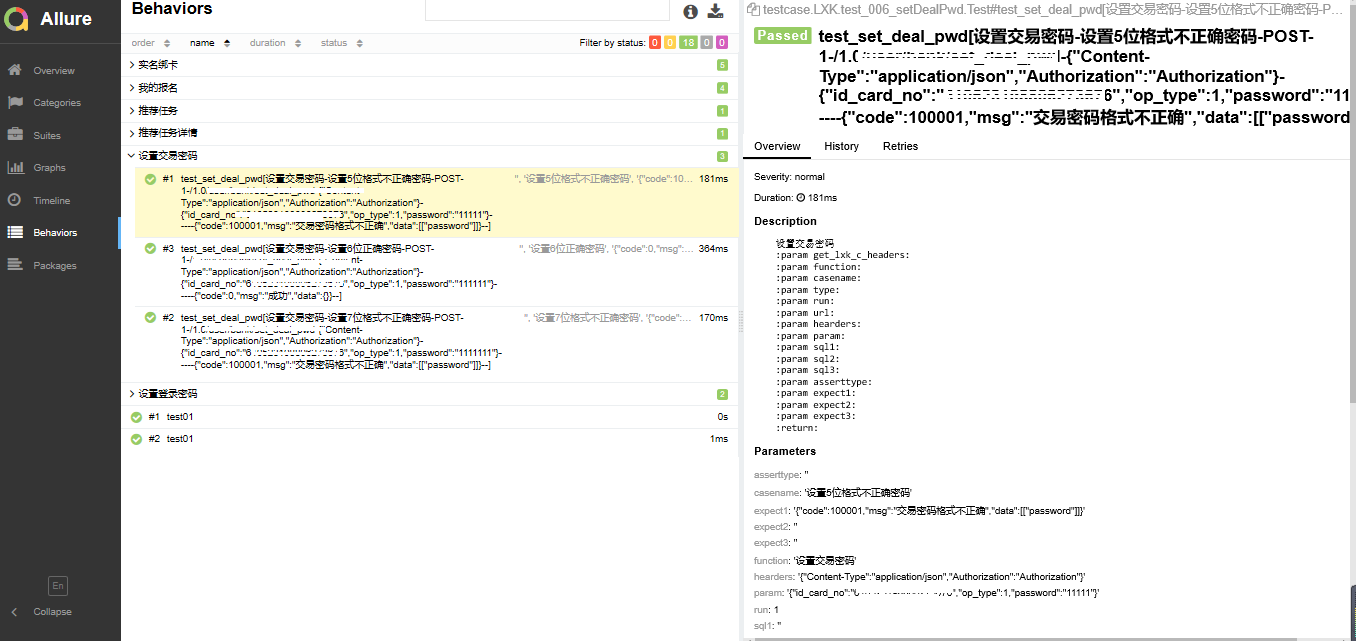

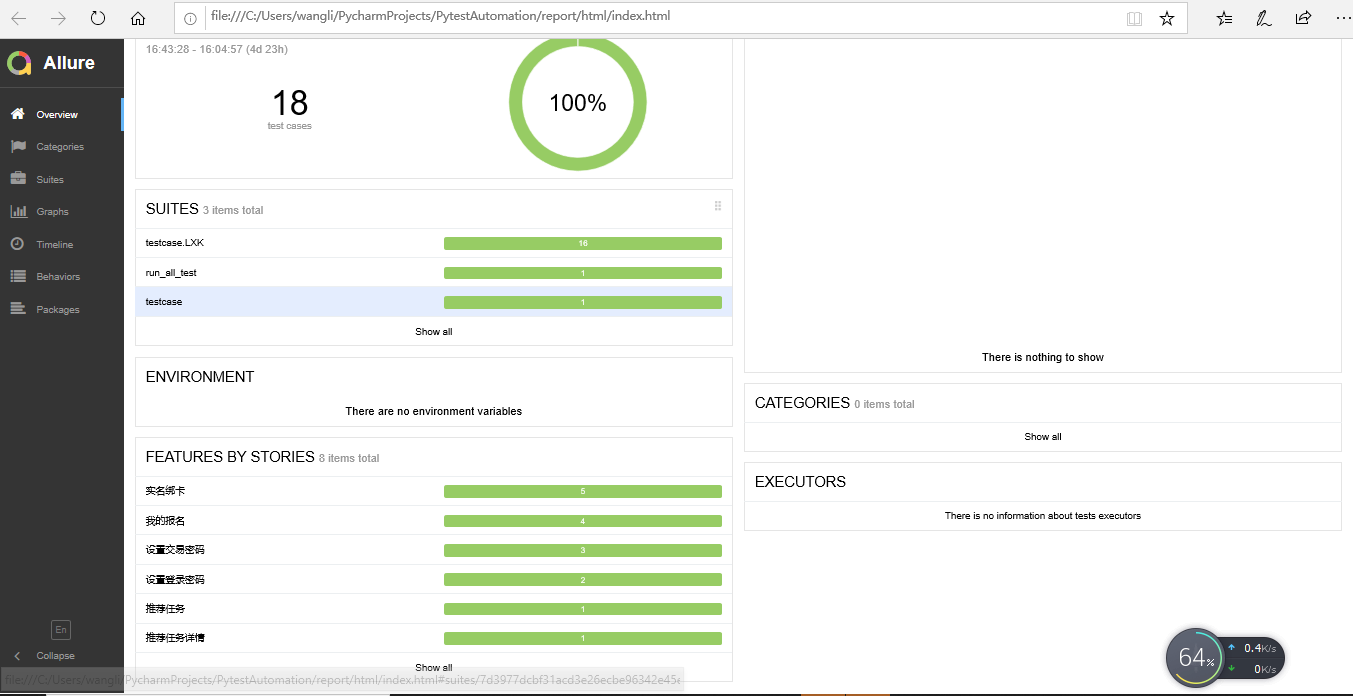

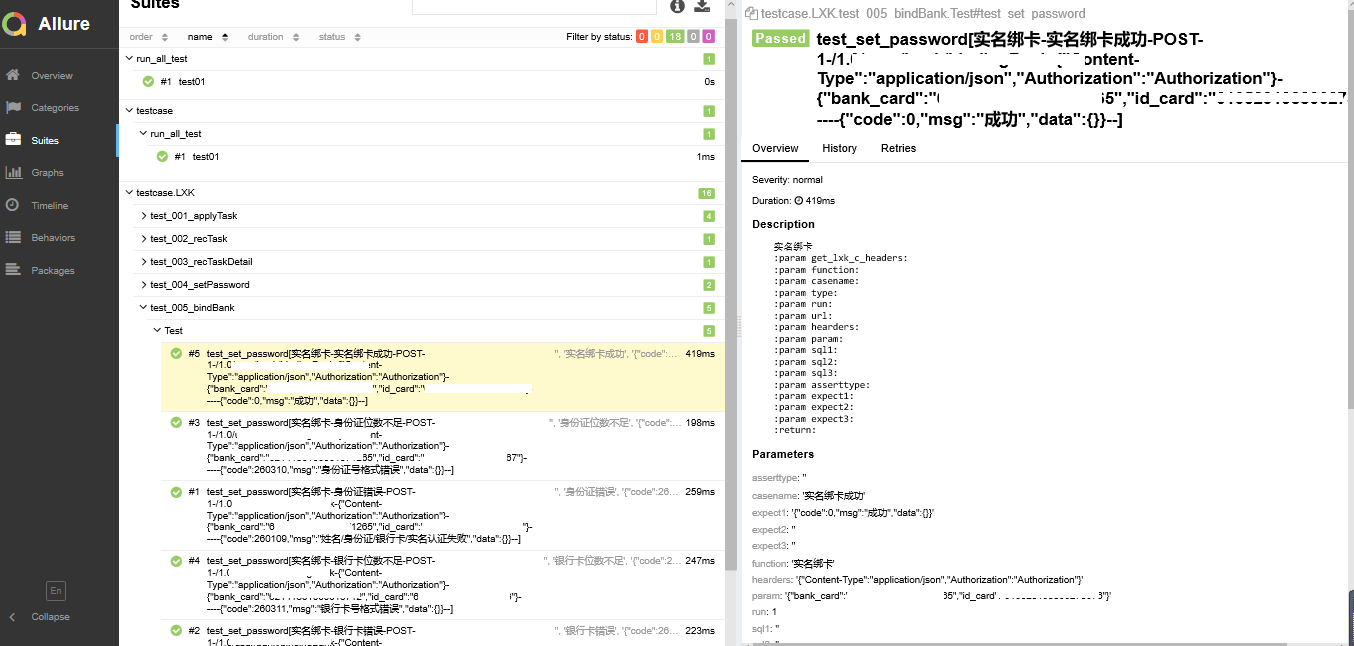

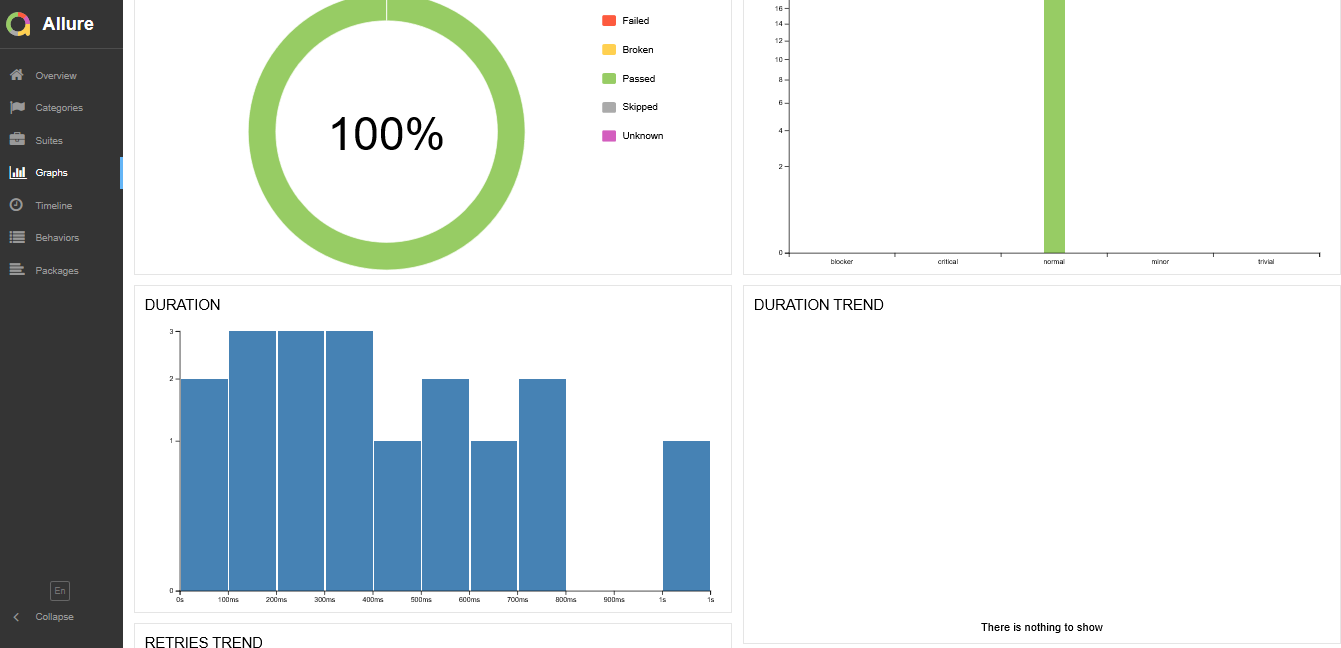

十四、测试报告如下
