需求背景

        因为疫情爆发，进入一级响应状态，公安部门进行了严格出入境管理，需要对每个出入境的人进行状态跟踪。

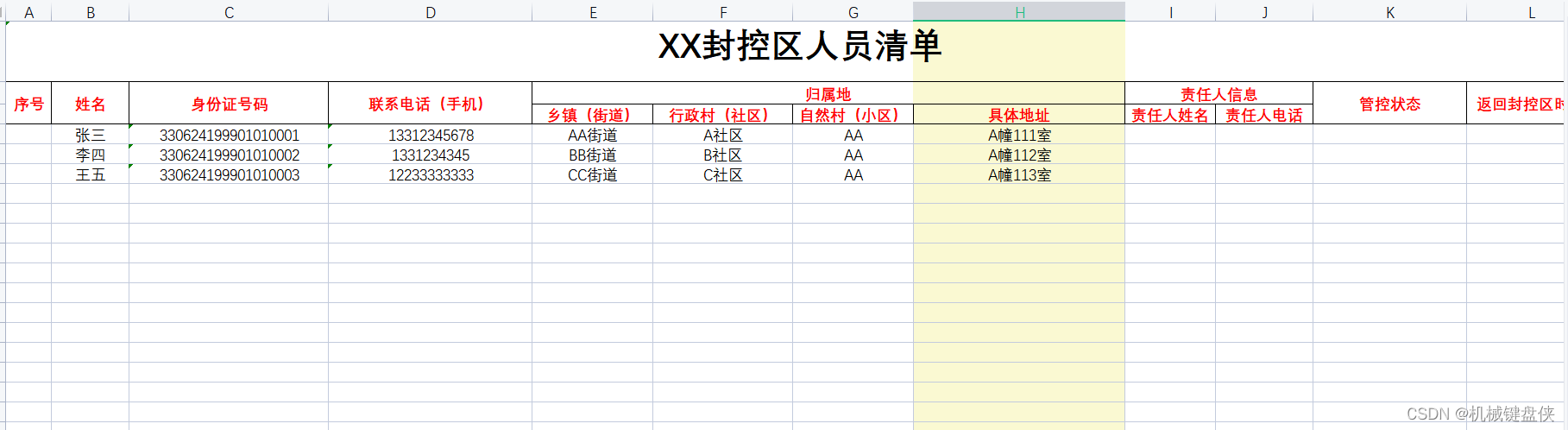

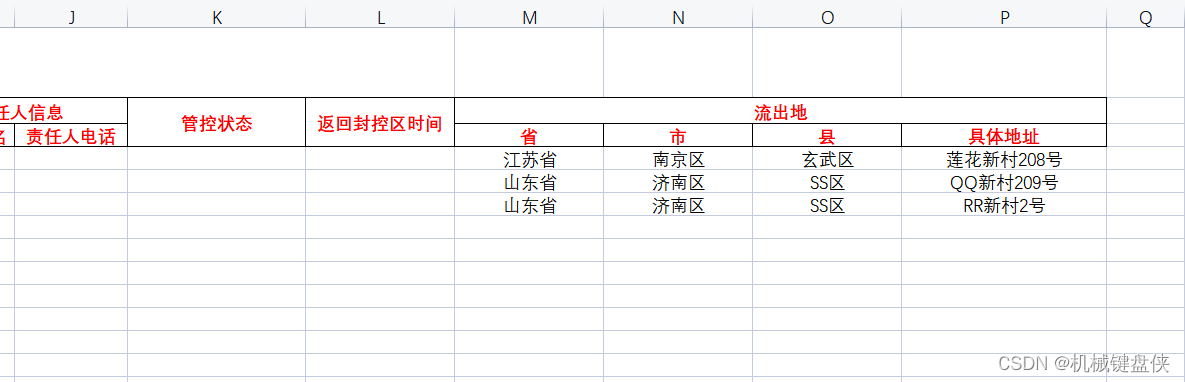

        疫情专班会将出入境的每个人员汇总在一张Excel表中，如下图所示：

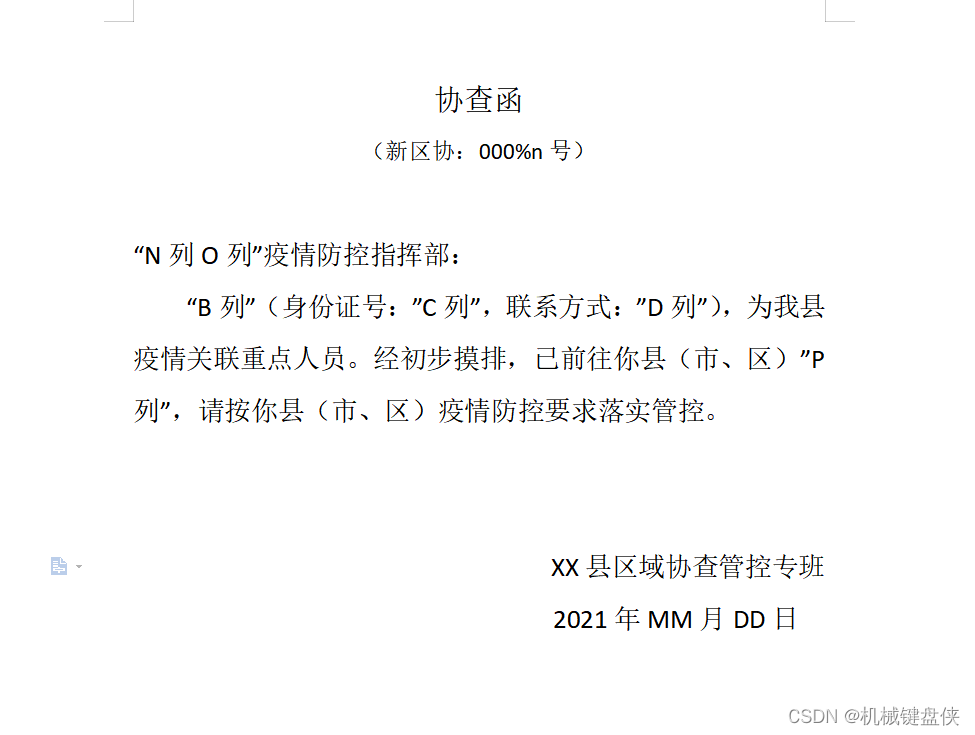

         每一行对应一个人员信息，一个人员信息需要生成一个协查函，需要将人员信息填入到固定格式的协查函中，协查函的格式如下图所示：



---

功能实现

        功能实现分成两个部分，一是从Excel读取数据，二是将读取的数据批量输出到Word文档。

从Excel读取数据使用NPOI，输出到word文档使用Microsoft Word Object Library.

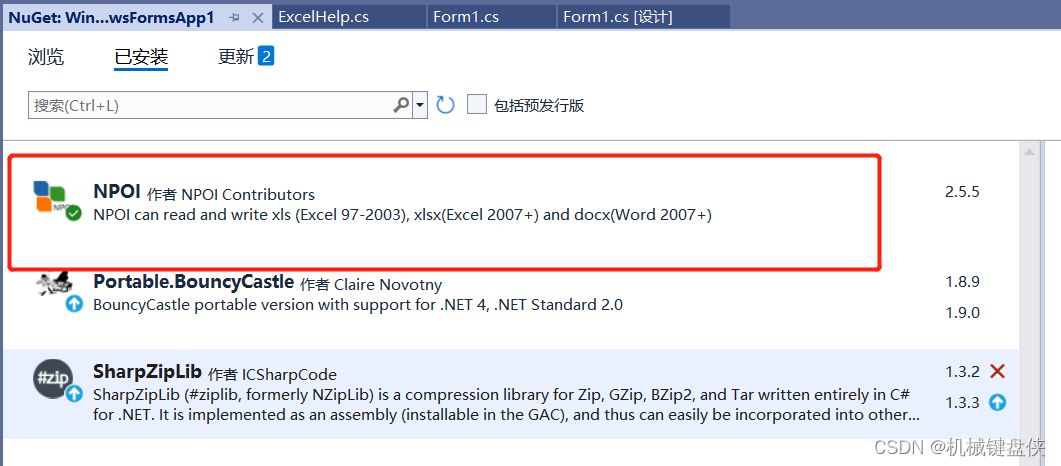

NPOI可以在NuGet程序包中搜索到：

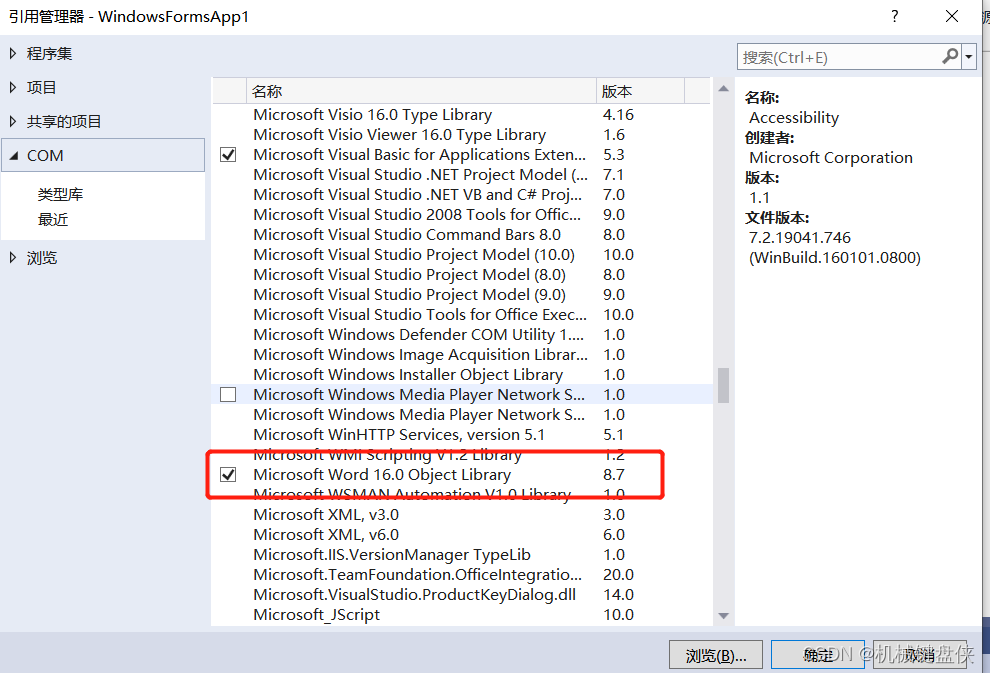

 Microsoft Word Object Library.可以在类库中引用到。

 考虑到速度，功能用winform程序实现。

---

 实现效果

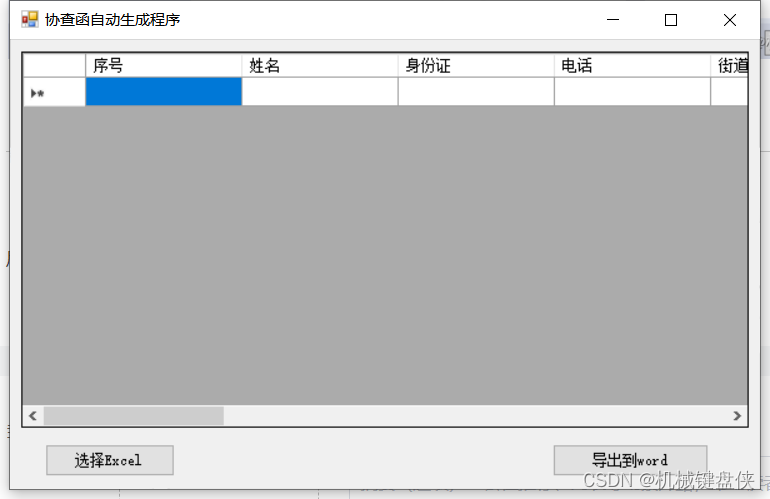

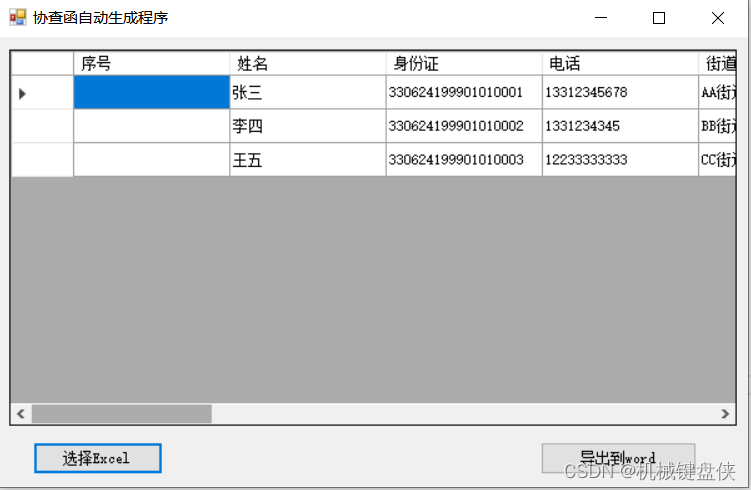

启动程序时：

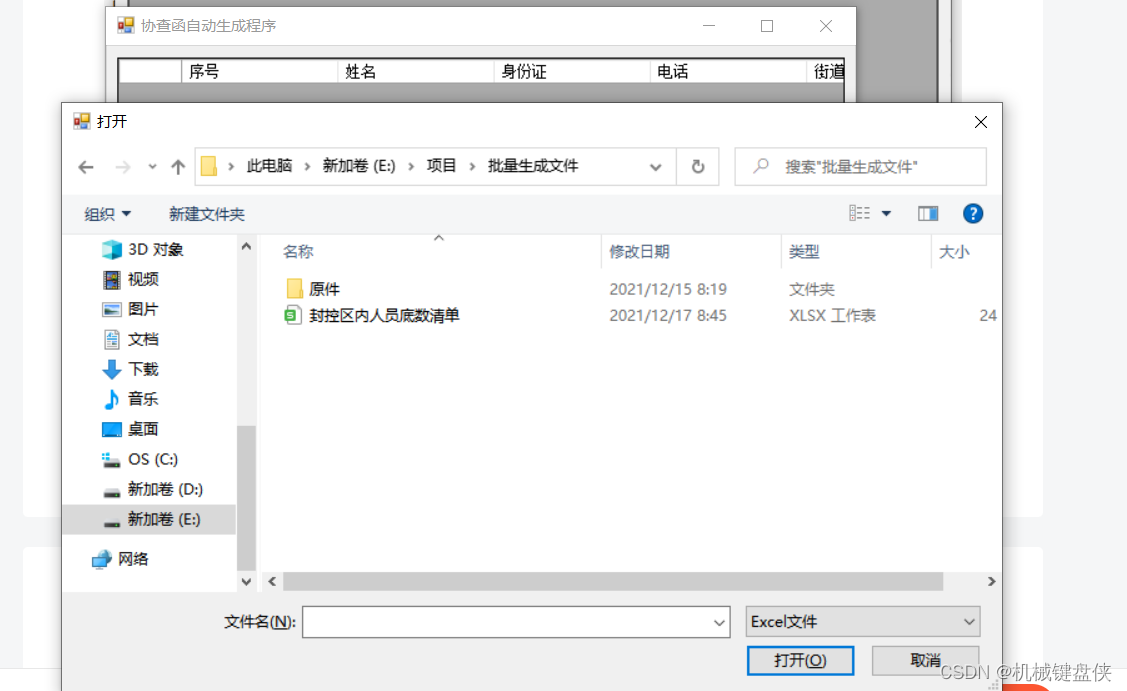

选择Excel：

导入Excel：

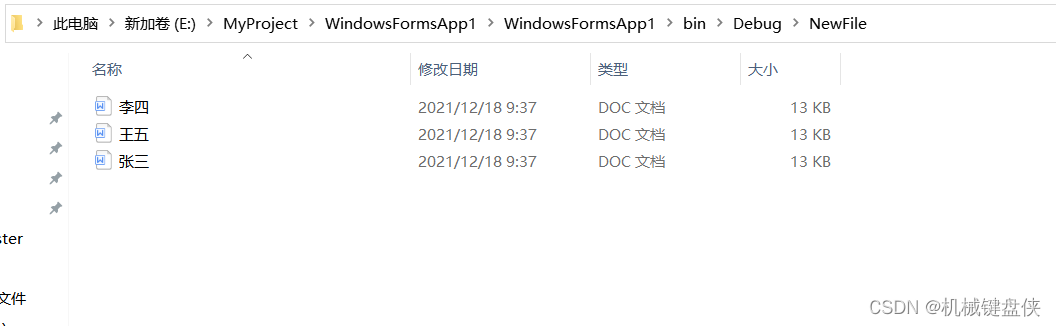

 导出到Word：

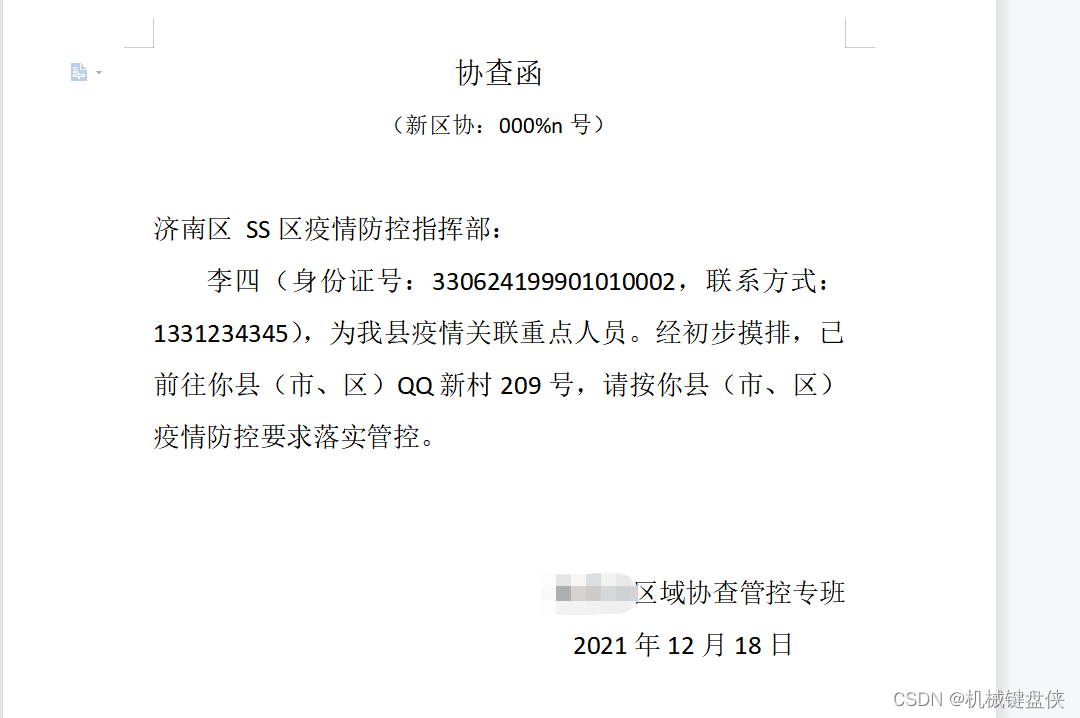

打开Word看看：

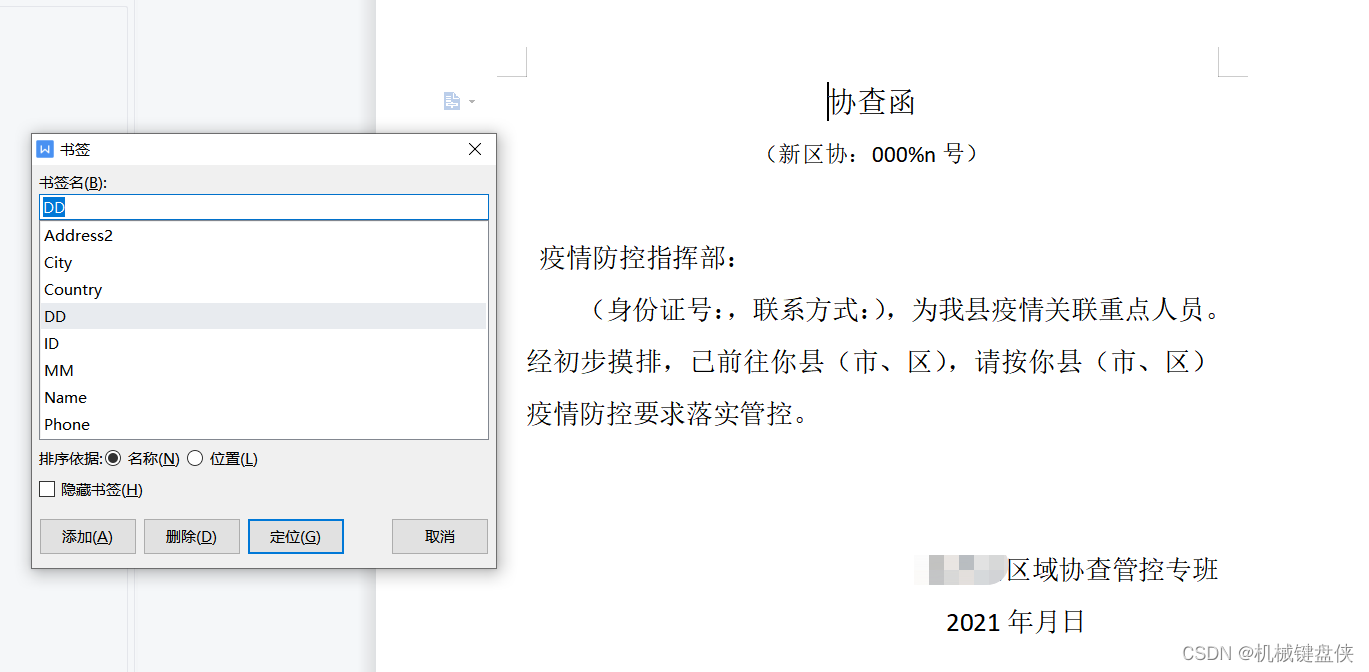

 在开发之前需要对创建一个Word(dot格式)模板文件，内容格式很协查函一样，然后再需要插入数据的地方设置书签即可。



---

 程序代码

ExcelHelp类用于将选中的Excel数据导入到datatable中。

using NPOI.HSSF.UserModel;
using NPOI.SS.UserModel;
using NPOI.XSSF.UserModel;
using System;
using System.Collections.Generic;
using System.Data;
using System.IO;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;namespace WindowsFormsApp1
{public class ExcelHelp{/// <summary>/// 根据指定流文件将Excel导入到datatable中/// </summary>public virtual DataTable ExcelExportDataTable(){DataTable dt = new DataTable();OpenFileDialog fileDialog = new OpenFileDialog();fileDialog.Filter = "Excel文件|*.xls;*.xlsx";fileDialog.InitialDirectory = "E:\\";//设置默认打开路径if (fileDialog.ShowDialog() == DialogResult.OK){string fileName = fileDialog.FileName;//得到文件所在位置FileStream fs = new FileStream(fileDialog.FileName, FileMode.Open, FileAccess.Read);dt = ExcelToDataTable(fs, 0, 2);}return dt;}/// <summary>/// 将excel数据流中的数据转化为datatable/// </summary>/// <param name="ExcelFileStream">指定流文件</param>/// <param name="SheetIndex">导入sheet页页号</param>/// <param name="HeaderRowIndex">行标题行号</param>/// <returns></returns>private DataTable ExcelToDataTable(Stream ExcelFileStream, int SheetIndex, int HeaderRowIndex){//HSSFWorkbook workbook = new HSSFWorkbook(ExcelFileStream);//IWorkbook workbook = new HSSFWorkbook(ExcelFileStream);IWorkbook workbook = new XSSFWorkbook(ExcelFileStream);ISheet sheet = workbook.GetSheetAt(SheetIndex);DataTable table = new DataTable();/*手动构建列名*/IRow headerRow = sheet.GetRow(HeaderRowIndex);int cellCount = headerRow.LastCellNum;DataColumn columnNo = new DataColumn("No");table.Columns.Add(columnNo);DataColumn columnName = new DataColumn("Name");//姓名table.Columns.Add(columnName);DataColumn columnID = new DataColumn("ID");//身份证table.Columns.Add(columnID);DataColumn columnPhone = new DataColumn("Phone");//电话table.Columns.Add(columnPhone);DataColumn columnStreet = new DataColumn("Street");//电话table.Columns.Add(columnStreet);DataColumn columnXVillage = new DataColumn("XVillage");//行政村table.Columns.Add(columnXVillage);DataColumn columnZVillage = new DataColumn("ZVillage");//自然村table.Columns.Add(columnZVillage);DataColumn columnAddress = new DataColumn("Address");//具体地址table.Columns.Add(columnAddress);DataColumn columnDutyName = new DataColumn("DutyName");//责任人姓名table.Columns.Add(columnDutyName);DataColumn columnDutyPhone = new DataColumn("DutyPhone");//责任人电话table.Columns.Add(columnDutyPhone);DataColumn columnStatus = new DataColumn("Status");//管控状态table.Columns.Add(columnStatus);DataColumn columnBackTime = new DataColumn("BackTime");//返回封锁区时间table.Columns.Add(columnBackTime);DataColumn columnProvince = new DataColumn("Province");//省table.Columns.Add(columnProvince);DataColumn columnCity = new DataColumn("City");//市table.Columns.Add(columnCity);DataColumn columnCountry = new DataColumn("Country");//村table.Columns.Add(columnCountry);DataColumn columnAddress2 = new DataColumn("Address2");//具体地址table.Columns.Add(columnAddress2);/*构建datatable表体*/int firstRowNum = 3;//int rowCount = sheet.LastRowNum;for (int i = firstRowNum; i <= sheet.LastRowNum; i++){IRow row = sheet.GetRow(i);DataRow dataRow = table.NewRow();for (int j = row.FirstCellNum; j < cellCount; j++){if (row.GetCell(j) != null){dataRow[j] = row.GetCell(j).ToString();}}table.Rows.Add(dataRow);}ExcelFileStream.Close();workbook = null;sheet = null;return table;}}
}

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using Microsoft.Office.Interop.Word;namespace WindowsFormsApp1
{public partial class Form1 : Form{public System.Data.DataTable table;public Form1(){InitializeComponent();}private void button1_Click(object sender, EventArgs e){ExcelHelp eh = new ExcelHelp();table = eh.ExcelExportDataTable();dataGridView1.AllowUserToAddRows = false;dataGridView1.DataSource = table;if (table.Rows.Count == 0){MessageBox.Show("Excel中无数据!");return;}}private void button2_Click(object sender, EventArgs e){if (table == null){MessageBox.Show("请先选择Excel!");return;}int count = table.Rows.Count;//Microsoft.Office.Interop.Word._Application oWord;if (count > 0){for (int i = 0; i < count; i++){//创建一个Word应用程序实例Microsoft.Office.Interop.Word._Application oWord = new Microsoft.Office.Interop.Word.Application();object oMissing = System.Reflection.Missing.Value;//设置为不可见oWord.Visible = false;//模板文件地址，debug bin 目录下//object oTemplate = "E://template.dot";object oTemplate = System.Windows.Forms.Application.StartupPath + "\\template.dot";//以模板为基础生成文档Microsoft.Office.Interop.Word._Document oDoc = oWord.Documents.Add(ref oTemplate, ref oMissing, ref oMissing, ref oMissing);//声明书签数组object[] oBookMark = new object[8];//赋值书签名oBookMark[0] = "Name";oBookMark[1] = "ID";oBookMark[2] = "Phone";oBookMark[3] = "City";oBookMark[4] = "Country";oBookMark[5] = "Address2";oBookMark[6] = "MM";oBookMark[7] = "DD";//赋值数据到书签的位置string mm = DateTime.Now.Month.ToString();string dd = DateTime.Now.Day.ToString();oDoc.Bookmarks.get_Item(ref oBookMark[0]).Range.Text = table.Rows[i]["Name"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[1]).Range.Text = table.Rows[i]["ID"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[2]).Range.Text = table.Rows[i]["Phone"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[3]).Range.Text = table.Rows[i]["City"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[4]).Range.Text = table.Rows[i]["Country"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[5]).Range.Text = table.Rows[i]["Address2"].ToString();oDoc.Bookmarks.get_Item(ref oBookMark[6]).Range.Text = mm;oDoc.Bookmarks.get_Item(ref oBookMark[7]).Range.Text = dd;//导出的Word文件地址设置在 debug bin里的NewFile文件夹object path = System.Windows.Forms.Application.StartupPath + "\\NewFile\\" + filename + ".doc";oDoc.SaveAs(ref path, ref oMissing, ref oMissing, ref oMissing,ref oMissing, ref oMissing, ref oMissing, ref oMissing, ref oMissing,ref oMissing, ref oMissing, ref oMissing, ref oMissing, ref oMissing,ref oMissing, ref oMissing);oDoc.Close(ref oMissing, ref oMissing, ref oMissing);//关闭word模板oWord.Quit(ref oMissing, ref oMissing, ref oMissing);}MessageBox.Show("导出成功,生成了" + count + "个文件!");}else{MessageBox.Show("Excel中无数据!");}}}
}
