前言
新公司太忙了,都没啥空更新博客,就随便记录一下以前的学习笔记吧。SpringBoot是基于Spring上的衍生框架,只要看懂了Spring的话,学这个就比较简单了;SpringBoot也是在当前微服务时代下流行的框架,并且该框架采用了自动配置,所以只要简单的配置一下就可以直接使用了,省去了很多做配置的时间,可以说是开箱即用。当前SpringBoot版本号为2.1.15.RELEASE版本
使用SpringBoot
这个可以借鉴一下官网:快速创建SpringBoot Initializer
我们新建一个maven项目,然后在pom.xml添加一下两种依赖中的一种即可
<!--添加父模块-->
<parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>2.1.15.RELEASE</version>
</parent>
<!--添加依赖管理-->
<dependencyManagement><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-dependencies</artifactId><version>2.1.15.RELEASE</version><type>pom</type><scope>import</scope></dependency></dependencies>
</dependencyManagement>
由于在SpringBoot框架中采用模块化形式,所以如果想要使用哪些模块,可直接引入spring-boot-starter-xxxx模块,例如:
<!-- test模块 -->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId>
</dependency>
<!-- Web模块 -->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- 操作数据库模块 -->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<!-- 操作redis模块 -->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
引用好对应的模块之后,接下来就是打包了,一般采用SpringBoot自己封装的打包plugin工具,打成可执行包,如果要打成普通的引入jar包的话,那就不需要引入这个plugin了;
<build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId><executions><execution><goals><goal>repackage</goal></goals></execution></executions></plugin></plugins>
</build>
然后就是启动了,在主类加上相应的配置,就可以使用了
@SpringBootApplication
public class App {public static void main( String[] args ) {SpringApplication.run(App.class, args);}
}
启动原理
简单的使用讲过,接下来开始讲讲源码啦
@SpringBootApplication
注解主要作用是标识当前类为启动类,通过SpringBoot打包后的jar中找到该类,并启动当前应用,常用的属性有:
exclude:去除指定自动配置类。
scanBasePackages:扫描路径同ComponentScan一致
该注解源码中包含一下注解:
//设置为配置类相当于@Configuration,可自行点进去阅读
@SpringBootConfiguration
//自动配置注解,该注解包含@Import注解
@EnableAutoConfiguration
//开启扫描路径,默认为启动类同路径下所有包
@ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),@Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
@EnableAutoConfiguration
该注解为表示自动配置,SpringBoot中自动配置,开箱即用的精髓都在于这个自动配置注解,该注解引用了@Import注解,去扫描spring.factories文件下的
org.springframework.boot.autoconfigure.EnableAutoConfiguration
对应的的自动配置类,并加载相关Bean注入到IOC容器当中
SpringApplication
该类是应用启动的主类,点进去看一下会发现其实就是创建SpringApplication对象并且调用run方法:
创建对象
读取累路径下META-INF/spring.factories文件中的相关属性,并且拿到对应的Class对象
@SuppressWarnings({ "unchecked", "rawtypes" })
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {this.resourceLoader = resourceLoader;Assert.notNull(primarySources, "PrimarySources must not be null");//保存主配置类this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));this.webApplicationType = WebApplicationType.deduceFromClasspath();//读取spring.factories中ApplicationContextInitializer相关配置setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));//读取spring.factories中ApplicationListener相关配置setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));this.mainApplicationClass = deduceMainApplicationClass();
}
在SpringBoot默认的spring.factories文件中对应的ApplicationListener和ApplicationContextInitializer对应的示例:
# Run Listeners
org.springframework.boot.SpringApplicationRunListener=\
org.springframework.boot.context.event.EventPublishingRunListener# Application Context Initializers
org.springframework.context.ApplicationContextInitializer=\
org.springframework.boot.context.ConfigurationWarningsApplicationContextInitializer,\
org.springframework.boot.context.ContextIdApplicationContextInitializer,\
org.springframework.boot.context.config.DelegatingApplicationContextInitializer,\
org.springframework.boot.web.context.ServerPortInfoApplicationContextInitializer# Application Listeners
org.springframework.context.ApplicationListener=\
org.springframework.boot.ClearCachesApplicationListener,\
org.springframework.boot.builder.ParentContextCloserApplicationListener,\
org.springframework.boot.cloud.CloudFoundryVcapEnvironmentPostProcessor,\
org.springframework.boot.context.FileEncodingApplicationListener,\
org.springframework.boot.context.config.AnsiOutputApplicationListener,\
org.springframework.boot.context.config.ConfigFileApplicationListener,\
org.springframework.boot.context.config.DelegatingApplicationListener,\
org.springframework.boot.context.logging.ClasspathLoggingApplicationListener,\
org.springframework.boot.context.logging.LoggingApplicationListener,\
org.springframework.boot.liquibase.LiquibaseServiceLocatorApplicationListener
拿到这些类,并执行对应的方法:
ApplicationContextInitializer
配置在META-INF/spring.factories文件中,配置示例如上,继承接口并实现initialize方法,在Spring初始化之前执行该方法:
public class AppListenerStarter implements ApplicationContextInitializer<ConfigurableApplicationContext> {@Overridepublic void initialize(ConfigurableApplicationContext applicationContext) {System.out.println("AppListenerStarter ... ");}}
SpringApplicationRunListener
配置在META-INF/spring.factories文件中,配置示例如上,继承接口并实现initialize方法,在Spring初始化之前执行该方法:
public class AppListener implements SpringApplicationRunListener {//必须要有参构造方法public AppListener(SpringApplication application, String[] args) {}@Overridepublic void starting() {System.out.println("AppListener starting...");}@Overridepublic void environmentPrepared(ConfigurableEnvironment environment) {Object o = environment.getSystemProperties().get("os.name");System.out.println("AppListener environmentPrepared..." + o);}@Overridepublic void contextPrepared(ConfigurableApplicationContext context) {System.out.println("AppListener contextPrepared...");}@Overridepublic void contextLoaded(ConfigurableApplicationContext context) {System.out.println("AppListener contextLoaded...");}@Overridepublic void started(ConfigurableApplicationContext context) {System.out.println("AppListener ConfigurableApplicationContext started...");}@Overridepublic void running(ConfigurableApplicationContext context) {System.out.println("AppListener running...");}@Overridepublic void failed(ConfigurableApplicationContext context, Throwable exception) {System.out.println("AppListener failed...");}}

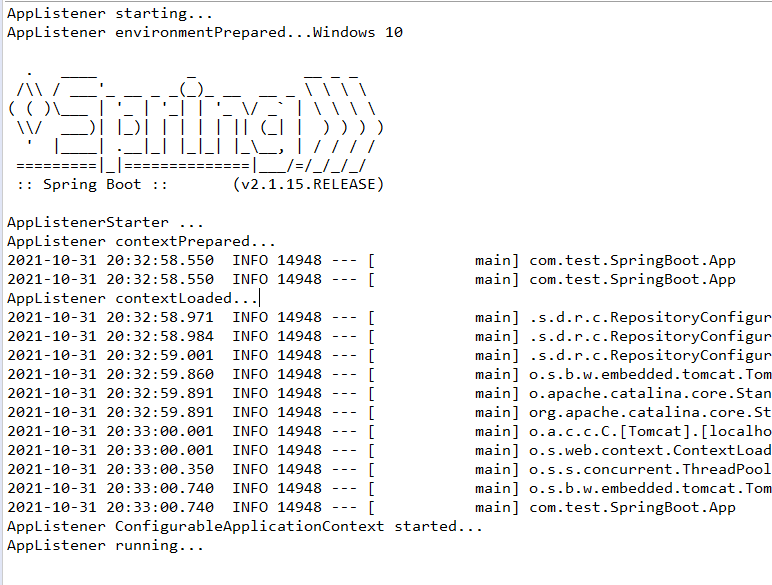

执行结果为:
调用run方法
//计时器,用来记录Spring容器启动花费的时间
StopWatch stopWatch = new StopWatch();
stopWatch.start();
ConfigurableApplicationContext context = null;
Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
configureHeadlessProperty();
//从spring.factories文件中获取SpringApplicationRunListener实现类
SpringApplicationRunListeners listeners = getRunListeners(args);
//开始执行对应的监听器
listeners.starting();
try {//封装命令行参数ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);//封装监听器和参数ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);configureIgnoreBeanInfo(environment);//打印Banner日志,就是那个SpringBoot的大LOGOBanner printedBanner = printBanner(environment);//创建指定SpringIOC容器context = createApplicationContext();//获取spring.factories文件中SpringBootExceptionReporter对应的Class,默认值为FailureAnalyzersexceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,new Class[] { ConfigurableApplicationContext.class }, context);//执行监听器中的contextPrepared()方法prepareContext(context, environment, listeners, applicationArguments, printedBanner);//刷新IOC容器,即调用Spring中的refresh方法(扫描,加载),优先加载业务组件中的,然后在加载spring.factories文件中自动配置的类refreshContext(context);afterRefresh(context, applicationArguments);//计时停止stopWatch.stop();if (this.logStartupInfo) {new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);}//开始调用监听器中的started方法listeners.started(context);//回调ApplicationRunner和CommandLineRunner接口的实现类方法callRunners(context, applicationArguments);
}
catch (Throwable ex) {handleRunFailure(context, ex, exceptionReporters, listeners);throw new IllegalStateException(ex);
}try {//调用监听器running方法listeners.running(context);
}
catch (Throwable ex) {handleRunFailure(context, ex, exceptionReporters, null);throw new IllegalStateException(ex);
}
return context;
至此,SpringBoot启动流程结束了,自动配置就是将spring.factories文件中的指定配置类全部加载到容器中,优先加载业务Bean,后加载自动配置类中的Bean。
