一，环境说明

jdk1.7.0_07(cmd命令行输入java -version查看)，点击下载
eclipse Kepler Service Release 2
apache-maven-3.3.9(cmd命令行输入mvn -v查看)，点击下载
apache-tomcat-7.0.52，点击下载
mysql-5.5.28-winx64，点击下载

二，设置Eclipse开发环境

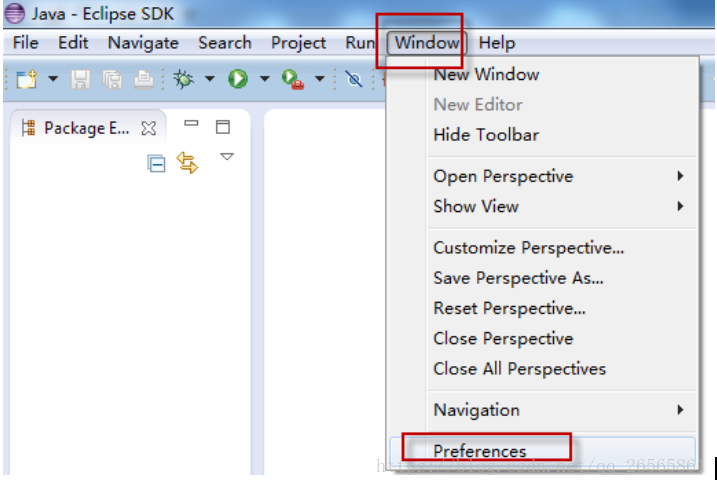

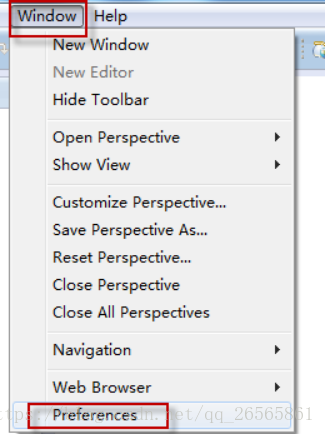

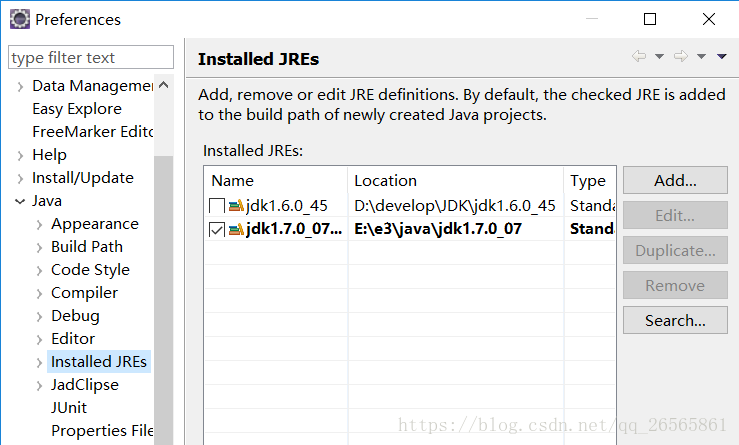

2.1，设置jre运行环境

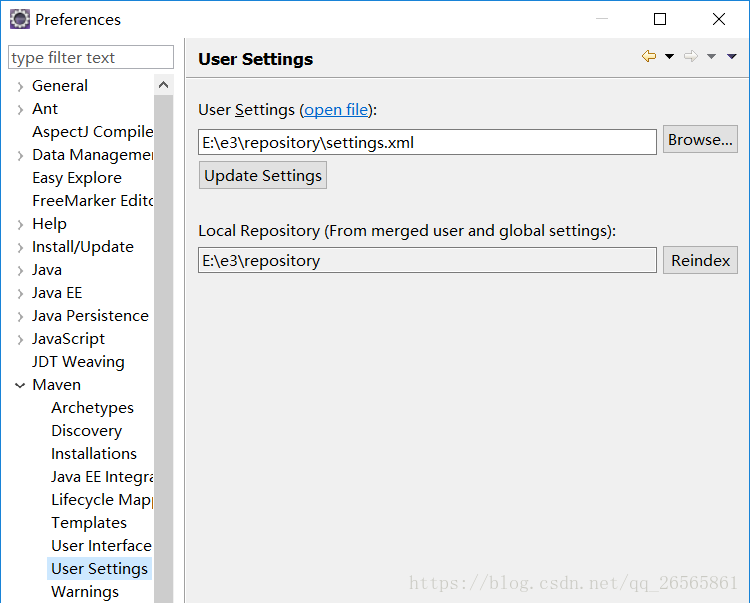

2.2，配置settings.xml文件和仓库路径

settings.xml

<?xml version="1.0"?>
<settings>
<localRepository>E:\e3\repository</localRepository><!--需要改成自己的maven的本地仓库地址-->  <mirrors>  <mirror>  <id>alimaven</id>  <name>aliyun maven</name>  <url>http://maven.aliyun.com/nexus/content/groups/public/</url>  <mirrorOf>central</mirrorOf>  </mirror>  </mirrors>  <profiles>  <profile>  <id>nexus</id>   <repositories>  <repository>  <id>nexus</id>  <name>local private nexus</name>  <url>http://maven.oschina.net/content/groups/public/</url>  <releases>  <enabled>true</enabled>  </releases>  <snapshots>  <enabled>false</enabled>  </snapshots>  </repository>  </repositories>  <pluginRepositories>  <pluginRepository>  <id>nexus</id>  <name>local private nexus</name>  <url>http://maven.oschina.net/content/groups/public/</url>  <releases>  <enabled>true</enabled>  </releases>  <snapshots>  <enabled>false</enabled>  </snapshots>  </pluginRepository>  </pluginRepositories>  </profile></profiles>
</settings>

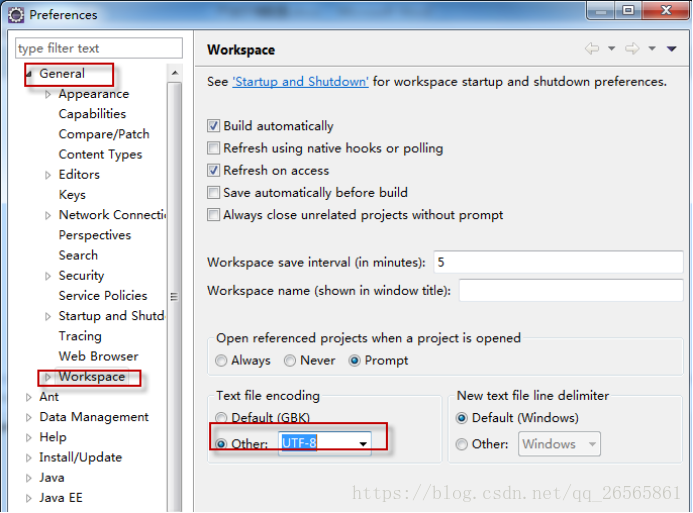

2.3，设置eclipse默认字符集

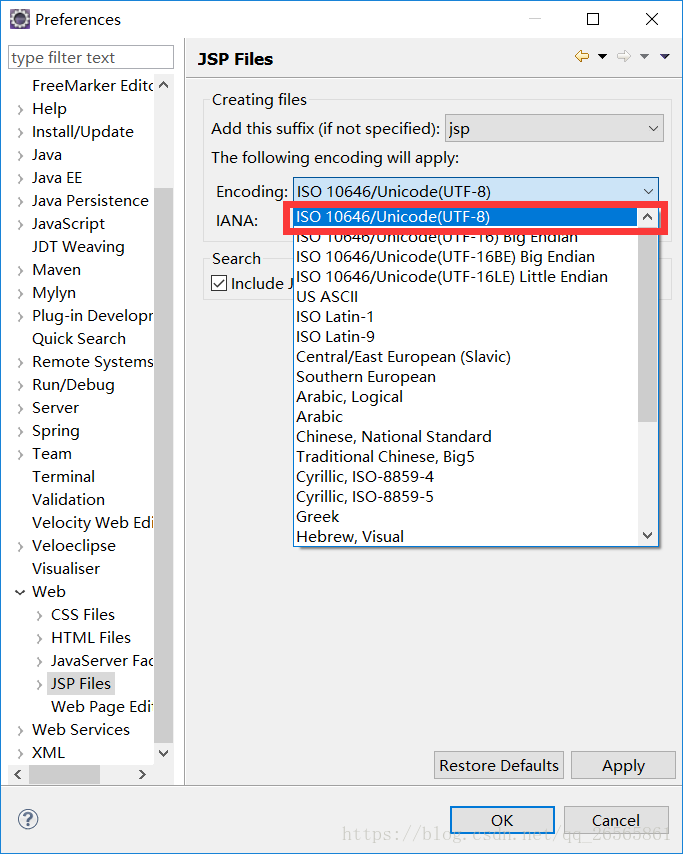

2.4，设置JSP页面编码

2.5，配置tomcat运行环境

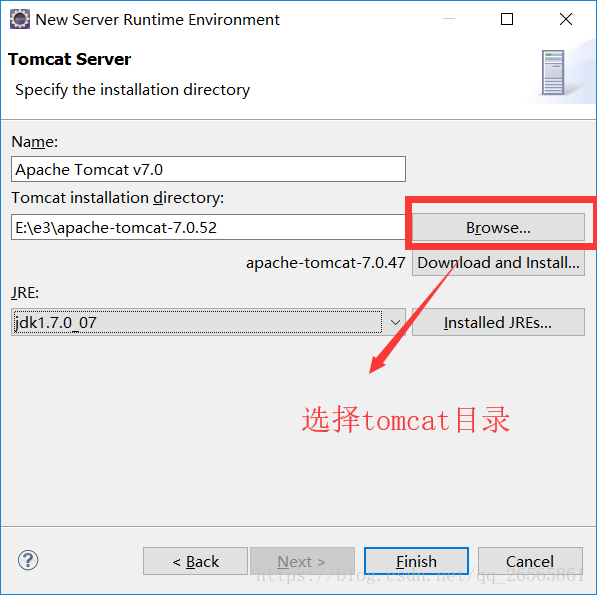

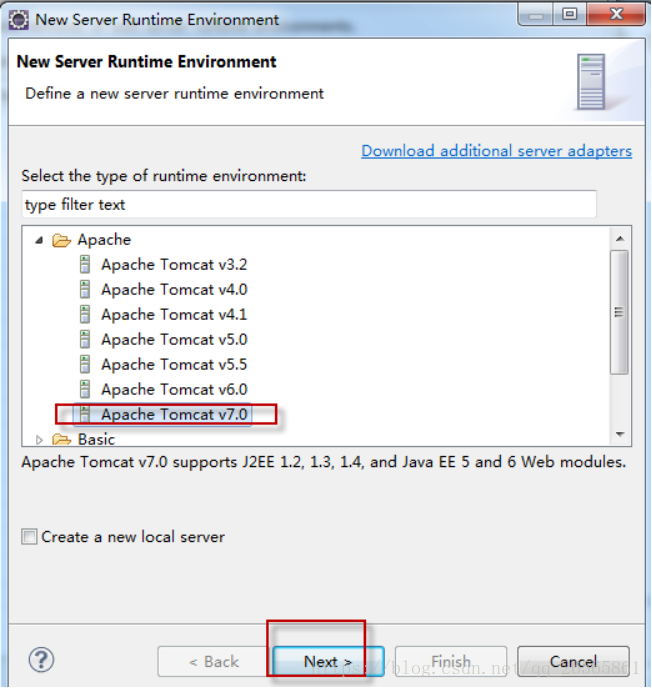

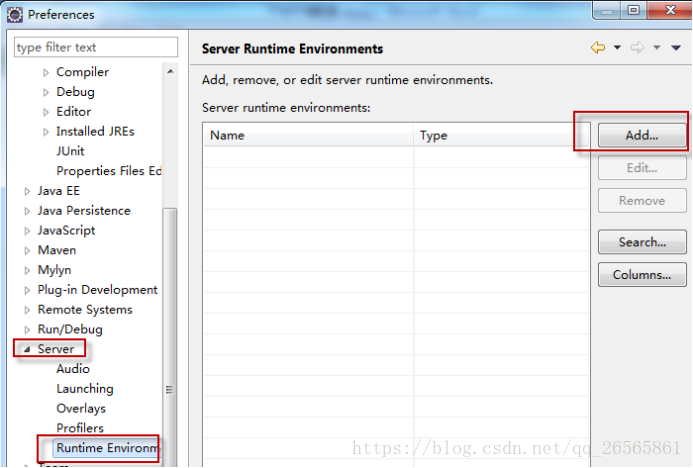

2.5.1,添加tomcat运行环境

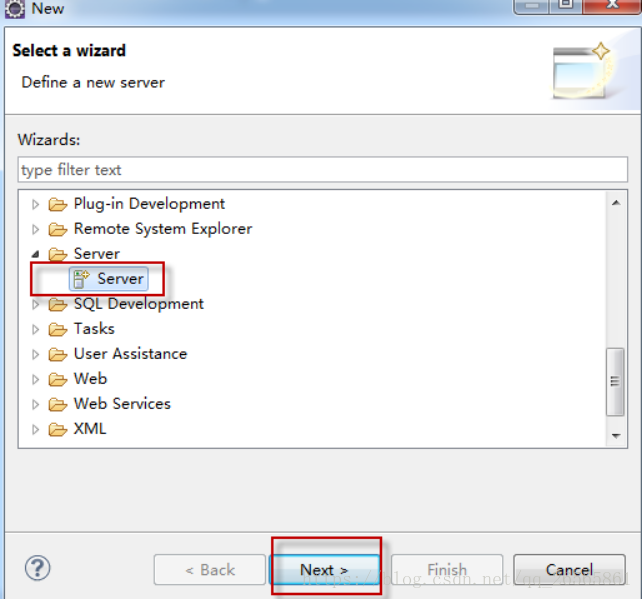

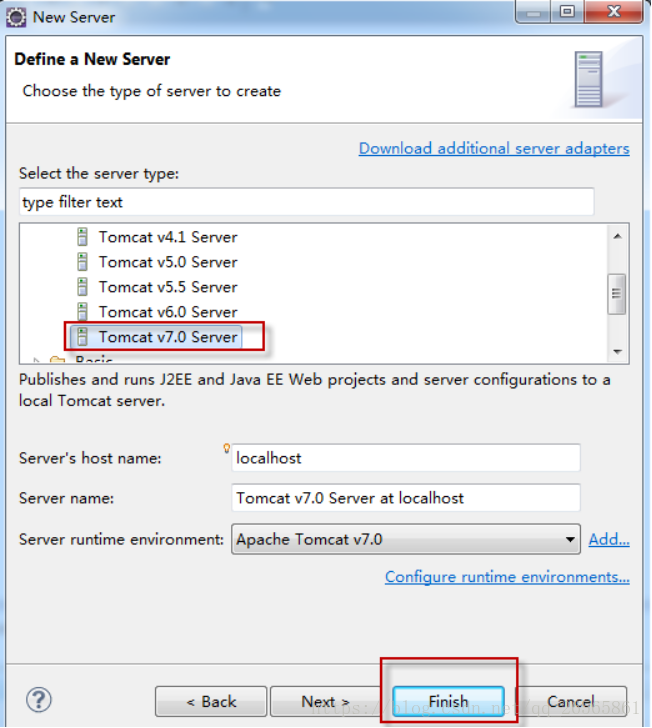

2.5.2,添加Tomcat Server

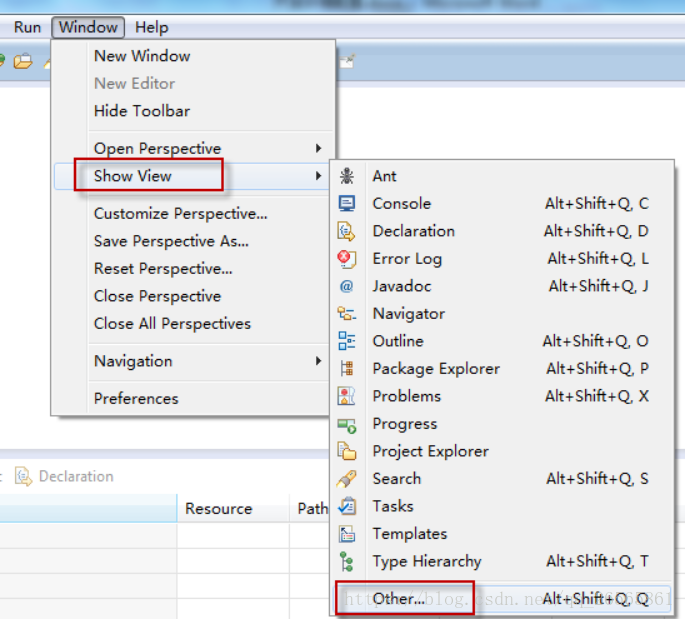

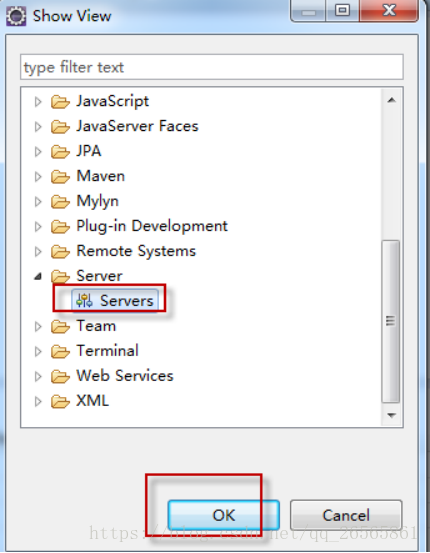

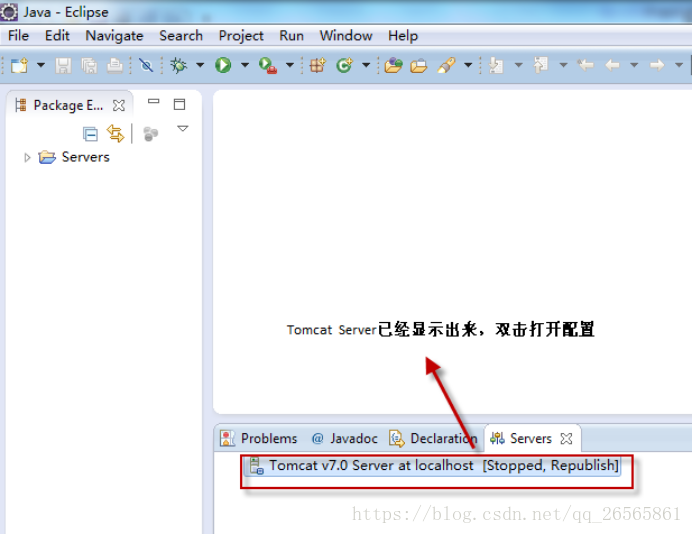

2.5.3,显示Tomcat Server

2.5.4,配置tomcat



3,工程搭建

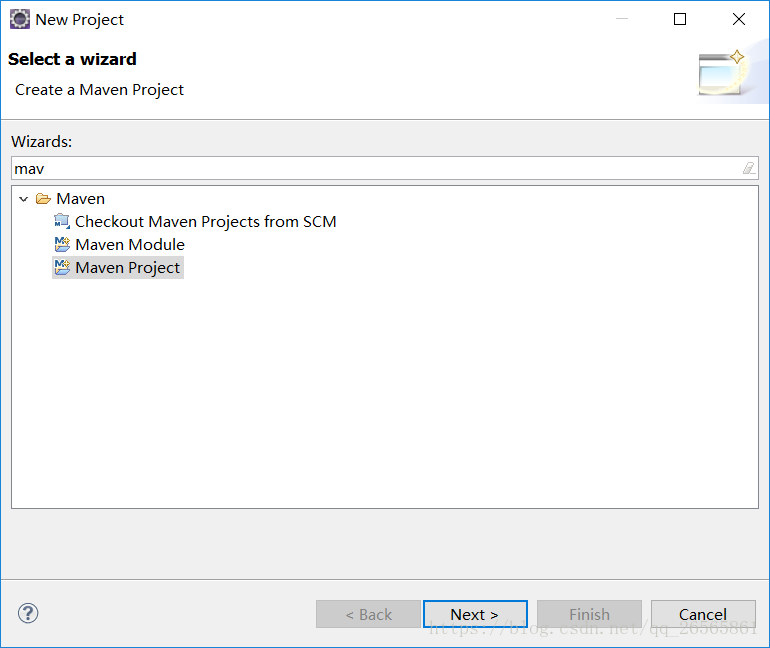

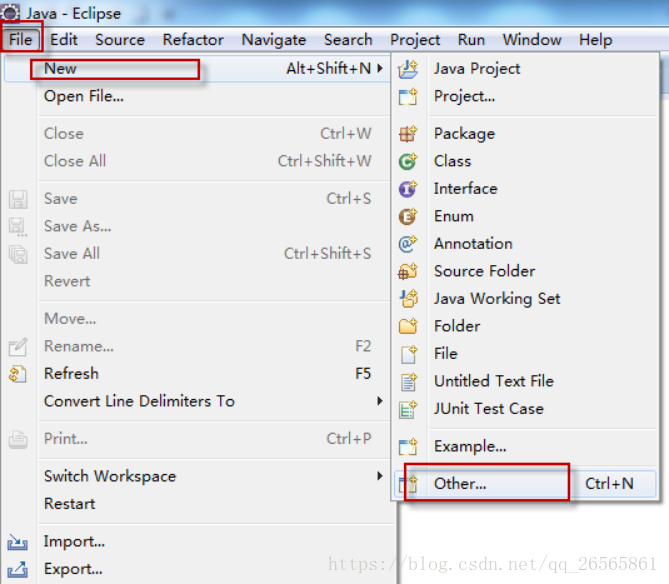

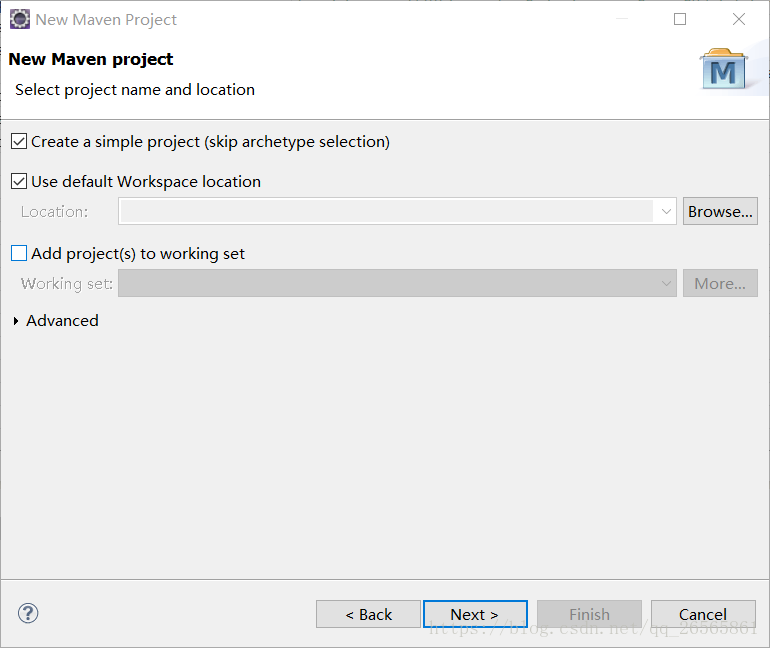

3.1，e3-parent（父工程，管理依赖的版本）

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>cn.e3mall</groupId><artifactId>e3-parent</artifactId><version>0.0.1-SNAPSHOT</version><packaging>pom</packaging><!-- 集中定义依赖版本号 --><properties><junit.version>4.12</junit.version><spring.version>4.2.4.RELEASE</spring.version><mybatis.version>3.2.8</mybatis.version><mybatis.spring.version>1.2.2</mybatis.spring.version><mybatis.paginator.version>1.2.15</mybatis.paginator.version><mysql.version>5.1.32</mysql.version><slf4j.version>1.6.4</slf4j.version><jackson.version>2.4.2</jackson.version><druid.version>1.0.9</druid.version><httpclient.version>4.3.5</httpclient.version><jstl.version>1.2</jstl.version><servlet-api.version>2.5</servlet-api.version><jsp-api.version>2.0</jsp-api.version><joda-time.version>2.5</joda-time.version><commons-lang3.version>3.3.2</commons-lang3.version><commons-io.version>1.3.2</commons-io.version><commons-net.version>3.3</commons-net.version><pagehelper.version>3.4.2-fix</pagehelper.version><jsqlparser.version>0.9.1</jsqlparser.version><commons-fileupload.version>1.3.1</commons-fileupload.version><jedis.version>2.7.2</jedis.version><solrj.version>4.10.3</solrj.version><dubbo.version>2.5.3</dubbo.version><zookeeper.version>3.4.7</zookeeper.version><zkclient.version>0.1</zkclient.version><activemq.version>5.11.2</activemq.version><freemarker.version>2.3.23</freemarker.version><quartz.version>2.2.2</quartz.version></properties><dependencyManagement><dependencies><!-- 时间操作组件 --><dependency><groupId>joda-time</groupId><artifactId>joda-time</artifactId><version>${joda-time.version}</version></dependency><!-- Apache工具组件 --><dependency><groupId>org.apache.commons</groupId><artifactId>commons-lang3</artifactId><version>${commons-lang3.version}</version></dependency><dependency><groupId>org.apache.commons</groupId><artifactId>commons-io</artifactId><version>${commons-io.version}</version></dependency><dependency><groupId>commons-net</groupId><artifactId>commons-net</artifactId><version>${commons-net.version}</version></dependency><!-- Jackson Json处理工具包 --><dependency><groupId>com.fasterxml.jackson.core</groupId><artifactId>jackson-databind</artifactId><version>${jackson.version}</version></dependency><!-- httpclient --><dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId><version>${httpclient.version}</version></dependency><!-- quartz任务调度框架 --><dependency><groupId>org.quartz-scheduler</groupId><artifactId>quartz</artifactId><version>${quartz.version}</version></dependency><!-- 单元测试 --><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>${junit.version}</version><scope>test</scope></dependency><!-- 日志处理 --><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-log4j12</artifactId><version>${slf4j.version}</version></dependency><!-- Mybatis --><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId><version>${mybatis.version}</version></dependency><dependency><groupId>org.mybatis</groupId><artifactId>mybatis-spring</artifactId><version>${mybatis.spring.version}</version></dependency><dependency><groupId>com.github.miemiedev</groupId><artifactId>mybatis-paginator</artifactId><version>${mybatis.paginator.version}</version></dependency><dependency><groupId>com.github.pagehelper</groupId><artifactId>pagehelper</artifactId><version>${pagehelper.version}</version></dependency><!-- MySql --><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>${mysql.version}</version></dependency><!-- 连接池 --><dependency><groupId>com.alibaba</groupId><artifactId>druid</artifactId><version>${druid.version}</version></dependency><!-- Spring --><dependency><groupId>org.springframework</groupId><artifactId>spring-context</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-beans</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-webmvc</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jdbc</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-aspects</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jms</artifactId><version>${spring.version}</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-context-support</artifactId><version>${spring.version}</version></dependency><!-- JSP相关 --><dependency><groupId>jstl</groupId><artifactId>jstl</artifactId><version>${jstl.version}</version></dependency><dependency><groupId>javax.servlet</groupId><artifactId>servlet-api</artifactId><version>${servlet-api.version}</version><scope>provided</scope></dependency><dependency><groupId>javax.servlet</groupId><artifactId>jsp-api</artifactId><version>${jsp-api.version}</version><scope>provided</scope></dependency><!-- 文件上传组件 --><dependency><groupId>commons-fileupload</groupId><artifactId>commons-fileupload</artifactId><version>${commons-fileupload.version}</version></dependency><!-- Redis客户端 --><dependency><groupId>redis.clients</groupId><artifactId>jedis</artifactId><version>${jedis.version}</version></dependency><!-- solr客户端 --><dependency><groupId>org.apache.solr</groupId><artifactId>solr-solrj</artifactId><version>${solrj.version}</version></dependency><!-- dubbo相关 --><dependency><groupId>com.alibaba</groupId><artifactId>dubbo</artifactId><version>${dubbo.version}</version></dependency><dependency><groupId>org.apache.zookeeper</groupId><artifactId>zookeeper</artifactId><version>${zookeeper.version}</version></dependency><dependency><groupId>com.github.sgroschupf</groupId><artifactId>zkclient</artifactId><version>${zkclient.version}</version></dependency><dependency><groupId>org.apache.activemq</groupId><artifactId>activemq-all</artifactId><version>${activemq.version}</version></dependency><dependency><groupId>org.freemarker</groupId><artifactId>freemarker</artifactId><version>${freemarker.version}</version></dependency></dependencies></dependencyManagement><build><finalName>${project.artifactId}</finalName><plugins><!-- 资源文件拷贝插件 --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-resources-plugin</artifactId><version>2.7</version><configuration><encoding>UTF-8</encoding></configuration></plugin><!-- java编译插件 --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.2</version><configuration><source>1.7</source><target>1.7</target><encoding>UTF-8</encoding></configuration></plugin></plugins><pluginManagement><plugins><!-- 配置Tomcat插件 --><plugin><groupId>org.apache.tomcat.maven</groupId><artifactId>tomcat7-maven-plugin</artifactId><version>2.2</version></plugin></plugins></pluginManagement></build>
</project>



3.2，e3-common（工具类）

打包方式选择jar包

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-parent</artifactId><version>0.0.1-SNAPSHOT</version></parent><groupId>cn.e3mall</groupId><artifactId>e3-common</artifactId><version>0.0.1-SNAPSHOT</version><dependencies><!-- 时间操作组件 --><dependency><groupId>joda-time</groupId><artifactId>joda-time</artifactId></dependency><!-- Apache工具组件 --><dependency><groupId>org.apache.commons</groupId><artifactId>commons-lang3</artifactId></dependency><dependency><groupId>org.apache.commons</groupId><artifactId>commons-io</artifactId></dependency><dependency><groupId>commons-net</groupId><artifactId>commons-net</artifactId></dependency><!-- Jackson Json处理工具包 --><dependency><groupId>com.fasterxml.jackson.core</groupId><artifactId>jackson-databind</artifactId></dependency><!-- httpclient --><dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId></dependency><!-- quartz任务调度框架 --><dependency><groupId>org.quartz-scheduler</groupId><artifactId>quartz</artifactId></dependency><!-- 单元测试 --><dependency><groupId>junit</groupId><artifactId>junit</artifactId><scope>test</scope></dependency><!-- 日志处理 --><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-log4j12</artifactId></dependency></dependencies>
</project>

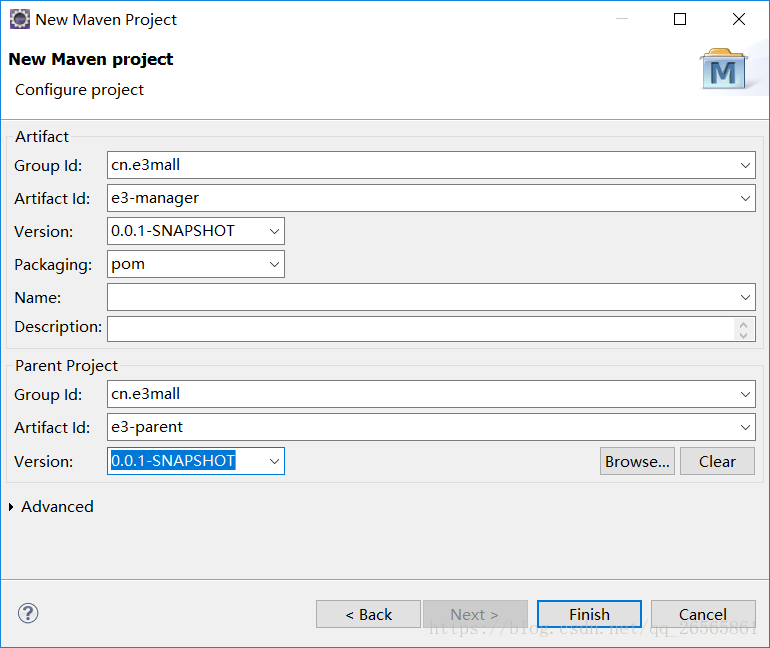

3.3，e3-manager（聚合工程，下面所有工程的父工程）

打包方式选择pom

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-parent</artifactId><version>0.0.1-SNAPSHOT</version></parent><groupId>cn.e3mall</groupId><artifactId>e3-manager</artifactId><version>0.0.1-SNAPSHOT</version><packaging>pom</packaging><dependencies><dependency><groupId>cn.e3mall</groupId><artifactId>e3-common</artifactId><version>0.0.1-SNAPSHOT</version></dependency></dependencies>
</project>

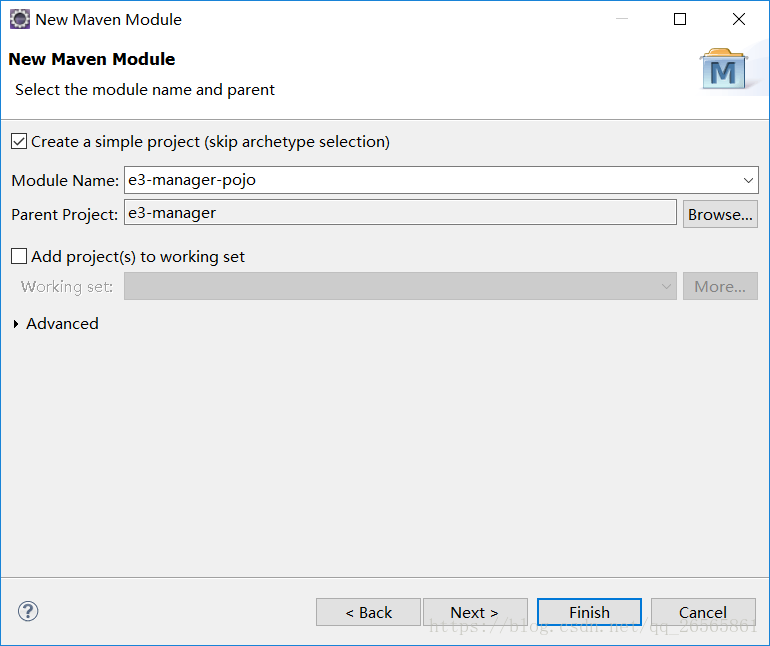

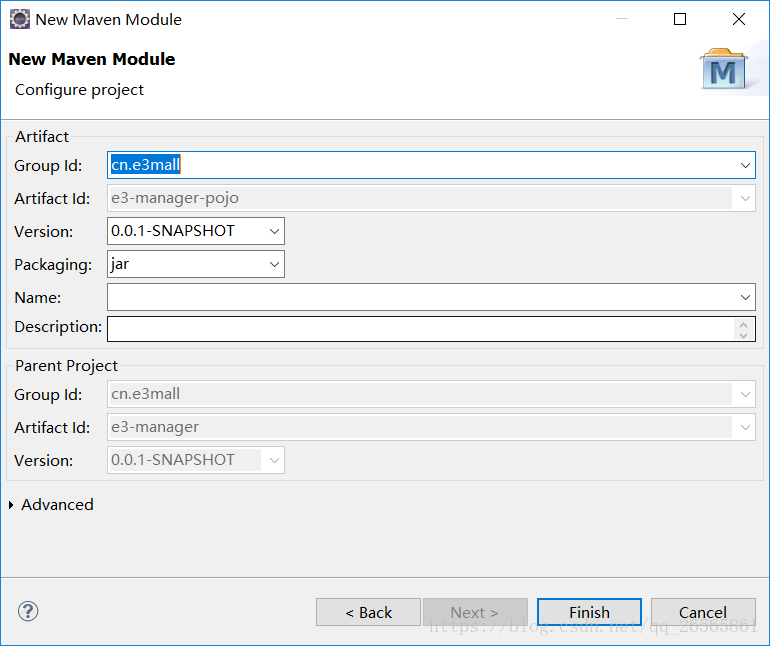

3.4，e3-manager-pojo（实体层）

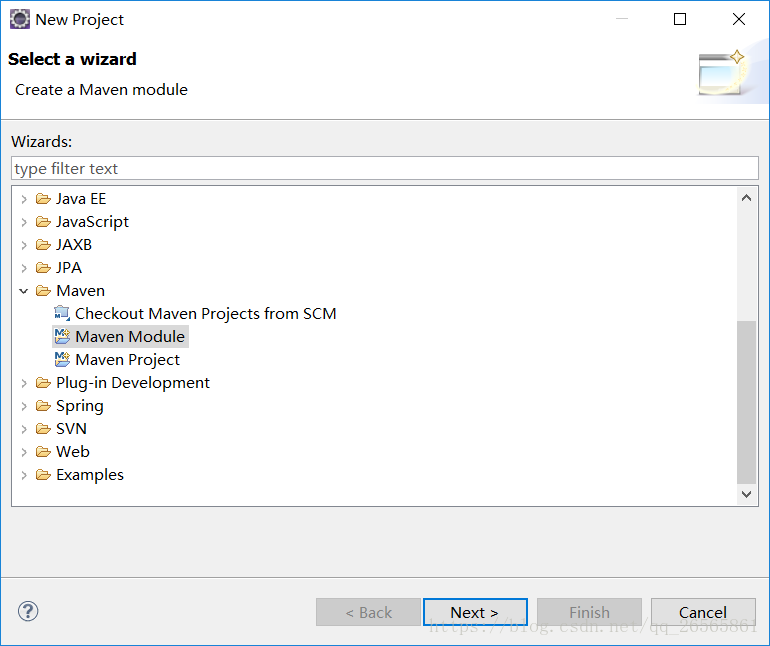

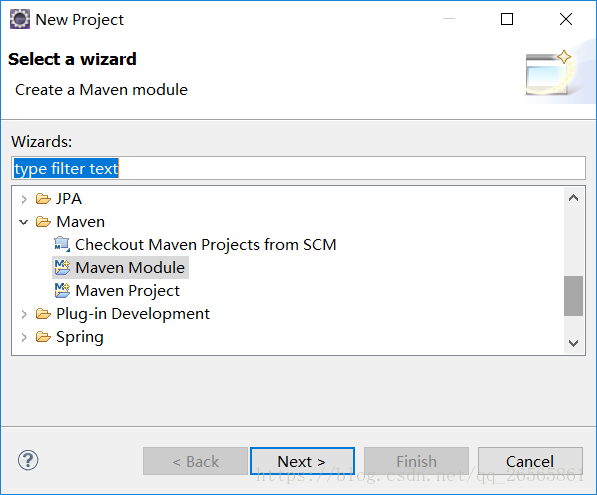

选择新建maven module工程

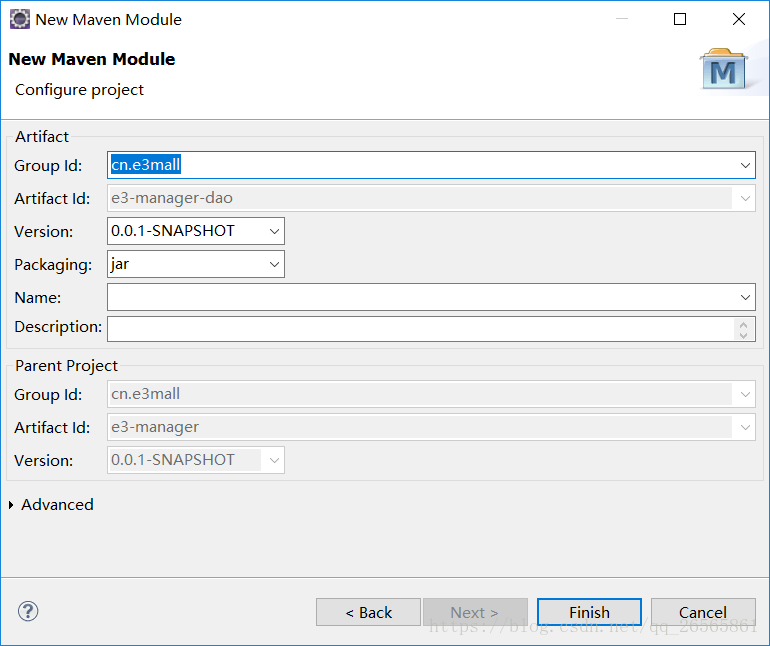

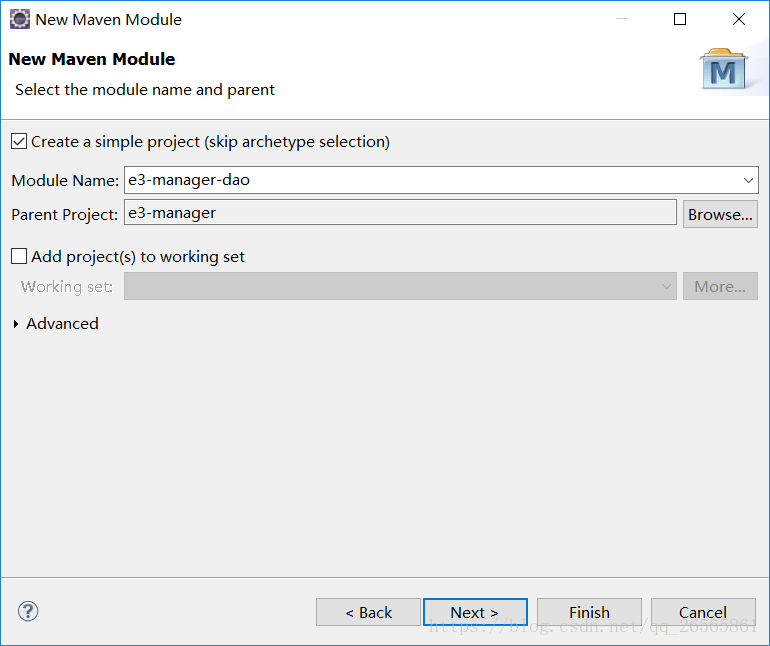

3.5，e3-manager-dao（持久层）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-manager</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>e3-manager-dao</artifactId><dependencies><dependency><groupId>cn.e3mall</groupId><artifactId>e3-manager-pojo</artifactId><version>0.0.1-SNAPSHOT</version></dependency><!-- 添加对mybatis的依赖 --><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId></dependency><dependency><groupId>org.mybatis</groupId><artifactId>mybatis-spring</artifactId></dependency><dependency><groupId>com.github.miemiedev</groupId><artifactId>mybatis-paginator</artifactId></dependency><dependency><groupId>com.github.pagehelper</groupId><artifactId>pagehelper</artifactId></dependency><!-- MySql --><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><!-- 连接池 --><dependency><groupId>com.alibaba</groupId><artifactId>druid</artifactId></dependency></dependencies>
</project>

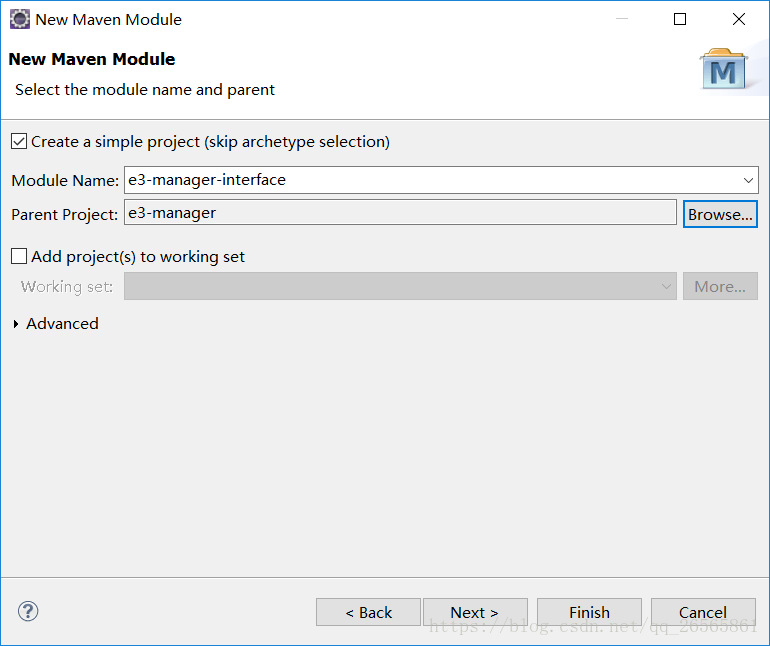

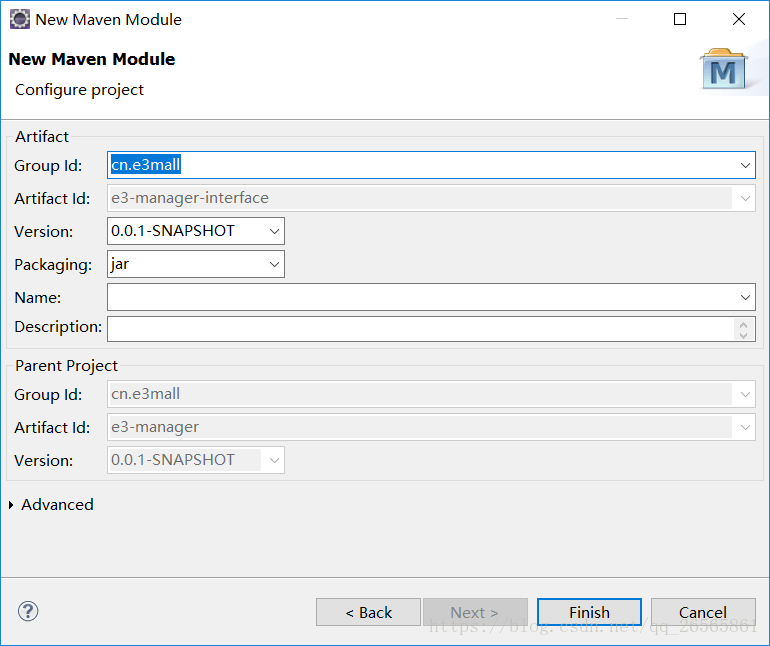

3.6，e3-manager-interface（接口）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-manager</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>e3-manager-interface</artifactId><dependencies><dependency><groupId>cn.e3mall</groupId><artifactId>e3-manager-pojo</artifactId><version>0.0.1-SNAPSHOT</version></dependency></dependencies>
</project>



3.7，e3-manager-service（服务层）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-manager</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>e3-manager-service</artifactId><dependencies><dependency><groupId>cn.e3mall</groupId><artifactId>e3-manager-dao</artifactId><version>0.0.1-SNAPSHOT</version></dependency><dependency><groupId>cn.e3mall</groupId><artifactId>e3-manager-interface</artifactId><version>0.0.1-SNAPSHOT</version></dependency><!-- spring的依赖 --><!-- Spring --><dependency><groupId>org.springframework</groupId><artifactId>spring-context</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-beans</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-webmvc</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jdbc</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-aspects</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-jms</artifactId></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-context-support</artifactId></dependency></dependencies>
</project>



3.8，e3-manager-web（web工程）

选择新建maven module工程

打包方式选择war包

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>cn.e3mall</groupId><artifactId>e3-manager</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>e3-manager-web</artifactId><packaging>war</packaging><dependencies><dependency><groupId>cn.e3mall</groupId><artifactId>e3-manager-service</artifactId><version>0.0.1-SNAPSHOT</version></dependency><!-- JSP相关 --><dependency><groupId>jstl</groupId><artifactId>jstl</artifactId></dependency><dependency><groupId>javax.servlet</groupId><artifactId>servlet-api</artifactId><scope>provided</scope></dependency><dependency><groupId>javax.servlet</groupId><artifactId>jsp-api</artifactId><scope>provided</scope></dependency></dependencies>
</project>

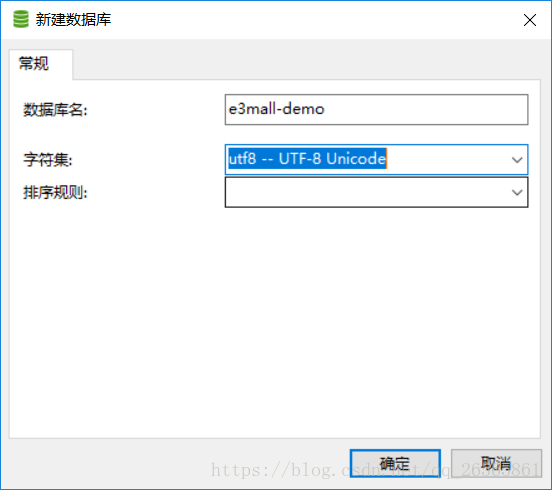

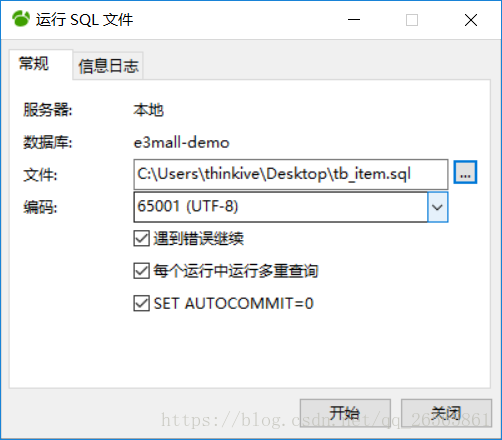

4,新建数据库导入表结构和数据

tb_item.sql

/*
Navicat MySQL Data TransferSource Server         : 本地
Source Server Version : 50528
Source Host           : localhost:3306
Source Database       : e3mall-32Target Server Type    : MYSQL
Target Server Version : 50528
File Encoding         : 65001Date: 2018-07-18 20:54:10
*/SET FOREIGN_KEY_CHECKS=0;-- ----------------------------
-- Table structure for tb_item
-- ----------------------------
DROP TABLE IF EXISTS `tb_item`;
CREATE TABLE `tb_item` (`id` bigint(20) NOT NULL COMMENT '商品id，同时也是商品编号',`title` varchar(100) NOT NULL COMMENT '商品标题',`sell_point` varchar(500) DEFAULT NULL COMMENT '商品卖点',`price` bigint(20) NOT NULL COMMENT '商品价格，单位为：分',`num` int(10) NOT NULL COMMENT '库存数量',`barcode` varchar(30) DEFAULT NULL COMMENT '商品条形码',`image` varchar(500) DEFAULT NULL COMMENT '商品图片',`cid` bigint(10) NOT NULL COMMENT '所属类目，叶子类目',`status` tinyint(4) NOT NULL DEFAULT '1' COMMENT '商品状态，1-正常，2-下架，3-删除',`created` datetime NOT NULL COMMENT '创建时间',`updated` datetime NOT NULL COMMENT '更新时间',PRIMARY KEY (`id`),KEY `cid` (`cid`),KEY `status` (`status`),KEY `updated` (`updated`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='商品表';-- ----------------------------
-- Records of tb_item
-- ----------------------------
INSERT INTO `tb_item` VALUES ('536563', 'new2 - 阿尔卡特 (OT-927) 炭黑 联通3G手机 双卡双待', '清仓！仅北京，武汉仓有货！', '29900000', '99999', '', 'http://image.e3mall.cn/jd/4ef8861cf6854de9889f3db9b24dc371.jpg', '560', '1', '2015-03-08 21:33:18', '2015-04-11 20:38:38');

5，ssm框架整合

5.1，整合思路

SqlMapConfig.xml：spring整合mybatis需要引入SqlMapConfig.xml，里面可以没有实质性的内容，但是必须保留文件头。

applicationContext-dao.xml：由spring创建数据库连接池，管理SqlSessionFactory、mapper代理对象。

applicationContext-service.xml：所有service对象交由spring容器管理

applicationContext-trans.xml：由spring来管理实务

springmvc.xml:引入springmvc，由spring来管理controller

web.xml:加载spring容器，加载springmvc

5.2,SqlMapConfig.xml

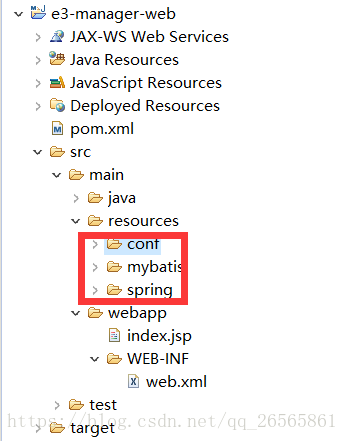

在e3-manager-web/src/main/resources/目录下创建三个文件夹conf、spring、mybatis

在mybatis目录下创建SqlMapConfig.xml文件，文件内容如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configurationPUBLIC "-//mybatis.org//DTD Config 3.0//EN""http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration></configuration>



5.3,applicationContext-dao.xml

在spring目录下创建applicationContext-dao.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsdhttp://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd"><!-- 数据库连接池 --><!-- 加载配置文件 --><context:property-placeholder location="classpath:conf/db.properties" /><!-- 数据库连接池 --><bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"destroy-method="close"><property name="url" value="${jdbc.url}" /><property name="username" value="${jdbc.username}" /><property name="password" value="${jdbc.password}" /><property name="driverClassName" value="${jdbc.driver}" /><property name="maxActive" value="10" /><property name="minIdle" value="5" /></bean><!-- 让spring管理sqlsessionfactory 使用mybatis和spring整合包中的 --><bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"><!-- 数据库连接池 --><property name="dataSource" ref="dataSource" /><!-- 加载mybatis的全局配置文件 --><property name="configLocation" value="classpath:mybatis/SqlMapConfig.xml" /></bean><bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"><property name="basePackage" value="cn.e3mall.mapper" /></bean>
</beans>

5.4,applicationContext-service.xml

在spring目录下创建applicationContext-service.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsdhttp://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd"><!-- 配置包扫描器 --><context:component-scan base-package="cn.e3mall.service"/></beans>

5.5,applicationContext-trans.xml

在spring目录下创建applicationContext-trans.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsdhttp://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd"><!-- 事务管理器 --><bean id="transactionManager"class="org.springframework.jdbc.datasource.DataSourceTransactionManager"><!-- 数据源 --><property name="dataSource" ref="dataSource" /></bean><!-- 通知 --><tx:advice id="txAdvice" transaction-manager="transactionManager"><tx:attributes><!-- 传播行为 --><tx:method name="save*" propagation="REQUIRED" /><tx:method name="insert*" propagation="REQUIRED" /><tx:method name="add*" propagation="REQUIRED" /><tx:method name="create*" propagation="REQUIRED" /><tx:method name="delete*" propagation="REQUIRED" /><tx:method name="update*" propagation="REQUIRED" /><tx:method name="find*" propagation="SUPPORTS" read-only="true" /><tx:method name="select*" propagation="SUPPORTS" read-only="true" /><tx:method name="get*" propagation="SUPPORTS" read-only="true" /></tx:attributes></tx:advice><!-- 切面 --><aop:config><aop:advisor advice-ref="txAdvice"pointcut="execution(* cn.e3mall.service..*.*(..))" /></aop:config>
</beans>

5.6,springmvc.xml

在spring目录下创建springmvc.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsdhttp://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd"><context:component-scan base-package="cn.e3mall.controller" /><mvc:annotation-driven /><beanclass="org.springframework.web.servlet.view.InternalResourceViewResolver"><property name="prefix" value="/WEB-INF/jsp/" /><property name="suffix" value=".jsp" /></bean>
</beans>

5.7,web.xml

在webapp目录下创建WEB-INF目录，创建web.xml文件：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns="http://java.sun.com/xml/ns/javaee"xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"version="2.5"><display-name>e3-manager-web</display-name><welcome-file-list><welcome-file>index.html</welcome-file><welcome-file>index.htm</welcome-file><welcome-file>index.jsp</welcome-file><welcome-file>default.html</welcome-file><welcome-file>default.htm</welcome-file><welcome-file>default.jsp</welcome-file></welcome-file-list><!-- 加载spring容器 --><context-param><param-name>contextConfigLocation</param-name><param-value>classpath:spring/applicationContext-*.xml</param-value></context-param><listener><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class></listener><!-- 解决post乱码 --><filter><filter-name>CharacterEncodingFilter</filter-name><filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class><init-param><param-name>encoding</param-name><param-value>utf-8</param-value></init-param></filter><filter-mapping><filter-name>CharacterEncodingFilter</filter-name><url-pattern>/*</url-pattern></filter-mapping><!-- springmvc的前端控制器 --><servlet><servlet-name>e3-manager</servlet-name><servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class><!-- contextConfigLocation不是必须的， 如果不配置contextConfigLocation， springmvc的配置文件默认在：WEB-INF/servlet的name+"-servlet.xml" --><init-param><param-name>contextConfigLocation</param-name><param-value>classpath:spring/springmvc.xml</param-value></init-param><load-on-startup>1</load-on-startup></servlet><servlet-mapping><servlet-name>e3-manager</servlet-name><url-pattern>/</url-pattern></servlet-mapping><context-param><param-name>log4jConfigLocation</param-name><param-value>classpath:conf/log4j.properties</param-value></context-param><listener><listener-class>org.springframework.web.util.Log4jConfigListener</listener-class></listener>
</web-app>

5.8,db.properties

在conf目录下创建db.properties，注意数据库名、用户名和密码：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/e3mall-demo?characterEncoding=utf-8
jdbc.username=root
jdbc.password=a123



5.9,log4j.properties

在conf目录下创建log4j.properties文件：

log4j.rootLogger=INFO,Console,File
#\u63A7\u5236\u53F0\u65E5\u5FD7
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n
#\u666E\u901A\u6587\u4EF6\u65E5\u5FD7
log4j.appender.File=org.apache.log4j.RollingFileAppender
log4j.appender.File.File=logs/ssm.log
log4j.appender.File.MaxFileSize=10MB
#\u8F93\u51FA\u65E5\u5FD7\uFF0C\u5982\u679C\u6362\u6210DEBUG\u8868\u793A\u8F93\u51FADEBUG\u4EE5\u4E0A\u7EA7\u522B\u65E5\u5FD7
log4j.appender.File.Threshold=ALL
log4j.appender.File.layout=org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n

6，开发一个小的查询功能

6.1,需求描述

浏览器输入http://localhost:8080/e3-manager-web/item/536563能查到对应的商品信息

6.2，创建实体类

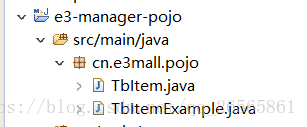

创建cn.e3mall.pojo包：

TbItem.java

package cn.e3mall.pojo;import java.util.Date;public class TbItem {private Long id;private String title;private String sellPoint;private Long price;private Integer num;private String barcode;private String image;private Long cid;private Byte status;private Date created;private Date updated;public Long getId() {return id;}public void setId(Long id) {this.id = id;}public String getTitle() {return title;}public void setTitle(String title) {this.title = title == null ? null : title.trim();}public String getSellPoint() {return sellPoint;}public void setSellPoint(String sellPoint) {this.sellPoint = sellPoint == null ? null : sellPoint.trim();}public Long getPrice() {return price;}public void setPrice(Long price) {this.price = price;}public Integer getNum() {return num;}public void setNum(Integer num) {this.num = num;}public String getBarcode() {return barcode;}public void setBarcode(String barcode) {this.barcode = barcode == null ? null : barcode.trim();}public String getImage() {return image;}public void setImage(String image) {this.image = image == null ? null : image.trim();}public Long getCid() {return cid;}public void setCid(Long cid) {this.cid = cid;}public Byte getStatus() {return status;}public void setStatus(Byte status) {this.status = status;}public Date getCreated() {return created;}public void setCreated(Date created) {this.created = created;}public Date getUpdated() {return updated;}public void setUpdated(Date updated) {this.updated = updated;}
}

TbItemExample.java

package cn.e3mall.pojo;import java.util.ArrayList;
import java.util.Date;
import java.util.List;public class TbItemExample {protected String orderByClause;protected boolean distinct;protected List<Criteria> oredCriteria;public TbItemExample() {oredCriteria = new ArrayList<Criteria>();}public void setOrderByClause(String orderByClause) {this.orderByClause = orderByClause;}public String getOrderByClause() {return orderByClause;}public void setDistinct(boolean distinct) {this.distinct = distinct;}public boolean isDistinct() {return distinct;}public List<Criteria> getOredCriteria() {return oredCriteria;}public void or(Criteria criteria) {oredCriteria.add(criteria);}public Criteria or() {Criteria criteria = createCriteriaInternal();oredCriteria.add(criteria);return criteria;}public Criteria createCriteria() {Criteria criteria = createCriteriaInternal();if (oredCriteria.size() == 0) {oredCriteria.add(criteria);}return criteria;}protected Criteria createCriteriaInternal() {Criteria criteria = new Criteria();return criteria;}public void clear() {oredCriteria.clear();orderByClause = null;distinct = false;}protected abstract static class GeneratedCriteria {protected List<Criterion> criteria;protected GeneratedCriteria() {super();criteria = new ArrayList<Criterion>();}public boolean isValid() {return criteria.size() > 0;}public List<Criterion> getAllCriteria() {return criteria;}public List<Criterion> getCriteria() {return criteria;}protected void addCriterion(String condition) {if (condition == null) {throw new RuntimeException("Value for condition cannot be null");}criteria.add(new Criterion(condition));}protected void addCriterion(String condition, Object value, String property) {if (value == null) {throw new RuntimeException("Value for " + property + " cannot be null");}criteria.add(new Criterion(condition, value));}protected void addCriterion(String condition, Object value1, Object value2, String property) {if (value1 == null || value2 == null) {throw new RuntimeException("Between values for " + property + " cannot be null");}criteria.add(new Criterion(condition, value1, value2));}public Criteria andIdIsNull() {addCriterion("id is null");return (Criteria) this;}public Criteria andIdIsNotNull() {addCriterion("id is not null");return (Criteria) this;}public Criteria andIdEqualTo(Long value) {addCriterion("id =", value, "id");return (Criteria) this;}public Criteria andIdNotEqualTo(Long value) {addCriterion("id <>", value, "id");return (Criteria) this;}public Criteria andIdGreaterThan(Long value) {addCriterion("id >", value, "id");return (Criteria) this;}public Criteria andIdGreaterThanOrEqualTo(Long value) {addCriterion("id >=", value, "id");return (Criteria) this;}public Criteria andIdLessThan(Long value) {addCriterion("id <", value, "id");return (Criteria) this;}public Criteria andIdLessThanOrEqualTo(Long value) {addCriterion("id <=", value, "id");return (Criteria) this;}public Criteria andIdIn(List<Long> values) {addCriterion("id in", values, "id");return (Criteria) this;}public Criteria andIdNotIn(List<Long> values) {addCriterion("id not in", values, "id");return (Criteria) this;}public Criteria andIdBetween(Long value1, Long value2) {addCriterion("id between", value1, value2, "id");return (Criteria) this;}public Criteria andIdNotBetween(Long value1, Long value2) {addCriterion("id not between", value1, value2, "id");return (Criteria) this;}public Criteria andTitleIsNull() {addCriterion("title is null");return (Criteria) this;}public Criteria andTitleIsNotNull() {addCriterion("title is not null");return (Criteria) this;}public Criteria andTitleEqualTo(String value) {addCriterion("title =", value, "title");return (Criteria) this;}public Criteria andTitleNotEqualTo(String value) {addCriterion("title <>", value, "title");return (Criteria) this;}public Criteria andTitleGreaterThan(String value) {addCriterion("title >", value, "title");return (Criteria) this;}public Criteria andTitleGreaterThanOrEqualTo(String value) {addCriterion("title >=", value, "title");return (Criteria) this;}public Criteria andTitleLessThan(String value) {addCriterion("title <", value, "title");return (Criteria) this;}public Criteria andTitleLessThanOrEqualTo(String value) {addCriterion("title <=", value, "title");return (Criteria) this;}public Criteria andTitleLike(String value) {addCriterion("title like", value, "title");return (Criteria) this;}public Criteria andTitleNotLike(String value) {addCriterion("title not like", value, "title");return (Criteria) this;}public Criteria andTitleIn(List<String> values) {addCriterion("title in", values, "title");return (Criteria) this;}public Criteria andTitleNotIn(List<String> values) {addCriterion("title not in", values, "title");return (Criteria) this;}public Criteria andTitleBetween(String value1, String value2) {addCriterion("title between", value1, value2, "title");return (Criteria) this;}public Criteria andTitleNotBetween(String value1, String value2) {addCriterion("title not between", value1, value2, "title");return (Criteria) this;}public Criteria andSellPointIsNull() {addCriterion("sell_point is null");return (Criteria) this;}public Criteria andSellPointIsNotNull() {addCriterion("sell_point is not null");return (Criteria) this;}public Criteria andSellPointEqualTo(String value) {addCriterion("sell_point =", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointNotEqualTo(String value) {addCriterion("sell_point <>", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointGreaterThan(String value) {addCriterion("sell_point >", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointGreaterThanOrEqualTo(String value) {addCriterion("sell_point >=", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointLessThan(String value) {addCriterion("sell_point <", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointLessThanOrEqualTo(String value) {addCriterion("sell_point <=", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointLike(String value) {addCriterion("sell_point like", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointNotLike(String value) {addCriterion("sell_point not like", value, "sellPoint");return (Criteria) this;}public Criteria andSellPointIn(List<String> values) {addCriterion("sell_point in", values, "sellPoint");return (Criteria) this;}public Criteria andSellPointNotIn(List<String> values) {addCriterion("sell_point not in", values, "sellPoint");return (Criteria) this;}public Criteria andSellPointBetween(String value1, String value2) {addCriterion("sell_point between", value1, value2, "sellPoint");return (Criteria) this;}public Criteria andSellPointNotBetween(String value1, String value2) {addCriterion("sell_point not between", value1, value2, "sellPoint");return (Criteria) this;}public Criteria andPriceIsNull() {addCriterion("price is null");return (Criteria) this;}public Criteria andPriceIsNotNull() {addCriterion("price is not null");return (Criteria) this;}public Criteria andPriceEqualTo(Long value) {addCriterion("price =", value, "price");return (Criteria) this;}public Criteria andPriceNotEqualTo(Long value) {addCriterion("price <>", value, "price");return (Criteria) this;}public Criteria andPriceGreaterThan(Long value) {addCriterion("price >", value, "price");return (Criteria) this;}public Criteria andPriceGreaterThanOrEqualTo(Long value) {addCriterion("price >=", value, "price");return (Criteria) this;}public Criteria andPriceLessThan(Long value) {addCriterion("price <", value, "price");return (Criteria) this;}public Criteria andPriceLessThanOrEqualTo(Long value) {addCriterion("price <=", value, "price");return (Criteria) this;}public Criteria andPriceIn(List<Long> values) {addCriterion("price in", values, "price");return (Criteria) this;}public Criteria andPriceNotIn(List<Long> values) {addCriterion("price not in", values, "price");return (Criteria) this;}public Criteria andPriceBetween(Long value1, Long value2) {addCriterion("price between", value1, value2, "price");return (Criteria) this;}public Criteria andPriceNotBetween(Long value1, Long value2) {addCriterion("price not between", value1, value2, "price");return (Criteria) this;}public Criteria andNumIsNull() {addCriterion("num is null");return (Criteria) this;}public Criteria andNumIsNotNull() {addCriterion("num is not null");return (Criteria) this;}public Criteria andNumEqualTo(Integer value) {addCriterion("num =", value, "num");return (Criteria) this;}public Criteria andNumNotEqualTo(Integer value) {addCriterion("num <>", value, "num");return (Criteria) this;}public Criteria andNumGreaterThan(Integer value) {addCriterion("num >", value, "num");return (Criteria) this;}public Criteria andNumGreaterThanOrEqualTo(Integer value) {addCriterion("num >=", value, "num");return (Criteria) this;}public Criteria andNumLessThan(Integer value) {addCriterion("num <", value, "num");return (Criteria) this;}public Criteria andNumLessThanOrEqualTo(Integer value) {addCriterion("num <=", value, "num");return (Criteria) this;}public Criteria andNumIn(List<Integer> values) {addCriterion("num in", values, "num");return (Criteria) this;}public Criteria andNumNotIn(List<Integer> values) {addCriterion("num not in", values, "num");return (Criteria) this;}public Criteria andNumBetween(Integer value1, Integer value2) {addCriterion("num between", value1, value2, "num");return (Criteria) this;}public Criteria andNumNotBetween(Integer value1, Integer value2) {addCriterion("num not between", value1, value2, "num");return (Criteria) this;}public Criteria andBarcodeIsNull() {addCriterion("barcode is null");return (Criteria) this;}public Criteria andBarcodeIsNotNull() {addCriterion("barcode is not null");return (Criteria) this;}public Criteria andBarcodeEqualTo(String value) {addCriterion("barcode =", value, "barcode");return (Criteria) this;}public Criteria andBarcodeNotEqualTo(String value) {addCriterion("barcode <>", value, "barcode");return (Criteria) this;}public Criteria andBarcodeGreaterThan(String value) {addCriterion("barcode >", value, "barcode");return (Criteria) this;}public Criteria andBarcodeGreaterThanOrEqualTo(String value) {addCriterion("barcode >=", value, "barcode");return (Criteria) this;}public Criteria andBarcodeLessThan(String value) {addCriterion("barcode <", value, "barcode");return (Criteria) this;}public Criteria andBarcodeLessThanOrEqualTo(String value) {addCriterion("barcode <=", value, "barcode");return (Criteria) this;}public Criteria andBarcodeLike(String value) {addCriterion("barcode like", value, "barcode");return (Criteria) this;}public Criteria andBarcodeNotLike(String value) {addCriterion("barcode not like", value, "barcode");return (Criteria) this;}public Criteria andBarcodeIn(List<String> values) {addCriterion("barcode in", values, "barcode");return (Criteria) this;}public Criteria andBarcodeNotIn(List<String> values) {addCriterion("barcode not in", values, "barcode");return (Criteria) this;}public Criteria andBarcodeBetween(String value1, String value2) {addCriterion("barcode between", value1, value2, "barcode");return (Criteria) this;}public Criteria andBarcodeNotBetween(String value1, String value2) {addCriterion("barcode not between", value1, value2, "barcode");return (Criteria) this;}public Criteria andImageIsNull() {addCriterion("image is null");return (Criteria) this;}public Criteria andImageIsNotNull() {addCriterion("image is not null");return (Criteria) this;}public Criteria andImageEqualTo(String value) {addCriterion("image =", value, "image");return (Criteria) this;}public Criteria andImageNotEqualTo(String value) {addCriterion("image <>", value, "image");return (Criteria) this;}public Criteria andImageGreaterThan(String value) {addCriterion("image >", value, "image");return (Criteria) this;}public Criteria andImageGreaterThanOrEqualTo(String value) {addCriterion("image >=", value, "image");return (Criteria) this;}public Criteria andImageLessThan(String value) {addCriterion("image <", value, "image");return (Criteria) this;}public Criteria andImageLessThanOrEqualTo(String value) {addCriterion("image <=", value, "image");return (Criteria) this;}public Criteria andImageLike(String value) {addCriterion("image like", value, "image");return (Criteria) this;}public Criteria andImageNotLike(String value) {addCriterion("image not like", value, "image");return (Criteria) this;}public Criteria andImageIn(List<String> values) {addCriterion("image in", values, "image");return (Criteria) this;}public Criteria andImageNotIn(List<String> values) {addCriterion("image not in", values, "image");return (Criteria) this;}public Criteria andImageBetween(String value1, String value2) {addCriterion("image between", value1, value2, "image");return (Criteria) this;}public Criteria andImageNotBetween(String value1, String value2) {addCriterion("image not between", value1, value2, "image");return (Criteria) this;}public Criteria andCidIsNull() {addCriterion("cid is null");return (Criteria) this;}public Criteria andCidIsNotNull() {addCriterion("cid is not null");return (Criteria) this;}public Criteria andCidEqualTo(Long value) {addCriterion("cid =", value, "cid");return (Criteria) this;}public Criteria andCidNotEqualTo(Long value) {addCriterion("cid <>", value, "cid");return (Criteria) this;}public Criteria andCidGreaterThan(Long value) {addCriterion("cid >", value, "cid");return (Criteria) this;}public Criteria andCidGreaterThanOrEqualTo(Long value) {addCriterion("cid >=", value, "cid");return (Criteria) this;}public Criteria andCidLessThan(Long value) {addCriterion("cid <", value, "cid");return (Criteria) this;}public Criteria andCidLessThanOrEqualTo(Long value) {addCriterion("cid <=", value, "cid");return (Criteria) this;}public Criteria andCidIn(List<Long> values) {addCriterion("cid in", values, "cid");return (Criteria) this;}public Criteria andCidNotIn(List<Long> values) {addCriterion("cid not in", values, "cid");return (Criteria) this;}public Criteria andCidBetween(Long value1, Long value2) {addCriterion("cid between", value1, value2, "cid");return (Criteria) this;}public Criteria andCidNotBetween(Long value1, Long value2) {addCriterion("cid not between", value1, value2, "cid");return (Criteria) this;}public Criteria andStatusIsNull() {addCriterion("status is null");return (Criteria) this;}public Criteria andStatusIsNotNull() {addCriterion("status is not null");return (Criteria) this;}public Criteria andStatusEqualTo(Byte value) {addCriterion("status =", value, "status");return (Criteria) this;}public Criteria andStatusNotEqualTo(Byte value) {addCriterion("status <>", value, "status");return (Criteria) this;}public Criteria andStatusGreaterThan(Byte value) {addCriterion("status >", value, "status");return (Criteria) this;}public Criteria andStatusGreaterThanOrEqualTo(Byte value) {addCriterion("status >=", value, "status");return (Criteria) this;}public Criteria andStatusLessThan(Byte value) {addCriterion("status <", value, "status");return (Criteria) this;}public Criteria andStatusLessThanOrEqualTo(Byte value) {addCriterion("status <=", value, "status");return (Criteria) this;}public Criteria andStatusIn(List<Byte> values) {addCriterion("status in", values, "status");return (Criteria) this;}public Criteria andStatusNotIn(List<Byte> values) {addCriterion("status not in", values, "status");return (Criteria) this;}public Criteria andStatusBetween(Byte value1, Byte value2) {addCriterion("status between", value1, value2, "status");return (Criteria) this;}public Criteria andStatusNotBetween(Byte value1, Byte value2) {addCriterion("status not between", value1, value2, "status");return (Criteria) this;}public Criteria andCreatedIsNull() {addCriterion("created is null");return (Criteria) this;}public Criteria andCreatedIsNotNull() {addCriterion("created is not null");return (Criteria) this;}public Criteria andCreatedEqualTo(Date value) {addCriterion("created =", value, "created");return (Criteria) this;}public Criteria andCreatedNotEqualTo(Date value) {addCriterion("created <>", value, "created");return (Criteria) this;}public Criteria andCreatedGreaterThan(Date value) {addCriterion("created >", value, "created");return (Criteria) this;}public Criteria andCreatedGreaterThanOrEqualTo(Date value) {addCriterion("created >=", value, "created");return (Criteria) this;}public Criteria andCreatedLessThan(Date value) {addCriterion("created <", value, "created");return (Criteria) this;}public Criteria andCreatedLessThanOrEqualTo(Date value) {addCriterion("created <=", value, "created");return (Criteria) this;}public Criteria andCreatedIn(List<Date> values) {addCriterion("created in", values, "created");return (Criteria) this;}public Criteria andCreatedNotIn(List<Date> values) {addCriterion("created not in", values, "created");return (Criteria) this;}public Criteria andCreatedBetween(Date value1, Date value2) {addCriterion("created between", value1, value2, "created");return (Criteria) this;}public Criteria andCreatedNotBetween(Date value1, Date value2) {addCriterion("created not between", value1, value2, "created");return (Criteria) this;}public Criteria andUpdatedIsNull() {addCriterion("updated is null");return (Criteria) this;}public Criteria andUpdatedIsNotNull() {addCriterion("updated is not null");return (Criteria) this;}public Criteria andUpdatedEqualTo(Date value) {addCriterion("updated =", value, "updated");return (Criteria) this;}public Criteria andUpdatedNotEqualTo(Date value) {addCriterion("updated <>", value, "updated");return (Criteria) this;}public Criteria andUpdatedGreaterThan(Date value) {addCriterion("updated >", value, "updated");return (Criteria) this;}public Criteria andUpdatedGreaterThanOrEqualTo(Date value) {addCriterion("updated >=", value, "updated");return (Criteria) this;}public Criteria andUpdatedLessThan(Date value) {addCriterion("updated <", value, "updated");return (Criteria) this;}public Criteria andUpdatedLessThanOrEqualTo(Date value) {addCriterion("updated <=", value, "updated");return (Criteria) this;}public Criteria andUpdatedIn(List<Date> values) {addCriterion("updated in", values, "updated");return (Criteria) this;}public Criteria andUpdatedNotIn(List<Date> values) {addCriterion("updated not in", values, "updated");return (Criteria) this;}public Criteria andUpdatedBetween(Date value1, Date value2) {addCriterion("updated between", value1, value2, "updated");return (Criteria) this;}public Criteria andUpdatedNotBetween(Date value1, Date value2) {addCriterion("updated not between", value1, value2, "updated");return (Criteria) this;}}public static class Criteria extends GeneratedCriteria {protected Criteria() {super();}}public static class Criterion {private String condition;private Object value;private Object secondValue;private boolean noValue;private boolean singleValue;private boolean betweenValue;private boolean listValue;private String typeHandler;public String getCondition() {return condition;}public Object getValue() {return value;}public Object getSecondValue() {return secondValue;}public boolean isNoValue() {return noValue;}public boolean isSingleValue() {return singleValue;}public boolean isBetweenValue() {return betweenValue;}public boolean isListValue() {return listValue;}public String getTypeHandler() {return typeHandler;}protected Criterion(String condition) {super();this.condition = condition;this.typeHandler = null;this.noValue = true;}protected Criterion(String condition, Object value, String typeHandler) {super();this.condition = condition;this.value = value;this.typeHandler = typeHandler;if (value instanceof List<?>) {this.listValue = true;} else {this.singleValue = true;}}protected Criterion(String condition, Object value) {this(condition, value, null);}protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {super();this.condition = condition;this.value = value;this.secondValue = secondValue;this.typeHandler = typeHandler;this.betweenValue = true;}protected Criterion(String condition, Object value, Object secondValue) {this(condition, value, secondValue, null);}}
}

6.3,dao层

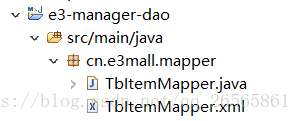

创建cn.e3mall.mapper包：

TbItemMapper.java

package cn.e3mall.mapper;import cn.e3mall.pojo.TbItem;
import cn.e3mall.pojo.TbItemExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;public interface TbItemMapper {int countByExample(TbItemExample example);int deleteByExample(TbItemExample example);int deleteByPrimaryKey(Long id);int insert(TbItem record);int insertSelective(TbItem record);List<TbItem> selectByExample(TbItemExample example);TbItem selectByPrimaryKey(Long id);int updateByExampleSelective(@Param("record") TbItem record, @Param("example") TbItemExample example);int updateByExample(@Param("record") TbItem record, @Param("example") TbItemExample example);int updateByPrimaryKeySelective(TbItem record);int updateByPrimaryKey(TbItem record);
}

TbItemMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="cn.e3mall.mapper.TbItemMapper" ><resultMap id="BaseResultMap" type="cn.e3mall.pojo.TbItem" ><id column="id" property="id" jdbcType="BIGINT" /><result column="title" property="title" jdbcType="VARCHAR" /><result column="sell_point" property="sellPoint" jdbcType="VARCHAR" /><result column="price" property="price" jdbcType="BIGINT" /><result column="num" property="num" jdbcType="INTEGER" /><result column="barcode" property="barcode" jdbcType="VARCHAR" /><result column="image" property="image" jdbcType="VARCHAR" /><result column="cid" property="cid" jdbcType="BIGINT" /><result column="status" property="status" jdbcType="TINYINT" /><result column="created" property="created" jdbcType="TIMESTAMP" /><result column="updated" property="updated" jdbcType="TIMESTAMP" /></resultMap><sql id="Example_Where_Clause" ><where ><foreach collection="oredCriteria" item="criteria" separator="or" ><if test="criteria.valid" ><trim prefix="(" suffix=")" prefixOverrides="and" ><foreach collection="criteria.criteria" item="criterion" ><choose ><when test="criterion.noValue" >and ${criterion.condition}</when><when test="criterion.singleValue" >and ${criterion.condition} #{criterion.value}</when><when test="criterion.betweenValue" >and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}</when><when test="criterion.listValue" >and ${criterion.condition}<foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >#{listItem}</foreach></when></choose></foreach></trim></if></foreach></where></sql><sql id="Update_By_Example_Where_Clause" ><where ><foreach collection="example.oredCriteria" item="criteria" separator="or" ><if test="criteria.valid" ><trim prefix="(" suffix=")" prefixOverrides="and" ><foreach collection="criteria.criteria" item="criterion" ><choose ><when test="criterion.noValue" >and ${criterion.condition}</when><when test="criterion.singleValue" >and ${criterion.condition} #{criterion.value}</when><when test="criterion.betweenValue" >and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}</when><when test="criterion.listValue" >and ${criterion.condition}<foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >#{listItem}</foreach></when></choose></foreach></trim></if></foreach></where></sql><sql id="Base_Column_List" >id, title, sell_point, price, num, barcode, image, cid, status, created, updated</sql><select id="selectByExample" resultMap="BaseResultMap" parameterType="cn.e3mall.pojo.TbItemExample" >select<if test="distinct" >distinct</if><include refid="Base_Column_List" />from tb_item<if test="_parameter != null" ><include refid="Example_Where_Clause" /></if><if test="orderByClause != null" >order by ${orderByClause}</if></select><select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Long" >select <include refid="Base_Column_List" />from tb_itemwhere id = #{id,jdbcType=BIGINT}</select><delete id="deleteByPrimaryKey" parameterType="java.lang.Long" >delete from tb_itemwhere id = #{id,jdbcType=BIGINT}</delete><delete id="deleteByExample" parameterType="cn.e3mall.pojo.TbItemExample" >delete from tb_item<if test="_parameter != null" ><include refid="Example_Where_Clause" /></if></delete><insert id="insert" parameterType="cn.e3mall.pojo.TbItem" >insert into tb_item (id, title, sell_point, price, num, barcode, image, cid, status, created, updated)values (#{id,jdbcType=BIGINT}, #{title,jdbcType=VARCHAR}, #{sellPoint,jdbcType=VARCHAR}, #{price,jdbcType=BIGINT}, #{num,jdbcType=INTEGER}, #{barcode,jdbcType=VARCHAR}, #{image,jdbcType=VARCHAR}, #{cid,jdbcType=BIGINT}, #{status,jdbcType=TINYINT}, #{created,jdbcType=TIMESTAMP}, #{updated,jdbcType=TIMESTAMP})</insert><insert id="insertSelective" parameterType="cn.e3mall.pojo.TbItem" >insert into tb_item<trim prefix="(" suffix=")" suffixOverrides="," ><if test="id != null" >id,</if><if test="title != null" >title,</if><if test="sellPoint != null" >sell_point,</if><if test="price != null" >price,</if><if test="num != null" >num,</if><if test="barcode != null" >barcode,</if><if test="image != null" >image,</if><if test="cid != null" >cid,</if><if test="status != null" >status,</if><if test="created != null" >created,</if><if test="updated != null" >updated,</if></trim><trim prefix="values (" suffix=")" suffixOverrides="," ><if test="id != null" >#{id,jdbcType=BIGINT},</if><if test="title != null" >#{title,jdbcType=VARCHAR},</if><if test="sellPoint != null" >#{sellPoint,jdbcType=VARCHAR},</if><if test="price != null" >#{price,jdbcType=BIGINT},</if><if test="num != null" >#{num,jdbcType=INTEGER},</if><if test="barcode != null" >#{barcode,jdbcType=VARCHAR},</if><if test="image != null" >#{image,jdbcType=VARCHAR},</if><if test="cid != null" >#{cid,jdbcType=BIGINT},</if><if test="status != null" >#{status,jdbcType=TINYINT},</if><if test="created != null" >#{created,jdbcType=TIMESTAMP},</if><if test="updated != null" >#{updated,jdbcType=TIMESTAMP},</if></trim></insert><select id="countByExample" parameterType="cn.e3mall.pojo.TbItemExample" resultType="java.lang.Integer" >select count(*) from tb_item<if test="_parameter != null" ><include refid="Example_Where_Clause" /></if></select><update id="updateByExampleSelective" parameterType="map" >update tb_item<set ><if test="record.id != null" >id = #{record.id,jdbcType=BIGINT},</if><if test="record.title != null" >title = #{record.title,jdbcType=VARCHAR},</if><if test="record.sellPoint != null" >sell_point = #{record.sellPoint,jdbcType=VARCHAR},</if><if test="record.price != null" >price = #{record.price,jdbcType=BIGINT},</if><if test="record.num != null" >num = #{record.num,jdbcType=INTEGER},</if><if test="record.barcode != null" >barcode = #{record.barcode,jdbcType=VARCHAR},</if><if test="record.image != null" >image = #{record.image,jdbcType=VARCHAR},</if><if test="record.cid != null" >cid = #{record.cid,jdbcType=BIGINT},</if><if test="record.status != null" >status = #{record.status,jdbcType=TINYINT},</if><if test="record.created != null" >created = #{record.created,jdbcType=TIMESTAMP},</if><if test="record.updated != null" >updated = #{record.updated,jdbcType=TIMESTAMP},</if></set><if test="_parameter != null" ><include refid="Update_By_Example_Where_Clause" /></if></update><update id="updateByExample" parameterType="map" >update tb_itemset id = #{record.id,jdbcType=BIGINT},title = #{record.title,jdbcType=VARCHAR},sell_point = #{record.sellPoint,jdbcType=VARCHAR},price = #{record.price,jdbcType=BIGINT},num = #{record.num,jdbcType=INTEGER},barcode = #{record.barcode,jdbcType=VARCHAR},image = #{record.image,jdbcType=VARCHAR},cid = #{record.cid,jdbcType=BIGINT},status = #{record.status,jdbcType=TINYINT},created = #{record.created,jdbcType=TIMESTAMP},updated = #{record.updated,jdbcType=TIMESTAMP}<if test="_parameter != null" ><include refid="Update_By_Example_Where_Clause" /></if></update><update id="updateByPrimaryKeySelective" parameterType="cn.e3mall.pojo.TbItem" >update tb_item<set ><if test="title != null" >title = #{title,jdbcType=VARCHAR},</if><if test="sellPoint != null" >sell_point = #{sellPoint,jdbcType=VARCHAR},</if><if test="price != null" >price = #{price,jdbcType=BIGINT},</if><if test="num != null" >num = #{num,jdbcType=INTEGER},</if><if test="barcode != null" >barcode = #{barcode,jdbcType=VARCHAR},</if><if test="image != null" >image = #{image,jdbcType=VARCHAR},</if><if test="cid != null" >cid = #{cid,jdbcType=BIGINT},</if><if test="status != null" >status = #{status,jdbcType=TINYINT},</if><if test="created != null" >created = #{created,jdbcType=TIMESTAMP},</if><if test="updated != null" >updated = #{updated,jdbcType=TIMESTAMP},</if></set>where id = #{id,jdbcType=BIGINT}</update><update id="updateByPrimaryKey" parameterType="cn.e3mall.pojo.TbItem" >update tb_itemset title = #{title,jdbcType=VARCHAR},sell_point = #{sellPoint,jdbcType=VARCHAR},price = #{price,jdbcType=BIGINT},num = #{num,jdbcType=INTEGER},barcode = #{barcode,jdbcType=VARCHAR},image = #{image,jdbcType=VARCHAR},cid = #{cid,jdbcType=BIGINT},status = #{status,jdbcType=TINYINT},created = #{created,jdbcType=TIMESTAMP},updated = #{updated,jdbcType=TIMESTAMP}where id = #{id,jdbcType=BIGINT}</update>
</mapper>

6.4,接口

创建cn.e3mall.service包：

ItemService.java

package cn.e3mall.service;import cn.e3mall.pojo.TbItem;public interface ItemService {TbItem getItemById(long itemId);
}

6.5,service

创建cn.e3mall.service.impl包

ItemServiceImpl.java

package cn.e3mall.service.impl;import java.util.List;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import cn.e3mall.mapper.TbItemMapper;
import cn.e3mall.pojo.TbItem;
import cn.e3mall.pojo.TbItemExample;
import cn.e3mall.pojo.TbItemExample.Criteria;
import cn.e3mall.service.ItemService;/*** 商品管理Service* <p>Title: ItemServiceImpl</p>* <p>Description: </p>* <p>Company: www.itcast.cn</p> * @version 1.0*/
@Service
public class ItemServiceImpl implements ItemService {@Autowiredprivate TbItemMapper itemMapper;@Overridepublic TbItem getItemById(long itemId) {//根据主键查询//TbItem tbItem = itemMapper.selectByPrimaryKey(itemId);TbItemExample example = new TbItemExample();Criteria criteria = example.createCriteria();//设置查询条件criteria.andIdEqualTo(itemId);//执行查询List<TbItem> list = itemMapper.selectByExample(example);if (list != null && list.size() > 0) {return list.get(0);}return null;}}

6.6，controller

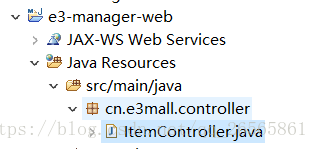

创建cn.e3mall.controller目录

ItemController.java

package cn.e3mall.controller;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;import cn.e3mall.pojo.TbItem;
import cn.e3mall.service.ItemService;/*** 商品管理Controller* <p>Title: ItemController</p>* <p>Description: </p>* <p>Company: www.itcast.cn</p> * @version 1.0*/
@Controller
public class ItemController {@Autowiredprivate ItemService itemService;@RequestMapping("/item/{itemId}")@ResponseBodypublic TbItem getItemById(@PathVariable Long itemId) {TbItem tbItem = itemService.getItemById(itemId);return tbItem;}
}

6.7,解决mapper绑定异常的问题

在pom.xml文件的project节点内添加

<!-- 如果不添加此节点mybatis的mapper.xml文件都会被漏掉。 --><build><resources><resource><directory>src/main/java</directory><includes><include>**/*.properties</include><include>**/*.xml</include></includes><filtering>false</filtering></resource></resources></build>

7,部署并且启动应用

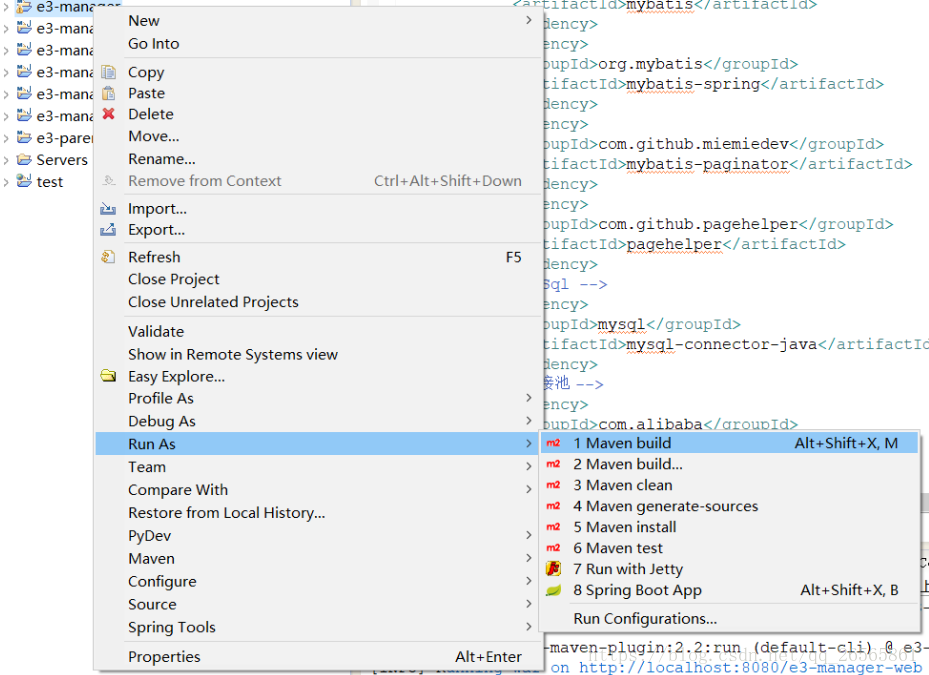

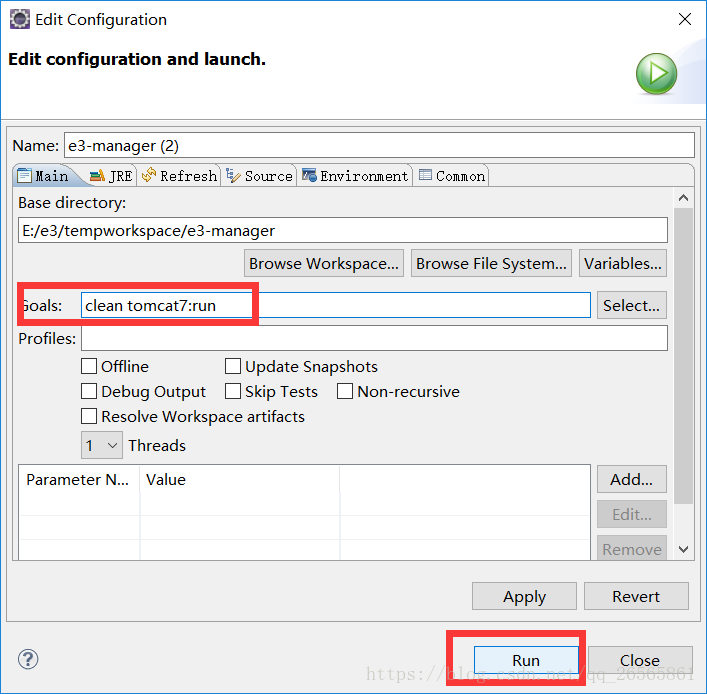

选中e3-manager,右键，Run As -》 Maven Build

输入clean tomcat7:run

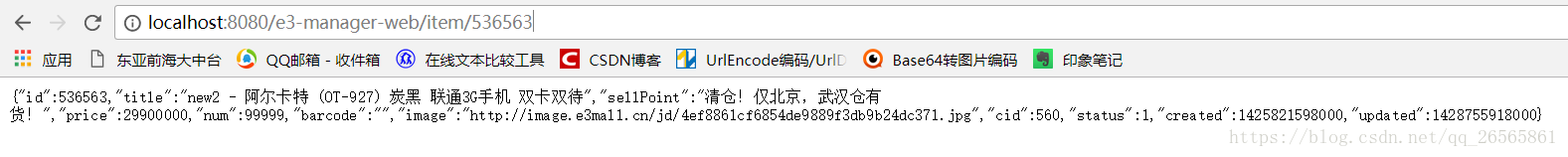

打开浏览器，访问http://localhost:8080/e3-manager-web/item/536563
