Spring4.x整合Axis1.4发布WebService服务
文章目录
- 一、服务端部署
- 1. 在web.xml文件中添加映射路径和spring监听
- 2. 添加spring-axis.xml配置文件
- 3. 添加server-config.wsdd配置文件
- 4. 对外发布服务外壳类
- 5. 添加接口类
- 6. 添加接口逻辑实现类
- 7. 浏览器测试
- 二、客户端部署
- 2.1 axis1.4 工具类封装(企业版本)
- 2.2 运行main方法测试
- 三、多接口服务发布
- 3.1 server-config.wsdd 添加服务
- 3.2 添加对外暴露的外壳类
- 3.3 添加服务接口
- 3.4 添加服务接口逻辑处理类
- 3.5 在spring-axis.xml 添加本地bean
- 3.6 发布服务
- 3.7 支持多个发布路径
- 本文源码下载：
一、服务端部署
1. 在web.xml文件中添加映射路径和spring监听
<!-- webservices接口 axis 需要引入的 Servlet Start --><servlet><servlet-name>AxisServlet</servlet-name><servlet-class>org.apache.axis.transport.http.AxisServlet</servlet-class></servlet><servlet-mapping><servlet-name>AxisServlet</servlet-name><!-- 接口调用的后续路径设置 --><url-pattern>/services/*</url-pattern></servlet-mapping><!-- webservices接口 axis 需要引入的 Servlet End -->
<!-- 新增spring容器配置 Start --><listener><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class></listener><context-param><param-name>contextConfigLocation</param-name><param-value>/WEB-INF/config/spring-*.xml</param-value></context-param><!-- 新增spring容器配置 End -->
注：
1、spring监控如果不添加，服务发布正常，可以省略
2、文件中的扫描文件路径根据项目具体位置而定

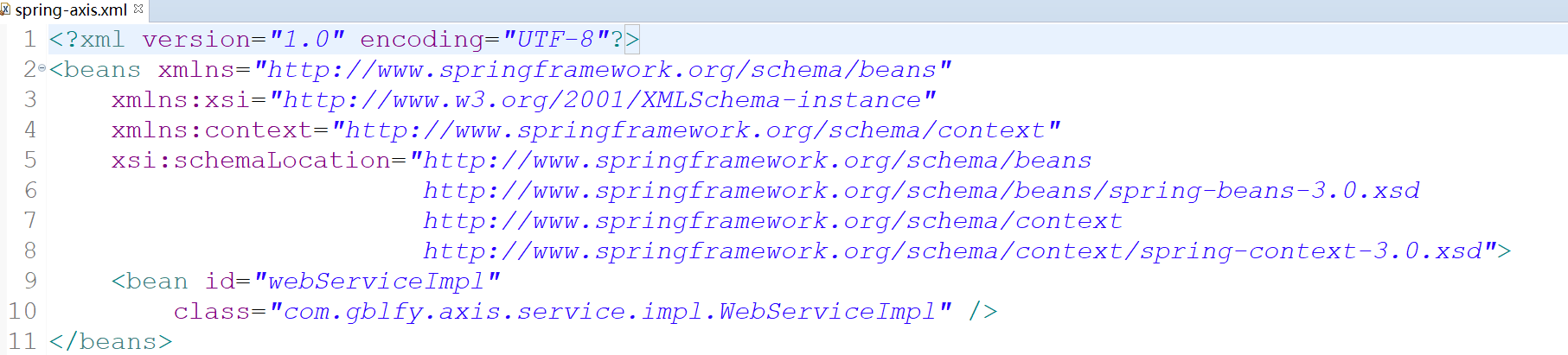

2. 添加spring-axis.xml配置文件
- 文件名自定义即可，作用是本地bean
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans-3.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.0.xsd"><bean id="nFisCommonWebServiceImpl" class="com.gblfy.service.impl.GblfyCommonWebServiceImpl" />
</beans>
注：
1、 id默认是接口实现类的类名小写，也可以小写 自定义
2、 在web.xml配置文件中要配置spring监听
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans-3.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.0.xsd"><bean id="webServiceImpl"class="com.gblfy.axis.service.impl.WebServiceImpl" />
</beans>

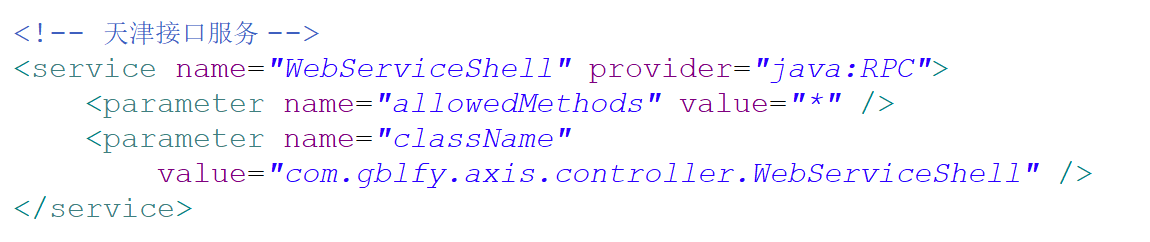

3. 添加server-config.wsdd配置文件
<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="http://xml.apache.org/axis/wsdd/"xmlns:java="http://xml.apache.org/axis/wsdd/providers/java"><globalConfiguration><parameter name="adminPassword" value="admin" /><parameter name="sendXsiTypes" value="true" /><parameter name="sendMultiRefs" value="true" /><parameter name="sendXMLDeclaration" value="true" /><parameter name="axis.sendMinimizedElements" value="true" /><requestFlow><handler type="java:org.apache.axis.handlers.JWSHandler"><parameter name="scope" value="session" /></handler><handler type="java:org.apache.axis.handlers.JWSHandler"><parameter name="scope" value="request" /><parameter name="extension" value=".jwr" /></handler></requestFlow></globalConfiguration><handler name="Authenticate"type="java:org.apache.axis.handlers.SimpleAuthenticationHandler" /><handler name="LocalResponder"type="java:org.apache.axis.transport.local.LocalResponder" /><handler name="URLMapper"type="java:org.apache.axis.handlers.http.URLMapper" /><service name="AdminService" provider="java:MSG"><parameter name="allowedMethods" value="AdminService" /><parameter name="enableRemoteAdmin" value="false" /><parameter name="className"value="org.apache.axis.utils.Admin" /><namespace>http://xml.apache.org/axis/wsdd/</namespace></service><service name="Version" provider="java:RPC"><parameter name="allowedMethods" value="getVersion" /><parameter name="className" value="org.apache.axis.Version" /></service><transport name="http"><requestFlow><handler type="URLMapper" /><handlertype="java:org.apache.axis.handlers.http.HTTPAuthHandler" /></requestFlow></transport><transport name="local"><responseFlow><handler type="LocalResponder" /></responseFlow></transport><!—北京接口服务 start--><service name="GblfyCommonServiceShell" provider="java:RPC"><parameter name="allowedMethods" value="*" /><parameter name="className"value="com.gblfy.controller.webservice.GblfyCommonServiceShell" /></service><!—北京接口服务 end-->
</deployment>
只修改截图部分即可！

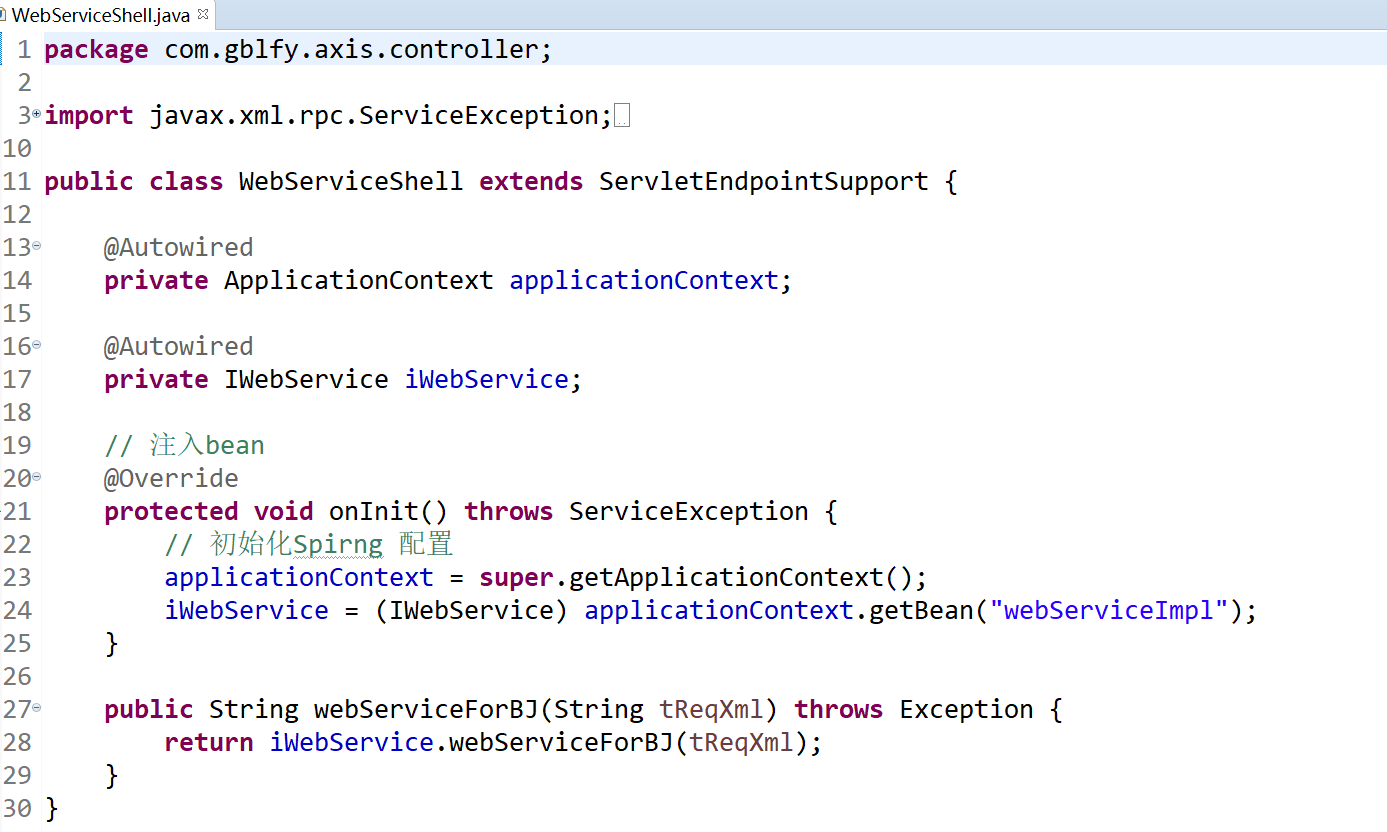

4. 对外发布服务外壳类
- 添加与server-config.wsdd配置文件，相对应对外发布服务外壳类
package com.gblfy.axis.controller;import javax.xml.rpc.ServiceException;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.ApplicationContext;
import org.springframework.remoting.jaxrpc.ServletEndpointSupport;import com.gblfy.axis.service.IWebService;public class WebServiceShell extends ServletEndpointSupport {@Autowiredprivate ApplicationContext applicationContext;@Autowiredprivate IWebService iWebService;// 注入bean@Overrideprotected void onInit() throws ServiceException {// 初始化Spirng 配置applicationContext = super.getApplicationContext();iWebService = (IWebService) applicationContext.getBean("webServiceImpl");}public String webServiceForBJ(String tReqXml) throws Exception {return iWebService.webServiceForBJ(tReqXml);}
}

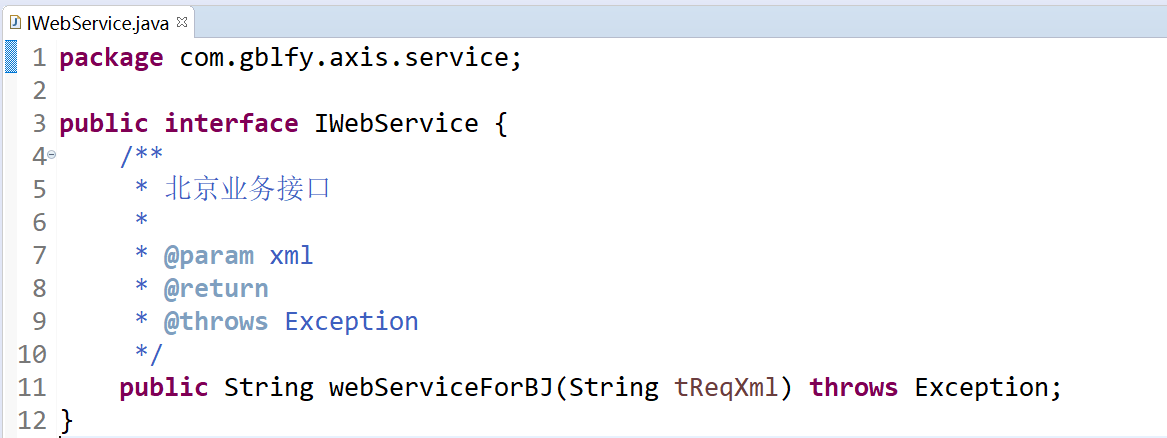

5. 添加接口类
package com.gblfy.axis.service;public interface IWebService {/*** 北京业务接口* * @param xml* @return* @throws Exception*/public String webServiceForBJ(String tReqXml) throws Exception;
}

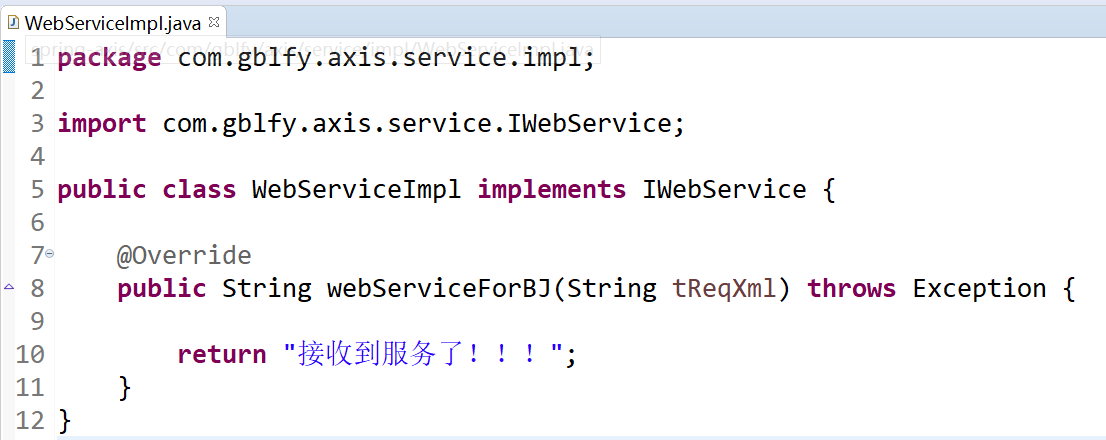

6. 添加接口逻辑实现类
package com.gblfy.axis.service.impl;import com.gblfy.axis.service.IWebService;public class WebServiceImpl implements IWebService {@Overridepublic String webServiceForBJ(String tReqXml) throws Exception {return "接收到服务了！！！";}
}

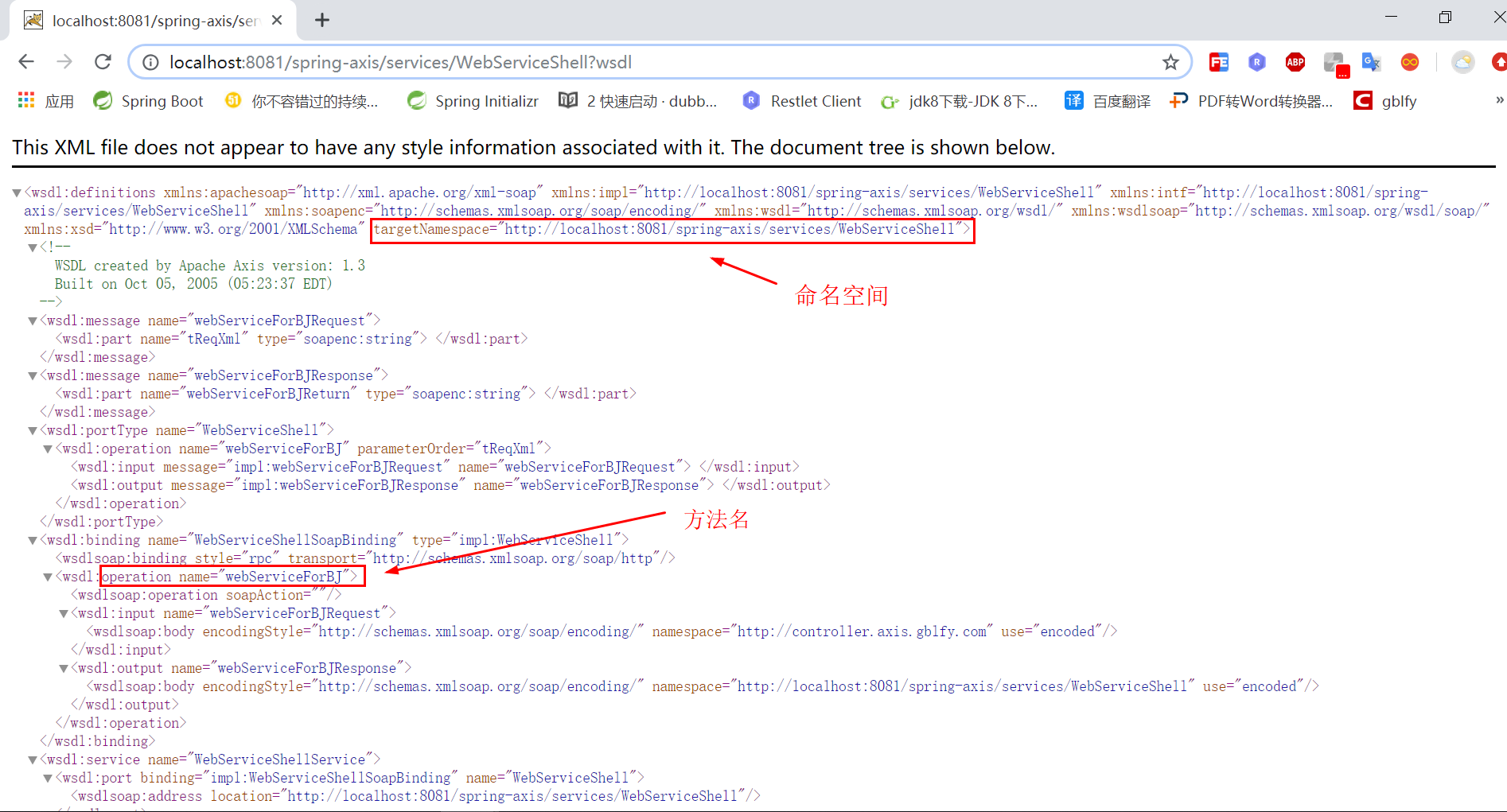

7. 浏览器测试
效果图截图：
http://localhost:8081/spring-axis/services/WebServiceShell?wsdl
二、客户端部署

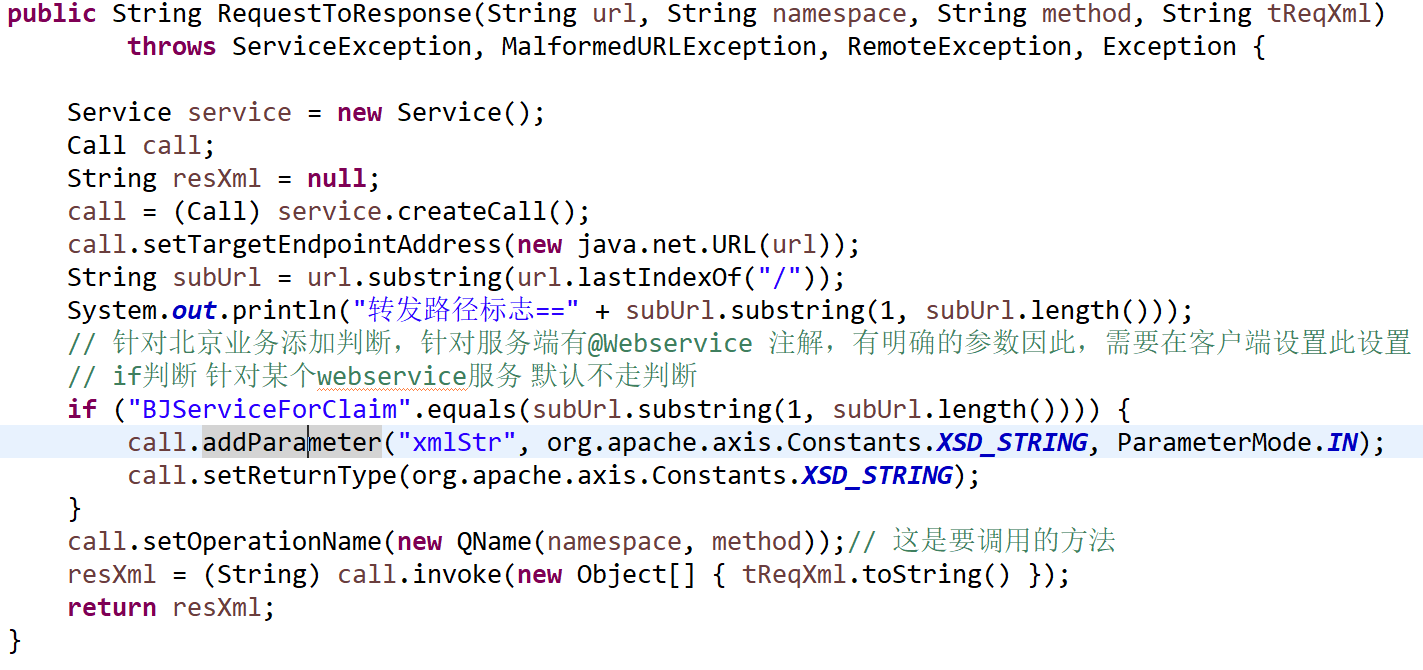

2.1 axis1.4 工具类封装(企业版本)
package com.gblfy.axis.utils;import java.net.MalformedURLException;import javax.xml.namespace.QName;
import javax.xml.rpc.ParameterMode;
import javax.xml.rpc.ServiceException;import org.apache.axis.client.Call;
import org.apache.axis.client.Service;
import org.apache.ibatis.javassist.tools.rmi.RemoteException;/*** webService客户端*/
public class WebServiceClientUtil {public static void main(String[] args) throws MalformedURLException, RemoteException, ServiceException, Exception {String url = "http://localhost:8081/spring-axis/services/WebServiceShell?wsdl";String namespace = "http://localhost:8081/spring-axis/services/WebServiceShell?wsdl";String method = "webServiceForBJ";String tReqXml = "客户端调用webservice服务方成功了！！！";WebServiceClientUtil a = new WebServiceClientUtil();String dataResponse = a.RequestToResponse(url, namespace, method, tReqXml);System.out.println("%%%%%%%%%$$$$$" + dataResponse);}/*** * @param url WebService地址* @param namespace 命名空间* @param method 方法* @param tReqXml 请求报文* @return resXml 响应报文* @throws ServiceException* @throws MalformedURLException* @throws RemoteException* @throws Exception*/public String RequestToResponse(String url, String namespace, String method, String tReqXml)throws ServiceException, MalformedURLException, RemoteException, Exception {Service service = new Service();Call call;String resXml = null;call = (Call) service.createCall();call.setTargetEndpointAddress(new java.net.URL(url));String subUrl = url.substring(url.lastIndexOf("/"));System.out.println("转发路径标志==" + subUrl.substring(1, subUrl.length()));// 针对北京业务添加判断，针对服务端有@Webservice 注解，有明确的参数因此，需要在客户端设置此设置// if判断 针对某个webservice服务 默认不走判断if ("BJServiceForClaim".equals(subUrl.substring(1, subUrl.length()))) {call.addParameter("xmlStr", org.apache.axis.Constants.XSD_STRING, ParameterMode.IN);call.setReturnType(org.apache.axis.Constants.XSD_STRING);}call.setOperationName(new QName(namespace, method));// 这是要调用的方法resXml = (String) call.invoke(new Object[] { tReqXml.toString() });return resXml;}}

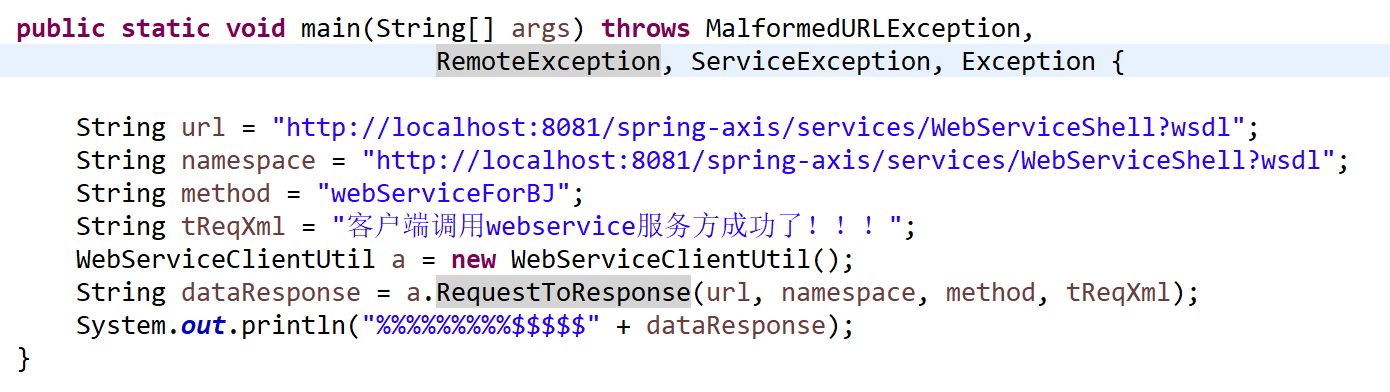

2.2 运行main方法测试
控制台输出
转发路径标志==WebServiceShell?wsdl
%%%%%%%%%$$$$$接收到服务了！！！
三、多接口服务发布

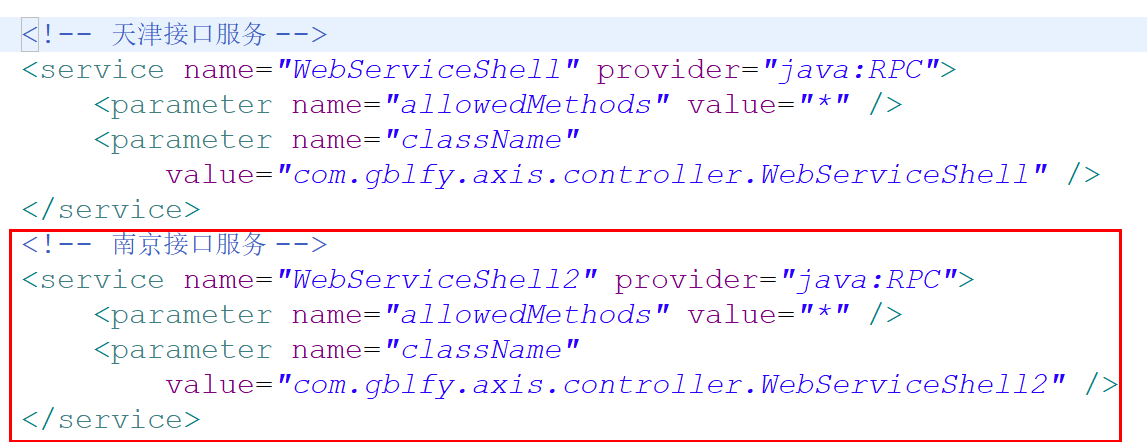

3.1 server-config.wsdd 添加服务
3.2 添加对外暴露的外壳类
3.3 添加服务接口
3.4 添加服务接口逻辑处理类

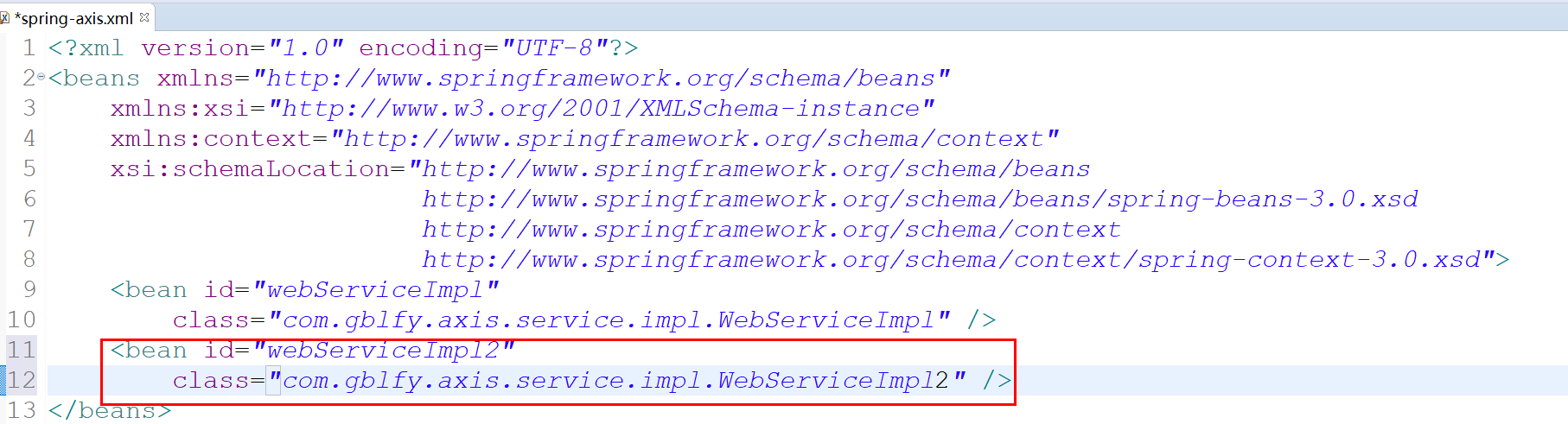

3.5 在spring-axis.xml 添加本地bean
3.6 发布服务

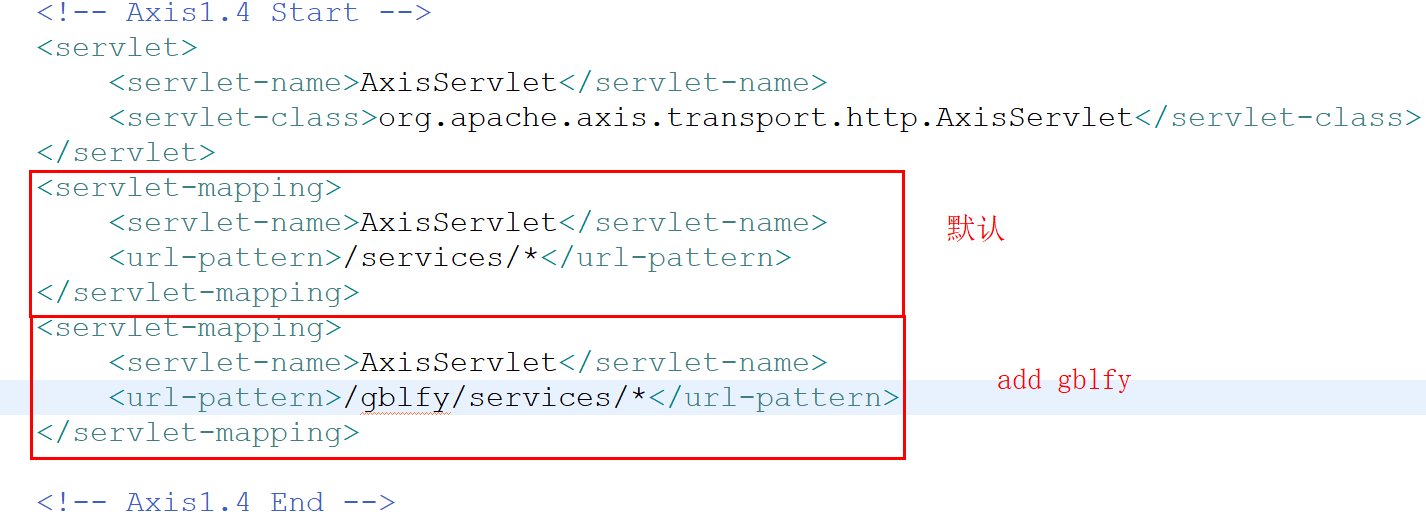

3.7 支持多个发布路径
在web.xml文件中
- 默认 /services/*
- 新增加/gblfy/services/*
本文源码下载：
| 链接 | https://pan.baidu.com/s/1fVe3Fq_n4Ru9CHG_XCXVOg |
|---|---|
| 提取码 | 0iv1 |
