spring security
spring security 主要的两个功能是认证和授权
认证的大概流程:
Username password AuthenticationFilter(自定义usernamepassword拦截器)
UserDetailService (查询用户密码的service接口)
Userdetails (用户类接口)
AuthenticationProvide (为认证管理器AuthenticationManager 提供验证组件AuthenticationProvider)
授权的大概流程:
(extends)AbstractsecurityInterceptor +(implements)Filter(资源访问过滤器,拦截访问请求,封装成安全对象FilterInvocation,调用前两个实例进行鉴权)
FilterInvocationSecurityMetadataSource(自定义权限数据源,提供所有URL资源与对应角色权限的映射集合)
AccessDecisionManager (自定义鉴权管理器,根据URL资源权限和用户角色权限进行鉴权)
用户登陆
会被AuthenticationProcessingFilter拦截,调用AuthenticationManager的实现,而且AuthenticationManager会调用ProviderManager来获取用户验证信息(不同的Provider调用的服务不同,因为这些信息可以是在数据库上,可以是在LDAP服务器上,可以是xml配置文件上等),如果验证通过后会将用户的权限信息封装一个User放到spring的全局缓存SecurityContextHolder中,以备后面访问资源时使用。
访问资源(即授权管理)
访问url时,会通过AbstractSecurityInterceptor拦截器拦截,其中会调用FilterInvocationSecurityMetadataSource的方法来获取被拦截url所需的全部权限,在调用授权管理器AccessDecisionManager,这个授权管理器会通过spring的全局缓存SecurityContextHolder获取用户的权限信息,还会获取被拦截的url和被拦截url所需的全部权限,然后根据所配的策略(有:一票决定,一票否定,少数服从多数等),如果权限足够,则返回,权限不够则报错并调用权限不足页面。

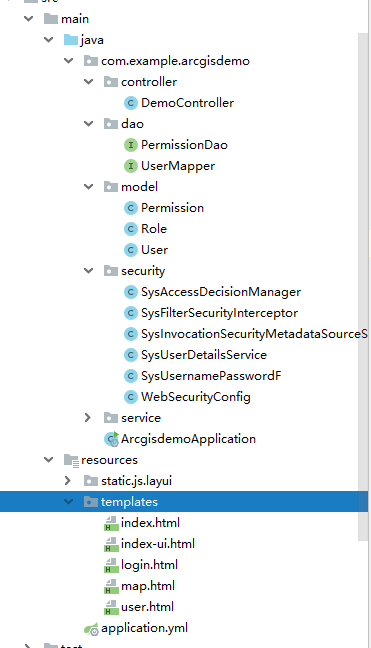

项目结构:

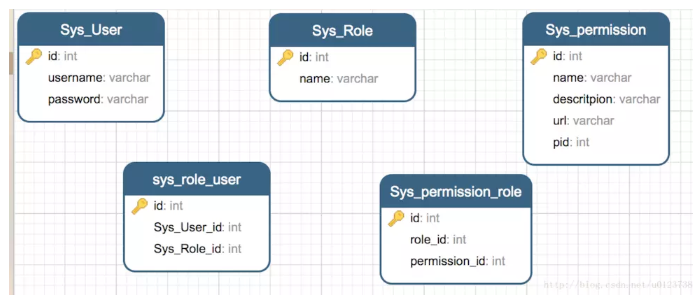

数据库设计:
model:
Permission
package com.example.arcgisdemo.model;import com.sun.javafx.beans.IDProperty;import javax.persistence.*;
import java.util.List;@Entity
@Table(name = "SYS_PERMISSION")
public class Permission {@Id@GeneratedValue(strategy = GenerationType.AUTO)@Column(name = "ID")private int id;@Column(name = "NAME")private String name;@Column(name = "DESCRIPTION")private String description;@Column(name = "URL")private String url;@Column(name = "PID")private String pid;public int getId() {return id;}public void setId(int id) {this.id = id;}public String getName() {return name;}public void setName(String name) {this.name = name;}public String getDescription() {return description;}public void setDescription(String description) {this.description = description;}public String getUrl() {return url;}public void setUrl(String url) {this.url = url;}public String getPid() {return pid;}public void setPid(String pid) {this.pid = pid;}}
User:
这里是在User中实现了UserDetails
package com.example.arcgisdemo.model;import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;import javax.persistence.*;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;@Entity
@Table(name = "SYS_USER")
public class User implements UserDetails {@Id@GeneratedValue(strategy = GenerationType.AUTO)@Column(name = "ID")private int id;@Column(name = "USERNAME")private String username;@Column(name = "PASSWORD")private String password;@ManyToMany(fetch = FetchType.EAGER)@JoinTable(name = "SYS_ROLE_USER",joinColumns = {@JoinColumn(name = "SYS_USER_ID",referencedColumnName = "ID")},inverseJoinColumns = {@JoinColumn(name = "SYS_ROLE_ID",referencedColumnName = "ID")})private List<Role> roles;@Overridepublic Collection<? extends GrantedAuthority> getAuthorities() {if (roles == null || roles.size() < 1) {return AuthorityUtils.commaSeparatedStringToAuthorityList("");}StringBuilder rolestring = new StringBuilder();for (Role role : roles) {rolestring.append(role.getName()).append(",");}List<GrantedAuthority> authorityList = AuthorityUtils.commaSeparatedStringToAuthorityList(rolestring.substring(0, rolestring.length() - 1));return authorityList;}public int getId() {return id;}public void setId(int id) {this.id = id;}public String getUsername() {return username;}public void setUsername(String username) {this.username = username;}public String getPassword() {return password;}public void setPassword(String password) {this.password = password;}@Overridepublic boolean isAccountNonExpired() {return true;}@Overridepublic boolean isAccountNonLocked() {return true;}@Overridepublic boolean isCredentialsNonExpired() {return true;}@Overridepublic boolean isEnabled() {return true;}public List<Role> getRoles() {return roles;}public void setRoles(List<Role> roles) {this.roles = roles;}}
Role
package com.example.arcgisdemo.model;import javax.persistence.*;
import java.util.List;@Entity
@Table(name = "SYS_ROLE")
public class Role {@Id@GeneratedValue(strategy = GenerationType.AUTO)@Column(name = "ID")private int id;@Column(name = "NAME")private String name;@ManyToMany(fetch = FetchType.EAGER)@JoinTable(name = "SYS_PERMISSION_ROLE",joinColumns = {@JoinColumn(name = "ROLE_ID",referencedColumnName = "ID")},inverseJoinColumns = {@JoinColumn(name = "PERMISSION_ID",referencedColumnName = "ID")})private List<Permission> permissions;public int getId() {return id;}public void setId(int id) {this.id = id;}public String getName() {return name;}public void setName(String name) {this.name = name;}public List<Permission> getPermissions() {return permissions;}public void setPermissions(List<Permission> permissions) {this.permissions = permissions;}
}
security:
WebSecurityConfig 配置
package com.example.arcgisdemo.security;import com.example.arcgisdemo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;
import org.springframework.security.web.access.intercept.FilterSecurityInterceptor;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.authentication.SimpleUrlAuthenticationFailureHandler;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;@Configuration
@EnableWebSecurity //注解开启Spring Security的功能
@EnableGlobalMethodSecurity(prePostEnabled = true) //开启Spring Security注解功能
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {@Autowiredprivate UserService userService;@Autowiredprivate SysFilterSecurityInterceptor sysFilterSecurityInterceptor;protected void configure(AuthenticationManagerBuilder auth) throws Exception {auth.userDetailsService(userService).passwordEncoder(passwordEncoder());
// auth.authenticationProvider(new SysDaoAuthenticationProvider());}protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/js/layui/**").permitAll() //定义不需要认证就可以访问的资源.anyRequest().authenticated().and().formLogin().loginPage("/login") //定义当需要用户登录时候,转到的登录页面.loginProcessingUrl("/login").defaultSuccessUrl("/", true).failureUrl("/login?error").permitAll().and().logout().logoutUrl("/logout")//退出登录后的默认Url是login.logoutSuccessUrl("/login").permitAll();//解决非thymeleaf的form表单提交被拦截问题http.csrf().disable();http.addFilter(customUsernamePasswordAuthenticationFilter());http.addFilterBefore(sysFilterSecurityInterceptor, FilterSecurityInterceptor.class).csrf().disable();http.headers().frameOptions().sameOrigin();}
/*,"https://sampleserver3.arcgisonline.com/ArcGIS/rest/services/Hydrography/Watershed173811/MapServer/1","https://sampleserver3.arcgisonline.com/ArcGIS/rest/services/Hydrography/Watershed173811/MapServer/0","http://192.168.101.4:8080/agapi/**"*/@Beanpublic static NoOpPasswordEncoder passwordEncoder() {return (NoOpPasswordEncoder) NoOpPasswordEncoder.getInstance();}@Beanpublic UserDetailsService systemUserService() {return new UserService();}@Beanpublic SysUsernamePasswordF customUsernamePasswordAuthenticationFilter() throws Exception {SysUsernamePasswordF customUsernamePasswordAuthenticationFilter = new SysUsernamePasswordF();customUsernamePasswordAuthenticationFilter.setRequiresAuthenticationRequestMatcher(new AntPathRequestMatcher("/login", "POST"));customUsernamePasswordAuthenticationFilter.setAuthenticationManager(authenticationManagerBean());customUsernamePasswordAuthenticationFilter.setAuthenticationSuccessHandler(new SavedRequestAwareAuthenticationSuccessHandler());customUsernamePasswordAuthenticationFilter.setAuthenticationFailureHandler(new SimpleUrlAuthenticationFailureHandler("/login?error"));return customUsernamePasswordAuthenticationFilter;}
}
SysUsernamePasswordF
package com.example.arcgisdemo.security;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.authentication.AuthenticationServiceException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;public class SysUsernamePasswordF extends UsernamePasswordAuthenticationFilter {public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException {if (!request.getMethod().equals("POST")) {throw new AuthenticationServiceException("Authentication method not supported: " + request.getMethod());} else {String username = this.obtainUsername(request);String password = this.obtainPassword(request);if (username == null) {username = "";}else {}if (password == null) {password = "";}else {}username = username.trim();UsernamePasswordAuthenticationToken authRequest = new UsernamePasswordAuthenticationToken(username, password);this.setDetails(request, authRequest);return this.getAuthenticationManager().authenticate(authRequest);}}
}
SysUserDetailsService
package com.example.arcgisdemo.security;import ch.qos.logback.core.joran.conditional.ElseAction;
import com.example.arcgisdemo.model.Permission;import com.example.arcgisdemo.model.User;
import com.example.arcgisdemo.service.PermissionService;
import com.example.arcgisdemo.service.SysUserService;
import com.example.arcgisdemo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;import java.util.ArrayList;
import java.util.List;public class SysUserDetailsService implements UserDetailsService {@Autowiredprivate SysUserService sysUserService;@Autowiredprivate PermissionService permissionService;@Overridepublic UserDetails loadUserByUsername(String username) {User user = sysUserService.findByUserName(username);if (user != null) {List<Permission> permissions = permissionService.findById(user.getId());List<GrantedAuthority> grantedAuthorities = new ArrayList<>();for (Permission permission : permissions) {if (permission != null && permission.getName() != null) {GrantedAuthority grantedAuthority = new SimpleGrantedAuthority(permission.getName());//将此处权限信息添加到GrantedAuthority对象中,在后面进行全权限验证时会使用GrantedAuthoritygrantedAuthorities.add(grantedAuthority);}}return new org.springframework.security.core.userdetails.User(user.getUsername(), user.getPassword(), grantedAuthorities);}else {throw new UsernameNotFoundException("do not exist");}}
}
SysInvocationSecurityMetadataSourceService
package com.example.arcgisdemo.security;import com.example.arcgisdemo.model.Permission;
import com.example.arcgisdemo.service.PermissionService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.access.ConfigAttribute;
import org.springframework.security.access.SecurityConfig;
import org.springframework.security.web.FilterInvocation;
import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
import org.springframework.stereotype.Service;
import sun.security.krb5.Config;import javax.servlet.http.HttpServletRequest;
import java.util.*;@Service
public class SysInvocationSecurityMetadataSourceService implements FilterInvocationSecurityMetadataSource {@Autowiredprivate PermissionService permissionService;private HashMap<String,Collection<ConfigAttribute>> map=null;//加载权限表中所有权限public void loadResourceDefine(){map=new HashMap<>();Collection<ConfigAttribute> array;ConfigAttribute cfg;List<Permission> permissions=permissionService.findAll();for (Permission permission:permissions){array=new ArrayList<>();cfg=new SecurityConfig(permission.getName());//此处指添加用户的名字,其实可以添加更多权限信息。例如请求方法到ConfigAttributr的集合中array.add(cfg);//用权限的getUrl。作为map的key。用ConfigAttribute的集合作为valuemap.put(permission.getUrl(),array);}}
//此方法是为了判定用户请求的url是否在权限表中,如果在权限表中,则返回给decide()方法,
// 用来判断用户是否有此权限,如果不在权限表中则放行@Overridepublic Collection<ConfigAttribute> getAttributes(Object object) throws IllegalArgumentException {if(map ==null)loadResourceDefine();//object中包含用户请求的request信息HttpServletRequest request=((FilterInvocation)object).getHttpRequest();AntPathRequestMatcher matcher;String resUrl;for (Iterator<String> iter=map.keySet().iterator();iter.hasNext();){resUrl=iter.next();matcher=new AntPathRequestMatcher(resUrl);if (matcher.matches(request)){return map.get(resUrl);}}return null;}@Overridepublic Collection<ConfigAttribute> getAllConfigAttributes() {return null;}@Overridepublic boolean supports(Class<?> aClass) {return true;}
}
SysFilterSecurityInterceptor
package com.example.arcgisdemo.security;import org.apache.catalina.connector.Request;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.security.access.SecurityMetadataSource;
import org.springframework.security.access.intercept.AbstractSecurityInterceptor;
import org.springframework.security.access.intercept.InterceptorStatusToken;
import org.springframework.security.web.FilterInvocation;
import org.springframework.stereotype.Service;
import javax.servlet.*;import javax.servlet.*;
import java.io.IOException;
@Service(value = "sysFilterSecurityInterceptor")
public class SysFilterSecurityInterceptor extends AbstractSecurityInterceptor implements Filter {@Autowired@Qualifier(value = "sysInvocationSecurityMetadataSourceService")private SysInvocationSecurityMetadataSourceService sysInvocationSecurityMetadataSourceService;@Autowired@Qualifier(value = "sysAccessDecisionManager")public void setSysAccessDecisionManager(SysAccessDecisionManager sysAccessDecisionManager){super.setAccessDecisionManager(sysAccessDecisionManager);}@Overridepublic void init(FilterConfig filterConfig) throws ServletException {}@Overridepublic void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {FilterInvocation fi=new FilterInvocation(servletRequest,servletResponse,filterChain);invoke(fi);}public void invoke(FilterInvocation fi)throws IOException,ServletException{//fi里面有一个被拦截的url//里面调用SysInvocationSecurityMetadataSource的getAttributes(Object object)这个方法获取fi对应的所有权限//在调用SysAccessDecisionManager的decide方法来校验用户的权限是否足够InterceptorStatusToken token=super.beforeInvocation(fi);try {//执行下一个拦截器fi.getChain().doFilter(fi.getRequest(),fi.getResponse());}finally {super.afterInvocation(token,null);}}@Overridepublic void destroy() {}@Overridepublic Class<?> getSecureObjectClass() {return FilterInvocation.class;}@Overridepublic SecurityMetadataSource obtainSecurityMetadataSource() {return this.sysInvocationSecurityMetadataSourceService;}
}
SysAccessDecisionManager
package com.example.arcgisdemo.security;import org.springframework.security.access.AccessDecisionManager;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.access.ConfigAttribute;
import org.springframework.security.authentication.InsufficientAuthenticationException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.stereotype.Service;import java.util.Collection;
import java.util.Iterator;
@Service(value = "sysAccessDecisionManager")
public class SysAccessDecisionManager implements AccessDecisionManager {//decide方法是判定是否拥有权限的决策方法//authentication 是释SysUserDetailsService中循环添加到GrantedAuthority对象中的权限信息集合//object 包含客户端发起的请求的request信息。可转换为HttpServlerRequest request=((FilterInvocation) object).getHttpRequest();//configAttributes 为InvocationSecurityMetadataSource的getAttributes(Object)这个方法返回的结果//此方法是为了判定用户请求的url,是否在权限表中,如果在权限表中,则返回给decide方法,//用来判定用户是否有此权限,如果不在权限表中则放行。@Overridepublic void decide(Authentication authentication, Object object, Collection<ConfigAttribute> configAttributes) throws AccessDeniedException, InsufficientAuthenticationException {if (null==configAttributes || configAttributes.size()<=0){return;}ConfigAttribute configAttribute;String needRole;for (Iterator<ConfigAttribute> iter=configAttributes.iterator();iter.hasNext();){configAttribute=iter.next();needRole=configAttribute.getAttribute();for (GrantedAuthority ga:authentication.getAuthorities()){if (needRole.trim().equals(ga.getAuthority())){return;}}}throw new AccessDeniedException("no right");}@Overridepublic boolean supports(ConfigAttribute configAttribute) {return true;}@Overridepublic boolean supports(Class<?> aClass) {return true;}
}
Service:
PermissionService
package com.example.arcgisdemo.service;import com.example.arcgisdemo.dao.PermissionDao;
import com.example.arcgisdemo.model.Permission;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;import java.util.List;@Service(value = "permissionService")
public class PermissionService {@Autowired@Qualifier(value = "permissionDao")private PermissionDao permissionDao;public List<Permission> findAll(){return permissionDao.findAll();}public List<Permission> findById(int id){return permissionDao.findById(id);}
}
SysUserService
package com.example.arcgisdemo.service;import com.example.arcgisdemo.dao.UserMapper;
import com.example.arcgisdemo.model.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Service;import java.util.List;@Service(value = "sysUserService")
public class SysUserService {@Autowired@Qualifier(value = "userMapper")private UserMapper userMapper;public User queryByUserName(String username) {return userMapper.queryByUsername(username);}public User findByUserName(String username){return userMapper.findByUsername(username);}
}
UserService
package com.example.arcgisdemo.service;import com.example.arcgisdemo.model.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;
@Service(value = "userService")
public class UserService implements UserDetailsService {@Autowiredprivate SysUserService systemUserService;@Overridepublic UserDetails loadUserByUsername(String s) throws UsernameNotFoundException {//根据用户名从数据库查询对应记录User user=systemUserService.queryByUserName(s);if (user ==null){throw new UsernameNotFoundException("username is not exists");}System.out.println("username:"+user.getUsername()+",password:"+user.getPassword());return user;}
}
dao:
PermissionDao
package com.example.arcgisdemo.dao;import com.example.arcgisdemo.model.Permission;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;import java.util.List;@Repository(value = "permissionDao")
public interface PermissionDao extends JpaRepository<Permission,Long> {List<Permission> findAll();List<Permission> findById(int id);
}
UserMapper
package com.example.arcgisdemo.dao;import com.example.arcgisdemo.model.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;import java.util.List;@Repository(value = "userMapper")
public interface UserMapper extends JpaRepository<User,Long> {User queryByUsername(String username);User findByUsername(String username);
}
controller
package com.example.arcgisdemo.controller;import org.springframework.security.access.annotation.Secured;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;@Controller
public class DemoController {@RequestMapping("/login")public String login() {return "login";}@RequestMapping("/")public String index1() {return "index-ui";}/*@Secured({"ROLE_ADMIN"})*/@RequestMapping("/user")public String user(){return "user";}@RequestMapping("/map")public String map(){return "map";}
}
也可以在页面上设置权限,让没有权限的用户看不到该功能
<div sec:authorize="hasRole('ADMIN')"><!--设置权限--><ul class="layui-nav layui-layout-left"><li class="layui-nav-item"><a href="">控制台</a></li><li class="layui-nav-item"><a href="">管理</a></li><li class="layui-nav-item"><a href="/user">用户</a></li><li class="layui-nav-item"><a href="javascript:;">其它系统</a><dl class="layui-nav-child"><dd><a href="">邮件管理</a></dd><dd><a href="">消息管理</a></dd><dd><a href="">授权管理</a></dd></dl></li></ul></div>
在这里遇到个问题 刚开始的时候没有效果,经过找资料需要将spring 版本降到2.0.7以下
再加上:
<htmlxmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity4">
pom.xml 需要配置secutiry扩展包
<dependency><groupId>org.thymeleaf.extras</groupId><artifactId>thymeleaf-extras-springsecurity4</artifactId><version>3.0.2.RELEASE</version></dependency>
参考文档:链接:https://www.jianshu.com/p/bcbbf16610fb
