ETL异构数据源Datax_使用数据分片提升同步速度

ETL异构数据源Datax_使用数据分片提升同步速度_05

文章目录

- - - - 1. 构建json，添加数据分片
        2. Mysql数据清除
        3. 数据分片前后对比

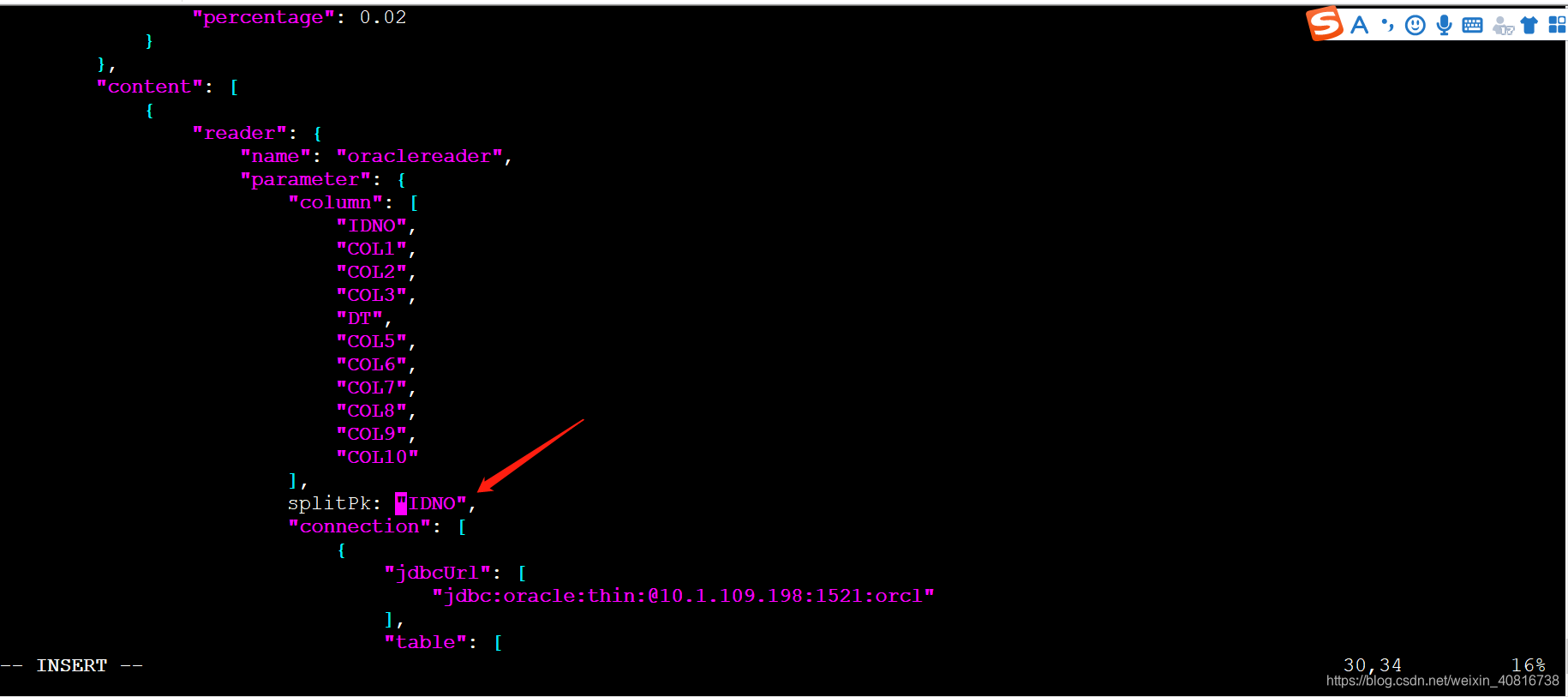

1. 构建json，添加数据分片

在这里插入图片描述

{"job": {"setting": {"speed": {"channel": 3},"errorLimit": {"record": 0,"percentage": 0.02}},"content": [{"reader": {"name": "oraclereader","parameter": {"column": ["IDNO","COL1","COL2","COL3","DT","COL5","COL6","COL7","COL8","COL9","COL10"],splitPk:"IDNO","connection": [{"jdbcUrl": ["jdbc:oracle:thin:@192.xxx.xxx.xxx:1521:orcl"],"table": ["TEST.OTBS1"]}],"username": "username","password": "password"}},"writer": {"name": "mysqlwriter","parameter": {"column": ["IDNO","COL1","COL2","COL3","DT","COL5","COL6","COL7","COL8","COL9","COL10"],"connection": [{"jdbcUrl": "jdbc:mysql://127.0.0.1:3306/datax?autoReconnect=true&useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=CONVERT_TO_NULL&useSSL=false&serverTimezone=CTT&nullCatalogMeansCurrent=true","table": ["otbs1"]}],"username": "root","password": "123456"}}}]}
}

2. Mysql数据清除

清除mysql otbs1表数据

truncate table otbs1;

3. 数据分片前后对比

数据分片前

2021-06-23 12:28:12.390 [job-0] INFO  StandAloneJobContainerCommunicator - Total 1048576 records, 69143488 bytes | Speed 1.65MB/s, 26214 records/s | Error 0 records, 0 bytes |  All Task WaitWriterTime 26.038s |  All Task WaitReaderTime 8.483s | Percentage 100.00%
2021-06-23 12:28:12.402 [job-0] INFO  JobContainer -
任务启动时刻                    : 2021-06-23 12:27:31
任务结束时刻                    : 2021-06-23 12:28:12
任务总计耗时                    :                 41s
任务平均流量                    :            1.65MB/s
记录写入速度                    :          26214rec/s
读出记录总数                    :             1048576
读写失败总数                    :                   0channel并发3个未生效

数据分片后

2021-06-23 12:59:01.629 [job-0] INFO  JobContainer -
任务启动时刻                    : 2021-06-23 12:58:29
任务结束时刻                    : 2021-06-23 12:59:01
任务总计耗时                    :                 31s
任务平均流量                    :            2.20MB/s
记录写入速度                    :          34952rec/s
读出记录总数                    :             1048576
读写失败总数                    :                   0

速度相比数据分片前提升了10s

同步日志，相比数据分片前做了数据分片处理，并发3个channel处理16个任务。
channel并发3个未生效
在这里插入图片描述

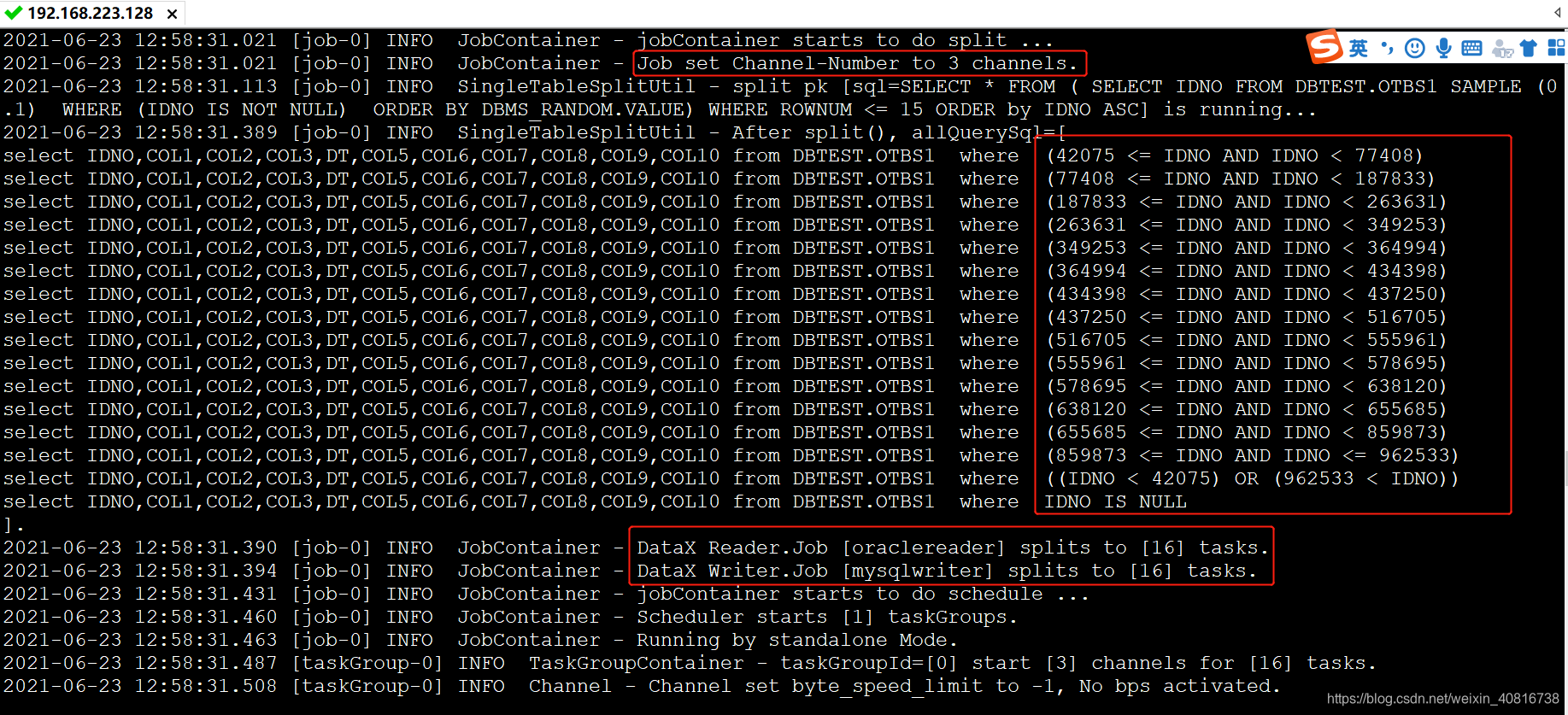

2021-06-23 12:58:31.020 [job-0] INFO  JobContainer - jobContainer starts to do prepare ...
2021-06-23 12:58:31.020 [job-0] INFO  JobContainer - DataX Reader.Job [oraclereader] do prepare work .
2021-06-23 12:58:31.020 [job-0] INFO  JobContainer - DataX Writer.Job [mysqlwriter] do prepare work .
2021-06-23 12:58:31.021 [job-0] INFO  JobContainer - jobContainer starts to do split ...
2021-06-23 12:58:31.021 [job-0] INFO  JobContainer - Job set Channel-Number to 3 channels.
2021-06-23 12:58:31.113 [job-0] INFO  SingleTableSplitUtil - split pk [sql=SELECT * FROM ( SELECT IDNO FROM DBTEST.OTBS1 SAMPLE (0.1)  WHERE (IDNO IS NOT NULL)  ORDER BY DBMS_RANDOM.VALUE) WHERE ROWNUM <= 15 ORDER by IDNO ASC] is running...
2021-06-23 12:58:31.389 [job-0] INFO  SingleTableSplitUtil - After split(), allQuerySql=[
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (42075 <= IDNO AND IDNO < 77408)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (77408 <= IDNO AND IDNO < 187833)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (187833 <= IDNO AND IDNO < 263631)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (263631 <= IDNO AND IDNO < 349253)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (349253 <= IDNO AND IDNO < 364994)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (364994 <= IDNO AND IDNO < 434398)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (434398 <= IDNO AND IDNO < 437250)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (437250 <= IDNO AND IDNO < 516705)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (516705 <= IDNO AND IDNO < 555961)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (555961 <= IDNO AND IDNO < 578695)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (578695 <= IDNO AND IDNO < 638120)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (638120 <= IDNO AND IDNO < 655685)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (655685 <= IDNO AND IDNO < 859873)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  (859873 <= IDNO AND IDNO <= 962533)
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  ((IDNO < 42075) OR (962533 < IDNO))
select IDNO,COL1,COL2,COL3,DT,COL5,COL6,COL7,COL8,COL9,COL10 from TEST.OTBS1  where  IDNO IS NULL
].
2021-06-23 12:58:31.390 [job-0] INFO  JobContainer - DataX Reader.Job [oraclereader] splits to [16] tasks.
2021-06-23 12:58:31.394 [job-0] INFO  JobContainer - DataX Writer.Job [mysqlwriter] splits to [16] tasks.
2021-06-23 12:58:31.431 [job-0] INFO  JobContainer - jobContainer starts to do schedule ...
2021-06-23 12:58:31.460 [job-0] INFO  JobContainer - Scheduler starts [1] taskGroups.
2021-06-23 12:58:31.463 [job-0] INFO  JobContainer - Running by standalone Mode.
2021-06-23 12:58:31.487 [taskGroup-0] INFO  TaskGroupContainer - taskGroupId=[0] start [3] channels for [16] tasks.
2021-06-23 12:58:31.508 [taskGroup-0] INFO  Channel - Channel set byte_speed_limit to -1, No bps activated.
2021-06-23 12:58:31.508 [taskGroup-0] INFO  Channel - Channel set record_speed_limit to -1, No tps activated.
