OpenTSDB 安装

下载目录

https://github.com/OpenTSDB/opentsdb/releases
https://github.com/OpenTSDB/opentsdb/releases/download/v2.4.0/opentsdb-2.4.0.noarch.rpm

安装 GnuPlot

yum install gnuplot -y

直接安装OpenTSDB会报错

[root@ecs-t-001-0001 openTSDB]# rpm -ivh opentsdb-2.4.0.noarch.rpmerror: Failed dependencies: gnuplot is needed by opentsdb-2.4.0-1.noarch

安装OpenTSDB

[root@ecs opt]# rpm -ivh opentsdb-2.4.0.noarch.rpm
Preparing...                          ################################# [100%]
Updating / installing...1:opentsdb-2.4.0-1                 ################################# [100%]

默认配置目录

    /etc/opentsdb - Configuration files /tmp/opentsdb - Temporary cache files /usr/share/opentsdb - Application files /usr/share/opentsdb/bin - The "tsdb" startup script that launches a TSD or commandline tools /usr/share/opentsdb/lib - Java JAR library files /usr/share/opentsdb/plugins - Location for plugin files and dependencies /usr/share/opentsdb/static - Static files for the GUI /usr/share/opentsdb/tools - Scripts and other tools /var/log/opentsdb - Logs

修改配置

进入目录 /usr/share/opentsdb/etc/opentsdb 修改配置文件 opentsdb.conf

> vim opentsdb.conftsd.storage.hbase.zk_quorum = zk:2181
tsd.network.port = 10080
tsd.http.staticroot = /usr/share/opentsdb/static/
tsd.http.cachedir = /tmp/opentsdb
tsd.core.plugin_path = /usr/share/opentsdb/plugins

初始化OpenTSDB表

进入目录/usr/share/opentsdb/tools，修改create_table.sh

我们加入的内容

HBASE_HOME=/opt/cloudera/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554/lib/hbase
COMPRESSION=SNAPPY

全部内容

[root@ecs tools]# cat create_table.sh
#!/bin/sh
# Small script to setup the HBase tables used by OpenTSDB.HBASE_HOME=/opt/cloudera/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554/lib/hbase
COMPRESSION=SNAPPYtest -n "$HBASE_HOME" || {echo >&2 'The environment variable HBASE_HOME must be set'exit 1
}
test -d "$HBASE_HOME" || {echo >&2 "No such directory: HBASE_HOME=$HBASE_HOME"exit 1
}TSDB_TABLE=${TSDB_TABLE-'tsdb'}
UID_TABLE=${UID_TABLE-'tsdb-uid'}
TREE_TABLE=${TREE_TABLE-'tsdb-tree'}
META_TABLE=${META_TABLE-'tsdb-meta'}
BLOOMFILTER=${BLOOMFILTER-'ROW'}
# LZO requires lzo2 64bit to be installed + the hadoop-gpl-compression jar.
COMPRESSION=${COMPRESSION-'LZO'}
# All compression codec names are upper case (NONE, LZO, SNAPPY, etc).
COMPRESSION=`echo "$COMPRESSION" | tr a-z A-Z`
# DIFF encoding is very useful for OpenTSDB's case that many small KVs and common prefix.
# This can save a lot of storage space.
DATA_BLOCK_ENCODING=${DATA_BLOCK_ENCODING-'DIFF'}
DATA_BLOCK_ENCODING=`echo "$DATA_BLOCK_ENCODING" | tr a-z A-Z`
TSDB_TTL=${TSDB_TTL-'FOREVER'}case $COMPRESSION in(NONE|LZO|GZIP|SNAPPY)  :;;  # Known good.(*)echo >&2 "warning: compression codec '$COMPRESSION' might not be supported.";;
esaccase $DATA_BLOCK_ENCODING in(NONE|PREFIX|DIFF|FAST_DIFF|ROW_INDEX_V1)  :;; # Know good(*)echo >&2 "warning: encoding '$DATA_BLOCK_ENCODING' might not be supported.";;
esac# HBase scripts also use a variable named `HBASE_HOME', and having this
# variable in the environment with a value somewhat different from what
# they expect can confuse them in some cases.  So rename the variable.
hbh=$HBASE_HOME
unset HBASE_HOME
exec "$hbh/bin/hbase" shell <<EOF
create '$UID_TABLE',{NAME => 'id', COMPRESSION => '$COMPRESSION', BLOOMFILTER => '$BLOOMFILTER', DATA_BLOCK_ENCODING => '$DATA_BLOCK_ENCODING'},{NAME => 'name', COMPRESSION => '$COMPRESSION', BLOOMFILTER => '$BLOOMFILTER', DATA_BLOCK_ENCODING => '$DATA_BLOCK_ENCODING'}create '$TSDB_TABLE',{NAME => 't', VERSIONS => 1, COMPRESSION => '$COMPRESSION', BLOOMFILTER => '$BLOOMFILTER', DATA_BLOCK_ENCODING => '$DATA_BLOCK_ENCODING', TTL => '$TSDB_TTL'}create '$TREE_TABLE',{NAME => 't', VERSIONS => 1, COMPRESSION => '$COMPRESSION', BLOOMFILTER => '$BLOOMFILTER', DATA_BLOCK_ENCODING => '$DATA_BLOCK_ENCODING'}create '$META_TABLE',{NAME => 'name', COMPRESSION => '$COMPRESSION', BLOOMFILTER => '$BLOOMFILTER', DATA_BLOCK_ENCODING => '$DATA_BLOCK_ENCODING'}
EOF

创建成功

[root@ecs tools]# sh create_table.sh
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
For Reference, please visit: http://hbase.apache.org/2.0/book.html#shell
Version 2.1.0-cdh6.3.2, rUnknown, Fri Nov  8 05:44:07 PST 2019
Took 0.0006 seconds
create 'tsdb-uid',{NAME => 'id', COMPRESSION => 'SNAPPY', BLOOMFILTER => 'ROW', DATA_BLOCK_ENCODING => 'DIFF'},{NAME => 'name', COMPRESSION => 'SNAPPY', BLOOMFILTER => 'ROW', DATA_BLOCK_ENCODING => 'DIFF'}
Created table tsdb-uid
Took 1.0398 seconds
Hbase::Table - tsdb-uidcreate 'tsdb',{NAME => 't', VERSIONS => 1, COMPRESSION => 'SNAPPY', BLOOMFILTER => 'ROW', DATA_BLOCK_ENCODING => 'DIFF', TTL => 'FOREVER'}
Created table tsdb
Took 0.7233 seconds
Hbase::Table - tsdbcreate 'tsdb-tree',{NAME => 't', VERSIONS => 1, COMPRESSION => 'SNAPPY', BLOOMFILTER => 'ROW', DATA_BLOCK_ENCODING => 'DIFF'}
Created table tsdb-tree
Took 0.7198 seconds
Hbase::Table - tsdb-treecreate 'tsdb-meta',{NAME => 'name', COMPRESSION => 'SNAPPY', BLOOMFILTER => 'ROW', DATA_BLOCK_ENCODING => 'DIFF'}
Created table tsdb-meta
Took 0.7197 seconds
Hbase::Table - tsdb-meta

启动TSDB

nohup sh /usr/share/opentsdb/bin/tsdb tsd >tsdb-start.log &

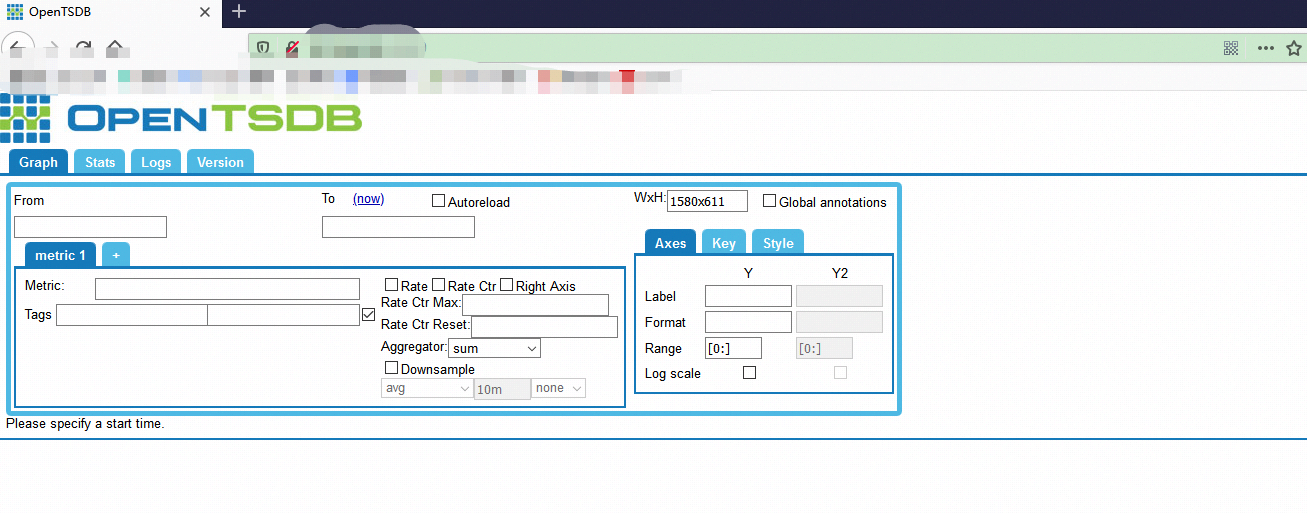

访问页面

写入数据

上面如果没有设置 tsd.core.auto_create_metrics = true 参数时，需要手动创建 metric

tsdb mkmetric sys.cpu.user

否则会提示异常如下

[root@ecs-t-001-0002 ~]# telnet ip port
Escape character is '^]'.
put sys.cpu.user 1588302377 42.5 host=webserver01 cpu=0
put: unknown metric: No such name for 'metrics': 'sys.cpu.user'

加入两条数据，我们使用 telnet 方式添加数据，

put sys.cpu.user 1588292377 45.5 host=webserver01 cpu=0
put sys.cpu.user 1588302377 41.5 host=webserver01 cpu=0

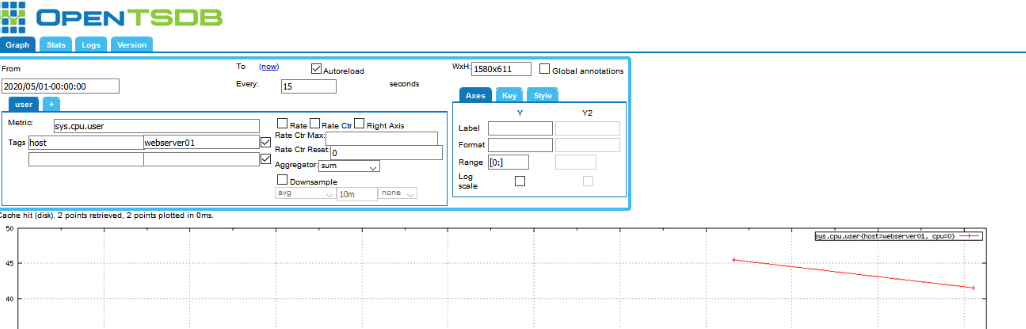

再web页面我们简单查询看一下数据，右下角的一根线就是我们刚刚插入的两个点连成的线

这回我们插入四条数据，写入两个host

put sys.cpu.user 1588292377 45.5 host=webserver01 cpu=0
put sys.cpu.user 1588302377 41.5 host=webserver01 cpu=0
put sys.cpu.user 1588292377 12.5 host=webserver02 cpu=0
put sys.cpu.user 1588302377 80.5 host=webserver02 cpu=0

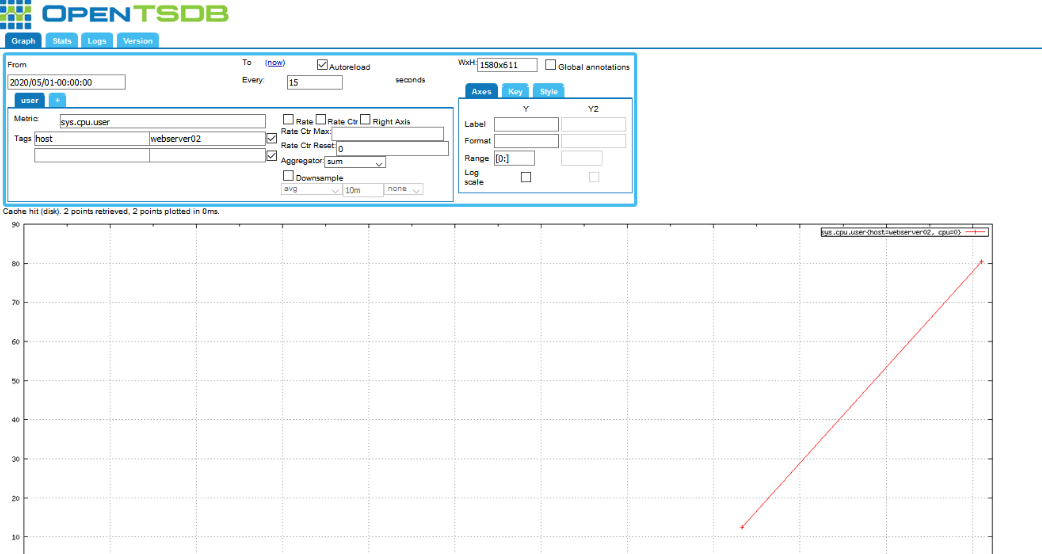

我们再指定tags查询看看效果，指定webserver02小时如下，结果是从12.5-80.5两个点没问题
