就如数字6一样的单链表结构,如何检测是否有6下部的○呢,并且求交叉点位置
思路
-
使用快慢指针(一个一次走2步,一个走1步),若快慢指针第一次相遇,则有环

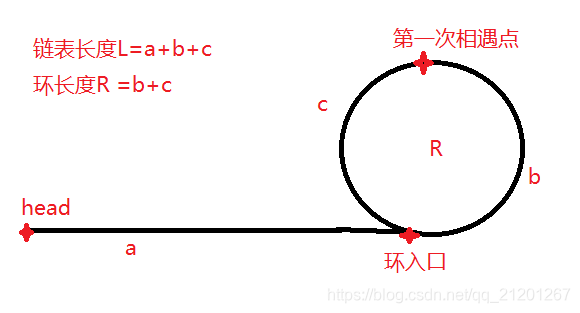

慢指针路程 s=a+bs = a+bs=a+b
快指针路程 2s=a+b+n∗R2s = a+b+n*R2s=a+b+n∗R
s=n∗Rs = n*Rs=n∗R
链表的长度 L=a+b+c=n∗R+cL = a+b+c = n*R+cL=a+b+c=n∗R+c
又 L=a+RL = a + RL=a+R
则 n∗R+c=a+R⇒(n−1)∗R+c=an*R+c = a+R \Rightarrow (n-1)*R+c = an∗R+c=a+R⇒(n−1)∗R+c=a
意味着从head
开始走到入口 aaa 步 == 从第一次相遇点走 n−1n-1n−1 圈 + 再走 ccc 步 -
由上可以使快慢指针第一次到达相遇点时,使慢指针回到head,快指针仍在相遇点,然后两人步伐一致,最后会在入口相见。
C++代码实现:
完整代码见:https://github.com/hitskyer/course/tree/master/dataAlgorithm/chenmingming/linkedList
类实现函数
bool SingleList::hasLoop()
{bool loop = false;ListNode fast = m_pHead, slow = m_pHead;ListNode posMeet = m_pHead, ringEntrance = m_pHead;//环的可能的入口应初始化成headif(m_pHead == NULL){loop = false;std::cout << "list has no loop!" << std::endl;}else{while(fast && fast->pNext){fast = fast->pNext->pNext;slow = slow->pNext;if(fast == slow){loop = true;posMeet = fast; //第一次相遇的地方break;}}slow = m_pHead; //接着让慢指针回到表头(这里是关键),继续一起同步前行,第二次相遇的地方为环的入口while(slow != fast){slow = slow->pNext;fast = fast->pNext;if(fast == slow)ringEntrance = fast;}size_t lenOf_headToEntrance = howManyNode(m_pHead,ringEntrance);size_t ringLen_1 = howManyNode(ringEntrance->pNext, ringEntrance);std::cout << "len of head to ring entrance is " << lenOf_headToEntrance << std::endl;std::cout << "entrance Node is " << ringEntrance->data << std::endl;std::cout << "len of ring is " << ringLen_1 + 1 << std::endl;std::cout << "len of List is " << lenOf_headToEntrance + ringLen_1 + 1 << std::endl;}return loop;
}size_t SingleList::howManyNode(ListNode ps, ListNode pe) //计算两个指针之间有多少个节点(不包含第二个参数处的节点)
{size_t count = 0;while(ps != pe){ps = ps->pNext;++count;}return count;
}
singleListIsLoop.cpp主函数
//
// Created by mingm on 2019/3/24.
//检查单链表中是否存在环,求环的长度,链表长度,及环的入口
#include <iostream>
#include <time.h>
#include <cstdlib>
#include "./homework/singleList.cpp"
using namespace std;
int main()
{srand((unsigned)time(NULL)); //用时间随机数种子size_t len = 10; //测试链表最大长度for(size_t j = 1; j < len; ++j){SingleList intList;for(size_t i = 0; i < j; ++i){intList.AddTail(rand()%100); //添加随机数到链表}cout << "no loop list: " << endl;intList.PrintList(); //排序前链表打印size_t n = rand()%(intList.GetLength()); //0-链表减1的随机数ListNode randNode = intList.GetHeadNode();for(size_t i = 0; i != n; ++i){randNode = randNode->pNext; //链表的一个随机节点}ListNode originTail = intList.GetTailNode();originTail->pNext = randNode; //尾节点接入链表中的随机位置形成环intList.hasLoop(); //调用环检测函数originTail->pNext = NULL; //断开环,让链表能够按照单链表析构函数析构!!!!!!!std::cout << "getListLength() is " << intList.GetLength() << std::endl;std::cout << "-----------------------------------------" << std::endl;}return 0;
}
Valgrind检测结果
从链表长度1开始测试到9,测试结果均正确!
