一、B树引入
二叉搜索树、平衡二叉树、红黑树都是动态查找树,典型的二叉搜索树结构,查找的时间复杂度和树的高度相关O(log2N)。
1)数据杂乱无章-------线性查找--O(n)
2)数据有序-------二分查找 ---O(log 2 n) 最差退化成单支树-----线性结构
3)二叉搜索树、AVL树、红黑树 --------O(log2 n)

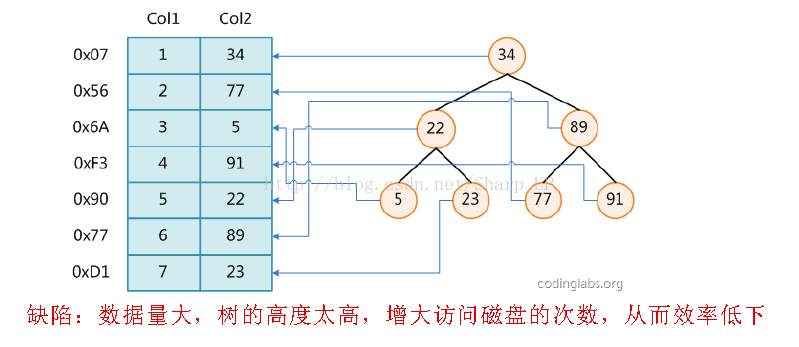

数据一般保存在磁盘上,若数据量过大不能全部加载到内存,为了访问所有数据,使用如下搜索树结构保存数据:树的结点中保存权值和磁盘的地址
那如何加速对数据的访问速度呢?
提高I/O的时间
降低树的高度--平衡多叉树
二、B树定义
1970年,R.Bayer和E.mccreight提出了一种适合外查找的树,它是一种平衡的多叉树,称为B树。
(有些地方写的是B-树,注意不要误读成"B减树")
一棵M阶(M>2)的B树,是一棵平衡的M路平衡搜索树,可以是空树或者满足一下性质:
1. 根节点至少有两个孩子
2. 每个非根节点至少有M/2(上取整)个孩子,至多有M个孩子
3. 每个非根节点至少有M/2-1(上取整)个关键字,至多有M-1个关键字,并且以升序排列4. key[i]和key[i+1]之间的孩子节点的值介于key[i]、key[i+1]之间

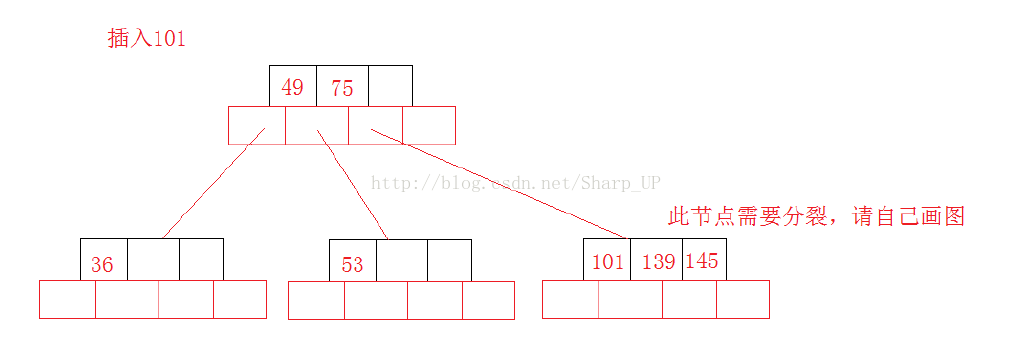

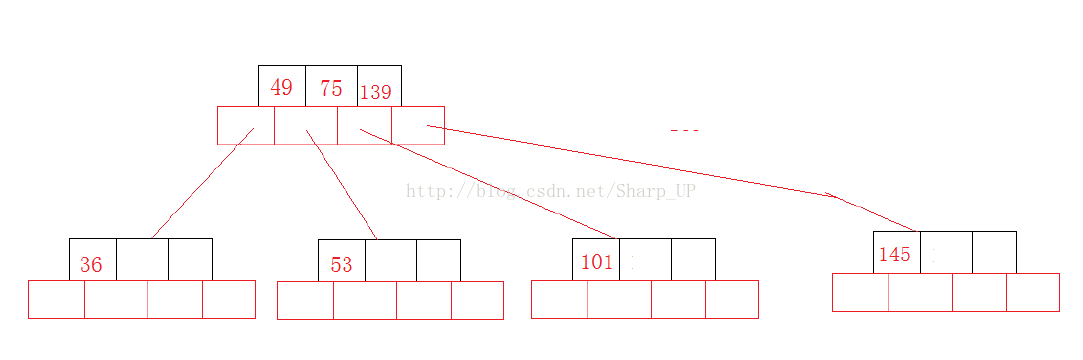

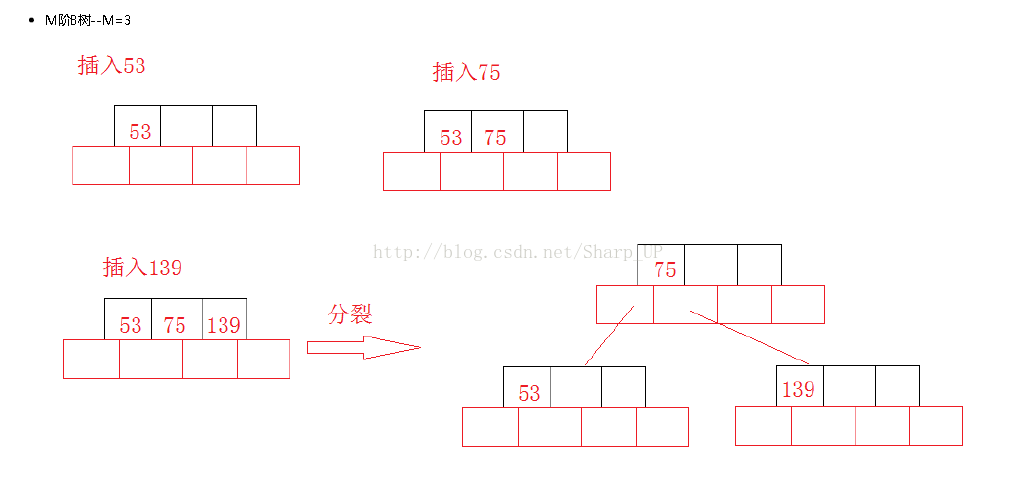

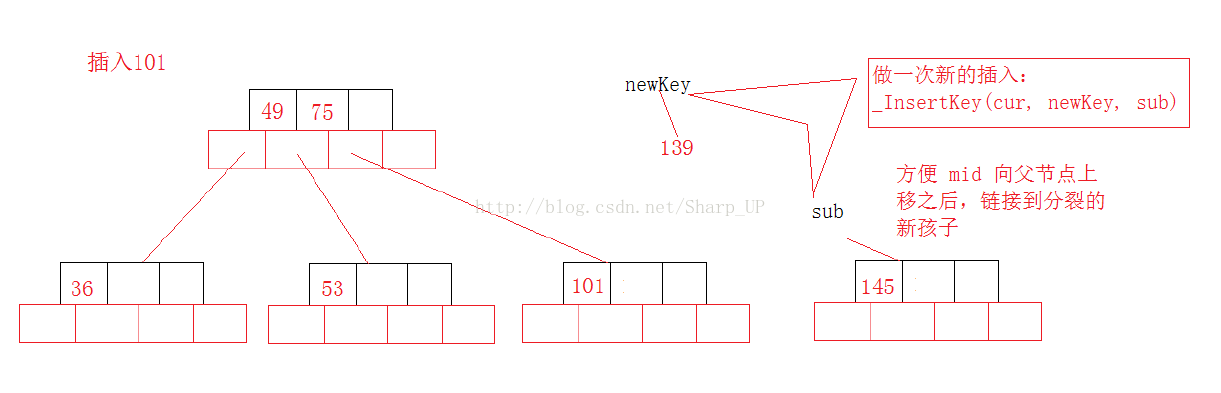

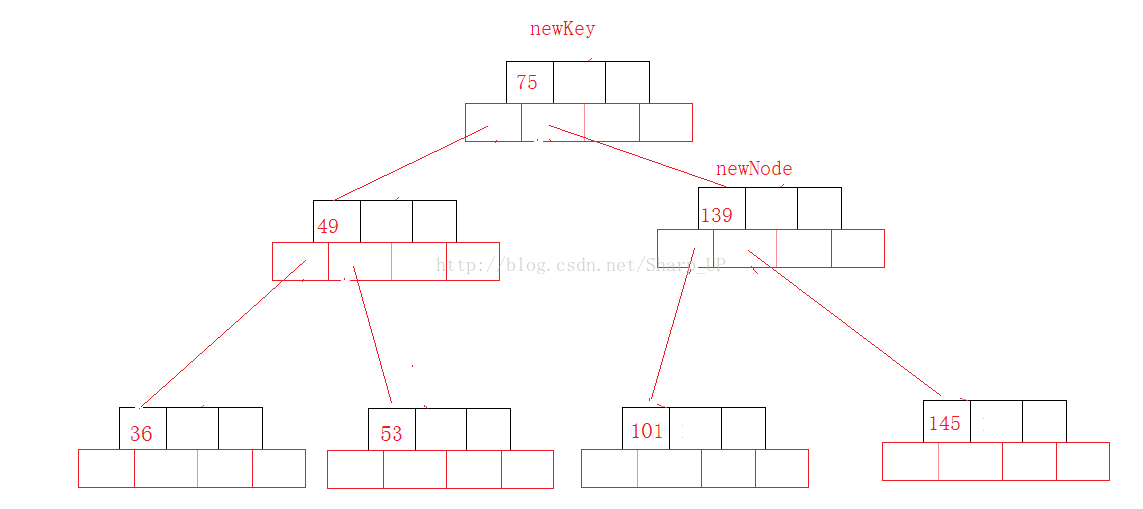

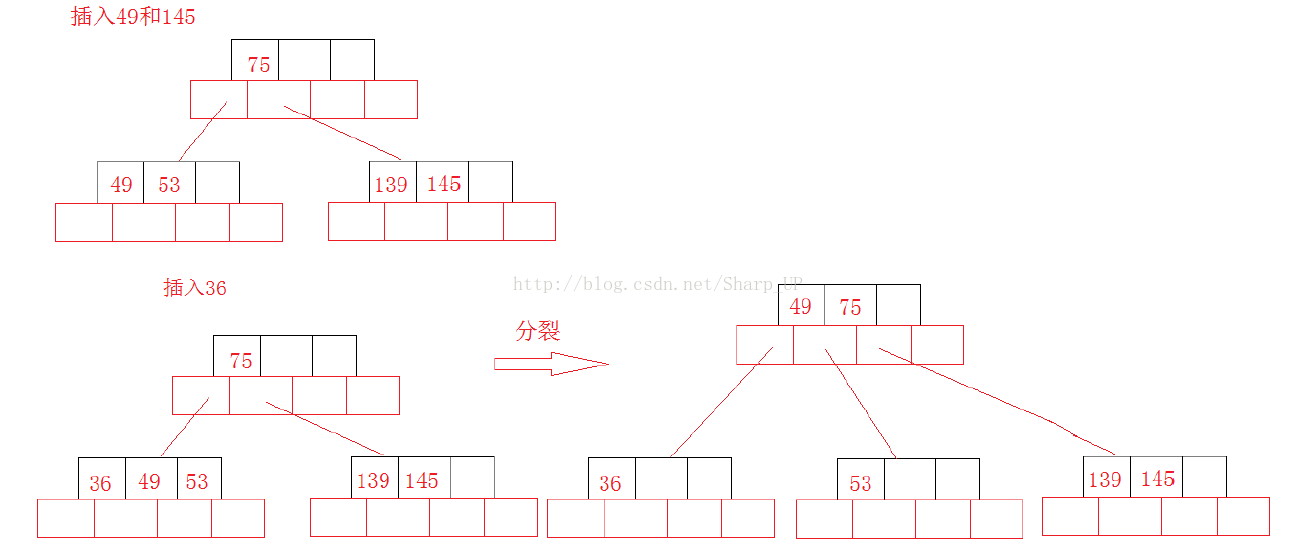

一次插入的过程:53, 75, 139, 49, 145, 36, 101
#pragma once #include <iostream> #include <stdlib.h>using namespace std;template<class K, int M> struct BTreeNode {typedef BTreeNode<K, M> Node;K _keys[M];//多给一个位置是为了先插入方便分裂Node* _sub[M+1];Node* _parent;size_t _size;//记录关键字的个数BTreeNode():_parent(NULL),_size(0){for(size_t i = 0; i < M; i++){_keys[i] = K();_sub[i] = 0;}_sub[M] = 0;} };template<class K, int M> class BTree {typedef BTreeNode<K, M> Node; public:BTree():_pRoot(NULL){}void Inorder(){_Inorder(_pRoot);}~BTree(){_Destroy(_pRoot);}bool Insert(const K& key){if(NULL == _pRoot){_pRoot = new Node();_pRoot->_keys[0] = key;_pRoot->_size++;return true;}pair<Node*, size_t> temp = _Find(key);if(temp.second != -1){return false;}Node* cur = temp.first;Node* sub = NULL;K newKey = key;while(1){_InsertKey(cur, newKey, sub);if(cur->_size < M){return true;}while(cur->_size >= M){size_t mid = cur->_size / 2;Node* NewNode = new Node;for(size_t i = mid+1; i < cur->_size; i++){int j = 0; //新节点的下标NewNode->_keys[j] = cur->_keys[i];NewNode->_size++;cur->_keys[i] = K();//复制之后,对应的原位置key置为初始值。j++;}int j = 0;for(size_t i = mid+1; i < cur->_size+1; i++){NewNode->_sub[j] = cur->_sub[i];if(NewNode->_sub[j])NewNode->_sub[j]->_parent = NewNode;j++;cur->_sub[i] = NULL;}if(cur == _pRoot){Node* temp = new Node();temp->_keys[0] = cur->_keys[mid];cur->_keys[mid] = K();cur->_size = mid;temp->_size++;temp->_sub[0] = cur;cur->_parent = temp;temp->_sub[1] = NewNode;NewNode->_parent = temp;_pRoot = temp;return true;}newKey = cur->_keys[mid];cur->_keys[mid] = K();cur->_size = mid;sub = NewNode;}cur = cur->_parent;}}protected:pair<Node*, size_t> _Find(const K& key){Node* cur = _pRoot;Node* parent = NULL;while(cur){size_t i = 0;while(i < cur->_size){if(cur->_keys[i] < key)i++;else if(cur->_keys[i] > key)break;elsereturn pair<Node*, size_t>(cur, i);}parent = cur;cur = cur->_sub[i];}return pair<Node*, size_t>(parent, -1);}void _InsertKey(Node* cur,const K& Key,Node* sub){int i = cur->_size-1;while(i >= 0){if(cur->_keys[i] > Key){//移动关键字位置cur->_keys[i+1] = cur->_keys[i];//移动子树的位置cur->_sub[i+2] = cur->_sub[i+1];i--;}elsebreak;}cur->_keys[i+1] = Key;cur->_sub[i+2] = sub;if(sub)sub->_parent = cur;cur->_size++;}void _Inorder(Node* _pRoot){if(NULL == _pRoot)return;size_t i = 0;for(; i < _pRoot->_size; i++){_Inorder(_pRoot->_sub[i]);cout<<_pRoot->_keys[i]<<" ";}_Inorder(_pRoot->_sub[i]);}void _Destroy(Node* _pRoot){if(NULL == _pRoot)return;size_t i = 0;for(; i < _pRoot->_size; i++){_Destroy(_pRoot->_sub[i]);delete _pRoot->_sub[i];}_Destroy(_pRoot->_sub[i]);delete _pRoot->_sub[i];}private:Node* _pRoot; };void test() {BTree<int, 3> bt;int array[] = {53, 75, 139, 49, 145, 36, 101};for(int i = 0; i < sizeof(array)/sizeof(array[0]); i++){bt.Insert(array[i]);}bt.Inorder(); }
