粘包解决方法

方法1

getXOR——是校验方法

/*** 最小数据包的长度(除开数据的N个字节）* 帧头      保留字节     协议控制字    地址字段     命令长度   命令码     命令数据     校验和* 2字节 3字节      1字节      2或8字节    2字节      2字节      0-1100字节 2字节* SYN      RES       PTROL     ADDR      SLEN      COMMAND   APPDATA       CRC16*/
int MIN_PACK_LEN = 2 + 3 + 1 + 2 + 2 + 2 + 2;

/*** 数据：0-N字节，N小于等于250*/
int SLEN = 1100;
int MAX_DATA_N = 255;

private final ByteBuffer mByteBuffer;public SerialReadThread(InputStream is) {mInputStream = new BufferedInputStream(is);mByteBuffer = ByteBuffer.allocate(1024);mByteBuffer.clear();
}

private boolean isValid(byte[] recvCheck, byte[] myCheck) {//LgqLogutil.d("rr===  "+ MyByteUtil.bytes2HexStr(recvCheck)+",,,m==="+MyByteUtil.bytes2HexStr(myCheck));for (int i = 0, n = recvCheck.length; i < n; ++i) {if (recvCheck[i] != myCheck[i]) {return false;}}return true;
}

/*** 处理获取到的数据** @param received* @param size*/
private void onDataReceive(byte[] received, int size) {// TODO: 2018/3/22 解决粘包、分包等try {//LogPlus.e("Receiver", "接收数据=" + ByteUtil.bytes2HexStr(bytes, offset, length));byte b;int readable;mByteBuffer.put(received, 0, size);mByteBuffer.flip();out:while ((readable = mByteBuffer.remaining()) >= Protocol.MIN_PACK_LEN) { /*只处理数据帧, 不处理响应帧*/mByteBuffer.mark(); // 标记一下开始的位置int frameStart = mByteBuffer.position();byte[] frameHead = Protocol.FRAME_HEAD;for (byte h : frameHead) {b = mByteBuffer.get();if (b != h) { // 不满足帧头，就跳到第二位，重新开始mByteBuffer.position(frameStart + 1);continue out;}}byte[] dataLengthBytes = new byte[] { mByteBuffer.get(8), mByteBuffer.get(9) };//第9个字节 为 数据长度.两个字节，所以是8,9int dataLen = (int) ByteUtil.bytes2long(dataLengthBytes, 0, 2); /*dataLen已经包含了*/if (dataLen > Protocol.MAX_DATA_N) {// 如果data n超过最大允许长度，表示数据错乱了//则回到“第二位”，继续找到下一个 帧头mByteBuffer.position(frameStart + 2);continue;}int total = Protocol.MIN_PACK_LEN + dataLen - 2; /*-2 最小数据包长度中已经包含, dataLen中有最小数据包长度中的2个字节*/// 如果可读数据小于总数据长度，表示不够,还有数据没接收if (readable < total) {// 重置一下要处理的位置,并跳出循环mByteBuffer.reset();break;}mByteBuffer.reset();// 拿到整个包byte[] allPack = new byte[total];mByteBuffer.get(allPack);byte[] recvCheck = new byte[2];recvCheck[0] = allPack[allPack.length - 2];recvCheck[1] = allPack[allPack.length - 1];byte[] myCheck = ByteUtil.getXOR(allPack, allPack.length - 2);if (isValid(recvCheck, myCheck)) {// 校验通过/**/LgqLogutil.d("#####校验通过,allPack:" + ByteUtil.bytes2HexStr(allPack));//validData.add(allPack);LogManager.instance().post(new RecvMessage(ByteUtil.bytes2HexStr(allPack)));} else {mByteBuffer.position(frameStart + 2);}}} catch (Exception e) {e.printStackTrace();} finally {// 最后清掉之前处理过的不合适的数据mByteBuffer.compact();}//String hexStr = ByteUtil.bytes2HexStr(received, 0, size);//String hexStr = ByteUtil.bytes2HexStr(allPack, 0, size);//LogManager.instance().post(new RecvMessage(hexStr));
}

粘包解决方法2

try {//LogPlus.e("Receiver", "接收数据=" + ByteUtil.bytes2HexStr(bytes, offset, length));byte b;int readable;mByteBuffer.put(bytes, 0, length);mByteBuffer.flip();out:while ((readable = mByteBuffer.remaining()) >= Protocol.MIN_PACK_LEN) { /*只处理数据帧, 不处理响应帧*/mByteBuffer.mark(); // 标记一下开始的位置int frameStart = mByteBuffer.position();byte[] frameHead = Protocol.FRAME_HEAD;for (byte h : frameHead) {b = mByteBuffer.get();if (b != h) { // 不满足帧头，就跳到第二位，重新开始mByteBuffer.position(frameStart + 1);continue out;}}byte[] dataLengthBytes = new byte[]{mByteBuffer.get(4)};//第5个字节 为 数据长度int dataLen = (int) ByteUtil.bytes2long(dataLengthBytes, 0, 1); /*dataLen已经包含了*/if (dataLen > Protocol.MAX_DATA_N) {// 如果data n超过最大允许长度，表示数据错乱了//则回到“第二位”，继续找到下一个 帧头mByteBuffer.position(frameStart + 2);continue;}int total = Protocol.MIN_PACK_LEN + dataLen - 2; /*-2 最小数据包长度中已经包含, dataLen中有最小数据包长度中的2个字节*/// 如果可读数据小于总数据长度，表示不够,还有数据没接收if (readable < total) {// 重置一下要处理的位置,并跳出循环mByteBuffer.reset();break;}mByteBuffer.reset();// 拿到整个包byte[] allPack = new byte[total];mByteBuffer.get(allPack);byte recvCheck = allPack[allPack.length - 1];byte myCheck = ByteUtil.getXOR(allPack, 0, allPack.length - 1);if (myCheck == recvCheck) { // 校验通过/**/LogPlus.d("#####校验通过,allPack:" + ByteUtil.bytes2HexStr(allPack));validData.add(allPack);} else {mByteBuffer.position(frameStart + 2);}}
} catch (Exception e) {e.printStackTrace();
} finally {// 最后清掉之前处理过的不合适的数据mByteBuffer.compact();
}

/*** 字节数组转换成对应的16进制表示的字符串** @param src* @return*/
public static String bytes2HexStr(byte[] src) {StringBuilder builder = new StringBuilder();if (src == null || src.length <= 0) {return "";}char[] buffer = new char[2];for (int i = 0; i < src.length; i++) {buffer[0] = Character.forDigit((src[i] >>> 4) & 0x0F, 16);buffer[1] = Character.forDigit(src[i] & 0x0F, 16);builder.append(buffer);}return builder.toString().toUpperCase();
}

1、心跳数据强转为 byte[] 数据类型

@Override
public RecvCommand adaptReceive(byte[] allPack, Object... other) {int cmd = (int) other[0];LogPlus.e( "收到的命令:" +cmd);byte[] data = (byte[]) other[1];

2、开始解析——必须根据解析协议才能解析数据

public class RecvA3Status extends BaseRecvCommand {private final int mResult;private final float mPowerFactorState;public List<AuxiliaryPlate> auxiliaryPlates;public RecvA3Status(byte[] allPack, byte[] data) {super(allPack, data);mResult = 0xff & data[0];mPowerFactorState = ByteUtil.getFloat(data, 25);auxiliaryPlates = new ArrayList<>();for (int i = 0; i < (data.length - 29) / 107; i++) {byte[] bytes = new byte[107];System.arraycopy(data, 29 + i * 107, bytes, 0, bytes.length);if (i==0){LogPlus.e("几号门==="+i, "门状态11接收数据2仓门=" + ByteUtil.bytes2HexStr(bytes));}else {LogPlus.i("几号门==="+i, "门状态11接收数据2仓门=" + ByteUtil.bytes2HexStr(bytes));}auxiliaryPlates.add(new AuxiliaryPlate(bytes));}}/*** 仓控板状态表*/public static class AuxiliaryPlate {private int onlineState;private int doorState;private int batteryState;private int fireState;private int urgentState;private int temperature;private int batteryVoltage;private int chargerOnlineState;private ChargerState chargerState;private OnOffAmount onOffAmount;private AnalogQuantity analogQuantity;private int BMSOnlineState;private String BMSID;/**type 0 = 正常电池样式  1 = 显示屏样式 */public int type = 0;public AuxiliaryPlate(byte[] bytes) {onlineState = 0xff & bytes[0];doorState = 0xff & bytes[1];batteryState = 0xff & bytes[2];fireState = 0xff & bytes[3];urgentState = 0xff & bytes[4];temperature = 0xff & bytes[5];batteryVoltage = ByteUtil.bytes2long(bytes, 6, 2) / 100;chargerOnlineState = 0xff & bytes[8];byte[] bytes1 = new byte[6];System.arraycopy(bytes, 9, bytes1, 0, bytes1.length);chargerState = new ChargerState(bytes1);BMSOnlineState = 0xff & bytes[15];byte[] bytes2 = new byte[26];System.arraycopy(bytes, 16, bytes2, 0, bytes2.length);BMSID = new String(bytes2, StandardCharsets.US_ASCII).trim();byte[] bytes3 = new byte[7];System.arraycopy(bytes, 42, bytes3, 0, bytes3.length);onOffAmount = new OnOffAmount(bytes3);byte[] bytes4 = new byte[58];System.arraycopy(bytes, 49, bytes4, 0, bytes4.length);analogQuantity = new AnalogQuantity(bytes4);}

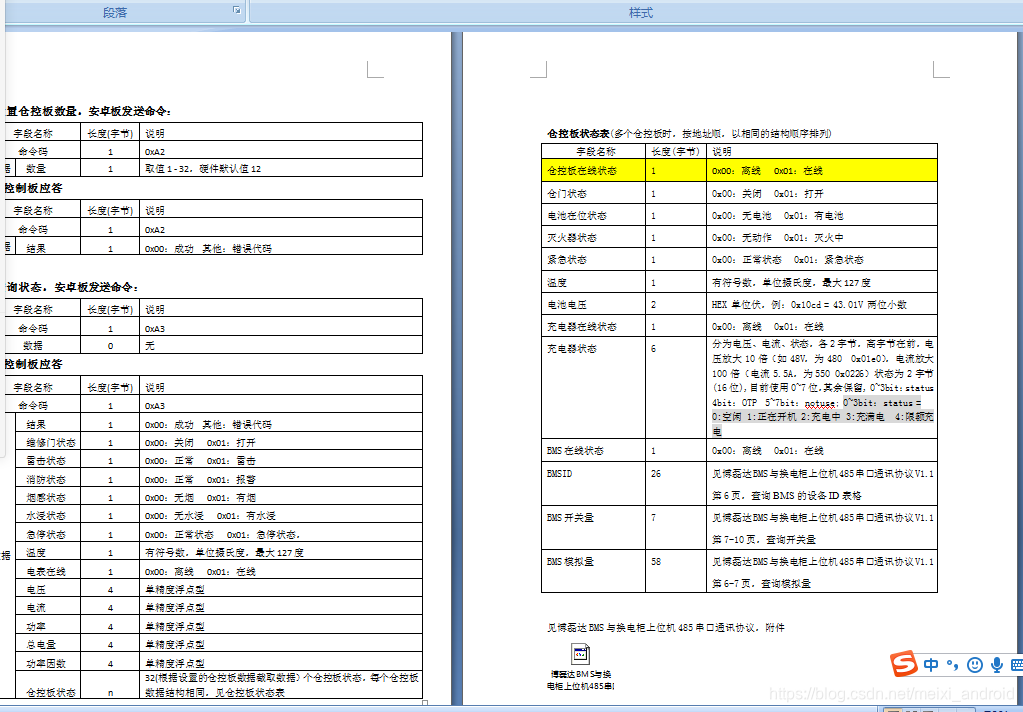

付解析协议：
