大家好，我是烤鸭：

   Springcloud Gateway 使用 Sentinel 流量控制。

环境

springcloud-gateway的网关应用，springboot的服务，nacos作为注册中心

sentinel-dashboard-1.8.2

最新版下载地址：
https://github.com/alibaba/Sentinel/releases

目标

在网关层根据qps对指定路由降级到其他接口。

sentinel 接入的官方wiki：

https://github.com/alibaba/Sentinel/wiki/%E7%BD%91%E5%85%B3%E9%99%90%E6%B5%81

网关代码：
https://gitee.com/fireduck_admin/scg-sentinel

业务代码就不贴了，就是普通的springboot服务，集成nacos注册中心。

dashboard

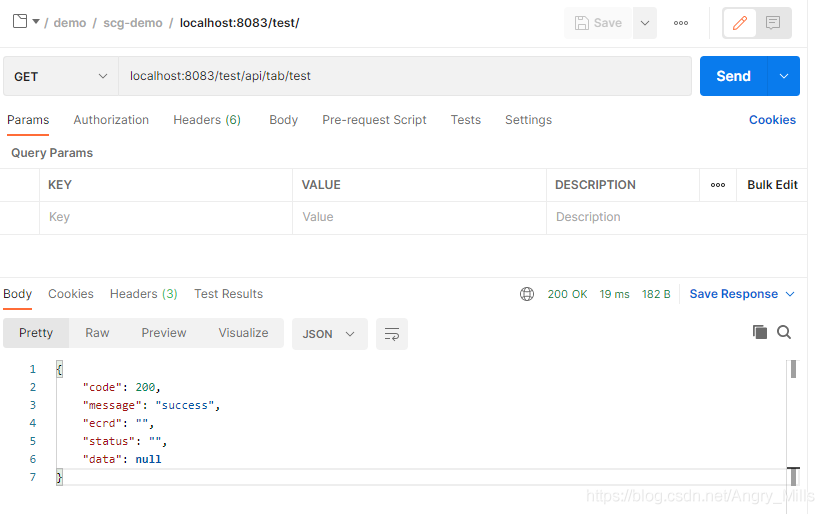

dashboard 需要有访问才能显示,访问几次。

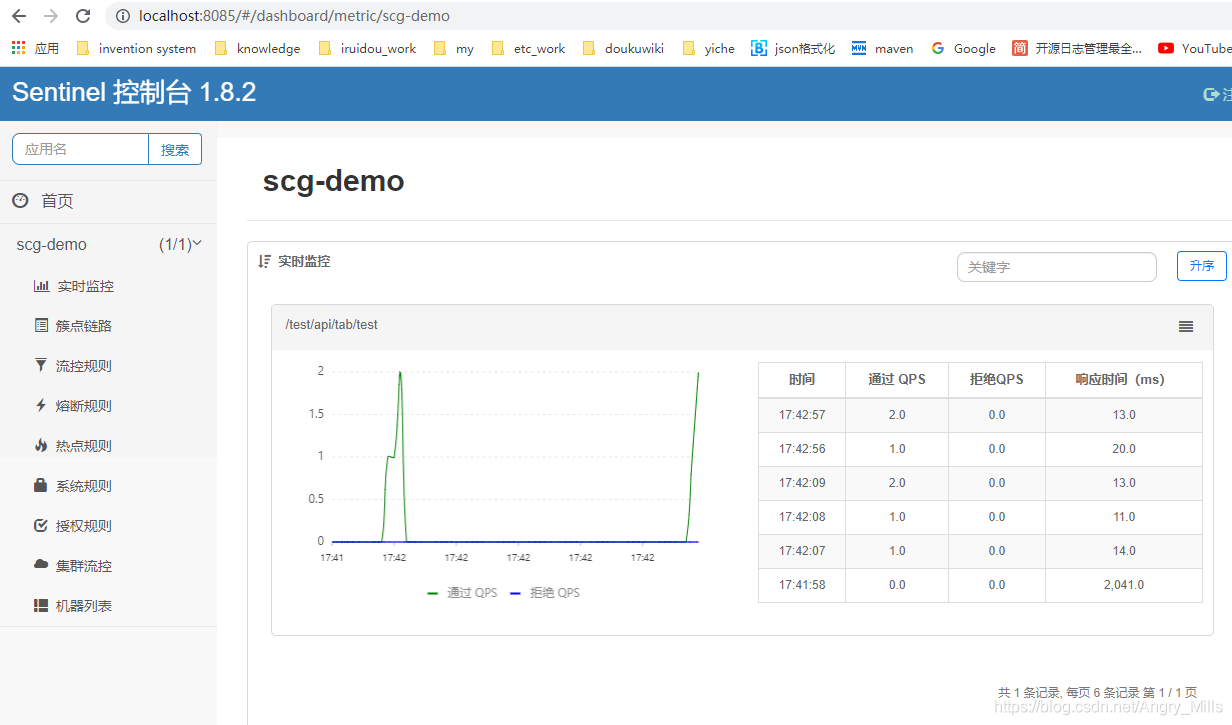

由于没配置网关类型，sentinel 默认是服务，是没有API管理的。

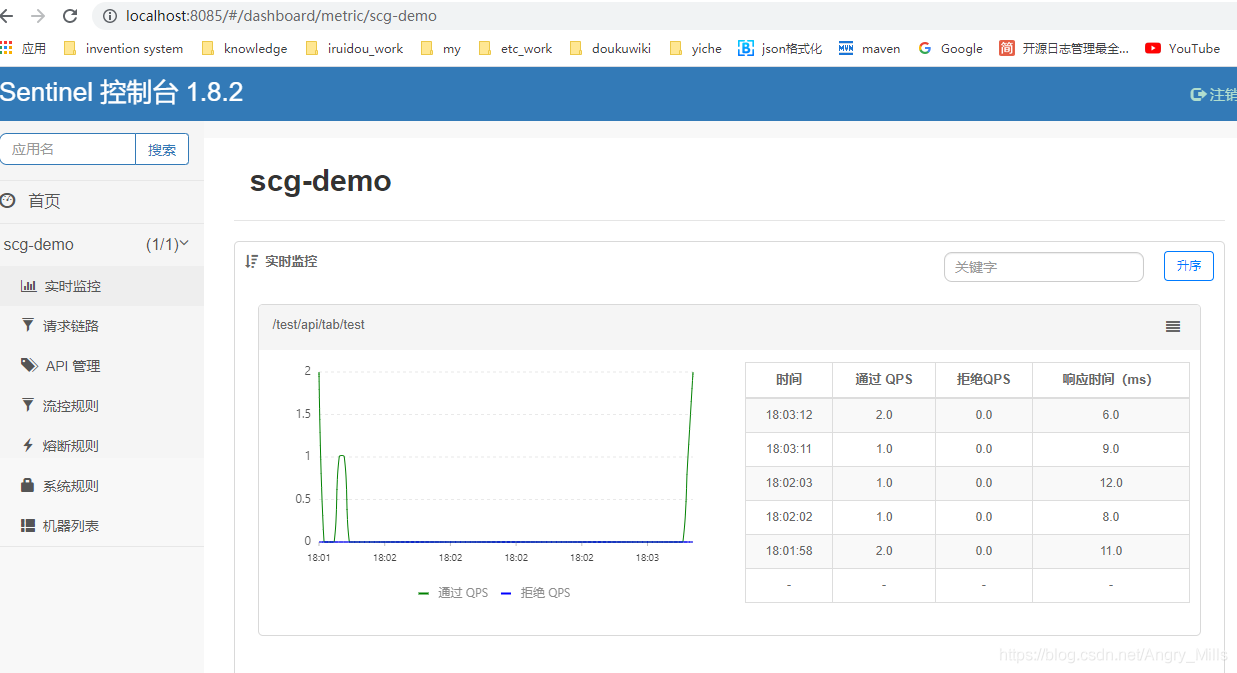

网关服务启动参数中添加 -Dcsp.sentinel.app.type=1，这回有了。

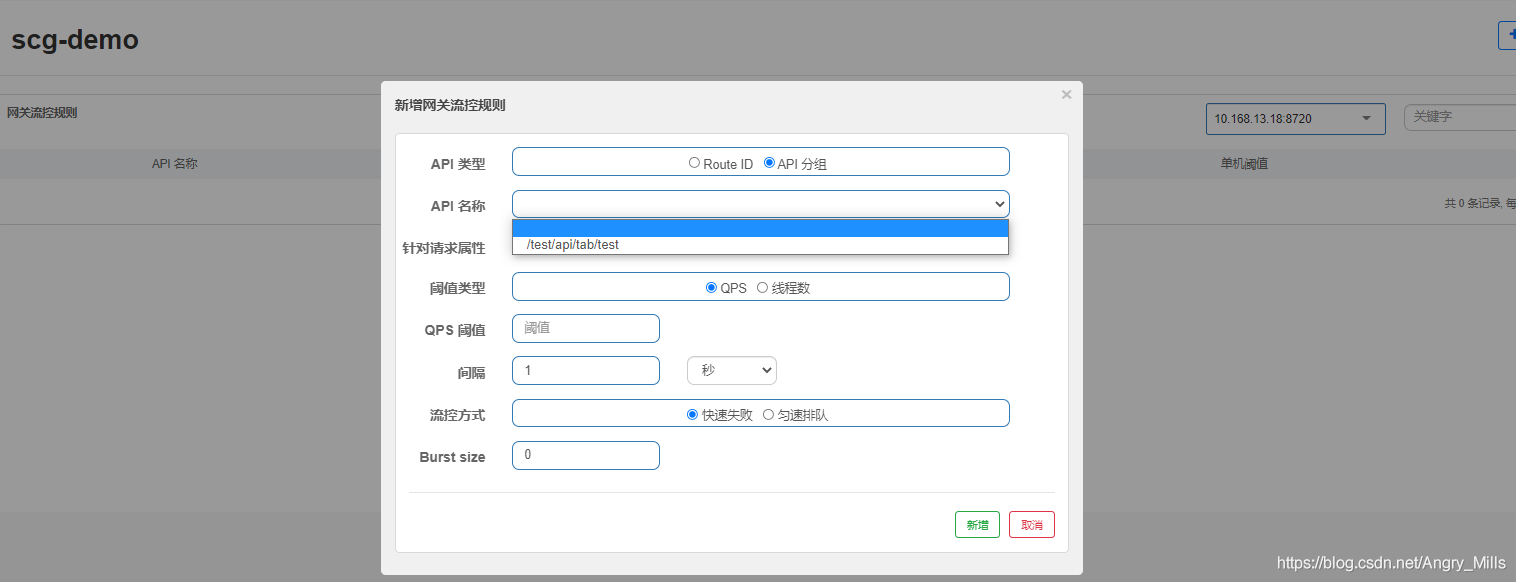

API 管理和流控规则配置

API 添加的地址我这边选的是精确匹配路由，路由就是上图实时监控的地址。

流程规则选按API分组和QPS进行降级，模式选快速失败。（在网关代码里实现具体快速失败的逻辑，比如调第三方接口降级）

scg 代码开发

默认流程：

GatewayConfiguration，配置降级时触发异常

package com.maggie.demo.scgsentinel.config;import com.alibaba.csp.sentinel.adapter.gateway.sc.SentinelGatewayFilter;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.BlockRequestHandler;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.GatewayCallbackManager;
import com.maggie.demo.scgsentinel.handler.SentinelBlockRequestHandler;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.condition.ConditionalOnWebApplication;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.cloud.gateway.handler.FilteringWebHandler;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.result.view.ViewResolver;import javax.annotation.PostConstruct;
import java.util.Collections;
import java.util.List;@Order(1)
@Configuration
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
public class GatewayConfiguration implements ApplicationContextAware {@Autowiredprotected FilteringWebHandler filteringWebHandler;@Value("${spring.application.name}")private String PJ_NAME;public String getPJ_NAME() {return PJ_NAME;}public void setPJ_NAME(String PJ_NAME) {this.PJ_NAME = PJ_NAME;}private final List<ViewResolver> viewResolvers;private final ServerCodecConfigurer serverCodecConfigurer;private final BlockRequestHandler blockRequestHandler;private ApplicationContext applicationContext;public GatewayConfiguration(ObjectProvider<List<ViewResolver>> viewResolversProvider,ServerCodecConfigurer serverCodecConfigurer) {this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);this.serverCodecConfigurer = serverCodecConfigurer;this.blockRequestHandler = new SentinelBlockRequestHandler();}// 不配置异常处理,采用默认的提示
//    @Bean
//    @Order(Ordered.HIGHEST_PRECEDENCE)
//    public SentinelGatewayBlockExceptionHandler sentinelGatewayBlockExceptionHandler() {
//        // Register the block exception handler for Spring Cloud Gateway.
//        return new GatewayBlockExceptionHandler(viewResolvers, serverCodecConfigurer);
//    }@Bean@Order(-1)public GlobalFilter sentinelGatewayFilter() {return new SentinelGatewayFilter();}@PostConstructpublic void doInit() throws Exception {initBlockStrategy();}private void initBlockStrategy() {String[] beanNamesForType = applicationContext.getBeanNamesForType(BlockRequestHandler.class);if (beanNamesForType != null && beanNamesForType.length > 0) {GatewayCallbackManager.setBlockHandler(applicationContext.getBean(beanNamesForType[0], BlockRequestHandler.class));} else {GatewayCallbackManager.setBlockHandler(blockRequestHandler);}}@Overridepublic void setApplicationContext(ApplicationContext applicationContext) throws BeansException {this.applicationContext = applicationContext;}/*** @Description 加这个注解可以直接通过注册中心的application.name直接调用服务* @Date 2021/8/12 14:28**/@Bean@LoadBalancedpublic WebClient.Builder loadBalancedWebClientBuilder() {return WebClient.builder();}
}

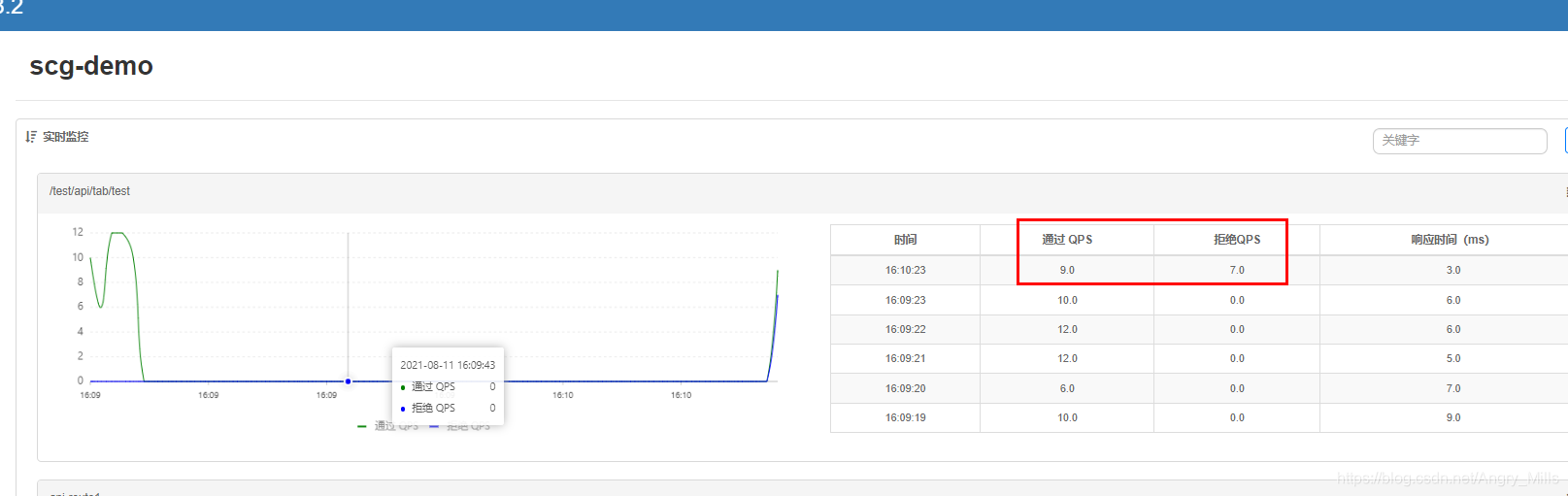

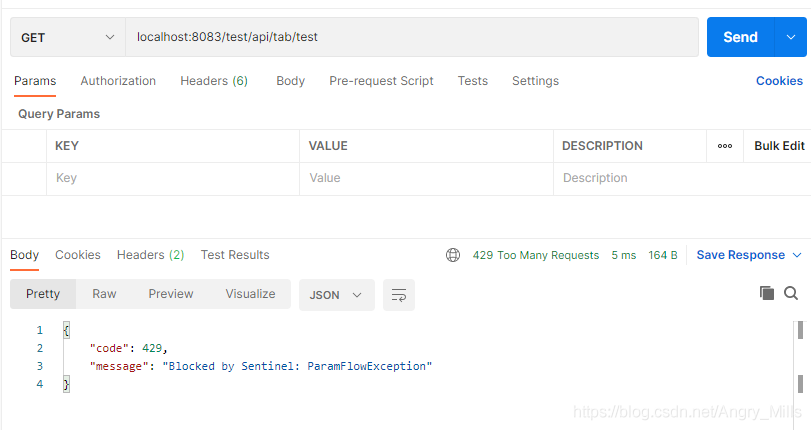

下图是触发降级和默认的限流异常提示

自定义流程：

增加异常处理和降级逻辑

GatewayBlockExceptionHandler

package com.maggie.demo.scgsentinel.handler;import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.GatewayCallbackManager;
import com.alibaba.csp.sentinel.adapter.gateway.sc.exception.SentinelGatewayBlockExceptionHandler;
import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.alibaba.csp.sentinel.util.function.Supplier;
import org.springframework.http.HttpStatus;
import org.springframework.http.codec.HttpMessageWriter;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.function.server.ServerResponse;
import org.springframework.web.reactive.result.view.ViewResolver;
import org.springframework.web.server.ResponseStatusException;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;import java.util.List;public class GatewayBlockExceptionHandler extends SentinelGatewayBlockExceptionHandler {private List<ViewResolver> viewResolvers;private List<HttpMessageWriter<?>> messageWriters;public GatewayBlockExceptionHandler(List<ViewResolver> viewResolvers, ServerCodecConfigurer serverCodecConfigurer) {super(viewResolvers, serverCodecConfigurer);this.viewResolvers = viewResolvers;this.messageWriters = serverCodecConfigurer.getWriters();}private Mono<Void> writeResponse(ServerResponse response, ServerWebExchange exchange) {return response.writeTo(exchange, contextSupplier.get());}@Overridepublic Mono<Void> handle(ServerWebExchange exchange, Throwable ex) {/*** 处理一下504*/if (ex != null && ex instanceof ResponseStatusException) {ResponseStatusException responseStatusException = (ResponseStatusException) ex;//只处理超时的情况if (HttpStatus.GATEWAY_TIMEOUT.equals(responseStatusException.getStatus())) {return handleBlockedRequest(exchange, ex).flatMap(response -> writeResponse(response, exchange));}}if (exchange.getResponse().isCommitted()) {return Mono.error(ex);}// This exception handler only handles rejection by Sentinel.if (!BlockException.isBlockException(ex)) {return Mono.error(ex);}return handleBlockedRequest(exchange, ex).flatMap(response -> writeResponse(response, exchange));}private Mono<ServerResponse> handleBlockedRequest(ServerWebExchange exchange, Throwable throwable) {return GatewayCallbackManager.getBlockHandler().handleRequest(exchange, throwable);}private final Supplier<ServerResponse.Context> contextSupplier = () -> new ServerResponse.Context() {@Overridepublic List<HttpMessageWriter<?>> messageWriters() {return GatewayBlockExceptionHandler.this.messageWriters;}@Overridepublic List<ViewResolver> viewResolvers() {return GatewayBlockExceptionHandler.this.viewResolvers;}};
}

SentinelBlockRequestHandler

package com.maggie.demo.scgsentinel.handler;import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.BlockRequestHandler;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.gateway.route.Route;
import org.springframework.cloud.gateway.support.ServerWebExchangeUtils;
import org.springframework.context.ApplicationContext;
import org.springframework.core.Ordered;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;
import org.springframework.util.MultiValueMap;
import org.springframework.web.reactive.function.client.WebClient;
import org.springframework.web.reactive.function.server.ServerResponse;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;import java.util.HashSet;
import java.util.Set;import static org.springframework.web.reactive.function.BodyInserters.fromValue;@Component
@Slf4j
public class SentinelBlockRequestHandler implements BlockRequestHandler, Ordered {public static final Set<String> FLOW_LIMIT_API = new HashSet<>(32);static {FLOW_LIMIT_API.add("/test/api/tab/test");}public static final String CODE_SYSTEM_BUSY = "11004";public static final String MSG_SYSTEM_BUSY = "网络开小差了,请稍后重试.";@Overridepublic int getOrder() {return LOWEST_PRECEDENCE;}@Autowiredprivate WebClient.Builder webClientBuilder;@Autowiredprivate ApplicationContext applicationContext;@Overridepublic Mono<ServerResponse> handleRequest(ServerWebExchange exchange, Throwable ex) {String requestUrl = exchange.getRequest().getPath().toString();Route route = exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR);if (FLOW_LIMIT_API.contains(requestUrl)) {return handleRequestDetail(exchange,ex);}// JSON result by default.return ServerResponse.status(HttpStatus.OK).contentType(MediaType.APPLICATION_JSON).body(fromValue(buildErrorResult(ex)));}private ErrorResult buildErrorResult(Throwable ex) {return new ErrorResult(CODE_SYSTEM_BUSY, MSG_SYSTEM_BUSY);}private static class ErrorResult {private final String status;private final String message;public String getStatus() {return status;}ErrorResult(String status, String message) {this.status = status;this.message = message;}public String getMessage() {return message;}}public Mono<ServerResponse> handleRequestDetail(ServerWebExchange exchange, Throwable ex) {String requestUrl = exchange.getRequest().getURI().getRawPath();System.out.println("requestUrl = " + requestUrl);Route route = exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR);// post请求的参数需要自己写filter 获取,这里只是获取的get请求参数MultiValueMap<String, String> getParams = exchange.getRequest().getQueryParams();// 转发到第三方接口,这里是配置的时候route-id和注册中心服务的application.name(lb://data-ballast-api) 一致了// 原地址 localhost:8083/test/api/tab/test, 降级地址 http://data-ballast-api/api/tab/test/sentinelStringBuilder newUri = new StringBuilder("http://").append(route.getId()).append(requestUrl+"/sentinel");log.info("限流uri: {}, query参数: {}, 降级至: uri {}", requestUrl, getParams, newUri.toString());//return webClientBuilder.build().post() //.uri(newUri.toString())// 传递 request header.headers(newHeaders -> newHeaders.putAll(exchange.getRequest().getHeaders())).bodyValue(getParams).exchangeToMono(response -> {return response.bodyToMono(String.class).defaultIfEmpty("").flatMap(body -> {return ServerResponse.status(response.statusCode())// 传递 response header,避免cookie在网关层丢失.headers(it -> {it.addAll(response.headers().asHttpHeaders());}).bodyValue(body);});});}
}

自定义三方降级接口：

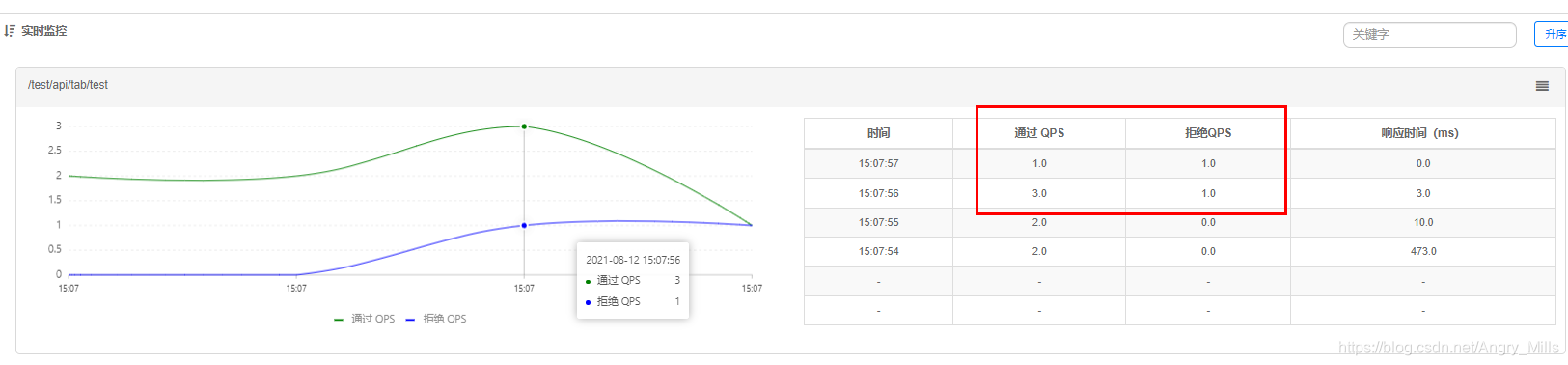

降级成功：

待优化

上面已经基本实现了网关层面进行流控。

还有几个地方可以优化：

• 流控规则等配置的持久化：sentinel 存的规则是默认存到内存里的，一旦重启了服务(网关或者普通的业务服务)，规则需要重新配置。持久化可以选择 apollo或者 nacos。(一般的配置中心)

• 针对不同方式的参数获取待完善（POST请求、文件上传 等等）

• 针对不同的route走不同的降级策略（代码优化，可以使用策略模式）

• 不同异常的处理，比如通用的 GatewayConfiguration 是处理了所有异常进行的 handleRequest 处理，可能有些请求不适合按降级处理(比如超时之类的)
