一、引言:
由于accept函数、read、write、recv、send等函数都是是阻塞式的,在同一个进程之中,只要有任何一个函数没有执行完毕,处于阻塞状态,之后的函数与功能就不能处理,很难实现点对点的Server-Client全双工通信。因为全双工通信是非阻塞式的通信方式,即使对方没有回复消息,都可以随时发送。如果只是电报机式的半双工通信,之前已经基本实现:基于Linux的SOCKET编程之TCP半双工Client-Server聊天程序
而对于QQ点对点聊天式的全双工通信,又该怎样实现呢?对于当前所学只能想到使用fork函数创建一个子进程,其中父进程用来处理发(或者收),而子进程用来处理收(或者发)的过程。fork函数的一些基本的使用可参照:进程创建与fork()的恩怨情仇
二、测试代码:
测试环境(Redhat 6.4)
1、客户端(Client):
# include<stdio.h>
# include<stdlib.h>
# include<string.h>
# include<unistd.h>
# include<sys/socket.h>
# include<arpa/inet.h>
# include<netinet/in.h>
# include<signal.h># define MAX_BUF_LEN 128
void error_print(char * ptr)
{perror(ptr);exit(EXIT_FAILURE);
}
void quit_tranmission(int sig)
{printf("recv a quit signal = %d\n",sig);exit(EXIT_SUCCESS);
}
int main(void)
{int sockfd = socket(AF_INET, SOCK_STREAM, 0);if(sockfd < 0)error_print("socket");struct sockaddr_in servaddr;bzero(&servaddr,sizeof(servaddr));servaddr.sin_family = AF_INET;servaddr.sin_port = 1234;servaddr.sin_addr.s_addr = inet_addr("127.0.0.1");int conn;if((conn = connect(sockfd, (struct sockaddr *)&servaddr, sizeof(servaddr))) < 0)error_print("connect");pid_t pid;pid = fork();if(pid == -1){error_print("fork");}if(pid == 0){char recv_buf[MAX_BUF_LEN] = {0};while(1){bzero(recv_buf,sizeof(recv_buf));int ret = read(sockfd, recv_buf, sizeof(recv_buf));if(ret == -1)error_print("read");else if(ret == 0){printf("server is close!\n");break;}fputs(recv_buf,stdout);}close(sockfd);kill(getppid(),SIGUSR1);exit(EXIT_SUCCESS);}else{signal(SIGUSR1,quit_tranmission);char send_buf[MAX_BUF_LEN] = {0};while(fgets(send_buf,sizeof(send_buf), stdin) != NULL){int set = write(sockfd, send_buf, strlen(send_buf));if(set < 0)error_print("write");bzero(send_buf,strlen(send_buf));}close(sockfd);/*通信结束,关闭套接字*/}return 0;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
2、服务器(Server):
# include<stdio.h>
# include<stdlib.h>
# include<string.h>
# include<unistd.h>
# include<sys/socket.h>
# include<arpa/inet.h>
# include<netinet/in.h>
# include<signal.h># define MAX_BUF_LEN 128void error_print(char * ptr)
{perror(ptr);exit(EXIT_FAILURE);
}void quit_tranmission(int sig)
{printf("recv a quit signal = %d\n",sig);exit(EXIT_SUCCESS);
}
int main(void)
{int sockfd = socket(AF_INET, SOCK_STREAM, 0);if(sockfd < 0)error_print("socket");struct sockaddr_in servaddr;bzero(&servaddr,sizeof(servaddr));servaddr.sin_family = AF_INET;servaddr.sin_port = 1234;servaddr.sin_addr.s_addr = inet_addr("127.0.0.1");int on = 1;if( setsockopt(sockfd,SOL_SOCKET,SO_REUSEADDR,&on,sizeof(on)) < 0)error_print("setsockopt");if(bind(sockfd, (struct sockaddr*)&servaddr, sizeof(servaddr)) < 0)error_print("bind");if(listen(sockfd, SOMAXCONN) < 0)error_print("listen");struct sockaddr_in peeraddr;socklen_t peerlen = sizeof(peeraddr);int conn;if((conn = accept(sockfd,(struct sockaddr*)&peeraddr,&peerlen)) < 0)error_print("accept");pid_t pid;pid = fork();if(pid == -1){error_print("fork");}if(pid == 0){signal(SIGUSR1,quit_tranmission);char send_buf[MAX_BUF_LEN]={0};while(fgets(send_buf, sizeof(send_buf), stdin) != NULL){write(conn,send_buf,strlen(send_buf));bzero(send_buf,strlen(send_buf));}exit(EXIT_SUCCESS);}else{char recv_buf[MAX_BUF_LEN]={0};while(1){bzero(recv_buf,strlen(recv_buf));int ret = read(conn, recv_buf, sizeof(recv_buf));if(ret < 0)error_print("read");else if(ret == 0){printf("client is close!\n");break;}fputs(recv_buf,stdout);}kill(pid,SIGUSR1);}close(conn);close(sockfd);return 0;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
收到对端结束信息(NULL信息)的进程要向等待发送的进程发送一个结束通信的信号,回调函数处理使得等待输入的进程结束,否则该进程会一直等待,直到有输入(但此时的输入已经没有意义,所以应提早结束,而不是一直等待)。

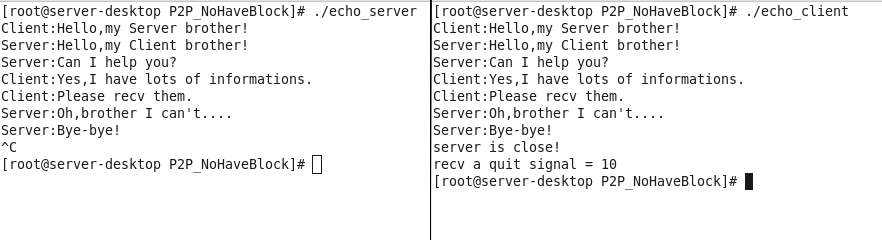

三、测试结果:
这个不厚道的服务器结束了通信:
