二叉树（多路平衡搜索树）-（代码、分析、汇编）

代码：

BTree.h

#ifndef _BTREE_H_
#define _BTREE_H_#define BT_LEFT 0 //定义左子节点标识
#define BT_RIGHT 1 //定义右子节点标识typedef void BTree;//定义树类型
typedef unsigned long long BTPos;//定义树位置类型typedef struct _tag_BTreeNode BTreeNode;//定义树节点类型
struct _tag_BTreeNode
{BTreeNode* left;BTreeNode* right;
};typedef void (BTree_Printf)(BTreeNode*);//定义树节点类型指针参数无返回值的函数类型BTree* BTree_Create();//声明创建树函数void BTree_Destroy(BTree* tree);//声明销毁树函数void BTree_Clear(BTree* tree);//声明清空树函数int BTree_Insert(BTree* tree, BTreeNode* node, BTPos pos, int count, int flag);//声明插入节点函数BTreeNode* BTree_Delete(BTree* tree, BTPos pos, int count);//声明删除节点函数BTreeNode* BTree_Get(BTree* tree, BTPos pos, int count);//声明获取节点函数BTreeNode* BTree_Root(BTree* tree);//声明获取根节点函数int BTree_Height(BTree* tree);//声明获取树高度函数int BTree_Count(BTree* tree);//声明获取树节点数量函数int BTree_Degree(BTree* tree);//声明获取树度数函数void BTree_Display(BTree* tree, BTree_Printf* pFunc, int gap, char div);//声明用函数处理每个节点的函数#endif

BTree.c

#include <stdio.h>
#include <malloc.h>
#include "BTree.h"typedef struct _tag_BTree TBTree;//定义实际使用树类型
struct _tag_BTree
{int count;//节点数量BTreeNode* root;//根节点
};static void recursive_display(BTreeNode* node, BTree_Printf* pFunc, int format, int gap, char div) // 定义递归处理节点函数
{int i = 0;if( (node != NULL) && (pFunc != NULL) )//如果节点与函数指针不为空{for(i=0; i<format; i++)//输出占位符{printf("%c", div);}pFunc(node);//对节点进行函数处理printf("\n");if( (node->left != NULL) || (node->right != NULL) )//如果左子节点或右子节点不为空{recursive_display(node->left, pFunc, format + gap, gap, div);//处理左子节点，占位符数量以gap递增recursive_display(node->right, pFunc, format + gap, gap, div);//处理右子节点，占位符数量以gap递增}}else//如果节点或函数指针为空 只输出占位符{for(i=0; i<format; i++)//输出占位符{printf("%c", div);}printf("\n");}

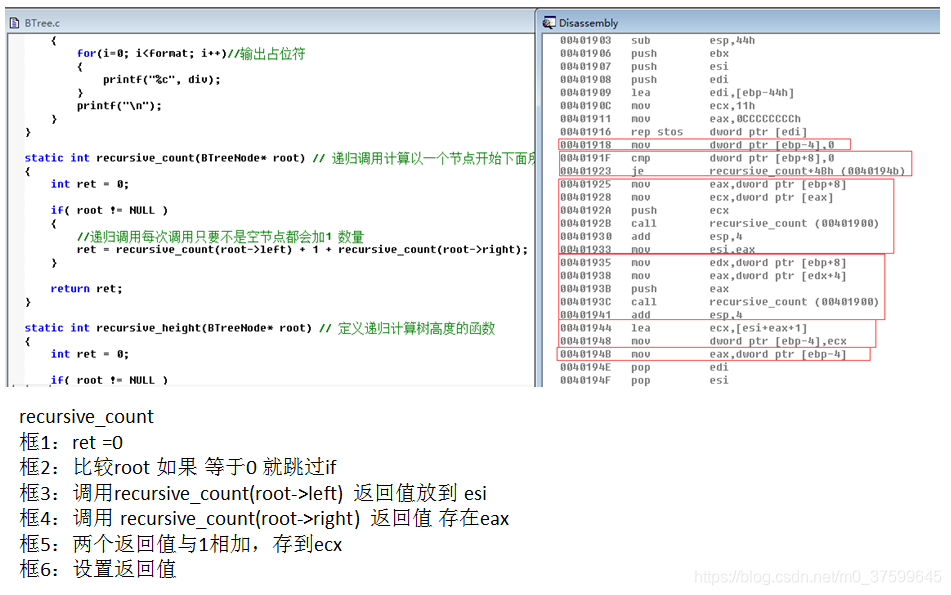

}static int recursive_count(BTreeNode* root) // 递归调用计算以一个节点开始下面所有子节点数量（包括第一次的节点本身）函数
{int ret = 0;if( root != NULL ){//递归调用每次调用只要不是空节点都会加1 数量ret = recursive_count(root->left) + 1 + recursive_count(root->right);}return ret;

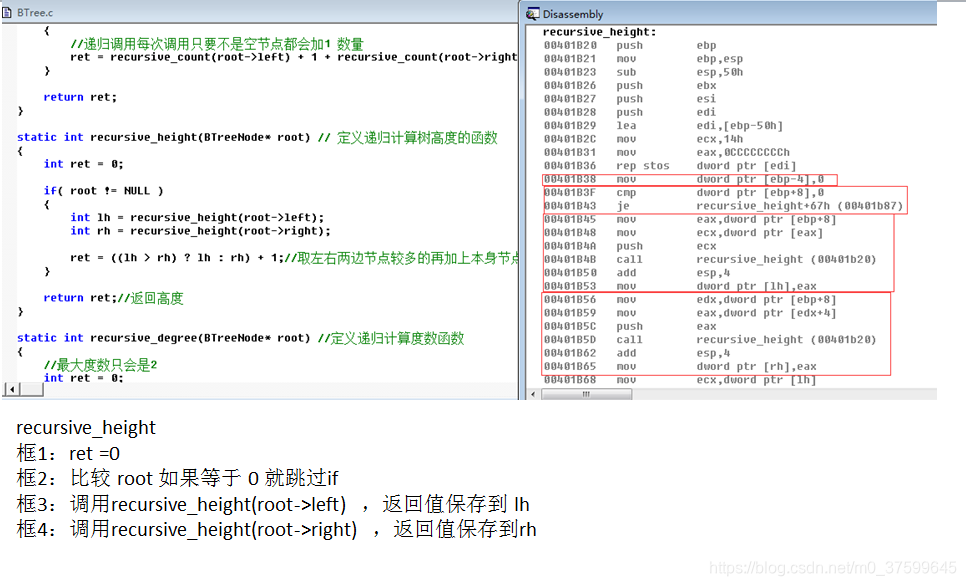

}static int recursive_height(BTreeNode* root) // 定义递归计算树高度的函数

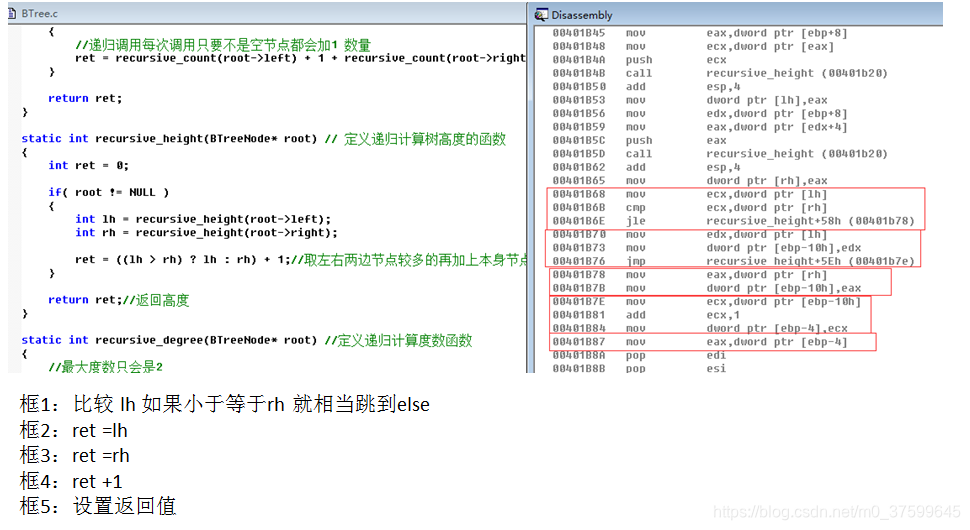

{int ret = 0;if( root != NULL ){int lh = recursive_height(root->left);int rh = recursive_height(root->right);ret = ((lh > rh) ? lh : rh) + 1;//取左右两边节点较多的再加上本身节点}return ret;//返回高度

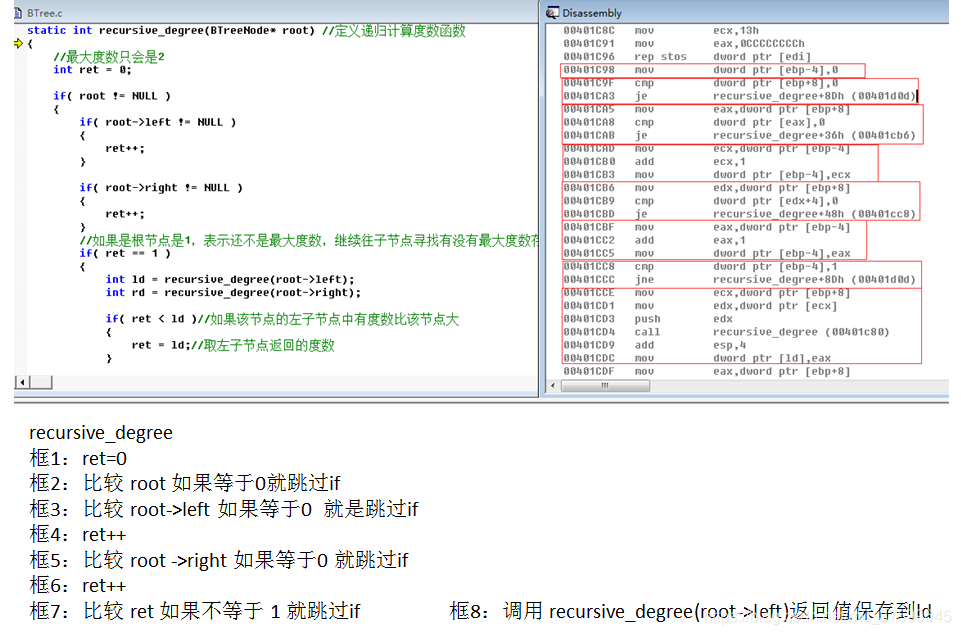

}static int recursive_degree(BTreeNode* root) //定义递归计算度数函数

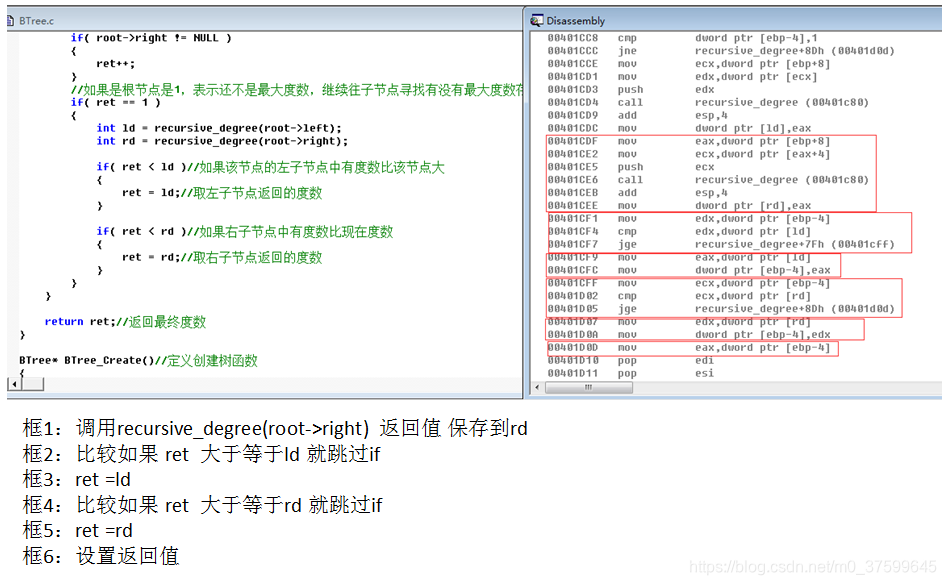

{  //最大度数只会是2int ret = 0;if( root != NULL ){if( root->left != NULL ){ret++;}if( root->right != NULL ){ret++;}//如果是根节点是1，表示还不是最大度数，继续往子节点寻找有没有最大度数存在if( ret == 1 ){int ld = recursive_degree(root->left);int rd = recursive_degree(root->right);if( ret < ld )//如果该节点的左子节点中有度数比该节点大{ret = ld;//取左子节点返回的度数}if( ret < rd )//如果右子节点中有度数比现在度数{ret = rd;//取右子节点返回的度数}}}return ret;//返回最终度数

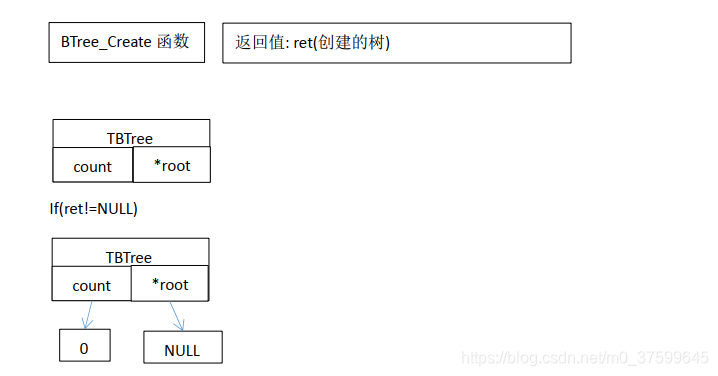

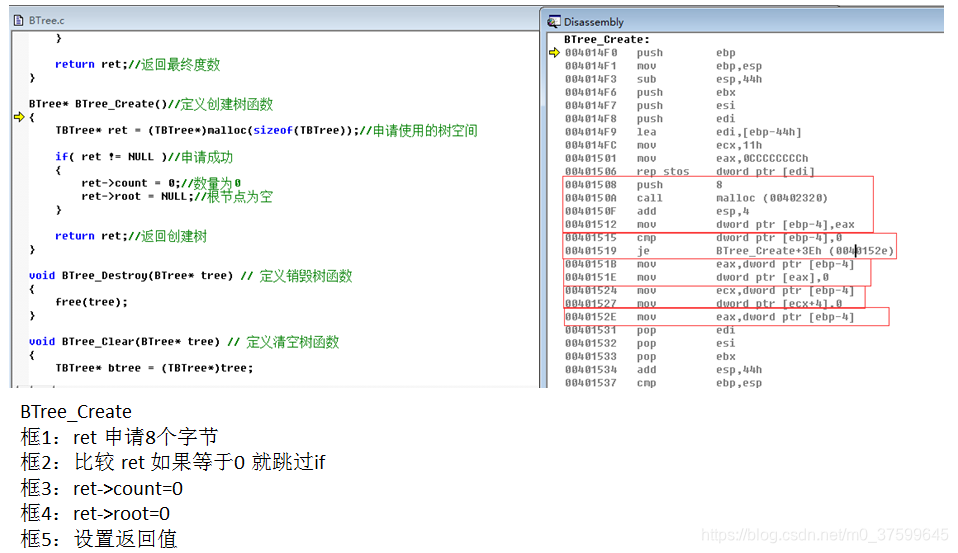

}BTree* BTree_Create()//定义创建树函数
{TBTree* ret = (TBTree*)malloc(sizeof(TBTree));//申请使用的树空间if( ret != NULL )//申请成功{ret->count = 0;//数量为0ret->root = NULL;//根节点为空}return ret;//返回创建树

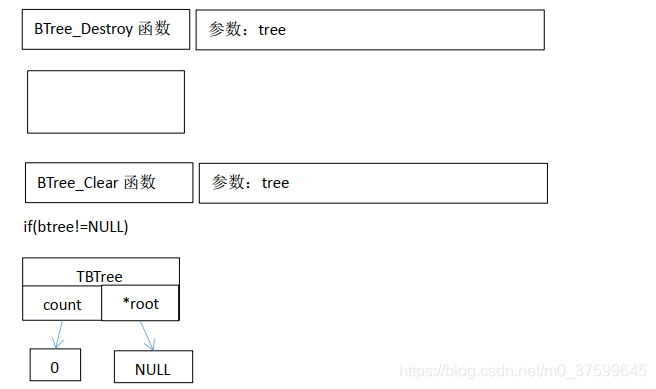

}void BTree_Destroy(BTree* tree) // 定义销毁树函数
{free(tree);
}void BTree_Clear(BTree* tree) // 定义清空树函数
{TBTree* btree = (TBTree*)tree;if( btree != NULL ){btree->count = 0;btree->root = NULL;}
}
/* count 表示插入节点的上面有多少层节点flag 表示原来该位置的节点位于插入节点的方向
*/

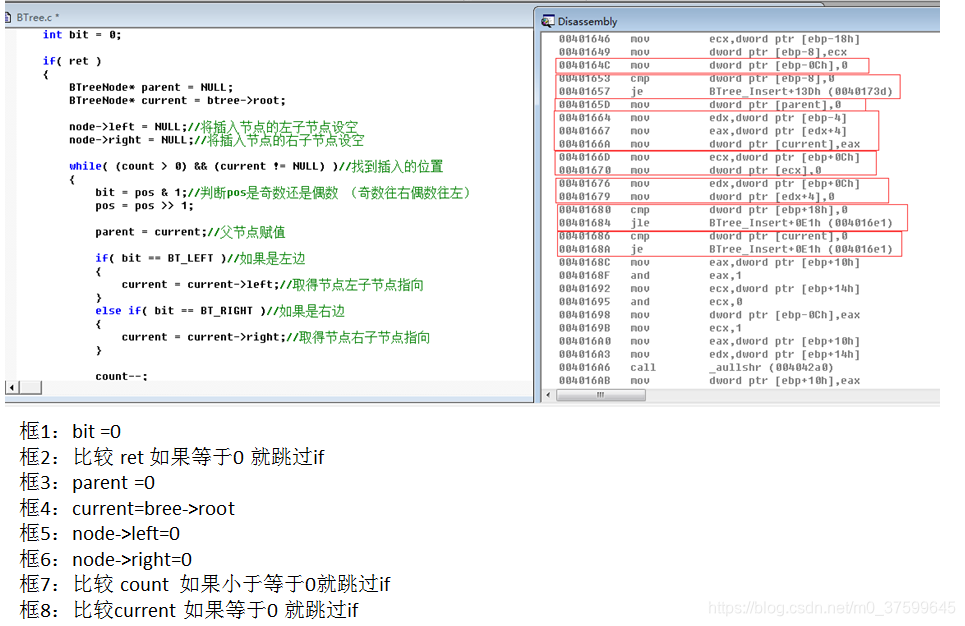

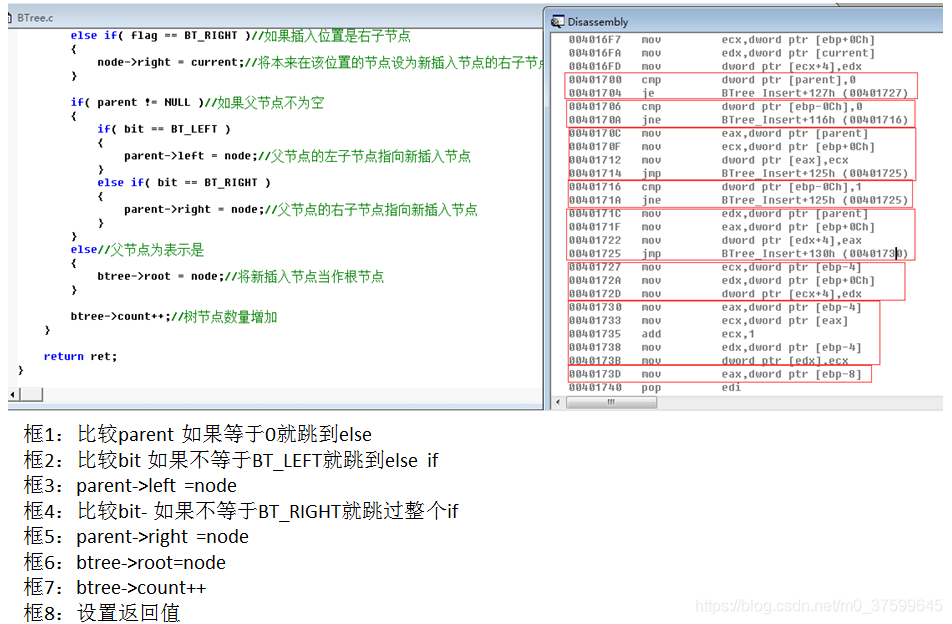

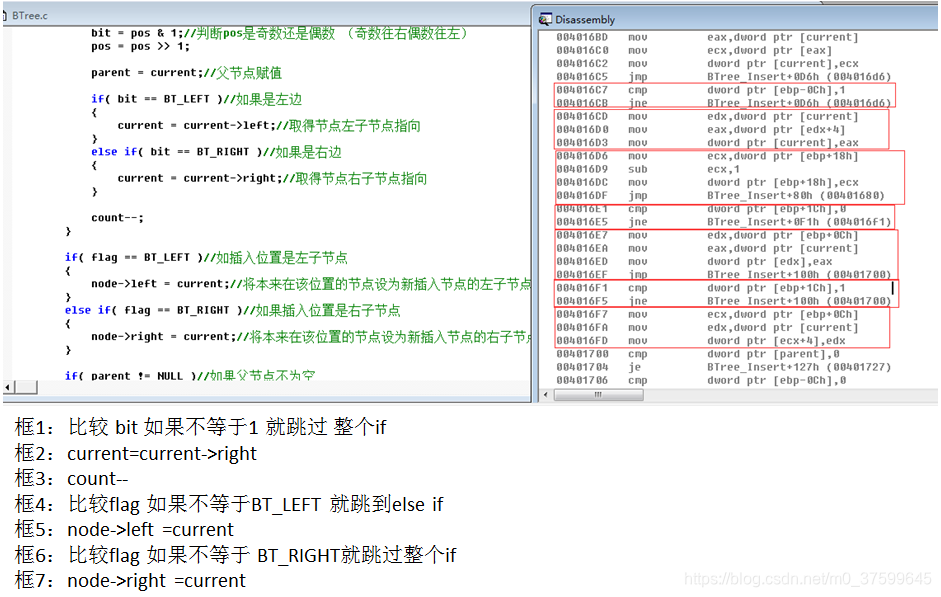

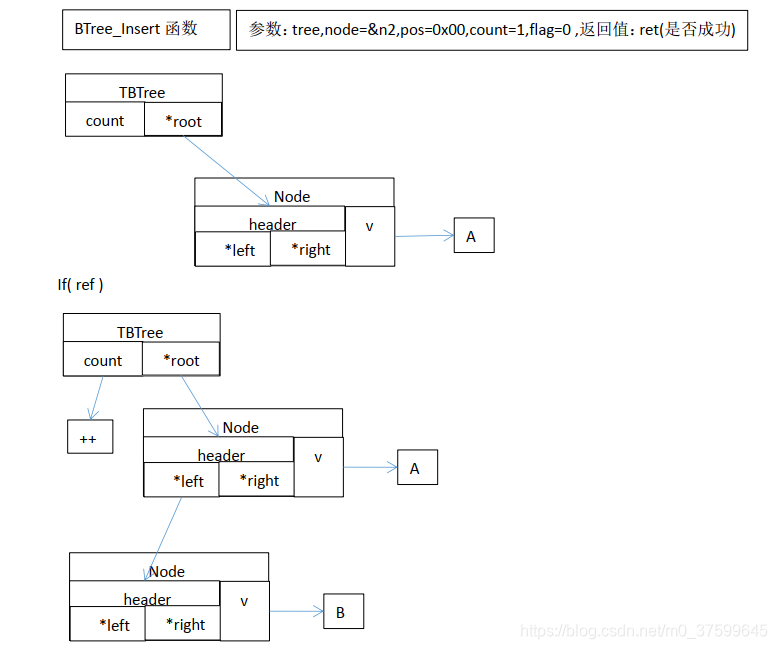

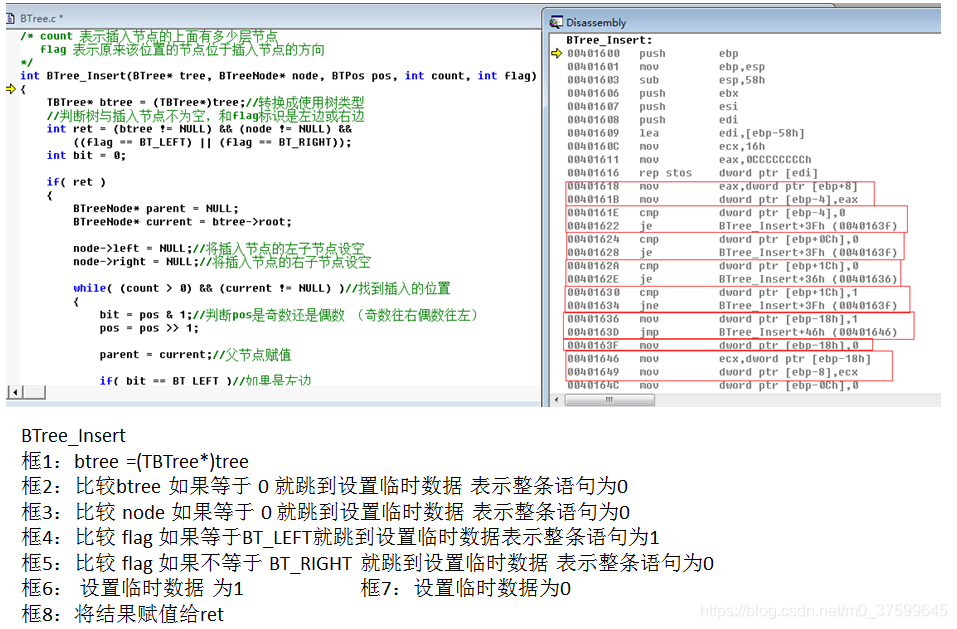

int BTree_Insert(BTree* tree, BTreeNode* node, BTPos pos, int count, int flag) // 定义插入节点函数

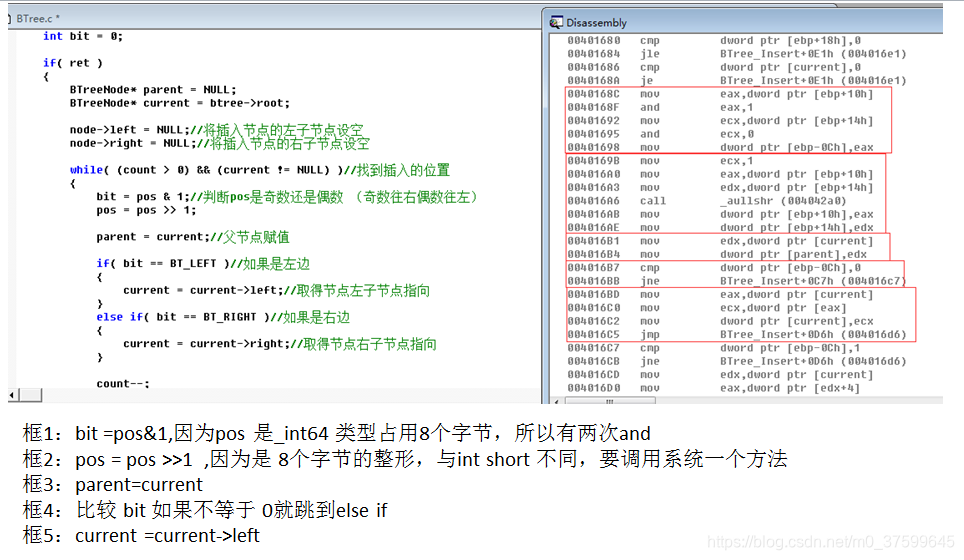

{TBTree* btree = (TBTree*)tree;//转换成使用树类型//判断树与插入节点不为空，和flag标识是左边或右边int ret = (btree != NULL) && (node != NULL) && ((flag == BT_LEFT) || (flag == BT_RIGHT));int bit = 0;if( ret ){BTreeNode* parent = NULL;BTreeNode* current = btree->root;node->left = NULL;//将插入节点的左子节点设空node->right = NULL;//将插入节点的右子节点设空while( (count > 0) && (current != NULL) )//找到插入的位置{bit = pos & 1;//判断pos是奇数还是偶数 （奇数往右偶数往左）pos = pos >> 1;parent = current;//父节点赋值if( bit == BT_LEFT )//如果是左边{current = current->left;//取得节点左子节点指向}else if( bit == BT_RIGHT )//如果是右边{current = current->right;//取得节点右子节点指向}count--;}if( flag == BT_LEFT )//如插入位置是左子节点{node->left = current;//将本来在该位置的节点设为新插入节点的左子节点}else if( flag == BT_RIGHT )//如果插入位置是右子节点{node->right = current;//将本来在该位置的节点设为新插入节点的右子节点}if( parent != NULL )//如果父节点不为空{if( bit == BT_LEFT ){parent->left = node;//父节点的左子节点指向新插入节点 }else if( bit == BT_RIGHT ){parent->right = node;//父节点的右子节点指向新插入节点}}else//父节点为表示是{btree->root = node;//将新插入节点当作根节点}btree->count++;//树节点数量增加}return ret;

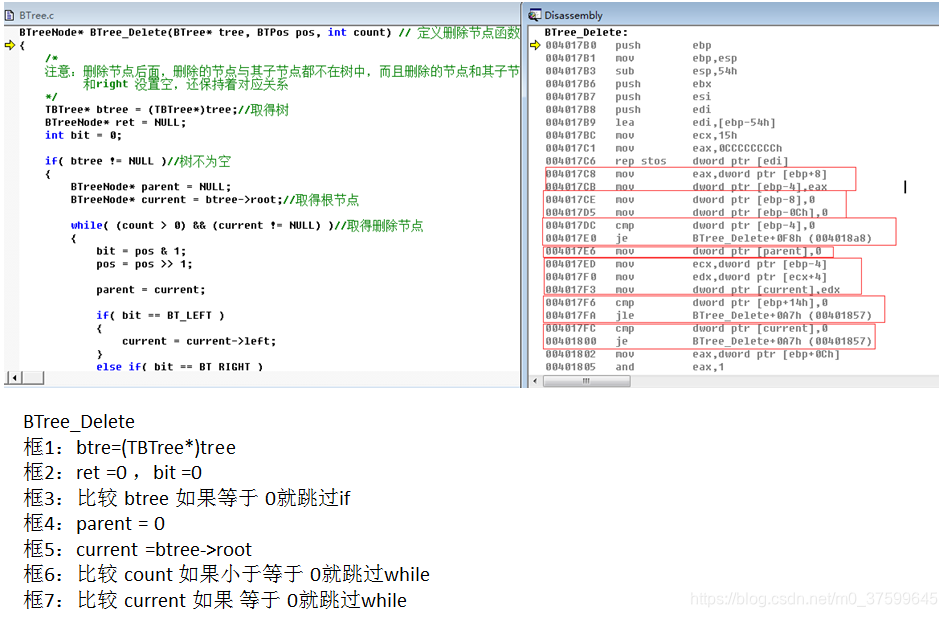

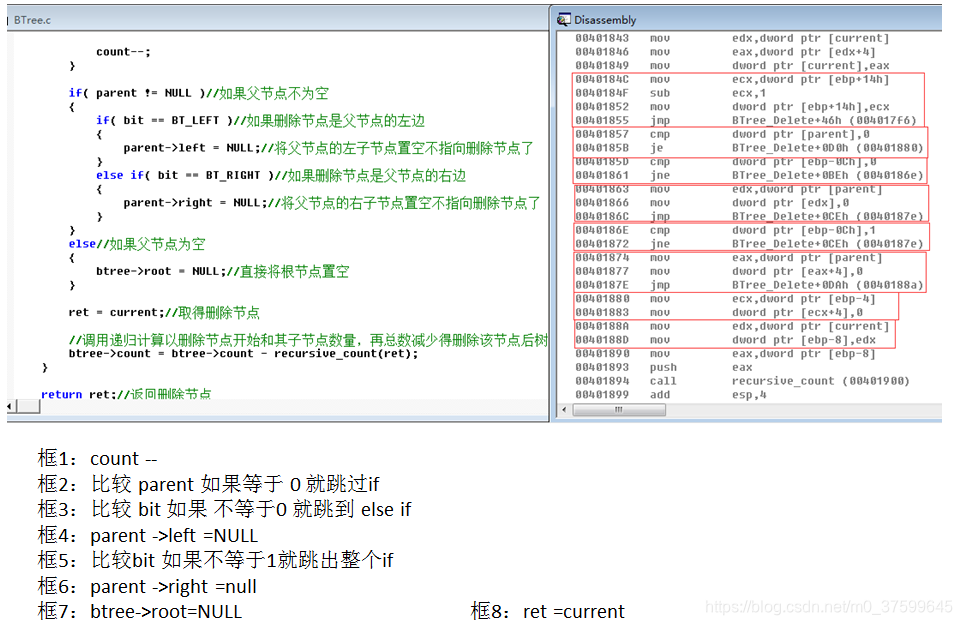

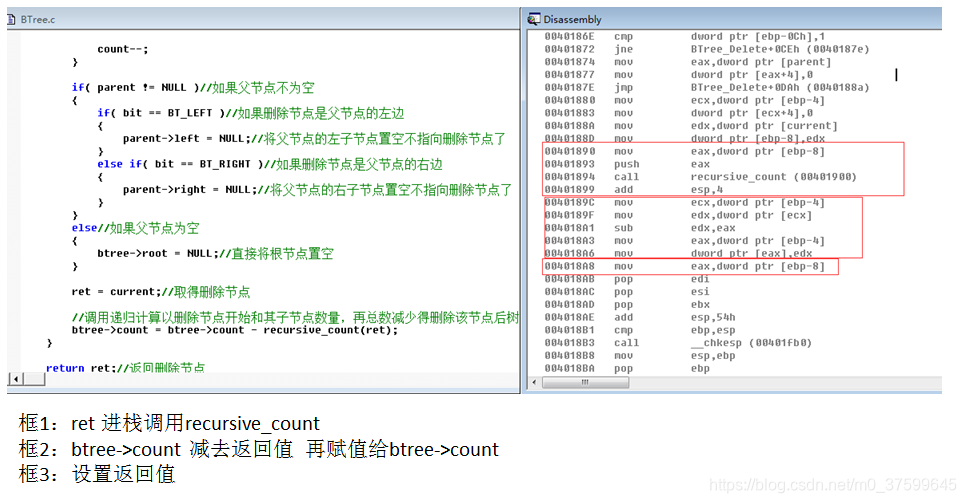

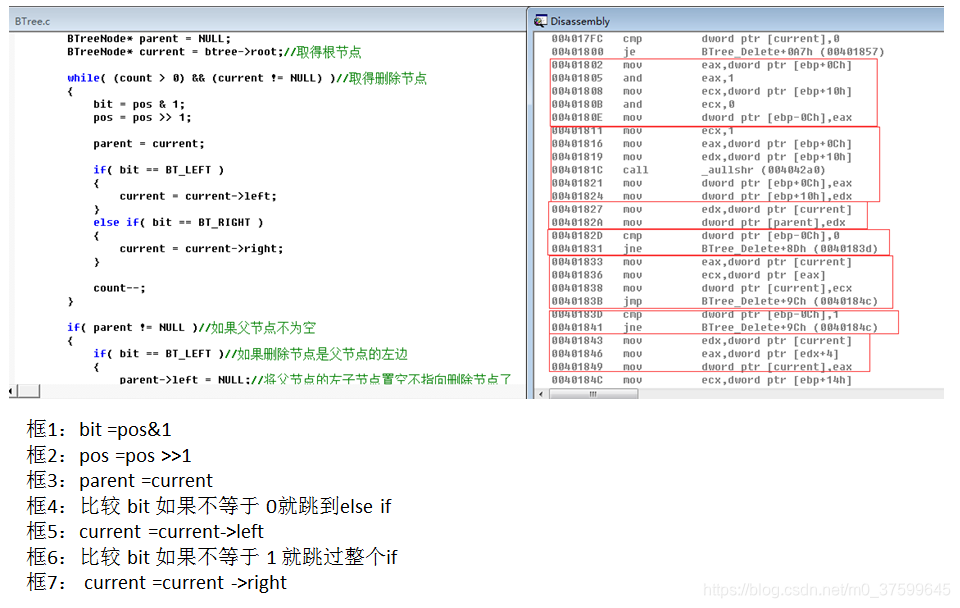

}BTreeNode* BTree_Delete(BTree* tree, BTPos pos, int count) // 定义删除节点函数

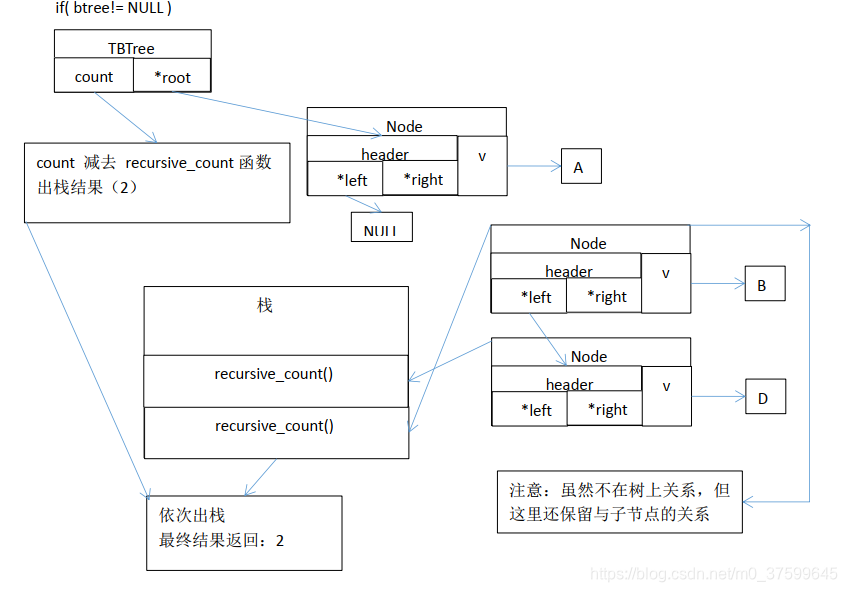

{/*注意：删除节点后面，删除的节点与其子节点都不在树中，而且删除的节点和其子节点的left和right 没置空，还保持着对应关系 */TBTree* btree = (TBTree*)tree;//取得树BTreeNode* ret = NULL; int bit = 0;if( btree != NULL )//树不为空{BTreeNode* parent = NULL;BTreeNode* current = btree->root;//取得根节点while( (count > 0) && (current != NULL) )//取得删除节点{bit = pos & 1;pos = pos >> 1;parent = current;if( bit == BT_LEFT ){current = current->left;}else if( bit == BT_RIGHT ){current = current->right;}count--;}if( parent != NULL )//如果父节点不为空{if( bit == BT_LEFT )//如果删除节点是父节点的左边{parent->left = NULL;//将父节点的左子节点置空不指向删除节点了}else if( bit == BT_RIGHT )//如果删除节点是父节点的右边{parent->right = NULL;//将父节点的右子节点置空不指向删除节点了}}else//如果父节点为空{btree->root = NULL;//直接将根节点置空}ret = current;//取得删除节点//调用递归计算以删除节点开始和其子节点数量，再总数减少得删除该节点后树的节点数btree->count = btree->count - recursive_count(ret);}return ret;//返回删除节点

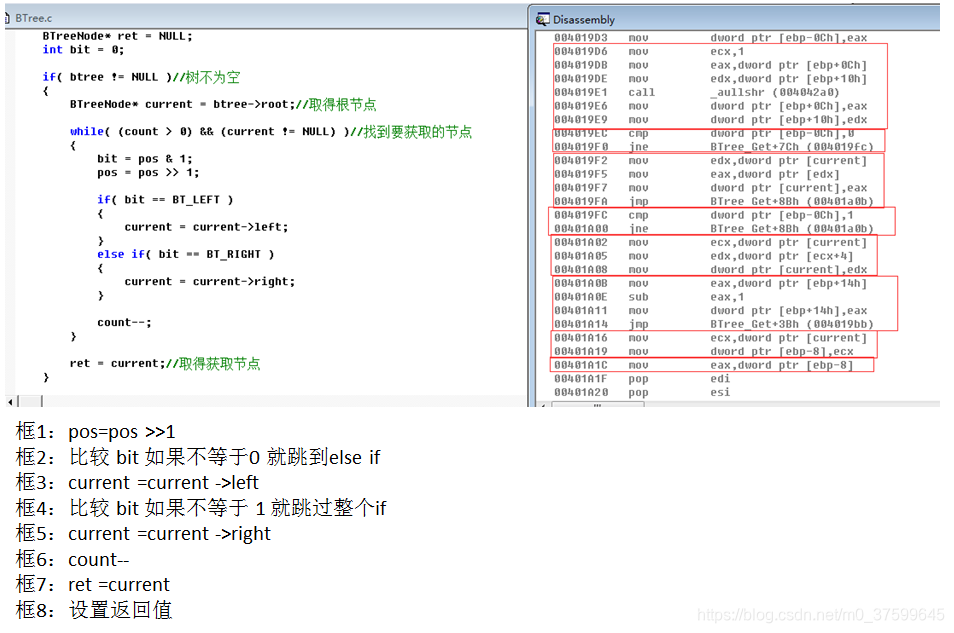

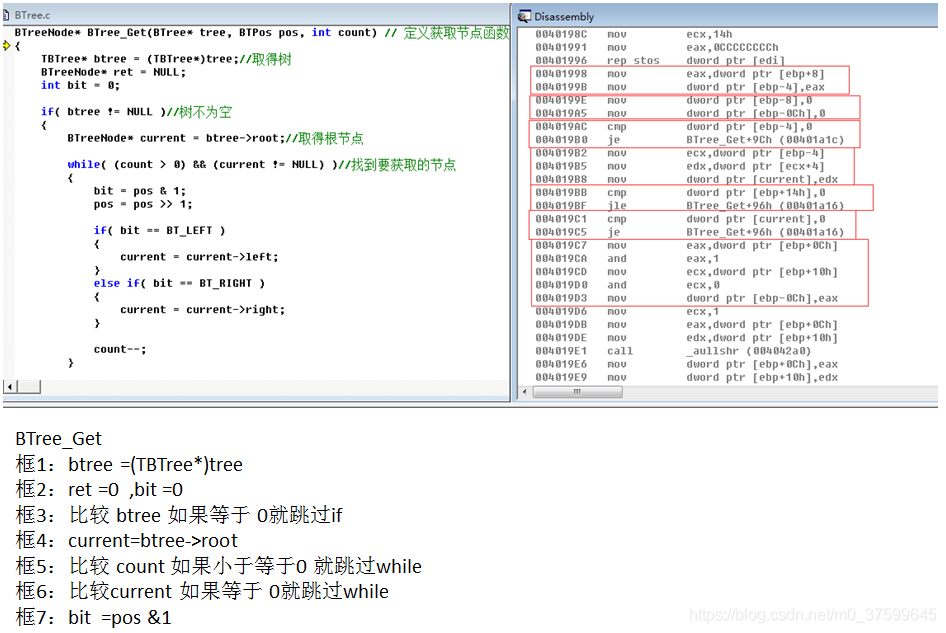

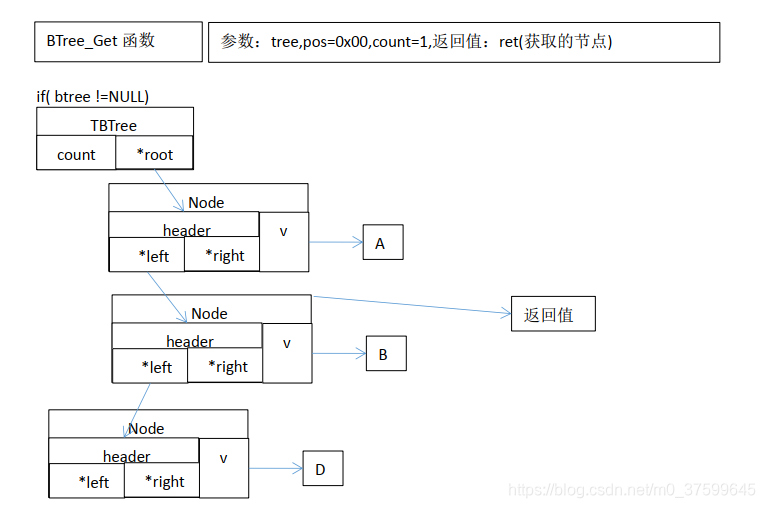

}BTreeNode* BTree_Get(BTree* tree, BTPos pos, int count) // 定义获取节点函数
{TBTree* btree = (TBTree*)tree;//取得树BTreeNode* ret = NULL; int bit = 0;if( btree != NULL )//树不为空{BTreeNode* current = btree->root;//取得根节点while( (count > 0) && (current != NULL) )//找到要获取的节点{bit = pos & 1;pos = pos >> 1;if( bit == BT_LEFT ){current = current->left;}else if( bit == BT_RIGHT ){current = current->right;}count--;}ret = current;//取得获取节点}return ret;//返回获取节点

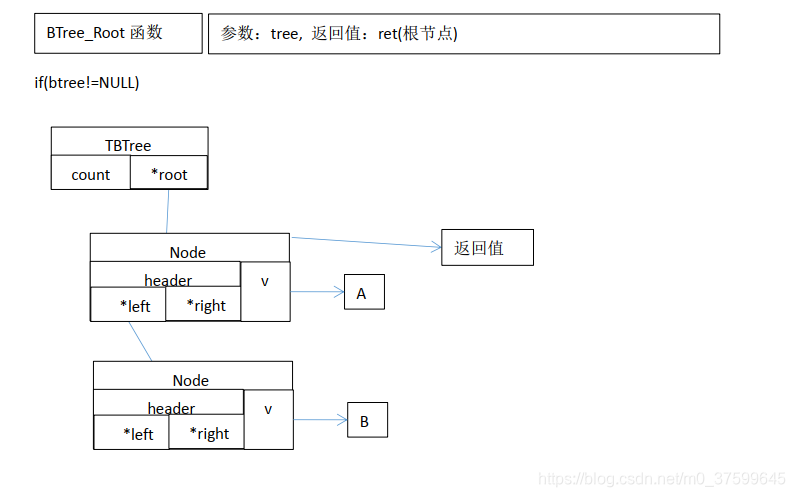

}BTreeNode* BTree_Root(BTree* tree) // 定义获取根节点函数
{TBTree* btree = (TBTree*)tree;//取得树BTreeNode* ret = NULL;if( btree != NULL )//如果树不为空{ret = btree->root;//取得根节点}return ret;//获取根节点

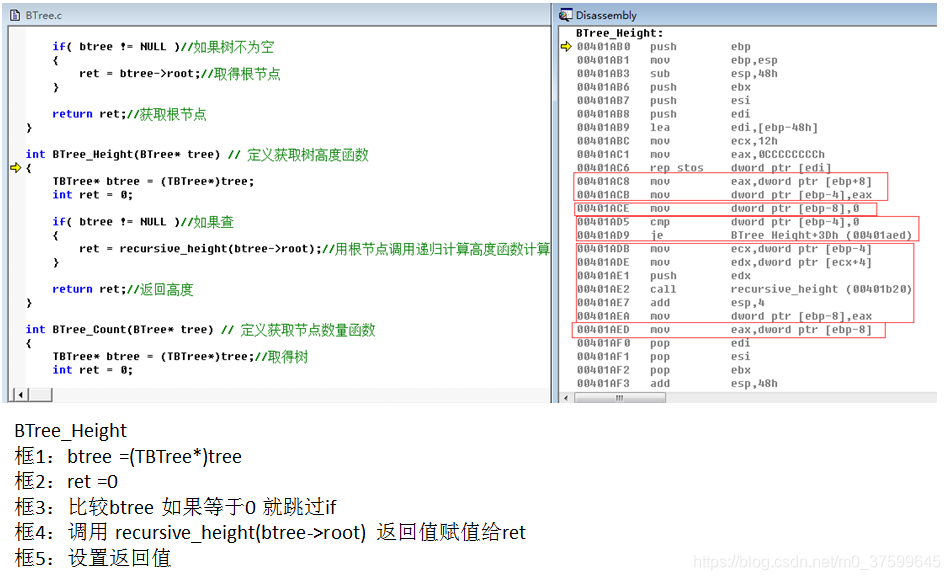

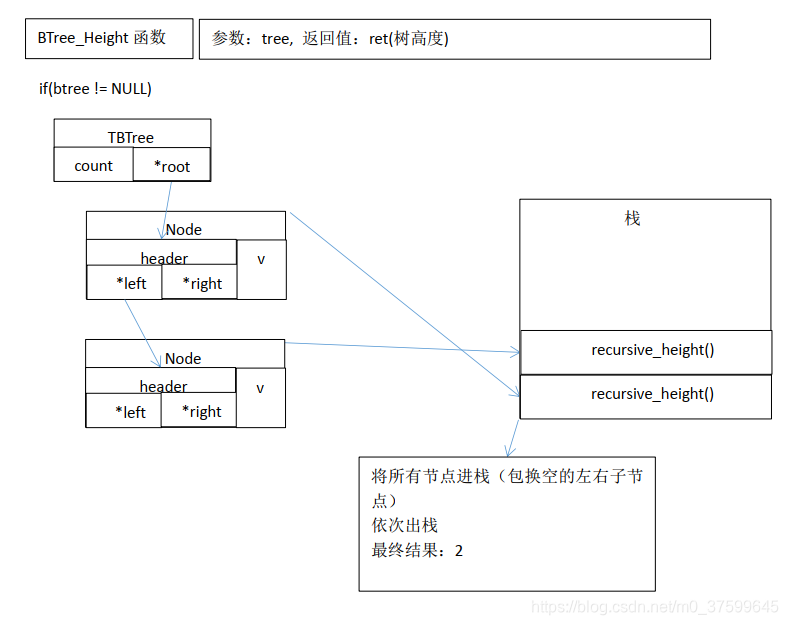

}int BTree_Height(BTree* tree) // 定义获取树高度函数
{TBTree* btree = (TBTree*)tree;int ret = 0;if( btree != NULL )//如果查{ret = recursive_height(btree->root);//用根节点调用递归计算高度函数计算高度}return ret;//返回高度
}int BTree_Count(BTree* tree) // 定义获取节点数量函数
{TBTree* btree = (TBTree*)tree;//取得树int ret = 0;if( btree != NULL ){ret = btree->count;//取得树节点数量}return ret;//返回数量

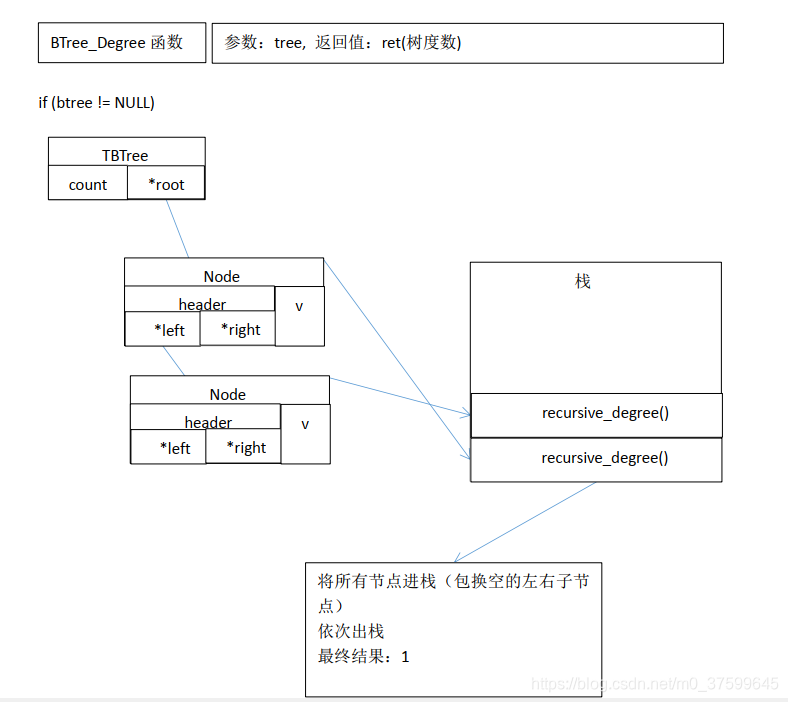

}int BTree_Degree(BTree* tree) // 定义获取树度数函数
{TBTree* btree = (TBTree*)tree;//取得树int ret = 0;if( btree != NULL ){ret = recursive_degree(btree->root);//用根节点调用递归计算度数函数}return ret;//返回度数

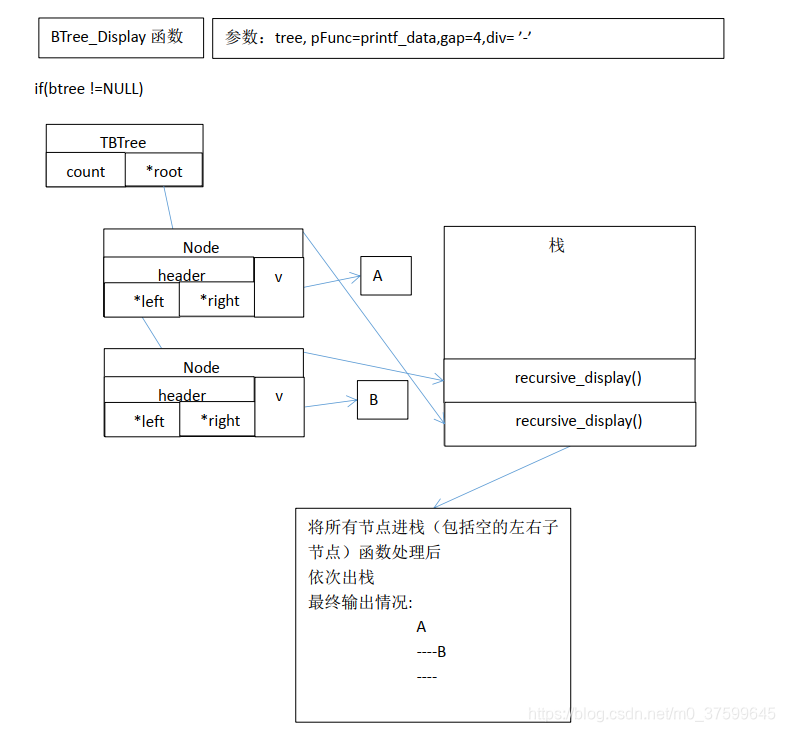

}void BTree_Display(BTree* tree, BTree_Printf* pFunc, int gap, char div) //定义使用函数统一处理节点信息函数
{TBTree* btree = (TBTree*)tree;//取得树if( btree != NULL ){recursive_display(btree->root, pFunc, 0, gap, div);//调用递归处理函数}
}

main.c

#include <stdio.h>
#include <stdlib.h>
#include "BTree.h"struct Node
{BTreeNode header;char v;
};void printf_data(BTreeNode* node)
{if( node != NULL ){printf("%c", ((struct Node*)node)->v);}
}int main(int argc, char *argv[])
{BTree* tree = BTree_Create();struct Node n1 = {{NULL, NULL}, 'A'};struct Node n2 = {{NULL, NULL}, 'B'};struct Node n3 = {{NULL, NULL}, 'C'};struct Node n4 = {{NULL, NULL}, 'D'};struct Node n5 = {{NULL, NULL}, 'E'};struct Node n6 = {{NULL, NULL}, 'F'};BTree_Insert(tree, (BTreeNode*)&n1, 0, 0, 0);BTree_Insert(tree, (BTreeNode*)&n2, 0x00, 1, 0);BTree_Insert(tree, (BTreeNode*)&n3, 0x01, 1, 0);BTree_Insert(tree, (BTreeNode*)&n4, 0x00, 2, 0);BTree_Insert(tree, (BTreeNode*)&n5, 0x02, 2, 0);BTree_Insert(tree, (BTreeNode*)&n6, 0x02, 3, 0);printf("Height: %d\n", BTree_Height(tree));printf("Degree: %d\n", BTree_Degree(tree));printf("Count: %d\n", BTree_Count(tree));printf("Position At (0x02, 2): %c\n", ((struct Node*)BTree_Get(tree, 0x02, 2))->v);printf("Full Tree: \n");BTree_Display(tree, printf_data, 4, '-');BTree_Delete(tree, 0x00, 1);printf("After Delete B: \n");printf("Height: %d\n", BTree_Height(tree));printf("Degree: %d\n", BTree_Degree(tree));printf("Count: %d\n", BTree_Count(tree));printf("Full Tree: \n");BTree_Display(tree, printf_data, 4, '-');BTree_Clear(tree);printf("After Clear: \n");printf("Height: %d\n", BTree_Height(tree));printf("Degree: %d\n", BTree_Degree(tree));printf("Count: %d\n", BTree_Count(tree));BTree_Display(tree, printf_data, 4, '-');BTree_Destroy(tree);getchar();return 0;
}
