Mule ESB,ActiveMQ和DLQ

apache-activemq-logo
在本文中,我将展示一个简单的Mule ESB流程,以了解实际中使用的Active MQ 的DLQ功能 。
我假设您有一个正在运行的Apache ActiveMQ实例(如果没有,则可以在此处下载一个版本)。 在此示例中,我使用了Mule ESB 3.4.2和ActiveMQ 5.9.0。 我们可以基于以下pom文件创建一个简单的Mule项目:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"><modelVersion>4.0.0</modelVersion><groupId>net.pascalalma.demo</groupId><artifactId>activemq-test-flow</artifactId><packaging>mule</packaging><name>${project.artifactId}</name><version>1.0.0-SNAPSHOT</version><properties><mule.version>3.4.2</mule.version><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><jdk.version>1.7</jdk.version><junit.version>4.9</junit.version><activemq.version>5.9.0</activemq.version></properties><dependencies><!-- Mule Dependencies --><dependency><groupId>org.mule</groupId><artifactId>mule-core</artifactId><version>${mule.version}</version></dependency><!-- Mule Transports --><dependency><groupId>org.mule.transports</groupId><artifactId>mule-transport-jms</artifactId><version>${mule.version}</version></dependency><dependency><groupId>org.mule.transports</groupId><artifactId>mule-transport-vm</artifactId><version>${mule.version}</version></dependency><!-- Mule Modules --><dependency><groupId>org.mule.modules</groupId><artifactId>mule-module-client</artifactId><version>${mule.version}</version></dependency><dependency><groupId>org.mule.modules</groupId><artifactId>mule-module-scripting</artifactId><version>${mule.version}</version></dependency><!-- for testing --><dependency><groupId>org.mule.tests</groupId><artifactId>mule-tests-functional</artifactId><version>${mule.version}</version></dependency><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>${junit.version}</version></dependency><dependency><groupId>org.apache.activemq</groupId><artifactId>activemq-client</artifactId><version>${activemq.version}</version></dependency></dependencies><build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>2.3.2</version><configuration><source>${jdk.version}</source><target>${jdk.version}</target><encoding>${project.build.sourceEncoding}</encoding></configuration></plugin><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-resources-plugin</artifactId><version>2.5</version><configuration><encoding>${project.build.sourceEncoding}</encoding></configuration></plugin><plugin><groupId>org.mule.tools</groupId><artifactId>maven-mule-plugin</artifactId><version>1.9</version><extensions>true</extensions><configuration><copyToAppsDirectory>false</copyToAppsDirectory></configuration></plugin></plugins></build>
</project>

这里没有什么特别的。 除了必要的依赖关系之外,我还添加了maven-mule-plugin,以便可以创建“ mule”打包类型并从IDE运行Mule。
有了此Maven pom,我们可以创建以下两个Mule配置。 一个用于测试交易的Mule流:

<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns="http://www.mulesoft.org/schema/mule/core"xmlns:scripting="http://www.mulesoft.org/schema/mule/scripting"version="EE-3.4.1"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsdhttp://www.mulesoft.org/schema/mule/scripting http://www.mulesoft.org/schema/mule/scripting/current/mule-scripting.xsd"><flow name="MainFlow"><inbound-endpoint ref="event-queue" /><logger category="net.pascalalma.demo.MainFlow" level="INFO" message="Received message from activeMQ" /><scripting:component><scripting:script engine="Groovy">throw new Exception('Soap Fault Response detected')</scripting:script></scripting:component><outbound-endpoint ref="result-queue" /></flow>
</mule>

在此流程中,我们从入站端点接收到一条消息,记录一条消息并引发异常,然后将该消息放入下一个队列。 如我们所见,我没有添加任何异常处理程序。 端点和连接器的配置如下所示:

<?xml version="1.0" encoding="UTF-8"?><mule xmlns="http://www.mulesoft.org/schema/mule/core"xmlns:jms="http://www.mulesoft.org/schema/mule/jms"xmlns:spring="http://www.springframework.org/schema/beans"version="EE-3.4.1"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsdhttp://www.mulesoft.org/schema/mule/jms http://www.mulesoft.org/schema/mule/jms/current/mule-jms.xsd"><spring:bean id="redeliveryPolicy" class="org.apache.activemq.RedeliveryPolicy"><spring:property name="maximumRedeliveries" value="5"/><spring:property name="initialRedeliveryDelay" value="500"/><spring:property name="maximumRedeliveryDelay" value="10000"/><spring:property name="useExponentialBackOff" value="false"/><spring:property name="backOffMultiplier" value="3"/></spring:bean><!-- ActiveMQ Connection factory --><spring:bean id="amqFactory" class="org.apache.activemq.ActiveMQConnectionFactory" lazy-init="true"><spring:property name="brokerURL" value="tcp://localhost:61616" /><spring:property name="redeliveryPolicy" ref="redeliveryPolicy" /></spring:bean><jms:activemq-connector name="activeMqConnector"connectionFactory-ref="amqFactory"persistentDelivery="true"numberOfConcurrentTransactedReceivers="2"specification="1.1" /><jms:endpoint name="event-queue" connector-ref="activeMqConnector" queue="event-queue" ><jms:transaction action="ALWAYS_BEGIN" /></jms:endpoint><jms:endpoint name="result-queue" connector-ref="activeMqConnector" queue="result-queue" ><jms:transaction action="ALWAYS_JOIN" /></jms:endpoint>
</mule>

我为ActiveMQ连接工厂定义了一个Spring bean,并为该工厂的重新交付策略定义了一个Spring bean。 使用此重新分发策略,我们可以配置当原始尝试失败时,Mule应该重试处理队列中消息的频率。 重新交付策略中的一个不错的功能是“ backOffMultiplier”和“ useExponentialBackOff”组合。 使用这些选项,您可以使两次重新交付尝试之间的间隔成倍增加,直到达到'maximumRedeliveryDelay'。 在那种情况下,M子将等待“ maximumRedeliveryDelay”等待下一次尝试。

因此,使用这些配置,我们可以创建一个Mule测试类并运行它。 测试类如下所示:

package net.pascalalma.demo;import org.junit.Test;
import org.mule.DefaultMuleMessage;
import org.mule.api.MuleMessage;
import org.mule.module.client.MuleClient;
import org.mule.tck.junit4.FunctionalTestCase;public class TransactionFlowTest extends FunctionalTestCase {@Overrideprotected String getConfigResources() {return "app/test-flow.xml, app/test-endpoints.xml";}@Testpublic void testError() throws Exception {MuleClient client = new MuleClient(muleContext);MuleMessage inMsg = new DefaultMuleMessage("<txt>Some message</txt>", muleContext);client.dispatch("event-queue", inMsg);// Give Mule the chance to redeliver the messageThread.sleep(4000);}
}

如果我们运行此测试,您将在日志中看到如下消息:

Exception stack is:
1. "Message with id "ID:Pascals-MacBook-Pro-2.local-59158-1406440948059-1:1:3:1:1" has been redelivered 3 times on endpoint "jms://event-queue", which exceeds the maxRedelivery setting of 0 on the connector "activeMqConnector". Message payload is of type: ActiveMQTextMessage (org.mule.transport.jms.redelivery.MessageRedeliveredException)org.mule.transport.jms.redelivery.JmsXRedeliveryHandler:87 (http://www.mulesoft.org/docs/site/current3/apidocs/org/mule/transport/jms/redelivery/MessageRedeliveredException.html)

如果现在我们切换到ActiveMQ控制台 ,可以通过http:// localhost:8161进行默认本地安装,则可以看到以下队列:

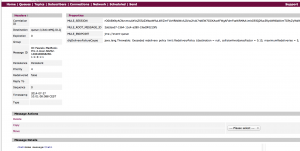

截图-2014-07-27-10-08-09 不出所料,我们看到正在创建两个队列,事件队列为空,默认的ActiveMQ.DLQ包含我们的消息: 截图-2014-07-27-10-13-54

正如您可以想象的那样,为每个队列使用一个特定的DLQ而不是一个包含各种无法传递的消息的DLQ可能很方便。 幸运的是,这很容易在ActiveMQ中配置。 只需将以下内容放在“ $ ACTIVEMQ_HOME / conf”文件夹中的“ activemq.xml”文件中。

<!-- Set the following policy on all queues using the '>' wildcard -->
<policyEntry queue=">"><deadLetterStrategy><individualDeadLetterStrategy queuePrefix="DLQ." useQueueForQueueMessages="true" /></deadLetterStrategy>
</policyEntry>

如果现在重新启动ActiveMQ,请删除现有队列并重新运行测试,我们将看到以下结果:
screenshot-2014-07-27-10-29-22 因此,使用此设置,每个队列都有自己的DLQ。 有关这些ActieMQ设置的更多选项,请参见此处 。 通过本文中创建的Mule流,可以轻松测试和使用这些设置。

翻译自: https://www.javacodegeeks.com/2014/07/mule-esb-activemq-and-the-dlq.html
