五分钟了解dotnetcore配置框架

一、前言

配置的本质就是字符串的键值对，微软的一系列接口其实就是对这些键值对字符串的抽象。

二、基本类型

2.1、Nuget包

Microsoft.Extensions.Configuration.Abstractions
Microsoft.Extensions.Configuration

2.2、抽象接口

IConfiguration

- 提供了查询、设置配置项、监控变化等方法

IConfigurationRoot

- 在IConfiguration接口基础上，增加了 Reload 方法强制从provider中重新加载配置值

IConfigurationSection

- 对配置节点的抽象

IConfigurationBuilder

- 根据提供的数据源注册并构建IConfiguration

IConfigurationSource

- 对数据源的抽象，例如Json、xml、环境变量、内存变量等

IConfigurationProvider

- 规定了配置项的获取、设置、重载等统一的行为

三、基本配置

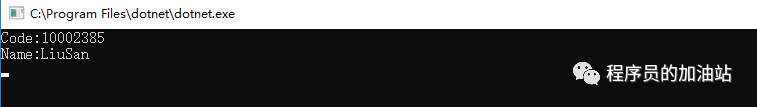

注：各种配置方式的目的是在控制台中输出以下内容，如下图：

3.1、加载内存中的配置

需要引入包：Microsoft.Extensions.Configuration
主要方法：builder.AddInMemoryCollection()

static void Main(string[] args)
{IConfigurationBuilder builder = new ConfigurationBuilder();var memoryData = new Dictionary<string, string>();memoryData.Add("Student:Code", "10002385");memoryData.Add("Student:Name", "LiuSan");builder.AddInMemoryCollection(memoryData);IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");        Console.Read();
}

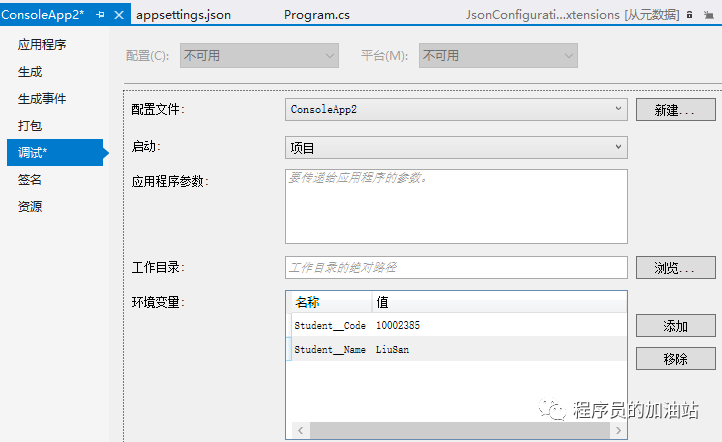

3.2、加载环境变量中的配置

需要引入包：Microsoft.Extensions.Configuration.EnvironmentVariables
主要方法：builder.AddEnvironmentVariables()
环境变量中层级关系使用 __ 代替 :

static void Main(string[] args)
{IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddEnvironmentVariables();IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");Console.Read();
}

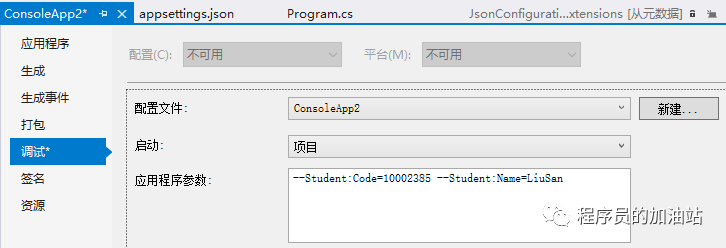

3.3、加载命令行中的配置

需要引入包：Microsoft.Extensions.Configuration.CommandLine
主要方法：builder.AddCommandLine(args)
命令行中使用--表示配置项，层级关系使用:
主要在docker中使用

static void Main(string[] args)
{IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddCommandLine(args);IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");Console.Read();
}

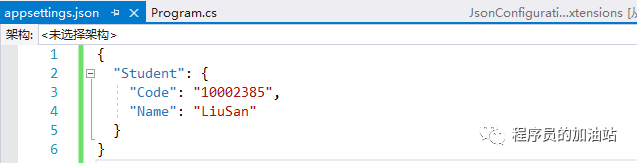

3.4、加载Json中的配置

需要引入包：Microsoft.Extensions.Configuration.Json
主要方法：builder.AddJsonFile("appsettings.json")

static void Main(string[] args)
{IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddJsonFile("appsettings.json");IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");Console.Read();
}

3.5、加载xml中的配置

需要引入包：Microsoft.Extensions.Configuration.Xml
主要方法：builder.AddXmlFile("appsettings.xml")
xml中不会读取最外层，所以Section必需从第二层开始

static void Main(string[] args)
{IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddXmlFile("appsettings.xml");IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");Console.Read();
}

四、高级配置

4.1、将配置绑定至强对象

需要引入包：Microsoft.Extensions.Configuration.Binder
主要方法：configurationRoot.GetSection("Student").Bind(student)

  class Program{static void Main(string[] args){IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddJsonFile("appsettings.json");IConfigurationRoot configurationRoot = builder.Build();var student = new Student();configurationRoot.GetSection("Student").Bind(student);Console.WriteLine($"Code:{student.Code}");Console.WriteLine($"Name:{student.Name}");Console.Read();}}class Student{public string Code { get; set; }public string Name { get; set; }}

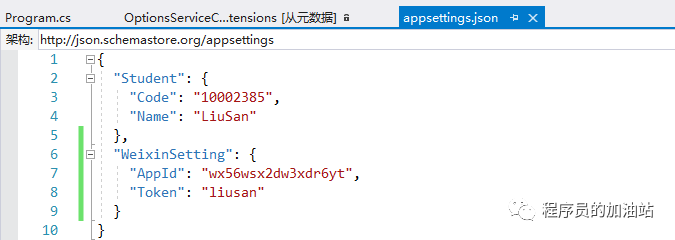

4.2、IOptions

需要引入包：Microsoft.Extensins.Options
需要引入包：Microsoft.Extensions.Options.ConfigurationExtensions
本质其实就是将一个Section配置节点映射到一个实体对象

    class Program{static void Main(string[] args){IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddJsonFile("appsettings.json");IConfigurationRoot configurationRoot = builder.Build();IServiceCollection services = new ServiceCollection();services.Configure<WeixinOptions>(configurationRoot.GetSection("WeixinSetting"));services.AddScoped<IWeixinService, WeixinService>();var provider = services.BuildServiceProvider();var weixinService = provider.GetService<IWeixinService>();string appId = weixinService.AppId;string token = weixinService.Token;Console.Read();}}interface IWeixinService{string AppId { get; }string Token { get; }}class WeixinService: IWeixinService{IOptions<WeixinOptions> _options;public WeixinService(IOptions<WeixinOptions> options){_options = options;}public string AppId { get => _options.Value.AppId; }public string Token { get => _options.Value.Token;}}class WeixinOptions{public string AppId { get; set; }public string Token { get; set; }}

4.3、热更新

IConfigurationBuilder添加数据源时设置reloadOnChange=true
监听的核心方法：var token = configurationRoot.GetReloadToken();

 static void Main(string[] args){IConfigurationBuilder builder = new ConfigurationBuilder();builder.AddJsonFile("appsettings.json", optional:false, reloadOnChange:true);IConfigurationRoot configurationRoot = builder.Build();IConfigurationSection configurationSection = configurationRoot.GetSection("Student");var token = configurationRoot.GetReloadToken();ChangeToken.OnChange(() => configurationRoot.GetReloadToken(), () => {Console.WriteLine("配置发生改变了...");Console.WriteLine($"Code:{configurationSection["Code"]}");Console.WriteLine($"Name:{configurationSection["Name"]}");});           Console.Read();}
