多Sheet导入教程说明

本教程主要说明如何使用Magicodes.IE.Excel完成多个Sheet数据的Excel导入。

要点

多个相同格式的Sheet数据导入
多个不同格式的Sheet数据导入

主要步骤

1. 多个相同格式的Sheet数据导入

1.1 创建导入Sheet的Dto

主要代码如下所示：

学生数据Dto

 /// <summary>/// 导入学生数据Dto/// IsLabelingError：是否标注数据错误/// </summary>
[ExcelImporter(IsLabelingError = true)]public class ImportStudentDto
{/// <summary>///     序号/// </summary>[ImporterHeader(Name = "序号")]public long SerialNumber { get; set; }/// <summary>///     学籍号/// </summary>[ImporterHeader(Name = "学籍号", IsAllowRepeat = false)][MaxLength(30, ErrorMessage = "学籍号字数超出最大限制,请修改!")]public string StudentCode { get; set; }/// <summary>///     姓名/// </summary>[ImporterHeader(Name = "姓名")][Required(ErrorMessage = "学生姓名不能为空")][MaxLength(50, ErrorMessage = "名称字数超出最大限制,请修改!")]public string Name { get; set; }/// <summary>///     身份证号码/// </summary>[ImporterHeader(Name = "身份证号", IsAllowRepeat = false)][Required(ErrorMessage = "身份证号不能为空")][MaxLength(18, ErrorMessage = "身份证字数超出最大限制,请修改!")]public string IdCard { get; set; }/// <summary>///     性别/// </summary>[ImporterHeader(Name = "性别")][Required(ErrorMessage = "性别不能为空")][ValueMapping("男", 0)][ValueMapping("女", 1)]public Genders Gender { get; set; }/// <summary>///     家庭地址/// </summary>[ImporterHeader(Name = "家庭住址")][Required(ErrorMessage = "家庭地址不能为空")][MaxLength(200, ErrorMessage = "家庭地址字数超出最大限制,请修改!")]public string Address { get; set; }/// <summary>///     家长姓名/// </summary>[ImporterHeader(Name = "家长姓名")][Required(ErrorMessage = "家长姓名不能为空")][MaxLength(50, ErrorMessage = "家长姓名数超出最大限制,请修改!")]public string Guardian { get; set; }/// <summary>///     家长联系电话/// </summary>[ImporterHeader(Name = "家长联系电话")][MaxLength(20, ErrorMessage = "家长联系电话字数超出最大限制,请修改!")]public string GuardianPhone { get; set; }/// <summary>///     学号/// </summary>[ImporterHeader(Name = "学号")][MaxLength(30, ErrorMessage = "学号字数超出最大限制,请修改!")]public string StudentNub { get; set; }/// <summary>///     宿舍号/// </summary>[ImporterHeader(Name = "宿舍号")][MaxLength(20, ErrorMessage = "宿舍号字数超出最大限制,请修改!")]public string DormitoryNo { get; set; }/// <summary>///     QQ/// </summary>[ImporterHeader(Name = "QQ号")][MaxLength(30, ErrorMessage = "QQ号字数超出最大限制,请修改!")]public string QQ { get; set; }/// <summary>///     民族/// </summary>[ImporterHeader(Name = "民族")][MaxLength(2, ErrorMessage = "民族字数超出最大限制,请修改!")]public string Nation { get; set; }/// <summary>///     户口性质/// </summary>[ImporterHeader(Name = "户口性质")][MaxLength(10, ErrorMessage = "户口性质字数超出最大限制,请修改!")]public string HouseholdType { get; set; }/// <summary>///     联系电话/// </summary>[ImporterHeader(Name = "学生联系电话")][MaxLength(20, ErrorMessage = "手机号码字数超出最大限制,请修改!")]public string Phone { get; set; }/// <summary>///     状态///     测试可为空的枚举类型/// </summary>[ImporterHeader(Name = "状态")]public StudentStatus? Status { get; set; }/// <summary>///     备注/// </summary>[ImporterHeader(Name = "备注")][MaxLength(200, ErrorMessage = "备注字数超出最大限制,请修改!")]public string Remark { get; set; }/// <summary>///     是否住校(宿舍)/// </summary>[ImporterHeader(IsIgnore = true)]public bool? IsBoarding { get; set; }/// <summary>///     所属班级id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid ClassId { get; set; }/// <summary>///     学校Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? SchoolId { get; set; }/// <summary>///     校区Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? CampusId { get; set; }/// <summary>///     专业Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? MajorsId { get; set; }/// <summary>///     年级Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? GradeId { get; set; }
}

1.2 创建导Excel入Dto

主要代码如下所示：

学生数据Dto

 public class ImportClassStudentDto
{[ExcelImporter(SheetName = "1班导入数据")]public ImportStudentDto Class1Students { get; set; }[ExcelImporter(SheetName = "2班导入数据")]public ImportStudentDto Class2Students { get; set; }}

如上述代码所示，我们定义了班级学生数据Dto，主要注意事项如下：

Excel的Dto类上面不用导入相关的加特性。
Excel的Dto类里面的属性未Sheet的Dto类型，ExcelImporter特性离的SheetName参数来设置具体某一个Sheet名。

1.3 Excel模板

注意：Excel里的多个Sheet列名必须一致(对应同一个Sheet的Dto类型)

模板目录：src\Magicodes.ExporterAndImporter.Tests\TestFiles\Import\班级学生基础数据导入.xlsx

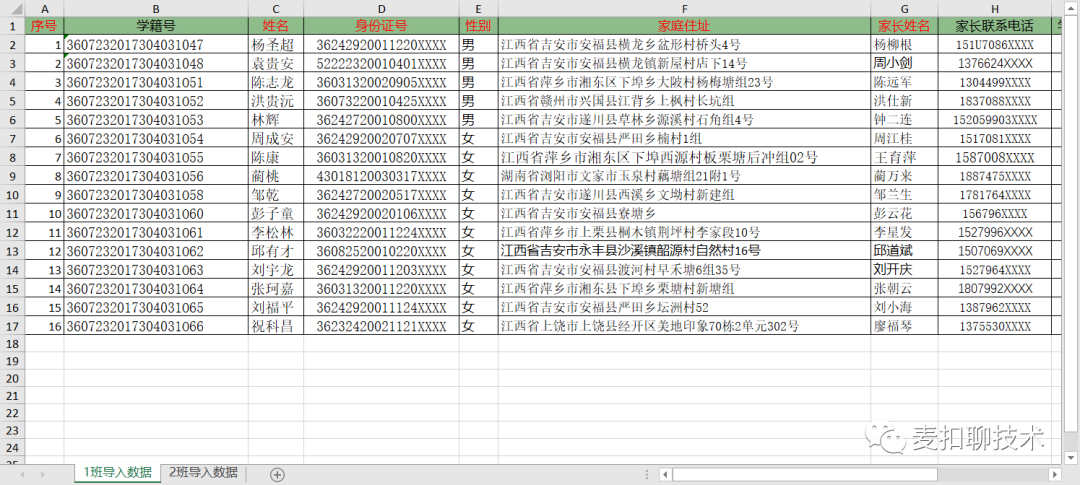

第一个Sheet:

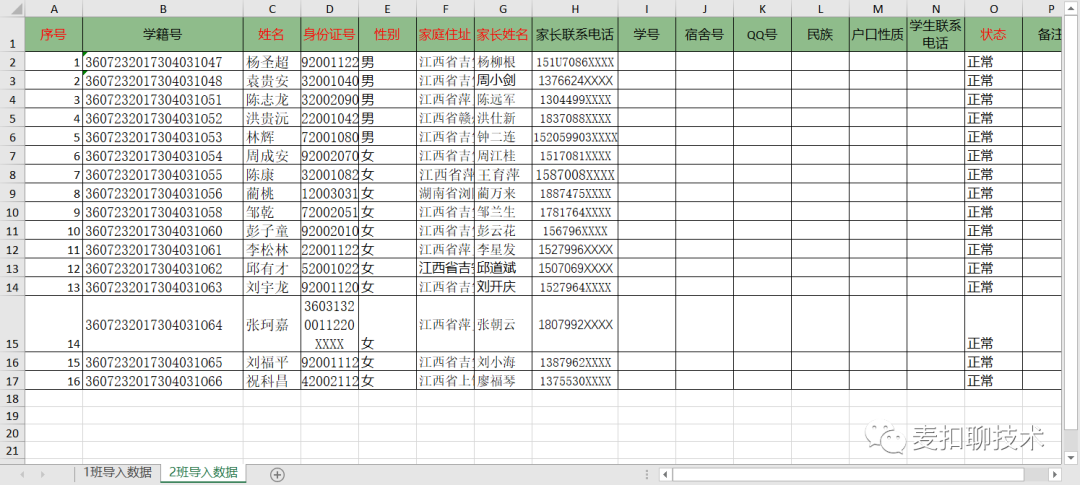

第二个Sheet:

1.4 导入代码

IExcelImporter Importer = new ExcelImporter();var filePath = Path.Combine(Directory.GetCurrentDirectory(), "TestFiles", "Import", "班级学生基础数据导入.xlsx");//获取到的导入结果为一个字典类型，Key为Sheet名，Value为Sheet对应的数据
var importDic = await Importer.ImportSameSheets<ImportClassStudentDto, ImportStudentDto>(filePath);//遍历字典，获取每个Sheet的数据
foreach (var item in importDic)
{var import = item.Value;//导入的Sheet数据var studentList = import.Data.ToList();
}

2. 多个不同格式的Sheet数据导入

2.1 创建导入Sheet的Dto

主要代码如下所示：

学生数据Dto同上
缴费日志数据Dto ：

/// <summary>///     缴费日志导入Dto/// </summary>/// <autogeneratedoc />
[ExcelImporter(IsLabelingError = true)]public class ImportPaymentLogDto
{/// <summary>///     学生姓名/// </summary>[ImporterHeader(Name = "学生姓名")][Required(ErrorMessage = "学生姓名为必填项")][MaxLength(30, ErrorMessage = "学生姓名不能超过15位")]public string Name { get; set; }/// <summary>///     身份证号码/// </summary>[ImporterHeader(Name = "身份证号码")][Required(ErrorMessage = "身份证号码为必填项")][MaxLength(18, ErrorMessage = "身份证号码不能超过18位")][MinLength(18, ErrorMessage = "身份证号码不能小于18位")]public string IdCard { get; set; }/// <summary>///     缴费类型/// </summary>[ImporterHeader(Name = "缴费类型")][Required(ErrorMessage = "缴费类型为必填项")]public string CostType { get; set; }/// <summary>///     金额/// </summary>[ImporterHeader(Name = "金额")][Range(0.01, 1000000, ErrorMessage = "收费金额区间为1~100万")][Required(ErrorMessage = "金额为必填项")]public decimal Amount { get; set; }/// <summary>///     缴费日期/// </summary>[ImporterHeader(Name = "缴费日期")][MaxLength(8, ErrorMessage = "缴费日期不能超过8位")][RegularExpression("\\d{6,8}", ErrorMessage = "缴费日期只能输入6到8位数字例如201908/20190815")]public string PayDate { get; set; }/// <summary>///     收据编号///     多个使用逗号分隔，仅线下收据/// </summary>[ImporterHeader(Name = "收据编号")][MaxLength(200, ErrorMessage = "收据编号不能超过200位")]public string ReceiptCodes { get; set; }/// <summary>///     备注/// </summary>[ImporterHeader(Name = "备注")][MaxLength(500, ErrorMessage = "备注不能超过500位")]public string Remarks { get; set; }/// <summary>///     创建时间/// </summary>[ImporterHeader(IsIgnore = true)]public DateTime? CreationTime { get; set; }/// <summary>///     收费项目id/// </summary>[ImporterHeader(IsIgnore = true)]public int? ChargeProjectId { get; set; }/// <summary>///     班级Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? ClassId { get; set; }/// <summary>///     班级名称/// </summary>[ImporterHeader(IsIgnore = true)]public string ClassName { get; set; }/// <summary>///     年级Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? GradeId { get; set; }/// <summary>///     年级信息/// </summary>[ImporterHeader(IsIgnore = true)]public string GradeName { get; set; }/// <summary>///     专业Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? MajorId { get; set; }/// <summary>///     专业信息/// </summary>[ImporterHeader(IsIgnore = true)]public string MajorName { get; set; }/// <summary>///     校区Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? CampusId { get; set; }/// <summary>///     校区名称/// </summary>[ImporterHeader(IsIgnore = true)]public string CampusName { get; set; }/// <summary>///     学校Id/// </summary>[ImporterHeader(IsIgnore = true)]public Guid? SchoolId { get; set; }/// <summary>///     学校信息/// </summary>[ImporterHeader(IsIgnore = true)]public string SchoolName { get; set; }
}

2.2 创建导Excel入Dto

主要代码如下所示：

班级学生基础数据及缴费流水数据Dto

 public  class ImportStudentAndPaymentLogDto
{[ExcelImporter(SheetName = "1班导入数据")]public ImportStudentDto Class1Students { get; set; }[ExcelImporter(SheetName = "缴费数据")]public ImportPaymentLogDto Class2Students { get; set; }
}

2.3 Excel模板

模板目录：src\Magicodes.ExporterAndImporter.Tests\TestFiles\Import\学生基础数据及缴费流水号导入.xlsx

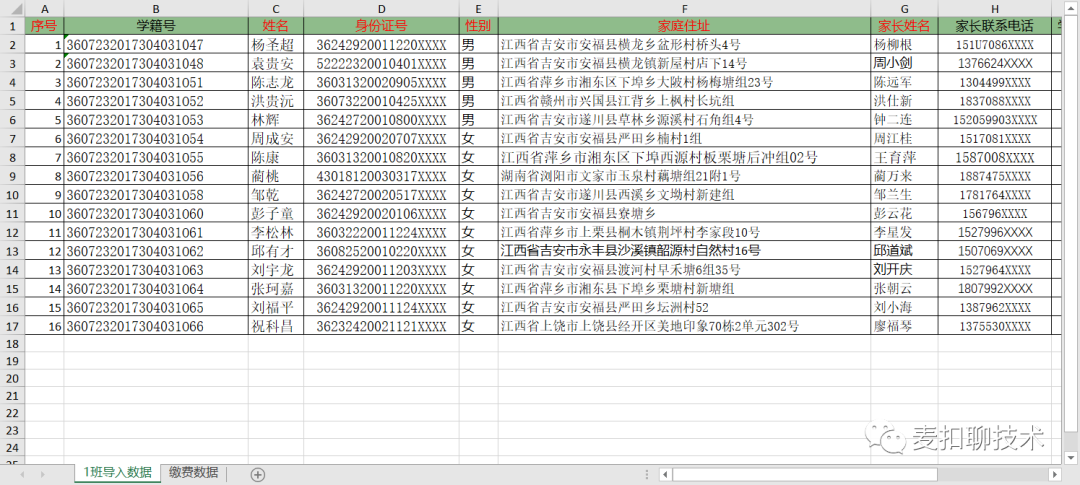

学生基础数据Sheet:

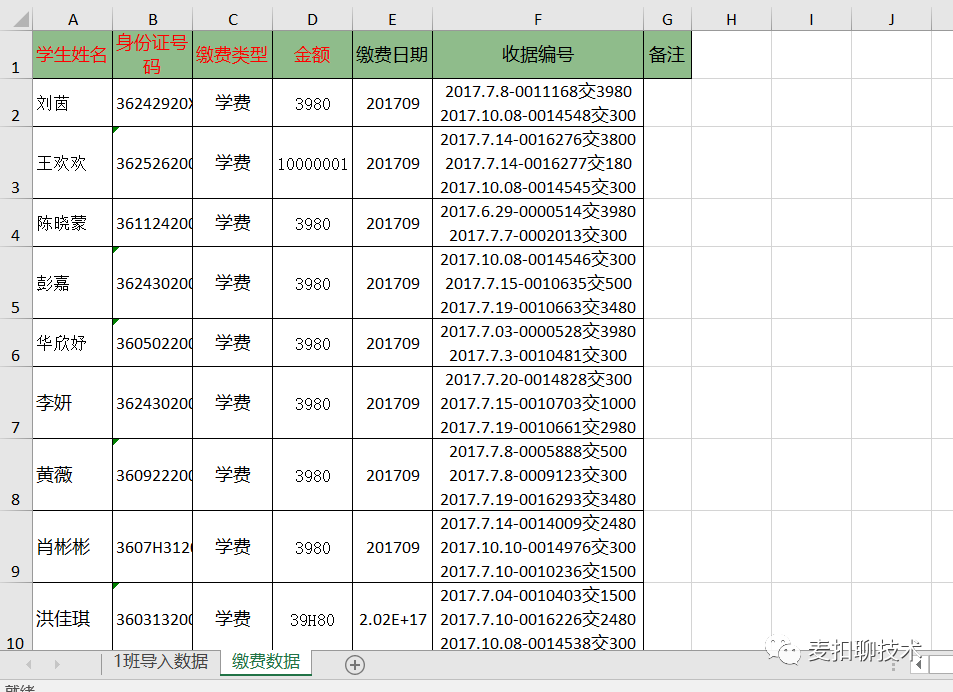

缴费流水号Sheet:

2.4 导入代码

IExcelImporter Importer = new ExcelImporter();var filePath = Path.Combine(Directory.GetCurrentDirectory(), "TestFiles", "Import", "学生基础数据及缴费流水号导入.xlsx");//获取到的导入结果为一个字典类型，Key为Sheet名，Value为Sheet对应的数据
var importDic = await Importer.ImportMultipleSheet<ImportStudentAndPaymentLogDto>(filePath);//遍历字典，获取每个Sheet的数据
foreach (var item in importDic)
{var import = item.Value;//导入的Sheet数据，if (item.Key == "1班导入数据"){//多个不同类型的Sheet返回的值为object，需要进行类型转换ImportStudentDto dto = (ImportStudentDto) import.Data.ElementAt(0);}if (item.Key == "缴费数据"){ImportPaymentLogDto dto = (ImportPaymentLogDto)import.Data.ElementAt(0);}
}
