一旦你的程序docker化之后,你会遇到各种问题，比如原来采用的本地记日志的方式就不再方便了，虽然你可以挂载到宿主机，但你使用 --scale 的话，会导致记录日志异常，所以最好的方式还是要做日志中心化，另一个问题，原来一个请求在一个进程中的痉挛失败，你可以在日志中巡查出调用堆栈，但是docker化之后，原来一个进程的东西会拆成几个微服务，这时候最好就要有一个分布式的调用链跟踪，类似于wcf中的svctraceview工具。
一：搭建skywalking
gihub地址是：https://github.com/apache/incubator-skywalking 从文档中大概看的出来，大体分三个部分：存储，收集器，探针，存储这里就选用推荐的 elasticsearch。收集器准备和es部署在一起，探针就有各自语言的实现了，总之这里就有三个docker container：es，kibana，skywalking， 如果不用容器编排工具的话就比较麻烦。
下面是本次搭建的一个目录结构：
1. elasticsearch.yml
es的配置文件，不过这里有一个坑，就是一定要将 network.publish_host：0.0.0.0 ，否则skywalking会连不上 9300端口。
network.publish_host: 0.0.0.0
transport.tcp.port: 9300
network.host: 0.0.0.02. elasticsearch.dockerfile
在up的时候，将这个es文件copy到 容器的config文件夹下。
FROM elasticsearch:5.6.4EXPOSE 9200 9300COPY elasticsearch.yml /usr/share/elasticsearch/config/3. application.yml
skywalking的配置文件，这里也有一个坑：连接es的地址中，配置的 clustername一定要修改成和es的clustername保持一致，否则会连不上，这里容器之间用link进行互联，所以es的ip改成elasticsearch就可以了，其他的ip改成0.0.0.0 。
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements. See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership. The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.#cluster:
# zookeeper:
# hostPort: localhost:2181
# sessionTimeout: 100000
naming:jetty:host: 0.0.0.0port: 10800contextPath: /
cache:
# guava:caffeine:
remote:gRPC:host: 0.0.0.0port: 11800
agent_gRPC:gRPC:host: 0.0.0.0port: 11800#Set these two setting to open ssl#sslCertChainFile: $path#sslPrivateKeyFile: $path#Set your own token to active auth#authentication: xxxxxx
agent_jetty:jetty:host: 0.0.0.0port: 12800contextPath: /
analysis_register:default:
analysis_jvm:default:
analysis_segment_parser:default:bufferFilePath: ../buffer/bufferOffsetMaxFileSize: 10MbufferSegmentMaxFileSize: 500MbufferFileCleanWhenRestart: true
ui:jetty:host: 0.0.0.0port: 12800contextPath: /
storage:elasticsearch:clusterName: elasticsearchclusterTransportSniffer: trueclusterNodes: elasticsearch:9300indexShardsNumber: 2indexReplicasNumber: 0highPerformanceMode: truettl: 7
#storage:
# h2:
# url: jdbc:h2:~/memorydb
# userName: sa
configuration:default:
# namespace: xxxxx
# alarm thresholdapplicationApdexThreshold: 2000serviceErrorRateThreshold: 10.00serviceAverageResponseTimeThreshold: 2000instanceErrorRateThreshold: 10.00instanceAverageResponseTimeThreshold: 2000applicationErrorRateThreshold: 10.00applicationAverageResponseTimeThreshold: 2000
# thermodynamicthermodynamicResponseTimeStep: 50thermodynamicCountOfResponseTimeSteps: 404. skywalking.dockerfile
接下来就是 skywalking的 下载安装，使用dockerfile流程化。
FROM centos:7LABEL username="hxc@qq.com"WORKDIR /appRUN yum install -y wget && \yum install -y java-1.8.0-openjdkADD http://mirrors.hust.edu.cn/apache/incubator/skywalking/5.0.0-RC2/apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz /appRUN tar -xf apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz && \mv apache-skywalking-apm-incubating skywalkingRUN ls /app#copy文件
COPY application.yml /app/skywalking/config/application.ymlWORKDIR /app/skywalking/binUSER rootRUN echo "tail -f /dev/null" >> /app/skywalking/bin/startup.shCMD ["/bin/sh","-c","/app/skywalking/bin/startup.sh" ]5. docker-compose.yml
最后就是将这三个容器进行编排，要注意的是，因为收集器会将数据放入到es中，所有一定要将es的data挂载到宿主机的大硬盘下，否则你的空间会不足的。
version: '3.1'services:#elastic 镜像elasticsearch:build:context: .dockerfile: elasticsearch.dockerfile# ports:# - "9200:9200"# - "9300:9300"volumes:- "/data/es2:/usr/share/elasticsearch/data"#kibana 可视化查询，暴露 5601kibana:image: kibanalinks:- elasticsearchports:- 5601:5601depends_on:- "elasticsearch"#skywalkingskywalking:build:context: .dockerfile: skywalking.dockerfileports:- "10800:10800"- "11800:11800"- "12800:12800"- "8080:8080"links:- elasticsearchdepends_on:- "elasticsearch"二：一键部署
要部署在docker中，你还得需要安装docker-ce 和 docker-compose，大家可以参照官方安装一下。
1. Docker-ce 的安装
sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-selinux \
docker-engine-selinux \
docker-enginesudo yum install -y yum-utils \
device-mapper-persistent-data \
lvm2sudo yum-config-manager \
--add-repo \
https://download.docker.com/linux/centos/docker-ce.reposudo yum install docker-ce然后启动一下docker 服务，可以看到版本是18.06.1
[root@localhost ~]# service docker start
Redirecting to /bin/systemctl start docker.service
[root@localhost ~]# docker -v
Docker version 18.06.1-ce, build e68fc7a2. docker-compose的安装
sudo curl -L "https://github.com/docker/compose/releases/download/1.22.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-composesudo chmod +x /usr/local/bin/docker-compose3. 最后在centos上执行 docker-compopse up --build 就可以了，如果不想terminal上运行，可以加 -d 使用后台执行。
[root@localhost docker]# docker-compose up --build
Creating network "docker_default" with the default driver
Building elasticsearch
Step 1/3 : FROM elasticsearch:5.6.4---> 7a047c21aa48
Step 2/3 : EXPOSE 9200 9300---> Using cache---> 8d66bb57b09d
Step 3/3 : COPY elasticsearch.yml /usr/share/elasticsearch/config/---> Using cache---> 02b516c03b95
Successfully built 02b516c03b95
Successfully tagged docker_elasticsearch:latest
Building skywalking
Step 1/12 : FROM centos:7---> 5182e96772bf
Step 2/12 : LABEL username="hxc@qq.com"---> Using cache---> b95b96a92042
Step 3/12 : WORKDIR /app---> Using cache---> afdf4efe3426
Step 4/12 : RUN yum install -y wget && yum install -y java-1.8.0-openjdk---> Using cache---> 46be0ca0f7b5
Step 5/12 : ADD http://mirrors.hust.edu.cn/apache/incubator/skywalking/5.0.0-RC2/apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz /app---> Using cache---> d5c30bcfd5ea
Step 6/12 : RUN tar -xf apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz && mv apache-skywalking-apm-incubating skywalking---> Using cache---> 1438d08d18fa
Step 7/12 : RUN ls /app---> Using cache---> b594124672ea
Step 8/12 : COPY application.yml /app/skywalking/config/application.yml---> Using cache---> 10eaf0805a65
Step 9/12 : WORKDIR /app/skywalking/bin---> Using cache---> bc0f02291536
Step 10/12 : USER root---> Using cache---> 4498afca5fe6
Step 11/12 : RUN echo "tail -f /dev/null" >> /app/skywalking/bin/startup.sh---> Using cache---> 1c4be7c6b32a
Step 12/12 : CMD ["/bin/sh","-c","/app/skywalking/bin/startup.sh" ]---> Using cache---> ecfc97e4c97d
Successfully built ecfc97e4c97d
Successfully tagged docker_skywalking:latest
Creating docker_elasticsearch_1 ... done
Creating docker_skywalking_1 ... done
Creating docker_kibana_1 ... done
Attaching to docker_elasticsearch_1, docker_kibana_1, docker_skywalking_1
elasticsearch_1 | [2018-09-17T23:51:57,886][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1 | [2018-09-17T23:51:57,962][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_metric_day][0]] ...]).
elasticsearch_1 | [2018-09-17T23:51:58,115][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1 | [2018-09-17T23:51:58,176][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_hour][1]] ...]).
elasticsearch_1 | [2018-09-17T23:51:58,356][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1 | [2018-09-17T23:51:58,437][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_month][0]] ...]).
elasticsearch_1 | [2018-09-17T23:51:58,550][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_mapping_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1 | [2018-09-17T23:52:05,544][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [gc_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]从上图中可以看到 es，kibana，skywalking都启动成功了，你也可以通过docker-compose ps 看一下是否都起来了，netstat 看一下宿主机开放了哪些端口。
[root@localhost docker]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
9aa90401ca16 kibana "/docker-entrypoint.…" 2 minutes ago Up 2 minutes 0.0.0.0:5601->5601/tcp docker_kibana_1
c551248e32af docker_skywalking "/bin/sh -c /app/sky…" 2 minutes ago Up 2 minutes 0.0.0.0:8080->8080/tcp, 0.0.0.0:10800->10800/tcp, 0.0.0.0:11800->11800/tcp, 0.0.0.0:12800->12800/tcp docker_skywalking_1
765d38469ff1 docker_elasticsearch "/docker-entrypoint.…" 2 minutes ago Up 2 minutes 9200/tcp, 9300/tcp docker_elasticsearch_1
[root@localhost docker]# netstat -tlnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 192.168.122.1:53 0.0.0.0:* LISTEN 2013/dnsmasq
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1141/sshd
tcp 0 0 127.0.0.1:631 0.0.0.0:* LISTEN 1139/cupsd
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 1622/master
tcp6 0 0 :::8080 :::* LISTEN 38262/docker-proxy
tcp6 0 0 :::10800 :::* LISTEN 38248/docker-proxy
tcp6 0 0 :::22 :::* LISTEN 1141/sshd
tcp6 0 0 ::1:631 :::* LISTEN 1139/cupsd
tcp6 0 0 :::11800 :::* LISTEN 38234/docker-proxy
tcp6 0 0 ::1:25 :::* LISTEN 1622/master
tcp6 0 0 :::12800 :::* LISTEN 38222/docker-proxy
tcp6 0 0 :::5601 :::* LISTEN 38274/docker-proxy
[root@localhost docker]#然后就可以看一些8080端口的可视化UI，默认用户名密码admin，admin，一个比较耐看的UI就出来了。
三：net下的探针

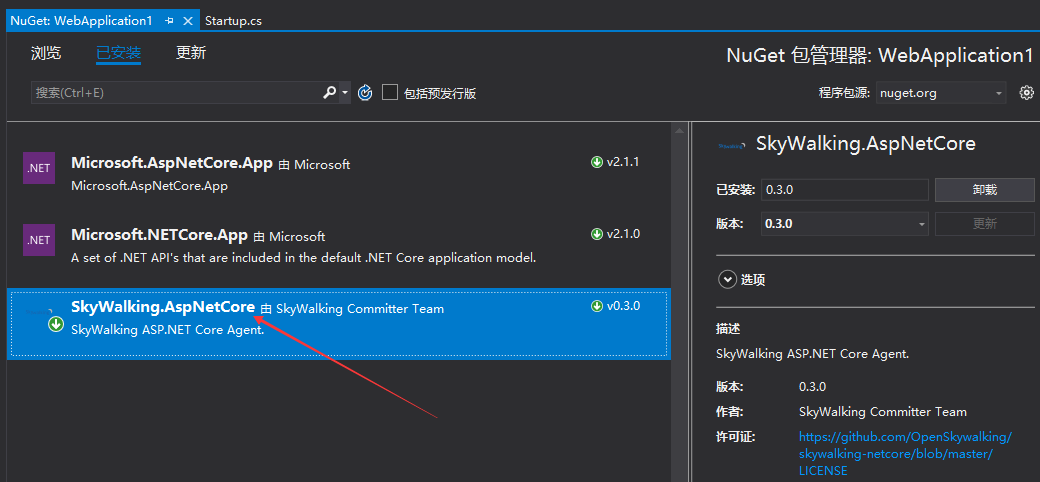

从nuget上拉取一个SkyWalking.AspNetCore探针进行代码埋点，github地址：https://github.com/OpenSkywalking/skywalking-netcore
在startup类中进行注入，在页面请求中进行一次cnblogs.com的请求操作，然后仔细观察一下调用链跟踪是一个什么样子？
namespace WebApplication1
{public class Startup{// This method gets called by the runtime. Use this method to add services to the container.// For more information on how to configure your application, visit https://go.microsoft.com/fwlink/?LinkID=398940public void ConfigureServices(IServiceCollection services){services.AddSkyWalking(option =>{// Application code is showed in sky-walking-uioption.ApplicationCode = "10001 测试站点";//Collector agent_gRPC/grpc service addresses.option.DirectServers = "192.168.23.183:11800";});}// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.public void Configure(IApplicationBuilder app, IHostingEnvironment env){if (env.IsDevelopment()){app.UseDeveloperExceptionPage();}app.Run(async (context) =>{WebClient client = new WebClient();var str = client.DownloadString("http://cnblogs.com");await context.Response.WriteAsync(str);});}}

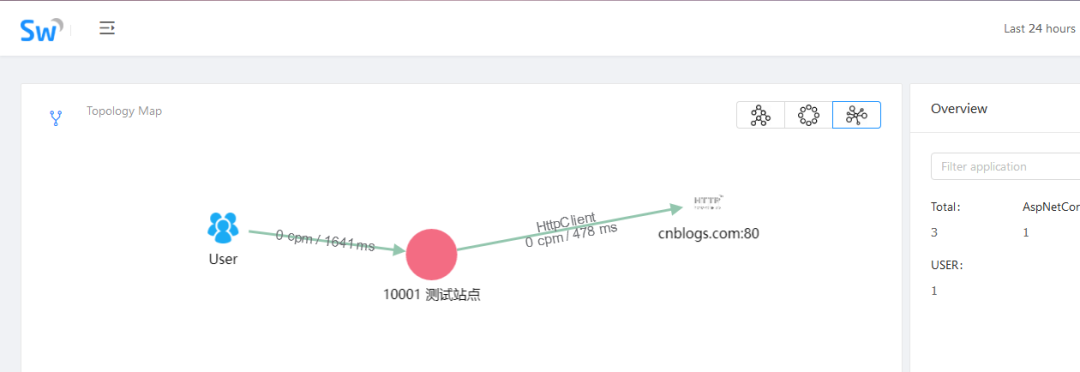

}可以看到这张图还是蛮漂亮的哈，也方便我们快速的跟踪代码，发现问题，找出问题， 还有更多的功能期待你的挖掘啦。好了，本篇就说到这里，希望对你有帮助。
