测试功耗前：

adb shell dumpsys batterystats --reset

adb shell dumpsys batterystats --enable full-wake-history

测试功耗后，使用脚本导出如下功耗日志：

脚本

chmod +x collect_logs.sh

./collect_logs.sh

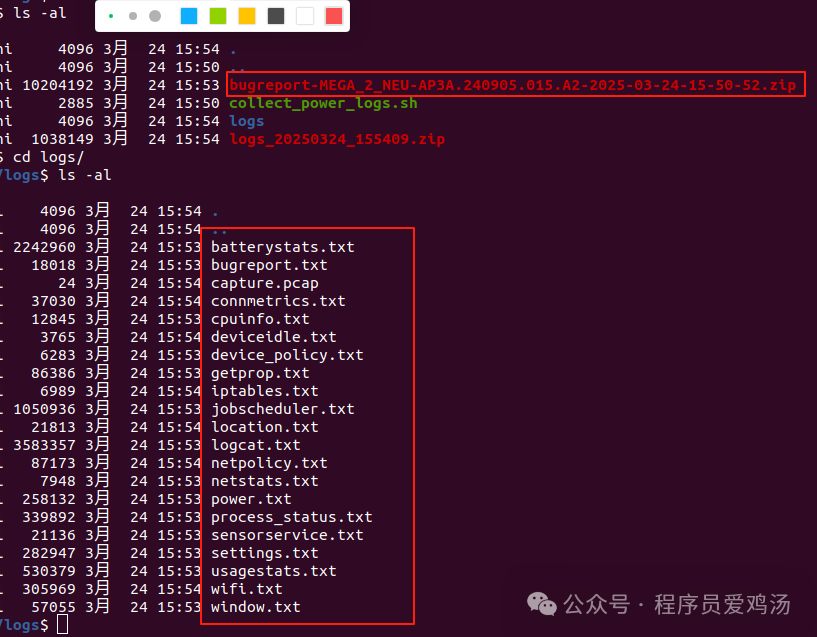

运行脚本后，所有日志将被保存到 logs_<时间戳>.zip 文件中

抓取命令

说明

#!/bin/bash

# 定义日志保存目录

LOG_DIR="logs"

mkdir -p $LOG_DIR

# 1. adb bugreport

echo "Collecting adb bugreport..."

adb bugreport > $LOG_DIR/bugreport.txt

# 2. adb shell dumpsys batterystats

echo "Collecting batterystats..."

adb shell dumpsys batterystats > $LOG_DIR/batterystats.txt

# 3. adb shell dumpsys power

echo "Collecting power info..."

adb shell dumpsys power > $LOG_DIR/power.txt

# 4. adb shell dumpsys window

echo "Collecting window info..."

adb shell dumpsys window > $LOG_DIR/window.txt

# 5. adb shell dumpsys activity processes

echo "Collecting process status..."

adb shell dumpsys activity processes > $LOG_DIR/process_status.txt

# 6. adb logcat

echo "Collecting logcat..."

adb logcat -d > $LOG_DIR/logcat.txt

# 7. adb shell dumpsys cpuinfo

echo "Collecting CPU info..."

adb shell dumpsys cpuinfo > $LOG_DIR/cpuinfo.txt

# 8. adb shell dumpsys netstats

echo "Collecting netstats..."

adb shell dumpsys netstats > $LOG_DIR/netstats.txt

# 9. adb shell getprop

echo "Collecting system properties..."

adb shell getprop > $LOG_DIR/getprop.txt

# 10. adb shell dumpsys jobscheduler

echo "Collecting jobscheduler info..."

adb shell dumpsys jobscheduler > $LOG_DIR/jobscheduler.txt

# 11. adb shell dumpsys usagestats

echo "Collecting usagestats..."

adb shell dumpsys usagestats > $LOG_DIR/usagestats.txt

# 12. adb shell dumpsys settings

echo "Collecting settings info..."

adb shell dumpsys settings > $LOG_DIR/settings.txt

# 13. adb shell dumpsys sensorservice

echo "Collecting sensor info..."

adb shell dumpsys sensorservice > $LOG_DIR/sensorservice.txt

# 14. adb shell dumpsys device_policy

echo "Collecting device policy info..."

adb shell dumpsys device_policy > $LOG_DIR/device_policy.txt

# 15. adb shell tcpdump

echo "Collecting tcpdump (this may take a while)..."

adb shell tcpdump -i any -s 0 -w /sdcard/capture.pcap &

TCPDUMP_PID=$!

sleep 10  # 抓包 10 秒

kill $TCPDUMP_PID

adb pull /sdcard/capture.pcap $LOG_DIR/capture.pcap

adb shell rm /sdcard/capture.pcap

# 16. adb shell dumpsys wifi

echo "Collecting Wi-Fi info..."

adb shell dumpsys wifi > $LOG_DIR/wifi.txt

# 17. adb shell dumpsys location

echo "Collecting location info..."

adb shell dumpsys location > $LOG_DIR/location.txt

# 18. adb shell iptables

echo "Collecting iptables rules..."

adb shell iptables -L -v -n > $LOG_DIR/iptables.txt

# 19. adb shell dumpsys netpolicy

echo "Collecting netpolicy info..."

adb shell dumpsys netpolicy > $LOG_DIR/netpolicy.txt

# 20. adb shell dumpsys deviceidle

echo "Collecting deviceidle info..."

adb shell dumpsys deviceidle > $LOG_DIR/deviceidle.txt

# 21. adb shell dumpsys connmetrics

echo "Collecting connmetrics info..."

adb shell dumpsys connmetrics > $LOG_DIR/connmetrics.txt

# 打包日志

echo "Compressing logs..."

TIMESTAMP=$(date +"%Y%m%d_%H%M%S")

ZIP_FILE="logs_$TIMESTAMP.zip"

zip -r $ZIP_FILE $LOG_DIR

echo "Logs have been saved to $ZIP_FILE"

adb bugreport

内部提单：虽然是最佳的功耗日志，但是抓取耗时且日志大，故实验室环境抓就行

adb shell dumpsys batterystats

大数据提单：BatteryStats日志可以理解为简版的BugReport日志，优点日志小

adb shell dumpsys power

电源管理信息，也包含wakelock日志

adb shell dumpsys window

窗口管理信息

adb shell dumpsys activity processes

进程状态信息

adb logcat

1.内部提单需完整流水日志，例如完整的mtklog、展讯log

2.大数据提单，需至少最近2小时内的logcat流水日志

adb shell dumpsys cpuinfo

获取 CPU 使用情况

adb shell dumpsys netstats

网络 socket 状态

adb shell getprop

获取系统属性

adb shell dumpsys jobscheduler

获取 JobScheduler 任务信息

adb shell dumpsys usagestats

获取应用使用统计信息

adb shell dumpsys settings

获取系统设置信息

adb shell dumpsys sensorservice

获取传感器信息

adb shell dumpsys device_policy

获取设备策略信息

adb shell tcpdump -i any -s 0 -w /sdcard/capture.pcap

抓取网络数据包（需要 root 权限）

adb shell dumpsys wifi

获取 Wi-Fi 状态信息

adb shell dumpsys location

获取 GPS 状态信息

adb shell iptables -L -v -n

获取 iptables 规则

adb shell dumpsys netpolicy

获取网络策略信息

adb shell dumpsys deviceidle

获取Doze模式管控信息

adb shell dumpsys connmetrics

待机中packet wakeup events

/power/log

定制的通用、场景、资源监控、温升等7天内的精简日志
