FrameWork基础案例解析(四)

文章目录

- - - - 单独拉取framework
      - 开机与开机动画横屏
      - Android.mk语法
      - 单独编译SDK
      - make 忽略warning
      - 单独修改和编译Camera2
      - 单独编译Launcher3
      - Android Studio 导入、修改、编译Settings
      - 导入
      - Android Studio 导入、修改、编译Launcher3
      - android 开机默认进入指定Launcher
      - 植入自己的apk到系统当中
      - 内置第三方输入法
      - Settings USB 调试默认打开
      - git代码管理
      - 快速修改系统app
      - 替换启动开机画
      - 打包服务应用Car
      - 模块打包到镜像中
      - 预装带so的apk
      - 搜集命令

单独拉取framework

repo sync platform/frameworks/base

开机与开机动画横屏

https://cczheng.blog.csdn.net/article/details/107951773

Android.mk语法

https://www.jianshu.com/p/703ef39dff3f

单独编译SDK

https://blog.csdn.net/starhosea/article/details/78663285
make sdk -j12 'ANDROID_COMPILE_WITH_JACK:=false'
在这里插入图片描述

make 忽略warning

在Makefile编译命令后面：
添加 -w(小写) 可以忽略warning；
添加 -Werror 可以将warning当作error，出现warning时停止编译;
添加 -Wall 可以输出所有

单独修改和编译Camera2

先找到包名

maqi@ubuntu:~/data/android-11.0.0_r9$ adb shell dumpsys window | grep  mCurrentFocusmCurrentFocus=Window{dc54f28 u0 com.android.camera2/com.android.camera.CameraLauncher}

targetActivity 找到 CameraActivity

  <activity-aliasandroid:name="com.android.camera.CameraLauncher"android:label="@string/app_name"android:targetActivity="com.android.camera.CameraActivity"><intent-filter><action android:name="android.intent.action.MAIN" /><category android:name="android.intent.category.DEFAULT" /><category android:name="android.intent.category.LAUNCHER" /></intent-filter></activity-alias>

加入一个标志


<com.android.camera.ui.MainActivityLayoutxmlns:android="http://schemas.android.com/apk/res/android"android:id="@+id/activity_root_view"android:layout_width="match_parent"android:layout_height="match_parent"android:background="@null"><include layout="@layout/camera" /><include layout="@layout/camera_filmstrip" /><com.android.camera.ui.ModeTransitionViewandroid:id="@+id/mode_transition_view"android:visibility="gone"android:layout_width="match_parent"android:layout_height="match_parent" /><TextViewandroid:id="@+id/txtOne"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="MAQI666"android:textColor="#EA5246"android:textStyle="bold|italic"android:background="#000000"android:textSize="18sp" /></com.android.camera.ui.MainActivityLayout>

编译成功
cd packages/apps/Camera2
mm -j12

* Connection #0 to host localhost left intact
[100% 10/10] Install: out/target/product/angler/data/app/Camera2Tests/Camera2Tests.apk
make: Leaving directory '/home/maqi/data/android-11.0.0_r9'
#### make completed successfully (05:40 (mm:ss)) ####

查看输出

maqi@ubuntu:~/data/android-11.0.0_r9/out/target/product/angler/system/app$ ls -l Camer*
total 5768
-rw-rw-r-- 1 maqi maqi 5894746 Nov 23 17:51 Camera2.apk
drwxrwxr-x 3 maqi maqi    4096 Nov 17 16:42 lib
drwxrwxr-x 3 maqi maqi    4096 Nov 17 16:45 oat

烧入&&重启

 adb push Camera2.apk /system/app/Camera2/adb shell am restart

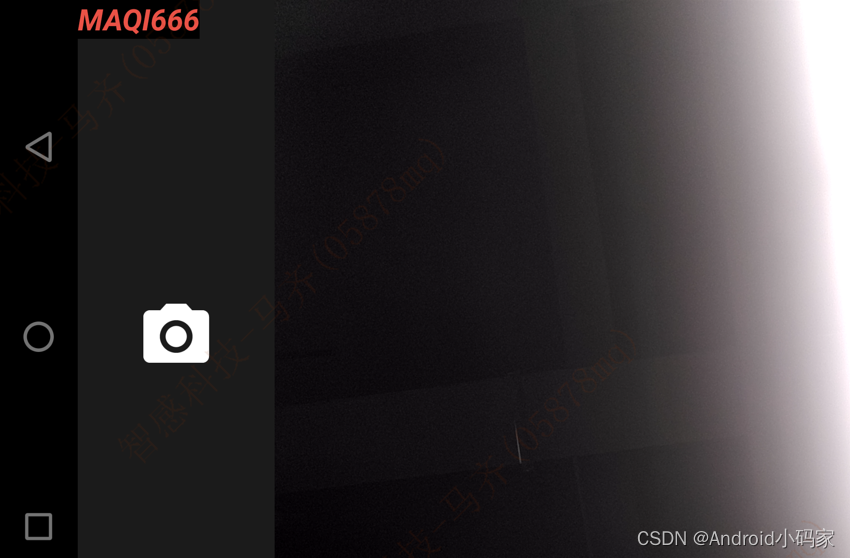

效果图
在这里插入图片描述

单独编译Launcher3

ninja: error: ‘out/host/linux-x86/framework/host-libprotobuf-java-nano.jar’, needed by

cd /package/apps/Launcher3
mma -j12

Android Studio 导入、修改、编译Settings

https://blog.csdn.net/qq_45815991/article/details/130278276

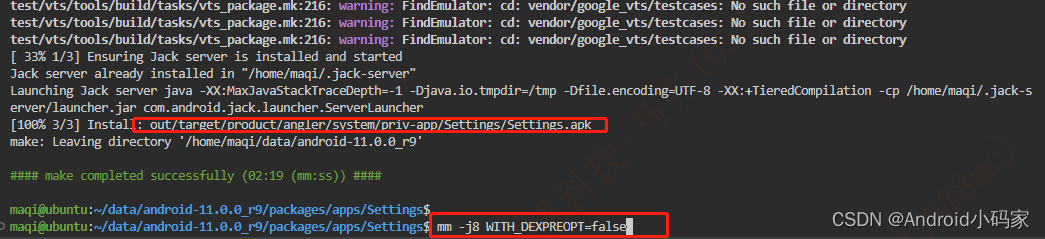

mm -j8 WITH_DEXPREOPT=false
在这里插入图片描述

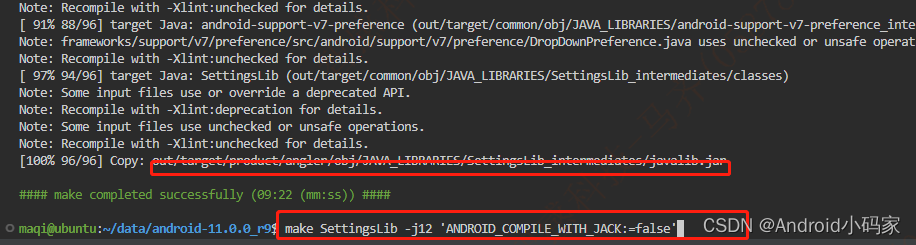

make SettingsLib -j12 'ANDROID_COMPILE_WITH_JACK:=false'

https://note.qidong.name/2017/07/06/disable-jack-when-make-android/

在这里插入图片描述

导入

先学一下Git控制指令，玩转repo

repo sync packages/apps/Settings

Resolving deltas: 100% (33776/33776)
Resolving deltas: 100% (33776/33776), completed with 494 local objects.
Fetching:  0% (0/1) 12:43 | 1 job | 12:43 platform/packages/apps/Settings @ packages/apps/SettingsFetching: 100% (1/1), done in 16m4.670s
Updating files: 100% (3143/3143), done.
Checking out: 100% (1/1), done in 16.036s
repo sync has finished successfully.

方式二

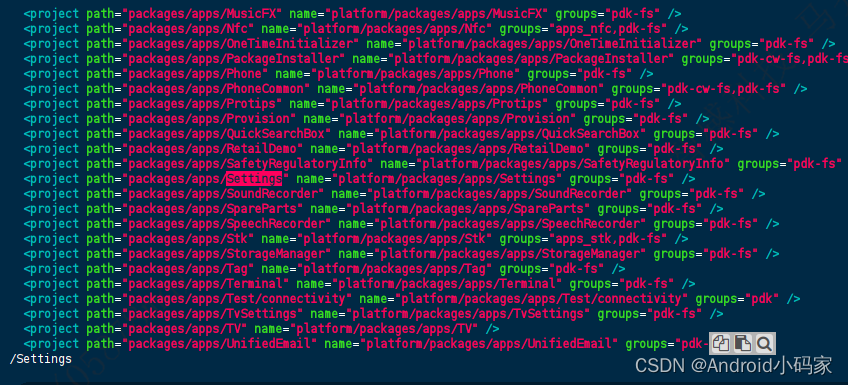

maqi@ubuntu:~/data/source/.repo/manifests$ vim default.xml
在这里插入图片描述
git clone git://mirrors.ustc.edu.cn/aosp/platform/packages/apps/Settings

Android Studio 导入、修改、编译Launcher3

https://blog.csdn.net/u012932409/article/details/128772883

android 开机默认进入指定Launcher

https://blog.csdn.net/mj475002864/article/details/104759067

植入自己的apk到系统当中

https://blog.csdn.net/byhook/article/details/51900277

内置第三方输入法

https://www.jianshu.com/p/e782897c6ab8

Settings USB 调试默认打开

git代码管理

https://blog.csdn.net/qq_20330595/article/details/134042749?spm=1001.2014.3001.5502

快速修改系统app

https://blog.csdn.net/qq_20330595/article/details/146269135?spm=1001.2014.3001.5502

替换启动开机画

https://blog.csdn.net/qq_20330595/article/details/140856458
nanopc -t4 官方替换教程

打包服务应用Car

nothing…

模块打包到镜像中

make snod

预装带so的apk

搜集命令

模块	make命令	mmm 命令
init	make init	mmm system/core/init
zygot	make app_process	mmm frameworks/base/cmds/app_process
system_server	make services	mmm frameworks/base/services
java framwork	make framework	mmm frameworks/base
framework res	make framework-res	mmm frameworks/base/core/res
framework jni	make libandroid_runtime	mmm frameworks/base/core_jni
binder	make libbinder	mmm frameworks/base/libs/binder
