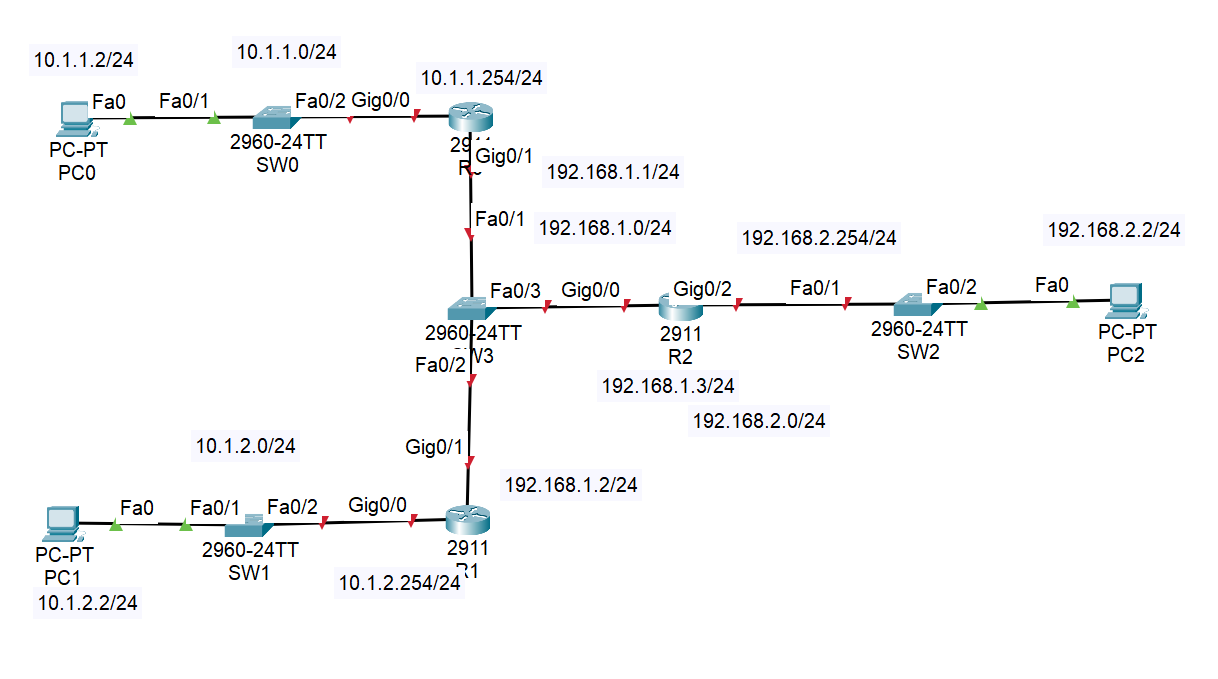

1.实验准备：

2.具体配置：

2.1根据分配好的IP地址配置静态IP：

2.1.1PC配置：

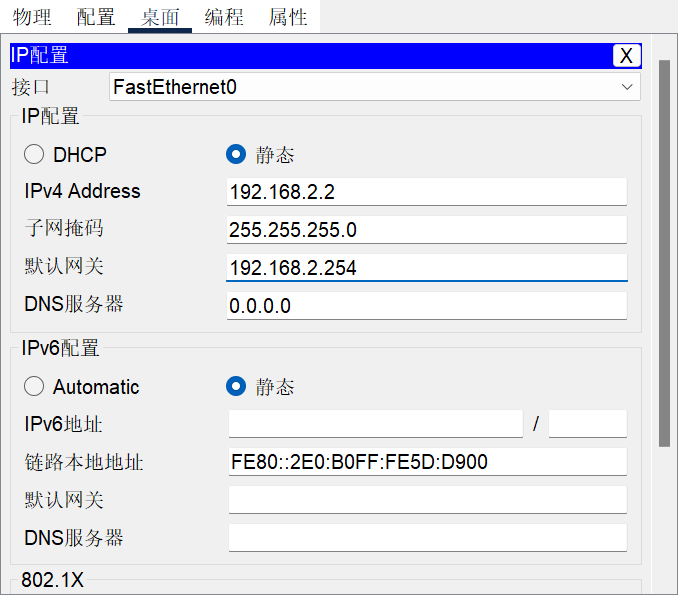

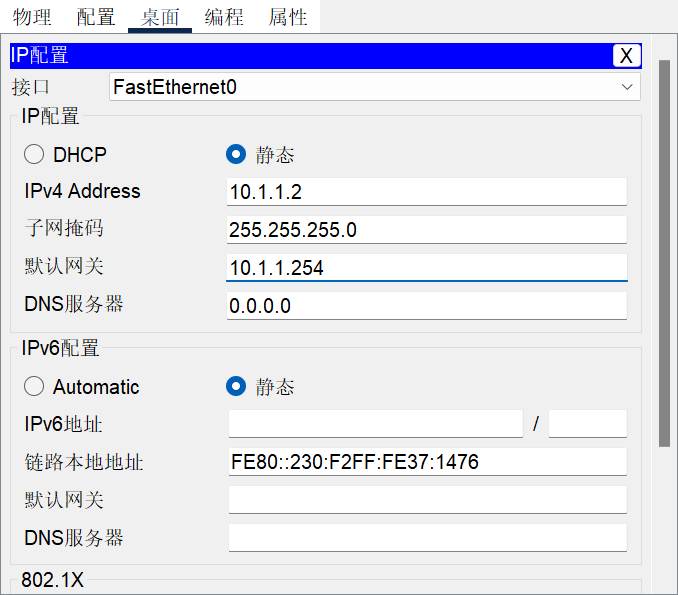

PC0：

PC1：



PC2：



 2.1.2路由器配置：

R0：

Router>en
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#hostname R0
R0(config)#int g0/0
R0(config-if)#ip address 10.1.1.254 255.255.255.0
R0(config-if)#no shutdown R0(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R0(config-if)#exitR0(config)#int g0/1
R0(config-if)#ip address 192.168.1.1 255.255.255.0
R0(config-if)#no shutdown R0(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/1, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up
R0(config-if)#exit
R0(config)#

R1：

Router>en
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#hostname R1
R1(config)#int g0/0
R1(config-if)#ip add 10.1.2.254 255.255.255.0
R1(config-if)#no shutdown R1(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R1(config-if)#exitR1(config)#int g0/1
R1(config-if)#ip address 192.168.1.2 255.255.255.0
R1(config-if)#no shutdown R1(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/1, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up
R1(config-if)#exit
R1(config)#

R2：

Router>en
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#hostname R2R2(config)#int g0/0
R2(config-if)#ip add 192.168.1.3 255.255.255.0
R2(config-if)#no shutdown R2(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R2(config-if)#exit
R2(config)#int g0/2
R2(config-if)#ip add 192.168.2.254 255.255.255.0
R2(config-if)#no shutdown R2(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/2, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to up
R2(config-if)#exit
R2(config)#

2.2配置RIP V2路由：

R0：

R0(config)#router rip
R0(config-router)#ve
R0(config-router)#version 2
R0(config-router)#no auto-summary
R0(config-router)#network 10.1.1.0
R0(config-router)#network 192.168.1.0
R0(config-router)#exit
R0(config)#

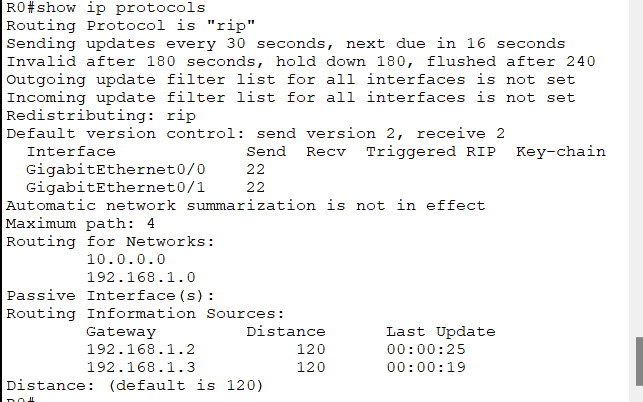

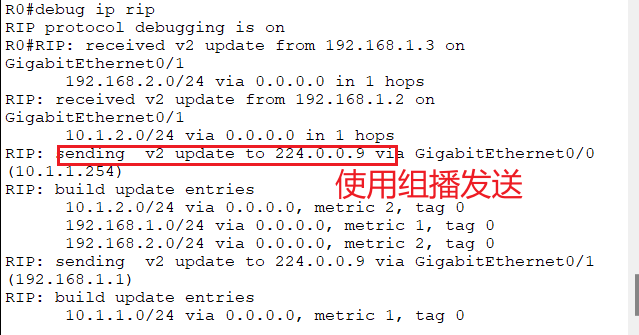

R0#debug ip rip # 打开rip协议调试





R1：

R1(config)#router rip
R1(config-router)#version 2
R1(config-router)#no auto-summary
R1(config-router)#network 10.1.2.0
R1(config-router)#network 192.168.1.0
R1(config-router)#exit
R1(config)#
R1#debug ip rip # 打开rip协议调试

R2：

R2(config)#router rip
R2(config-router)#version 2
R2(config-router)#no auto-summary
R2(config-router)#network 192.168.2.0
R2(config-router)#network 192.168.1.0
R2(config-router)#exit
R2(config)#
R2#debug ip rip # 打开rip协议调试

3.测试连通性：

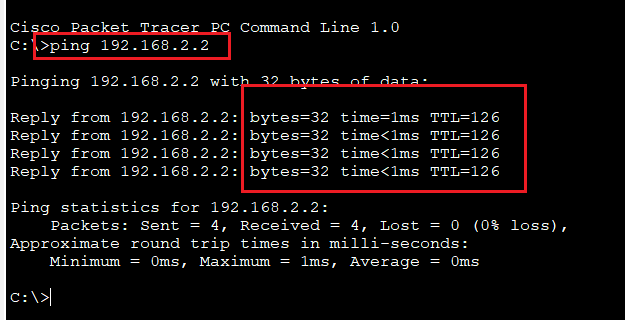

PC1与PC2通信：

 PC0与PC2通信：



  PC2与PC0通信：

到此本实验成功完成！
