H3CNE综合小实验之电视机
一、实验拓扑图
二、实验要求
- 按照图示配置IP地址；
- 按照图示区域划分配置对应的动态路由协议；
- 在R7上配置dhcp服务器，能够让pc可以获取IP地址；
- 将所有环回⼝宣告进ospf中，将环回⼝7宣告进rip中，将rip路由引⼊ospf 中，ospf路由引⼊rip中 ；
- 要求实现全⽹互通；
- 在r3和r6上开启rip的端⼝验证，密码为maoqi；
- 在R5和R4上开启ospf端⼝验证，密码为maoqi；
- 要求在R4上配置ftp服务，测试时可以允许所有设备均可登录访问；
- 要求在R1上配置telnet服务，测试时可以允许所有设备均可登录访问管理；
- 要求拒绝R5访问R1的telnet服务，其他设备均不影响；
- 要求拒绝R2访问R4的ftp服务，其他设备均不影响；
- 要求拒绝10.1.1.0/24⽹段ping通R1地址；
三、实验步骤
-
配置IP地址
R1：
[H3C]sysn R1 [R1]int g0/0 [R1-GigabitEthernet0/0]ip add 192.168.1.1 24 [R1-GigabitEthernet0/0]int g0/1 [R1-GigabitEthernet0/1]ip add 192.168.2.1 24 [R1-GigabitEthernet0/1]int g0/2 [R1-GigabitEthernet0/2]ip add 100.3.3.1 24 [R1-GigabitEthernet0/2]quit [R1]int lo0 //配置环回口地址LoopBack 0 简写为lo0 [R1-LoopBack0]ip add 1.1.1.1 32 [R1-LoopBack0]quitR2：
[H3C]sysn R2 [R2]int g0/0 [R2-GigabitEthernet0/0]ip add 192.168.1.2 24 [R2-GigabitEthernet0/0]int g0/1 [R2-GigabitEthernet0/1]ip add 192.168.3.2 24 [R2-GigabitEthernet0/1]int g0/2 [R2-GigabitEthernet0/2]ip add 100.1.1.2 24 [R2-GigabitEthernet0/2]quit [R2]int LoopBack 0 [R2-LoopBack0]ip add 2.2.2.2 32 [R2-LoopBack0]quitR3：
<H3C>sys System View: return to User View with Ctrl+Z. [H3C] [H3C]sysn R3 [R3]int g0/0 [R3-GigabitEthernet0/0]ip add 192.168.2.3 24 [R3-GigabitEthernet0/0]int g0/1 [R3-GigabitEthernet0/1]ip add 192.168.3.3 24 [R3-GigabitEthernet0/1]int g0/2 [R3-GigabitEthernet0/2]ip add 200.2.2.3 24 [R3-GigabitEthernet0/2]int g5/0 [R3-GigabitEthernet5/0]ip add 200.1.1.3 24 [R3-GigabitEthernet5/0]quit [R3]int lo0 [R3-LoopBack0]ip add 3.3.3.3 32 [R3-LoopBack0]quitR4：
<H3C>sys System View: return to User View with Ctrl+Z. [H3C]sysn R4 [R4]int g0/0 [R4-GigabitEthernet0/0]ip add 172.16.3.4 24 [R4-GigabitEthernet0/0]int g0/1 [R4-GigabitEthernet0/1]ip add 172.16.1.4 24 [R4-GigabitEthernet0/1]int g0/2 [R4-GigabitEthernet0/2]ip add 100.3.3.4 24 [R4-GigabitEthernet0/2]qu [R4]int lo0 [R4-LoopBack0]ip add 4.4.4.4 32 [R4-LoopBack0]quR5：
<H3C>sys System View: return to User View with Ctrl+Z. [H3C]sysn R5 [R5]int g0/0 [R5-GigabitEthernet0/0]ip add 172.16.1.5 24 [R5-GigabitEthernet0/0]int g0/1 [R5-GigabitEthernet0/1]ip add 172.168.2.5 24 [R5-GigabitEthernet0/1]int g0/2 [R5-GigabitEthernet0/2]ip add 100.2.2.5 24 [R5-GigabitEthernet0/2]qu [R5]int lo0 [R5-LoopBack0]ip add 5.5.5.5 32 [R5-LoopBack0]quR6：
<H3C>sys System View: return to User View with Ctrl+Z. [H3C]sysn R6 [R6]int g0/0 [R6-GigabitEthernet0/0]ip add 200.3.3.6 24 [R6-GigabitEthernet0/0]int g0/1 [R6-GigabitEthernet0/1]ip add 200.1.1.6 24 [R6-GigabitEthernet0/1]int g0/2 [R6-GigabitEthernet0/2]ip add 172.16.3.6 24 [R6-GigabitEthernet0/1]int g5/0 [R6-GigabitEthernet5/0]ip add 172.16.2.6 24 [R6-GigabitEthernet5/0]qu [R6]int lo0 [R6-LoopBack0]ip add 6.6.6.6 32 [R6-LoopBack0]quR7：
[R7]int g0/0 [R7-GigabitEthernet0/0]ip add 200.2.2.7 24 [R7-GigabitEthernet0/0]int g0/1 [R7-GigabitEthernet0/1]ip add 200.3.3.7 24 [R7-GigabitEthernet0/1]int g0/2 [R7-GigabitEthernet0/2]ip add 100.1.1.7 24 [R7-GigabitEthernet0/2]int g5/0 [R7-GigabitEthernet5/0]ip add 100.2.2.7 24 [R7-GigabitEthernet5/0]int g5/1 [R7-GigabitEthernet5/1]ip add 10.1.1.7 24 [R7-GigabitEthernet5/1]qu [R7]int lo0 [R7-LoopBack0]ip add 7.7.7.7 32 [R7-LoopBack0]qu -
划分对应的动态路由协议
R1：
<R1>sys System View: return to User View with Ctrl+Z. [R1]ospf 1 router-id 1.1.1.1 //手动配置全局的router-id [R1-ospf-1]area 0 //设置为主干区域 [R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0 [R1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255 //宣告网段 [R1-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255 [R1-ospf-1-area-0.0.0.0]network 100.3.3.0 0.0.0.255 [R1-ospf-1-area-0.0.0.0]qu [R1-ospf-1]dis this //查看宣告的网段 # ospf 1area 0.0.0.0network 1.1.1.1 0.0.0.0network 100.3.3.0 0.0.0.255network 192.168.1.0 0.0.0.255network 192.168.2.0 0.0.0.255 # returnR2：
[R2]ospf 1 router-id 2.2.2.2 [R2-ospf-1]area 0 [R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0 [R2-ospf-1-area-0.0.0.0]network 192.168.3.0 0.0.0.255 [R2-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255 [R2-ospf-1-area-0.0.0.0]network 100.1.1.0 0.0.0.255 [R2-ospf-1-area-0.0.0.0]qu [R2-ospf-1]dis this # ospf 1area 0.0.0.0network 2.2.2.2 0.0.0.0network 100.1.1.0 0.0.0.255network 192.168.1.0 0.0.0.255network 192.168.3.0 0.0.0.255 #R3：
[R3]ospf 1 router-id 3.3.3.3 [R3-ospf-1]area 0 [R3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0 [R3-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255 [R3-ospf-1-area-0.0.0.0]network 192.168.3.0 0.0.0.255 [R3-ospf-1-area-0.0.0.0]qu [R3-ospf-1]dis this # ospf 1area 0.0.0.0network 3.3.3.3 0.0.0.0network 192.168.2.0 0.0.0.255network 192.168.3.0 0.0.0.255 # return [R3-ospf-1]quit [R3]rip 1 [R3-rip-1]version 2 [R3-rip-1]undo summary [R3-rip-1]network 200.1.1.0 [R3-rip-1]network 200.2.2.0 [R3-rip-1]quR4：
[R4]ospf 2 router-id 4.4.4.4 [R4-ospf-2]area 0 [R4-ospf-2-area-0.0.0.0]netwrok 4.4.4.4 0.0.0.0 [R4-ospf-2-area-0.0.0.0]network 100.3.3.0 0.0.0.255 [R4-ospf-2-area-0.0.0.0]network 172.16.3.0 0.0.0.255 [R4-ospf-2-area-0.0.0.0]qu [R4-ospf-2]dis this # ospf 2area 0.0.0.0network 4.4.4.4 0.0.0.0network 100.3.3.0 0.0.0.255network 172.16.1.0 0.0.0.255network 172.16.3.0 0.0.0.255 # returnR5：
[R5]ospf 2 router-id 5.5.5.5 [R5-ospf-2]area 0 [R5-ospf-2-area-0.0.0.0]network 5.5.5.5 0.0.0.0 [R5-ospf-2-area-0.0.0.0]network 172.16.1.0 0.0.0.255 [R5-ospf-2-area-0.0.0.0]network 100.2.2.0 0.0.0.255 [R5-ospf-2-area-0.0.0.0]qu [R5-ospf-2]dis this # ospf 2area 0.0.0.0network 5.5.5.5 0.0.0.0network 100.2.2.0 0.0.0.255network 172.16.1.0 0.0.0.255network 172.16.2.0 0.0.0.255 # returnR6：
[R6]ospf 2 router-id 6.6.6.6 [R6-ospf-2]area 0 [R6-ospf-2-area-0.0.0.0]network 6.6.6.6 0.0.0.0 [R6-ospf-2-area-0.0.0.0]network 172.16.3.0 0.0.0.255 [R6-ospf-2-area-0.0.0.0]qu [R6-ospf-2]dis this # ospf 2area 0.0.0.0network 6.6.6.6 0.0.0.0network 172.16.2.0 0.0.0.255network 172.16.3.0 0.0.0.255 # return [R6-ospf-2]qu [R6]rip 1 [R6-rip-1]version 2 [R6-rip-1]undo summary [R6-rip-1]network 200.1.1.0 [R6-rip-1]network 200.3.3.0 [R6-rip-1]dis this # rip 1undo summaryversion 2network 200.1.1.0network 200.3.3.0 # returnR7:
[R7]rip 1 [R7-rip-1]version 2 [R7-rip-1]undo summary [R7-rip-1]net 200.2.2.7 [R7-rip-1]net 200.3.3.7 [R7-rip-1]net 7.7.7.7 [R7-rip-1]quit [R7]ospf 1 [R7-ospf-1]area 0 [R7-ospf-1-area-0.0.0.0]net 100.1.1.0 0.0.0.255 [R7-ospf-1-area-0.0.0.0]qu [R7-ospf-1]quit [R7] [R7]ospf 2 [R7-ospf-2]area 0 [R7-ospf-2-area-0.0.0.0]net 100.2.2.0 0.0.0.255 [R7-ospf-2-area-0.0.0.0]quit [R7-ospf-2]quit -
在R7上配置DHCP服务器，让PC端可以自动获取IP地址
[R7]dhcp enable [R7]dhcp server ip-pool 1 [R7-dhcp-pool-1]network 10.1.1.0 24 //设置需要分配的网段 [R7-dhcp-pool-1]gateway-list 10.1.1.7 //配置网关 [R7-dhcp-pool-1]qu
-
将rip路由引入ospf中，ospf路由引入rip中
R3：
[R3]rip 1 [R3-rip-1]import-route ospf 1 //在rip路由引入ospf [R3-rip-1]import-route direct [R3-rip-1]qu [R3]ospf 1 [R3-ospf-1]import-route rip 1 //在ospf中引入rip [R3-ospf-1]import-route direct [R3-ospf-1]R6：
[R6]rip 1 [R6-rip-1]import-route ospf 2 [R6-rip-1]import-route direct [R6-rip-1]qu [R6]ospf 2 [R6-ospf-2]import-route rip 1 [R6-ospf-2]import-route direct [R6-ospf-2]R7：
[R7]rip [R7-rip-1]import-route ospf 1 [R7-rip-1]import-route ospf 2 [R7-rip-1]import-route direct [R7-rip-1]quit [R7]ospf 1 [R7-ospf-1]import-route rip 1 [R7-ospf-1]import-route direct [R7-ospf-1]quit [R7]ospf 2 [R7-ospf-2]import-route rip 1 [R7-ospf-2]import-route direct [R7-ospf-2]quit -
实现全网互通
在R1中去pingR7，或者去ping其他端口都是可以ping通的
因为在之前我们在ospf协议中或者在rip协议中宣告了环回口的路由，所以我们可以直接用环回口的路由来ping。
-
在R3和R6开启rip的端口验证，密码为maoqi。
R3：
[R3]int g5/0 [R3-GigabitEthernet5/0]rip authentication-mode simple plain maoqi [R3-GigabitEthernet5/0]quitR6：
[R6]int g0/1 [R6-GigabitEthernet0/1]rip authentication-mode simple plain maoqi [R6-GigabitEthernet0/1]quit -
在R5和R4上开启ospf端口验证，密码为123。
R4：
[R4]int g0/1 [R4-GigabitEthernet0/1]ospf authentication-mode simple plain 123 [R4-GigabitEthernet0/1]quitR5：
[R5]int g0/0 [R5-GigabitEthernet0/0]ospf authentication-mode simple plain 123 [R5-GigabitEthernet0/0]quit -
在R4上配置ftp服务，允许所有设备登陆访问

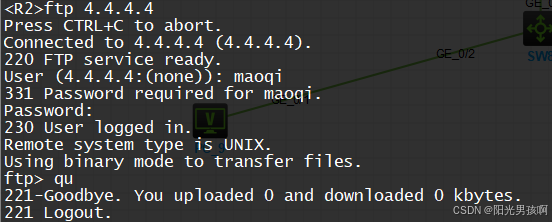

[R4]ftp server enable //开启ftp服务 [R4]local-user maoqi class manage //创建用户 New local user added. [R4-luser-manage-maoqi]password simple 123456789a [R4-luser-manage-maoqi]service-type ftp 为创建的用户开启ftp服务 [R4-luser-manage-maoqi]quit [R4]line vty 0 4 [R4-line-vty0-4]authentication-mode scheme [R4-line-vty0-4]user-role level-15 [R4-line-vty0-4]quit在R2中调用FTP服务，发现是可以调用成功的
-
在R1上配置telnet服务，允许所有设备登陆访问
[R1]telnet server enable [R1]local-user maoqi class manage New local user added. [R1-luser-manage-maoqi]password simple 123456789a [R1-luser-manage-maoqi]service-type telnet [R1-luser-manage-maoqi]authorization-attribute user-role 15 [R1-luser-manage-maoqi]qu [R1]line vty 0 4 [R1-line-vty0-4]authentication-mode scheme [R1-line-vty0-4]user-role level-15 -
只拒绝R5访问R1的telnet服务
[R1]acl advanced 3000 [R1-acl-ipv4-adv-3000]rule deny tcp source 100.2.2.5 0 destination-port eq telne t [R1-acl-ipv4-adv-3000]rule deny tcp source 172.16.2.5 0 destination-port eq teln et [R1-acl-ipv4-adv-3000]rule deny tcp source 172.16.1.5 0 destination-port eq teln [R1-acl-ipv4-adv-3000]rule deny tcp source 5.5.5.5 0 destination-port eq telnet [R1-acl-ipv4-adv-3000]quit [R1]int g0/0 [R1-GigabitEthernet0/0]packet-filter 3000 inbound [R1-GigabitEthernet0/0]int g0/1 [R1-GigabitEthernet0/1]packet-filter 3000 inbound [R1-GigabitEthernet0/1]int g0/2 [R1-GigabitEthernet0/2]packet-filter 3000 inbound查看配置
配置完成后在R5去访问R1的telnet服务，发现被拒绝
-
只拒绝R2访问R4的ftp服务
[R4]acl ad [R4]acl advanced 3000 [R4-acl-ipv4-adv-3000]rule deny tcp source 192.168.1.2 0 destination-port range 20 21 [R4-acl-ipv4-adv-3000]rule deny tcp source 192.168.3.2 0 destination-port range 20 21 [R4-acl-ipv4-adv-3000]rule deny tcp source 100.1.1.2 0 destination-port range 2021 [R4-acl-ipv4-adv-3000]rule deny tcp source 2.2.2.2 0 destination-port range 20 21[R4-acl-ipv4-adv-3000]dis this # acl advanced 3000rule 5 deny tcp source 192.168.1.2 0 destination-port range ftp-data ftprule 10 deny tcp source 192.168.3.2 0 destination-port range ftp-data ftprule 15 deny tcp source 100.1.1.2 0 destination-port range ftp-data ftprule 20 deny tcp source 2.2.2.2 0 destination-port range ftp-data ftp # return [R4-acl-ipv4-adv-3000]quit [R4]int g0/0 [R4-GigabitEthernet0/0]packet-filter 3000 inbound [R4-GigabitEthernet0/0]int g0/1 [R4-GigabitEthernet0/1]packet-filter 3000 inbound [R4-GigabitEthernet0/1]int g0/2 [R4-GigabitEthernet0/2]packet-filter 3000 inbound [R4-GigabitEthernet0/2]quit -
拒绝10.1.1.0/24网段ping通R1地址
R1：
[R1]acl basic 2000 [R1-acl-ipv4-basic-2000]rule deny source 10.1.1.0 0.0.0.255 [R1-acl-ipv4-basic-2000]quit [R1]int range g0/0 to g0/2 [R1-if-range]packet-filter 2000 inbound [R1-if-range]quit此时在pc1中去pingR1发现ping不通
