aws(学习笔记第三十八课) codepipeline-build-deploy-github-manual

• 使用codepipeline-build-deploy

学习内容：

• 使用codepipeline，★代码库不采用codecommit，而是github
• 使用codebuild
• 使用codedeploy

---

1. 整体架构

1.1 代码链接

• 代码链接(codepipeline-build-deploy-github-manual)
• 同时可以参照aws(学习笔记第二十课) codecommit以及codedeploy进行开发

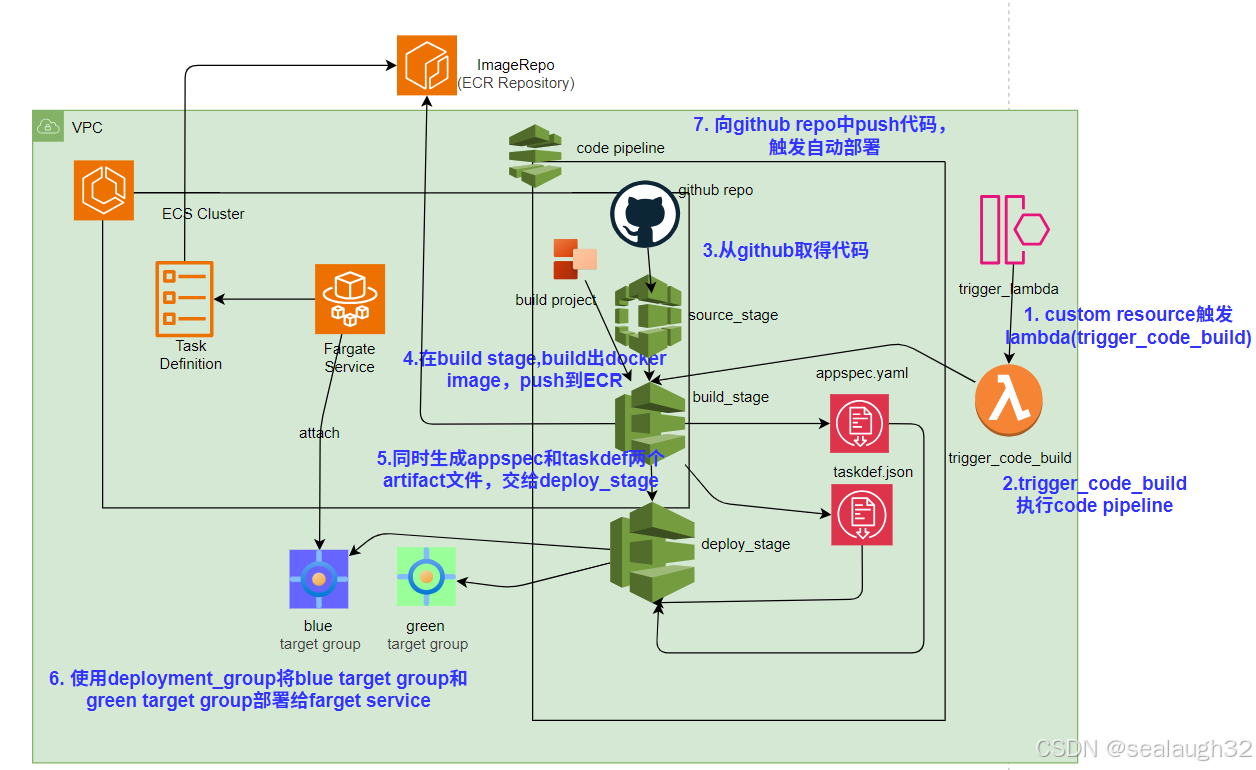

1.2 全体处理架构

2. 代码分析

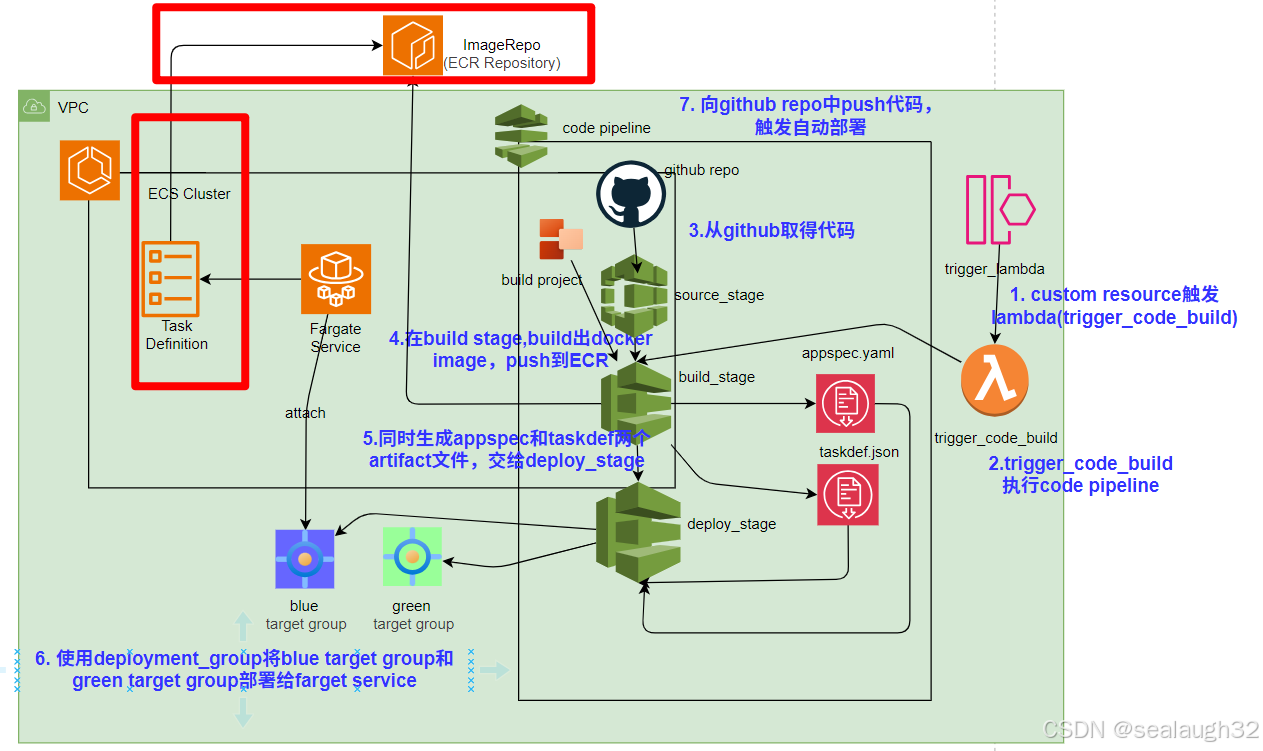

2.1 创建ImageRepo，并设定给FargateTaskDef

        # Creates an Elastic Container Registry (ECR) image repositoryimage_repo = ecr.Repository(self, "ImageRepo")# Creates a Task Definition for the ECS Fargate servicefargate_task_def = ecs.FargateTaskDefinition(self, "FargateTaskDef")fargate_task_def.add_container("Container",container_name="web",image=ecs.ContainerImage.from_ecr_repository(image_repo),port_mappings=[{"containerPort": 80}])

注意，这里并没有指定具体的image的URI以及tag，这里只是指定了Image Repo(ECR)。后面会在CodeBuildStage阶段build出来docker image，并且接在CodeDeployStage阶段将该docker image部署到Fargate Service。

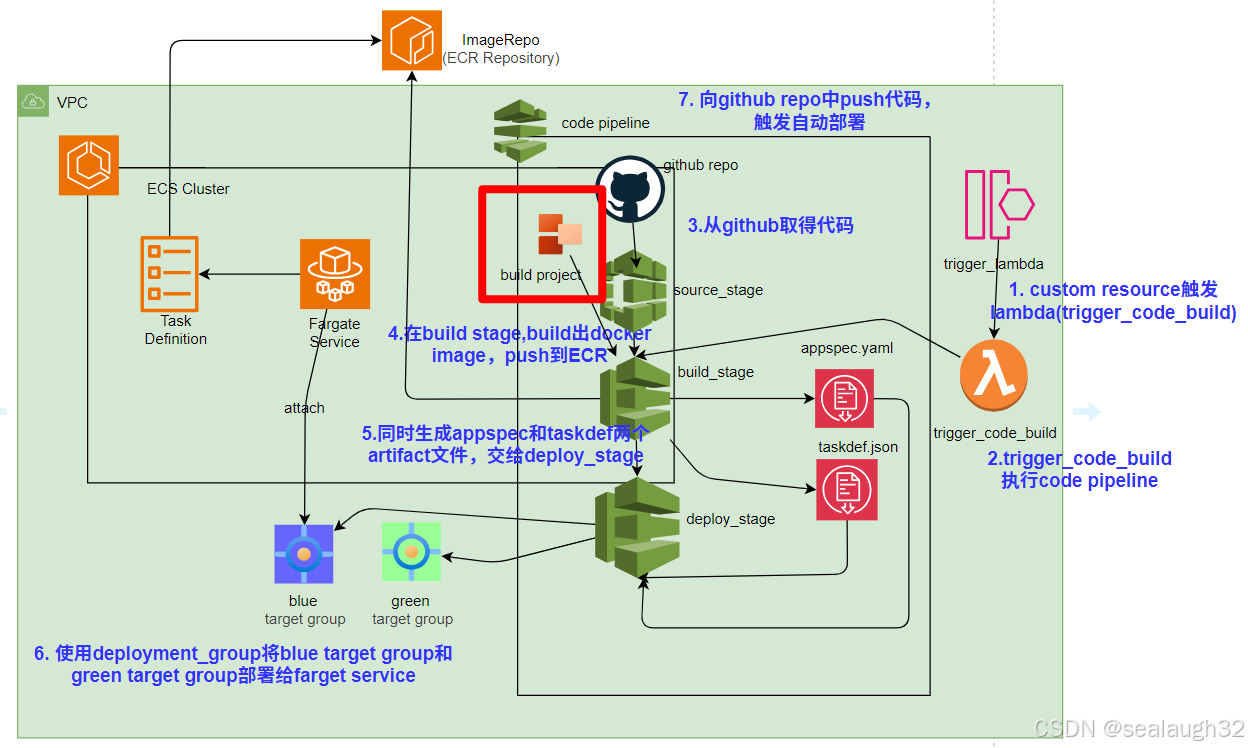

2.2 创建CodeBuild project

# CodeBuild project that builds the Docker imagebuild_image = codebuild.Project(self, "BuildImage",build_spec=codebuild.BuildSpec.from_source_filename("buildspec.yaml"),source=codebuild.Source.git_hub(owner="bufanli",    # TODO: Replace with your GitHub usernamerepo="web_app",   # TODO: Replace with your GitHub repository namebranch_or_ref="main",),environment=codebuild.BuildEnvironment(privileged=True),environment_variables={"AWS_ACCOUNT_ID": codebuild.BuildEnvironmentVariable(value=os.getenv('CDK_DEFAULT_ACCOUNT') or ""),"REGION": codebuild.BuildEnvironmentVariable(value=os.getenv('CDK_DEFAULT_REGION') or ""),"IMAGE_TAG": codebuild.BuildEnvironmentVariable(value="latest"),"IMAGE_REPO_NAME": codebuild.BuildEnvironmentVariable(value=image_repo.repository_name),"REPOSITORY_URI": codebuild.BuildEnvironmentVariable(value=image_repo.repository_uri),"TASK_DEFINITION_ARN": codebuild.BuildEnvironmentVariable(value=fargate_task_def.task_definition_arn),"TASK_ROLE_ARN": codebuild.BuildEnvironmentVariable(value=fargate_task_def.task_role.role_arn),"EXECUTION_ROLE_ARN": codebuild.BuildEnvironmentVariable(value=fargate_task_def.execution_role.role_arn)}

这里，设定build_spec文件，在app/buildspec.yml中，

• 设定pre_build登录ecr (‌Amazon Elastic Container Registry（ECR)，方便之后的向ecr进行镜像的登录。

      commands:- echo Logging in to Amazon ECR...- aws --version- aws ecr get-login-password --region $REGION | docker login --username AWS --password-stdin $AWS_ACCOUNT_ID.dkr.ecr.$REGION.amazonaws.com


• 进行build处理
  这里的

      commands:- echo Building the Docker image...- docker build -t $IMAGE_REPO_NAME:$IMAGE_TAG .- docker tag $IMAGE_REPO_NAME:$IMAGE_TAG $AWS_ACCOUNT_ID.dkr.ecr.$REGION.amazonaws.com/$IMAGE_REPO_NAME:$IMAGE
