主要内容：

1.回归模型的出现

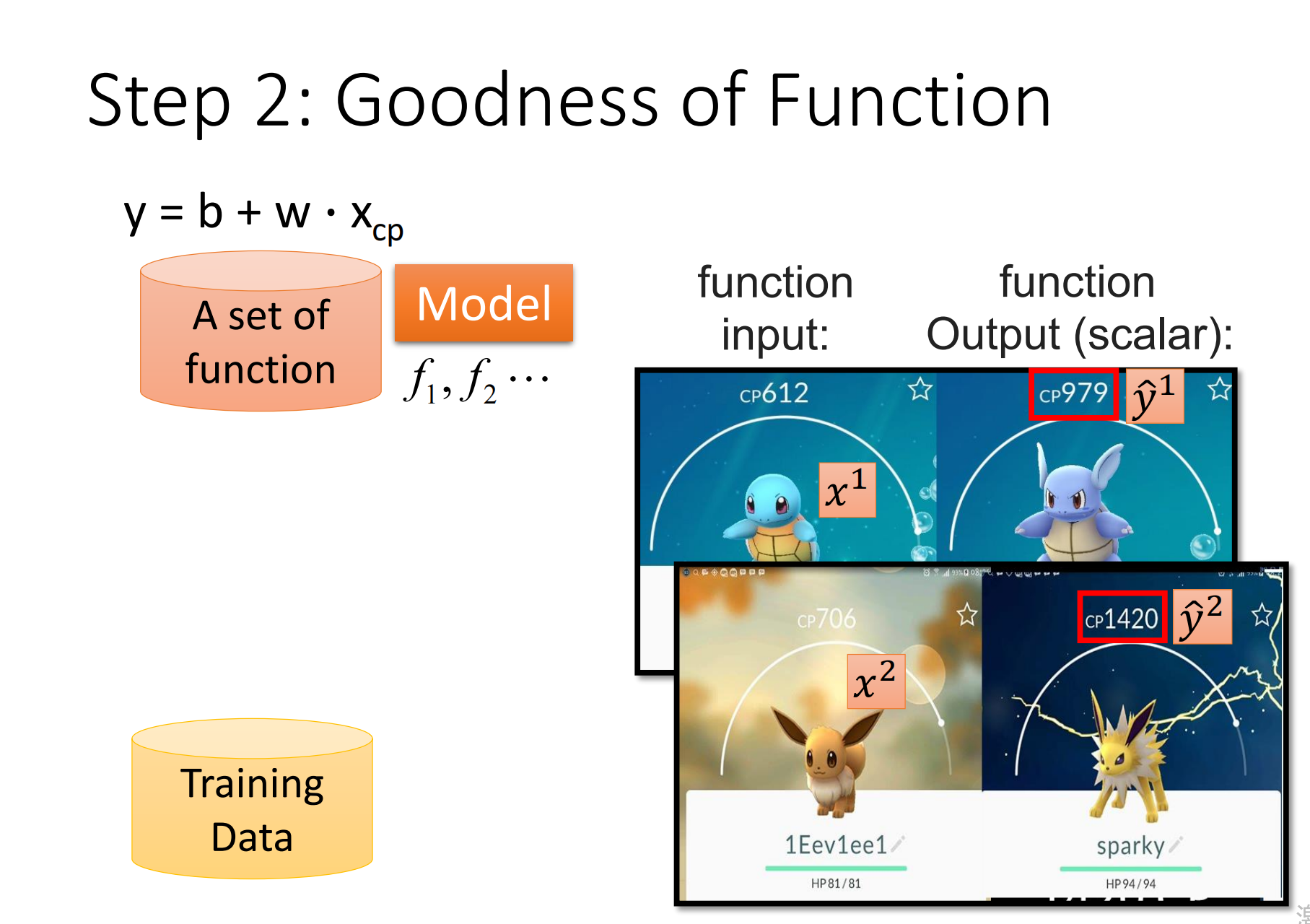

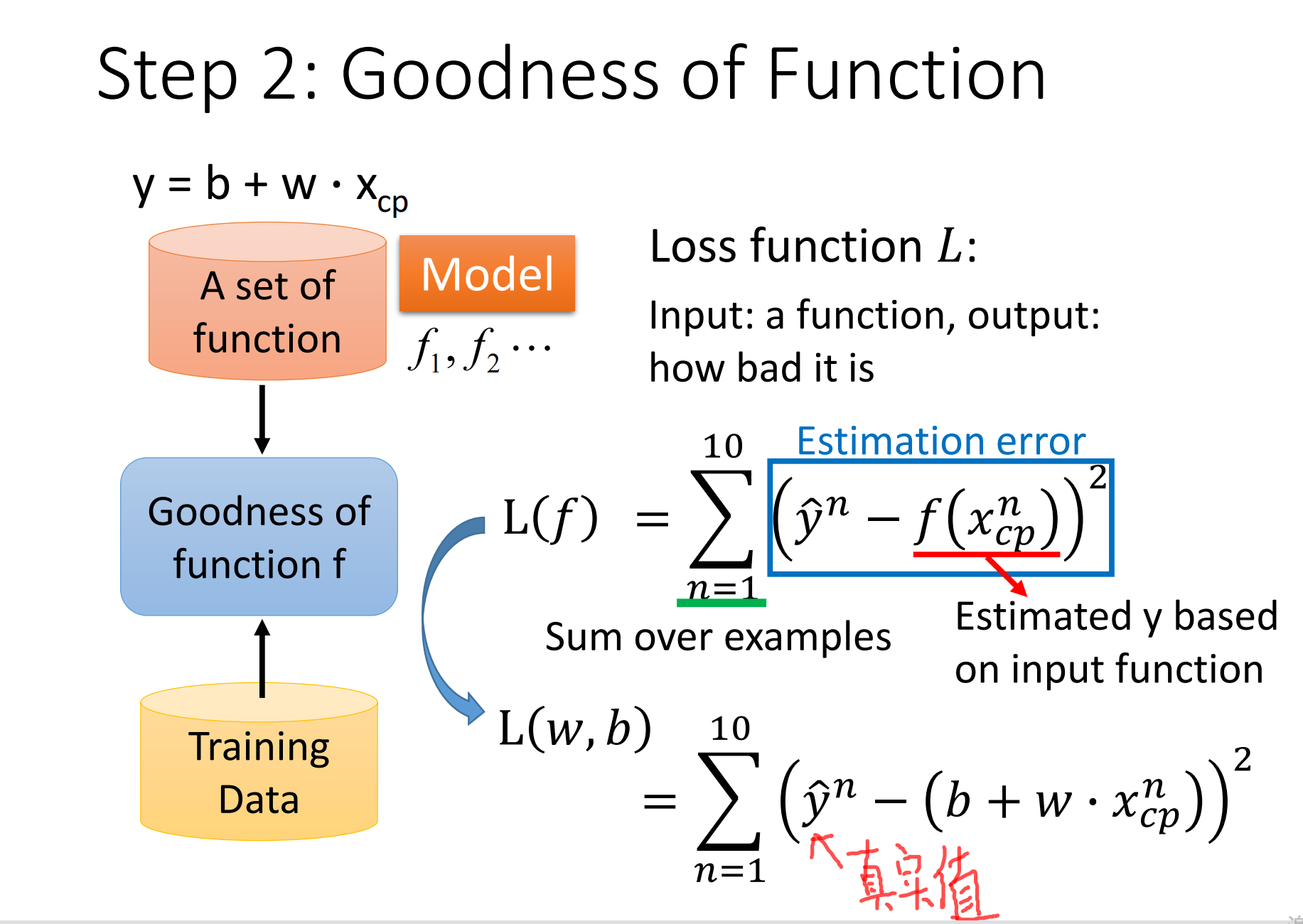

2.回归模型的选择--使得损失最小

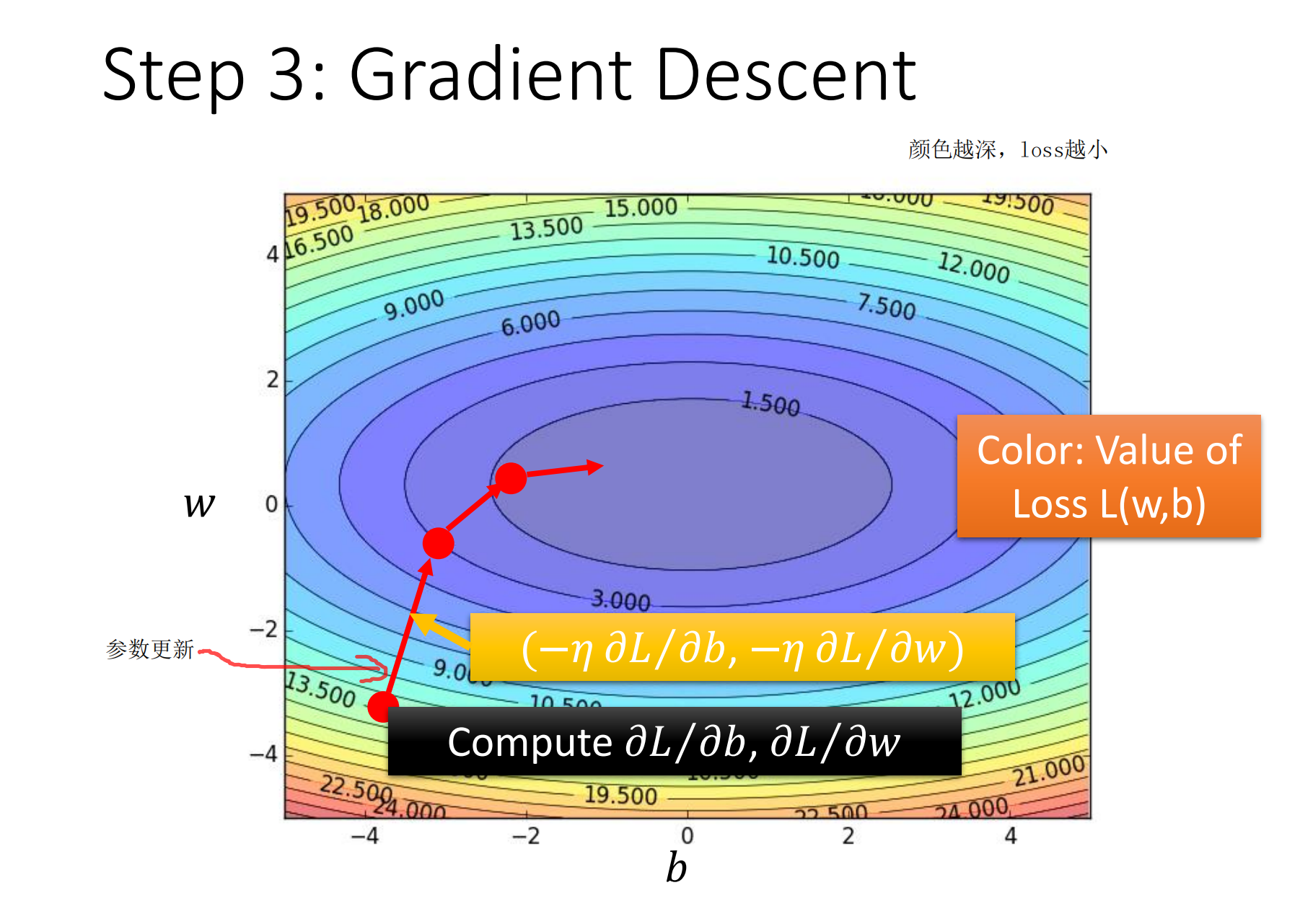

3.损失最小时，参数求值 梯度下降法

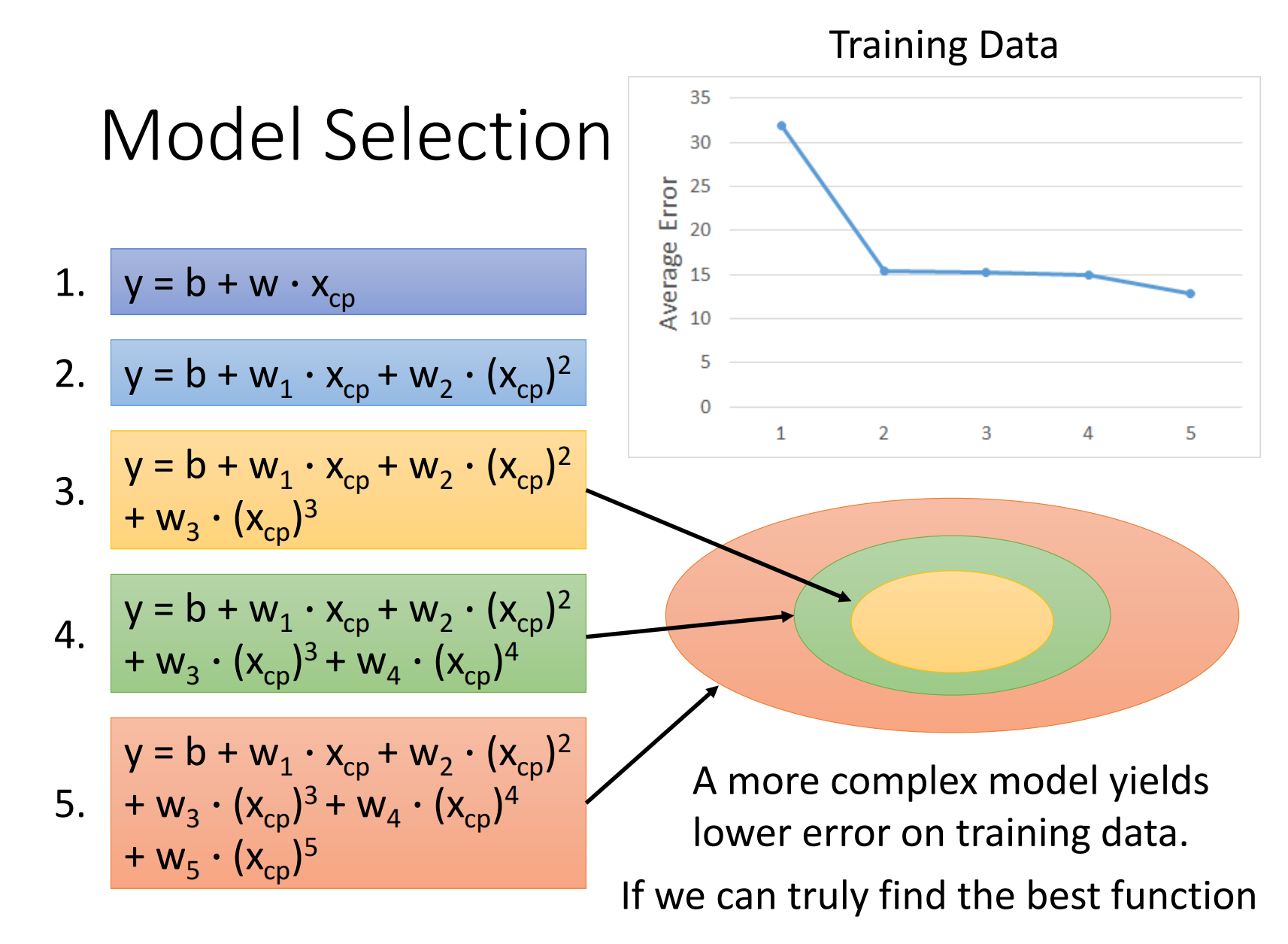

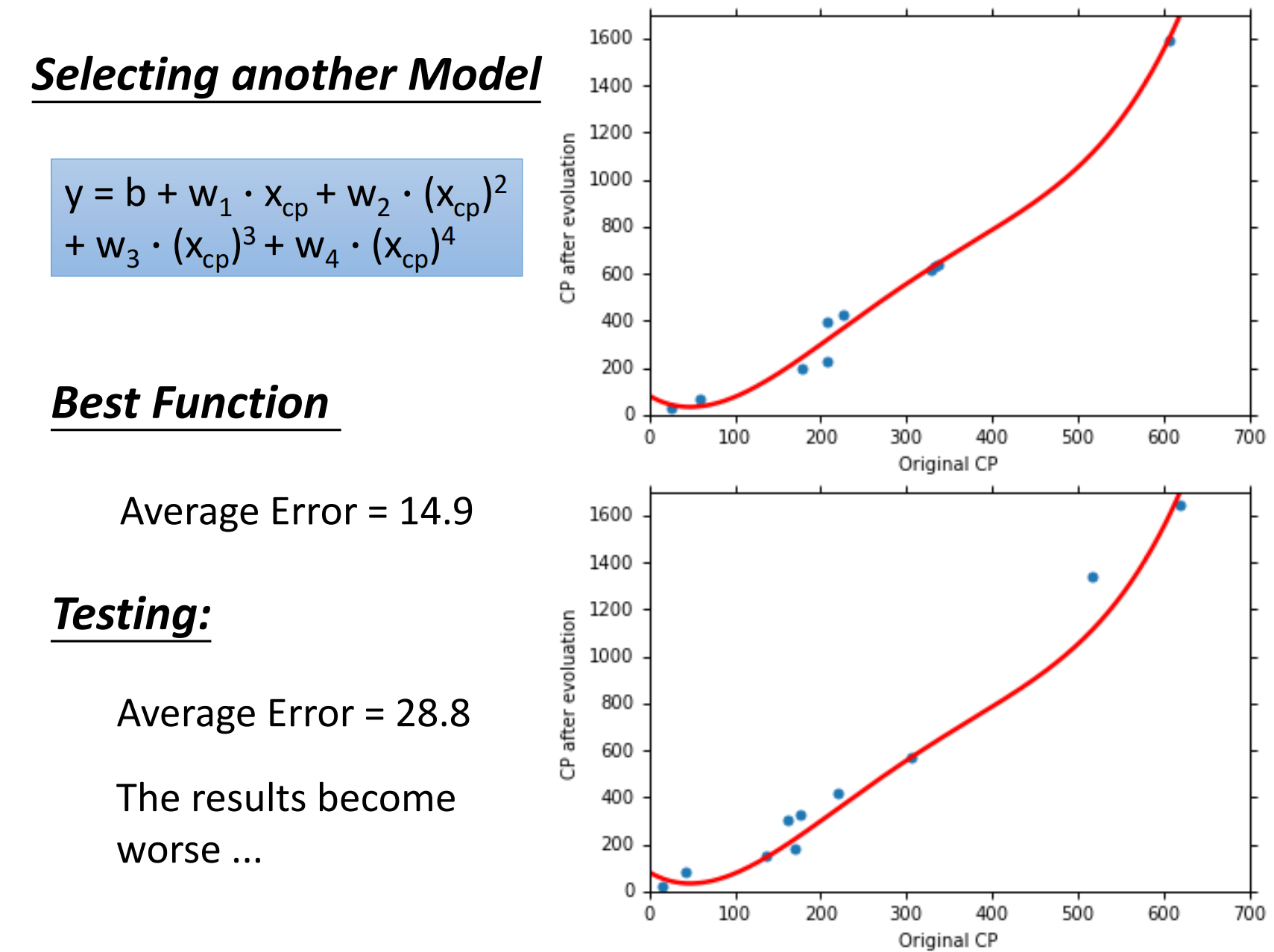

4.损失不理想，重新调整模型

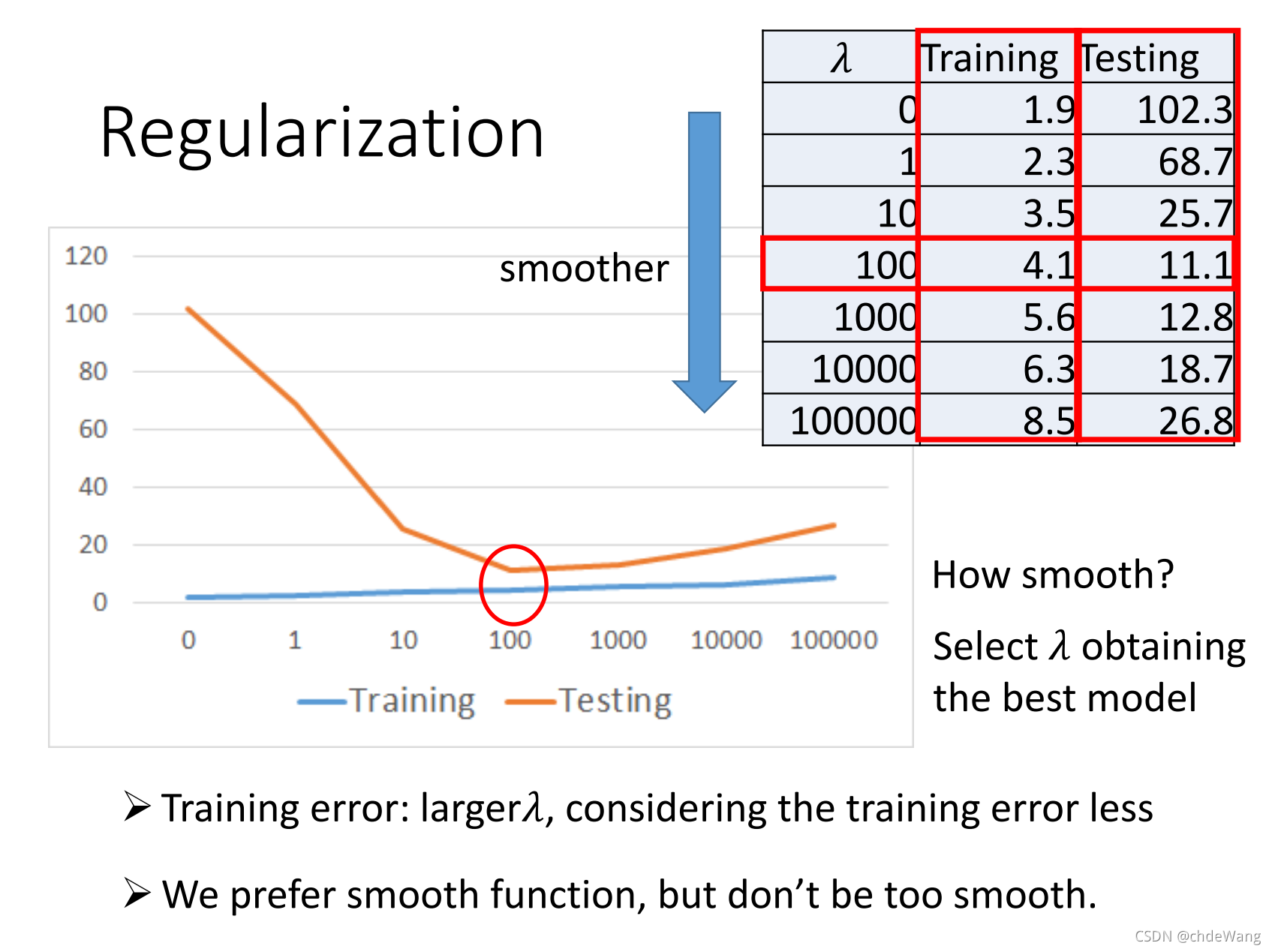

5.添加正则表达式，即学习率











































import numpy as np
import matplotlib.pyplot as plt
x_data = [338.,333.,328.,207.,226.,25.,179.,60.,208.,606.]
y_data = [640.,633.,619.,393.,428.,27.,193.,66.,226.,1591.]
# y_data = b+ w * x_datax = np.arange(-200,-100,1)# bias
y = np.arange(-5,5,0.1) #weight
Z = np.zeros((len(x),len(y)))
X,Y = np.meshgrid(x,y)
for i in range(len(x)):for j in range(len(y)):b = x[i]w = y[j]Z[j][i] = 0for n in range(len(x_data)):Z[j][i]=Z[j][i]+(y_data[n] - b - w*x_data[n])**2Z[j][i] = Z[j][i]/len(x_data)# y_data = b+ w * x_data
b = -120 # initial b
w = -4 # initial w
lr = 0.0000001 # learning rate
iteration = 10000# Store initial values for plotting.
b_history=[b]
w_history=[w]# Iterations
for i in range(iteration):b_grad = 0.0w_grad = 0.0for n in range(len(x_data)):b_grad = b_grad - 2.0*(y_data[n] - b- w*x_data[n])*1.0w_grad = w_grad - 2.0*(y_data[n] - b- w*x_data[n])*x_data[n]# Update  parametersb = b - lr * b_gradw = w - lr * w_grad# Store parameters for plotingb_history.append(b)w_history.append(w)# plot the figure
plt.contourf(x,y,Z,50,alpha=0.5,cmap=plt.get_cmap('jet'))
plt.plot([-188.4],[2.67],'x',ms=12,markeredgewidth=3,color='orange')
plt.plot(b_history,w_history,'o-',ms=3,lw=1.5,color='black')
plt.xlim(-200,-100)
plt.ylim(-5,5)
plt.xlabel(r'$b$',fontsize=16)
plt.ylabel(r'$w$',fontsize=16)
plt.show()

 运行结果：

 调整模型后：

# y_data = b+ w * x_data
b = -120 # initial b
w = -4 # initial w
lr = 1 # learning rate 调整学习率
iteration = 100000# Store initial values for plotting.
b_history=[b]
w_history=[w]lr_b = 0
lr_w = 0# Iterations
for i in range(iteration):b_grad = 0.0w_grad = 0.0for n in range(len(x_data)):b_grad = b_grad - 2.0*(y_data[n] - b- w*x_data[n])*1.0w_grad = w_grad - 2.0*(y_data[n] - b- w*x_data[n])*x_data[n]lr_b = lr_b + b_grad**2lr_w = lr_w + w_grad**2# Update  parameters
#     b = b - lr * b_grad
#     w = w - lr * w_gradb = b - lr/np.sqrt(lr_b) * b_gradw = w - lr/np.sqrt(lr_w) * w_grad# Store parameters for plotingb_history.append(b)w_history.append(w)# plot the figure
plt.contourf(x,y,Z,50,alpha=0.5,cmap=plt.get_cmap('jet'))
plt.plot([-188.4],[2.67],'x',ms=12,markeredgewidth=3,color='orange')
plt.plot(b_history,w_history,'o-',ms=3,lw=1.5,color='black')
plt.xlim(-200,-100)
plt.ylim(-5,5)
plt.xlabel(r'$b$',fontsize=16)
plt.ylabel(r'$w$',fontsize=16)
plt.show()

 运行结果：
