python+ BeautifulSoup抓取“全国行政区划信息查询平台”的省市区信息

全国行政区划信息查询平台地址：http://xzqh.mca.gov.cn/map

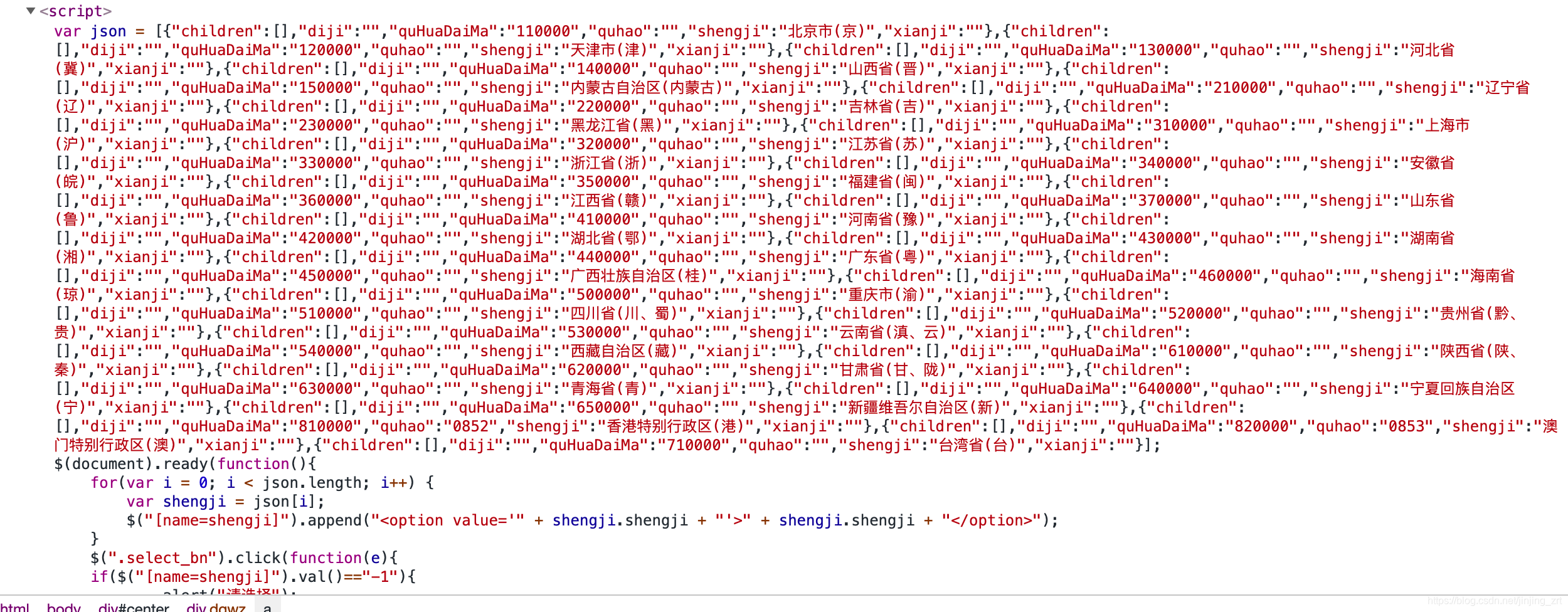

检查网页源码：

检查网页源码可以发现：所有省级信息全部在javaScript下的json中，会在页面加载时加载json数据，填充到页面的option中。
1.第一步：使用正则表达式抓取json数据并解析，租成一个province集合：

 # 获取省的集合def get_province(self):pattern = re.compile(r"var json =(.*?);", re.MULTILINE | re.DOTALL)script = self.soup.find("script", text=pattern)lists = str(pattern.search(script.text).group(1))json_list = json.loads(lists)# province_list = set()province_dict = dict()for json_data in json_list:province = json_data['shengji']quhua_code = json_data['quHuaDaiMa']province_dict.update({quhua_code: province})# province_list.add(province)# print(province_dict)return province_dict

2.第二步：检查该网站实现级联查询的方式，找出查询市区的方式

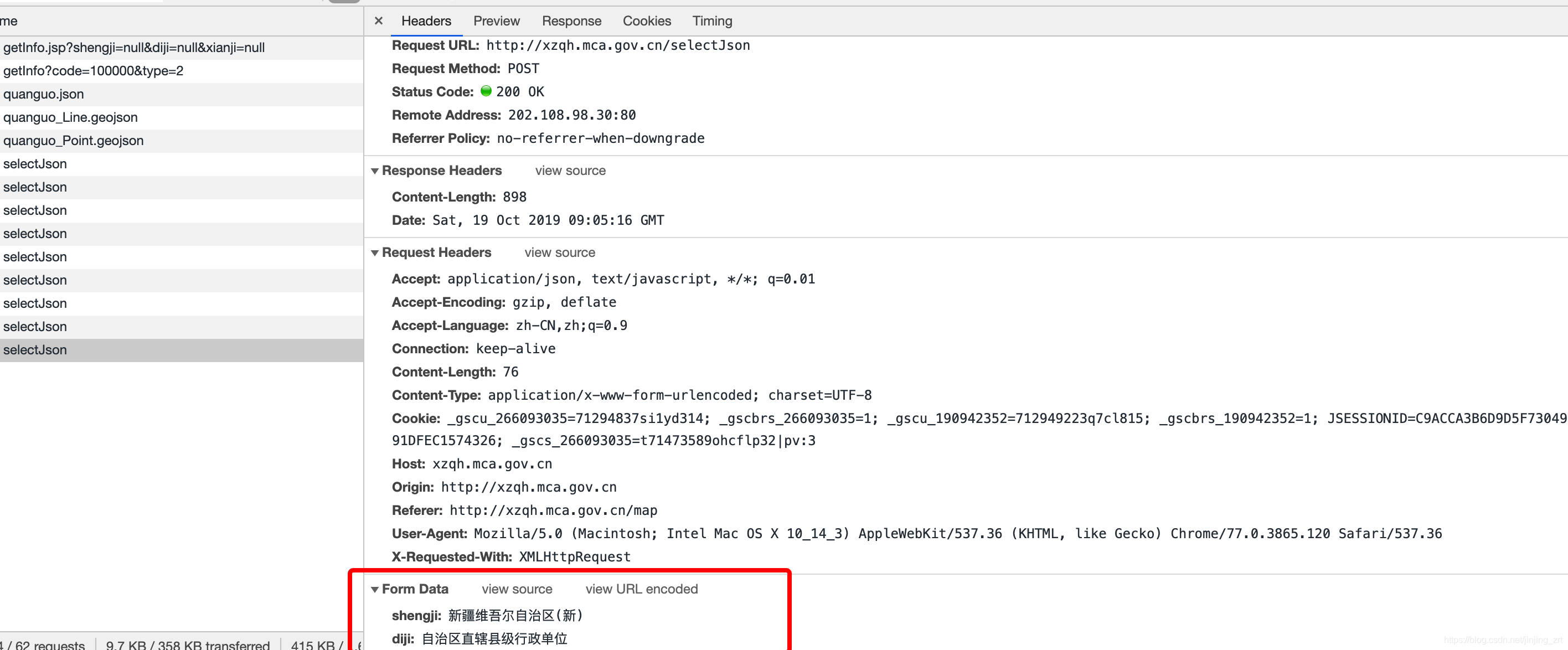

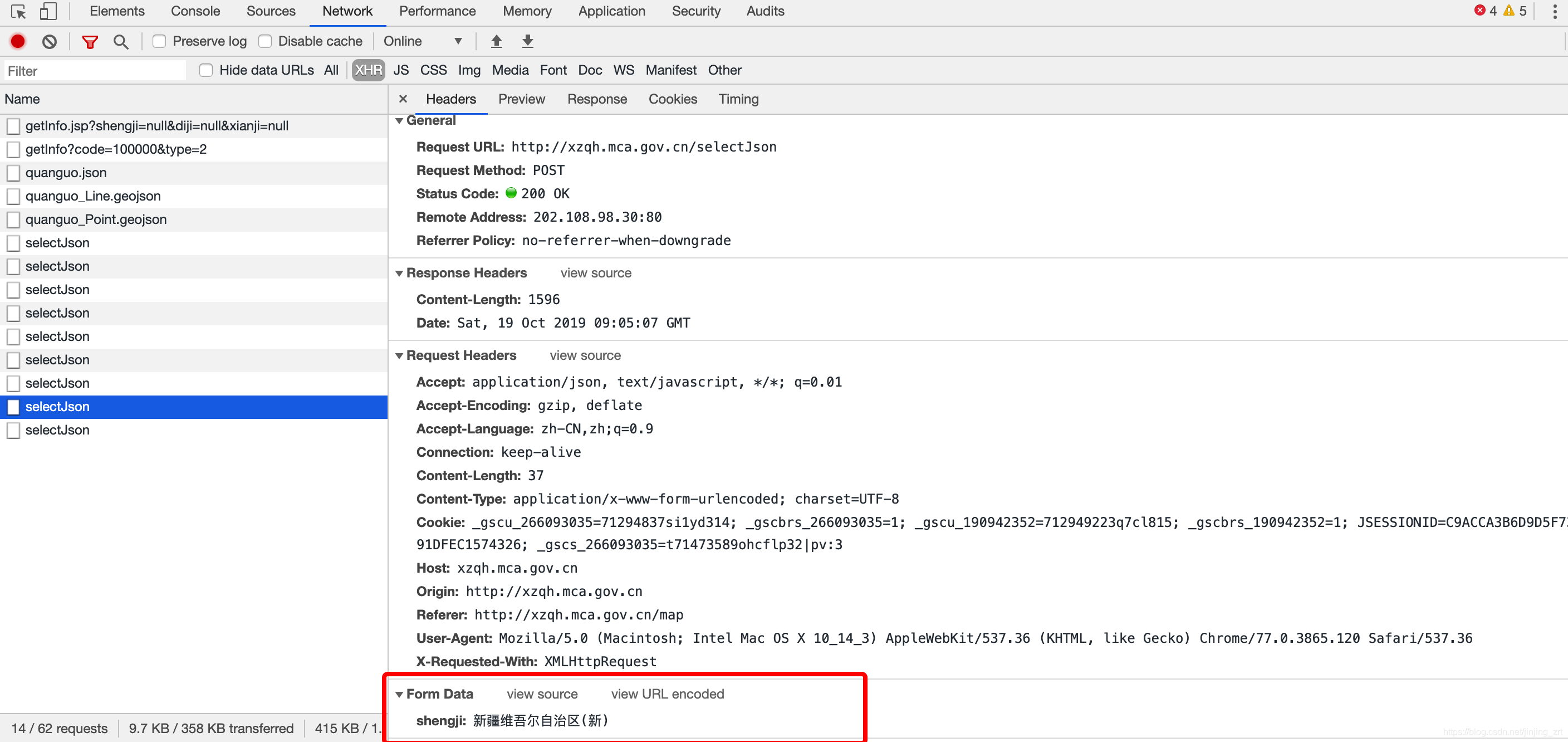

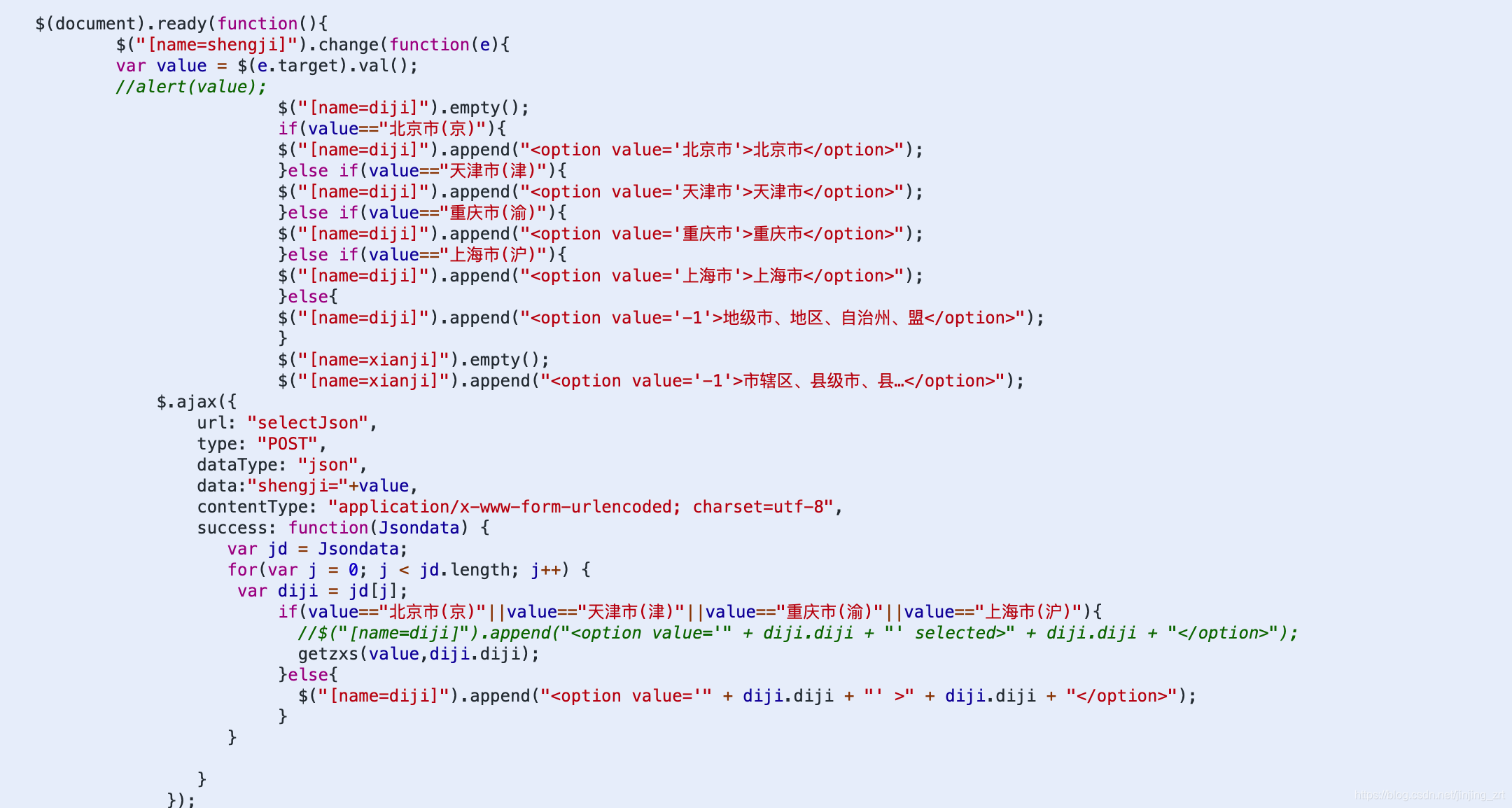

根据这段源码可看出，在选择省级的后，网页会调用selectJson接口进行一个post请求，上图可以看到请求的body和header等信息。
于是事情就变得简单起来：代码可以这样写（如下）

# 获取市def get_city(self, shengji):body = ("shengji=" + shengji).encode('UTF-8')# body = "shengji='江苏省(苏)'"..encode('UTF-8')headers = {'Content-Type': "application/x-www-form-urlencoded; charset=utf-8",'User-Agent': "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_3) AppleWebKit/537.36 (KHTML, ""like Gecko) Chrome/77.0.3865.120 Safari/537.36"}response = requests.post('http://xzqh.mca.gov.cn/selectJson', data=body, headers=headers)content = response.contentjson_list = json.loads(content)# city_list = set()city_dict = dict()for json_data in json_list:citys = json_data['diji']# city_list.add(citys)quhua_code = json_data['quHuaDaiMa']city_dict.update({quhua_code: citys})return city_dict# return city_list# 获取区def get_area(self, shengji, diji):body = ("shengji=" + shengji + "&diji=" + diji).encode('UTF-8')headers = {'Content-Type': "application/x-www-form-urlencoded; charset=utf-8",'User-Agent': "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_3) AppleWebKit/537.36 (KHTML, ""like Gecko) Chrome/77.0.3865.120 Safari/537.36"}response = requests.post('http://xzqh.mca.gov.cn/selectJson', data=body, headers=headers)content = response.contentjson_list = json.loads(content)# area_list = set()area_dict = dict()for json_data in json_list:area = json_data['xianji']# area_list.add(area)area_code = json_data['quHuaDaiMa']area_dict.update({area_code: area})return area_dict

2.第三步：main函数（遍历所有省市区+数据入库）
数据库表结构如下：

【全部代码如下】：

import requests
from bs4 import BeautifulSoup
import pymysql
import re
import jsonclass allAreaDataNew(object):base_url = 'http://xzqh.mca.gov.cn/map'headers = {'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_3) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/77.0.3865.120 Safari/537.36'}wb_data = requests.get(base_url, headers=headers)wb_data.encoding = 'GBK'soup = BeautifulSoup(wb_data.text, 'lxml')# print(soup)def __init__(self):self.db = pymysql.connect("***", "***", "***", "***", charset="utf8mb4")  # mysql数据库self.main()self.db.close()# 入口def main(self):sql_list = set()province_dict = self.get_province()for province_code in province_dict:province = province_dict[province_code]city_dict = self.get_city(province)sql_province = "insert into area_config values (null,'" + province + "','PROVINCE'," + province_code + ",0)"sql_list.add(sql_province)print(province_code + "----------------------------------省------------------------------------------" + province + "\n")for city_code in city_dict:city = city_dict[city_code]area_dict = self.get_area(province, city)print(city_code + "*******************市****************" + city + "\n")# 处理 省直辖县级行政单位if city == '省直辖县级行政单位' or city == '自治区直辖县级行政单位':sql_city = "insert into area_config values (null,'" + city + "','CITY'," + province_code + "," + province_code + ")"sql_list.add(sql_city)for area_code in area_dict:area = area_dict[area_code]print(area_code + "-区-" + area + "\n")sql_area = "insert into area_config values (null,'" + area + "','DISTRICT'," + area_code + "," + province_code + ")"sql_list.add(sql_area)else:sql_city = "insert into area_config values (null,'" + city + "','CITY'," + city_code + "," + province_code + ")"sql_list.add(sql_city)for area_code in area_dict:area = area_dict[area_code]print(area_code + "-区-" + area + "\n")sql_area = "insert into area_config values (null,'" + area + "','DISTRICT'," + area_code + "," + city_code + ")"sql_list.add(sql_area)print(str(sql_list))# 事务入库empty_sql = "delete from area_config"self.connect_mysql(empty_sql, sql_list)# 获取省def get_province(self):pattern = re.compile(r"var json =(.*?);", re.MULTILINE | re.DOTALL)script = self.soup.find("script", text=pattern)lists = str(pattern.search(script.text).group(1))json_list = json.loads(lists)# province_list = set()province_dict = dict()for json_data in json_list:province = json_data['shengji']quhua_code = json_data['quHuaDaiMa']province_dict.update({quhua_code: province})# province_list.add(province)# print(province_dict)return province_dict# 获取市def get_city(self, shengji):body = ("shengji=" + shengji).encode('UTF-8')# body = "shengji='江苏省(苏)'"..encode('UTF-8')headers = {'Content-Type': "application/x-www-form-urlencoded; charset=utf-8",'User-Agent': "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_3) AppleWebKit/537.36 (KHTML, ""like Gecko) Chrome/77.0.3865.120 Safari/537.36"}response = requests.post('http://xzqh.mca.gov.cn/selectJson', data=body, headers=headers)content = response.contentjson_list = json.loads(content)# city_list = set()city_dict = dict()for json_data in json_list:citys = json_data['diji']# city_list.add(citys)quhua_code = json_data['quHuaDaiMa']city_dict.update({quhua_code: citys})return city_dict# return city_list# 获取区def get_area(self, shengji, diji):body = ("shengji=" + shengji + "&diji=" + diji).encode('UTF-8')headers = {'Content-Type': "application/x-www-form-urlencoded; charset=utf-8",'User-Agent': "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_3) AppleWebKit/537.36 (KHTML, ""like Gecko) Chrome/77.0.3865.120 Safari/537.36"}response = requests.post('http://xzqh.mca.gov.cn/selectJson', data=body, headers=headers)content = response.contentjson_list = json.loads(content)# area_list = set()area_dict = dict()for json_data in json_list:area = json_data['xianji']# area_list.add(area)area_code = json_data['quHuaDaiMa']area_dict.update({area_code: area})return area_dict# return area_listdef connect_mysql(self, empty_sql, sql_list):cursor = self.db.cursor()try:cursor.execute(empty_sql)for sql in sql_list:cursor.execute(sql)print('=================================更新所有数据完成！=================================')except Exception as e:print('=================================更新失败！=================================')print(e)self.db.rollback()finally:cursor.close()# 提交操作self.db.commit()if __name__ == '__main__':allAreaDataNew()

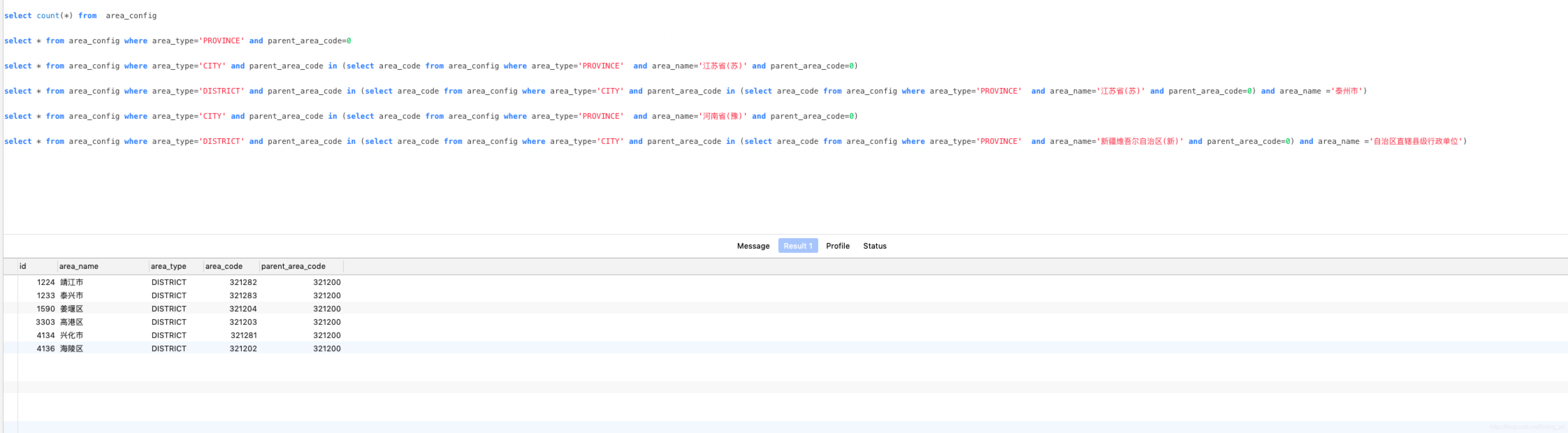

代码执行成功后就可以查到中国所有省市区啦！：

特殊情况：“省直辖县级行政单位”和“自治区直辖县级行政单位”

部分省有特殊的“直辖县级行政单位”或“自治区直辖县级行政单位”
参考：https://baike.baidu.com/item/省直辖县级行政单位/6903180?fr=aladdin
遇到这种情况有点懵逼，因为没有区号代码所以无法关联父子关系。
但是无妨，数据库设计有type字段～直接将省级区号代码作为唯一值给到市，作为区号代码，再将这个值赋值给区，作为区的父级区号代码，这样后台用type+区号代码判断关联关系。
