keepalived高可用+nginx负载均衡

在这里插入图片描述

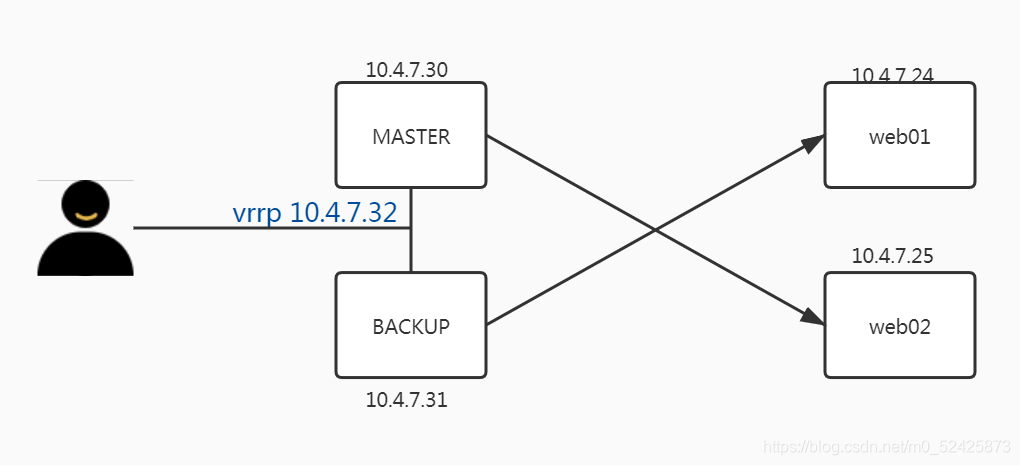

1、IP地址规划

hostname	ip	说明
KN01	10.4.7.30	keepalived MASTER节点 nginx负载均衡器
KN02	10.4.7.31	keepalived BACKUP节点 nginx负载均衡器
WEB01	10.4.7.24	web01节点
WEB02	10.4.7.25	web02节点

2、关闭防火墙，selinux，并安装nginx(四台虚拟机都要执行)

[root@web02 ~]# systemctl stop firewalld
[root@web02 ~]# sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/sysconfig/selinux
[root@web02 ~]# setenforce 0                              //
[root@web02 ~]# yum -y install epel-release               //安装nginx之前要先安装nginx源
[root@web02 ~]# yum install -y nginx

3、配置并启动两个web节点。

[root@web02 ~]# echo "`hostname` `ifconfig ens33 |sed -n 's#.*inet \(.*\)netmask.*#\1#p'`" > /usr/share/nginx/html/index.html                          //将hostname和ip地址写进index.html，这是nginx的默认目录，用于后面测试使用
[root@web02 ~]#systemctl restart nginx                    //重启nginx服务
[root@web01 ~]# curl 10.4.7.24                            //查看页面内容
web01 10.4.7.24
[root@web01 ~]# curl 10.4.7.25                            //查看页面内容
web02 10.4.7.25

4、配置两个nginx负载局衡器

1）修改nginx配置文件（KN01、KN02）

#修改/etc/nginx/nginx.conf文件。
http {upstream backend {server 10.4.7.24:80 weight=1 max_fails=3 fail_timeout=20s;    //权重为1server 10.4.7.25:80 weight=1 max_fails=3 fail_timeout=20s;    //权重为1，理论上访问两个web服务应该间隔访问}server {listen       80 default_server;listen       [::]:80 default_server;server_name  _;location / {proxy_pass http://backend;}}
}

2)、检查nginx配置文件，然后启动nginx

[root@kn01 ~]# which nginx
/usr/sbin/nginx
[root@kn01 ~]# /usr/sbin/nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@kn01 ~]# systemctl restart nginx
[root@kn01 ~]# systemctl status nginx
● nginx.service - The nginx HTTP and reverse proxy serverLoaded: loaded (/usr/lib/systemd/system/nginx.service; disabled; vendor preset: disabled)Active: active (running) since 二 2021-01-26 02:33:53 EST; 5h 59min agoMain PID: 57976 (nginx)CGroup: /system.slice/nginx.service├─57976 nginx: master process /usr/sbin/nginx├─57977 nginx: worker process└─57978 nginx: worker process1月 26 02:33:53 kn01 systemd[1]: Starting The nginx HTTP and reverse proxy server...
1月 26 02:33:53 kn01 nginx[57971]: nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
1月 26 02:33:53 kn01 nginx[57971]: nginx: configuration file /etc/nginx/nginx.conf test is successful
1月 26 02:33:53 kn01 systemd[1]: Started The nginx HTTP and reverse proxy server.

3)、查看两个节点nginx负载均衡器是否开启成功

[root@kn01 ~]# curl 10.4.7.30                                         //访问该服务的时候基本是1:1，说明负载均衡开启成功
web02 10.4.7.25
[root@kn01 ~]# curl 10.4.7.30
web01 10.4.7.24
[root@kn01 ~]# curl 10.4.7.31
web02 10.4.7.25
[root@kn01 ~]# curl 10.4.7.31
web01 10.4.7.24

5、安装、配置并启动keepalived，以KN01为例

[root@kn01 ~]# yum install keepalived -y
[root@kn01 ~]# vim /etc/keepalived/keepalived.conf       配置文件修改
[root@kn01 ~]# systemctl restart keepalived

1）MASTER节点配置（KN01）

vrrp_instance VI_1 {state MASTER                                     //修改为MASTERinterface ens33                                  //改为要设置虚拟IP的网卡名字virtual_router_id 51priority 100                                     //优先级advert_int 1authentication {auth_type PASSauth_pass 1111}nopreempt                                        //非抢占式，防止虚拟IP来回飘virtual_ipaddress {10.4.7.32/24 dev ens33 lable ens33:1         //设置虚拟IP}
}

2）BACKUP节点配置（KN02）

vrrp_instance VI_1 {state BACKUPinterface ens33virtual_router_id 51priority 90advert_int 1authentication {auth_type PASSauth_pass 1111}nopreemptvirtual_ipaddress {10.4.7.32/24 dev ens33}
}

3）查看虚拟IP地址飘逸情况

[root@kn01 ~]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000link/ether 00:0c:29:11:af:f3 brd ff:ff:ff:ff:ff:ffinet 10.4.7.30/24 brd 10.4.7.255 scope global ens33valid_lft forever preferred_lft foreverinet 10.4.7.32/24 scope global secondary ens33valid_lft forever preferred_lft foreverinet6 fe80::b778:7955:18a9:b4d6/64 scope link valid_lft forever preferred_lft forever
[root@kn01 ~]# systemctl stop keepalived
[root@kn01 ~]# ip a                                     //IP地址10.4.7.32飘走
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000link/ether 00:0c:29:11:af:f3 brd ff:ff:ff:ff:ff:ffinet 10.4.7.30/24 brd 10.4.7.255 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::b778:7955:18a9:b4d6/64 scope link valid_lft forever preferred_lft forever
[root@kn02 ~]# ip a                                   //IP地址10.4.7.32飘到KN02节点
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000link/ether 00:0c:29:12:87:53 brd ff:ff:ff:ff:ff:ffinet 10.4.7.31/24 brd 10.4.7.255 scope global ens33valid_lft forever preferred_lft foreverinet 10.4.7.32/24 scope global secondary ens33valid_lft forever preferred_lft foreverinet6 fe80::961f:2027:a51:6df0/64 scope link valid_lft forever preferred_lft forever
[root@kn01 ~]# systemctl start keepalived
[root@kn01 ~]# ip a                                     //IP地址10.4.7.32并没有飘过来，因为我们设置了nopreempt属性。是非抢占式的，所以IP地址不会飘走，只有再KN02节点出现异常的时候才会飘过来。
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000link/ether 00:0c:29:11:af:f3 brd ff:ff:ff:ff:ff:ffinet 10.4.7.30/24 brd 10.4.7.255 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::b778:7955:18a9:b4d6/64 scope link valid_lft forever preferred_lft forever

6、keepalived中nginx运行状态监测脚本，

当监控到nginx服务异常时，停止keepalived服务。这样虚拟IP就会飘到另外一个节点上，确保服务不断线，可靠运行。下面给出两种探测脚本

1）个人感觉下面脚本用来监测nginx运行状态比较实用。

优点：此脚本获得网页内容，然后判断nginx服务是否正常。
缺点：为判断获取的网页内容是否正确。待改进。

#!/bin/bash
curl 10.4.7.31 >> file
A=`cat file|wc -l`
if [ $A -eq 0 ];then/usr/sbin/nginxsleep 2curl 10.4.7.31 >> fileif [ `cat file |wc -l` -eq 0 ];thenkillall keepalivedfi
fi
cat /dev/null > file

运行killall命令需要安装psmisc包

yum install psmisc -y

2）此脚本检测nginx进程，不关注内容，若出现有进程但是页面加载不出来的情况，此脚本无用。

#!/bin/bash
A=`ps -C nginx --no-header|wc -l`
if [ $A -eq 0 ];then/usr/sbin/nginxsleep 2if [ `ps -C nginx --no-header|wc -l` -eq 0 ];thenkillall keepalivedfi
fi
