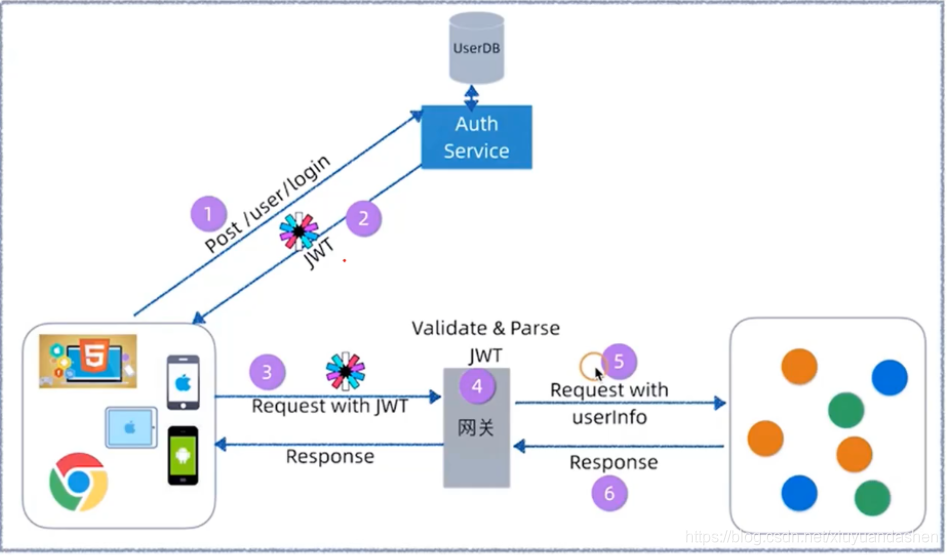

原理架构图

在这里插入图片描述

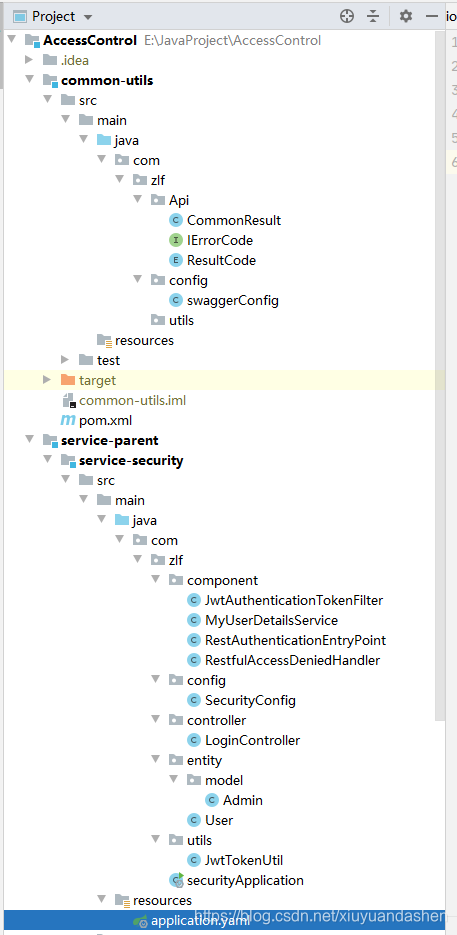

demo的项目结构

在这里插入图片描述

JwtTokenUtil : JwtToken生成的工具类
RestAuthenticationEntryPoint : 当未登录或者token失效访问接口时，自定义的返回结果
RestfulAccessDeniedHandler : 当访问接口没有权限时，自定义的返回结果
JwtAuthenticationTokenFilter : JWT登录授权过滤器
SecurityConfig：SpringSecurity 的配置类
User ：实现 UserDetails 接口，主要功能是保存用户的账号密码以及角色列表
MyUserDetailsService：实现了 UserDetailsService 接口的 loadUserByUsername 方法，主要是进行登录信息验证，在输入账户密码进行登录的时候，会进入这个类进行验证信息。

由于类比较多，一般建议创建的流程：
1、创建 JwtTokenUtil
2、创建 RestAuthenticationEntryPoint 和 RestfulAccessDeniedHandler
3、创建 MyUserDetailsService
4、创建 JwtAuthenticationTokenFilter
5、配置 Security信息 SecurityConfig

JwtTokenUtil

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Component;import java.util.Date;
import java.util.HashMap;
import java.util.Map;/*** @Description: JwtToken生成的工具类* @Author: zlf* @Date: 2021/3/30*/
@Component
public class JwtTokenUtil {private static final Logger LOGGER = LoggerFactory.getLogger(JwtTokenUtil.class);private static final String CLAIM_KEY_USERNAME = "sub";private static final String CLAIM_KEY_CREATED = "created";@Value("${jwt.secret}")private String secret;@Value("${jwt.expiration}")private Long expiration;/*** 根据负责生成JWT的token*/private String generateToken(Map<String, Object> claims) {return Jwts.builder().setClaims(claims).setExpiration(generateExpirationDate()).signWith(SignatureAlgorithm.HS512, secret).compact();}/*** 从token中获取JWT中的负载*/private Claims getClaimsFromToken(String token) {Claims claims = null;try {claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(token).getBody();} catch (Exception e) {LOGGER.info("JWT格式验证失败:{}",token);}return claims;}/*** 生成token的过期时间*/private Date generateExpirationDate() {return new Date(System.currentTimeMillis() + expiration * 1000);}/*** 从token中获取登录用户名*/public String getUserNameFromToken(String token) {String username;try {Claims claims = getClaimsFromToken(token);username =  claims.getSubject();} catch (Exception e) {username = null;}return username;}/*** 验证token是否还有效** @param token       客户端传入的token* @param userDetails 从数据库中查询出来的用户信息*/public boolean validateToken(String token, UserDetails userDetails) {String username = getUserNameFromToken(token);return username.equals(userDetails.getUsername()) && !isTokenExpired(token);}/*** 判断token是否已经失效*/private boolean isTokenExpired(String token) {Date expiredDate = getExpiredDateFromToken(token);return expiredDate.before(new Date());}/*** 从token中获取过期时间*/private Date getExpiredDateFromToken(String token) {Claims claims = getClaimsFromToken(token);return claims.getExpiration();}/*** 根据用户信息生成token*/public String generateToken(UserDetails userDetails) {Map<String, Object> claims = new HashMap<>();claims.put(CLAIM_KEY_USERNAME, userDetails.getUsername());claims.put(CLAIM_KEY_CREATED, new Date());return generateToken(claims);}/*** 判断token是否可以被刷新*/public boolean canRefresh(String token) {return !isTokenExpired(token);}/*** 刷新token*/public String refreshToken(String token) {Claims claims = getClaimsFromToken(token);claims.put(CLAIM_KEY_CREATED, new Date());return generateToken(claims);}
}

RestAuthenticationEntryPoint 和 RestfulAccessDeniedHandler

import cn.hutool.json.JSONUtil;
import com.zlf.Api.CommonResult;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;/**
* @Description: 当未登录或者token失效访问接口时，自定义的返回结果
* @Author: zlf
* @Date: 2021/3/30
*/
@Component
public class RestAuthenticationEntryPoint implements AuthenticationEntryPoint {@Overridepublic void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException, ServletException {System.out.println("--- --- 未登录");response.setCharacterEncoding("UTF-8");response.setContentType("application/json");response.getWriter().println(JSONUtil.parse(CommonResult.unauthorized("失败")));response.getWriter().flush();}
}

import cn.hutool.json.JSONUtil;
import com.zlf.Api.CommonResult;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.web.access.AccessDeniedHandler;
import org.springframework.stereotype.Component;import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;/**
* @Description: 当访问接口没有权限时，自定义的返回结果
* @Author: zlf
* @Date: 2021/3/30
*/
@Component
public class RestfulAccessDeniedHandler implements AccessDeniedHandler {@Overridepublic void handle(HttpServletRequest request,HttpServletResponse response,AccessDeniedException e) throws IOException, ServletException {response.setCharacterEncoding("UTF-8");response.setContentType("application/json");response.getWriter().println(JSONUtil.parse(CommonResult.forbidden(e.getMessage())));response.getWriter().flush();}
}

MyUserDetailsService

import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.stereotype.Component;import java.util.ArrayList;
import java.util.List;/*** Created with IntelliJ IDEA.** @Auther: zlf* @Date: 2021/03/30/23:38* @Description:*/
@Component
public class MyUserDetailsService implements UserDetailsService {@Overridepublic UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {// 这边可以通过username去获取数据库中的用户信息 如果没有抛出异常List<GrantedAuthority> authorityList = new ArrayList<>();/* 此处查询数据库得到角色权限列表，这里可以用Redis缓存以增加查询速度 */System.out.println("--- ---- 判断");authorityList.add(new SimpleGrantedAuthority("ROLE_USER"));  // 角色 需要以 ROLE_ 开头return new org.springframework.security.core.userdetails.User(username,  new BCryptPasswordEncoder().encode("123456"), authorityList);}
}

JwtAuthenticationTokenFilter

import com.zlf.utils.JwtTokenUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;/**
* @Description: JWT登录授权过滤器
* @Author: zlf
* @Date: 2021/3/30
*/
@Component
@Slf4j
public class JwtAuthenticationTokenFilter extends OncePerRequestFilter {//@Autowired//private UserDetailsService userDetailsService;@Autowiredprivate JwtTokenUtil jwtTokenUtil;@Value("${jwt.tokenHeader}")private String tokenHeader;@Value("${jwt.tokenHead}")private String tokenHead;@Autowiredprivate MyUserDetailsService userDetailsService;@Overrideprotected void doFilterInternal(HttpServletRequest request,HttpServletResponse response,FilterChain chain) throws ServletException, IOException {String authHeader = request.getHeader(this.tokenHeader);if (authHeader != null && authHeader.startsWith(this.tokenHead)) {String authToken = authHeader.substring(this.tokenHead.length());// The part after "Bearer "String username = jwtTokenUtil.getUserNameFromToken(authToken);log.info("checking username:{}", username);if (username != null && SecurityContextHolder.getContext().getAuthentication() == null) {UserDetails userDetails = userDetailsService.loadUserByUsername(username);if (jwtTokenUtil.validateToken(authToken, userDetails)) {UsernamePasswordAuthenticationToken authentication = new UsernamePasswordAuthenticationToken(userDetails, new BCryptPasswordEncoder().encode("123456"), userDetails.getAuthorities());authentication.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));log.info("authenticated user:{}", username);SecurityContextHolder.getContext().setAuthentication(authentication);}}}chain.doFilter(request, response);}//    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
//        List<GrantedAuthority> authorityList = new ArrayList<>();
//        /* 此处查询数据库得到角色权限列表，这里可以用Redis缓存以增加查询速度 */
//        authorityList.add(new SimpleGrantedAuthority("ROLE_USER"));  // 角色 需要以 ROLE_ 开头
//        return new org.springframework.security.core.userdetails.User(username,  "123456", true, true,
//                true, true, authorityList);
//    }
}

SecurityConfig

import com.zlf.component.JwtAuthenticationTokenFilter;
import com.zlf.component.MyUserDetailsService;
import com.zlf.component.RestAuthenticationEntryPoint;
import com.zlf.component.RestfulAccessDeniedHandler;
import com.zlf.entity.model.Admin;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;/*** Created with IntelliJ IDEA.** @Auther: zlf* @Date: 2021/03/30/20:45* @Description:*/
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {@Autowiredprivate MyUserDetailsService userDetailsService;@Autowiredprivate RestfulAccessDeniedHandler restfulAccessDeniedHandler;@Autowiredprivate RestAuthenticationEntryPoint restAuthenticationEntryPoint;@Autowiredprivate JwtAuthenticationTokenFilter jwtAuthenticationTokenFilter;@Overrideprotected void configure(HttpSecurity httpSecurity) throws Exception {httpSecurity.csrf()// 由于使用的是JWT，我们这里不需要csrf.disable().sessionManagement()// 基于token，所以不需要session.sessionCreationPolicy(SessionCreationPolicy.STATELESS).and().authorizeRequests().antMatchers(HttpMethod.GET, // 允许对于网站静态资源的无授权访问"/","/*.html","/favicon.ico","/**/*.html","/**/*.css","/**/*.js","/swagger-resources/**","/v2/api-docs/**").permitAll().antMatchers("/admin/login", "/register")// 对登录注册要允许匿名访问.permitAll().antMatchers(HttpMethod.OPTIONS)//跨域请求会先进行一次options请求.permitAll()
//                .antMatchers("/**")//测试时全部运行访问
//                .permitAll().anyRequest()// 除上面外的所有请求全部需要鉴权认证.authenticated();// 禁用缓存httpSecurity.headers().cacheControl();// 添加JWT filterhttpSecurity.addFilterBefore(jwtAuthenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);//添加自定义未授权和未登录结果返回httpSecurity.exceptionHandling().accessDeniedHandler(restfulAccessDeniedHandler).authenticationEntryPoint(restAuthenticationEntryPoint);}@Overrideprotected void configure(AuthenticationManagerBuilder auth) throws Exception {auth.userDetailsService(userDetailsService).passwordEncoder(new BCryptPasswordEncoder());}//    @Bean
//    public PasswordEncoder passwordEncoder() {
//        return new BCryptPasswordEncoder();
//    }//    @Bean
//    public JwtAuthenticationTokenFilter jwtAuthenticationTokenFilter(){
//        return new JwtAuthenticationTokenFilter();
//    }@Bean@Overridepublic AuthenticationManager authenticationManagerBean() throws Exception {return super.authenticationManagerBean();}
}

Controller

import com.zlf.entity.User;
import com.zlf.utils.JwtTokenUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;import javax.servlet.http.HttpServletRequest;
import java.util.HashMap;
import java.util.Map;/*** Created with IntelliJ IDEA.** @Auther: zlf* @Date: 2021/03/30/23:15* @Description:*/
@RestController
public class LoginController {@Autowiredprivate JwtTokenUtil jwtTokenUtil;@Value("${jwt.tokenHead}")private String tokenHead;@PostMapping("/admin/login")public String login(@RequestBody User user, HttpServletRequest request) {/* 在这里验证用户名和密码，验证成功则生成token返回 */System.out.println("--- -- -login");System.out.println(user);return  tokenHead+" "+jwtTokenUtil.generateToken(user);  // 生成 Token，返回给客户端}@PreAuthorize("hasAnyRole('USER')")  // 对单个方法进行权限控制@GetMapping("/me")public String me() {// 从上下文中获取 UserDetailsUserDetails userDetails = (UserDetails) org.springframework.security.core.context.SecurityContextHolder.getContext().getAuthentication().getPrincipal();return userDetails.getUsername() + "," + userDetails.getPassword();}
}

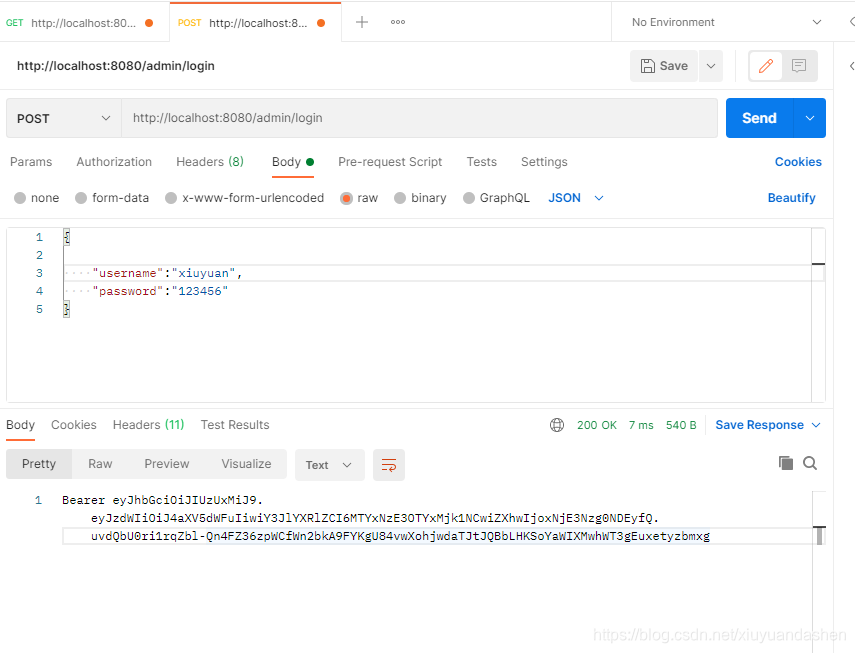

Postman 测试

在这里插入图片描述

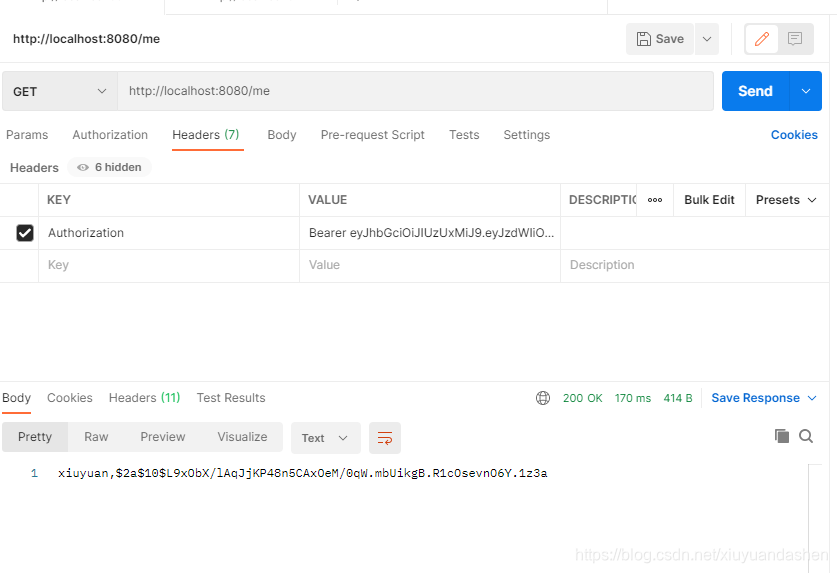

我们将登录获取到的 Token ，放到请求头中。

最后放出 JWT key的配置

# 自定义jwt key
jwt:tokenHeader: Authorization #JWT存储的请求头secret: mySecret #JWT加解密使用的密钥expiration: 604800 #JWT的超期限时间(60*60*24)tokenHead: Bearer  #JWT负载中拿到开头

依赖

<!--Hutool Java工具包--><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId><version>4.5.7</version></dependency><!--JWT(Json Web Token)登录支持--><dependency><groupId>io.jsonwebtoken</groupId><artifactId>jjwt</artifactId><version>0.9.0</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-security</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency>
