一、介绍
springboot-flowable-modeler 快速开发工作流脚手架
二、技术选型
SpringBoot + flowable + modeler + idm
| 框架 | 版本 |
|---|---|
| SpringBoot | 2.1.5.RELEASE |
| flowable | 6.4.0 |
| mysql | 8.0.11 |
三、登录/绘制流程图

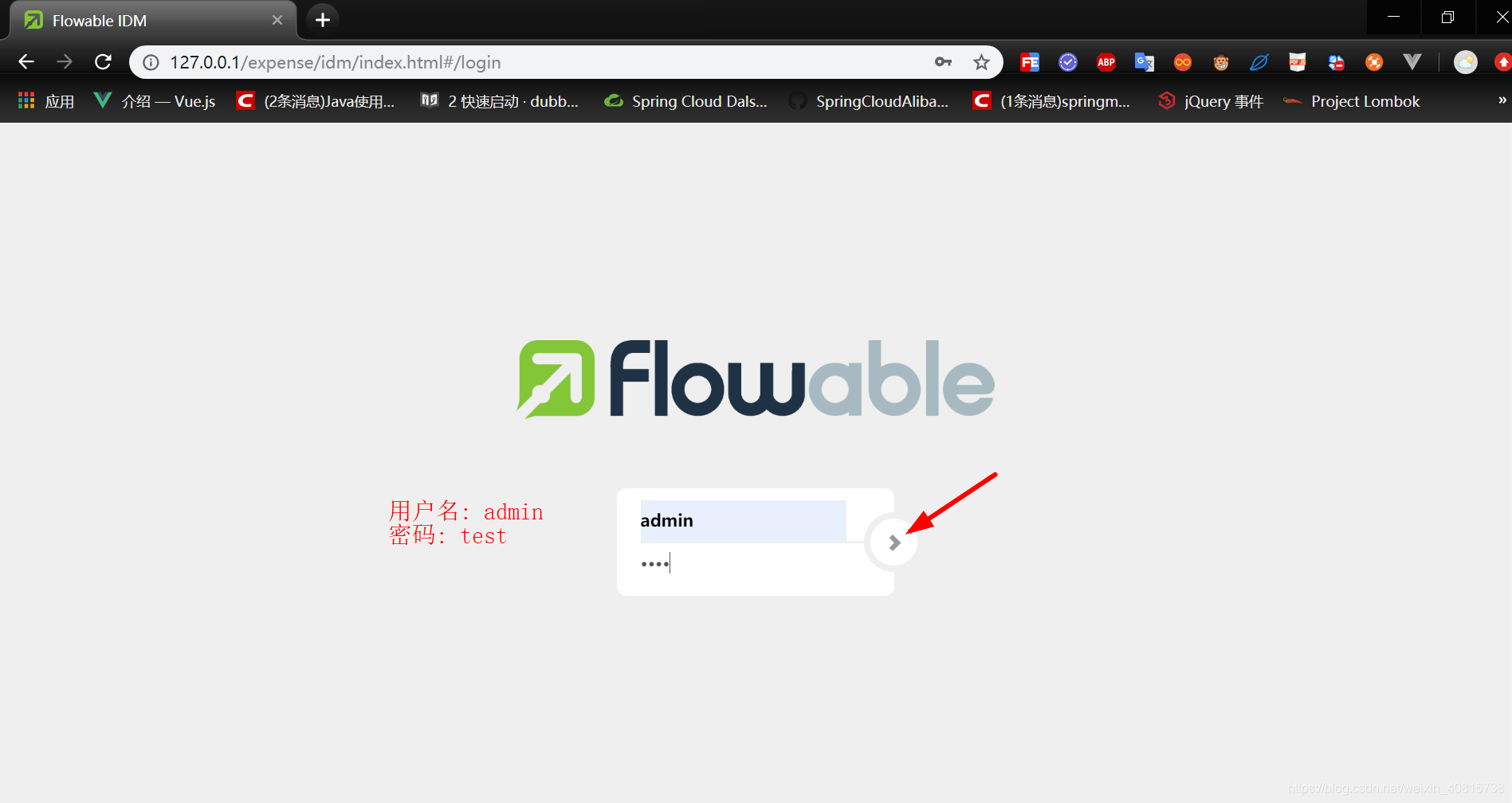

3.1. 需要先登录
| 链接 | http://127.0.0.1:80/expense/idm/index.html |
|---|---|
| 用户名 | admin |
| 密码 | test |

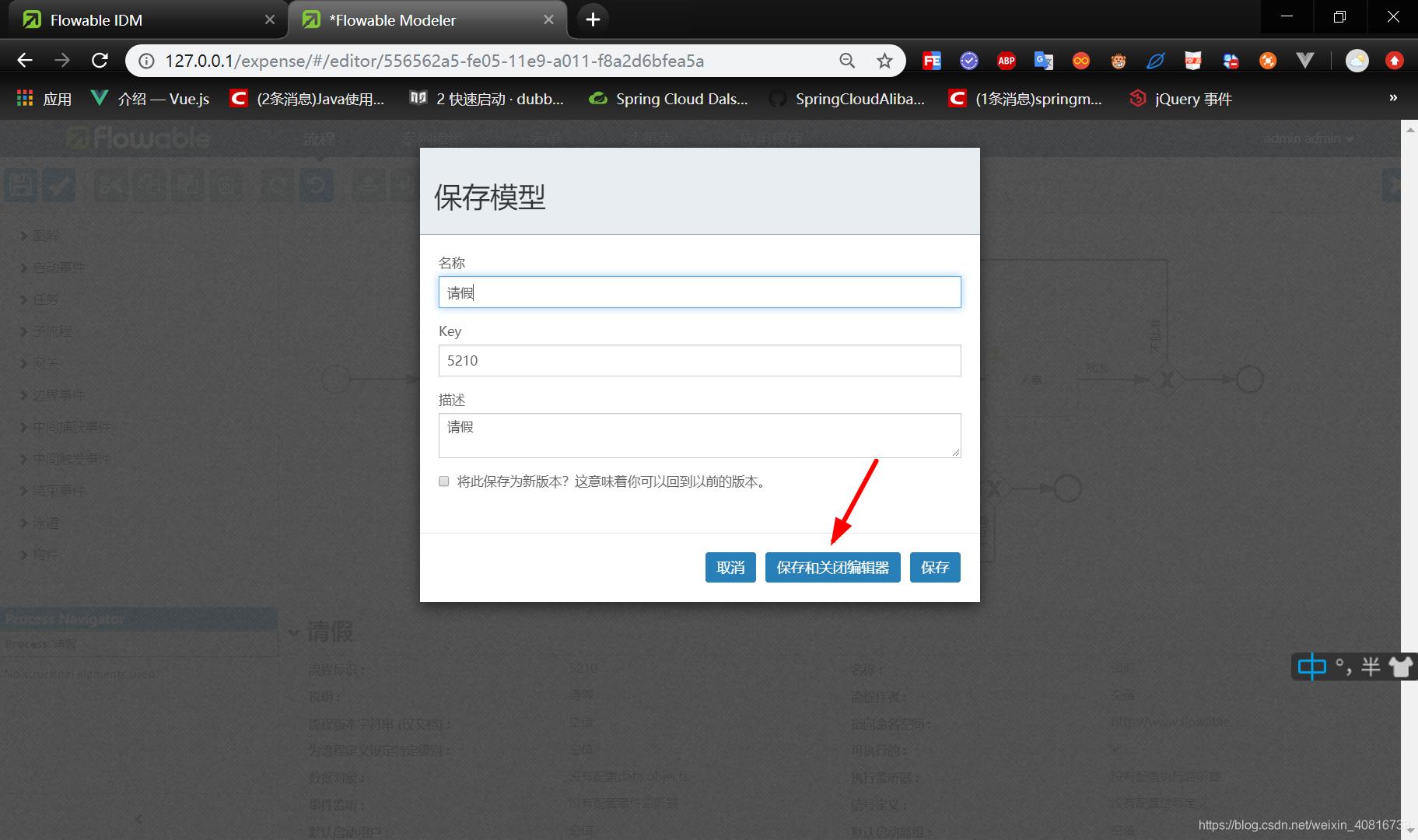

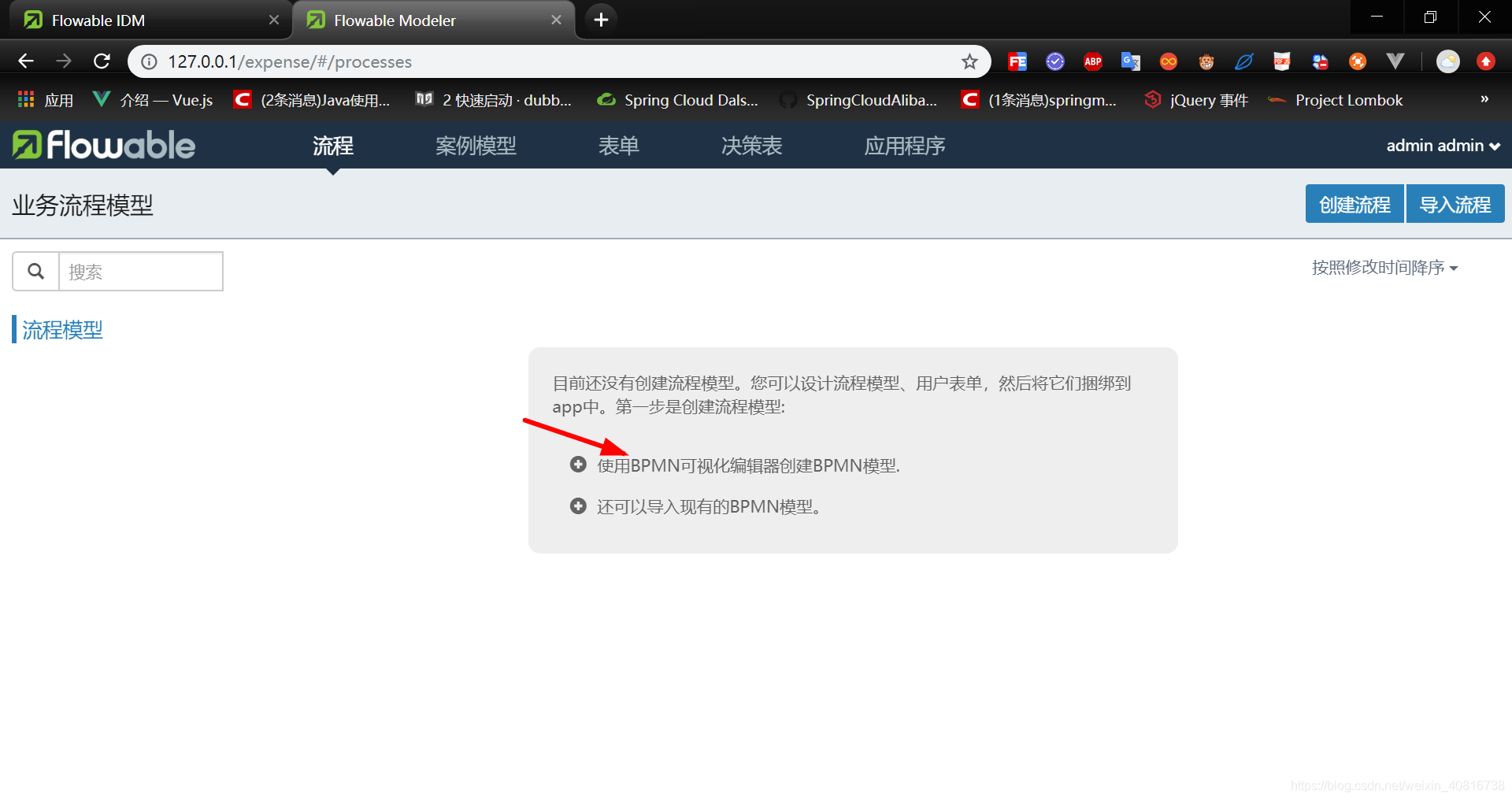

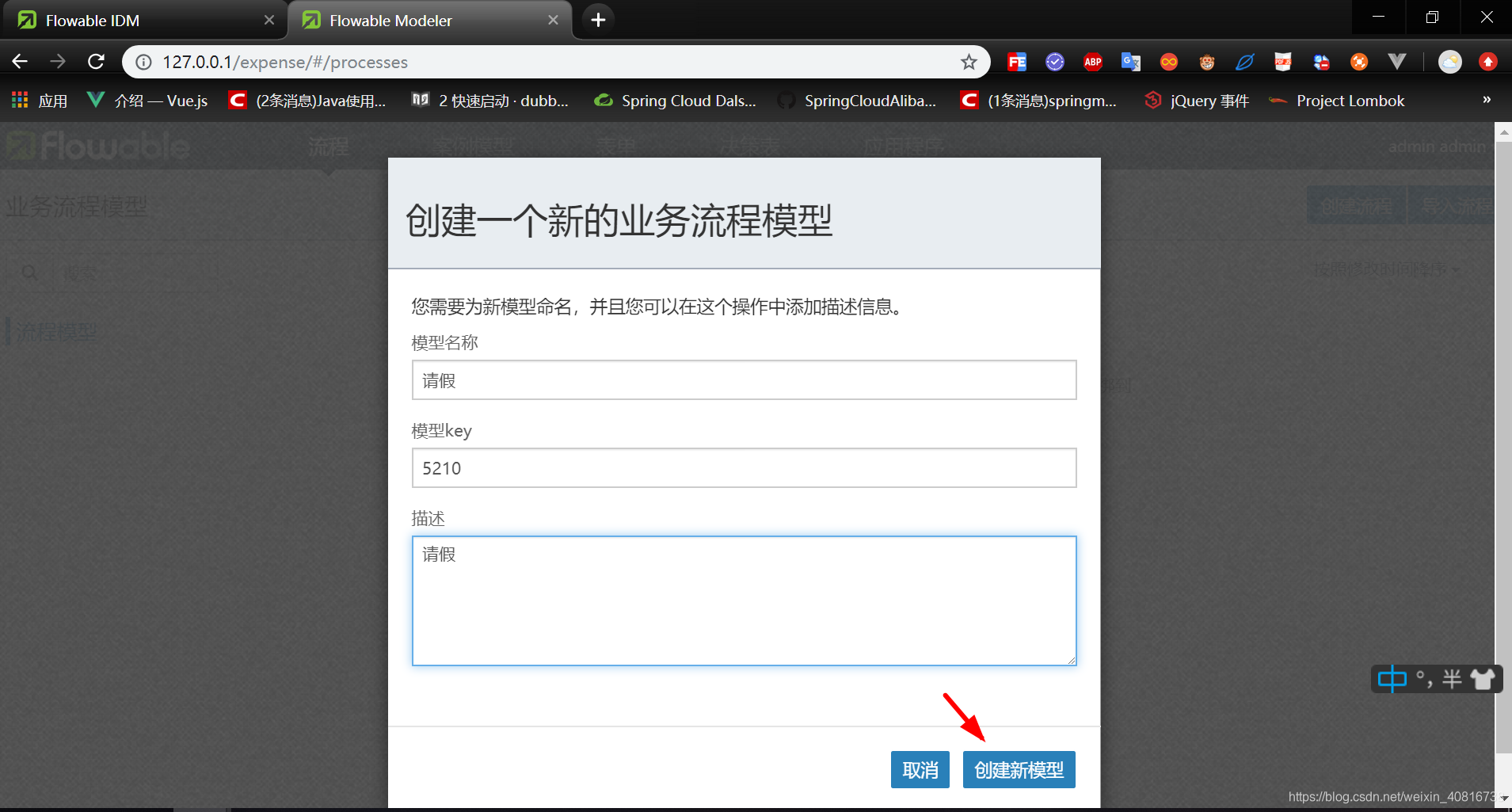

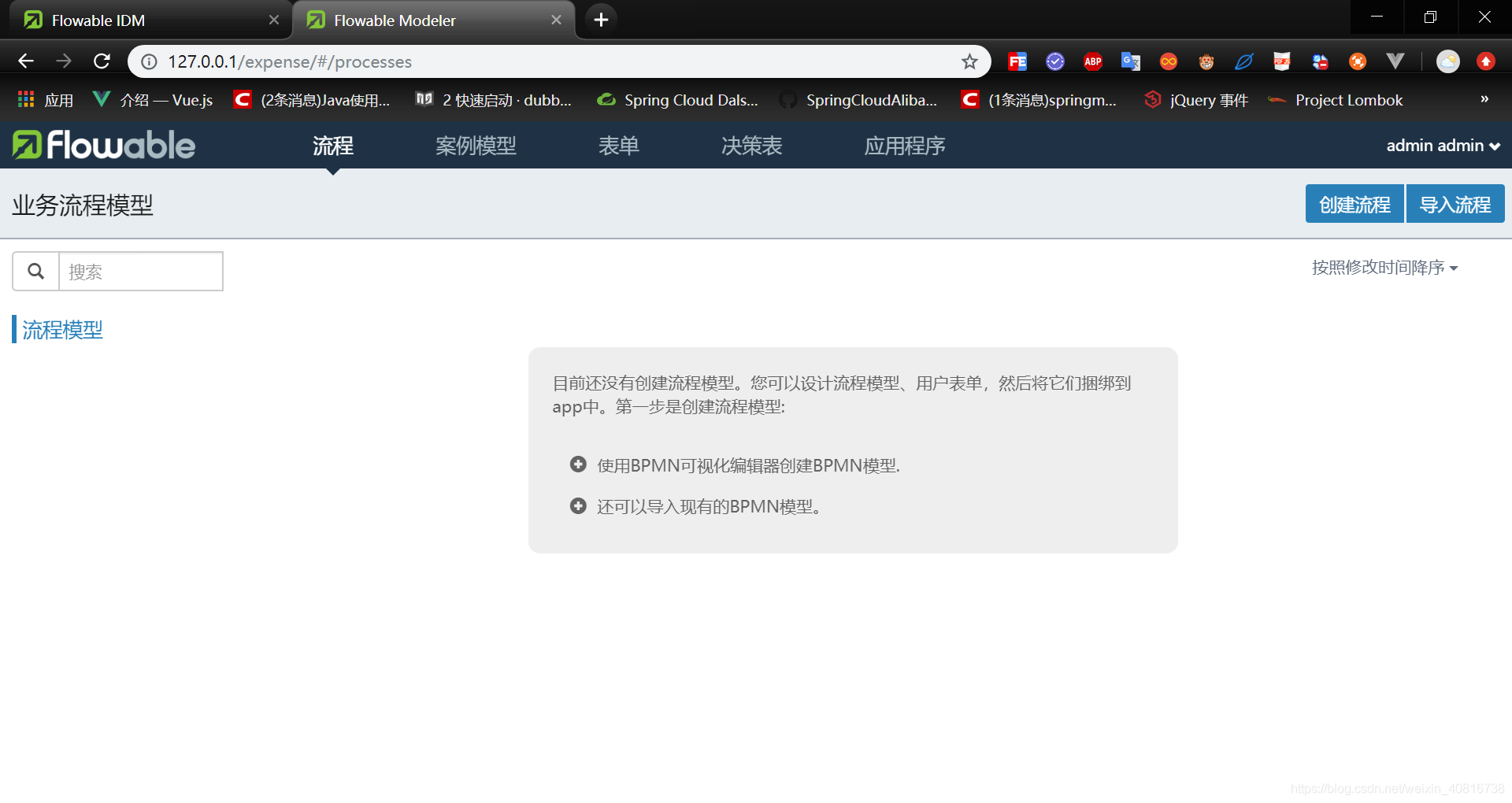

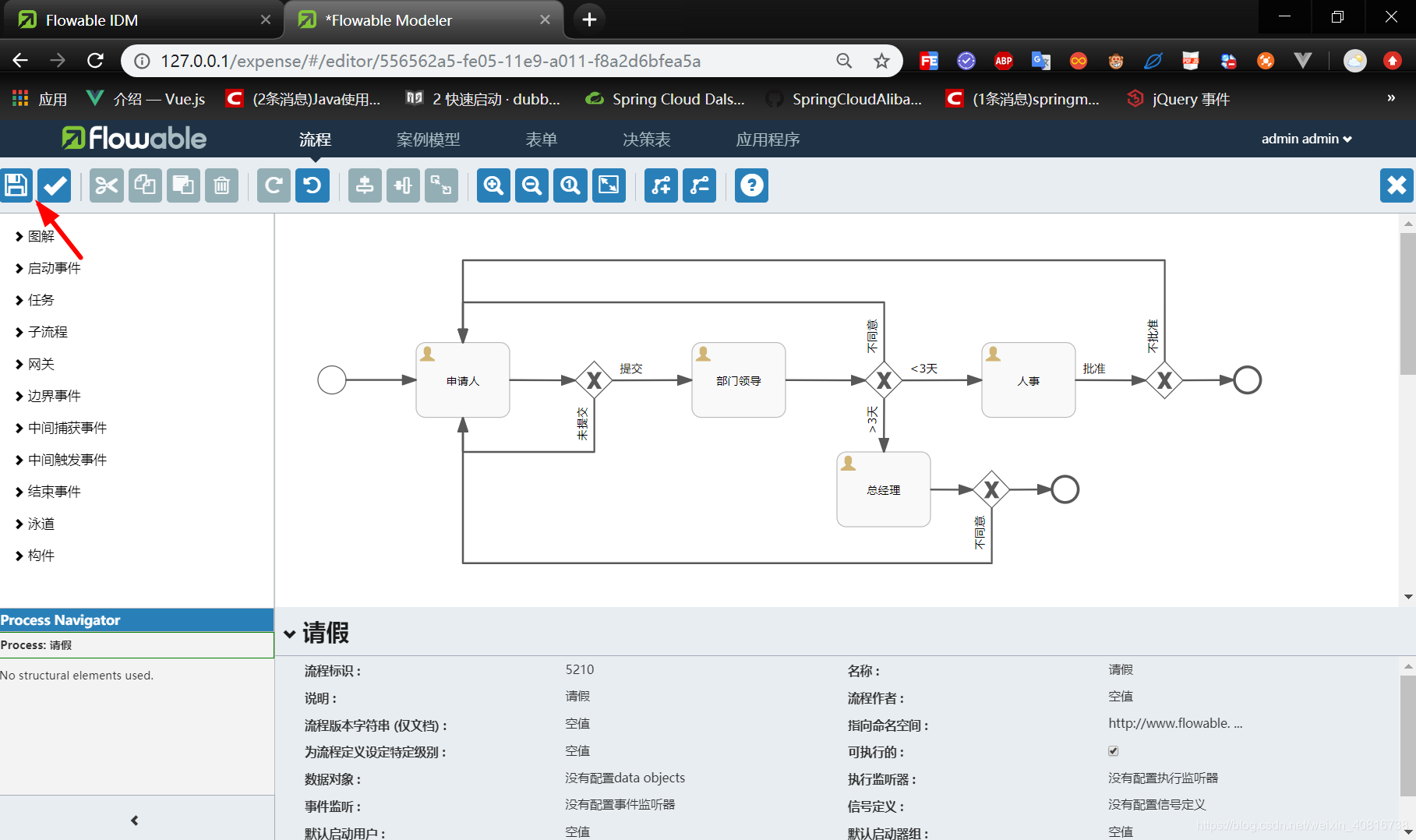

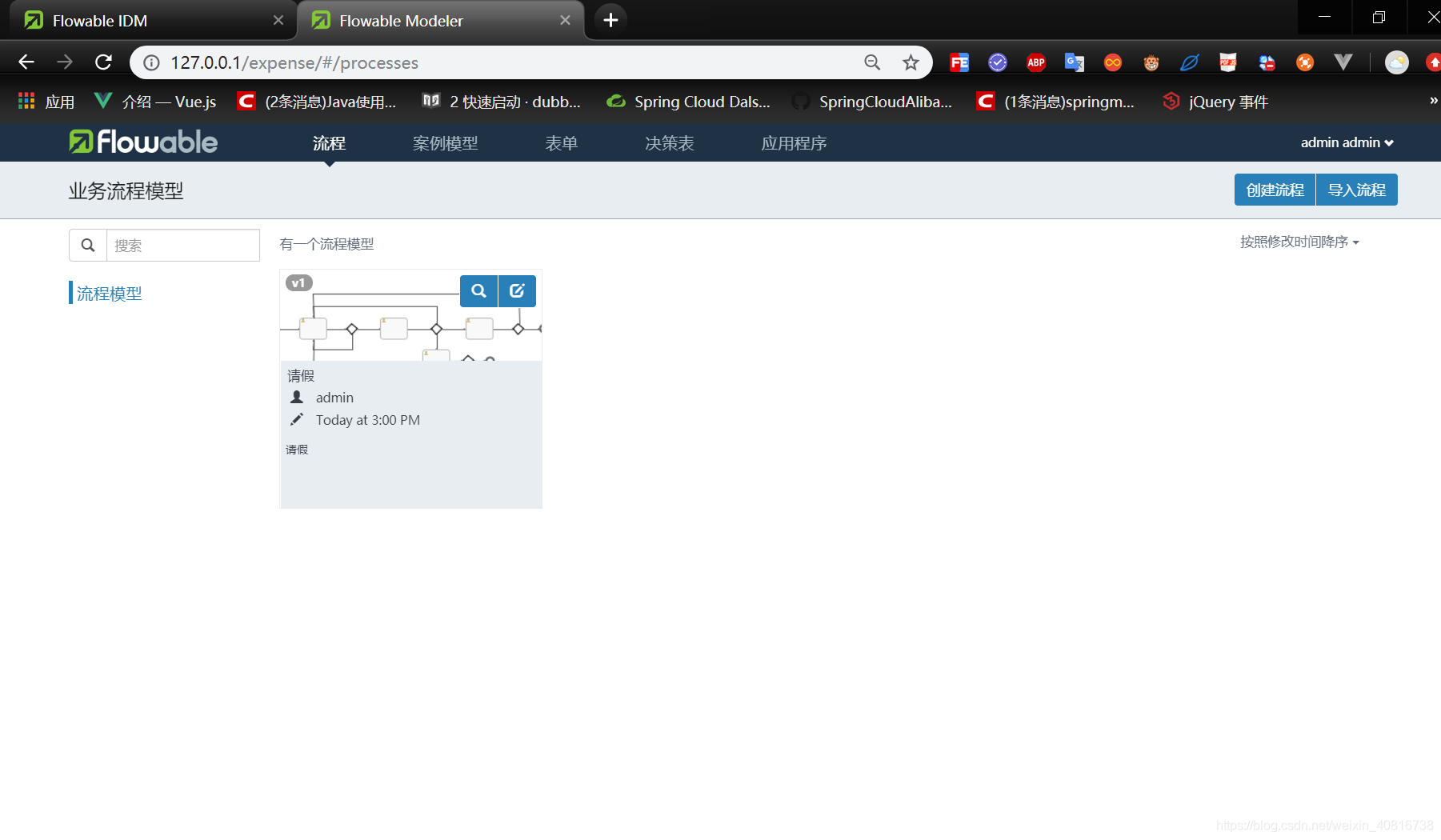

3.2. 绘制流程图
再访问: http://127.0.0.1:80/expense 创建设计器
四、 使用说明
4.1. 选择数据库
将flowable的依赖加入到POM中即可,flowable使用需要一个数据库，这里为了方便我选择mysql
4.2. 增加 mybatis, modeler,idm 等配置
<properties><java.version>1.8</java.version><flowable.version>6.4.0</flowable.version><mybatis-spring-boot>1.3.1</mybatis-spring-boot></properties><dependencies><!--springmvc启动器--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!--flowable工作流依赖--><dependency><groupId>org.flowable</groupId><artifactId>flowable-spring-boot-starter-basic</artifactId><version>${flowable.version}</version></dependency><!--mysql依赖--><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>8.0.11</version></dependency><!-- Spring Boot Mybatis 依赖 --><dependency><groupId>org.mybatis.spring.boot</groupId><artifactId>mybatis-spring-boot-starter</artifactId><version>${mybatis-spring-boot}</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>druid</artifactId><version>1.0.31</version></dependency><dependency><groupId>log4j</groupId><artifactId>log4j</artifactId><version>1.2.17</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.46</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-thymeleaf</artifactId></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-ui-common</artifactId><version>${flowable.version}</version></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-ui-modeler-rest</artifactId><version>${flowable.version}</version></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-idm-spring-configurator</artifactId><version>${flowable.version}</version></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-ui-idm-rest</artifactId><version>${flowable.version}</version></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-ui-idm-conf</artifactId><version>${flowable.version}</version></dependency><dependency><groupId>org.liquibase</groupId><artifactId>liquibase-core</artifactId><version>3.6.2</version></dependency><!--security --><dependency><groupId>org.springframework.security</groupId><artifactId>spring-security-core</artifactId></dependency><dependency><groupId>org.springframework.security</groupId><artifactId>spring-security-config</artifactId></dependency><dependency><groupId>org.springframework.security</groupId><artifactId>spring-security-crypto</artifactId></dependency><dependency><groupId>org.springframework.security</groupId><artifactId>spring-security-web</artifactId></dependency><!-- Servlet --><dependency><groupId>javax.servlet</groupId><artifactId>javax.servlet-api</artifactId><scope>provided</scope></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build>
4.3. yml 文件配置
增加: idm, modeler , mybatis , servlet 等配置
#端口 请求url
server:port: 80servlet:context-path: /expense
#数据库 url classname user password
spring:datasource:url: jdbc:mysql://127.0.0.1:3306/springboot-flowable-modeler?autoReconnect=true&useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=CTTusername: rootpassword: rootsecurity:filter:dispatcher-types: REQUEST,FORWARD,ASYNC
#在线流程图设计
flowable:#关闭定时任务JOBasync-executor-activate: falsecommon:app:idm-url: http://localhost:80/expense/idm:app:admin:user-id: adminpassword: testfirst-name: adminlast-name: adminrest:app:authentication-mode: verify-privilegemodeler:app:rest-enabled: truedatabase-schema-update: true
mybatis:mapper-locations: classpath:/META-INF/modeler-mybatis-mappings/*.xmlconfig-location: classpath:/META-INF/mybatis-config.xmlconfiguration-properties:prefix:blobType: BLOBboolValue: TRUE
这样操作后，flowable与springBoot的整个就完成了！
然后就可以运行了，初次运行时flowable会将自动执行flowable中的初始化脚本完成工作流所需要的数据表的建立，如果指定的数据库中还未创建过flowable的相关数据表的话。
五、定义流程文件
ExpenseProcess.bpmn20.xml
<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath"targetNamespace="http://www.flowable.org/processdef"><process id="Expense" name="ExpenseProcess" isExecutable="true"><documentation>报销流程</documentation><startEvent id="start" name="开始"></startEvent><userTask id="fillTask" name="出差报销" flowable:assignee="${taskUser}"><extensionElements><modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete></extensionElements></userTask><exclusiveGateway id="judgeTask"></exclusiveGateway><userTask id="directorTak" name="经理审批"><extensionElements><flowable:taskListener event="create"class="com.haiyang.flowable.listener.ManagerTaskHandler"></flowable:taskListener></extensionElements></userTask><userTask id="bossTask" name="老板审批"><extensionElements><flowable:taskListener event="create"class="com.haiyang.flowable.listener.BossTaskHandler"></flowable:taskListener></extensionElements></userTask><endEvent id="end" name="结束"></endEvent><sequenceFlow id="directorNotPassFlow" name="驳回" sourceRef="directorTak" targetRef="fillTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='驳回'}]]></conditionExpression></sequenceFlow><sequenceFlow id="bossNotPassFlow" name="驳回" sourceRef="bossTask" targetRef="fillTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='驳回'}]]></conditionExpression></sequenceFlow><sequenceFlow id="flow1" sourceRef="start" targetRef="fillTask"></sequenceFlow><sequenceFlow id="flow2" sourceRef="fillTask" targetRef="judgeTask"></sequenceFlow><sequenceFlow id="judgeMore" name="大于500元" sourceRef="judgeTask" targetRef="bossTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${money > 500}]]></conditionExpression></sequenceFlow><sequenceFlow id="bossPassFlow" name="通过" sourceRef="bossTask" targetRef="end"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='通过'}]]></conditionExpression></sequenceFlow><sequenceFlow id="directorPassFlow" name="通过" sourceRef="directorTak" targetRef="end"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='通过'}]]></conditionExpression></sequenceFlow><sequenceFlow id="judgeLess" name="小于500元" sourceRef="judgeTask" targetRef="directorTak"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${money <= 500}]]></conditionExpression></sequenceFlow></process><bpmndi:BPMNDiagram id="BPMNDiagram_Expense"><bpmndi:BPMNPlane bpmnElement="Expense" id="BPMNPlane_Expense"><bpmndi:BPMNShape bpmnElement="start" id="BPMNShape_start"><omgdc:Bounds height="30.0" width="30.0" x="285.0" y="135.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="fillTask" id="BPMNShape_fillTask"><omgdc:Bounds height="80.0" width="100.0" x="405.0" y="110.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="judgeTask" id="BPMNShape_judgeTask"><omgdc:Bounds height="40.0" width="40.0" x="585.0" y="130.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="directorTak" id="BPMNShape_directorTak"><omgdc:Bounds height="80.0" width="100.0" x="735.0" y="110.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="bossTask" id="BPMNShape_bossTask"><omgdc:Bounds height="80.0" width="100.0" x="555.0" y="255.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="end" id="BPMNShape_end"><omgdc:Bounds height="28.0" width="28.0" x="771.0" y="281.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1"><omgdi:waypoint x="315.0" y="150.0"></omgdi:waypoint><omgdi:waypoint x="405.0" y="150.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2"><omgdi:waypoint x="505.0" y="150.16611295681062"></omgdi:waypoint><omgdi:waypoint x="585.4333333333333" y="150.43333333333334"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="judgeLess" id="BPMNEdge_judgeLess"><omgdi:waypoint x="624.5530726256983" y="150.44692737430168"></omgdi:waypoint><omgdi:waypoint x="735.0" y="150.1392757660167"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="directorNotPassFlow" id="BPMNEdge_directorNotPassFlow"><omgdi:waypoint x="785.0" y="110.0"></omgdi:waypoint><omgdi:waypoint x="785.0" y="37.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="37.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="110.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="bossPassFlow" id="BPMNEdge_bossPassFlow"><omgdi:waypoint x="655.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="771.0" y="295.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="judgeMore" id="BPMNEdge_judgeMore"><omgdi:waypoint x="605.4340277777778" y="169.56597222222223"></omgdi:waypoint><omgdi:waypoint x="605.1384083044983" y="255.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="directorPassFlow" id="BPMNEdge_directorPassFlow"><omgdi:waypoint x="785.0" y="190.0"></omgdi:waypoint><omgdi:waypoint x="785.0" y="281.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="bossNotPassFlow" id="BPMNEdge_bossNotPassFlow"><omgdi:waypoint x="555.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="190.0"></omgdi:waypoint></bpmndi:BPMNEdge></bpmndi:BPMNPlane></bpmndi:BPMNDiagram>
</definitions>
其中的两个代理类为：
package com.gblfy.flowable.listen;import org.flowable.engine.delegate.TaskListener;
import org.flowable.task.service.delegate.DelegateTask;/*** @Author: gblfy* @Description:* @Date: Create in in 2019/11/03 10:26*/
public class ManagerTaskHandler implements TaskListener {@Overridepublic void notify(DelegateTask delegateTask) {delegateTask.setAssignee("经理");}
}package com.gblfy.flowable.listen;import org.flowable.engine.delegate.TaskListener;
import org.flowable.task.service.delegate.DelegateTask;/*** @Author: gblfy* @Description:* @Date: Create in in 2019/11/03 10:26*/
public class BossTaskHandler implements TaskListener {@Overridepublic void notify(DelegateTask delegateTask) {delegateTask.setAssignee("老板");}
}尽管上面的BPMN文件很长，但放心，毕竟那是通过相关的工具生成出来的，对于核心的逻辑部分也很少（主要在process 标签内） ，如需要详细了解的可自行学习下BPMN的标签即可！当然，在flowable的使用文档中也有相关的描述,详见：Creating a ProcessEngine
这样当此框架启动的时候它会默认加载resource目录下的processes时就可以将此流程配置加载到数据库进行持久化了
六、验证测试controller
为了方便这里通过一个controller来完成此DEMO的快速编写
@Controller
@RequestMapping(value = "expense")
public class ExpenseController {@Autowiredprivate RuntimeService runtimeService;@Autowiredprivate TaskService taskService;@Autowiredprivate RepositoryService repositoryService;@Autowiredprivate ProcessEngine processEngine;/***************此处为业务代码******************/
}/*** 添加报销** @param userId 用户Id* @param money 报销金额* @param descption 描述*/@RequestMapping(value = "add")@ResponseBodypublic String addExpense(String userId, Integer money, String descption) {//启动流程HashMap<String, Object> map = new HashMap<>();map.put("taskUser", userId);map.put("money", money);ProcessInstance processInstance = runtimeService.startProcessInstanceByKey("Expense", map);return "提交成功.流程Id为：" + processInstance.getId();}
/*** 获取审批管理列表*/@RequestMapping(value = "/list")@ResponseBodypublic Object list(String userId) {List<Task> tasks = taskService.createTaskQuery().taskAssignee(userId).orderByTaskCreateTime().desc().list();for (Task task : tasks) {System.out.println(task.toString());}return tasks.toArray().toString();}
/*** 批准** @param taskId 任务ID*/@RequestMapping(value = "apply")@ResponseBodypublic String apply(String taskId) {Task task = taskService.createTaskQuery().taskId(taskId).singleResult();if (task == null) {throw new RuntimeException("流程不存在");}//通过审核HashMap<String, Object> map = new HashMap<>();map.put("outcome", "通过");taskService.complete(taskId, map);return "processed ok!";}
/*** 拒绝*/@ResponseBody@RequestMapping(value = "reject")public String reject(String taskId) {HashMap<String, Object> map = new HashMap<>();map.put("outcome", "驳回");taskService.complete(taskId, map);return "reject";}
/*** 生成流程图** @param processId 任务ID*/@RequestMapping(value = "processDiagram")public void genProcessDiagram(HttpServletResponse httpServletResponse, String processId) throws Exception {ProcessInstance pi = runtimeService.createProcessInstanceQuery().processInstanceId(processId).singleResult();//流程走完的不显示图if (pi == null) {return;}Task task = taskService.createTaskQuery().processInstanceId(pi.getId()).singleResult();//使用流程实例ID，查询正在执行的执行对象表，返回流程实例对象String InstanceId = task.getProcessInstanceId();List<Execution> executions = runtimeService.createExecutionQuery().processInstanceId(InstanceId).list();//得到正在执行的Activity的IdList<String> activityIds = new ArrayList<>();List<String> flows = new ArrayList<>();for (Execution exe : executions) {List<String> ids = runtimeService.getActiveActivityIds(exe.getId());activityIds.addAll(ids);}//获取流程图BpmnModel bpmnModel = repositoryService.getBpmnModel(pi.getProcessDefinitionId());ProcessEngineConfiguration engconf = processEngine.getProcessEngineConfiguration();ProcessDiagramGenerator diagramGenerator = engconf.getProcessDiagramGenerator();InputStream in = diagramGenerator.generateDiagram(bpmnModel, "png", activityIds, flows, engconf.getActivityFontName(), engconf.getLabelFontName(), engconf.getAnnotationFontName(), engconf.getClassLoader(), 1.0);OutputStream out = null;byte[] buf = new byte[1024];int legth = 0;try {out = httpServletResponse.getOutputStream();while ((legth = in.read(buf)) != -1) {out.write(buf, 0, legth);}} finally {if (in != null) {in.close();}if (out != null) {out.close();}}}
通过传入流程ID生成当前流程的流程图给前端,如果流程中使用到中文且生成的图片是乱码的，则需要进配置下字体：
package com.gblfy.flowable.config;import org.flowable.spring.SpringProcessEngineConfiguration;
import org.flowable.spring.boot.EngineConfigurationConfigurer;
import org.springframework.context.annotation.Configuration;/*** @Author: gblfy* @Description: 为放置生成的流程图中中文乱码* @Date: Create in 2019/11/03 10:26*/
@Configuration
public class FlowableConfig implements EngineConfigurationConfigurer<SpringProcessEngineConfiguration> {@Overridepublic void configure(SpringProcessEngineConfiguration springProcessEngineConfiguration) {springProcessEngineConfiguration.setActivityFontName("宋体");springProcessEngineConfiguration.setLabelFontName("宋体");springProcessEngineConfiguration.setAnnotationFontName("宋体");}
}测试请求
1.先启动好此项目，然后创建一个流程：
访问：http://localhost:80/expense/add?userId=123&money=123321
返回：提交成功.流程Id为：2b29876c-fde9-11e9-b75f-f8a2d6bfea5a
2.查询待办列表:
访问：http://localhost:80/expense/list?userId=123
输出：Task[id=2b30da72-fde9-11e9-b75f-f8a2d6bfea5a, name=出差报销]
3.同意：
注意 : 带的是taskid
访问：http://localhost:80/expense/apply?taskId=2b30da72-fde9-11e9-b75f-f8a2d6bfea5a
返回：processed ok!
4.生成流程图：
访问: http://localhost:80/expense/processDiagram?processId=2b29876c-fde9-11e9-b75f-f8a2d6bfea5a
项目源码
码云地址：
https://gitee.com/gb_90/springboot-flowable-modeler
接下一篇：快速开发工作流_02_集成在线流程设计器
https://gblfy.blog.csdn.net/article/details/103676784
