一、问题描述
- 流程在部署的时候调用服务RepositoryService，该服务通过createDeployment，创建了一个DeploymentBuilder，由builder的deploy，问题代码如下：
inputStream=new FileInputStream(new File(filePath));DeploymentBuilder deploymentBuilder = repositoryService.createDeployment().name("TEST_FLOW").addInputStream("flowname",inputStream);Deployment deployment= deploymentBuilder.deploy();用后查看部署信息表ACT_RE_DEPLOYMENT有内容，如下图:
查询ACT_RE_PROCDEF表发现没有内容:
二、问题定位
跟踪代码进入类ParsedDeploymentBuilder，build函数如下：
public ParsedDeployment build() {List<ProcessDefinitionEntity> processDefinitions = new ArrayList();Map<ProcessDefinitionEntity, BpmnParse> processDefinitionsToBpmnParseMap = new LinkedHashMap();Map<ProcessDefinitionEntity, EngineResource> processDefinitionsToResourceMap = new LinkedHashMap();DeploymentEntity deploymentEntity = (DeploymentEntity)this.deployment;Iterator var5 = deploymentEntity.getResources().values().iterator();while(true) {EngineResource resource;do {if (!var5.hasNext()) {return new ParsedDeployment(deploymentEntity, processDefinitions, processDefinitionsToBpmnParseMap, processDefinitionsToResourceMap);}resource = (EngineResource)var5.next();} while(!this.isBpmnResource(resource.getName()));LOGGER.debug("Processing BPMN resource {}", resource.getName());BpmnParse parse = this.createBpmnParseFromResource(resource);Iterator var8 = parse.getProcessDefinitions().iterator();while(var8.hasNext()) {ProcessDefinitionEntity processDefinition = (ProcessDefinitionEntity)var8.next();processDefinitions.add(processDefinition);processDefinitionsToBpmnParseMap.put(processDefinition, parse);processDefinitionsToResourceMap.put(processDefinition, resource);}}}看到调用了this.isBpmnResource(resource.getName())，我们输入的名字会进行校验，校验函数如下:
protected boolean isBpmnResource(String resourceName) {String[] var2 = ResourceNameUtil.BPMN_RESOURCE_SUFFIXES;int var3 = var2.length;for(int var4 = 0; var4 < var3; ++var4) {String suffix = var2[var4];if (resourceName.endsWith(suffix)) {return true;}}return false;}其中资源后缀的定义如下:
public static final String[] BPMN_RESOURCE_SUFFIXES = new String[]{"bpmn20.xml", "bpmn"};
三、解决方案
调整资源名以bpmn或者bpmn20.xml结尾。调整如下:
repositoryService.createDeployment().name("TEST_FLOW").addInputStream("flowname.bpmn20.xml",inputStream);四、验证结果

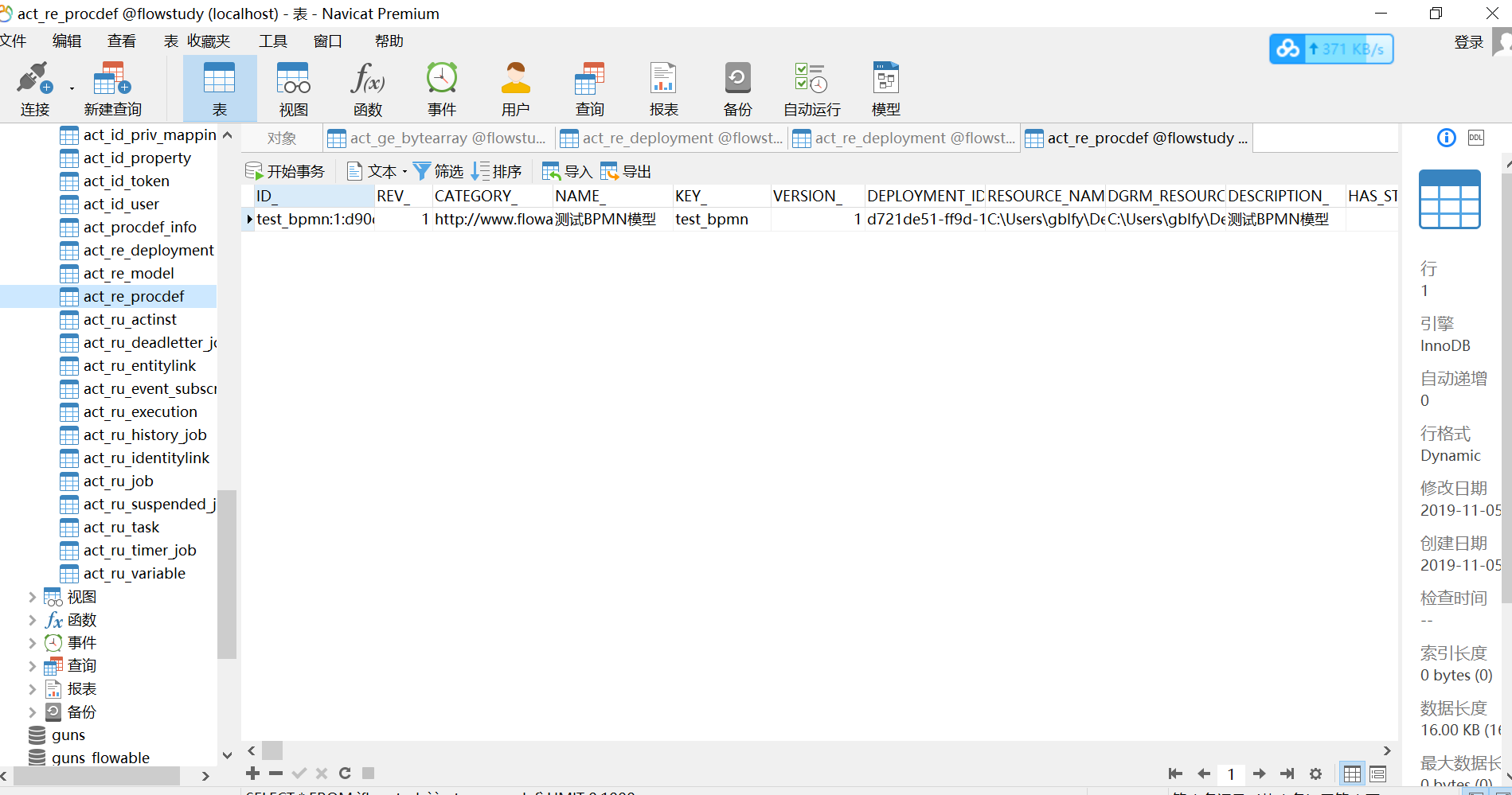

修改后重新调用，验证结果如下：
