ETL异构数据源Datax_图形化数据同步

ETL异构数据源Datax_图形化数据同步_11

数据同步全量增量知识SQL和执行频次不一样，其他的都一样

文章目录

- - - - 一、Oracle同步Mysql(全量)
      - 1. 添加项目
        2. 添加数据源
        3. 添加任务
        4. 构建json
        5. 任务执行
        6. 查看日志
        7. 同步数量对比
      - 二、Mysql同步Oracle(全量)

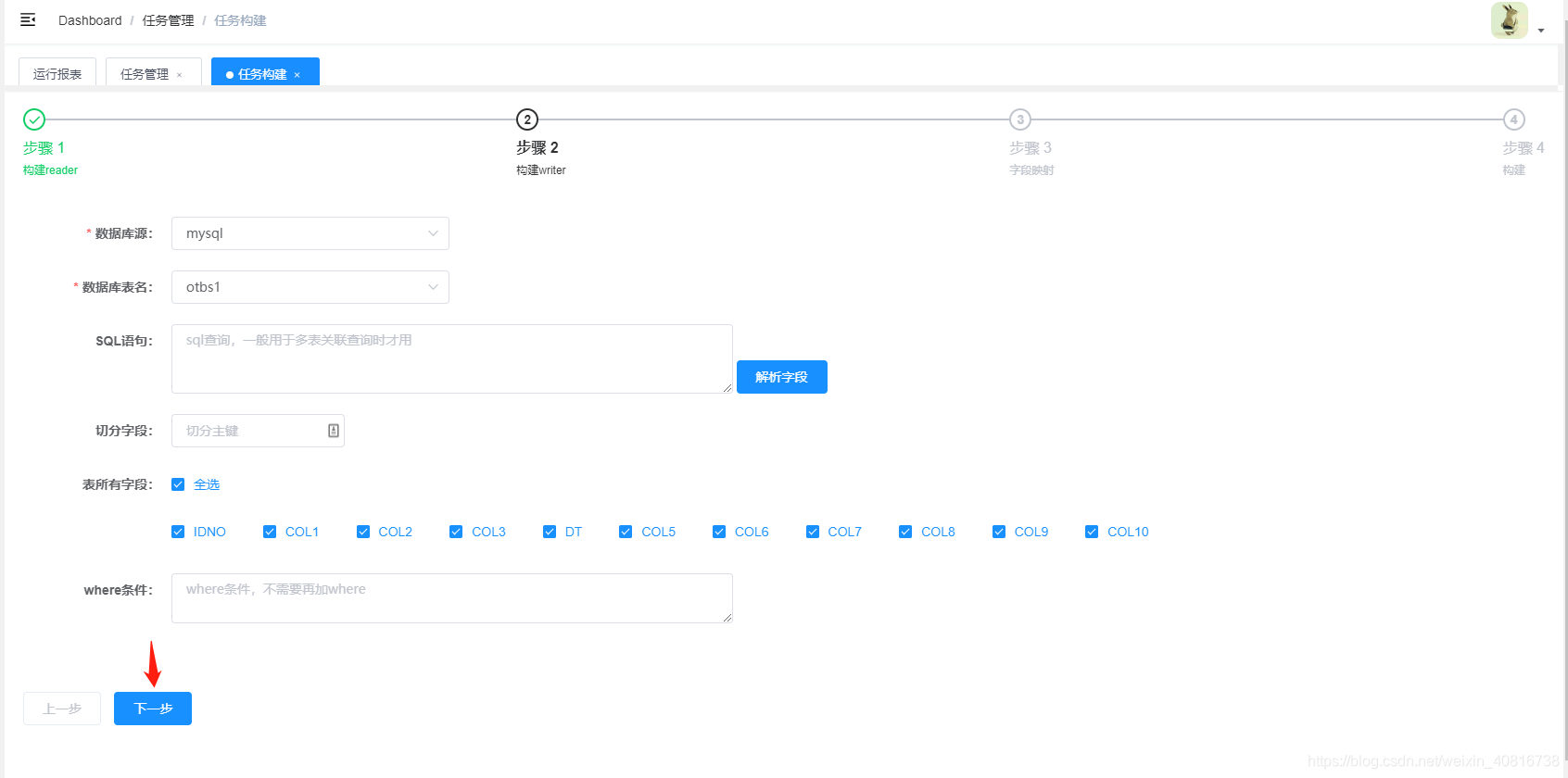

      - 2.1. 添加构建reader

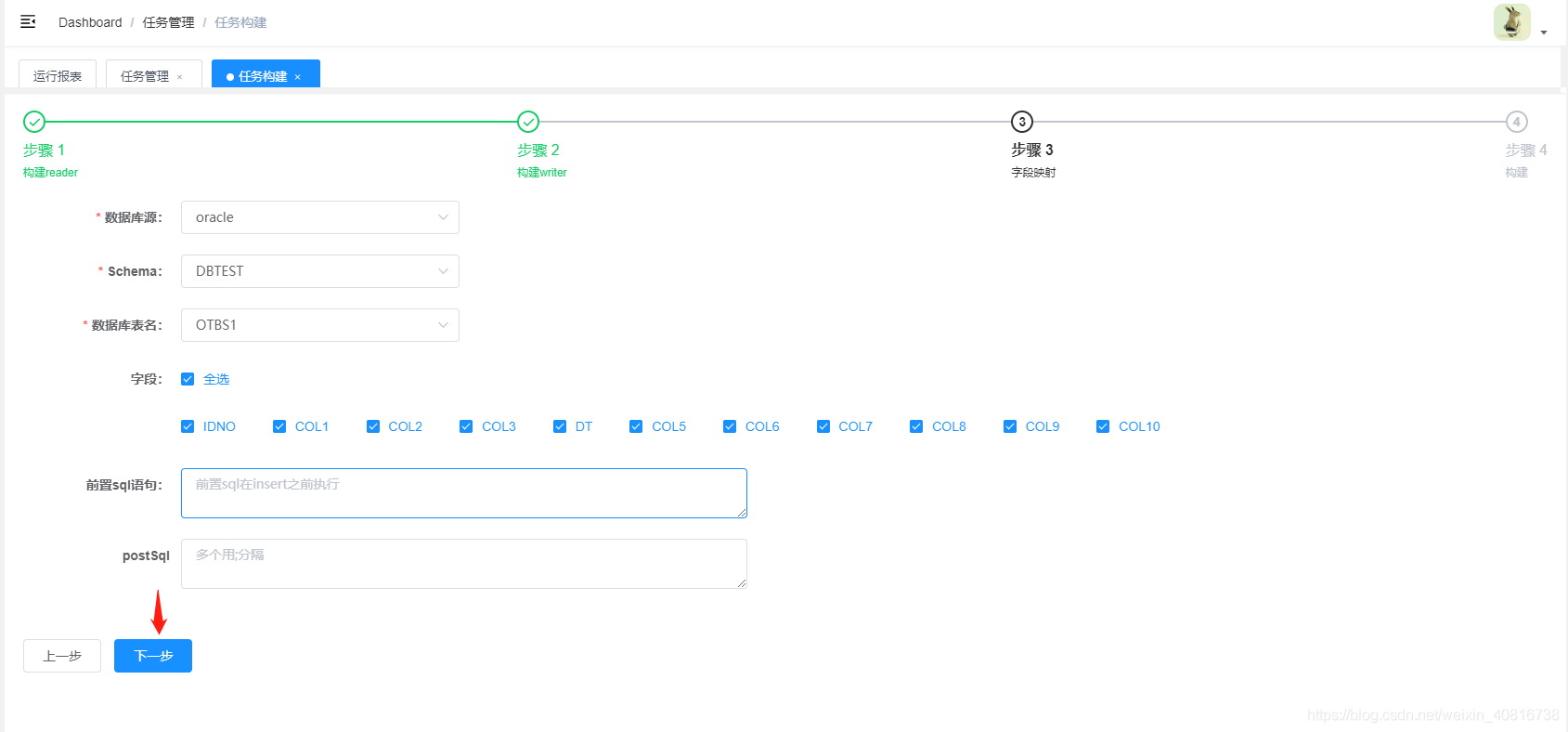

        2.2. 添加构建writer

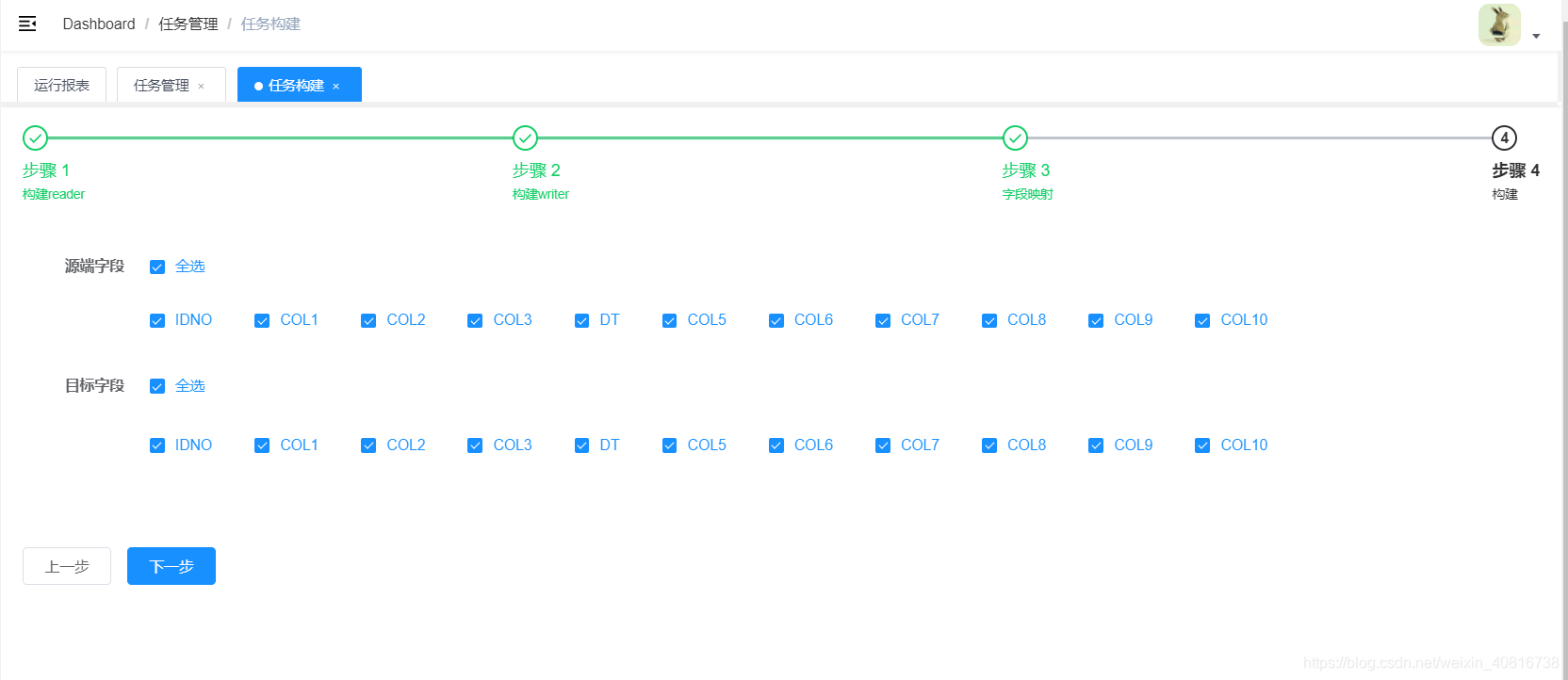

        2.3. 配置同步映射字段

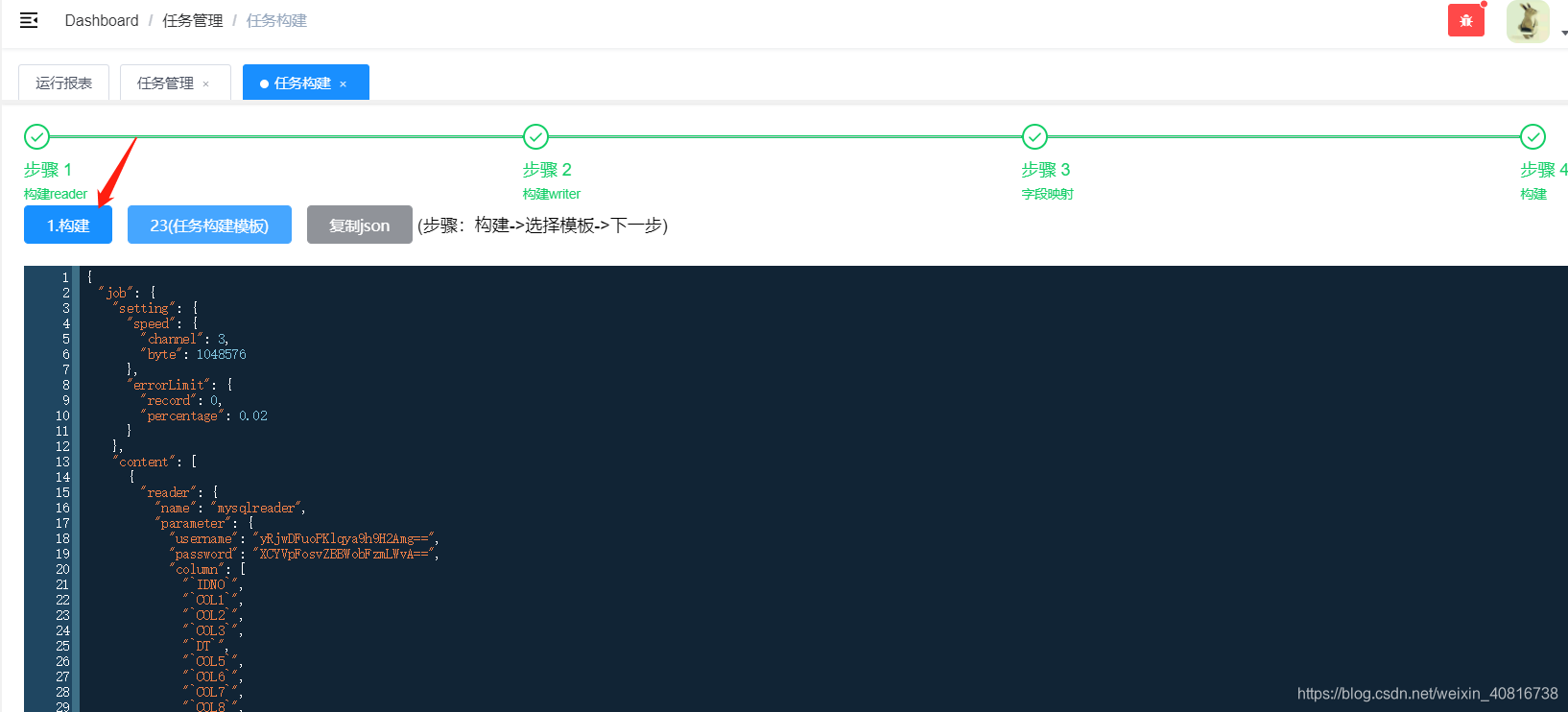

        2.4. 构建json

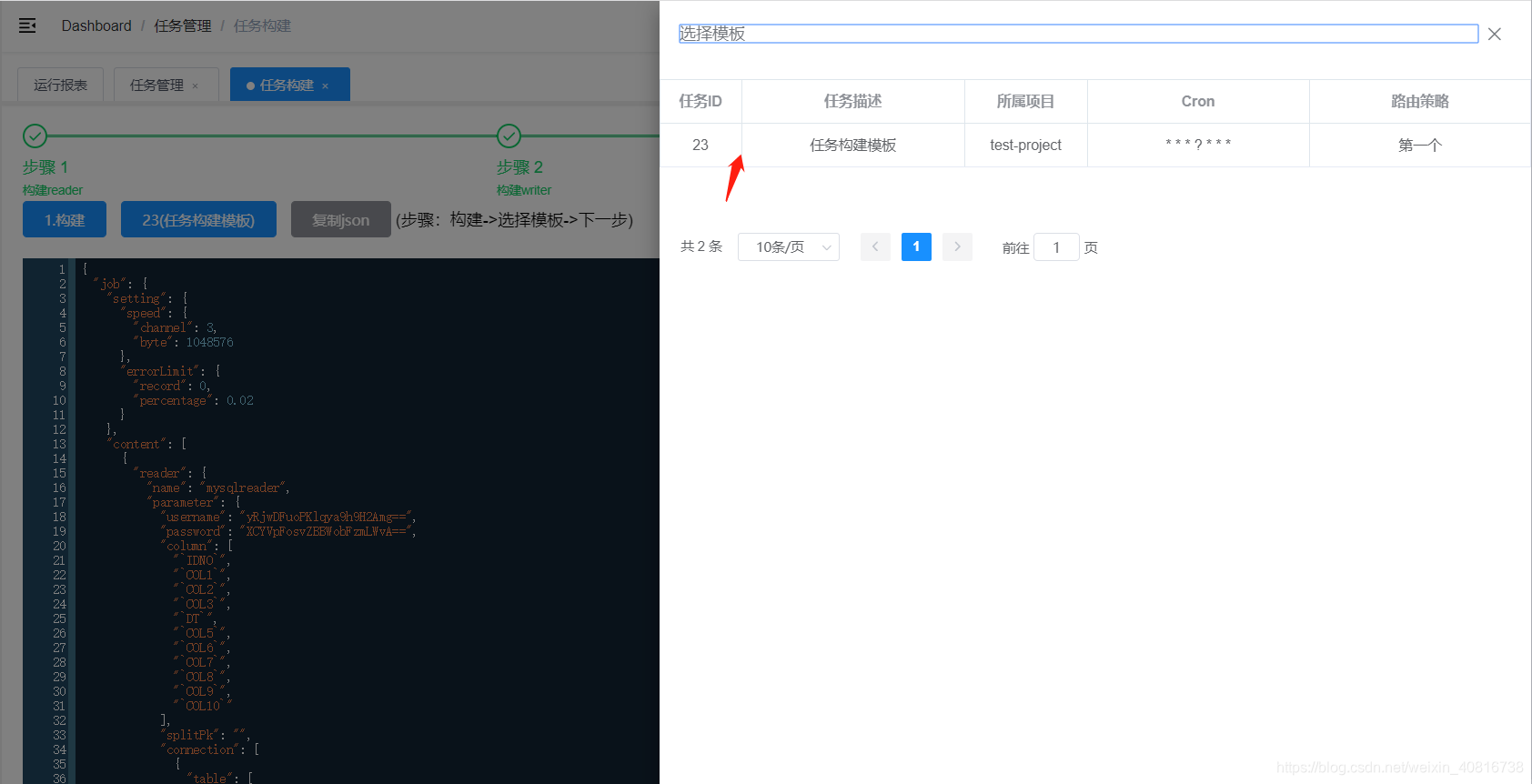

        2.4. 选择任务模板
        2.5. 完成任务构建

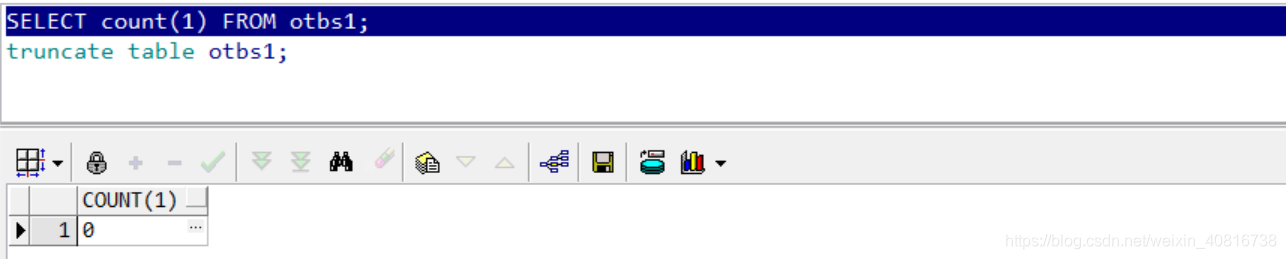

        2.6. 数据清理

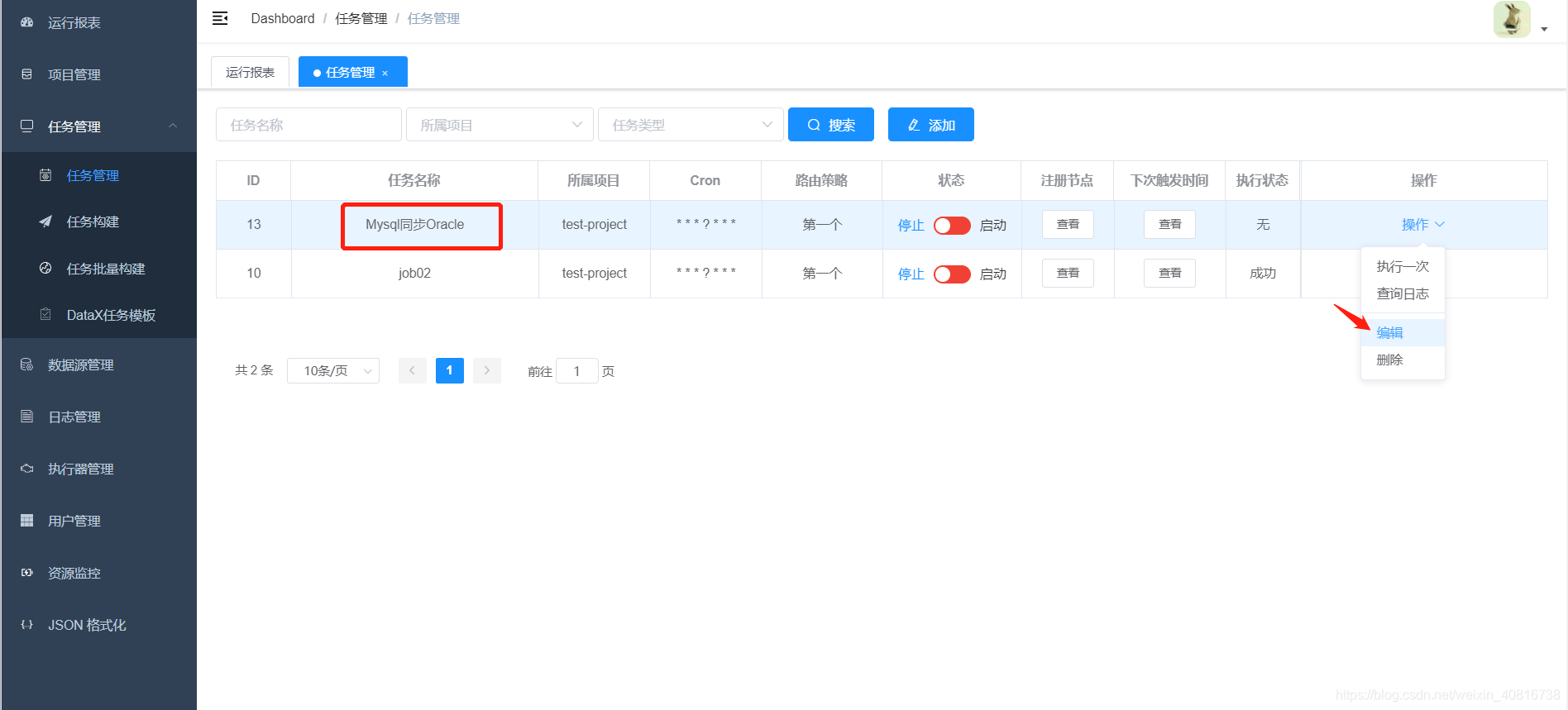

        2.7. 任务名称变更
        2.8. 任务执行一次

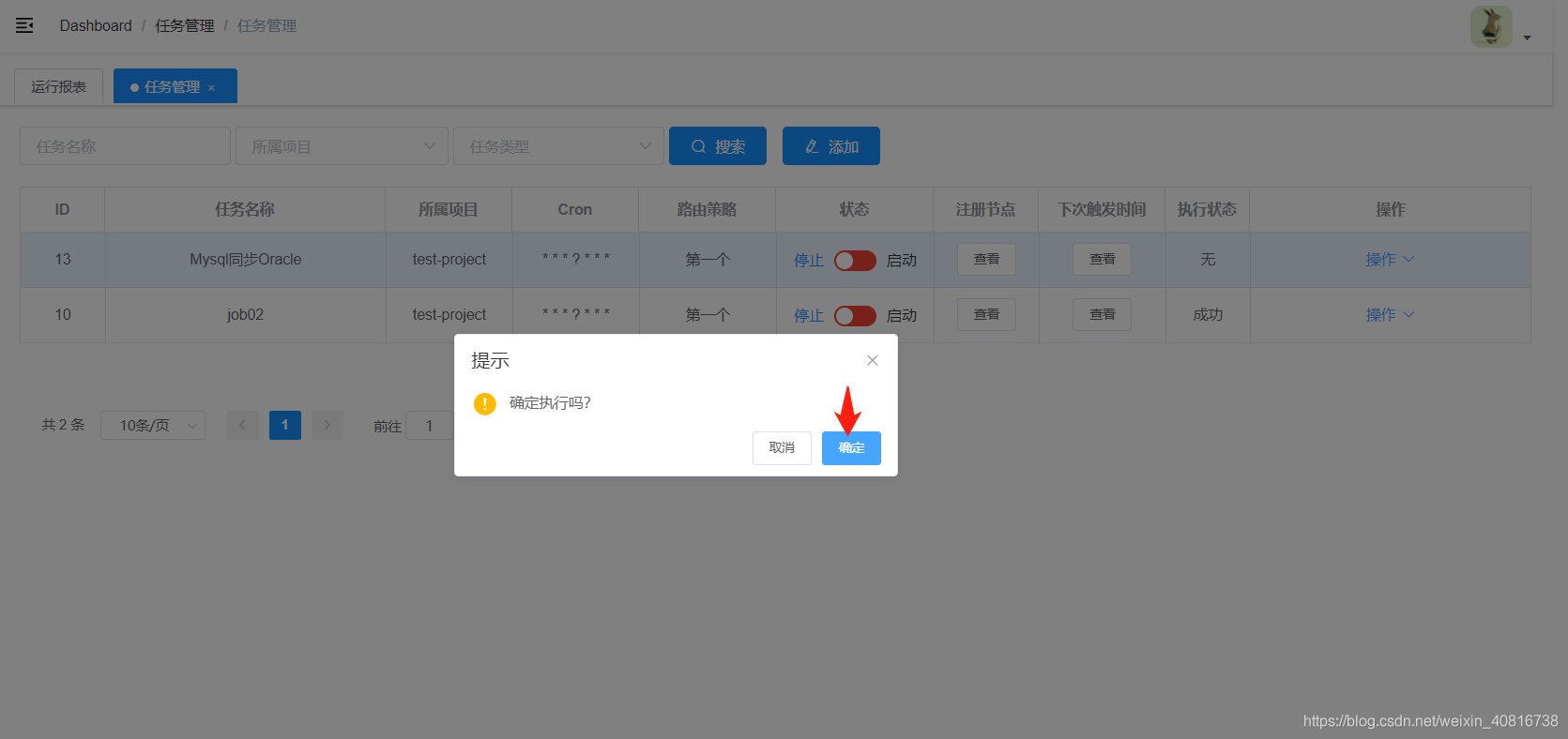

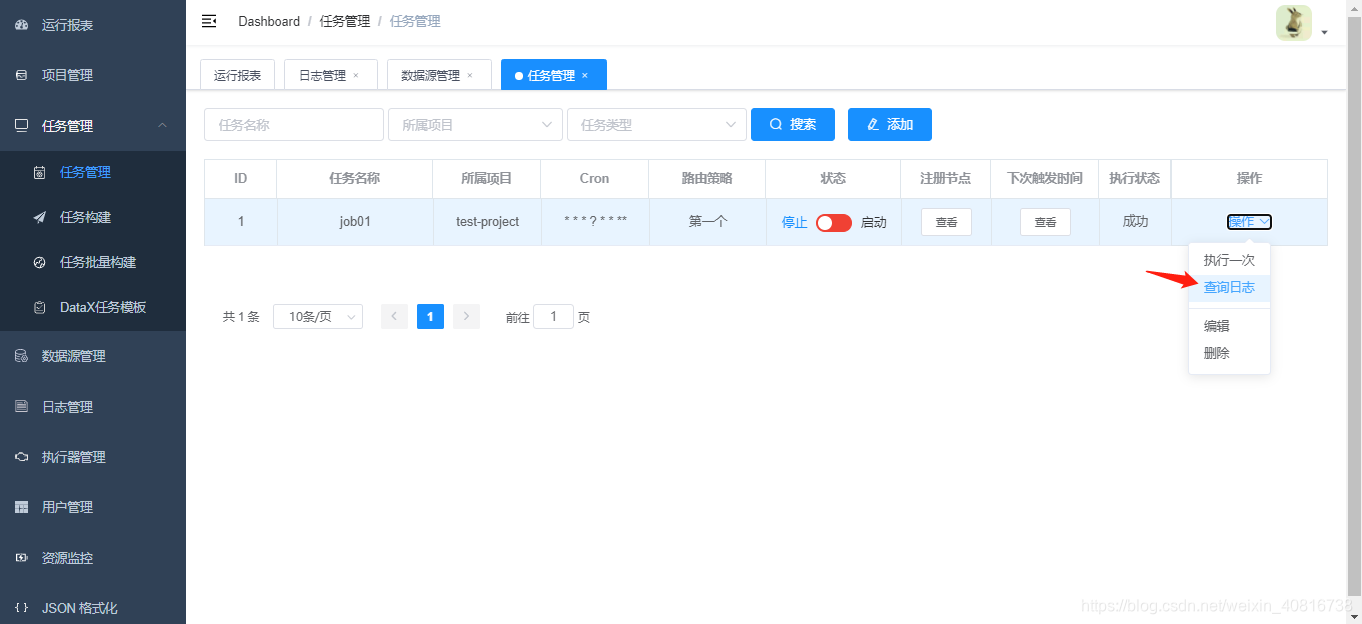

        2.9. 确定任务执行

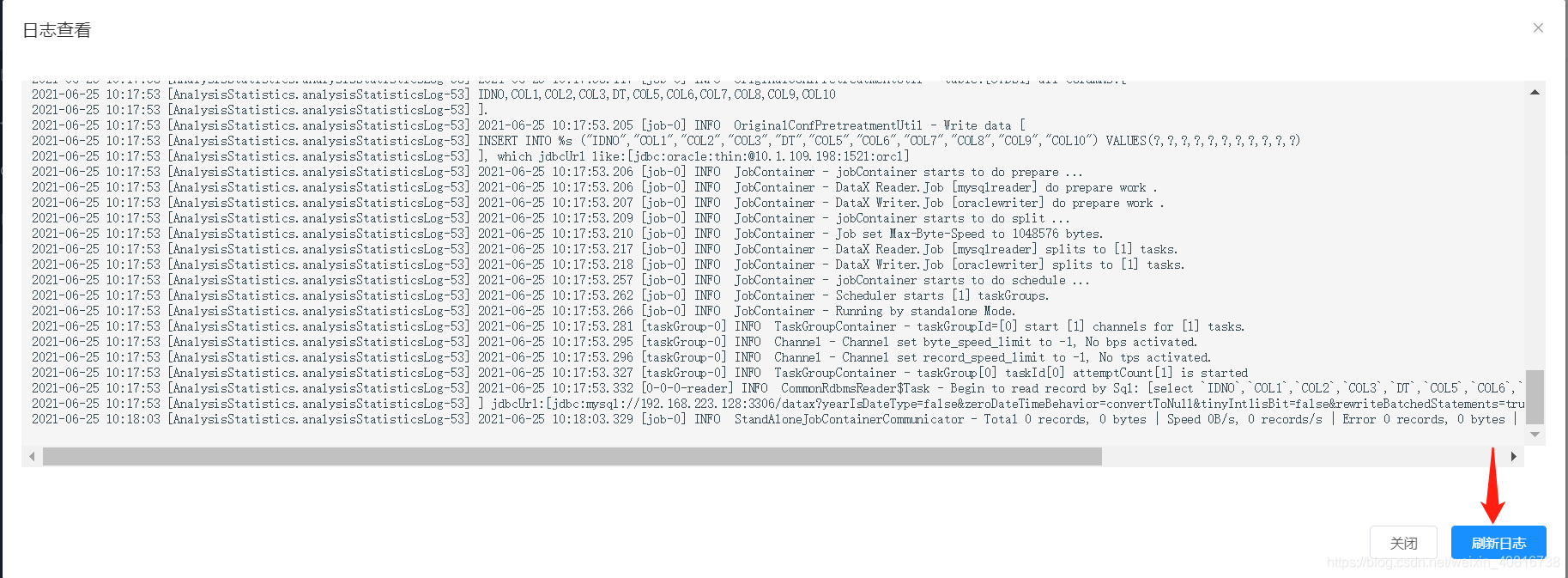

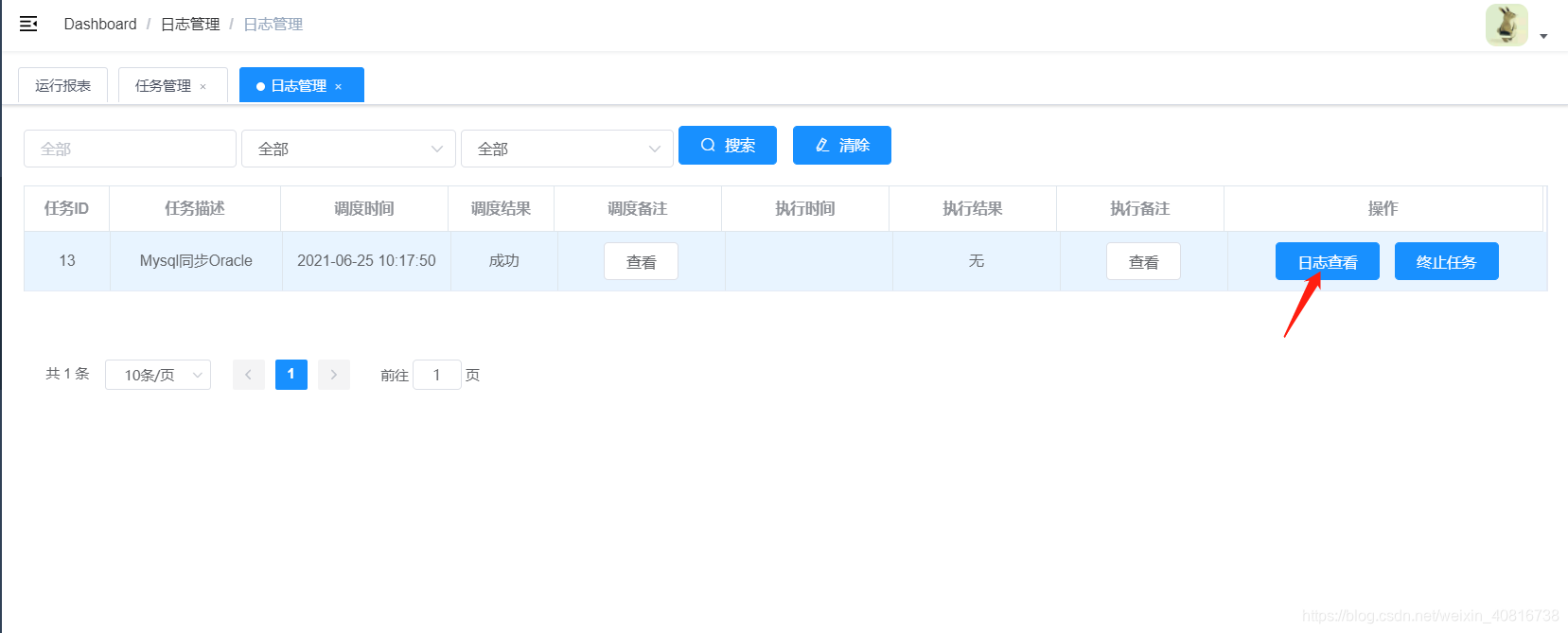

        2.10. 查看执行日志
        2.11. 实时刷新日志

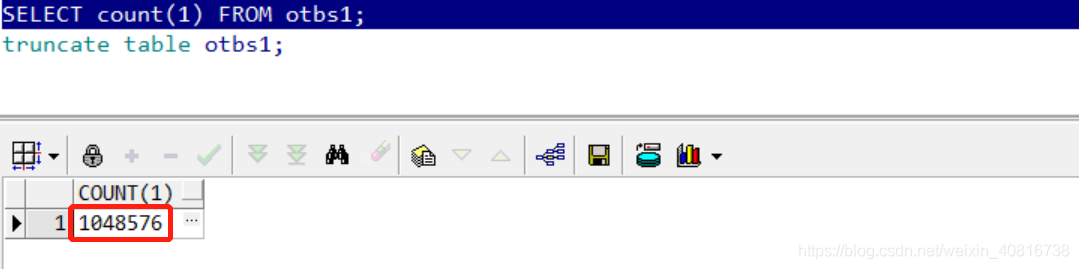

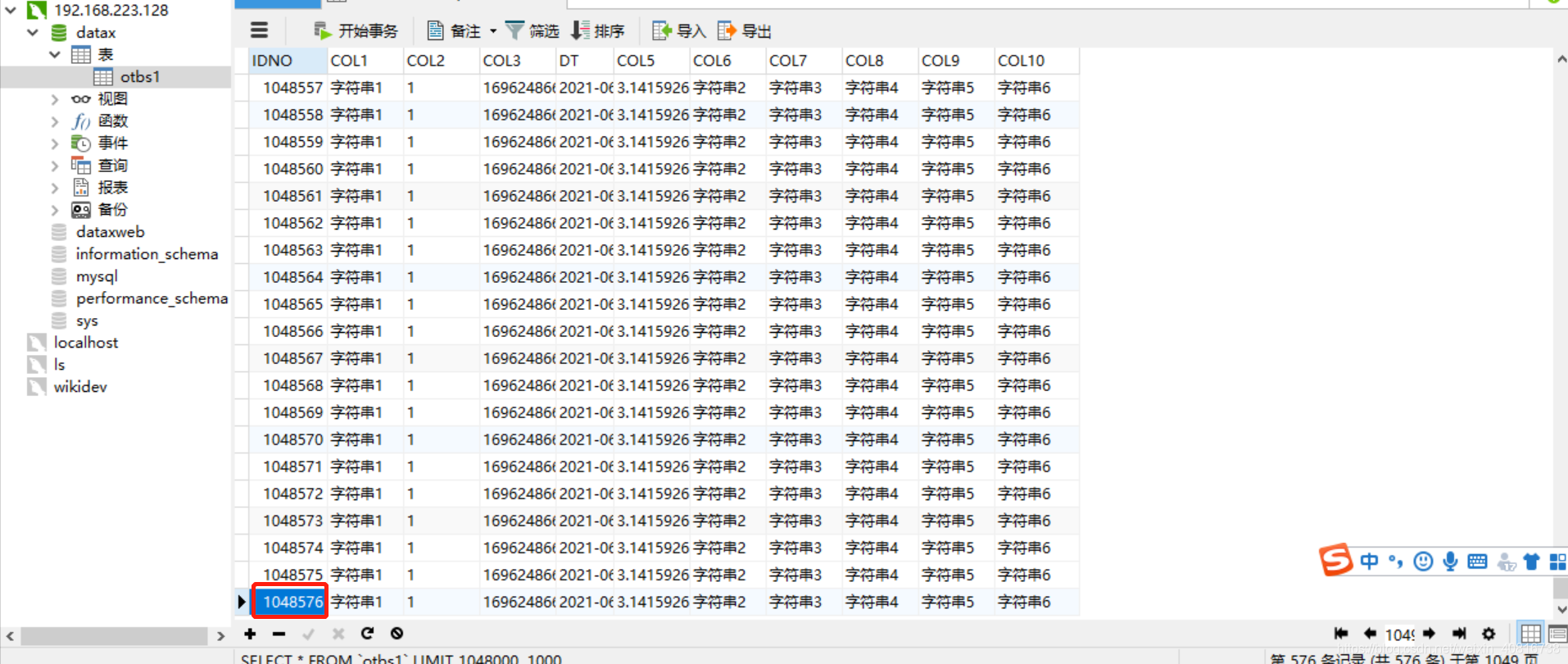

        2.12. 数据验证

一、Oracle同步Mysql(全量)

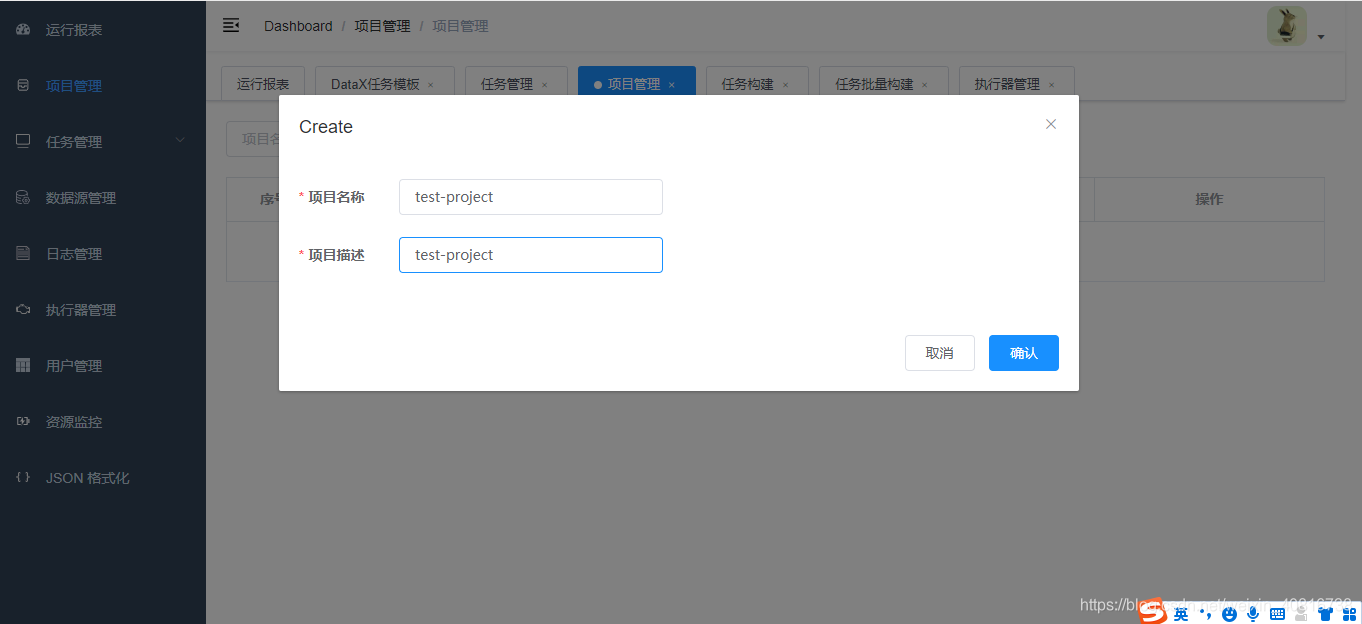

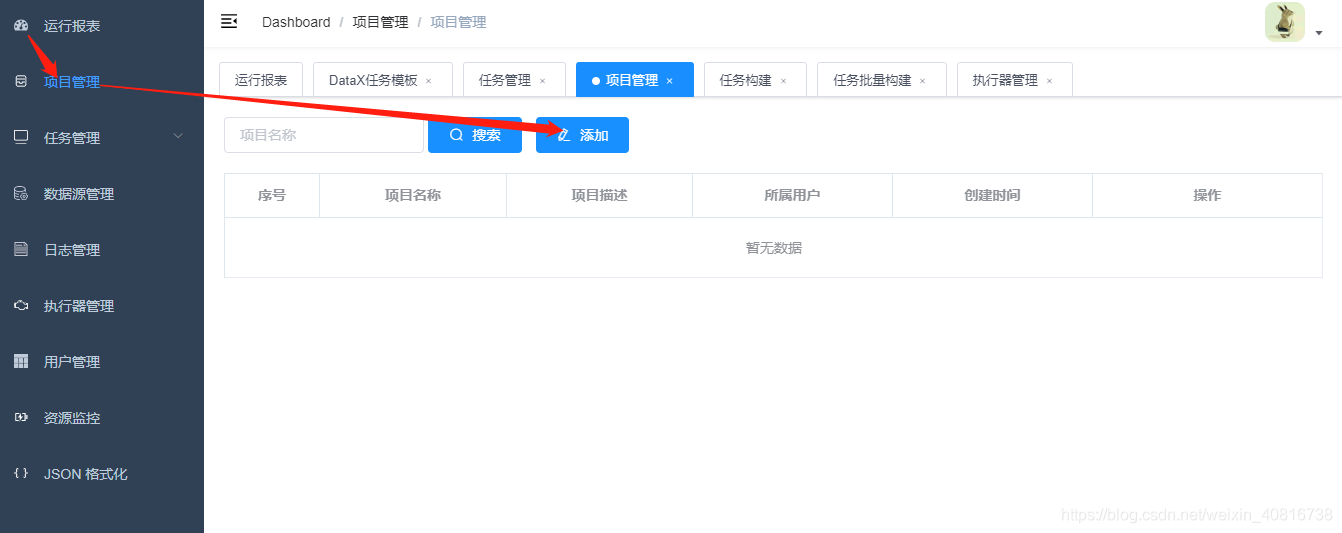

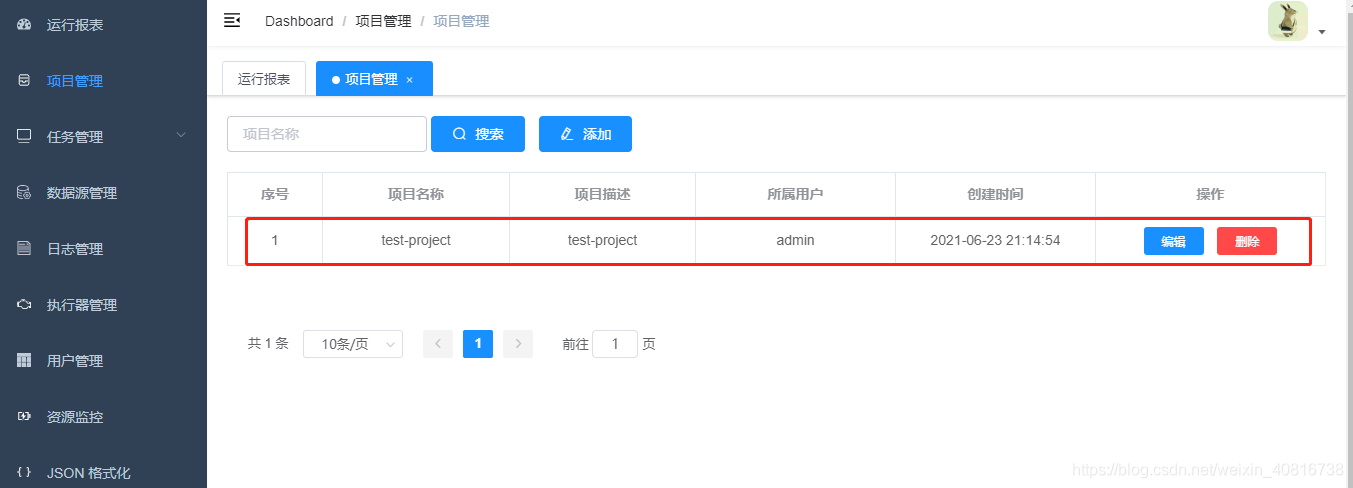

1. 添加项目

在这里插入图片描述

test-project

在这里插入图片描述

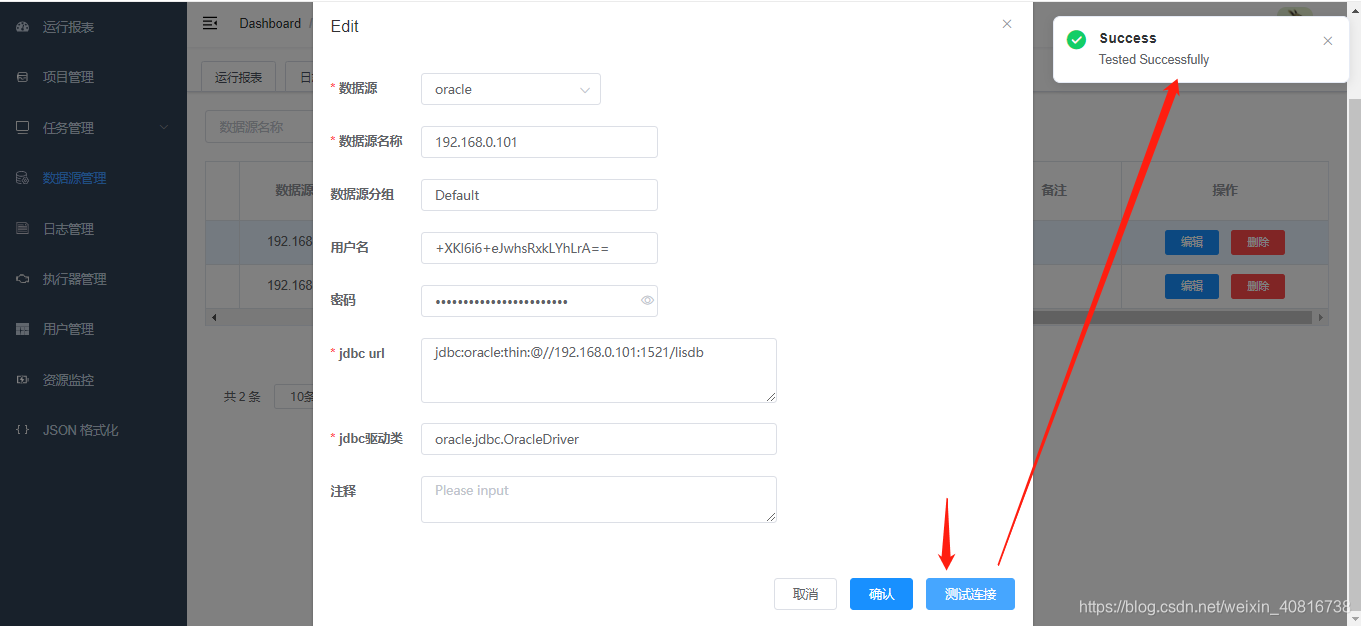

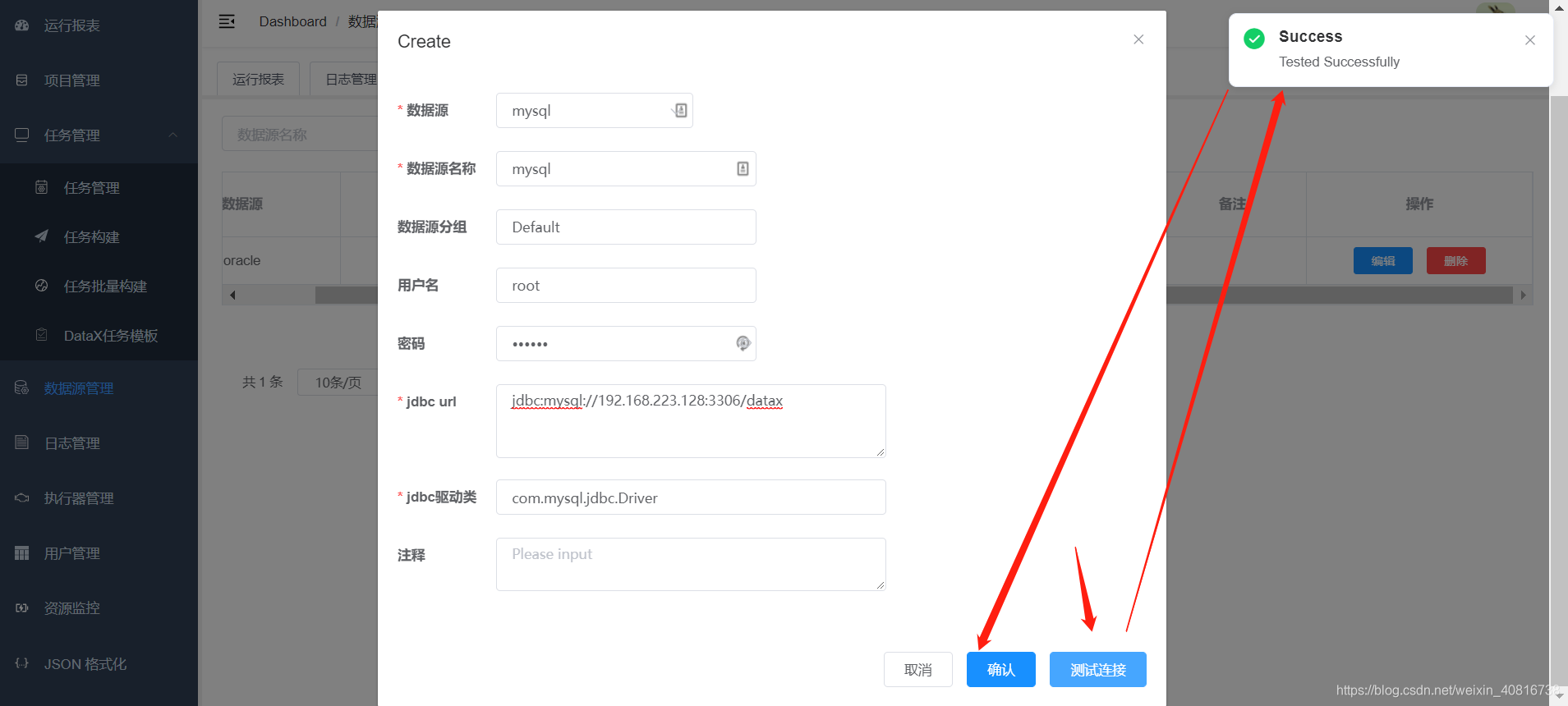

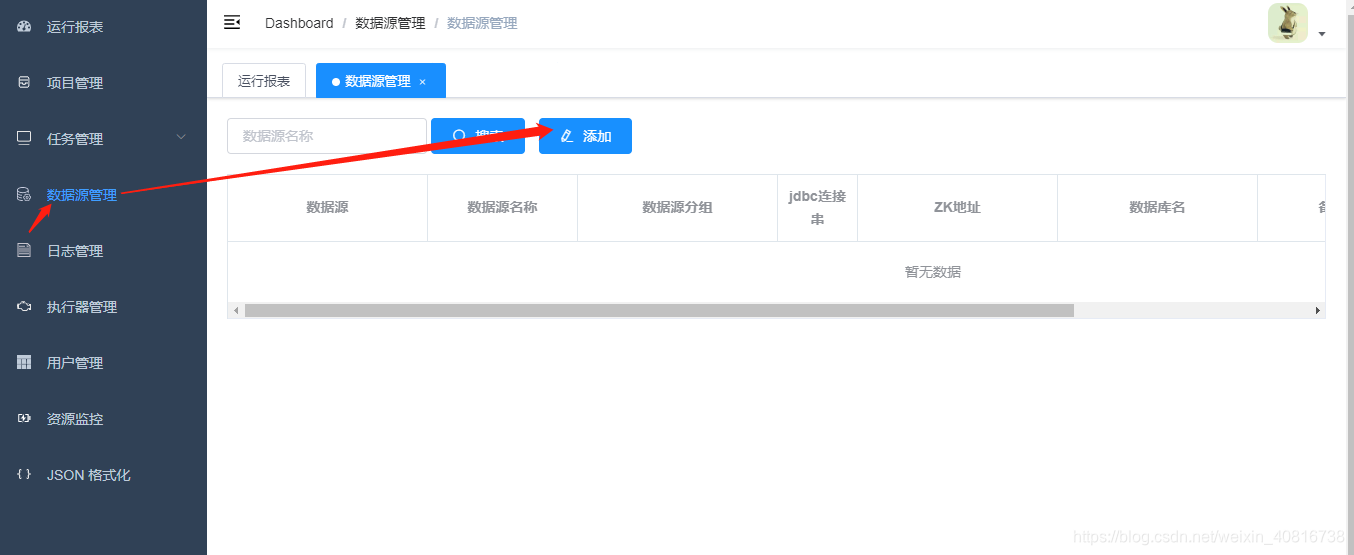

2. 添加数据源

在这里插入图片描述

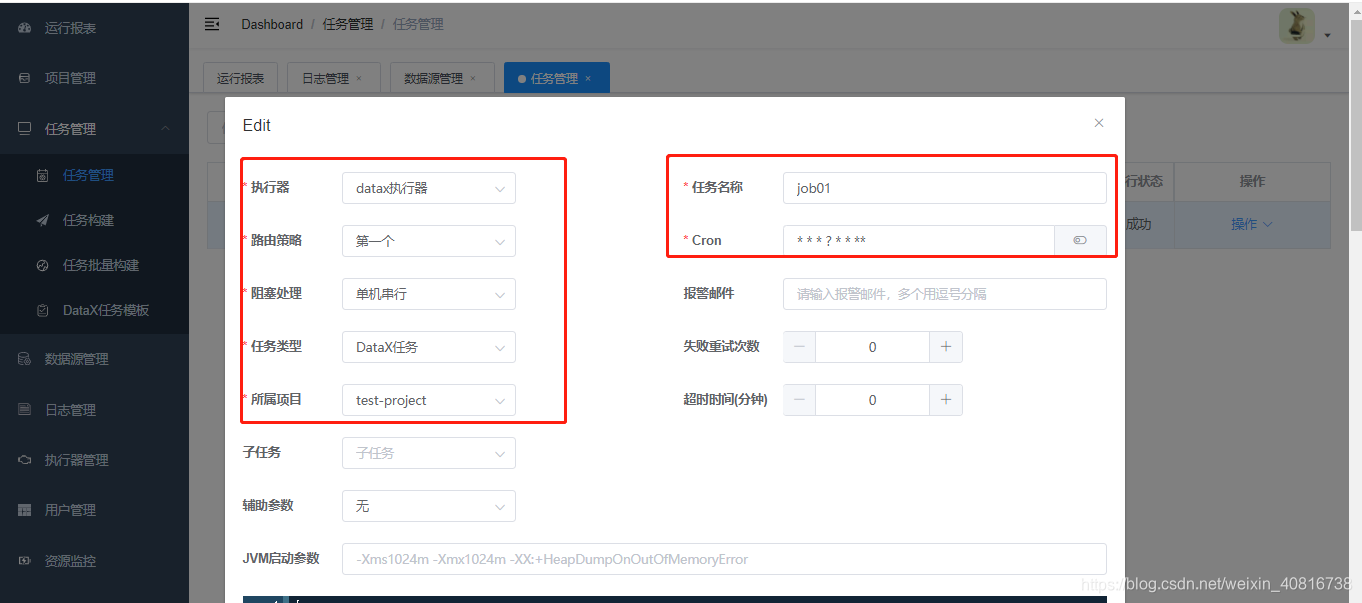

3. 添加任务

在这里插入图片描述

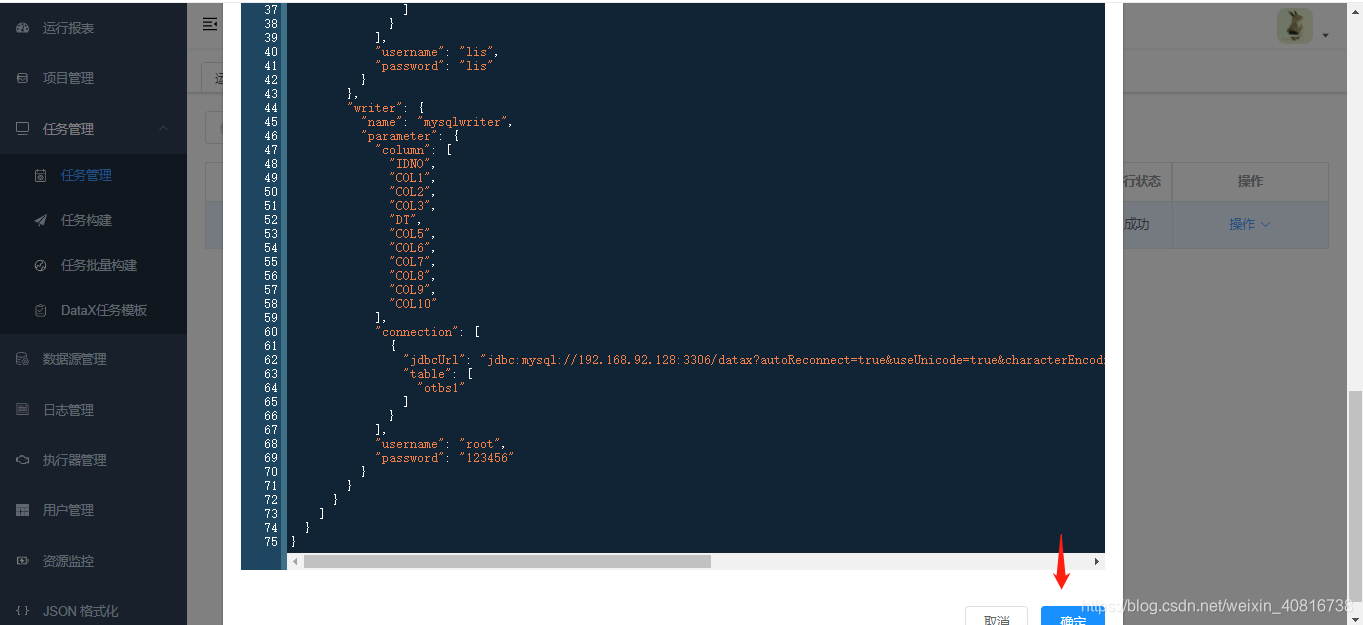

4. 构建json

{"job": {"setting": {"speed": {"channel": 3},"errorLimit": {"record": 0,"percentage": 0.02}},"content": [{"reader": {"name": "oraclereader","parameter": {"column": ["IDNO","COL1","COL2","COL3","DT","COL5","COL6","COL7","COL8","COL9","COL10"],"splitPk": "IDNO","connection": [{"jdbcUrl": ["jdbc:oracle:thin:@192.xxx.xx.xxx:1521:orcl"],"table": ["TEST.OTBS1"]}],"username": "username","password": "password"}},"writer": {"name": "mysqlwriter","parameter": {"column": ["IDNO","COL1","COL2","COL3","DT","COL5","COL6","COL7","COL8","COL9","COL10"],"connection": [{"jdbcUrl": "jdbc:mysql://127.0.0.1:3306/datax?autoReconnect=true&useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=CONVERT_TO_NULL&useSSL=false&serverTimezone=CTT&nullCatalogMeansCurrent=true","table": ["otbs1"]}],"username": "root","password": "123456"}}}]}
}
