公司实现文件上传技术选型采用后端SpringBoot/Cloud，前端vue Bootstrap ，阿里云OSS作为文件存储，大文件上传功能单独抽取封装大文件上传组件，可供所有的大文件的操作。

后端框架	版本
SpringBoot	2.5.6
Spring-Cloud	2020.0.4
mysql	8.0.26
pagehelper	1.3.1
Mybatis	2.2.0
Redis	5.0
Fastjson	1.2.78

前端框架	版本
Vue	2.6.11
axios	0.24.0
vue-router	3.5.3
Bootstrap	4.6.2

一、前端部分

1. 小节页面

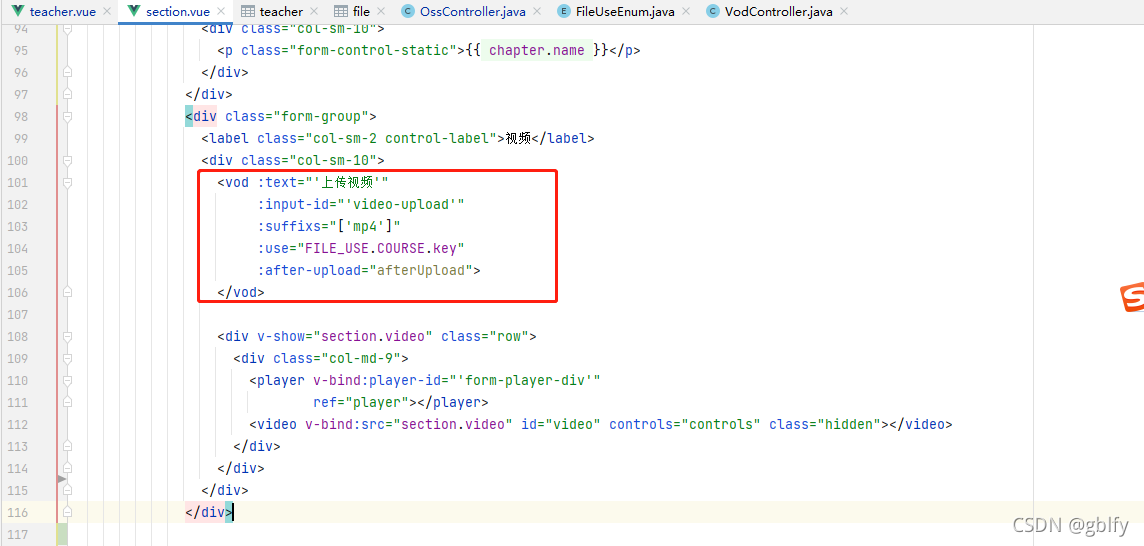

小节页面作为文件上传父页面

      <div class="form-group"><label class="col-sm-2 control-label">视频</label><div class="col-sm-10"><vod :text="'上传视频'":input-id="'video-upload'":suffixs="['mp4']":use="FILE_USE.COURSE.key":after-upload="afterUpload"></vod><div v-show="section.video" class="row"><div class="col-md-9"><player v-bind:player-id="'form-player-div'"ref="player"></player><video v-bind:src="section.video" id="video" controls="controls" class="hidden"></video></div></div></div></div>

2. js部分

<script>import BigFile from "@/components/big-file";export default {components: { BigFile },name: 'business-section',data: function () {return {section: {},sections: [],FILE_USE: FILE_USE,}},methods: {/*** 点击【新增】*/add() {let _this = this_this.section = {}$("#form-modal").modal("show")},/*** 点击【编辑】*/edit(section) {let _this = this_this.section = $.extend({}, section)$("#form-modal").modal("show")},/*** 点击【保存】*/save() {let _this = this_this.section.video = "";// 保存校验if (1 != 1|| !Validator.require(_this.section.title, "标题")|| !Validator.length(_this.section.title, "标题", 1, 50)|| !Validator.length(_this.section.video, "视频", 1, 200)) {return;}_this.section.courseId = _this.course.id_this.section.chapterId = _this.chapter.idLoading.show()_this.$api.post(process.env.VUE_APP_SERVER + '/business/admin/section/save', _this.section).then((res) => {Loading.hide()let resp = res.dataif (resp.success) {$("#form-modal").modal("hide")_this.list(1)Toast.success("保存成功！")} else {Toast.warning(resp.message)}})},afterUpload(resp) {let _this = thislet video = resp.content.path;},},
}</script>

3. 大文件上传组件

<template><div><button type="button" v-on:click="selectFile()" class="btn btn-white btn-default btn-round"><i class="ace-icon fa fa-upload"></i>{{ text }}</button><input class="hidden" type="file" ref="file" v-on:change="uploadFile()" v-bind:id="inputId+'-input'"></div>
</template><script>
export default {name: 'big-file',props: {text: {default: "上传大文件"},inputId: {default: "file-upload"},suffixs: {default: []},use: {default: ""},shardSize: {default: 50 * 1024},url: {default: "oss-append"},saveType: {default: "oss/"},afterUpload: {type: Function,default: null},},data: function () {return {}},methods: {uploadFile() {let _this = this;let formData = new window.FormData();let file = _this.$refs.file.files[0];console.log(JSON.stringify(file));/*name: "test.mp4"lastModified: 1901173357457lastModifiedDate: Tue May 27 2099 14:49:17 GMT+0800 (中国标准时间) {}webkitRelativePath: ""size: 37415970type: "video/mp4"*/// 生成文件标识，标识多次上传的是不是同一个文件let key = hex_md5(file.name + file.size + file.type);let key10 = parseInt(key, 16);let key62 = Tool._10to62(key10);console.log(key, key10, key62);console.log(hex_md5(Array()));/*d41d8cd98f00b204e9800998ecf8427e2.8194976848941264e+386sfSqfOwzmik4A4icMYuUe*/// 判断文件格式let suffixs = _this.suffixs;let fileName = file.name;let suffix = fileName.substring(fileName.lastIndexOf(".") + 1, fileName.length).toLowerCase();let validateSuffix = false;for (let i = 0; i < suffixs.length; i++) {if (suffixs[i].toLowerCase() === suffix) {validateSuffix = true;break;}}if (!validateSuffix) {Toast.warning("文件格式不正确！只支持上传：" + suffixs.join(","));$("#" + _this.inputId + "-input").val("");return;}// 文件分片// let shardSize = 10 * 1024 * 1024;    //以10MB为一个分片// let shardSize = 50 * 1024;    //以50KB为一个分片let shardSize = _this.shardSize;let shardIndex = 1;		//分片索引，1表示第1个分片let size = file.size;let shardTotal = Math.ceil(size / shardSize); //总片数let param = {'shardIndex': shardIndex,'shardSize': shardSize,'shardTotal': shardTotal,'use': _this.use,'name': file.name,'suffix': suffix,'size': file.size,'key': key62};_this.check(param);},/*** 检查文件状态，是否已上传过？传到第几个分片？*/check(param) {let _this = this;_this.$api.get(process.env.VUE_APP_SERVER + '/file/admin/check/' + _this.saveType + param.key).then((response) => {let resp = response.data;if (resp.success) {let obj = resp.content;if (!obj) {param.shardIndex = 1;console.log("没有找到文件记录，从分片1开始上传");_this.upload(param);} else if (obj.shardIndex === obj.shardTotal) {// 已上传分片 = 分片总数，说明已全部上传完，不需要再上传Toast.success("文件极速秒传成功！");_this.afterUpload(resp);$("#" + _this.inputId + "-input").val("");} else {param.shardIndex = obj.shardIndex + 1;console.log("找到文件记录，从分片" + param.shardIndex + "开始上传");_this.upload(param);}} else {Toast.warning("文件上传失败");$("#" + _this.inputId + "-input").val("");}})},/*** 将分片数据转成base64进行上传*/upload(param) {let _this = this;let shardIndex = param.shardIndex;let shardTotal = param.shardTotal;let shardSize = param.shardSize;let fileShard = _this.getFileShard(shardIndex, shardSize);// 将图片转为base64进行传输let fileReader = new FileReader();Progress.show(parseInt((shardIndex - 1) * 100 / shardTotal));fileReader.onload = function (e) {let base64 = e.target.result;// console.log("base64:", base64);param.shard = base64;_this.$api.post(process.env.VUE_APP_SERVER + '/file/admin/' + _this.url, param).then((response) => {let resp = response.data;console.log("上传文件成功：", resp);Progress.show(parseInt(shardIndex * 100 / shardTotal));if (shardIndex < shardTotal) {// 上传下一个分片param.shardIndex = param.shardIndex + 1;_this.upload(param);} else {Progress.hide();_this.afterUpload(resp);$("#" + _this.inputId + "-input").val("");}});};fileReader.readAsDataURL(fileShard);},getFileShard(shardIndex, shardSize) {let _this = this;let file = _this.$refs.file.files[0];let start = (shardIndex - 1) * shardSize;	//当前分片起始位置let end = Math.min(file.size, start + shardSize); //当前分片结束位置let fileShard = file.slice(start, end); //从文件中截取当前的分片数据return fileShard;},selectFile() {let _this = this;$("#" + _this.inputId + "-input").trigger("click");}}
}
</script>

二、阿里云OSS

官网：https://www.aliyun.com

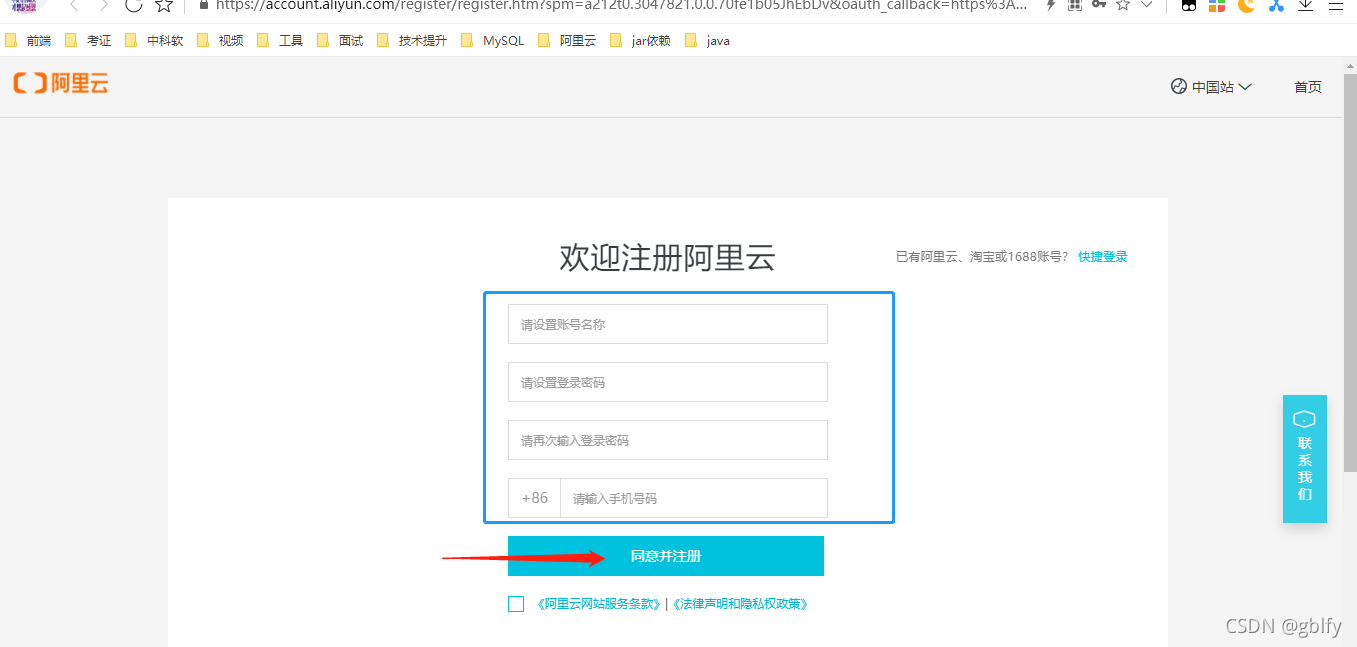

2.1. 注册阿里云

https://account.aliyun.com/register/register.htm

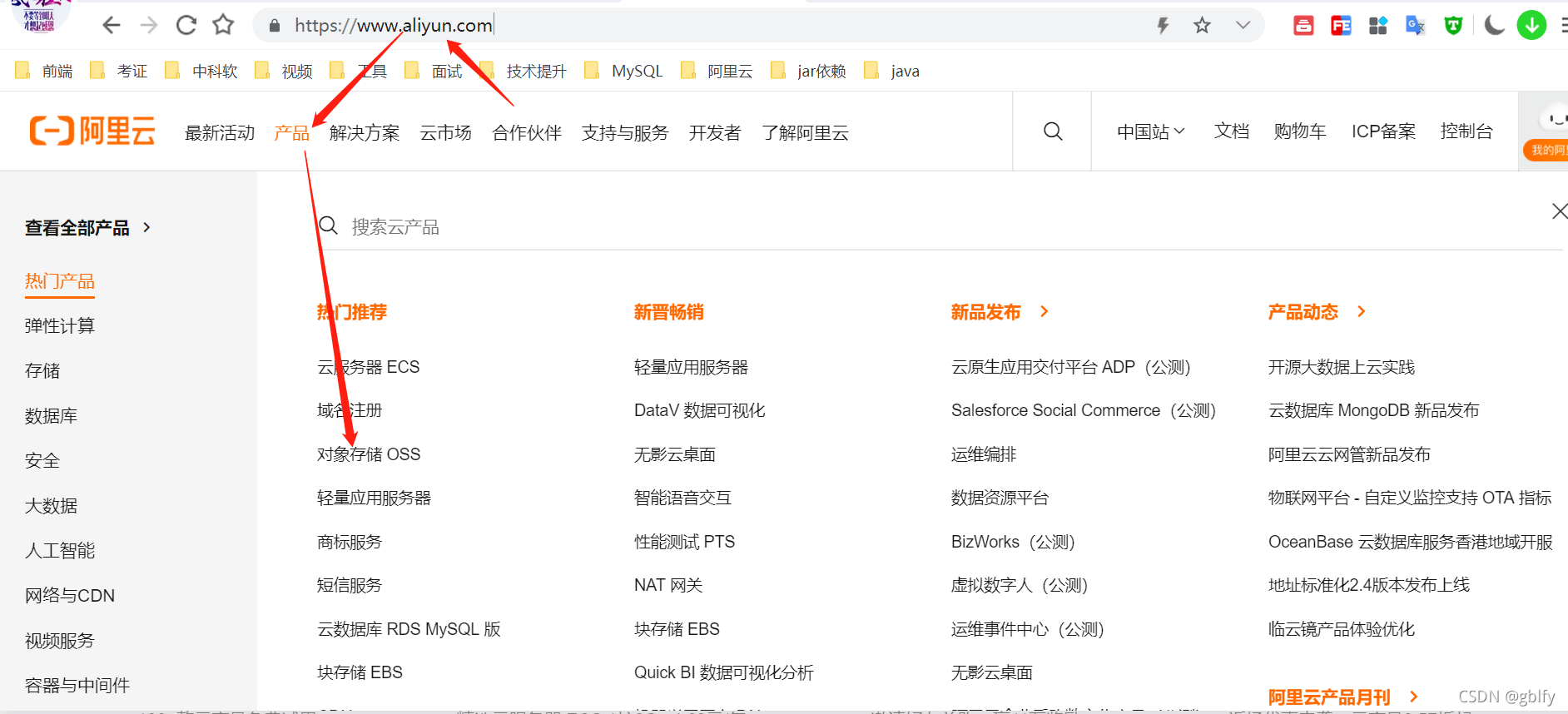

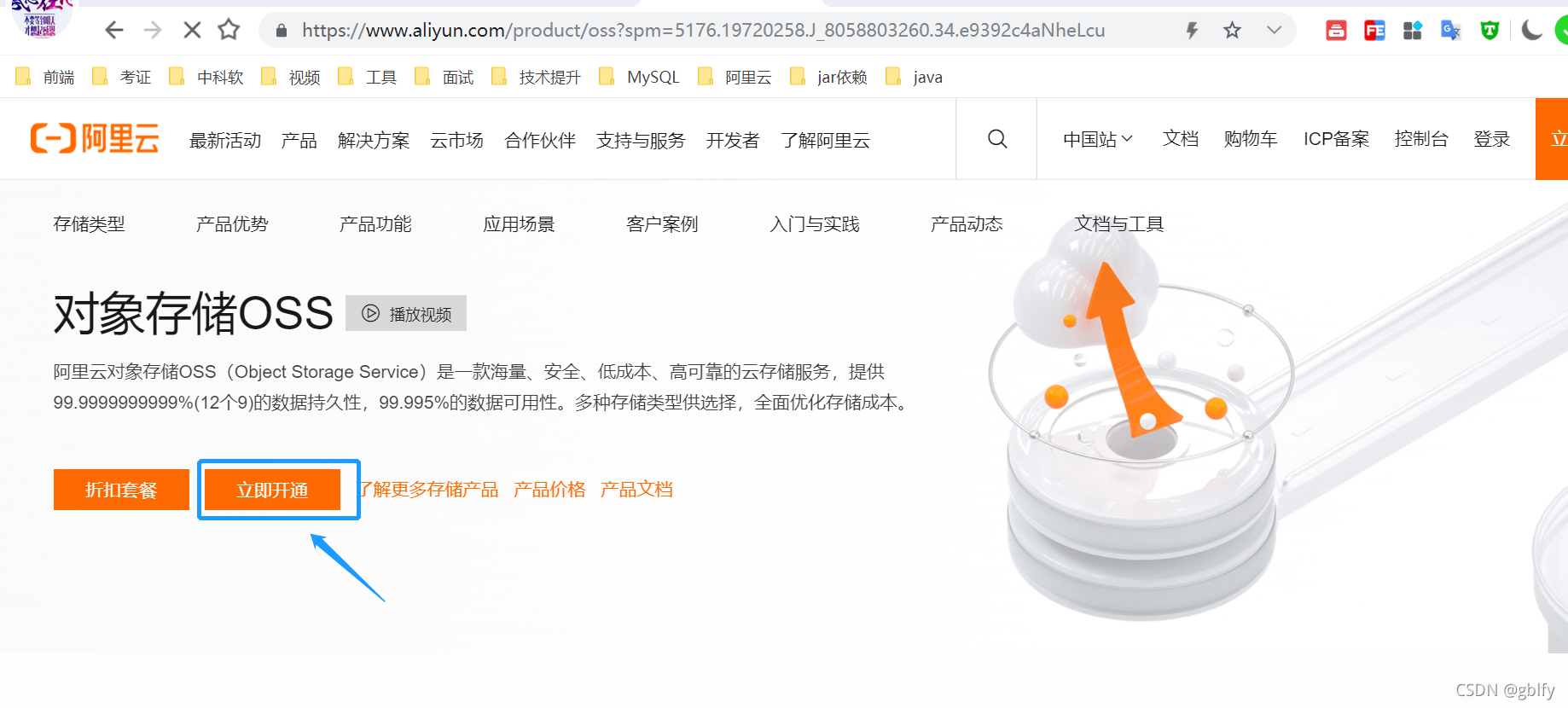

2.2. 开通OSS

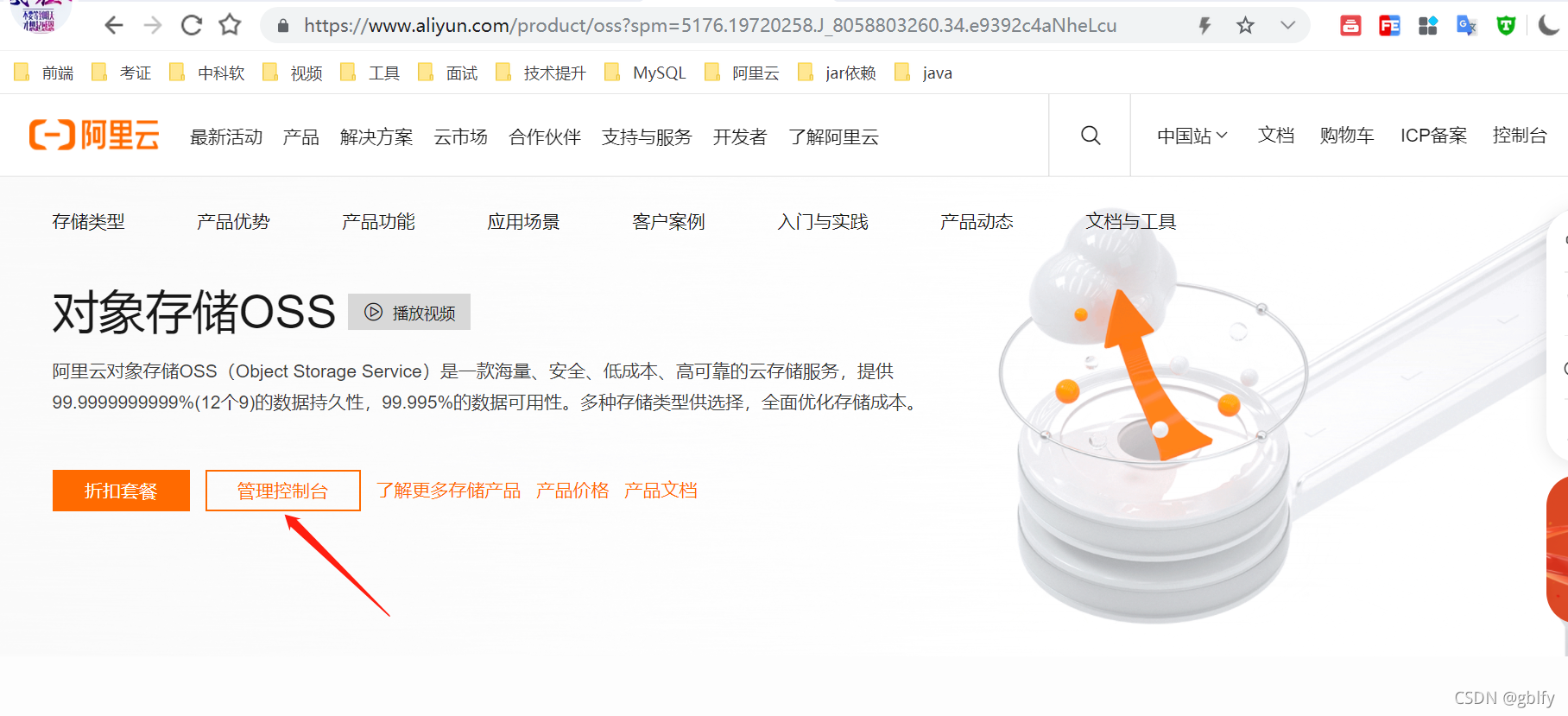

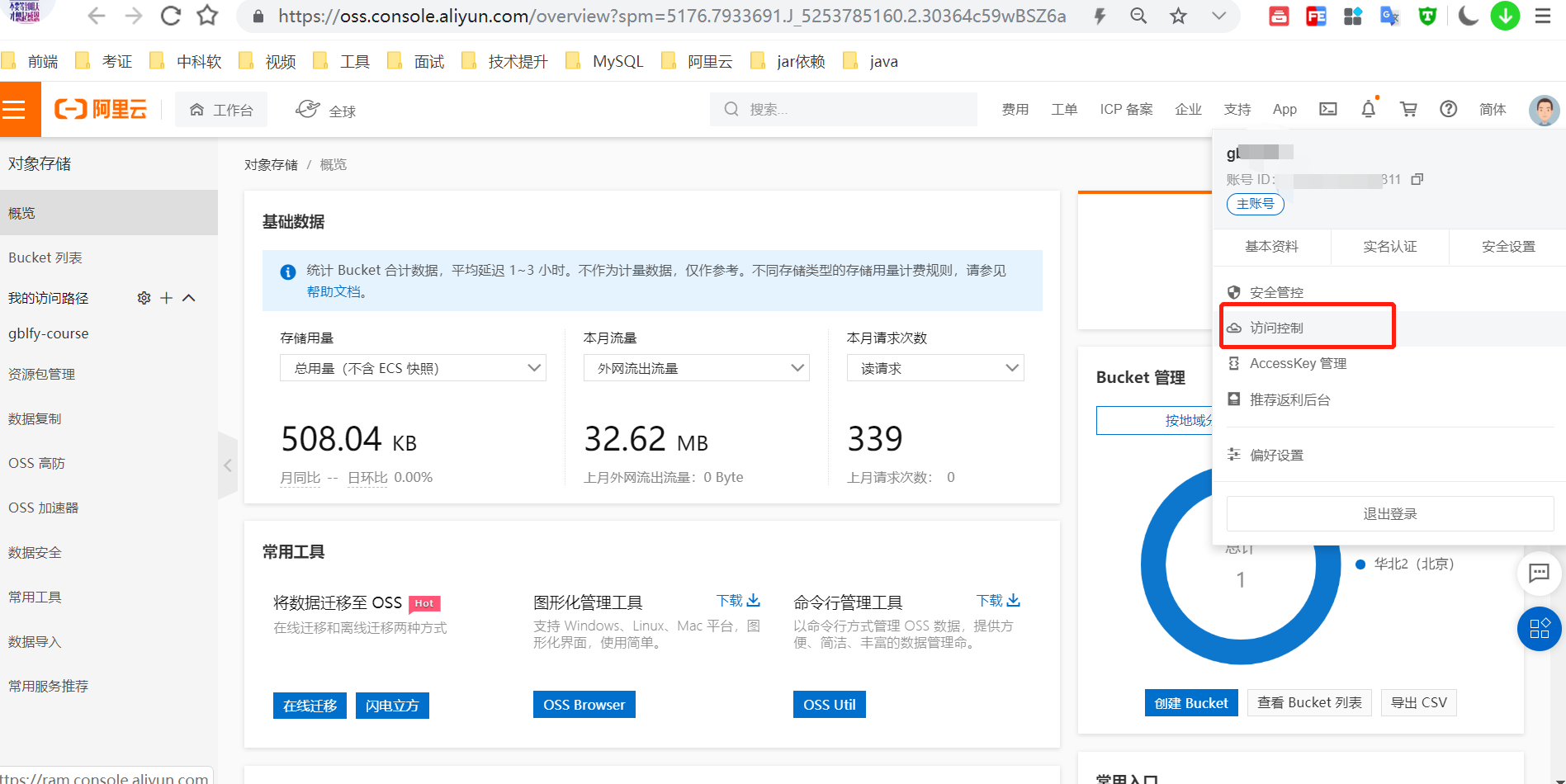

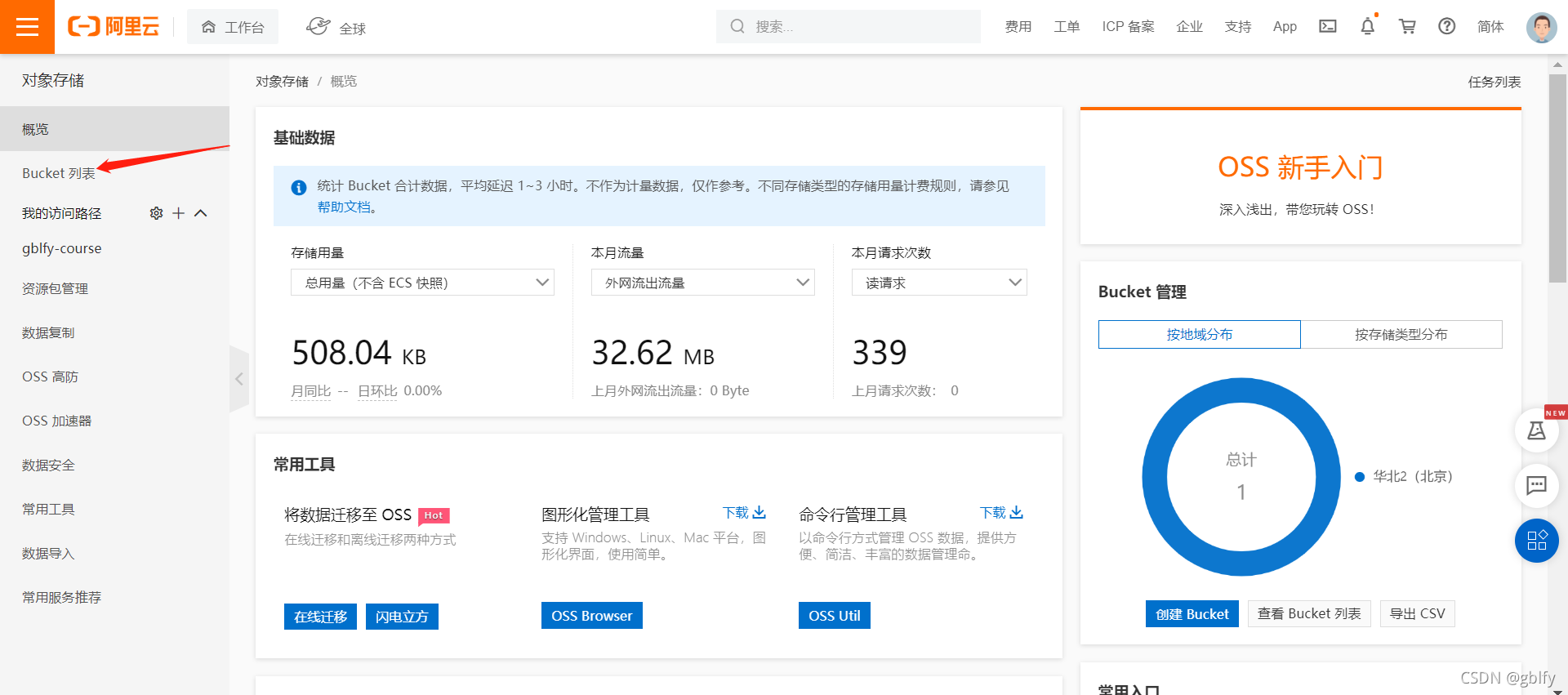

2.3. 进入管控台

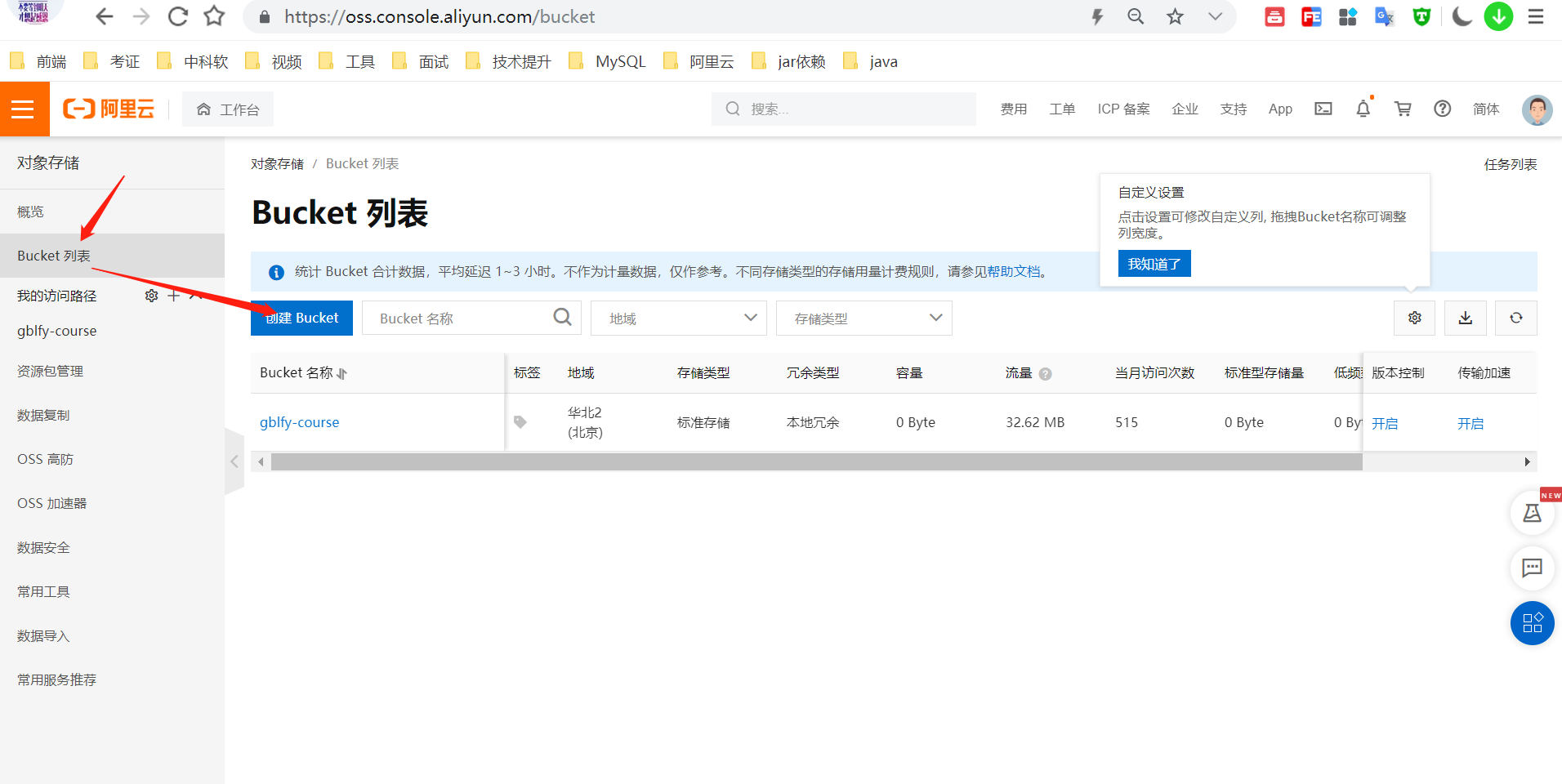

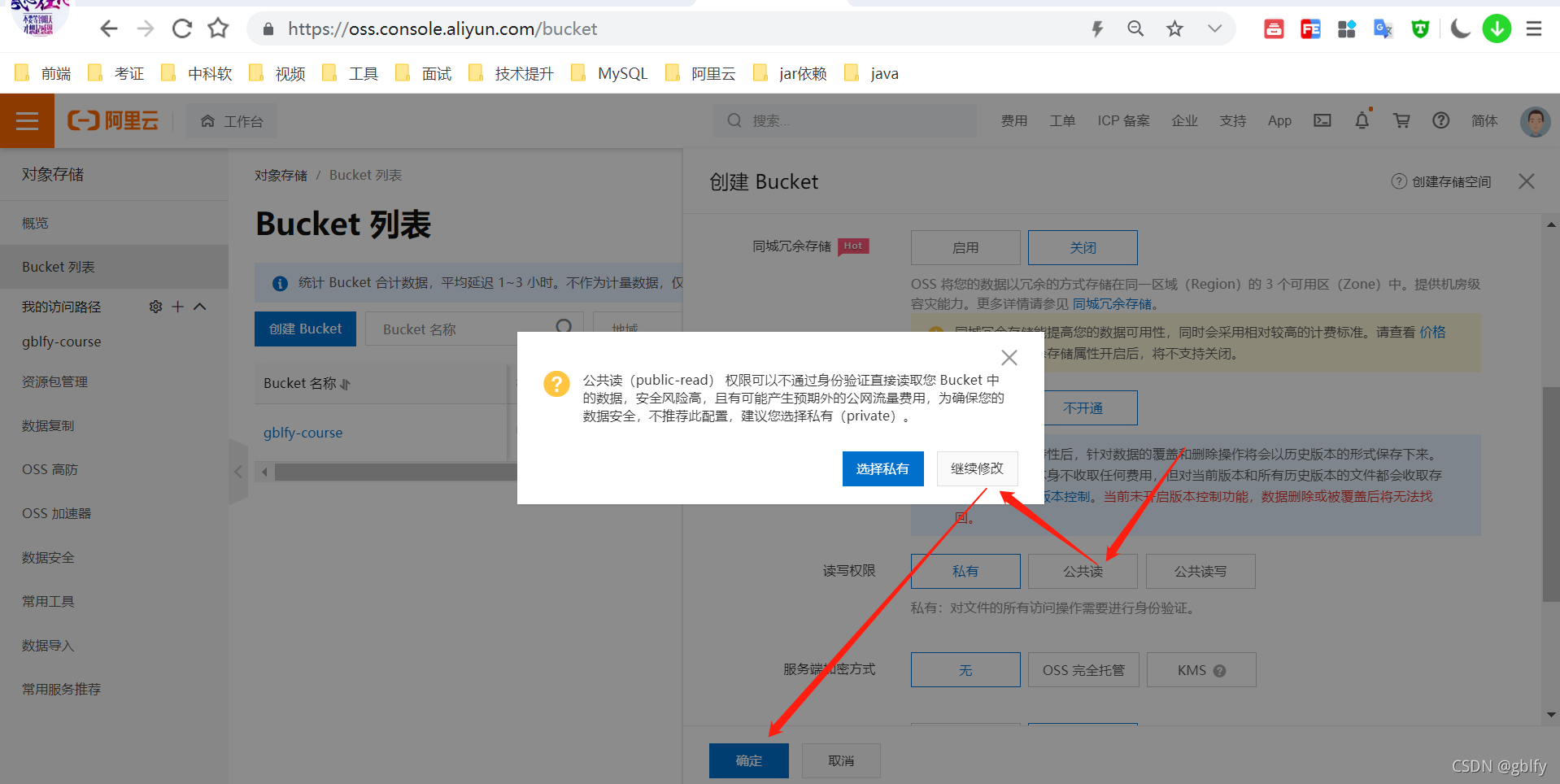

2.4. 创建 Bucket

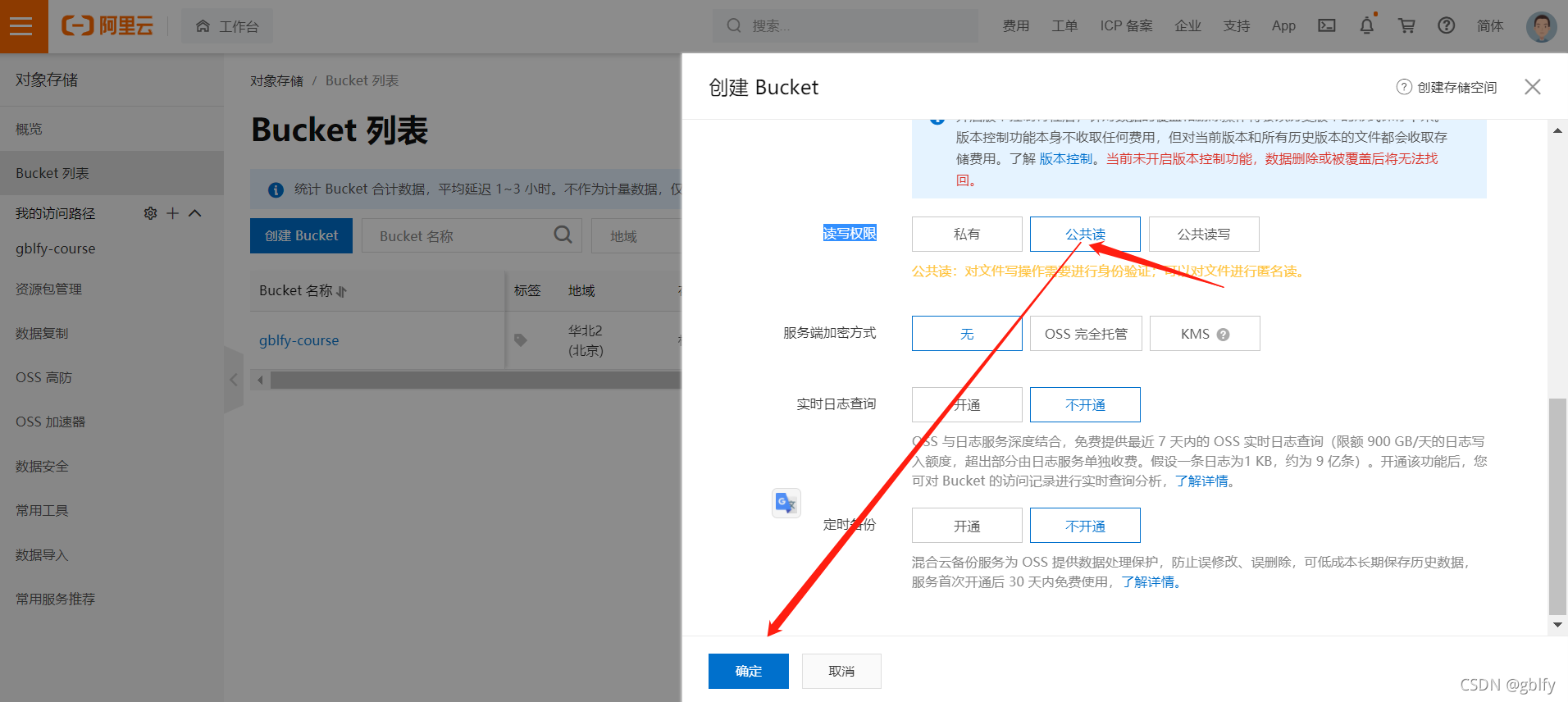

读写权限选择【公共读】，意思是都可以或者有权限看，没其他特殊请求，其他的保持默认，点击确定即可

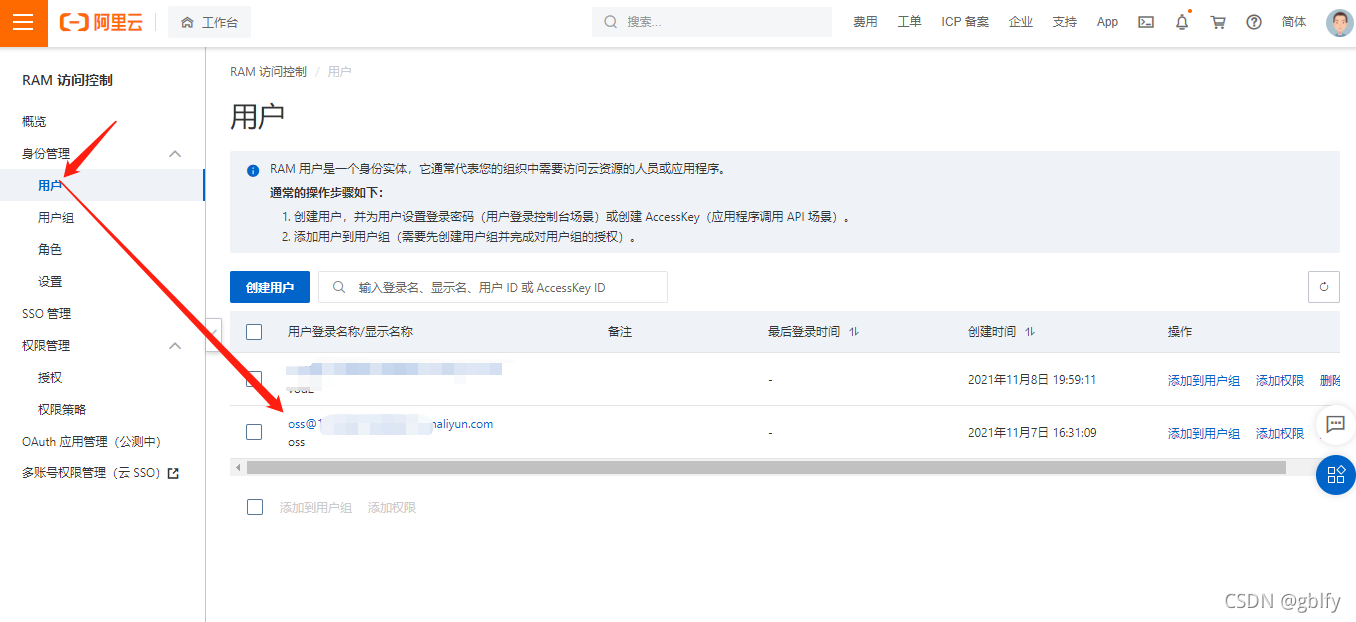

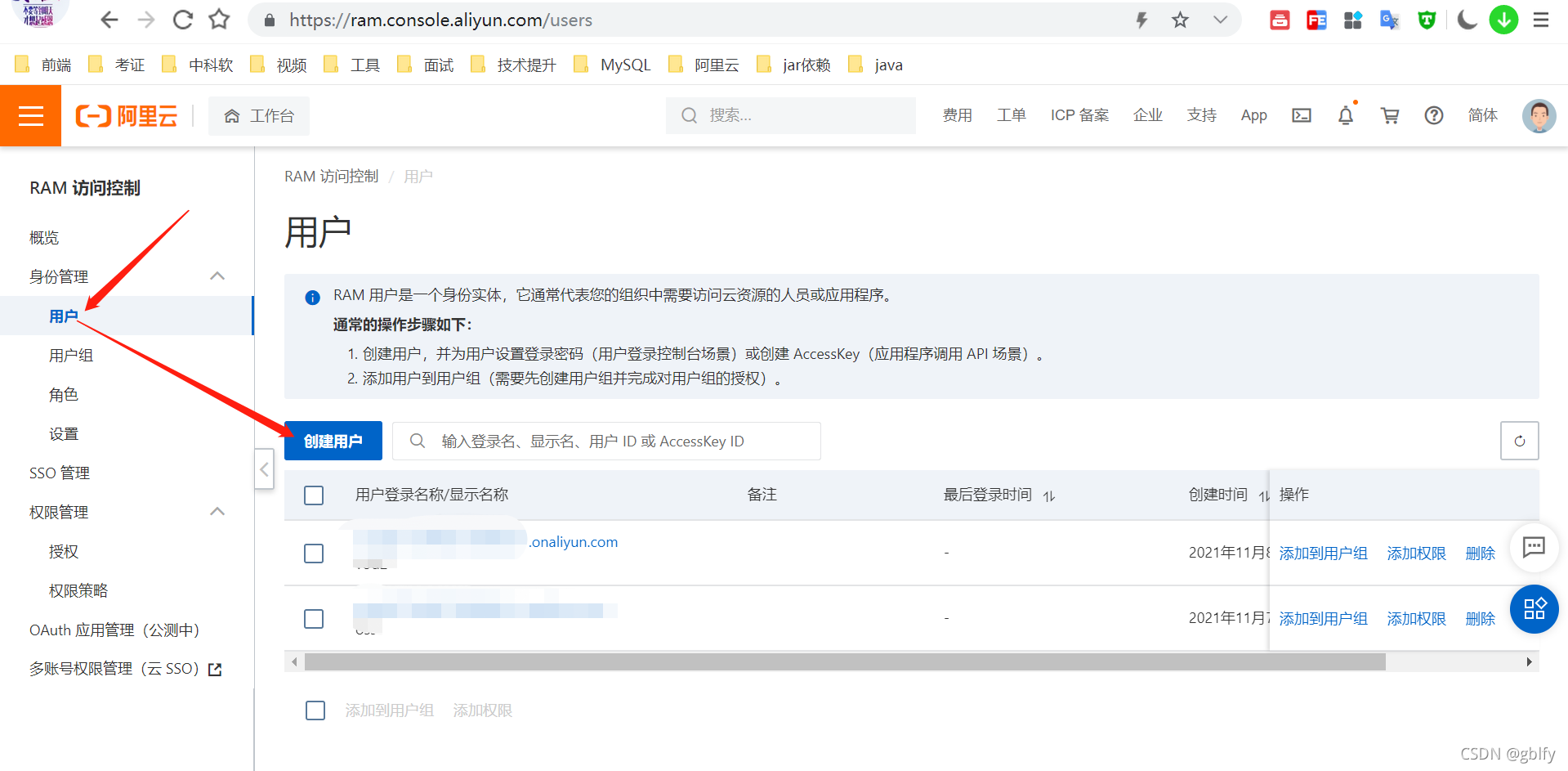

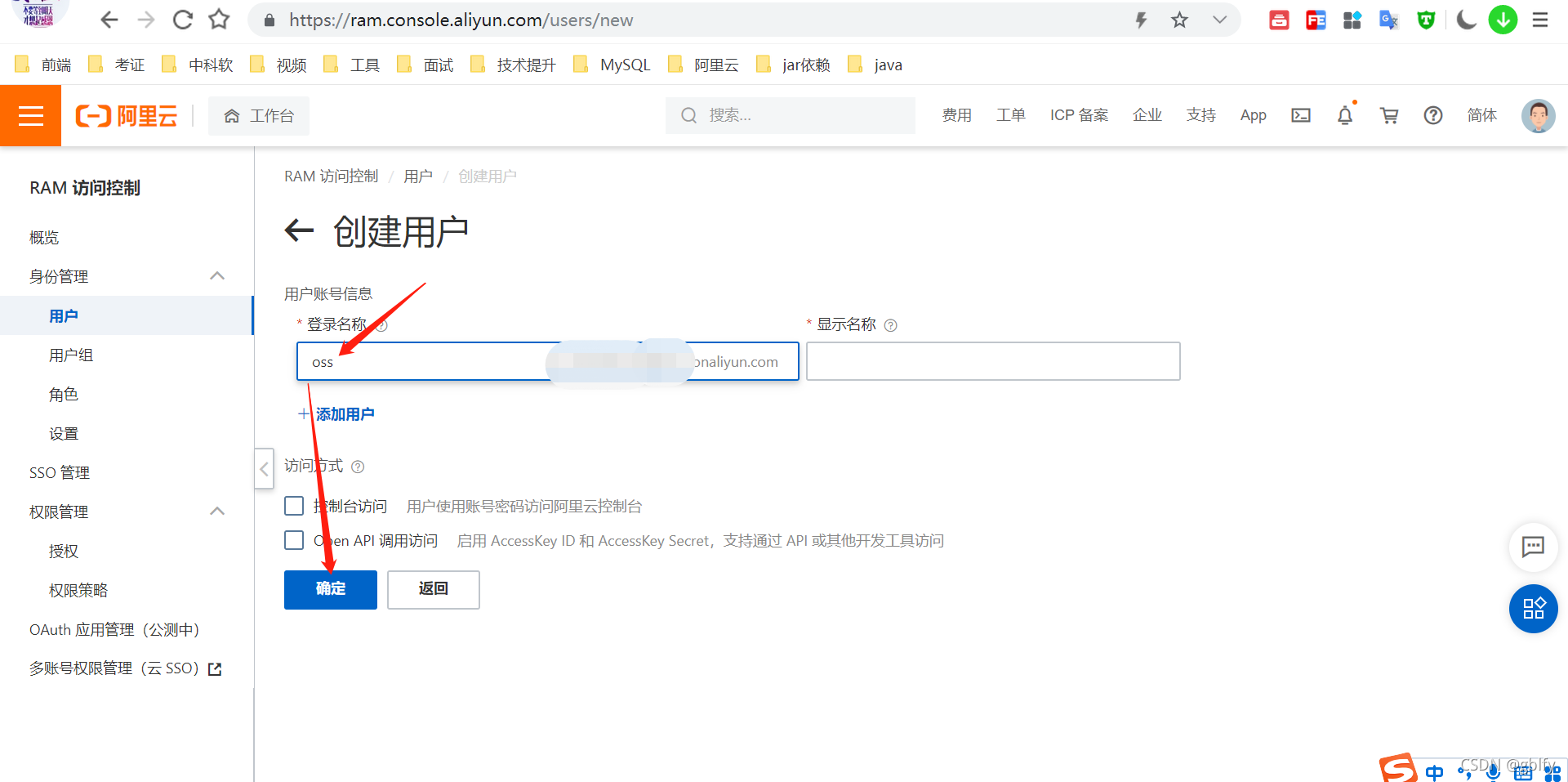

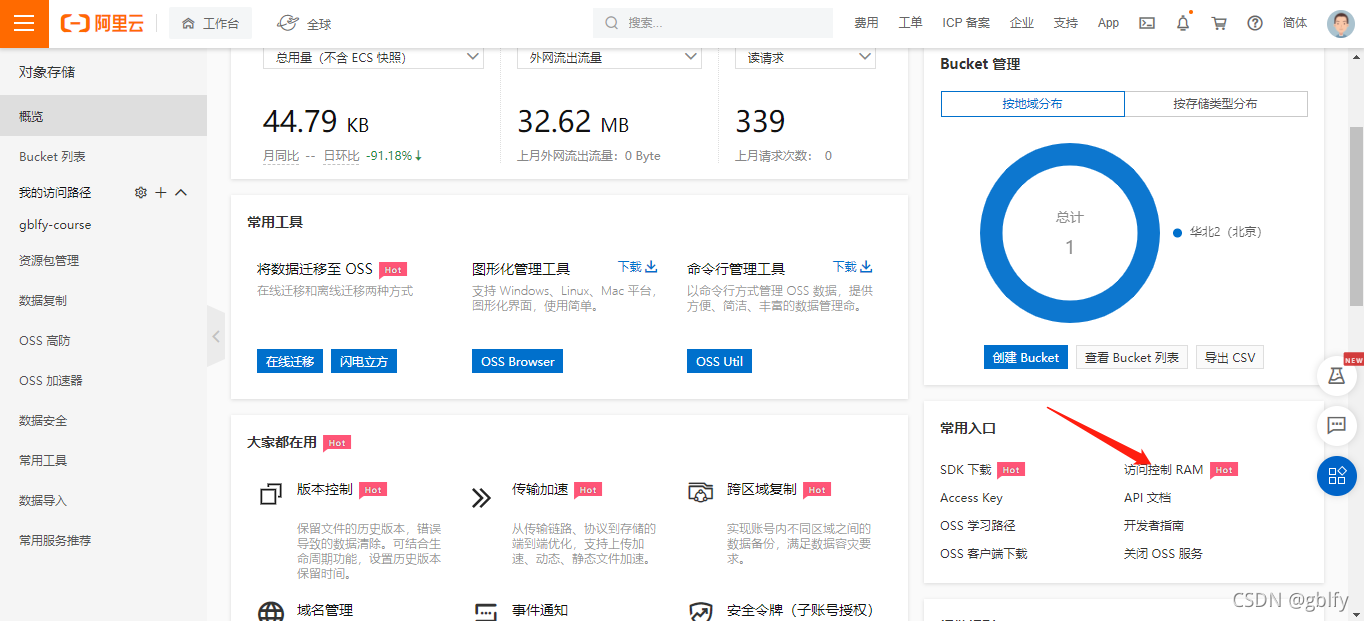

2.5. 创建OSS用户

或者

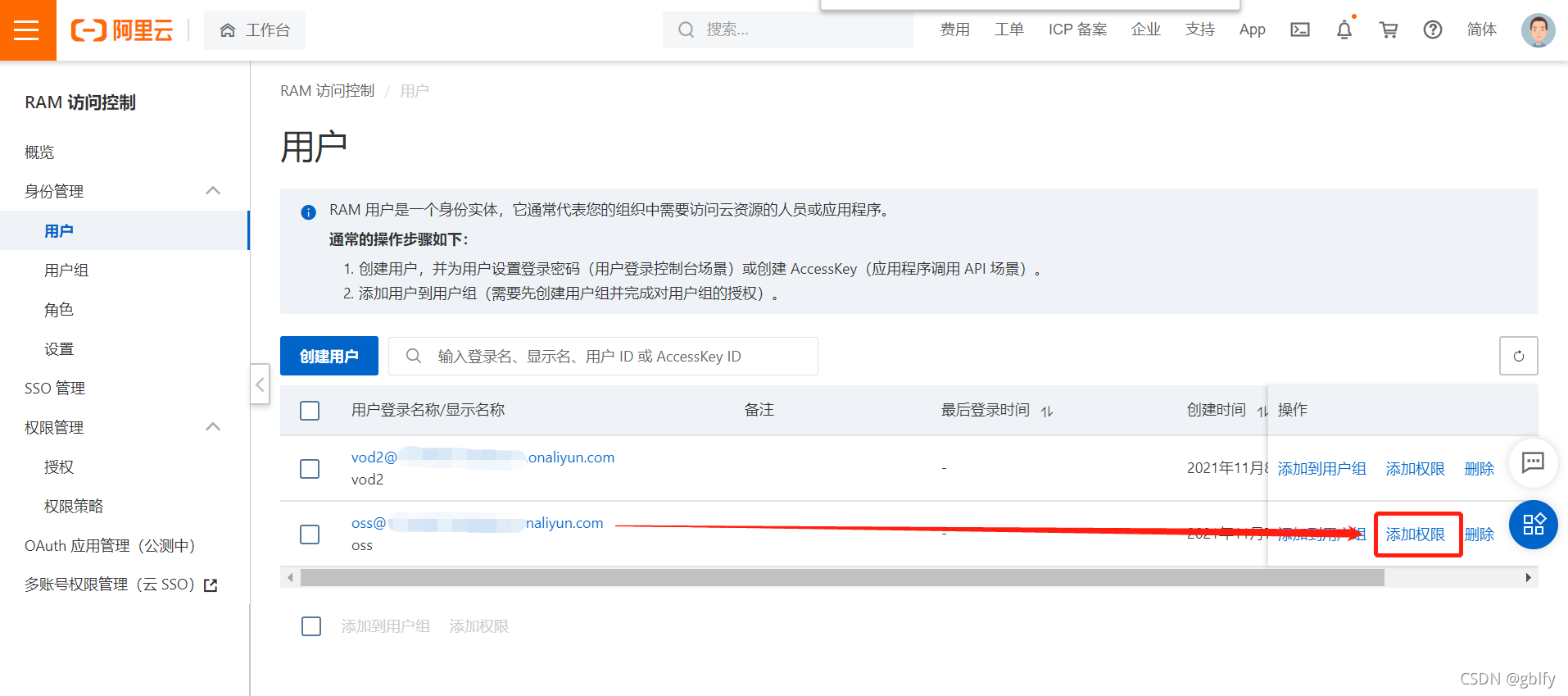

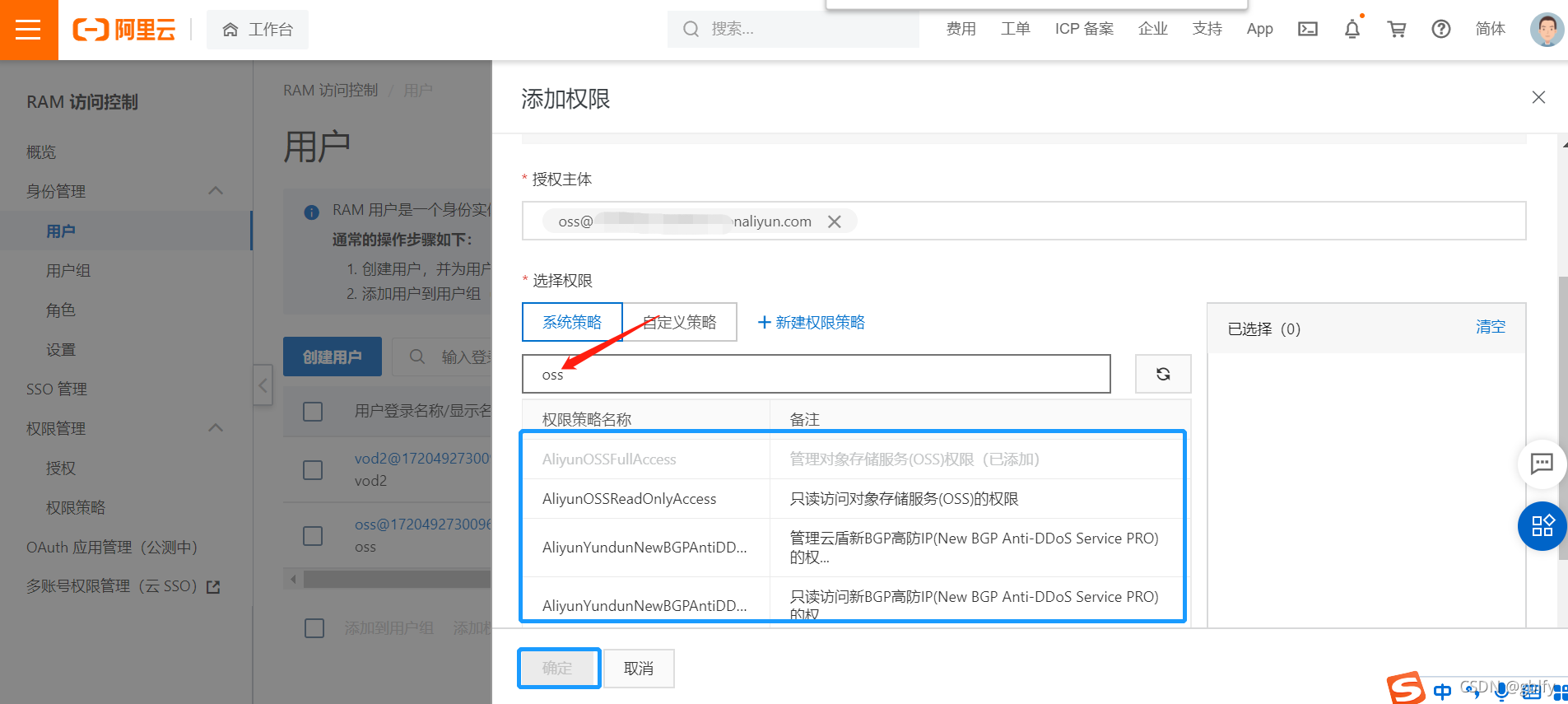

2.6. OSS权限

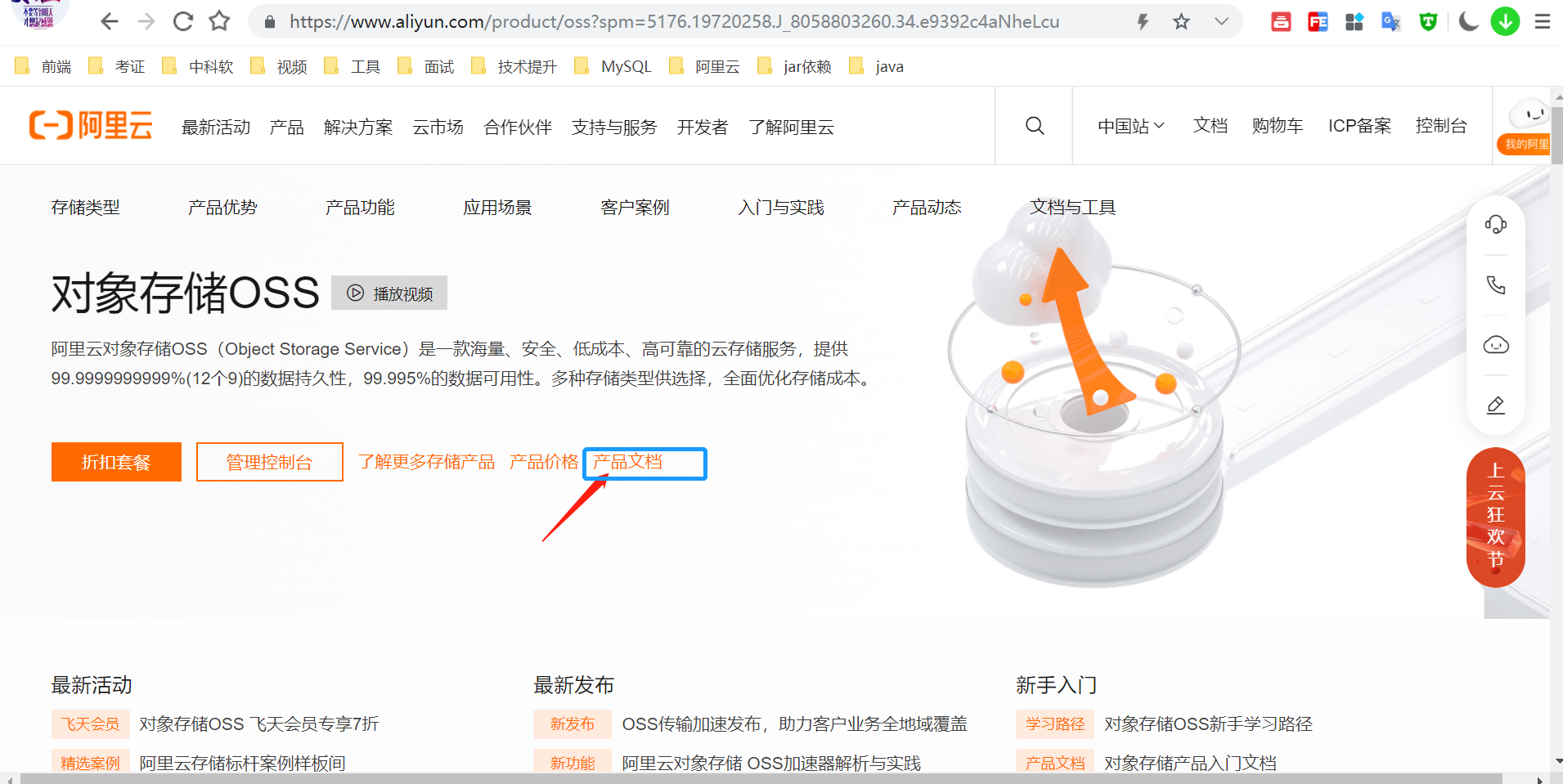

三、OSS Client 开发文档

https://www.aliyun.com/product/oss

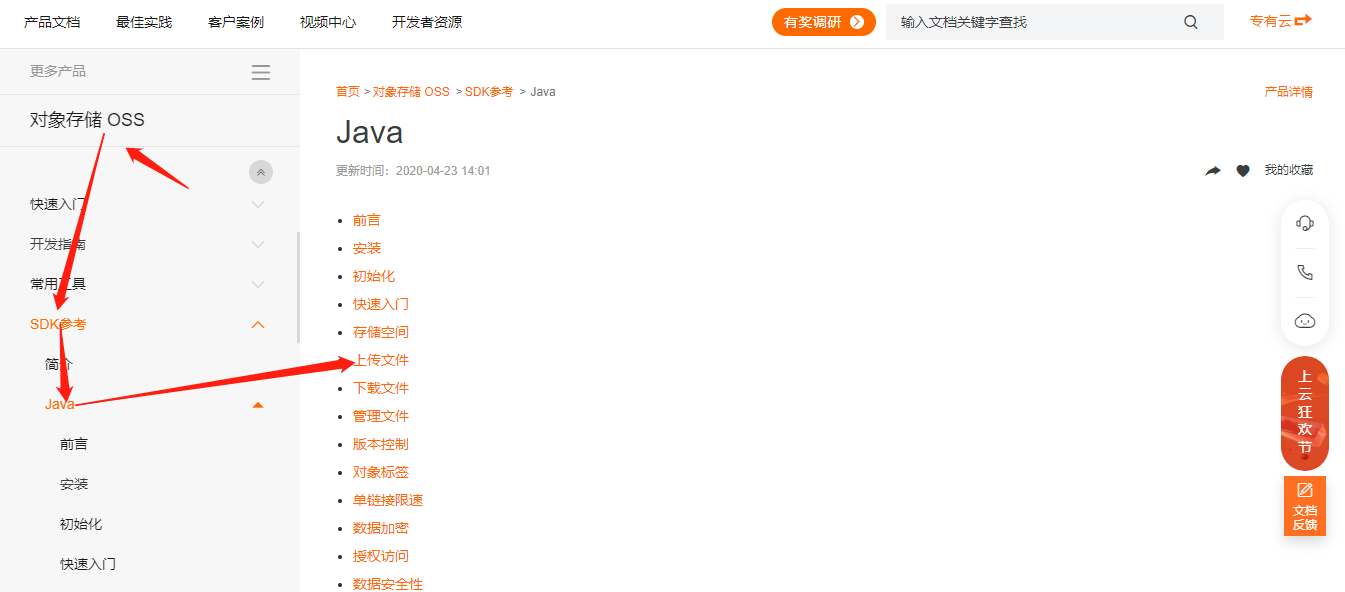

3.1. OSS Client SDK

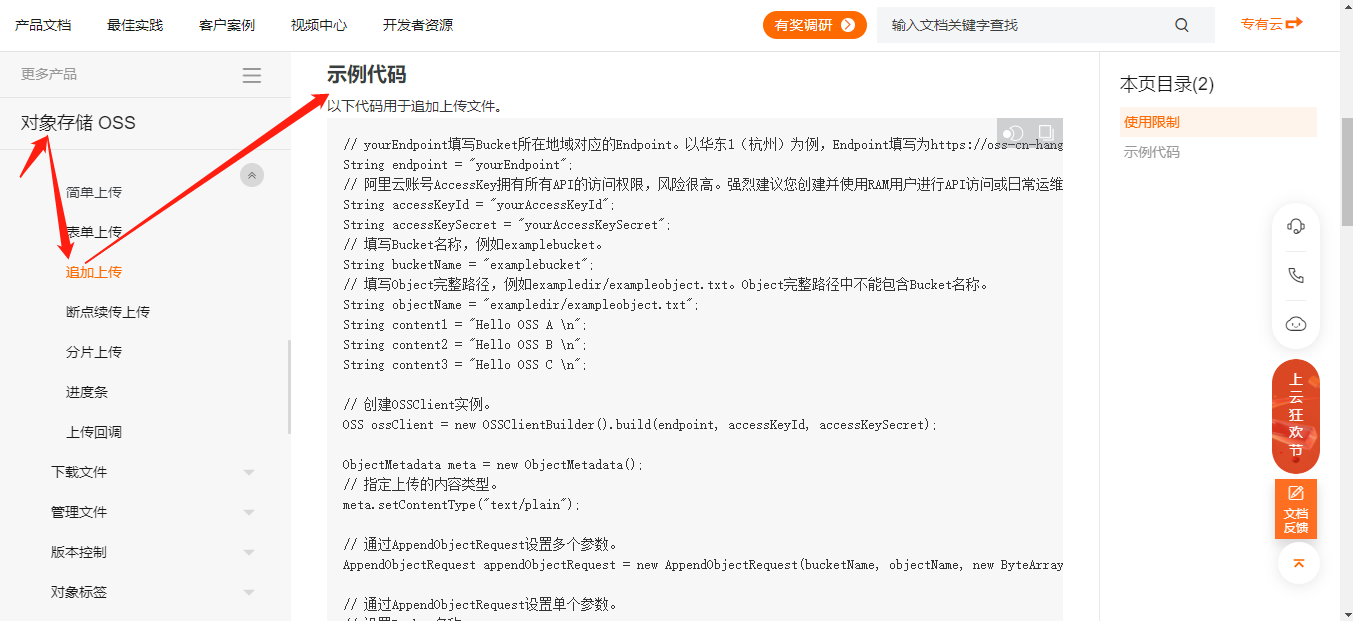

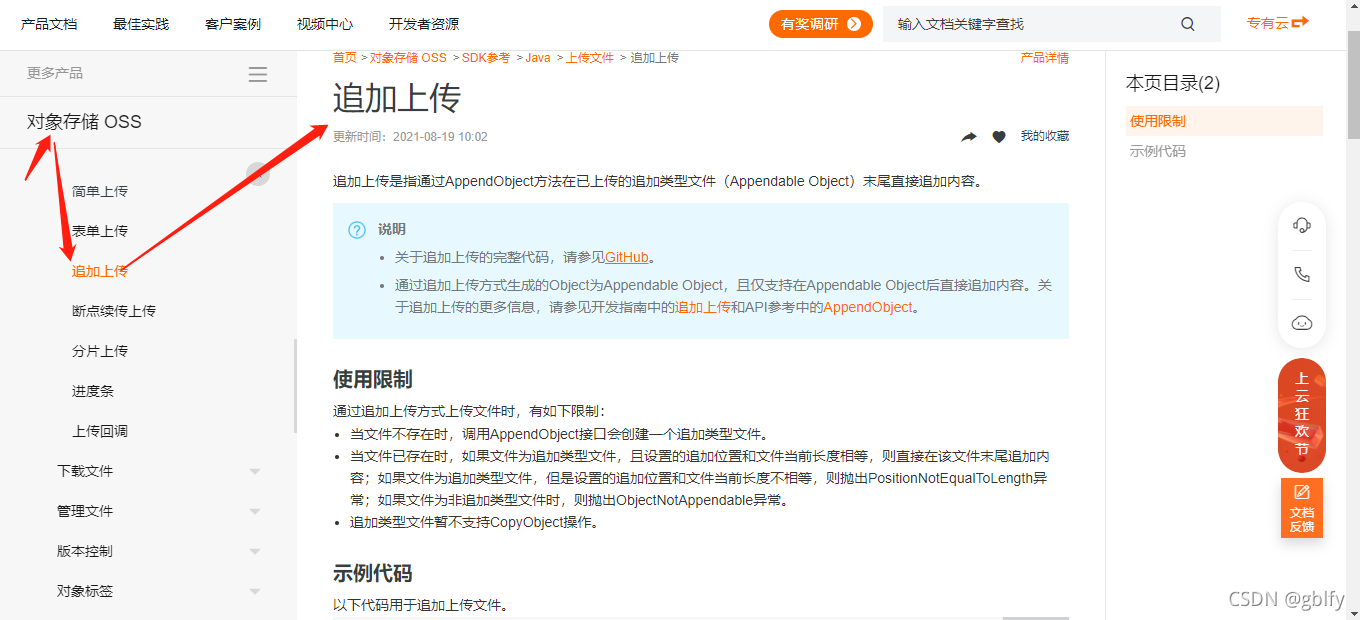

开发语言java 追加上传（断点续传已实现）

3.2. 限制

3.3. SDK Client

这里就是官网提供的java语言的SDK Client

四、后端部分

https://help.aliyun.com/document_detail/32009.html

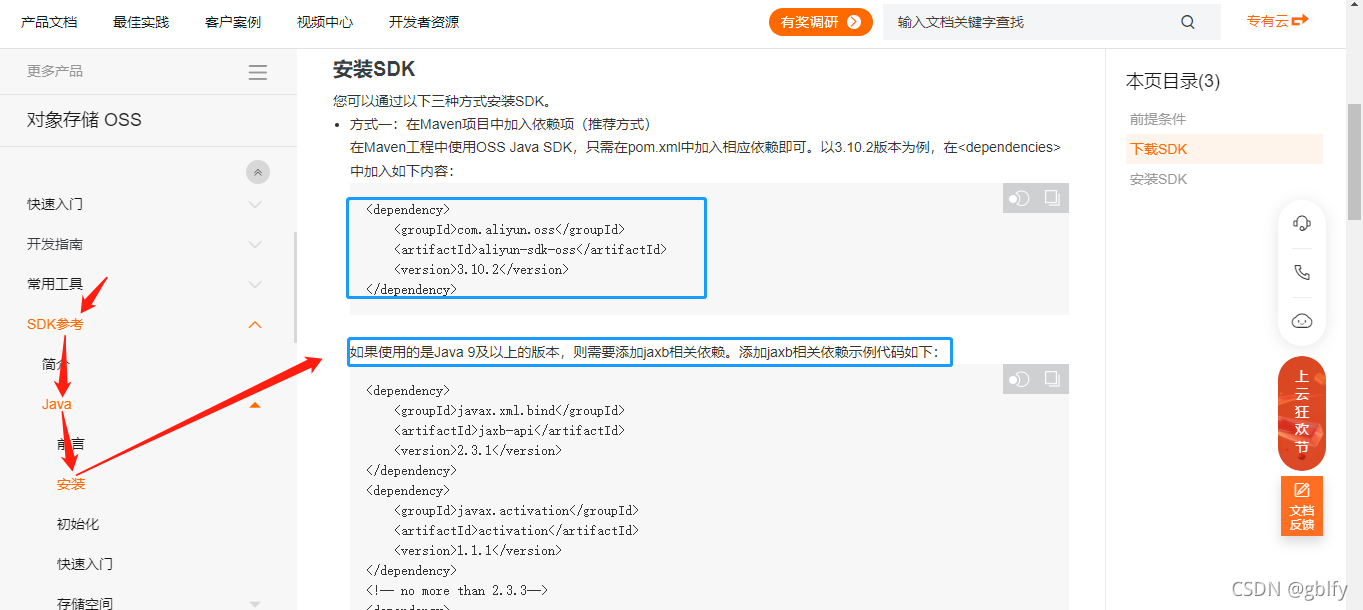

4.1.依赖引入

      <!-- OSS Java SDK --><dependency><groupId>com.aliyun.oss</groupId><artifactId>aliyun-sdk-oss</artifactId><version>3.10.2</version></dependency>

4.2. 配置

# 应用名称
spring.application.name=file
# 应用端口
server.port=9003
# 注册到eureka
eureka.client.service-url.defaultZone=http://localhost:8761/eureka# 请求访问前缀
server.servlet.context-path=/file# 本地存储静态文件路径
file.path=D:/file/imooc/course/
# 访问静态文件路径（用于文件回显或者文件下载）
file.domain=http://127.0.0.1:9000/file/f/# 文件大小（如果搭建大小超过此配置的大小或抛出异常）
spring.servlet.multipart.max-file-size=50MB
# 请求大小
spring.servlet.multipart.max-request-size=50MB# OSS 配置
oss.accessKeyId=xxx
oss.accessKeySecret=xxx
oss.endpoint=http://oss-cn-beijing.aliyuncs.com
oss.ossDomain=http://bucket名称.oss-cn-beijing.aliyuncs.com/
oss.bucket=xxx

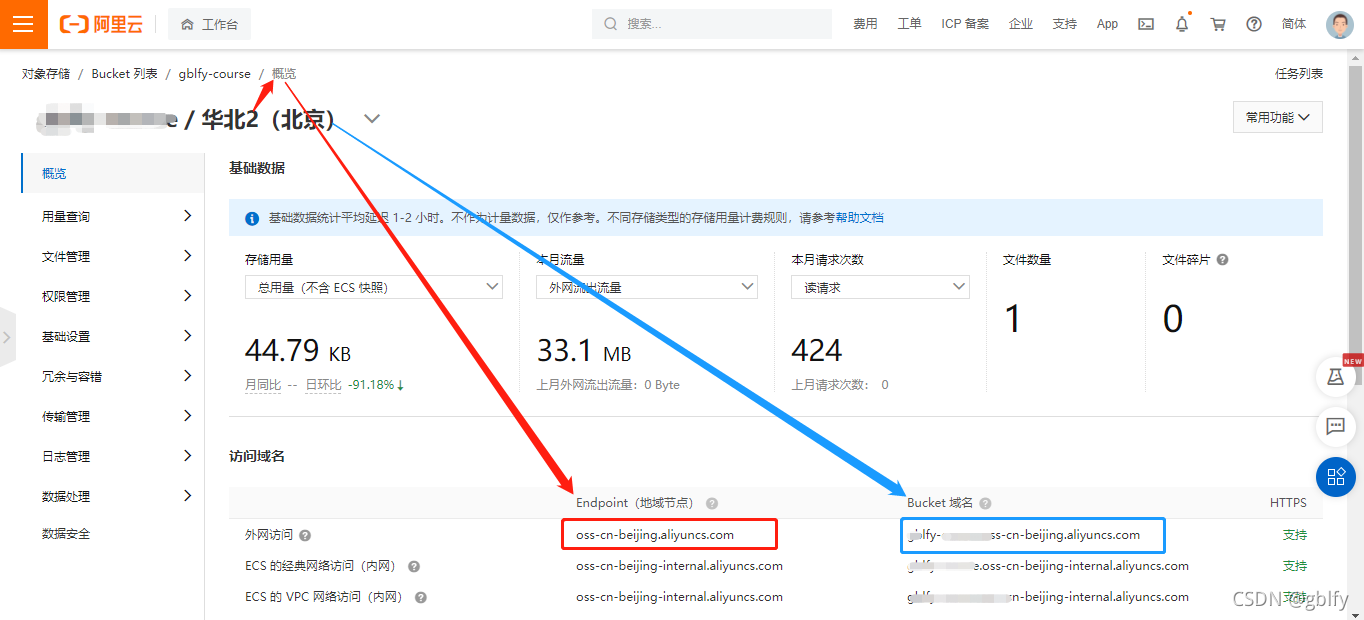

• oss.endpoint 和oss.ossDomain获取方式

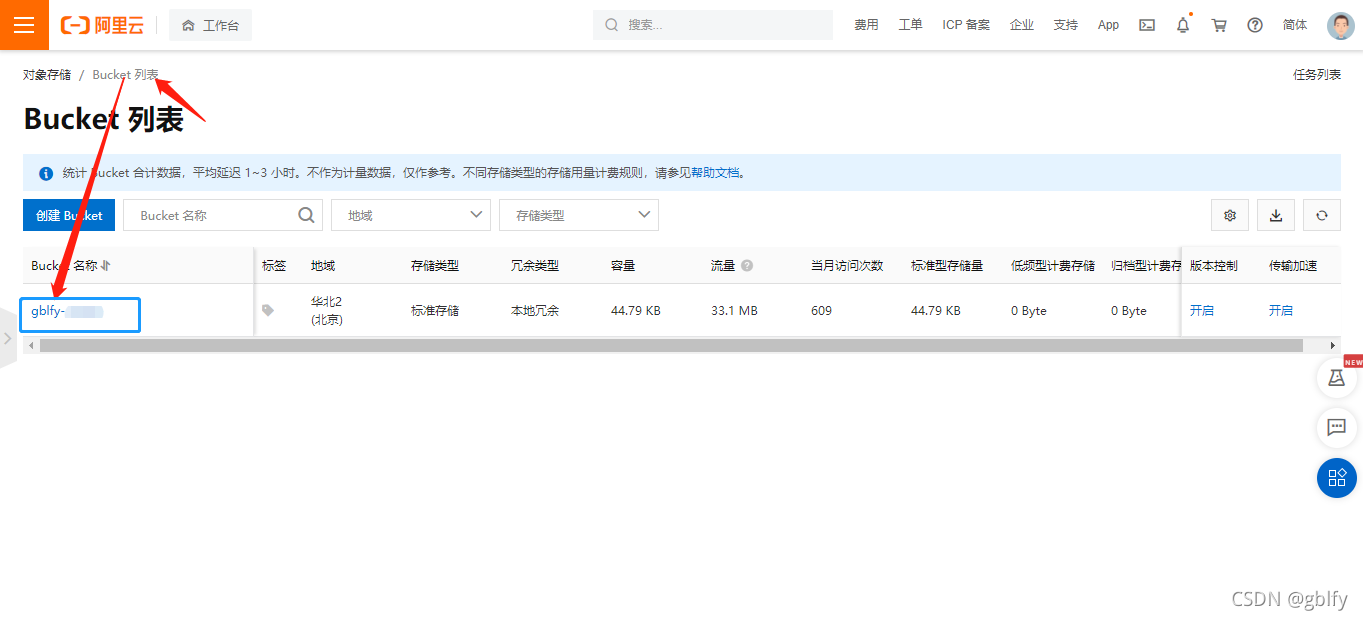

• bucket 获取方式

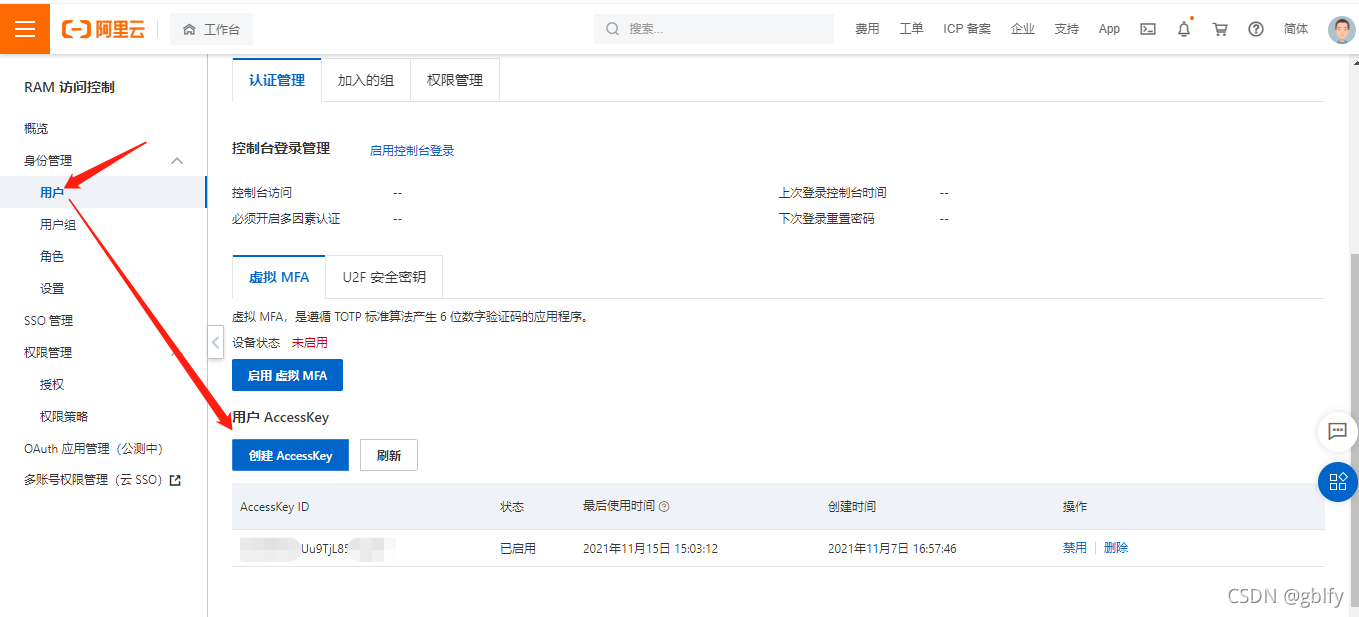

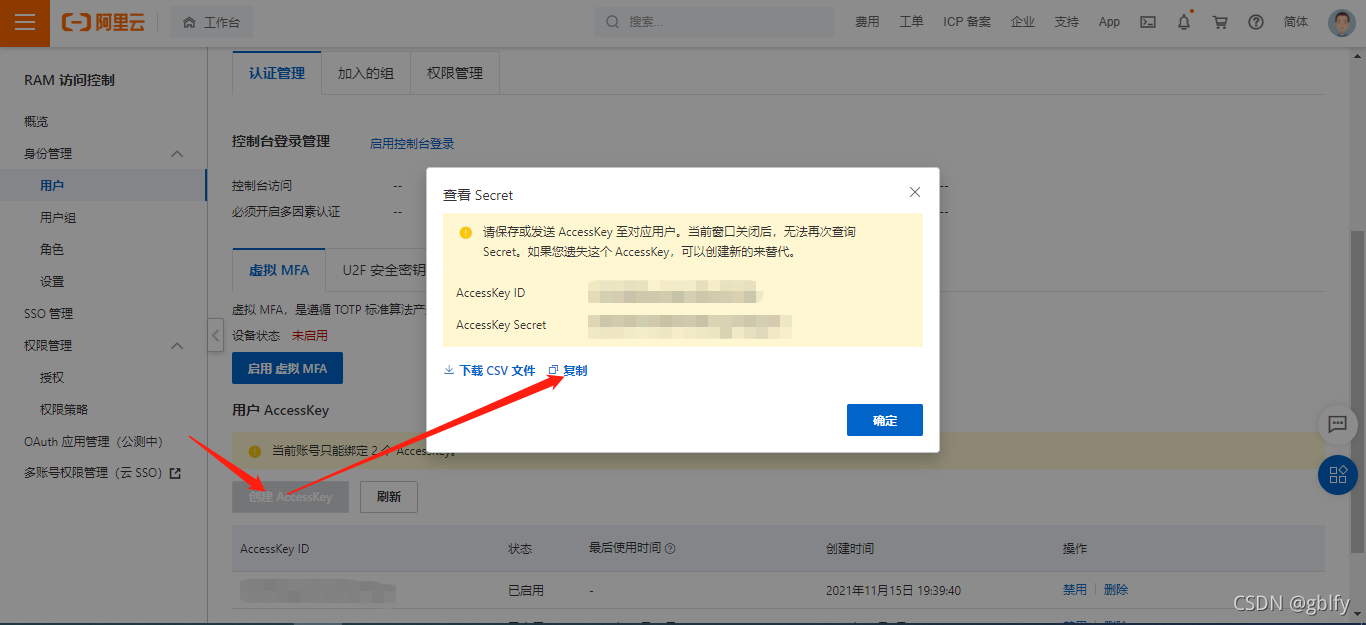

• oss.accessKeyId和oss.accessKeySecret获取方式

4.3. api接口

package com.course.file.controller.admin;import com.alibaba.fastjson.JSON;
import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.model.AppendObjectRequest;
import com.aliyun.oss.model.AppendObjectResult;
import com.aliyun.oss.model.ObjectMetadata;
import com.aliyun.oss.model.PutObjectRequest;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.vod.model.v20170321.GetMezzanineInfoResponse;
import com.course.server.dto.FileDto;
import com.course.server.dto.ResponseDto;
import com.course.server.enums.FileUseEnum;
import com.course.server.service.FileService;
import com.course.server.util.Base64ToMultipartFile;
import com.course.server.util.UuidUtil;
import com.course.server.util.VodUtil;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.util.StringUtils;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;import javax.annotation.Resource;
import java.io.ByteArrayInputStream;@RequestMapping("/admin")
@RestController
public class OssController {public static final Logger LOG = LoggerFactory.getLogger(OssController.class);public static final String BUSINESS_NAME = "文件上传";@Value("${oss.accessKeyId}")private String accessKeyId;@Value("${oss.accessKeySecret}")private String accessKeySecret;@Value("${oss.endpoint}")private String endpoint;@Value("${oss.bucket}")private String bucket;@Value("${oss.ossDomain}")private String ossDomain;@Resourceprivate FileService fileService;/*** oss追加上传** @param fileDto* @return* @throws Exception*/@PostMapping("/oss-append")public ResponseDto fileUpload(@RequestBody FileDto fileDto) throws Exception {LOG.info("上传文件开始");//接收前端的归属文件类型  COURSE("C", "课程"), TEACHER("T", "讲师");String use = fileDto.getUse();// 为了支持一个文件上传多次，展示历史的不同版本，因此上传文件前，统一添加文件前缀，下载时，统一截取文件没那个前8位处理String key = fileDto.getKey();//分片索引，1表示第1个分片Integer shardIndex = fileDto.getShardIndex();// 文件分片大小 shardSize = 10 * 1024 * 1024;// 以10MB为一个分片Integer shardSize = fileDto.getShardSize();// 具体的文件 由于为了统一使用FileDto对象接收，默认接收类型是MultipartFile，这里现在接收类型是String ，前端将文件提前转成了Base64String shardBase64 = fileDto.getShard();// 将具体的文件在由Base64转成MultipartFile类型MultipartFile shard = Base64ToMultipartFile.base64ToMultipart(shardBase64);//接收前端的归属文件类型  COURSE("C", "课程"), TEACHER("T", "讲师");FileUseEnum useEnum = FileUseEnum.getByCode(use);//文件全名String filename = shard.getOriginalFilename();//如果文件夹不存在，则创建String dir = useEnum.name().toLowerCase();String path = new StringBuffer(dir).append("/").append(key).append(".").append(filename).toString();// course\6sfSqfOwzmik4A4icMYuUe.mp4// 创建OSSClient实例。OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);ObjectMetadata meta = new ObjectMetadata();// 指定上传的内容类型。meta.setContentType("text/plain");// 通过AppendObjectRequest设置多个参数。AppendObjectRequest appendObjectRequest = new AppendObjectRequest(bucket, path,new ByteArrayInputStream(shard.getBytes()), meta);// 通过AppendObjectRequest设置单个参数。// 设置Bucket名称。//appendObjectRequest.setBucketName(bucketName);// 设置Object名称。即不包含Bucket名称在内的Object的完整路径，例如example/test.txt。//appendObjectRequest.setKey(objectName);// 设置待追加的内容。可选类型包括InputStream类型和File类型。此处为InputStream类型。//appendObjectRequest.setInputStream(new ByteArrayInputStream(content1.getBytes()));// 设置待追加的内容。可选类型包括InputStream类型和File类型。此处为File类型。//appendObjectRequest.setFile(new File("D:\\localpath\\examplefile.txt"));// 指定文件的元信息，第一次追加时有效。//appendObjectRequest.setMetadata(meta);// 第一次追加。// 设置文件的追加位置。// appendObjectRequest.setPosition(0L);appendObjectRequest.setPosition((long) (shardIndex - 1) * shardSize);AppendObjectResult appendObjectResult = ossClient.appendObject(appendObjectRequest);// 文件的64位CRC值。此值根据ECMA-182标准计算得出System.out.println(appendObjectResult.getObjectCRC());// 关闭OSSClient。ossClient.shutdown();LOG.info("保存文件记录开始");fileDto.setPath(path);fileService.save(fileDto);ResponseDto responseDto = new ResponseDto();// 文件OSS地址存储到fileDto，统一返回前端fileDto.setPath(ossDomain + path);responseDto.setContent(fileDto);return responseDto;}/*** 断点续传检查** @param key* @return* @throws Exception*/@GetMapping("/check/oss/{key}")public ResponseDto check(@PathVariable String key) throws Exception {LOG.info("检查上传分片开始：{}", key);ResponseDto responseDto = new ResponseDto();FileDto fileDto = fileService.findByKey(key);if (fileDto != null) {fileDto.setPath(ossDomain + fileDto.getPath());}responseDto.setContent(fileDto);return responseDto;}
}
