本文是一个简单的音乐播放器
布局代码
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"android:paddingBottom="@dimen/activity_vertical_margin"android:paddingLeft="@dimen/activity_horizontal_margin"android:paddingRight="@dimen/activity_horizontal_margin"android:paddingTop="@dimen/activity_vertical_margin"tools:context="com.zj.music.MainActivity"><ProgressBar
android:id="@+id/song_progress_normal"style="@style/Widget.AppCompat.ProgressBar.Horizontal"android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_gravity="top"android:maxHeight="5dp"android:progress="30"android:tag="tint_accent_color" /><LinearLayout
android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_below="@id/song_progress_normal"android:orientation="horizontal"android:gravity="center_horizontal"><ImageView
android:id="@+id/previous"android:clickable="true"android:layout_width="wrap_content"android:layout_height="wrap_content"android:src="@drawable/btn_playback_previous"/><ImageView
android:layout_marginLeft="20dp"android:id="@+id/start"android:clickable="true"android:layout_width="wrap_content"android:layout_height="wrap_content"android:src="@drawable/start"/><ImageView
android:id="@+id/pause"android:clickable="true"android:layout_marginLeft="20dp"android:layout_marginRight="20dp"android:layout_width="wrap_content"android:layout_height="wrap_content"/><ImageView
android:layout_marginRight="20dp"android:id="@+id/stop"android:clickable="true"android:layout_width="wrap_content"android:layout_height="wrap_content"android:src="@drawable/stop"/><ImageView
android:id="@+id/next"android:clickable="true"android:layout_width="wrap_content"android:layout_height="wrap_content"android:src="@drawable/btn_playback_next"/></LinearLayout>
</RelativeLayout>
java代码实现
package com.zj.music;import android.media.AudioManager;
import android.media.MediaPlayer;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.ImageView;
import android.widget.Toast;public class MainActivity extends AppCompatActivity {ImageView pause;ImageView start;ImageView stop;ImageView previous;ImageView next;boolean isPlaying=false;String filepath="http://10.129.69.114:8080/music";MediaPlayer mediaPlayer;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);pause= (ImageView) findViewById(R.id.pause);start= (ImageView) findViewById(R.id.start);stop= (ImageView) findViewById(R.id.stop);pause.setBackgroundResource(R.drawable.btn_playback_pause);start.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {startMusic();}});stop.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {stopMusic();}});pause.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {isPlaying=!isPlaying;System.out.println("1243544444444");if (isPlaying){pause.setBackgroundResource(R.drawable.btn_playback_pause);rePlayMusic();}else{pause.setBackgroundResource(R.drawable.btn_playback_play);pauseMusic();}}});}private void startMusic() {String nowMusic=filepath+"1.mp3";try {mediaPlayer = new MediaPlayer();mediaPlayer.setDataSource(nowMusic);//设置播放的数据源。mediaPlayer.setAudioStreamType(AudioManager.STREAM_MUSIC);//mediaPlayer.prepare();//同步的准备方法。mediaPlayer.prepareAsync();//异步的准备mediaPlayer.setOnPreparedListener(new MediaPlayer.OnPreparedListener() {@Overridepublic void onPrepared(MediaPlayer mp) {mediaPlayer.start();start.setEnabled(false);}});mediaPlayer.setOnCompletionListener(new MediaPlayer.OnCompletionListener() {@Overridepublic void onCompletion(MediaPlayer mp) {start.setEnabled(true);}});} catch (Exception e) {e.printStackTrace();Toast.makeText(this, "播放失败", Toast.LENGTH_SHORT).show();}}private void pauseMusic() {if(mediaPlayer!=null)mediaPlayer.pause();}private void rePlayMusic(){if(mediaPlayer!=null)mediaPlayer.start();}public void stopMusic() {if(mediaPlayer!=null&&mediaPlayer.isPlaying()){mediaPlayer.stop();mediaPlayer.release();mediaPlayer = null;}start.setEnabled(true);}
}
注意,音乐文件应该放在webapp/root文件下,而不能直接放在根目录下,否则读不到。

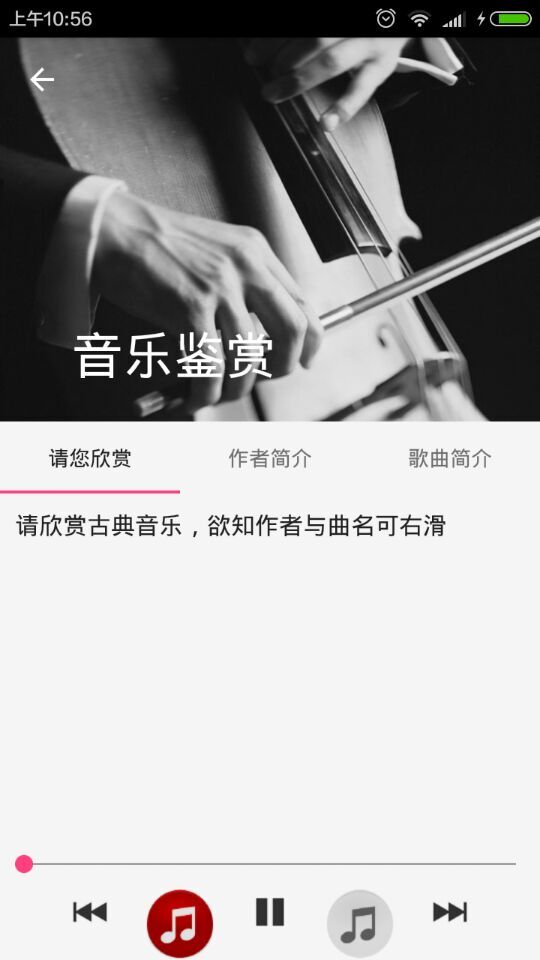

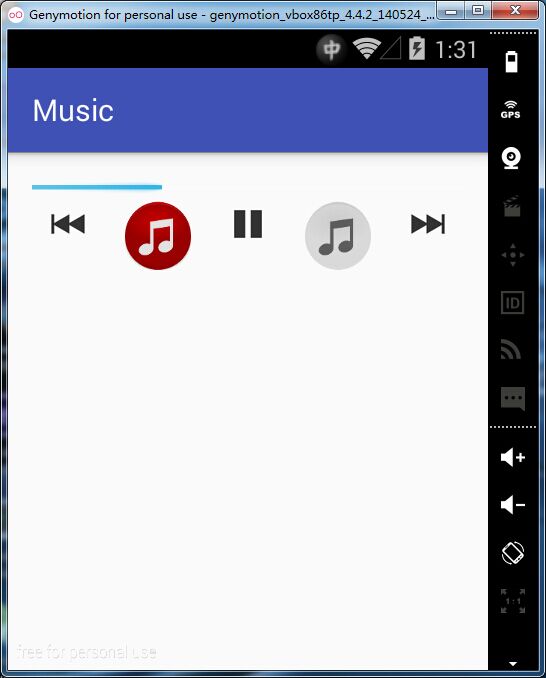

效果如下
更新
- 添加了下一首,进度条功能。
- 解决了使用Fragment作为Item的ViewPager不更新问题.
使用Fragment作为Item的ViewPager不更新问题.
在点击下一首时,发现viewPager里面的内容不更新,查找了不少方法,找到解决方案,应该使用FragmentStatePagerAdapter。
我首先使用的是fragmentPagerAdapter.该类内的每一个生成的 Fragment 都将保存在内存之中. 也就是FragmentManager中.所以就算我刷新adapter, 它还是使用的上次缓存的Fragment. 而FragmentStatePagerAdapter的instantiateItem()则会每次都重新创建Fragment. 这样一来就每次就更新了.
参考链接
使用Fragment作为Item的ViewPager不更新问题. - Crazy Bird - 博客频道 - CSDN.NET
Android– FragmentStatePagerAdapter分页 - dreamzml的专栏 - 博客频道 - CSDN.NET
新代码实现
package com.zj.music;import android.graphics.Color;
import android.media.AudioManager;
import android.media.MediaPlayer;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.design.widget.CollapsingToolbarLayout;
import android.support.design.widget.TabLayout;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentStatePagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.util.Log;
import android.view.View;
import android.widget.ImageView;
import android.widget.SeekBar;
import android.widget.Toast;import java.util.ArrayList;
import java.util.List;
import java.util.Timer;
import java.util.TimerTask;public class MainActivity extends AppCompatActivity {ImageView pause;ImageView start;ImageView stop;ImageView previous;ImageView next;boolean isPlaying=false;String filepath="http://192.168.1.130:8080/music";String nowMusic;int id=1;MediaPlayer mediaPlayer;SeekBar song_progress_normal;private Timer timer;private TimerTask task;ViewPager mViewPager;MyPagerAdapter adapter;TabLayout tabLayout;String autors[]=new String[]{"贝多芬","巴赫","舒伯特"};String songs[]=new String []{"命运交响曲","G弦上的咏叹调","圣母颂"};private static final int UPDATE = 0;Handler handler=new Handler(){@Overridepublic void handleMessage(Message msg) {switch (msg.what){case UPDATE:song_progress_normal.setProgress(mediaPlayer.getCurrentPosition());Log.i("mediaplayer",mediaPlayer.getCurrentPosition()+"");}}};@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);initTOP();pause= (ImageView) findViewById(R.id.pause);start= (ImageView) findViewById(R.id.start);stop= (ImageView) findViewById(R.id.stop);previous= (ImageView) findViewById(R.id.previous);next= (ImageView) findViewById(R.id.next);song_progress_normal= (SeekBar) findViewById(R.id.song_progress_normal);song_progress_normal.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {@Overridepublic void onProgressChanged(SeekBar seekBar, int i, boolean b) {int postion = seekBar.getProgress();mediaPlayer.seekTo(postion);}@Overridepublic void onStartTrackingTouch(SeekBar seekBar) {}@Overridepublic void onStopTrackingTouch(SeekBar seekBar) {}});previous.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {if (id>1){id--;setupViewPager(mViewPager);tabLayout.setupWithViewPager(mViewPager);//adapter.notifyDataSetChanged();stopMusic();startMusic();}}});next.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {id++;//setupViewPager(mViewPager);//adapter.notifyDataSetChanged();setupViewPager(mViewPager);tabLayout.setupWithViewPager(mViewPager);stopMusic();startMusic();}});pause.setBackgroundResource(R.drawable.btn_playback_pause);start.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {startMusic();}});stop.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {stopMusic();}});pause.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {isPlaying=!isPlaying;System.out.println("1243544444444");if (isPlaying){pause.setBackgroundResource(R.drawable.btn_playback_pause);rePlayMusic();}else{pause.setBackgroundResource(R.drawable.btn_playback_play);pauseMusic();}}});}private void initTOP() {Toolbar mToolbar = (Toolbar) findViewById(R.id.toolbar);setSupportActionBar(mToolbar);getSupportActionBar().setDisplayHomeAsUpEnabled(true);setTitle("音乐鉴赏");//使用CollapsingToolbarLayout必须把title设置到CollapsingToolbarLayout上,设置到Toolbar上则不会显示CollapsingToolbarLayout mCollapsingToolbarLayout = (CollapsingToolbarLayout) findViewById(R.id.collapsing_toolbar);mCollapsingToolbarLayout.setTitle("音乐鉴赏");//通过CollapsingToolbarLayout修改字体颜色mCollapsingToolbarLayout.setExpandedTitleColor(Color.WHITE);//设置还没收缩时状态下字体颜色mCollapsingToolbarLayout.setCollapsedTitleTextColor(Color.BLACK);//设置收缩后Toolbar上字体的颜色//设置ViewPagermViewPager = (ViewPager) findViewById(R.id.viewpager);setupViewPager(mViewPager);//给TabLayout增加Tab, 并关联ViewPagertabLayout = (TabLayout) findViewById(R.id.sliding_tabs);tabLayout.addTab(tabLayout.newTab().setText("请您欣赏"));tabLayout.addTab(tabLayout.newTab().setText("作者简介"));tabLayout.addTab(tabLayout.newTab().setText("歌曲简介"));tabLayout.setupWithViewPager(mViewPager);}private void setupViewPager(ViewPager mViewPager) {adapter = new MyPagerAdapter(getSupportFragmentManager());adapter.addFragment(DetailFragment.newInstance("请欣赏古典音乐,欲知作者与曲名可右滑"), "请您欣赏");adapter.addFragment(DetailFragment.newInstance(autors[id-1]), "作者简介");adapter.addFragment(DetailFragment.newInstance(songs[id-1]), "歌曲简介");mViewPager.setAdapter(adapter);}List<Fragment> mFragments;static class MyPagerAdapter extends FragmentStatePagerAdapter {private List<Fragment> mFragments=null;private List<String> mFragmentTitles =null;public MyPagerAdapter(FragmentManager fm) {super(fm);mFragments=new ArrayList<>();mFragmentTitles = new ArrayList<>();}public void addFragment(Fragment fragment, String title) {mFragments.add(fragment);mFragmentTitles.add(title);}public void removeAllFra(){mFragments.clear();mFragmentTitles.clear();}@Overridepublic Fragment getItem(int position) {return mFragments.get(position);}@Overridepublic int getCount() {return mFragments.size();}@Overridepublic CharSequence getPageTitle(int position) {return mFragmentTitles.get(position);}}private void startMusic() {nowMusic=filepath+id+".mp3";try {mediaPlayer = new MediaPlayer();mediaPlayer.setDataSource(nowMusic);//设置播放的数据源。mediaPlayer.setAudioStreamType(AudioManager.STREAM_MUSIC);//mediaPlayer.prepare();//同步的准备方法。mediaPlayer.prepareAsync();//异步的准备mediaPlayer.setOnPreparedListener(new MediaPlayer.OnPreparedListener() {@Overridepublic void onPrepared(MediaPlayer mp) {mediaPlayer.start();start.setEnabled(false);int max = mediaPlayer.getDuration();Log.i("mediaplayer", max + "最大");song_progress_normal.setMax(max);}});mediaPlayer.setOnCompletionListener(new MediaPlayer.OnCompletionListener() {@Overridepublic void onCompletion(MediaPlayer mp) {start.setEnabled(true);}});new Thread(new Runnable() {@Overridepublic void run() {timer = new Timer();task = new TimerTask() {@Overridepublic void run() {handler.sendEmptyMessage(UPDATE);}};timer.schedule(task, 0, 5000);}}).start();} catch (Exception e) {e.printStackTrace();Toast.makeText(this, "播放失败", Toast.LENGTH_SHORT).show();}}private void pauseMusic() {if(mediaPlayer!=null)mediaPlayer.pause();}private void rePlayMusic(){if(mediaPlayer!=null)mediaPlayer.start();}public void stopMusic() {if(mediaPlayer!=null&&mediaPlayer.isPlaying()){mediaPlayer.stop();mediaPlayer.release();mediaPlayer = null;timer.cancel();}start.setEnabled(true);}
}
