numpy基础知识点

1. np.squeeze

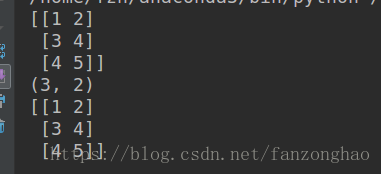

一,np.squeeze
"""
np.squeeze  删除单维度的条 对多维度无效
"""
import numpy as np
a=np.array([[1,2],[3,4],[4,5]])
print(a)
print(a.shape)
b=np.squeeze(a)
print(b)

c=a.reshape(1,6,1)
print(c)
print(np.squeeze(c))
print(np.squeeze(c).shape)

print(np.squeeze(c,axis=0))
print(np.squeeze(c,axis=0).shape)

print(np.squeeze(c,axis=1))
print(np.squeeze(c,axis=1).shape)

维度不为1，报错。

print(np.squeeze(c,axis=2))
print(np.squeeze(c,axis=2).shape)

2.np.newaxis增加维度

import  numpy as np
a=np.arange(1,5)
print(a)
print(a.reshape([-1,1]))
b=a[:,np.newaxis]
print(b)
print(b.shape)

3. np.random

import numpy as np
"""
0~1之间产生随机值
"""
a=np.random.rand(3,2)
print(a)

"""
产生标准正态分布的值
"""
a=np.random.randn(3,2)
print(a)

"""
产生随机整数1~3之间
"""
a=np.random.randint(low=1,high=3,size=(3,2))
print(a)

"""
产生高斯分布:均值 方差
"""
a=np.random.normal(loc=0,scale=1,size=(3,2))
print(a)

numpy.random.choice(a, size=None, replace=True, p=None)

从给定的一维数组中生成一个随机样本；

参数	参数意义
a	为一维数组或者int数据；
size	为生成的数组维度；
replace	是否原地替换；
p	为样本出现的概率；

np.random.choice(5,3) # 等价于np.random.randint(0,5,3)

replace为true会重复，为false不会重复

a = ['bird', 'meh', 'sad', 'd', '123']
print(np.random.choice(a, 5))  # replace默认为True
print(np.random.choice(a, 5, replace=False))

4. np.logspace

import  numpy as np
#等比数列 9/(5-1)=2.25  10^0 10^2.25 10^5.5 10^7.75 10^9
a=np.logspace(0,9,5)
print(a)

5. 等差数列

a=np.linspace(2.0, 3.0, num=5)
print(a)
b=np.linspace(2.0, 3.0, num=5, endpoint=False)
print(b)
c=np.linspace(2.0, 3.0, num=5, retstep=True)
print(c)

6. np.argmax,np.sum

np.max操作也满足记住, 0列1行,　0从上往下看，1从左往右看

#axis=0 对列操作 axis=1 对行操作 axis=2 对最后一根轴操作
a = np.array([[1, 2,3],[3, 4,5],[4, 5,6],[6, 7,8]])
print(np.mean(a,axis=0))
print(np.sum(a,axis=0))
print(np.argmax(a,axis=0))
print(np.all(a==2,axis=0))

#axis = 2对最后一根轴操作
a=a.reshape((2,2,3))
print(a)
print()
print(np.mean(a,axis=0))
print()
print(np.mean(a, axis=1))
print()
print(np.mean(a, axis=-1))

a=np.array([[1,0,0],[0,1,0],[0,0,1],[0,1,0]])
print(a)
print(np.argmax(a,1))#对行找最大值索引
b=np.array([[1,0,0],[0,1,0],[1,0,0],[0,0,1]])
print(b)
print(np.argmax(b,1))print(np.argmax(a,1)==np.argmax(b,1))
print(np.sum(np.argmax(a,1)==np.argmax(b,1)))

img=np.array([[[1,2,3],[6,4,5]]])
print(img)
pre=np.argmax(img,axis=2)
print(pre)
pre=np.expand_dims(pre,axis=-1)
print(pre)

找出每个channel的最值索引，然后进行分割。

np.sum

import numpy as np
a=np.array([[[[1,2],[1,3],[1,4]],[[1,7],[1,6],[1,5]],[[1,2],[1,3],[1,4]]]])print(a.shape)
print(np.sum(a,axis=3))
print(np.sum(a,axis=3).shape)
print(np.sum(a,axis=3,keepdims=True))
print(np.sum(a,axis=3,keepdims=True).shape)

保持维度故变为（1,3,3,1）

对于三维的话比如（m,32,32,17）是由每一个channel贡献loss

a=np.array([[[[1,2,3]],[[2,3,4]]],[[[1, 2, 3]],[[2, 3, 4]]]])
print(a)
print(a.shape)
print(np.sum(a, axis=0))
print(np.sum(a,axis=1))
# print(np.sum(a, axis=2))
# print(np.sum(a, axis=3))
print(np.mean(np.sum(a,axis=1)))

xe = -tf.reduce_sum(tf.multiply(labels_ * tf.log(logits + epsilon), cb),reduction_indices=[1])loss_total = tf.reduce_mean(xe)+m_IOU_loss

np.all(),和sum一样axis=1,是行操作。沿着轴的方向都为true，则返回为true。

a=np.all([[True, False],[True, True]])
print(a)a = np.all([[True, False],[True, True]],axis=1)
print(a)a = np.all([[1, 0],[1, 1]], axis=1)
print(a)

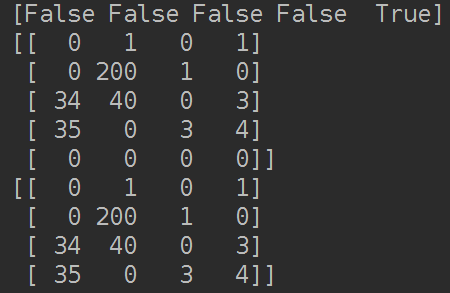

可用来清掉，全0的元素。

x=np.array([[0,1,0,1],[0,200,1,0],[34,40,0,3],[35,0,3,4],[0,0,0,0]])
print(np.all(x == 0, axis=1))y=x[~np.all(x == 0, axis=1)]
print(x)
print(y)

7. np.stack,np.hstack,np.vstack

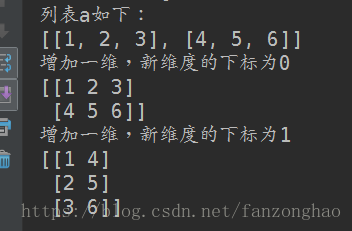

np.stack二维情况

import numpy as np
a=[[1,2,3],[4,5,6]]
print("列表a如下：")
print(a)print("增加一维，新维度的下标为0")
c=np.stack(a,axis=0)
print(c)print("增加一维，新维度的下标为1")
c=np.stack(a,axis=1)
print(c)

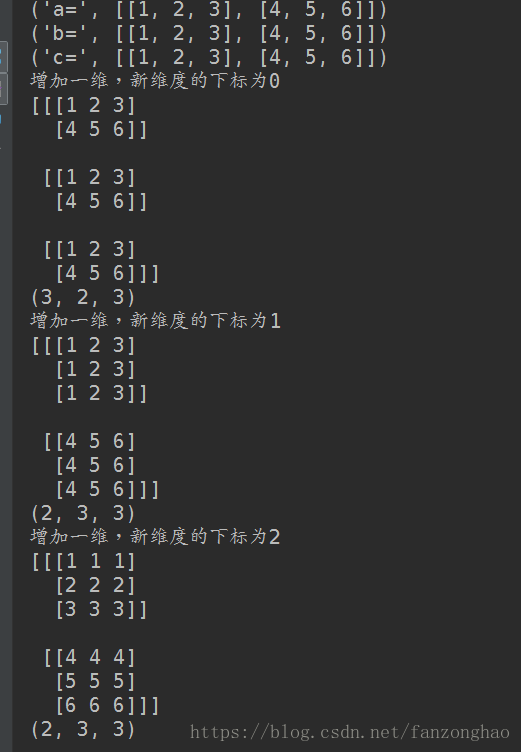

a=[[1,2,3],[4,5,6]]
b=[[1,2,3],[4,5,6]]
c=[[1,2,3],[4,5,6]]
print("a=",a)
print("b=",b)
print("c=",c)print("增加一维，新维度的下标为0")
d=np.stack((a,b,c),axis=0)
print(d)
print(d.shape)print("增加一维，新维度的下标为1")
d=np.stack((a,b,c),axis=1)
print(d)
print(d.shape)
print("增加一维，新维度的下标为2")
d=np.stack((a,b,c),axis=2)
print(d)
print(d.shape)

np.hstack按照水平方向连接

import numpy as np
a=[[1],[2],[3]]
b=[[1],[2],[3]]
c=[[1],[2],[3]]
d=[[1],[2],[3]]
print(np.hstack((a,b,c,d)))

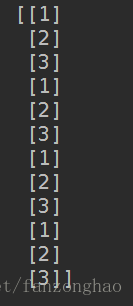

np.vstack按垂直方向连接

import numpy as np
a=[[1],[2],[3]]
b=[[1],[2],[3]]
c=[[1],[2],[3]]
d=[[1],[2],[3]]
print(np.vstack((a,b,c,d)))

把sober算子变成两个通道的sober算子，其中生成的2用作刚好是输入的channel

import tensorflow as tf
import numpy as np
fx = np.array([[-1, 0, 1], [-2, 0, 2], [-1, 0, 1]]).astype(np.float32)
fy = np.array([[-1, -2, -1], [0, 0, 0], [1, 2, 1]]).astype(np.float32)fx = np.stack((fx, fx), axis=2)
print(fx)
# fy = np.stack((fy, fy), axis=2)
# print(fy)
fx = np.reshape(fx, (3, 3, 2, 1))
print(fx)
# fy = np.reshape(fy, (3, 3, 2, 1))tf_fx = tf.Variable(tf.constant(fx))

8. np.array

>>> a
array([0, 2, 1])
>>> scores
array([[1, 2, 3],
       [2, 3, 4],
       [4, 5, 6]])
>>> scores[a]
array([[1, 2, 3],
       [4, 5, 6],
       [2, 3, 4]])

一个样本对应一列，下面的代码可以用来寻找每个样本标签量对应的数值。

9. np.concatenate

import numpy as np
a = np.array([[1, 2], [3, 4]])
b=np.array([[5,6]])
c=np.concatenate((a, b), axis=0)
print(c)
c=np.concatenate((a, b.T), axis=1)
print(c)
c=np.concatenate((a, b.T), axis=None)
print(c)

对于列表也可以
a=np.concatenate([[[1,2]],[[3,4]]],axis=0) print(a)

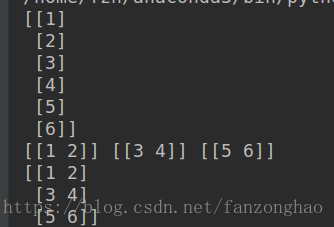

10. np.transpose()

import numpy as np
a=np.array([[1],[2],[3],[4],[5],[6]])
print(a)
b=a[:2,:].transpose()
c=a[2:4,:].transpose()
d=a[4:,:].transpose()
print(b,c,d)
e=np.append(b,c,axis=0)
a=np.append(e,d,axis=0)
print(a)

11. one_hot

import numpy as np
#转换one-hot
def convert_to_one_hot(label):n_classes=max(label)+1label = np.eye(n_classes)[label.reshape(-1)]return label
label=[1,0,2,3,0]
Y=convert_to_one_hot(np.array(label))
print(Y)

12. np广播机制

13. np.split

方便对生成的box坐标进切分

import  numpy as np
A = np.arange(16).reshape(4,4)
print('A:',A)
print(np.split(A,2,axis = 1))
c,d=np.split(A,2,axis = 1)
print(c)
print(d)

import  numpy as np
A = np.arange(16).reshape(4,4)
print(A)
print(np.split(A,2,axis = 0))
c,d=np.split(A,2,axis = 0)
print(c)
print(d)

14. np.rot90,图片旋转90度

path='./data/2.png'
img=cv2.imread(path)# 逆时针90度
img=np.rot90(img)
cv2.imwrite('./data/img_size_out_1.jpg',img)

15. np.unravel_index,找最值的索引值

a = np.array([[1, 2, 3],[4, 5, 6]])
index = np.unravel_index(np.argmax(a), a.shape)
print(index)

16. np.where

np.where两种用法

where(condition, x=None, y=None)

如果x,y为空，返回condition中值为True的位置的ndarray

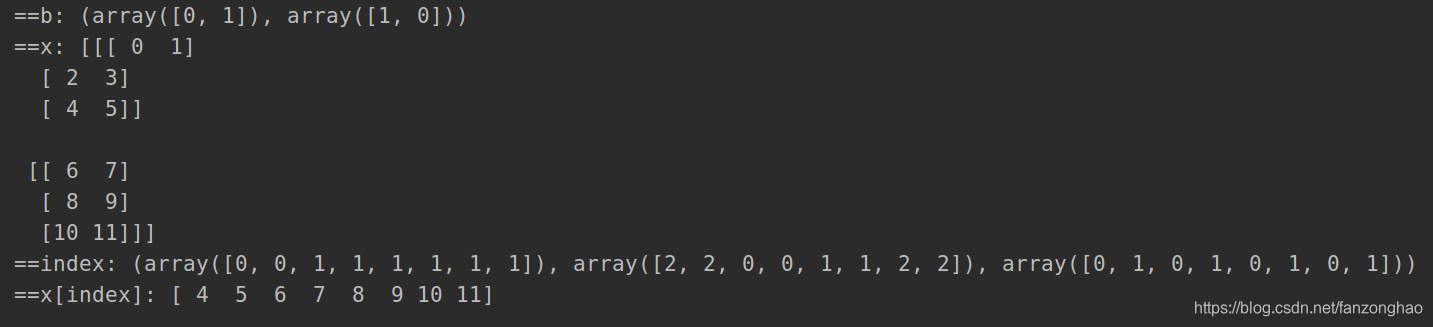

对于三维


#三维情况
import numpy as npb = np.where([[0, 1],[1, 0]])
print('==b:', b)
x = np.arange(12).reshape(2, 3, 2)
print('==x:', x)index = np.where(x > 3)
print('==index:', index)
print('==x[index]:', x[index])

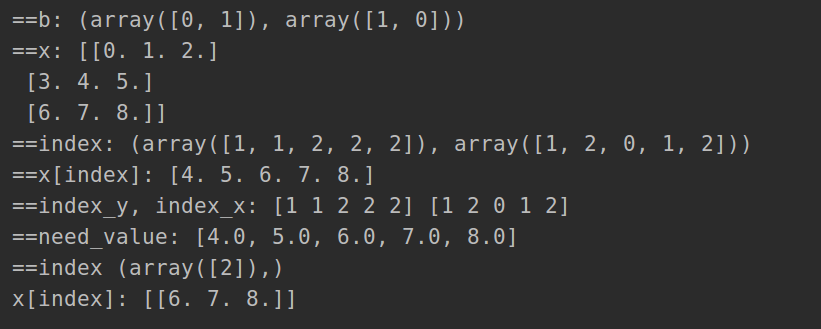

对于二维


import numpy as npb = np.where([[0, 1],[1, 0]])
print('==b:', b)
x = np.arange(9.).reshape(3, 3)
print('==x:', x)index = np.where(x > 3)
print('==index:', index)
print('==x[index]:', x[index])
index_y, index_x = index
print('==index_y, index_x:', index_y, index_x)need_value = []
for i in range(len(index_y)):need_value.append(x[index_y[i]][index_x[i]])
print('==need_value:', need_value)# 同时满足两个条件的
index = np.where((x[:, 0] > 3) & (x[:, 1] < 8))
print('==index', index)
print('x[index]:', x[index])

对于一维

class_ids=np.array([1,2,3])
index = np.where(class_ids == 1)
print('==index:', index)
print('==class_ids[index]:', class_ids[index])

如果x,y不为空，返回值和x、y有相同的形状，如果condition对应位置值为True那么返回ndarrayr对应位置为x的值，否则为y的值

a=np.where([[True, False],[True, True]],[[1, 2],[3, 4]],[[9, 8],[7, 6]])
print(a)

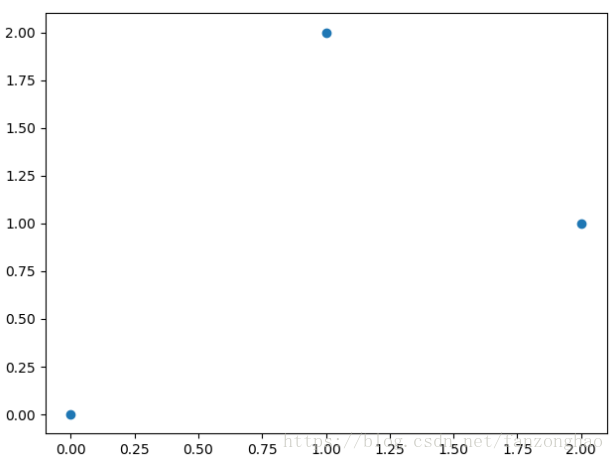

可以用来找出某个点的索引

a = np.array([[255, 0, 0],[0,0,255],[0,255,0]])
# 找出255的索引号
b=np.where(a[...]==255)
print(b)
y,x=b#是索引号，故行对应y，列对应x
print(y)
print(x)
point=np.stack((x,y),axis=-1)
plt.plot(point[:,0],point[:,1],'o')
plt.show()

同时要满足两个np.where

        index_x = np.where(abs(points[:, 0] - points[0][-2]) < x_dis)[0]print('index_x:',index_x)# if len(index_x):#     #y1-y1index_y = np.where(abs(points[:, 1] - points[0][1]) < y_dis)[0]print('index_y: ',index_y)common_index=list(set(index_x)&set(index_y))print('common_index:',common_index)

更简单写法：


kpts_2d = np.array([[680, 0],[10, 10]], dtype=np.float32)
print((kpts_2d[:, 0] < 640)*(kpts_2d[:, 0] >= 0))
kpts_2d = kpts_2d[(kpts_2d[:, 0] < 640)*(kpts_2d[:, 0] >= 0)]print(kpts_2d)

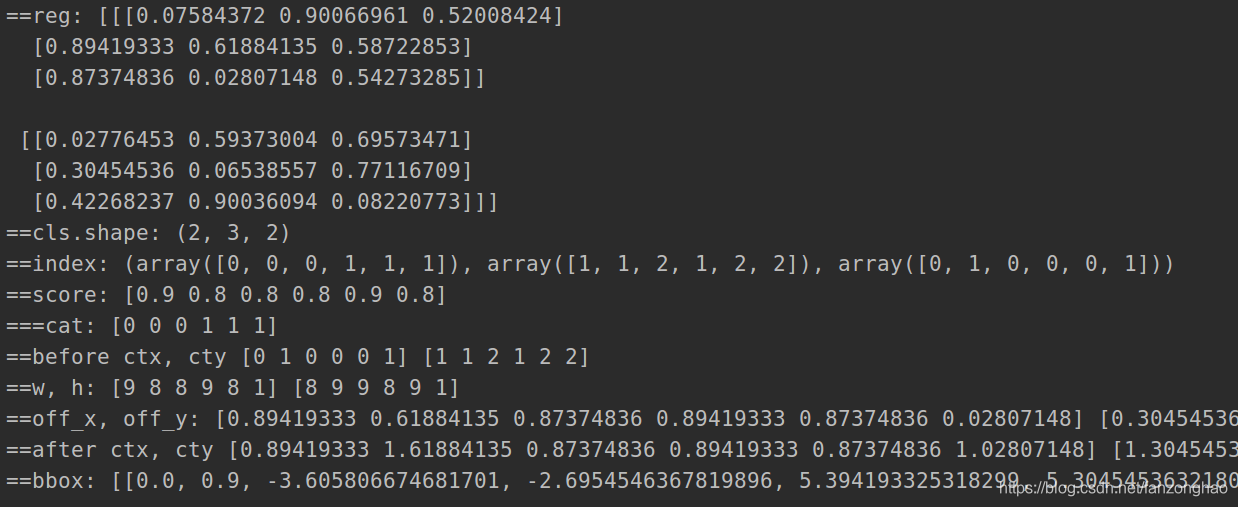

例如centernet中用于后处理找到每一类对应的类别，长宽与偏移量

import numpy as np# (c, h, w)
cls = np.array([[[0.5, 0.2],[0.9, 0.8],[0.8, 0.1]],[[0.6, 0.7],[0.8, 0.6],[0.9, 0.8]]])
# (2, h, w)
wh = np.array([[[5, 2],[9, 8],[8, 1]],[[6, 7],[8, 9],[9, 1]]])# (2, h, w)
reg = np.random.rand(2, 3, 3)
print('==reg:', reg)print('==cls.shape:', cls.shape)
index = np.where(cls >= 0.8)
print('==index:', index)
score = np.array(cls[index])
print('==score:', score)
cat = np.array(index[0])
print('===cat:', cat)
ctx, cty = index[-1], index[-2]
print('==before ctx, cty', ctx, cty)
w, h = wh[0, cty, ctx], wh[1, cty, ctx]  # 预测的长宽
print('==w, h:', w, h)
off_x, off_y = reg[0, cty, ctx], reg[1, cty, ctx]  # 预测的中心点偏移量
print('==off_x, off_y:', off_x, off_y)
ctx = np.array(ctx) + np.array(off_x)  # 中心点x
cty = np.array(cty) + np.array(off_y)  # 中心点y
print('==after ctx, cty', ctx, cty)x1, x2 = ctx - np.array(w) / 2, ctx + np.array(w) / 2
y1, y2 = cty - np.array(h) / 2, cty + np.array(h) / 2
bbox = np.stack((cat, score, x1, y1, x2, y2), axis=1).tolist()
bbox = sorted(bbox, key=lambda x: x[1], reverse=True)
print('==bbox:', bbox)

17. argsort,可用来寻找score的最大值

scores=np.array([0.5,0.7,0.3,0.2])
#得到从小到大的索引值
print(scores.argsort())
# 得到从大到小的索引值
print(scores.argsort()[::-1])
for i in scores.argsort()[::-1]:print(scores[i])

a=np.array([1,3,0,2])
b=np.argsort(a)
print(b)a = np.array([[1, 5, 0, 8],[ 3, 4, 7, 3]])
ind = np.unravel_index(np.argsort(a, axis=None), a.shape)
print(ind)
print(ind[0][-1],ind[1][-1])print(a[ind[0][-1],ind[1][-1]])
print(a[ind[0][-2], ind[1][-2]])

18. np.delete

import numpy as np
a = np.array(np.arange(12).reshape(3, 4))
print(a)
#沿着行删除，删除第一行
print(np.delete(a,obj=1,axis=0))
# 沿着行删除，删除第0行和第一行
print(np.delete(a, obj=[0,1], axis=0))
# 沿着列删除，删除第三列
print(np.delete(a, obj=3, axis=1))#删除多个行
print(np.delete(a, obj=[0,1], axis=0))

19. np.tile，沿着行和列复制

沿着列复制

mat = np.array([[1,2],[3, 4]])
mat=np.tile(mat,(1,3))
print(mat)

沿着行复制

mat = np.array([[1,2],[3, 4]])
mat=np.tile(mat,(3,1))
print(mat)

20. np.prod连乘

a=np.array([[1,2],[3,4]])
print(np.prod(a))
print(np.prod(a,axis=0))
print(np.prod(a, axis=1))

21.np.reshape,flatten()

a=np.array([[1,2]],dtype=np.float32)
print(a.reshape(-1))
print(a.flatten().astype(np.int32))

得到的每一列代表每一个channel

a=np.array([[[1,0,1],[1,1,0]],[[0,1,1],[0,1,0]]])
print(a)
print(a.shape)
b=a.reshape(-1, a.shape[-1])
print(b)
print('============')
"""转置方便求交集"""
print(b.T)

制作阈值大于0.5预测的mask.

masks1=np.array([[0.6,1,0],[0.2,0,1],[0.3,1,0],[0.6,0,1]])
print(masks1.shape[-1])
masks1 = np.reshape(masks1 > .5, (-1, masks1.shape[-1]))
print(masks1)

总的计算多个channel的IOU

def compute_overlaps_masks(masks1, masks2):"""Computes IoU overlaps between two sets of masks.masks1, masks2: [Height, Width, instances]"""# If either set of masks is empty return empty resultif masks1.shape[-1] == 0 or masks2.shape[-1] == 0:return np.zeros((masks1.shape[-1], masks2.shape[-1]))# flatten masks and compute their areasmasks1 = np.reshape(masks1 > .5, (-1, masks1.shape[-1])).astype(np.float32)masks2 = np.reshape(masks2 > .5, (-1, masks2.shape[-1])).astype(np.float32)area1 = np.sum(masks1, axis=0)area2 = np.sum(masks2, axis=0)# intersections and unionintersections = np.dot(masks1.T, masks2)union = area1[:, None] + area2[None, :] - intersectionsoverlaps = intersections / unionreturn overlaps

22. np 切片

a= np.array([[1, 2, 3],[4, 5, 6],[7, 8, 9],[10, 11, 12]])
b = np.array([0, 2, 0, 1])
print(a[np.arange(4),b])
a[np.arange(4), b]+=10
print('a=',a)

#所有大于5的替换为5
MAX = 5
nums = np.array([1, 4, 10, -1, 15, 0, 5])
print(nums > MAX)
nums[nums > MAX] = MAX
print(nums)

#直接根据索引找到一行向量的值
nums = np.array([1, 4, 10, -1, 15, 0, 5])
print(nums[[1, 2, 3, 1, 0]])

23. np.flatnonzero与np.nonzero(x)

(1)np.flatnonzero

该函数输入一个矩阵，返回拉伸后矩阵中非零元素的索引

x = np.arange(-3, 5)
print('x=',x)
print(np.flatnonzero(x))
print(np.flatnonzero(x==-3))

(2)np.nonzero(x),　返回非零元素的索引

x = np.array([[3, 0, 0], [0, 4, 0], [5, 6, 0]])print(x)res = np.nonzero(x)print('res:', res)res_ = x[np.nonzero(x)]print('res_:', res_)

24. np.bincount统计元素出现的次数

x = np.array([0, 1, 2, 2, 1, 1])
print(np.bincount(x))

25. 求交集np.intersect1d

print(np.intersect1d([1, 3, 4, 2], [3, 1, 2, 1]))

26. np.arctan2与np.arctan

x = np.array([-1, +1, +1, -1])
y = np.array([-1, -1, +1, +1])
#-180~180
print(np.arctan2(y, x) * 180 / np.pi)
#-90~90
print(np.arctan(y/x) * 180 / np.pi)

27. np.transpose

path='./data/raw.jpg'
img=cv2.imread(path)
img=np.transpose(img,(1,0,2))
cv2.imwrite('./data/raw_1.jpg',img)

实现图片转90度

变为

上下翻转左右翻转 BGR变为RGB

img=img[::-1,...]        img=img[:,::-1,:]       img=img[:,:,::-1]

28. np.zeros

a=np.zeros((1,2,3))
print(a)
a[0,1,:]=255
print(a)

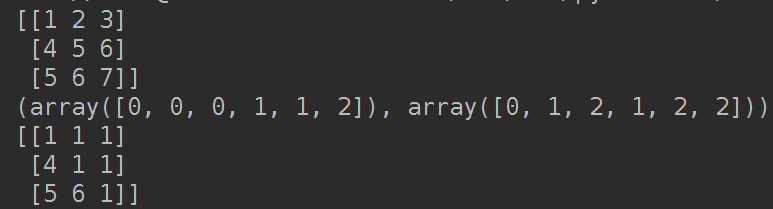

29. 返回上三角的索引，可用来制作显示下三角的相关系数矩阵。np.triu_indices_from()

import numpy as np
mask=np.array([[1,2,3],[4,5,6],[5,6,7]])
print(mask)
print(np.triu_indices_from(mask))
mask[np.triu_indices_from(mask)] = True
print(mask)

30. random.getrandbits(1)用来产生0,1其中之一的随机数，用来做数据增强

import random
for i in range(10):a = random.getrandbits(1)print(a)if a:print(True)

31. np.fliplr，np.flipud实现左右上下翻转

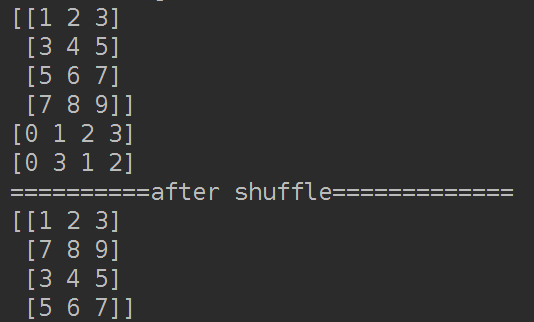

32. np.random.shuffle

import numpy as np
X=np.array([[1,2,3],[3,4,5],[5,6,7],[7,8,9]])
print(X)
idx_random = np.arange(X.shape[0])
print(idx_random)
np.random.shuffle(idx_random)
print(idx_random)
X= X[idx_random]
print('==========after shuffle=============')
print(X)

33.np.clip

将小于3的和大于8的强制为3和8

x = np.array([[1, 2, 3, 5],[6, 7, 8, 9]])
print('x=', x)
y = np.clip(x, 3, 8)
print('y=', y)
#等价于
x[x>=8]=8
x[x<=3]=3
print('x=', x)

34.np.percentile求百分位数，可用来确定卫星图像的RGB三个波段的阈值，方便进行0～255归一化处理，其中取值为50时相当于求中位数。

a=np.array([[1,2,3,4],[0,1,2,0]])
print(a[a>0])
print(np.percentile(a[a>0],50))
print(np.percentile(a, 50))

35. np.ploy1d 多项式子

print(np.poly1d(3))
print('=============')
print(np.poly1d([1,2,3,4]))

36. np.exp,注意数值不稳定问题

f = np.array([123, 456, 789])  # 例子中有3个分类，每个评分的数值都很大
p = np.exp(f) / np.sum(np.exp(f))  # 不妙：数值问题，可能导致数值爆炸
print('p=',p)
# 那么将f中的值平移到最大值为0：
f -= np.max(f)  # f becomes [-666, -333, 0]
p = np.exp(f) / np.sum(np.exp(f))  # 现在OK了，将给出正确结果
print('p=', p)

37. np.r_,np.c_，类似np.vstack.np.hstack

import numpy as np
a = np.array([[1, 2],[3,4]])
b = np.array([[4, 5],[6,7]])
c = np.c_[a,b]print(np.r_[a,b])
print(np.c_[a,b])
print(np.c_[c,a])

38. 实现max(0, Sjc - Sjyj + 1)

第一种解法：

x1 = np.array(np.arange(6)).reshape(3, 2)
x2 = np.array([2, 3, 3]).reshape(-1, 1)
print('x1=')
print(x1)
print('x2=')
print(x2)
print('x1-x2+1=')
print(x1-x2+1)
mask=x1-x2+1>0
print('mask=')
print(mask)
scores=(x1-x2+1)*mask
print('scores=')
print(scores)

第二种解法：

x1 = np.array(np.arange(6)).reshape(3, 2)
x2 = np.array([2, 3, 3]).reshape(-1, 1)
for i in range(x1.shape[0]):for j in range(x1.shape[1]):x1[i][j] = max(0, x1[i][j] - x2[i][0] + 1)
print(x1)

39. label smoothing，制作平滑的标签

new_labels = (1.0 - label_smoothing) * one_hot_labels + label_smoothing / （num_classes-1）

label_smoothing是一个很小的常数

40. np.unique 去重（可以对坐标）

a=np.unique([1, 1, 2, 2, 3, 3])
print(a)
a = np.array([[1, 1], [2, 3]])
print(np.unique(a))a = np.array([[1, 0, 0], [1, 0, 0], [2, 3, 4]])
print(np.unique(a, axis=0))

41. np.pad

用来补黑边，变成1024×1024

_, ax = plt.subplots(1, figsize=(16, 16))
ax.axis('off')
image=cv2.imread('1.jpg')
print(image.shape)
h, w = image.shape[:2]
max_dim=1024
top_pad = (max_dim - h) // 2
bottom_pad = max_dim - h - top_pad
left_pad = (max_dim - w) // 2
right_pad = max_dim - w - left_pad
padding = [(top_pad, bottom_pad), (left_pad, right_pad), (0, 0)]
image = np.pad(image, padding, mode='constant', constant_values=0)
cv2.imwrite('2.jpg',image)
# ax.imshow(image)
# plt.show()

42. np.cumsum累加

stage_epochs=[50,50,50]
a=np.cumsum(stage_epochs)[:-1]
print(a)

43. 交换二维数据的列向量

print(coord_Y)
coord_Y[:, [0, 1]] = coord_Y[:, [1, 0]]
print(coord_Y)

44. 将一个二维数组按照X先排序,Y在排序,np.lexsort

def coord_sort(x,y):
#按照x,y来排序ind = np.lexsort((y.tolist(), x.tolist())) # Sort by x, then by ycoord = [(x.tolist()[i], y.tolist()[i]) for i in ind]coord = np.array(coord).reshape(-1, 2)return coordcoord = np.array([[10, 60],[10, 20],[20, 20],[40, 40],[40, 60],[20, 40]])#按照先X后Y排的序coord_X=coord_sort(coord[:,0],coord[:,1])print(coord_X)

四个点的

import numpy as np
def coord_sort(points):# 按照x,y来排序ind = np.lexsort((points[:,1].tolist(), points[:,0].tolist()))  # Sort by x, then by yreturn points[ind]coord = np.array([[10, 60, 10,20],[11, 70, 20, 20],[11, 40,40,60],[30, 20,200,100],[30, 30,40,50]])
# 按照先X后Y排的序
coord_X = coord_sort(coord)
print(coord_X)

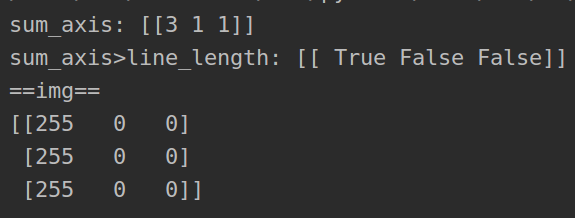

45. 删除副黑色图片中过短的白线

import numpy as np
def delete_short_line(img,line_length):sum_axis = np.sum(img == 255,axis=0,keepdims=True)print('sum_axis:',sum_axis)print('sum_axis>line_length:',sum_axis>line_length)img = img*(sum_axis>line_length)return  img
if __name__ == '__main__':img=np.array([[255,0,0],[255,0,255],[255,255,0]])img=delete_short_line(img,line_length=1)print('==img==')print(img)

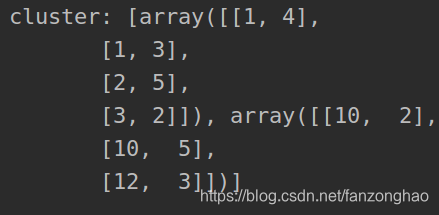

46.对竖值方向的一系列点做聚类

import numpy as np
def get_cluster(mode,x_dis,y_dis):points=np.array([[3,2],[10,2],[1,4],[2,5],[1,3],[12,3],[15,4],[10,5],[20,1]])if mode == 'veri':points = points[points[:,0].argsort()]else:points = points[points[:,1].argsort()]# print(points)# print(points.shape[0])cluster = []while points.shape[0] > 2:# print('points:',points)if mode=='veri':index = np.where(abs(points[:, 0] - points[0][0]) < x_dis)[0]else:index = np.where(abs(points[:, 1] - points[0][1]) < y_dis)[0]index = sorted(index)cluster.append(points[index])points=points[index[-1]+1:]print('cluster:',cluster)return cluster
if __name__ == '__main__':get_cluster(mode='veri',x_dis=5,y_dis=5)

47. np.max,np.maximum

np.max是计算最大值，而np.maximum是计算相比较的值

a=np.array([1,2,3])
print(np.max(a))
print(np.maximum(a,2))

48. np.setdiff1d,可以得到一个ndarray中有，一个无

a = np.array([1, 2, 3, 4, 5, 6, 7, 8, 9])
b = np.array([3, 4, 7, 6, 7, 8, 11, 12, 14])
c = np.setdiff1d(a, b)
print('a中有,b中无')
print('c:', c)

49. np.count_nonzero得到非零元素个数

a=np.count_nonzero([[0, 1, 7, 0, 0],[3, 0, 0, 2, 19]], axis=0)print('a:', a)

50.np.nonzero得到非零元素索引

 x = np.array([[3, 0, 0],[0, 4, 0],[5, 6, 0]])a = np.nonzero(x)print('a:', a)

51.np.diff

矩阵中后一个元素减去前一个元素的差值,此处用于找到polygon的四个点(局限于水平框)

import numpy as nprect = np.zeros((4,2))# pts = np.array([[0, 0],#                 [0, 2],#                 [2, 2],#                 [2, 0]])pts = np.array([933,255,954,255,956,277,936,277])pts = pts.reshape(-1,2)print('===pts', pts)d = np.diff(pts, axis=1)print('===d:', d)s = np.sum(pts, axis=1)rect[0] = pts[np.argmin(s)]rect[2] = pts[np.argmax(s)]# the top-right point will have the smallest difference,# whereas the bottom-left will have the largest differenced = np.diff(pts, axis=1)rect[1] = pts[np.argmin(d)]rect[3] = pts[np.argmax(d)]print('===rect:', rect)

利用np.argmin找到框的最小点,再用np.roll滚动获取最小点开始的点(局限于框是有顺序的,不是乱序)

#得到左上右下
def cal_stand_points(points):s = np.sum(points, axis=1)left_top_index = np.argmin(s)right_bottom_index = np.argmax(s)rect = np.roll(points, 4-left_top_index, axis=0)return rectpts = np.array([933, 255, 954, 255, 956, 277, 936, 277])
pts = pts.reshape(-1, 2)
new_pts = cal_stand_points(pts)
print('==new_pts:', new_pts)

52.np.meshgrid生成网格点

import numpy as np
import matplotlib.pyplot as pltx = np.array([0, 1, 2])
y = np.array([0, 1])X, Y = np.meshgrid(x, y)
print('==X:', X)
print('==Y:', Y)plt.plot(X, Y,color='red',  # 全部点设置为红色marker='.',  # 点的形状为圆点linestyle='')  # 线型为空，也即点与点之间不用线连接
plt.xlim(-1, 3)
plt.ylim(-1, 2)
plt.grid(True)
plt.show()

其中X代表横坐标　Y代表纵坐标

x = np.array([0, 1, 2])
y = np.array([0, 1])X, Y = np.meshgrid(x, y)
print('==X:', X)
print('==Y:', Y)
#得到沿x方向走的竖直y方向坐标
points = np.stack(np.meshgrid(x, y)).T
print(points)#
print('points[0, :]', points[0, :])
print('points[1, :]', points[1, :])
print('points[2, :]', points[2, :])

53.np.linalg.norm计算范数(默认计算2范数)

1.得到两个向量角度

import mathfeature0 = np.array([1, 1])
feature1 = np.array([2, 2])
x0 = feature0 / np.linalg.norm(feature0)
print('==x0:', x0)
x1 = feature1 / np.linalg.norm(feature1)
print('==x1:', x1)
cosine = np.dot(x0, x1)
print('==cosine:', cosine)
cosine = np.clip(cosine, -1.0, 1.0)
theta = math.acos(cosine)
theta = theta * 180 / math.pi
print('===theta:', theta)

2.得到box长宽

box = np.array([[0, 0],[2, 0],[2, 1],[0, 1]])w, h = np.linalg.norm(box[0] - box[1]), np.linalg.norm(box[1] - box[2])
print('宽度:{},长度:{}'.format(w, h))

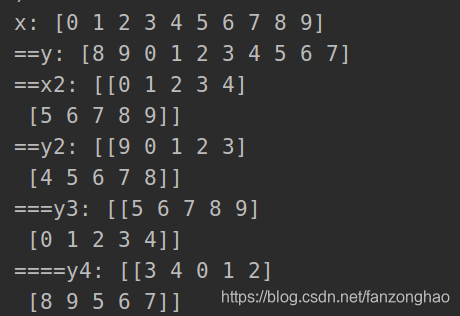

54.np.roll滚动(默认axis是1)

x = np.arange(10)
print('x:',x)
y = np.roll(x, 2)
print('==y:', y)x2 = np.reshape(x, (2,5))
print('==x2:', x2)y2 = np.roll(x2, 1)
print('==y2:', y2)y3 = np.roll(x2, 1, axis=0)
print('===y3:', y3)
y4 = np.roll(x2, 2, axis=1)
print('====y4:', y4)

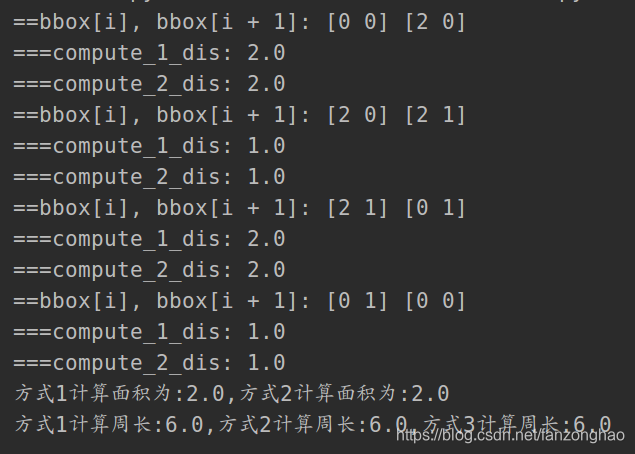

55:计算矩形的相邻边长度与周长面积

import Polygon as plg
import cv2
def dist(a, b):return np.sqrt(np.sum((a - b) ** 2))bbox = np.array([[0, 0],[2, 0],[2, 1],[0, 1]])compute_1_area = plg.Polygon(bbox).area()
compute_2_area = cv2.contourArea(bbox)#方式3
compute_3_peri = cv2.arcLength(bbox, True)compute_1_peri, compute_2_peri = 0, 0
for i in range(bbox.shape[0]):print('==bbox[i], bbox[i + 1]:', bbox[i], bbox[(i + 1) % bbox.shape[0]])# 方式1compute_1_dis = dist(bbox[i], bbox[(i + 1) % bbox.shape[0]])print('===compute_1_dis:', compute_1_dis)compute_1_peri += compute_1_dis# 方式2compute_2_dis = np.linalg.norm(bbox[i] - bbox[(i + 1) % bbox.shape[0]])compute_2_peri += compute_2_disprint('===compute_2_dis:', compute_2_dis)print('方式1计算面积为:{},方式2计算面积为:{}'.format(compute_1_area, compute_2_area))
print('方式1计算周长:{},方式2计算周长:{},方式3计算周长:{}'.format(compute_1_peri, compute_2_peri, compute_3_peri))

56.np.linalg.eig计算特征值和特征向量

x = np.diag((1, 2, 3))
print('x:\n', x)
w, v = np.linalg.eig(x)
print('w:\n', w)
print('v:\n', v)

57.奇异值分解np.linalg.svd

# 创建一个矩阵A: A = u s vt
# A = np.array([[0, 1],
#               [1, 1],
#               [1, 0]])
A = np.array([[4, 1, 3],[2, 2, 4]])
print('A:\n', A)# 对其进行SVD分解 s是对角矩阵的值
u, s, vt = np.linalg.svd(A, full_matrices=True)
print('u.shape, s.shape, vt.shape:', u.shape, s.shape, vt.shape)
res = np.dot(u*s, vt[:2, :])
print('res:', res)
#U UT=I
print('np.dot(u, u.T):\n', np.dot(u, u.T))
#v vT=I
print('np.dot(vt, vt.T):\n', np.dot(vt, vt.T))

58. np实现avg_pool和max_pool

import numpy as np
def pooling(inputMap, k = 3, s=1, pad=False, mode='max'):""":param inputMap::param k::param s::param pad::return:"""# inputMap sizesh, w = np.shape(inputMap)if pad:new_h, new_w = h, welse:new_h, new_w = (h - k)//s + 1, (w - k)//s + 1outputMap = np.zeros((new_h, new_w))# paddingif pad:padding = [(0, (h*s - s + k - h)//2 + 1), (0, (h*s - s + k - h)//2+1)]temp_map = np.pad(inputMap, padding, mode='constant', constant_values=0)else:temp_map = inputMapprint('===temp_map:', temp_map)# # max poolingfor i in range(0, new_h):for j in range(0, new_w):start_y = i * sstart_x = j * spool_region = temp_map[start_y:start_y+k, start_x:start_x+k]# print('===pool_region:', pool_region)if mode == 'max':value = np.max(pool_region)else:value = np.mean(pool_region)outputMap[i, j] = valueprint('==outputMap:', outputMap)return outputMap# 测试实例
# test = np.array([[1, 2, 3, 4],
#                  [5, 6, 7, 8],
#                  [9, 10, 11, 12],
#                  [10, 11, 13, 14]])
test = np.array([[1, 2, 3, 4, 5],[5, 6, 7, 8, 9],[9, 10, 11, 12, 13],[10, 11, 13, 14, 15],[10, 11, 13, 14, 15]])
test_result = pooling(test, k=3, s=1, pad=False, mode='max')
print('==test_result:', test_result)

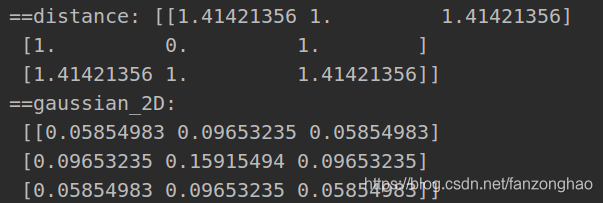

59.实现高斯分布


import numpy as np
def get_gaussian_kernel(k=3, mu=0, sigma=1, normalize=True):# compute 1 dimension gaussiangaussian_1D = np.linspace(-1, 1, k)print('===gaussian_1D:', gaussian_1D)# compute a grid distance from centerx, y = np.meshgrid(gaussian_1D, gaussian_1D)print('===x:', x)print('===y:', y)distance = (x ** 2 + y ** 2) ** 0.5print('==distance:', distance)# compute the 2 dimension gaussiangaussian_2D = np.exp(-(distance - mu) ** 2 / (2 * sigma ** 2))gaussian_2D = gaussian_2D / (2 * np.pi *sigma **2)print('==gaussian_2D:\n', gaussian_2D)# normalize part (mathematically)if normalize:gaussian_2D = gaussian_2D / np.sum(gaussian_2D)return gaussian_2Dget_gaussian_kernel()

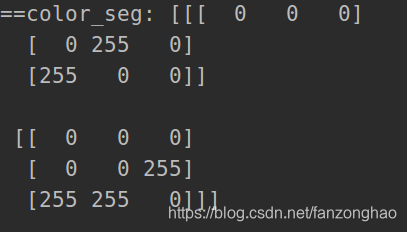

60.二维图片(图像索引)变三维(颜色)

常用于分割

seg = np.array([[0, 2, 3],[0, 1, 4]])
color_seg = np.zeros((seg.shape[0], seg.shape[1], 3), dtype=np.uint8)palette = [[0, 0, 0], [0, 0, 255], [0, 255, 0], [255, 0, 0], [255, 255, 0]]
for label, color in enumerate(palette):color_seg[seg == label, :] = color
print('==color_seg:', color_seg)

61.求解多元一次方程组

def test_np_slove():a = np.array([[1, 2, 3],[5, 23, 5],[4, 7, 9]])b = np.array([10,20,30])x = np.linalg.solve(a, b)print(x)print(np.sum(np.dot(a, x.reshape(3, 1)), axis=1))

62.利用数组索引获取每个值

target = np.array([[1, 2, 3],[4, 5, 6]])
idx = np.array([[0, 1],[1, 0],[0, 2],[0, 0],[1, 1],[1, 2]])
print('target[idx[:, 0], idx[:, 1]]', target[idx[:, 0], idx[:, 1]])
