- 设计m序列发生器，其特征方程为，输出数字序列信号m_sequence码速率为10Mbps；设计串行转并行电路，每4位m序列并行输出，先输入的串行数据位于并行输出数据的高位。设计测试程序，进行功能仿真，将Verilog代码和仿真波形图整理入实验报告。
代码:
功能代码：
module shiyan51(reset,clock,clock_1,A_reg,m_sequence,m_seq_paral_out);
input clock;
input reset;
output A_reg;
output m_sequence;
output m_seq_paral_out;
output clock_1;
wire clock;
reg clock_1;
wire reset;
reg [3:0] A_reg;
reg m_sequence;
reg [3:0] m_seq_paral_out;
reg [1:0] cnt_2;
//clock四分频
always @(posedge clock or posedge reset)
begin
if(reset)
begin
cnt_2<=0;
clock_1<=0;
end
else
begin if(cnt_2==2'd1)
begin
cnt_2<=0;
clock_1<=~clock_1;
end
else
cnt_2<=cnt_2+1;
end
end
//m序列产生
always @(posedge clock or posedge reset)
begin
if(reset)
begin
A_reg<=4'b0001;
m_sequence<=1'b0;
end
else
begin
A_reg[0]<=A_reg[2]^A_reg[3];
A_reg[3:1]<=A_reg[2:0];
m_sequence<=A_reg[3];
end
end
//串并转换电路
reg[3:0] xx;
reg en;
always @(posedge clock or posedge reset)
begin
if(reset)
begin
xx<=4'b0000;
end
else
begin
xx<={xx[2:0],m_sequence};//连接字符串，xx的后三位作为高位，m_sequence作为低位
end
end
always @(posedge clock_1)
begin
m_seq_paral_out<=xx; //4个clock_1之后，输出并行
end
endmodule
测试代码：
`timescale 1 ns/ 1 ps
module test();
reg clock;
reg reset;
wire clock_1;
wire [3:0] A_reg;
wire m_sequence;
wire [3:0] m_seq_paral_out;
shiyan51 U1(reset,clock,clock_1,A_reg,m_sequence,m_seq_paral_out);
always #50 clock=~clock;
initial
begin
reset=1;clock=0;
#(100);
reset=0;
end
endmodule

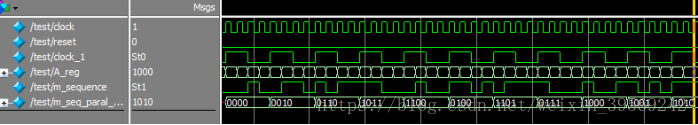

结果:
- 用函数描述一个4选1多路选择器。设计测试程序，进行功能仿真，将Verilog代码和仿真波形图整理入实验报告。
代码：
功能代码：
module shiyan52(din,dout);
input din;
output dout;
wire [1:0] din;
wire [1:0] dout;
function [1:0] code;
input [1:0] din;
casex (din)
2'b00: code=2'h0;
2'b01: code=2'h1;
2'b10: code=2'h2;
2'b11: code=2'h3;
default :code=2'hx;
endcase
endfunction
assign dout=code(din);
endmodule
测试代码：
`timescale 1 ns/ 1 ps
module test();
reg [1:0]din;
wire [1:0]dout;
shiyan52 U1(din,dout);
initial
begin din=2'b00;
#10 din=2'b01;
#10 din=2'b10;
#10 din=2'b11;
#10 din=2'b01;
#10 din=2'b10;
#10 din=2'b11;
#10 $stop;
end
endmodule
结果：
