什么是ANR？
以下四个条件都可以造成ANR发生：
- InputDispatching Timeout：5秒内无法响应屏幕触摸事件或键盘输入事件
- BroadcastQueue Timeout ：在执行前台广播（BroadcastReceiver）的onReceive()函数时10秒没有处理完成，后台为60秒。
- Service Timeout ：前台服务20秒内，后台服务在200秒内没有执行完毕。
- ContentProvider Timeout ：ContentProvider的publish在10s内没进行完。
https://www.jianshu.com/p/388166988cef
实例分析
我们测试过程中跑monkey测试的时候，发生了ANR，LOG非常多。但是分析原因的时候还是非常考验思路。
需要三个文件
- traces.txt traces状态
- threath.txt 这个是最后的进程状态
- logcat日志
日志链接，想分析的自行下载
链接：https://pan.baidu.com/s/1i0Lf2luKbbEwXMATKErI8w
提取码：wutm
1.搜索ANR in这个关键字
12-27 01:18:59.865 562 591 E ActivityManager: ANR in com.android.music
12-27 01:18:59.865 562 591 E ActivityManager: PID: 5563
12-27 01:18:59.865 562 591 E ActivityManager: Reason: Broadcast of Intent { act=android.intent.action.MEDIA_BUTTON flg=0x10 cmp=com.android.music/.MediaButtonIntentReceiver (has extras) }
12-27 01:18:59.865 562 591 E ActivityManager: Load: 0.0 / 0.0 / 0.0
12-27 01:18:59.865 562 591 E ActivityManager: CPU usage from 5870ms to 375ms ago (2018-12-27 01:18:53.949 to 2018-12-27 01:18:59.444):
12-27 01:18:59.865 562 591 E ActivityManager: 105% 562/system_server: 103% user + 2.1% kernel / faults: 435 minor
12-27 01:18:59.865 562 591 E ActivityManager: 100% 30/kconsole: 0% user + 100% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 3.6% 204/healthd: 0.5% user + 3% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 2.3% 164/ueventd: 1.2% user + 1% kernel / faults: 1 minor
12-27 01:18:59.865 562 591 E ActivityManager: 2.3% 186/logd: 1% user + 1.2% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 2% 235/log-watch: 1% user + 0.9% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.9% 132/irq/78-0-006a: 0% user + 0.9% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.9% 5579/kworker/1:1: 0% user + 0.9% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.7% 230/netd: 0.3% user + 0.3% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.5% 1125/com.android.phone: 0.3% user + 0.1% kernel / faults: 8 minor
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 287/logcatext: 0% user + 0% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 5112/com.android.commands.monkey: 0.1% user + 0% kernel / faults: 5 minor
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 7/rcu_preempt: 0% user + 0.1% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0% 24/ksoftirqd/3: 0% user + 0% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 194/vold: 0% user + 0.1% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 205/displayd: 0.1% user + 0% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0% 209/servicemanager: 0% user + 0% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 0.1% 210/surfaceflinger: 0% user + 0.1% kernel
12-27 01:18:59.865 562 591 E ActivityManager: 54% TOTAL: 27% user + 27% kernel
12-27 01:18:59.865 562 591 E ActivityManager: CPU usage from 50244340ms to 50244340ms ago (1970-01-01 02:00:00.000 to 1970-01-01 02:00:00.000) with 0% awake:
12-27 01:18:59.865 562 591 E ActivityManager: 0% TOTAL: 0% user + 0% kernel
12-27 01:18:59.865 0 0 W KERNEL : [50232.754404] healthd: battery l=66 v=4082 t=30.9 h=2 st=2 chg=
12-27 01:18:59.990 562 594 W BatteryStatsService: Timeout reading modem stats
12-27 01:18:59.998 1125 1125 D RILJ : [9781]> RIL_REQUEST_GET_ACTIVITY_INFO [SUB0]
12-27 01:18:59.999 1125 1125 D RilRequest: [9781]< RIL_REQUEST_GET_ACTIVITY_INFO error: com.android.internal.telephony.CommandException: RADIO_NOT_AVAILABLE ret=
12-27 01:18:59.999 1125 1125 E PhoneInterfaceManager: [PhoneIntfMgr] queryModemActivityInfo: Empty response
12-27 01:18:59.999 1125 1522 E JavaBinder: !!! FAILED BINDER TRANSACTION !!! (parcel size = 276)
12-27 01:18:59.999 562 594 E BatteryStatsService: no controller energy info supplied
12-27 01:18:59.999 562 594 E BatteryStatsService: no controller energy info supplied
12-27 01:19:00.000 0 0 W KERNEL : [50232.884468] healthd: battery l=66 v=4082 t=30.9 h=2 st=2 chg=a
12-27 01:19:00.059 562 8694 ?
然后这里可以看到ANR 的PID是5563

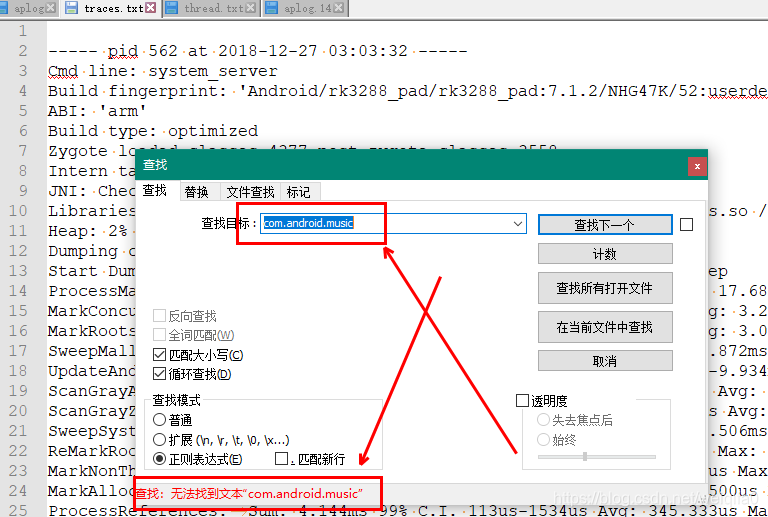

回到traces.txt 找一下这个 com.android.music
干他大爷的，发现没有找到~~~~~~
不着急，
我们刚才看那个日志的时候比较早，traces.txt可能会后面的日志冲掉了原因是
Wrote stack traces to '/data/anr/traces.txt'
这个是每次发生anr的时候，想traces文件写入数据的日志
我们找最后一次写入这个文件的日志位置
12-27 03:02:54.175 0 0 W KERNEL : [56327.543907] .cpu_load[0] : 84
12-27 03:02:54.178 562 1364 I Process : Sending signal. PID: 562 SIG: 3
12-27 03:02:54.179 562 567 I art : Thread[2,tid=567,WaitingInMainSignalCatcherLoop,Thread*=0xa6d0c000,peer=0x12c010d0,"Signal Catcher"]: reacting to signal 3
12-27 03:02:54.179 562 567 I art :
12-27 03:02:54.180 0 0 W KERNEL : [56327.543921] .cpu_load[1] : 54
12-27 03:02:54.641 562 567 I art : Wrote stack traces to '/data/anr/traces.txt'
12-27 03:02:54.641 562 1364 I Process : Sending signal. PID: 1125 SIG: 3
12-27 03:02:54.641 1125 1128 I art : Thread[3,tid=1128,WaitingInMainSignalCatcherLoop,Thread*=0xa433fe00,peer=0x12c00670,"Signal Catcher"]: reacting to signal 3
12-27 03:02:54.641 0 0 W KERNEL : [56327.543932] .cpu_load[2] : 30
12-27 03:02:54.641 1125 1128 I art :
12-27 03:02:54.653 0 0 W KERNEL : [56327.543945] .cpu_load[3] : 16
12-27 03:02:54.693 1125 1128 I art : Wrote stack traces to '/data/anr/traces.txt'
12-27 03:02:54.698 0 0 W KERNEL : [56327.543958] .cpu_load[4] : 9
12-27 03:02:54.698 193 193 W : debuggerd: handling request: pid=210 uid=1000 gid=1003 tid=210
12-27 03:02:54.698 0 0 W KERNEL : [56327.543972] .yld_count : 570694
12-27 03:02:54.791 193 193 W : debuggerd: resuming target 210
12-27 03:02:54.791 0 0 W KERNEL : [56327.543986] .sched_count : 127372328
12-27 03:02:54.792 193 193 W : debuggerd: handling request: pid=221 uid=1041 gid=1005 tid=221
12-27 03:02:54.792 0 0 W KERNEL : [56327.544001] .sched_goidle : 25588776
12-27 03:02:54.870 193 193 W : debuggerd: resuming target 221
12-27 03:02:54.871 0 0 W KERNEL : [56327.544014] .avg_idle : 1000000
12-27 03:02:54.871 193 193 W : debuggerd: handling request: pid=222 uid=1047 gid=1005 tid=222
12-27 03:02:54.871 0 0 W KERNEL : [56327.544022] .max_idle_balance_cost : 500000
12-27 03:02:54.904 193 193 W : debuggerd: resuming target 222
12-27 03:02:54.905 0 0 W KERNEL : [56327.544030] .ttwu_count : 68703282
12-27 03:02:54.905 193 193 W : debuggerd: handling request: pid=223 uid=1019 gid=1019 tid=223
12-27 03:02:54.905 0 0 W KERNEL : [56327.544037] .ttwu_local : 31888109
12-27 03:02:54.917 193 193 W : debuggerd: resuming target 223
12-27 03:02:54.917 0 0 W KERNEL : [56327.544045] \x0acfs_rq[1]:/bg_non_interactive
12-27 03:02:54.917 193 193 W : debuggerd: handling request: pid=226 uid=1046 gid=1006 tid=226
12-27 03:02:54.917 0 0 W KERNEL : [56327.544057] .exec_clock : 1419463.649513
12-27 03:02:54.968 193 193 W : debuggerd: resuming target 226
12-27 03:02:54.968 0 0 W KERNEL : [56327.544065] .MIN_vruntime : 0.000001
12-27 03:02:54.968 193 193 W : debuggerd: handling request: pid=227 uid=1013 gid=1031 tid=227
12-27 03:02:54.968 0 0 W KERNEL : [56327.544072] .min_vruntime : 10007865.678185
12-27 03:02:54.982 193 193 W : debuggerd: resuming target 227
Process : Sending signal. PID: 1125 SIG: 3
PID 1125 被发送了一个SIG3 然后我们查一下这个SIG 3
说明1125 被杀死了，信号值对应的数值如下
信号 值 处理动作 发出信号的原因
----------------------------------------------------------------------
SIGHUP 1 A 终端挂起或者控制进程终止
SIGINT 2 A 键盘中断（如break键被按下）
SIGQUIT 3 C 键盘的退出键被按下
SIGILL 4 C 非法指令
SIGABRT 6 C 由abort(3)发出的退出指令
SIGFPE 8 C 浮点异常
SIGKILL 9 AEF Kill信号
SIGSEGV 11 C 无效的内存引用
SIGPIPE 13 A 管道破裂: 写一个没有读端口的管道
SIGALRM 14 A 由alarm(2)发出的信号
SIGTERM 15 A 终止信号
SIGUSR1 30,10,16 A 用户自定义信号1
SIGUSR2 31,12,17 A 用户自定义信号2
SIGCHLD 20,17,18 B 子进程结束信号
SIGCONT 19,18,25 进程继续（曾被停止的进程）
SIGSTOP 17,19,23 DEF 终止进程
SIGTSTP 18,20,24 D 控制终端（tty）上按下停止键
SIGTTIN 21,21,26 D 后台进程企图从控制终端读
SIGTTOU 22,22,27 D 后台进程企图从控制终端写 下面的信号没在POSIX.1中列出，而在SUSv2列出 信号 值 处理动作 发出信号的原因
链接：www.cnblogs.com/taobataoma/archive/2007/08/30/875743.html
然后我们继续搜下

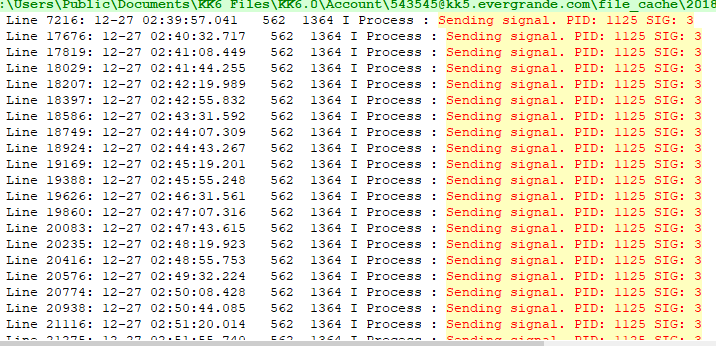

从这个图片看到了，这个1125不断的被杀死，因为是系统进程，自己又无耻的启动，反复如此，就出现了上面的日志。
然后继续回到traces.txt里面分析
看thread.txt里面查看1125这个进程的名字是android.phone.
1125 1125 radio 20 0 0% S 1024340K 87388K fg m.android.phone com.android.phone1125 1127 radio 29 9 0% S 1024340K 87388K fg Jit thread pool com.android.phone1125 1128 radio 20 0 0% S 1024340K 87388K fg Signal Catcher com.android.phone1125 1129 radio 20 0 0% S 1024340K 87388K fg JDWP com.android.phone
然后在看thread.txt里面查看562这个进程的名字是system_server，如下图
562 562 system 18 -2 0% S 1851968K 408908K fg system_server system_server562 567 system 20 0 0% S 1851968K 408908K fg Signal Catcher system_server562 569 system 20 0 0% S 1851968K 408908K fg ReferenceQueueD system_server562 570 system 20 0 0% S 1851968K 408908K fg FinalizerDaemon system_server562 571 system 20 0 0% S 1851968K 408908K fg FinalizerWatchd system_server562 572 system 20 0 0% S 1851968K 408908K fg HeapTaskDaemon system_server562 588 system 20 0 0% S 1851968K 408908K fg Binder:562_1 system_server
然后再在traces.txt里面看
----- pid 562 at 2018-12-27 03:03:32 -----
Cmd line: system_server
Build fingerprint: 'Android/rk3288_pad/rk3288_pad:7.1.2/NHG47K/52:userdebug/test-keys'
ABI: 'arm'
这是system_server出现问题的时候记录下来的日志，然后继续往下看
"main" prio=5 tid=1 Native| group="main" sCount=1 dsCount=0 obj=0x73d514a0 self=0xae105400| sysTid=562 nice=-2 cgrp=default sched=0/0 handle=0xb0eb2534| state=S schedstat=( 265574536000 322529001630 703903 ) utm=21655 stm=4901 core=1 HZ=100| stack=0xbe0b4000-0xbe0b6000 stackSize=8MB| held mutexes=native: #00 pc 00017418 /system/lib/libc.so (syscall+28)native: #01 pc 00046eab /system/lib/libc.so (_ZL24__pthread_cond_timedwaitP23pthread_cond_internal_tP15pthread_mutex_tbPK8timespec+102)native: #02 pc 000846d7 /system/lib/libmedia.so (_ZN7android11MediaPlayer7prepareEv+82)native: #03 pc 0002b683 /system/lib/libmedia_jni.so (???)native: #04 pc 00a5780f /data/dalvik-cache/arm/system@framework@boot.oat (Java_android_media_MediaPlayer__1prepare__+74)at android.media.MediaPlayer._prepare(Native method)at android.media.MediaPlayer.prepare(MediaPlayer.java:1365)at android.media.Ringtone.setUri(Ringtone.java:298)at android.media.Ringtone.setAudioAttributes(Ringtone.java:134)at android.media.Ringtone.setStreamType(Ringtone.java:105)at com.android.server.power.Notifier.playWirelessChargingStartedSound(Notifier.java:702)at com.android.server.power.Notifier.-wrap0(Notifier.java:-1)at com.android.server.power.Notifier$NotifierHandler.handleMessage(Notifier.java:728)at android.os.Handler.dispatchMessage(Handler.java:102)at android.os.Looper.loop(Looper.java:154)at com.android.server.SystemServer.run(SystemServer.java:358)at com.android.server.SystemServer.main(SystemServer.java:225)at java.lang.reflect.Method.invoke!(Native method)at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:912)at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:802)
这是出现问题的栈指针和函数调用的情况，可以看到是
at android.media.MediaPlayer._prepare(Native method)
at android.media.MediaPlayer.prepare(MediaPlayer.java:1365)
这里出现了问题，具体原因需要根据日志去分析了
总结梳理一下流程
1125 这个是com.android.phone 是android 拨打电话的进程
562 这个是android_server 系统进程
这两个在日志里面不断的相爱相杀了很多次，从traces.txt的原因上来看是MediaPlayer.prepare阻塞的原因，但是android_server正常没人惹他，他是不会发生这么多次崩溃的，所以最终导致的原因应该是com.android.phone调用了system_server的东西。
然后为什么com.android.phone会有问题呢？
继续摸索了一下日志
12-27 02:39:44.726 1125 1125 D RILJ : [8577]> RIL_REQUEST_GET_ACTIVITY_INFO [SUB0]
12-27 02:39:44.727 1125 1125 D RilRequest: [8577]< RIL_REQUEST_GET_ACTIVITY_INFO error: com.android.internal.telephony.CommandException: RADIO_NOT_AVAILABLE ret=
12-27 02:39:44.727 1125 1125 E PhoneInterfaceManager: [PhoneIntfMgr] queryModemActivityInfo: Empty response
12-27 02:39:44.732 562 594 E BatteryStatsService: modem info is invalid: ModemActivityInfo{ mTimestamp=0 mSleepTimeMs=0 mIdleTimeMs=0 mTxTimeMs[]=[0, 0, 0, 0, 0] mRxTimeMs=0 mEnergyUsed=0}
12-27 02:39:44.735 562 594 E BatteryStatsService: no controller energy info supplied
12-27 02:39:44.735 562 594 E BatteryStatsService: no controller energy info supplied
12-27 02:39:44.736 1125 1125 D RILJ : [8578]> RIL_REQUEST_GET_ACTIVITY_INFO [SUB0]
12-27 02:39:44.736 1125 1125 D RilRequest: [8578]< RIL_REQUEST_GET_ACTIVITY_INFO error: com.android.internal.telephony.CommandException: RADIO_NOT_AVAILABLE ret=
12-27 02:39:44.736 1125 1125 E PhoneInterfaceManager: [PhoneIntfMgr] queryModemActivityInfo: Empty response
12-27 02:39:44.741 562 594 E BatteryStatsService: modem info is invalid: ModemActivityInfo{ mTimestamp=0 mSleepTimeMs=0 mIdleTimeMs=0 mTxTimeMs[]=[0, 0, 0, 0, 0] mRxTimeMs=0 mEnergyUsed=0}
12-27 02:39:44.745 562 594 E BatteryStatsService: no controller energy info supplied
12-27 02:39:44.745 562 594 E BatteryStatsService: no controller energy info supplied
1125 调用了modem相关的东西，也就是在monkey测试过程中拨打了电话和，但是因为我们是平板项目，硬件上根本是没有modem的，原声的系统是也是去掉了这个apk的，我们是为了做暗码组合键功能才调出来的。
实际分析如上，如果有不正确的，请留言指正，谢谢
