一. 案例介绍

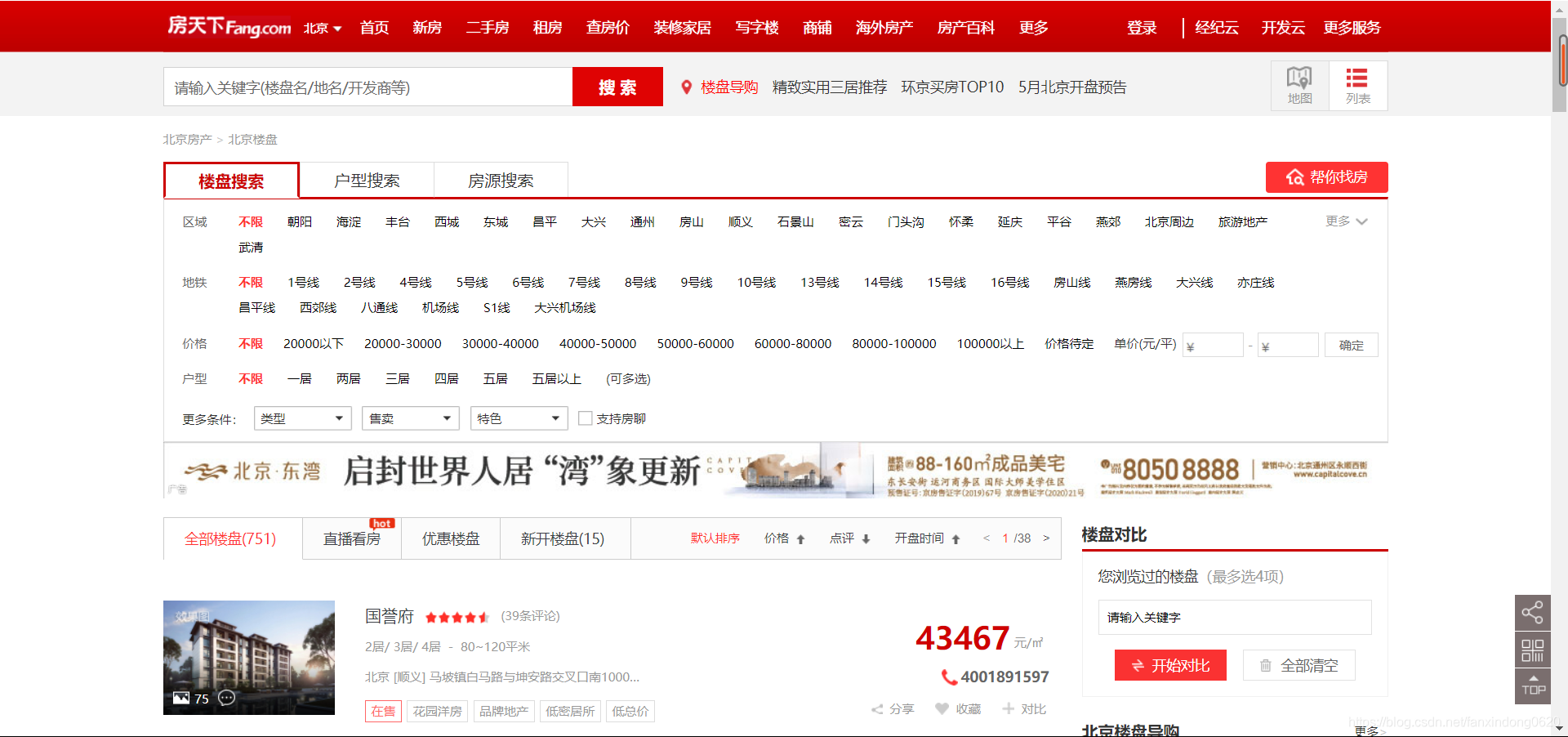

爬取房天下(https://www1.fang.com/)的网页信息。
源代码已更新至:Github
二.创建项目
打开windows终端,切换至项目将要存放的目录下:
scrapy startproject fang
cd fang\
scrapy genspider sfw “fang.com”

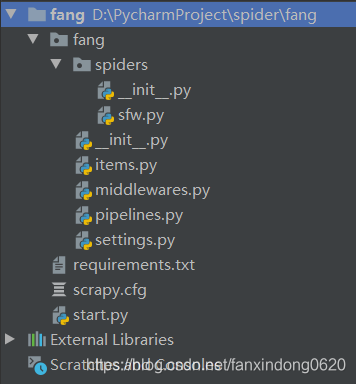

项目目录结构如下所示:
三. settings.py配置
# Obey robots.txt rules
ROBOTSTXT_OBEY = False
DOWNLOAD_DELAY = 3
DEFAULT_REQUEST_HEADERS = {'Accept': 'text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8','Accept-Language': 'en',
}
DOWNLOADER_MIDDLEWARES = {'fang.middlewares.UserAgentDownloadMiddleware': 543,
}
ITEM_PIPELINES = {'fang.pipelines.FangPipeline': 300,
}
四. 详细代码
settings.py:
# -*- coding: utf-8 -*-# Scrapy settings for fang project
#
# For simplicity, this file contains only settings considered important or
# commonly used. You can find more settings consulting the documentation:
#
# https://docs.scrapy.org/en/latest/topics/settings.html
# https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
# https://docs.scrapy.org/en/latest/topics/spider-middleware.htmlBOT_NAME = 'fang'SPIDER_MODULES = ['fang.spiders']
NEWSPIDER_MODULE = 'fang.spiders'# Crawl responsibly by identifying yourself (and your website) on the user-agent
#USER_AGENT = 'fang (+http://www.yourdomain.com)'# Obey robots.txt rules
ROBOTSTXT_OBEY = False# Configure maximum concurrent requests performed by Scrapy (default: 16)
#CONCURRENT_REQUESTS = 32# Configure a delay for requests for the same website (default: 0)
# See https://docs.scrapy.org/en/latest/topics/settings.html#download-delay
# See also autothrottle settings and docs
DOWNLOAD_DELAY = 3
# The download delay setting will honor only one of:
#CONCURRENT_REQUESTS_PER_DOMAIN = 16
#CONCURRENT_REQUESTS_PER_IP = 16# Disable cookies (enabled by default)
#COOKIES_ENABLED = False# Disable Telnet Console (enabled by default)
#TELNETCONSOLE_ENABLED = False# Override the default request headers:
DEFAULT_REQUEST_HEADERS = {'Accept': 'text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8','Accept-Language': 'en',
}# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
# 'fang.middlewares.FangSpiderMiddleware': 543,
#}# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
DOWNLOADER_MIDDLEWARES = {'fang.middlewares.UserAgentDownloadMiddleware': 543,
}# Enable or disable extensions
# See https://docs.scrapy.org/en/latest/topics/extensions.html
#EXTENSIONS = {
# 'scrapy.extensions.telnet.TelnetConsole': None,
#}# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
ITEM_PIPELINES = {'fang.pipelines.FangPipeline': 300,
}# Enable and configure the AutoThrottle extension (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/autothrottle.html
#AUTOTHROTTLE_ENABLED = True
# The initial download delay
#AUTOTHROTTLE_START_DELAY = 5
# The maximum download delay to be set in case of high latencies
#AUTOTHROTTLE_MAX_DELAY = 60
# The average number of requests Scrapy should be sending in parallel to
# each remote server
#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0
# Enable showing throttling stats for every response received:
#AUTOTHROTTLE_DEBUG = False# Enable and configure HTTP caching (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings
#HTTPCACHE_ENABLED = True
#HTTPCACHE_EXPIRATION_SECS = 0
#HTTPCACHE_DIR = 'httpcache'
#HTTPCACHE_IGNORE_HTTP_CODES = []
#HTTPCACHE_STORAGE = 'scrapy.extensions.httpcache.FilesystemCacheStorage'
items.py:
# -*- coding: utf-8 -*-# Define here the models for your scraped items
#
# See documentation in:
# https://docs.scrapy.org/en/latest/topics/items.htmlimport scrapyclass NewHouseItem(scrapy.Item):# 省份province = scrapy.Field()# 城市city = scrapy.Field()# 小区名字name = scrapy.Field()# 价格price = scrapy.Field()# 几居 列表rooms = scrapy.Field()# 面积area = scrapy.Field()# 地址address = scrapy.Field()# 行政区district = scrapy.Field()# 是否在售sale = scrapy.Field()# 房天下详情页面的urlorigin_url = scrapy.Field()class ESFHouseItem(scrapy.Item):# 省份province = scrapy.Field()# 城市city = scrapy.Field()# 小区名字name = scrapy.Field()# 几室几厅rooms = scrapy.Field()# 层floor = scrapy.Field()# 朝向toward = scrapy.Field()# 年代year = scrapy.Field()# 地址address = scrapy.Field()# 建筑面积area = scrapy.Field()# 总价price = scrapy.Field()# 单价unit = scrapy.Field()# 原始urlorigin_url = scrapy.Field()
pipelines.py:
# -*- coding: utf-8 -*-# Define your item pipelines here
#
# Don't forget to add your pipeline to the ITEM_PIPELINES setting
# See: https://docs.scrapy.org/en/latest/topics/item-pipeline.html
from scrapy.exporters import JsonLinesItemExporterclass FangPipeline(object):def __init__(self):self.newhouse_fp = open('newhouse.json','wb')self.esfhouse_fp = open('esfhouse.json','wb')self.newhouse_exporter = JsonLinesItemExporter(self.newhouse_fp,ensure_ascii=False)self.esfhouse_exporter = JsonLinesItemExporter(self.esfhouse_fp, ensure_ascii=False)def process_item(self, item, spider):self.newhouse_exporter.export_item(item)self.esfhouse_exporter.export_item(item)return itemdef close_spider(self,spider):self.newhouse_fp.close()self.esfhouse_fp.close()
sfw.py:
# -*- coding: utf-8 -*-
import reimport scrapy
from fang.items import NewHouseItem, ESFHouseItemclass SfwSpider(scrapy.Spider):name = 'sfw'allowed_domains = ['fang.com']start_urls = ['https://www.fang.com/SoufunFamily.htm']def parse(self, response):trs = response.xpath("//div[@class='outCont']//tr")province = Nonefor tr in trs:tds = tr.xpath(".//td[not(@class)]")province_td = tds[0]province_text = province_td.xpath(".//text()").get()province_text = re.sub(r"\s","",province_text)if province_text:province = province_textif province == "其它":continuecity_id = tds[1]city_links = city_id.xpath(".//a")for city_link in city_links:city = city_link.xpath(".//text()").get()city_url = city_link.xpath(".//@href").get()# print("省份:",province)# print("城市:", city)# print("城市链接:", city_url)#构建新房的url链接url_module = city_url.split("//")scheme = url_module[0]domain_all = url_module[1].split("fang")domain_0 = domain_all[0]domain_1 = domain_all[1]if "bj." in domain_0:newhouse_url = "https://newhouse.fang.com/house/s/"esf_url = "https://esf.fang.com/"else:newhouse_url =scheme + "//" + domain_0 + "newhouse.fang" + domain_1 + "house/s/"# 构建二手房的URL链接esf_url = scheme + "//" + domain_0 + "esf.fang" + domain_1# print("城市:%s%s"%(province, city))# print("新房链接:%s"%newhouse_url)# print("二手房链接:%s"%esf_url)# yield scrapy.Request(url=newhouse_url,callback=self.parse_newhouse,meta={"info":(province, city)})yield scrapy.Request(url=esf_url,callback=self.parse_esf,meta={"info":(province, city)},dont_filter=True)# break# breakdef parse_newhouse(self,response):province,city = response.meta.get('info')lis = response.xpath("//div[contains(@class,'nl_con')]/ul/li")for li in lis:# 获取 项目名字name = li.xpath(".//div[@class='nlcd_name']/a/text()").get()name = li.xpath(".//div[@class='nlcd_name']/a/text()").get()if name == None:passelse:name = name.strip()# print(name)# 获取房子类型:几居house_type_list = li.xpath(".//div[contains(@class,'house_type')]/a/text()").getall()if len(house_type_list) == 0:passelse:house_type_list = list(map(lambda x:re.sub(r"\s","",x),house_type_list))rooms = list(filter(lambda x:x.endswith("居"),house_type_list))# print(rooms)# 获取房屋面积area = "".join(li.xpath(".//div[contains(@class,'house_type')]/text()").getall())area = re.sub(r"\s|/|-", "", area)if len(area) == 0:passelse:area =area# print(area)# 获取地址address = li.xpath(".//div[@class='address']/a/@title").get()if address == None:passelse:address = address# print(address)# 获取区划分:海淀 朝阳district_text = "".join(li.xpath(".//div[@class='address']/a//text()").getall())if len(district_text) == 0:passelse:district = re.search(r".*\[(.+)\].*",district_text).group(1)# print(district)# 获取是否在售sale = li.xpath(".//div[contains(@class,'fangyuan')]/span/text()").get()if sale == None:passelse:sale = sale# print(sale)# 获取价格price = li.xpath(".//div[@class='nhouse_price']//text()").getall()if len(price) == 0:passelse:price = "".join(price)price = re.sub(r"\s|广告","",price)# print(price)# 获取网址链接origin_url = li.xpath(".//div[@class='nlcd_name']/a/@href").get()if origin_url ==None:passelse:origin_url = origin_url# print(origin_url)item = NewHouseItem(name=name,rooms=rooms,area=area,address=address,district=district,sale=sale,price=price,origin_url=origin_url,province=province,city=city,)yield itemnext_url = response.xpath(".//div[@class='page']//a[@class='next']/@href").get()if next_url:yield scrapy.Request(url=response.urljoin(next_url), callback=self.parse_newhouse,meta={"info":(province,city)})def parse_esf(self, response):# 获取省份和城市province, city = response.meta.get('info')dls = response.xpath("//div[@class='shop_list shop_list_4']/dl")for dl in dls:item = ESFHouseItem(province=province,city=city)# 获取小区名字name = dl.xpath(".//p[@class='add_shop']/a/text()").get()if name == None:passelse:item['name'] = name.strip()# print(name)# 获取综合信息infos = dl.xpath(".//p[@class='tel_shop']/text()").getall()if len(infos) == 0:passelse:infos = list(map(lambda x:re.sub(r"\s","",x),infos))# print(infos)for info in infos:if "厅" in info :item['rooms']= infoelif '层' in info:item['floor']= infoelif '向' in info:item['toward']=infoelif '年' in info:item['year']=infoelif '㎡' in info:item['area'] = info# print(item)# 获取地址address = dl.xpath(".//p[@class='add_shop']/span/text()").get()if address == None:passelse:# print(address)item['address'] = address# 获取总价price = dl.xpath("./dd[@class='price_right']/span[1]/b/text()").getall()if len(price) == 0:passelse:price="".join(price)# print(price)item['price'] = price# 获取单价unit = dl.xpath("./dd[@class='price_right']/span[2]/text()").get()if unit == None:passelse:# print(unit)item['unit'] = unit# 获取初始urldetail_url = dl.xpath(".//h4[@class='clearfix']/a/@href").get()if detail_url == None:passelse:origin_url = response.urljoin(detail_url)# print(origin_url)item['origin_url'] = origin_url# print(item)yield itemnext_url = response.xpath(".//div[@class='page_al']/p/a/@href").get()# print(next_url)yield scrapy.Request(url=response.urljoin(next_url),callback=self.parse_esf,meta={"info":(province,city)})
middlewares.py:
# -*- coding: utf-8 -*-# Define here the models for your spider middleware
#
# See documentation in:
# https://docs.scrapy.org/en/latest/topics/spider-middleware.htmlimport randomclass UserAgentDownloadMiddleware(object):# user-agent随机请求头中间件USER_AGENTS = ['Mozilla/5.0 (Windows; U; Windows NT 6.1; rv:2.2) Gecko/20110201''Mozilla/5.0 (Windows; U; Windows NT 5.1; pl; rv:1.9.2.3) Gecko/20100401 Lightningquail/3.6.3''Mozilla/5.0 (X11; ; Linux i686; rv:1.9.2.20) Gecko/20110805''Mozilla/5.0 (Windows; U; Windows NT 6.0; en-US; rv:1.9.1b3) Gecko/20090305''Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.9.0.14) Gecko/2009091010''Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.9.0.10) Gecko/2009042523']def process_request(self, request, spider):user_agent = random.choice(self.USER_AGENTS)request.headers['User-Agent'] = user_agent
start.sh:
from scrapy import cmdlinecmdline.execute("scrapy crawl sfw".split())
此时在windows开发环境下运行start.sh,即可正常爬取数据。
五. 部署
1. windows环境下生成requirements.txt文件
打开cmder,首先切换至虚拟化境:
cd C:\Users\fxd.virtualenvs\sipder_env
.\Scripts\activate

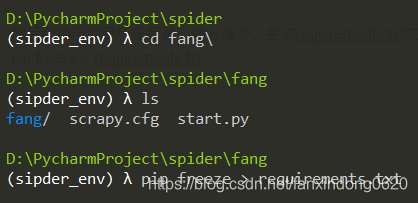

然后切换至项目所在目录,输入指令,生成requirements.txt文件

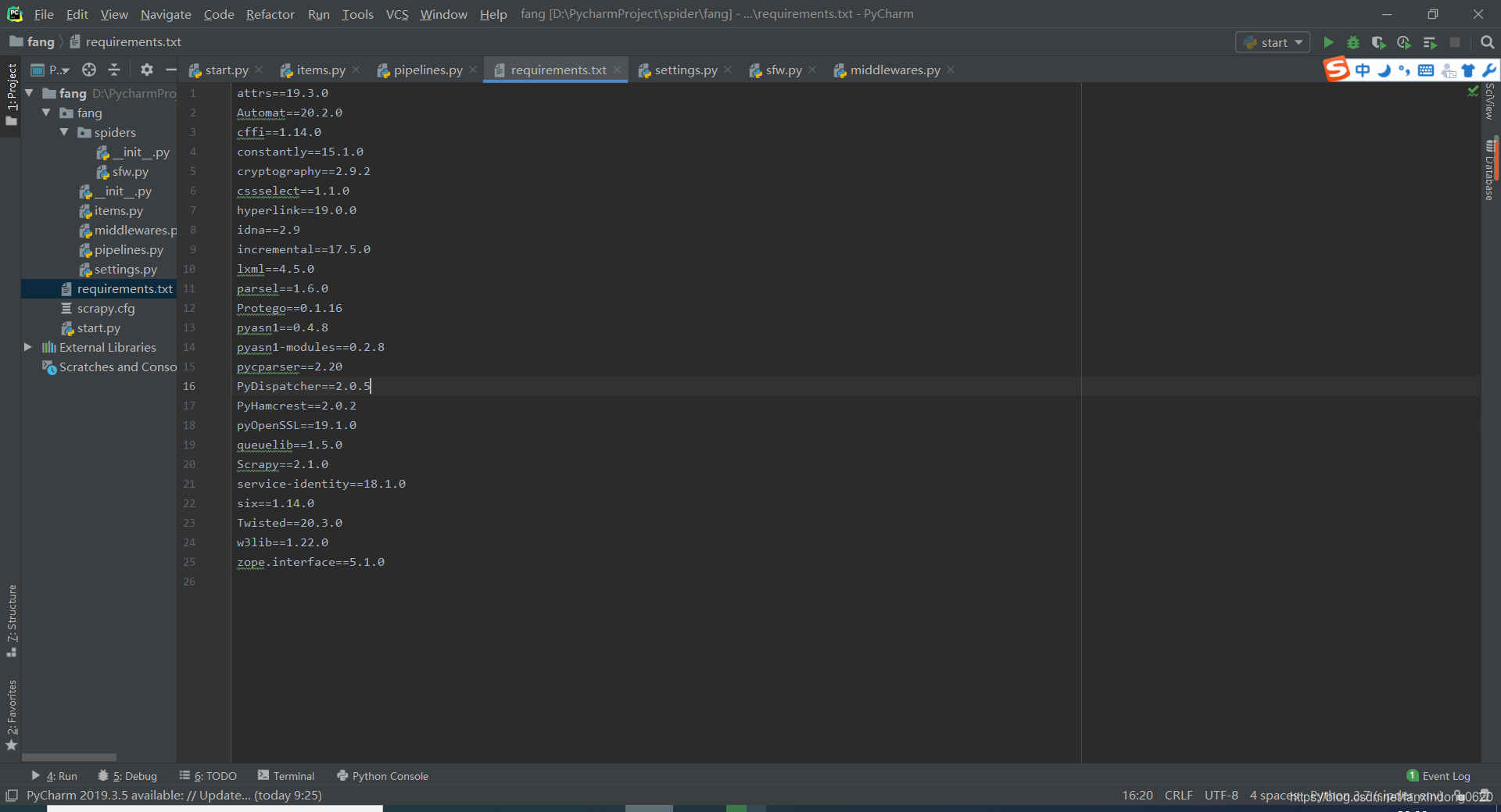

pip freeze > requirements.txt
2. xshell连接ubuntu服务器并安装依赖环境
如果未安装openssh,需要首先安装,具体指令如下:
sudo apt-get install openssh-server
连接ubuntu服务器,切换至虚拟环境所在的目录,执行:
source ./bin/activate
进入虚拟环境,执行:
rz
上传requirements.txt,执行:
pip install -r requirements.txt
安装项目依赖环境。
然后安装scrapy-redis:
pip install scrapy-redis
3. 修改部分代码
要将一个Scrapy项目变成一个Scrapy-redis项目,只需要修改以下三点:
(1)将爬虫继承的类,从scrapy.Spider 变成scrapy_redis.spiders.RedisSpider;或者从scrapy.CrowlSpider变成scrapy_redis.spiders.RedisCrowlSpider。
(2)将爬虫中的start_urls删掉,增加一个redis_key="***"。这个key是为了以后在redis中控制爬虫启动的,爬虫的第一个url,就是在redis中通过这个推送出去的。
(3)在配置文件中增加如下配置:
# Scrapy-Redis相关配置
# 确保request存储到redis中
SCHEDULER = "scrapy_redis.scheduler.Scheduler"# 确保所有的爬虫共享相同的去重指纹
DUPEFILTER_CLASS = "scrapy_redis.dupefilter.RFPDupeFilter"# 设置redis为item_pipeline
ITEM_PIPELINES = {'scrapy_redis.pipelines.RedisPipeline':300
}# 在redis中保持scrapy_redis用到的队列,不会清理redis中的队列,从而可以实现暂停和回复的功能
SCHEDULER_PERSIST = True# 设置连接redis信息
REDIS_HOST = '172.20.10.2'
REDIS_PORT = 6379
4. 上传代码至服务器并运行
将项目文件压缩,在xshell中通过命令rz上传,并解压

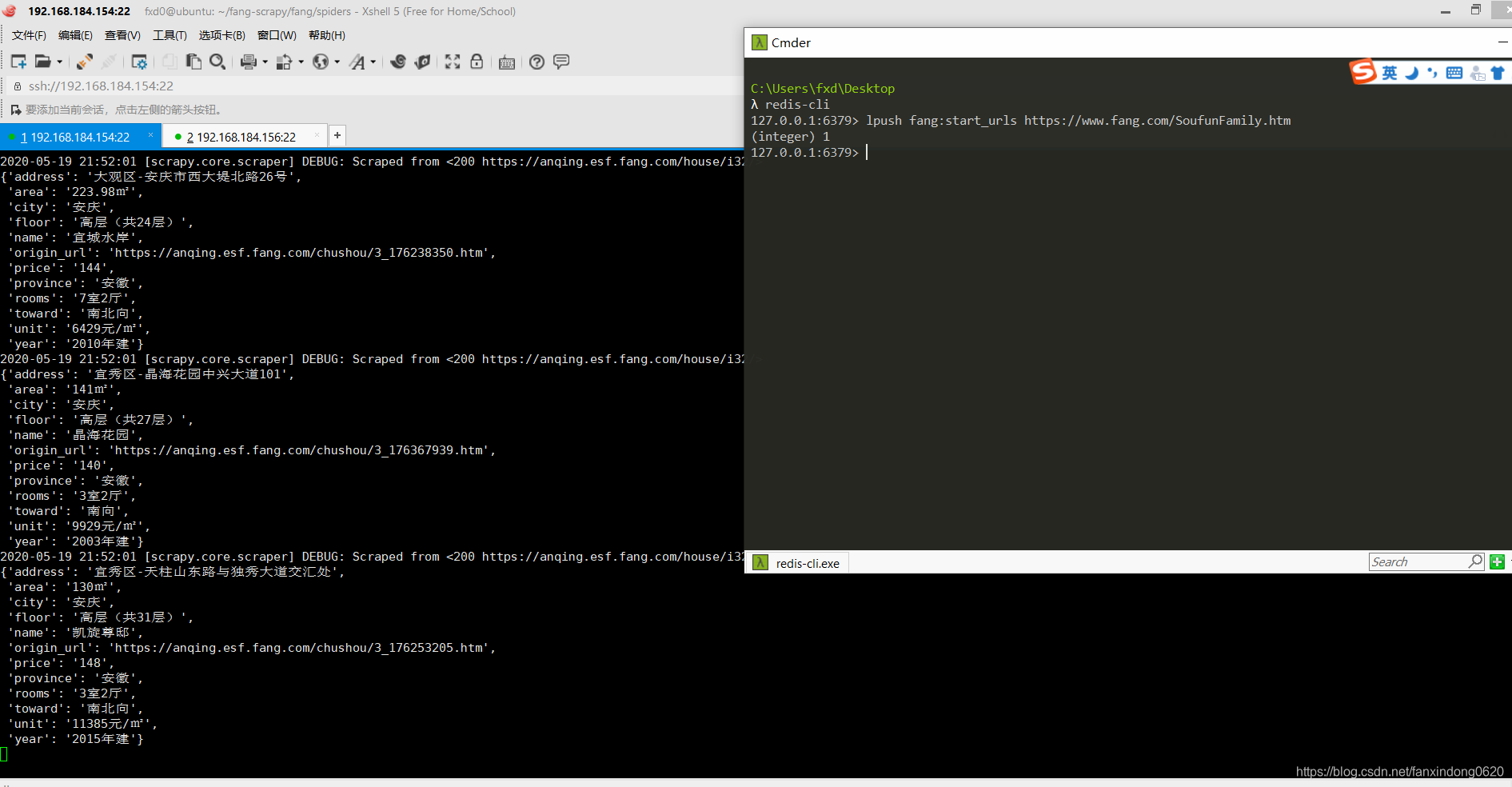

运行爬虫:
(1)在爬虫服务器上,进入爬虫文件sfw.py所在的路径,然后输入命令:scrapy runspider [爬虫名字]
scrapy runspider sfw.py
(2)在redis(windows)服务器上,开启redis服务:
redis-server redis.windows.conf
若报错,按步骤执行以下命令:
redis-cli.exe
shutdown
exit
redis-server.exe redis.windows.conf
(3)然后打开另外一个windows终端:
redis-cli
推入一个开始的url链接:
lpush fang:start_urls https://www.fang.com/SoufunFamily.htm
爬虫开始

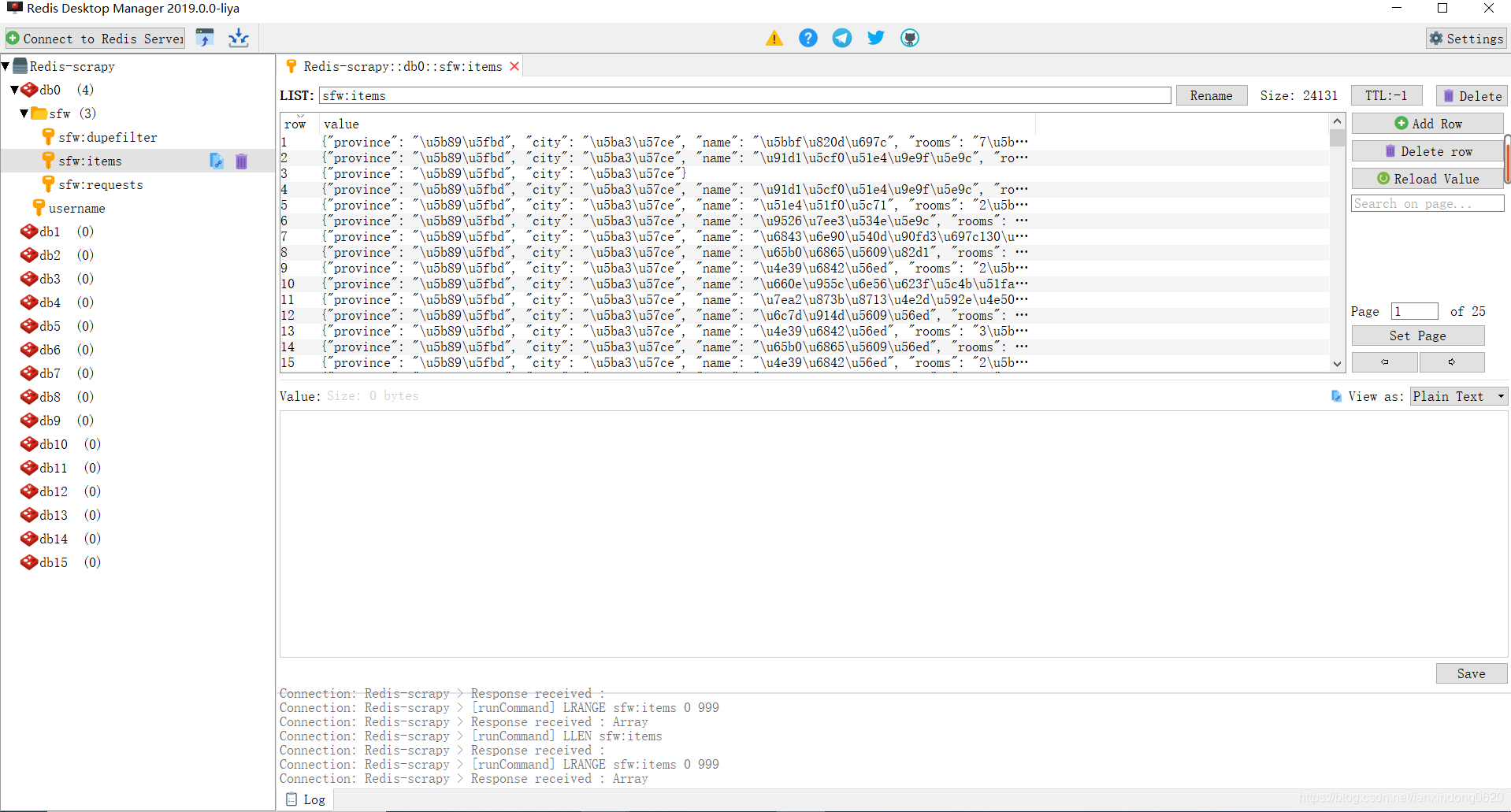

进入RedisDesktopManager查看保存的数据:
另外一台爬虫服务器进行同样的操作。
项目结束!
