由于要把一台SharePoint Server放到外网去,就把IP改到DMZ区了,结果除了系统管理员,其他帐号都无法验证通过,肯定是一些端口没开.
网上一查,SharePoint所需要的端口还真多,不过Client和WFE之间的应该开放80和443就OK了,其余的都是SharePoint Server之间,或者和
公司网络环境的. 具体如下:
SharePoint 2007 Ports
| Inbound/Outbound | From | Port | Type | To |
| Inbound | Client IPs (as applicable) | TCP 80 or 443 (SSL) | HTTP | ISA Web Pub or WFE |
| Inbound | TS Jump point | RDP (TCP 3389) For Remote Admin | APP (Central Admin /SSP Admin) | |
| Inbound | All SharePoint Server (Depends on Central Admin configuration) | Office Server Web Services, TCP 56737, SSL 56738 | HTTP | App - Central Admin /SSP Admin (Web Service Control) |
| Inbound | Index | TCP 80 or 443 | WFE | |
| Outbound | ALL SharePoint Servers (Based on Authentication) | DS (TCP 445) RPC (TCP 135) DNS (TCP/UDP 53) Kerberos (UDP 88) LDAP/S (UDP 389/636) | DC (AD) /DNS (LDAP) | |
| Outbound | External Content | DNS (TCP/UDP 53) | DNS | |
| Outbound/(Inbound if applicable) | WFE (alerts or mail enabled list) | SMTP (TCP 25) | SMTP/Exchange | |
| Outbound | ALL SharePoint Servers | SQL (TCP 1433, UDP 1434) or custom port for Named SQL Instance | SQL Server Tabular Data Stream (TDS) | SQL Server |
| Outbound | WFE (Search Request) | Search Query, either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445) | Server Message Block (SMB) | Query |
| Outbound | Index (Propagation) | Search Query, either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445) | Query | |
| Outbound | Index (File Shares) | Either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445) | Server Message Block (SMB) | External Content |
| Outbound | Index (BDC) | SQL (TCP 1433, UDP 1434) or custom port | External Content | |
| Outbound | WFE (SSO) | RPC for SSO – (TCP 135), plus random high ports (Dynamic RPC) or restricted high ports (Static RPC) | APP Servers | |
| Outbound | WFE | TPC 80, TCP 443, TCP (custom) | HTTP | Index Server (search crawling) |
| Outbound | Index (Search Crawling) | TPC 80, TCP 443, TCP (custom) | HTTP | WDE |
| Outbound | Index (Sites) | TPC 80, TCP 443, TCP (custom) | External Content |
SharePoint 2010 Ports
SharePoint 2010 uses the same ports as SharePoint 2010, but there are a few changes that relate to new services
| Inbound/Outbound | From | Port | Type | To |
| Inbound | Service Application | 32843, 32844 (HTTPS), 32845 (net.tcp binding) | HTTP | SharePoint Web Service |
| Inbound | All SharePoint Servers, but where Forefront Identity Management agent is installed | TCP/5725 | - | Active Directory |
| Outbound | Web Front End Server | TCP/5725 | - | Microsoft SharePoint Foundation User Code Service (for sandbox solutions |

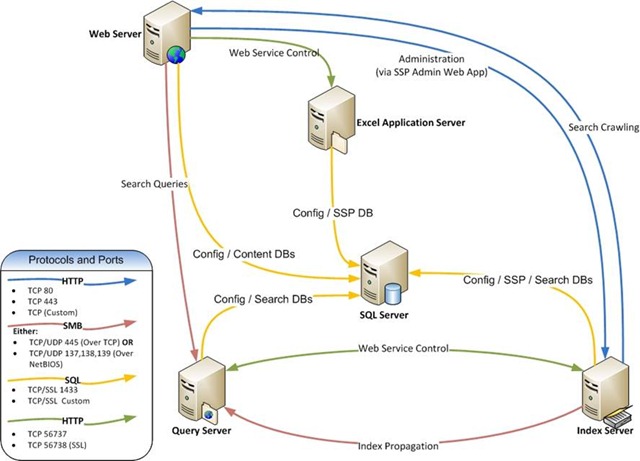

Inter-server communications of SharePoint 2007
与服务应用程序框架(Service Application Framework) 1)
与服务应用程序框架(Service Application Framework) 2)
