AZURE 日志分析自动告警

       小伙伴们好久不见，今天我们来聊聊中国 AZURE 的日志分析告警。为什么是中国 AZURE，目前中国 AZURE 的 Monitor 服务和运维相关周围服务和 Global 是有所不同的，所以有些功能和设计不能复制和套用全球版 AZURE 的架构。我们先看一下中国 AZURE 运维管理方面一些平台原生功能的缺失：
1. Azure Monitor 支持新的 Metric 指标分析服务，但不支持基于新的 Metric 指标分析的告警设置，简而言之能看不能告警；
2. 中国 AZURE 目前不支持 Azure Log Analytics 服务，平台原生不支持日志分析服务，无法通过原生服务进行日志分析和告警。所以对于平台原生支持的一些 Metric 或者 Log 无法通过 Azure Monitor 或 Azure Log Analytics 分析并发送告警。

今天的 Demo 中以一个例子，通过 EventHub + Stream Analytics + Function 来实现流式分析实时告警。

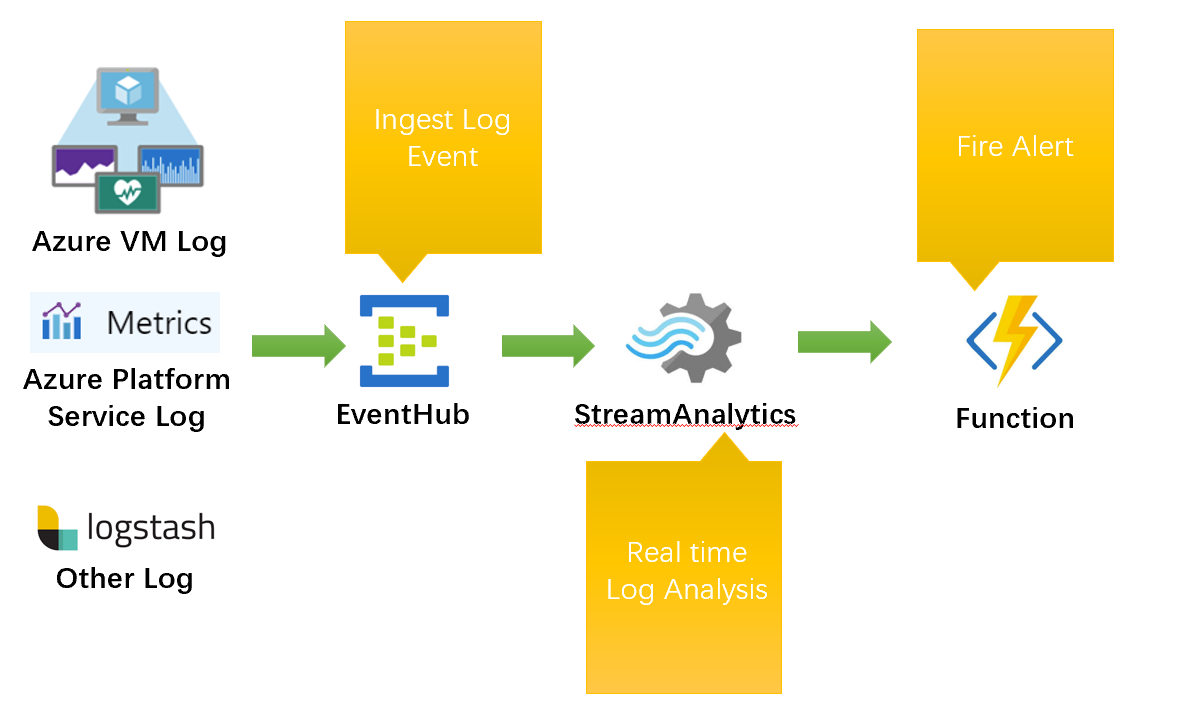

架构图：

日志源：EventHub 原生已经支持对于 Azure 平台服务的日志消息采集能力，VM 的日志可以通过 Azure VM Diagnotics Extension 进行聚集并传入 EventHub, 对于平台的原生服务可以直接与 EventHub 集成。对于非 Azure 原生服务，比如客户自己的一些日志系统等可以通过 Logstash，Fluentd 的方式将日志注入到 EventHub, Azure 已经有相关的插件来支持和 Logstash 这种日志服务进行集成。

日志聚集：EventHub 来做日志的聚集，可以将多个日志源聚集到同一个 EventHub 下来实现日志消费下游服务的统一分发。

日志实时分析：Stream Analytics 来对 EventHub 聚集的日志进行消费，完成日志的流式实时分析，在此 Demo 中，Sream Analytics 进行应用网关 （Application Gateway）的后端服务节点的健康状态情况，当可用节点小于一个时，触发告警事件。

日志告警：通过 Function 服务，以事件驱动的方式获得 Stream Analytics 的告警，执行 Function 代码推送告警。此 Demo，以邮件告警为例，如果客户有短消息推送等其它推送需求，可以类同方式调取集成。

配置方法：

1. 配置日志源

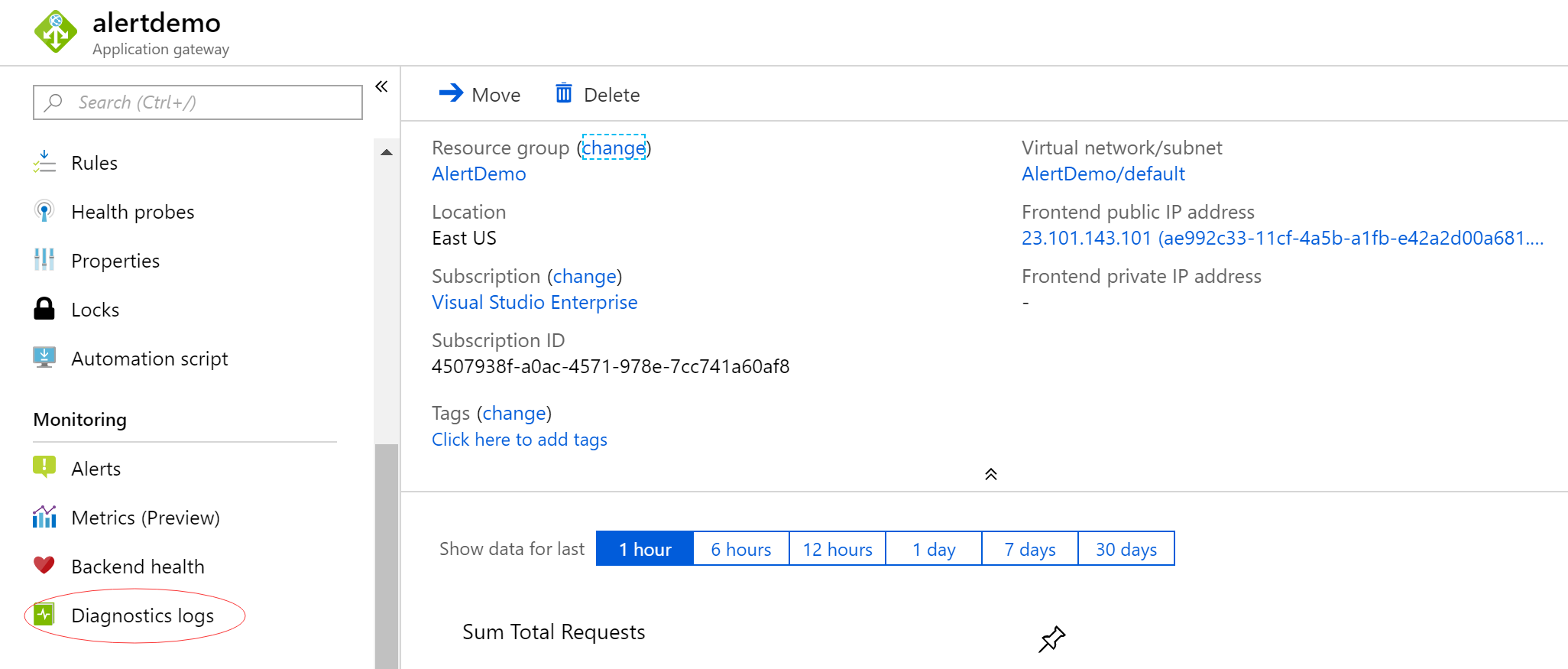

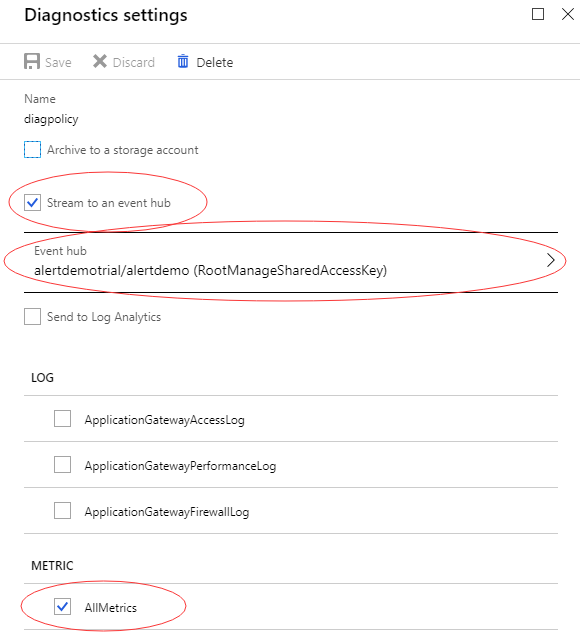

此次 Demo 中以应用网关的 Metric 日志为例，此处忽略应用网关的相关创建动作和配置动作，下面是开启日志推送到 EventHub 的配置方法，此步执行前需要创建好 EventHub



 2. 配置 EventHub

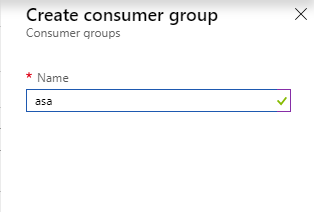

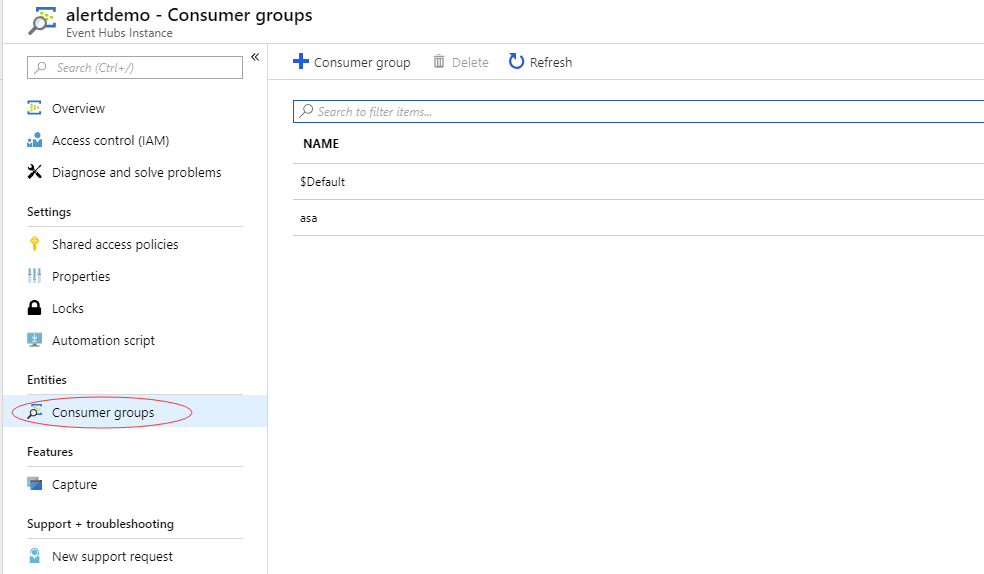

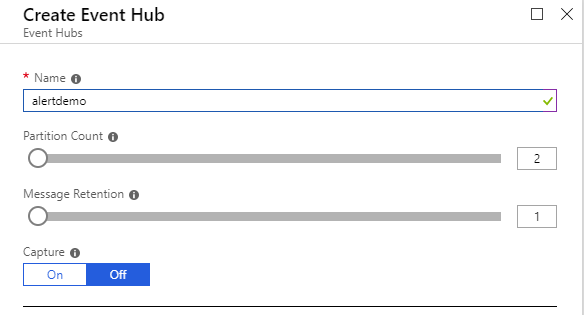

EventHub 配置方法比较简单，创建 EventHub，然后为了方便区分后端消费者，在创建好的 EventHub 下创建消费组

3. 配置 Stream Analytics 服务

此处跳过 Steam Analytics 的创建过程，直接在创建好的 Stream Analytics 服务上进行配置，分别配置 Input 和 Output，Stream Analytics 作为 EventHub 消息的消费者，首先我们需要在 Stream Analytics 中将 EventHub 配置为 Input，反之 Function 服务是 Stream Analytics 的数据消费者，所以把 Function 服务配置为  Ouput。

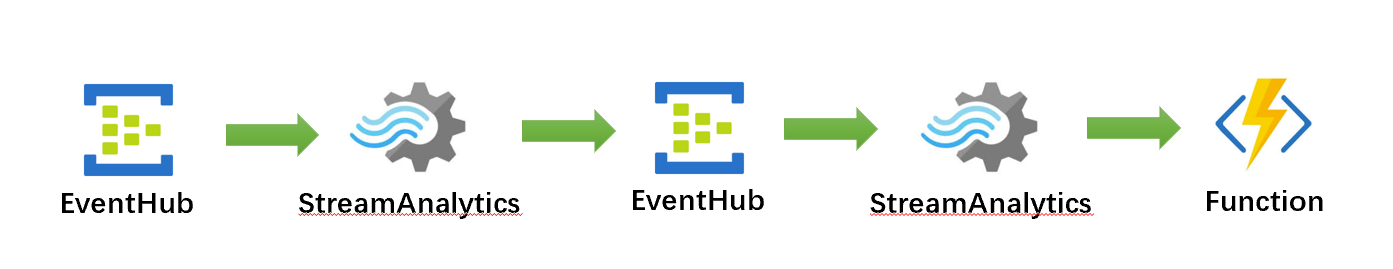

此 Demo 中有架构有一些微调，EventHub 和 Stream Analytics 分别对消息事件做了两次处理，流程如下：



原因是因为 Application Gateway 推送出来的 Metric 日志是以5分钟为间隔一条消息，每个消息中包含5分钟内每分钟的消息，是以 Json 嵌套数组的方式来做的，我们通过第一层的 Stream Analytics 来完成将嵌套的 Metric 日志序列化，将每分钟的 Metric 日志以独立消息的方式注入到 EventHub，然后重新在第二层的 Stream Analytics 中来进行流式分析，以5分钟为间隔来分析5分钟内性能指标的平均值，当平均触碰阈值后生成告警事件，将告警事件通知 Function 服务，通知事件内包含监控指标类型名称和现有指标5分钟平均值，Function 服务以事件驱动执行通知分发程序将告警以相应方式推送到相关责任人。

从 Application Gateway 的生成的 RAW Date 日志格式参考如下：

复制代码

{"records":[{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:25:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:26:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:25:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:26:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:25:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:26:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:27:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:28:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:29:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"}],"EventProcessedUtcTime":"2018-09-10T07:38:52.6261568Z","PartitionId":0,"EventEnqueuedUtcTime":"2018-09-10T07:35:52.4790000Z"}
{"records":[{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:30:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:31:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:32:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:33:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:34:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"}],"EventProcessedUtcTime":"2018-09-10T07:42:19.8630447Z","PartitionId":0,"EventEnqueuedUtcTime":"2018-09-10T07:42:18.9160000Z"}
{"records":[{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":869,"minimum":869,"maximum":869,"average":869,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"Throughput","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"UnhealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"HealthyHostCount","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":12,"minimum":12,"maximum":12,"average":12,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"TotalRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"FailedRequests","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"ResponseStatus","timeGrain":"PT1M"},{"count":1,"total":12,"minimum":12,"maximum":12,"average":12,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"ResponseStatus","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:35:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":0,"minimum":0,"maximum":0,"average":0,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:36:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:38:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"},{"count":1,"total":1,"minimum":1,"maximum":1,"average":1,"resourceId":"/SUBSCRIPTIONS/4507938F-A0AC-4571-978E-7CC741A60AF8/RESOURCEGROUPS/ALERTDEMO/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/ALERTDEMO","time":"2018-09-10T07:39:00.0000000Z","metricName":"CurrentConnections","timeGrain":"PT1M"}],"EventProcessedUtcTime":"2018-09-10T07:45:55.9598069Z","PartitionId":0,"EventEnqueuedUtcTime":"2018-09-10T07:45:55.8810000Z"}



第一层 StreamAnalytics 配置：

Input：第一层 EventHub (alertdemo)，Ouput：第二层 EventHub (EventhubStream)

查询语句



WITH
Metric AS
(SELECT   arrayElement.ArrayIndex,  arrayElement.ArrayValue  FROM alertdemo as event  CROSS APPLY GetArrayElements(event.records) AS arrayElement
),
TransformedInput AS (SELECTMetric.arrayvalue.*FROM Metric
)
SELECT*
INTO EventhubStream
FROM TransformedInput



 第二层 StreamAnalytics 配置：

Input：第二层 EventHub (EventhubStream)，Ouput：Function (FuncOutput)



SELECTmetricName,AVG(average) as avg
INTO FuncOutput
FROM EventhubStream TIMESTAMP BY time
GROUP BYmetricName,TumblingWindow(minute, 5)
HAVING(avg(average) <= 1 and metricName = 'HealthyHostCount')



4. 配置 Function 服务

这里在配置过程中有个地方需要注意：需要在 Function 服务的 SSL 部分将 TLS 版本设置为 1.0， 这个是 Function 和 Stream Analytics 服务集成的要求。

本例中以 Python Runtime 为例，创建一个 Http Trigger 触发的 Function 函数，代码如下：



import os
import json
import smtplib
from email.MIMEMultipart import MIMEMultipart
from email.MIMEText import MIMETextfromaddr = "******@***.com"
toaddr = "******@***.com"postreqdata = json.loads(open(os.environ['req']).read())
if postreqdata:#Create Alert Messagemsg = MIMEMultipart()msg['From'] = fromaddrmsg['To'] = toaddrmsg['Subject'] = "Alert Fire"body = postreqdata[0]['metricname'] + " fire the alert"msg.attach(MIMEText(body,'plain'))#Send Alert Messages = smtplib.SMTP('smtp.***.com')s.ehlo()s.login("*******@***.com", '******')s.sendmail(fromaddr, toaddr, msg.as_string())#Prepare Success Code
returnData = {#HTTP Status Code:"status": 200,#Response Body:"body": "<h1>Azure Works :)</h1>",# Send any number of HTTP headers"headers": {"Content-Type": "text/html","X-Awesome-Header": "YesItIs"}
}# Output the response to the client
output = open(os.environ['res'], 'w')
output.write(json.dumps(returnData))

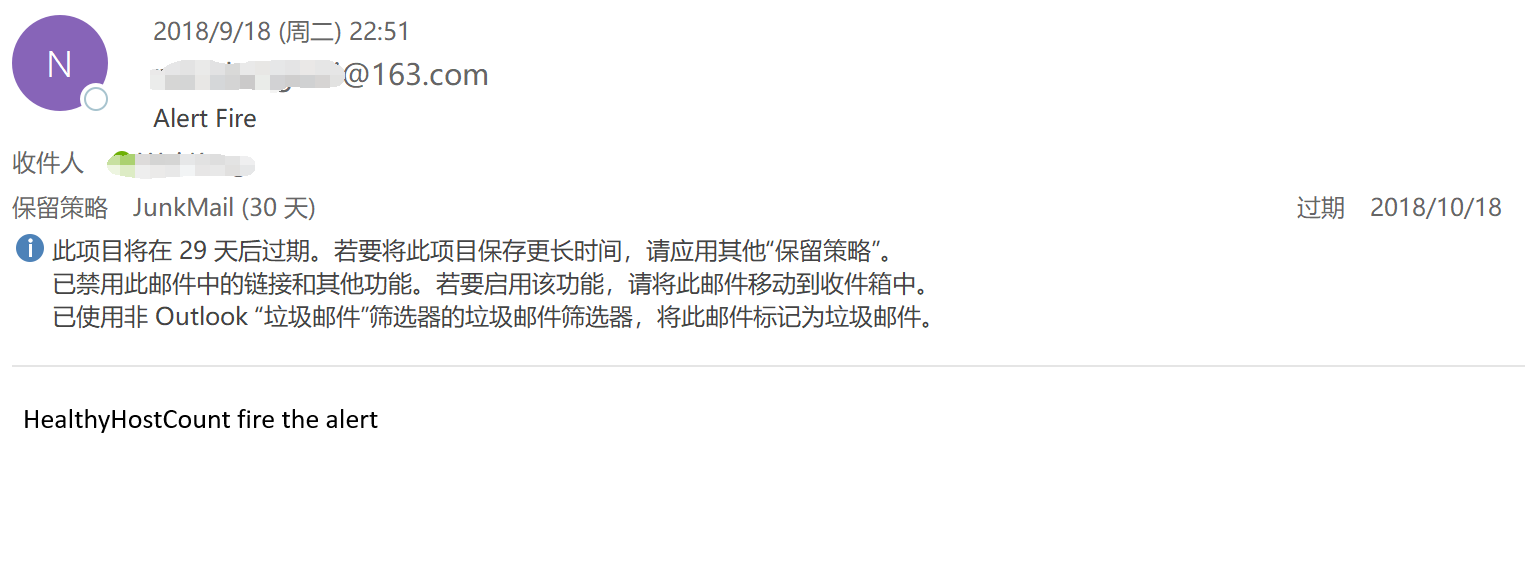

检查邮件告警

本文中的 Demo 只是一个简单的示例，大家可以根据自己实际的业务场景需求对流分析部分的告警策略自行定义，流式分析服务内置了很多分析能力可以满足我们不同的分析需求。

参考阅读：

1. Stream Analytics 常用语法：https://msdn.microsoft.com/zh-cn/azure/stream-analytics/reference/stream-analytics-query-language-reference

2. Stream Analytics 分析场景示例：https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-stream-analytics-query-patterns

3. Azure 平台服务日志参考：https://docs.microsoft.com/en-us/azure/monitoring-and-diagnostics/monitoring-supported-metrics
