先了解下这篇文章: https://blog.csdn.net/JoeBlackzqq/article/details/39612351

这是我的硬件配置!

当初装10.14.4时, 看网上文章说我的独显是无法驱动的,所以当时用的是我的核显(CPU i7-4770k  HD4600)装上的.

但是在系统稳定的跑了个把月后,不知什么原因(一阵电流声), 我的机器屏幕全黑了(原来系统正常开机在运行的), 于是重启,可是始终无法进入系统, 当运行至 end randomseed ++++++ 后,就开始自动重启, 试了各种办法, 始终是进不去. 折腾了二个多星期, 实在是没折了, 渐渐地感觉到可能真的是核显坏掉了. 于是想到装个10.13.6吧, 因为这个版本,我的独显还是能免驱的!



于是装好10.13.6后,成功地驱动了独显, 然后又尝试进我的10.14.4系统, 没想到真的进去了, 接着我又试着将10.13.6中的config.plist中的配置配到10.14.4的config.plist中,发现也是成功驱动了, 真是万分欣喜, 于是做个记录, 要是下次还出现装机问题, 希望能有个参考!

工具准备：(CSDN已经无法自定义上传资源的积分了，没办法)：

Clover_v2.5k_r5018.pkg

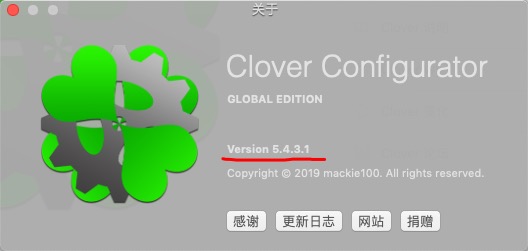

Clover Configurator.app

DPCIManager.app

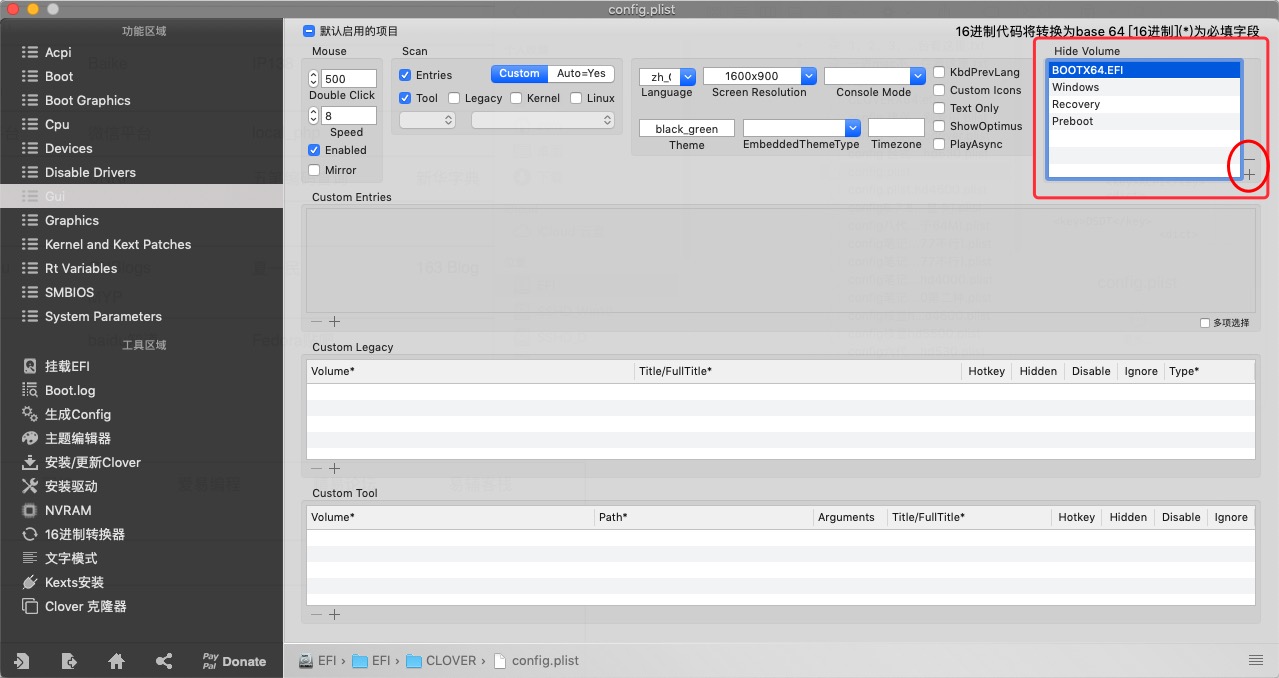

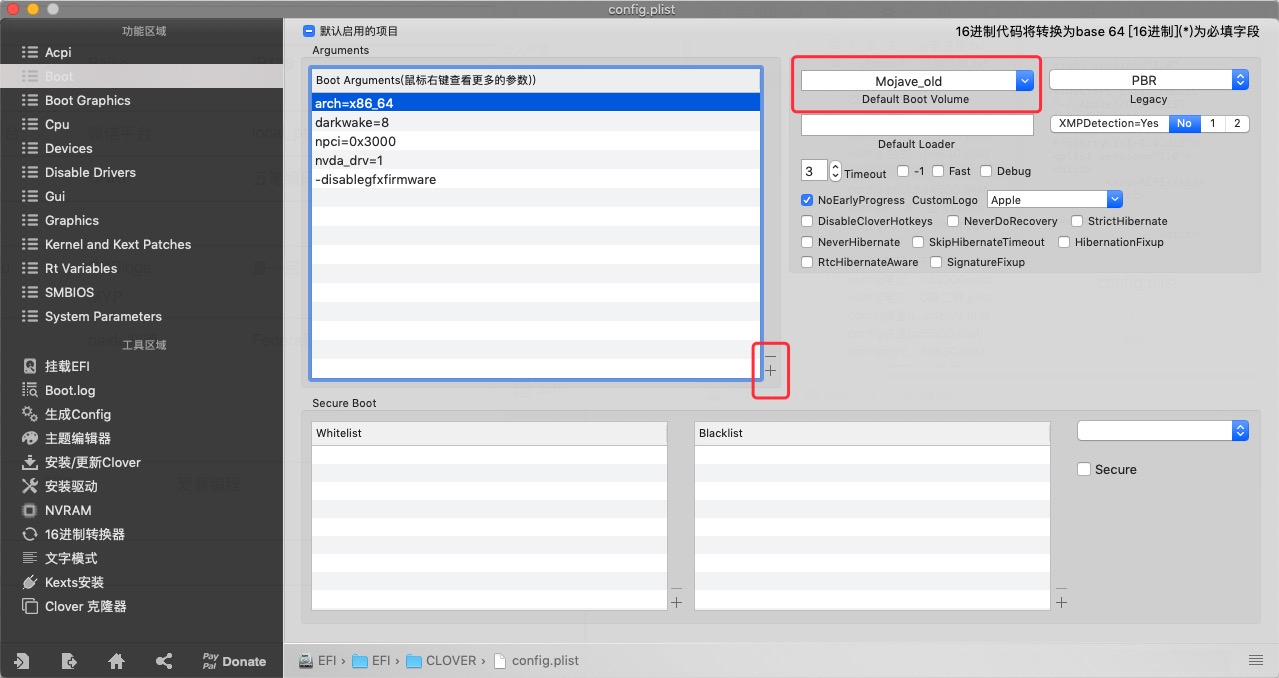

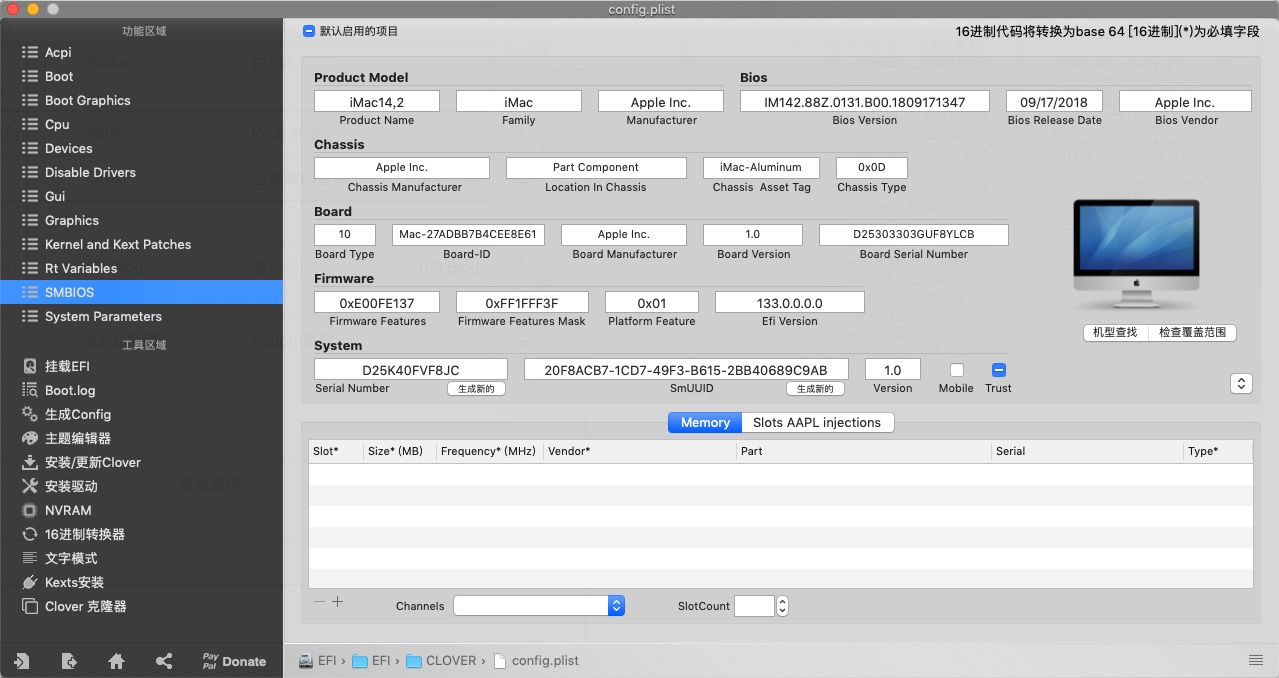

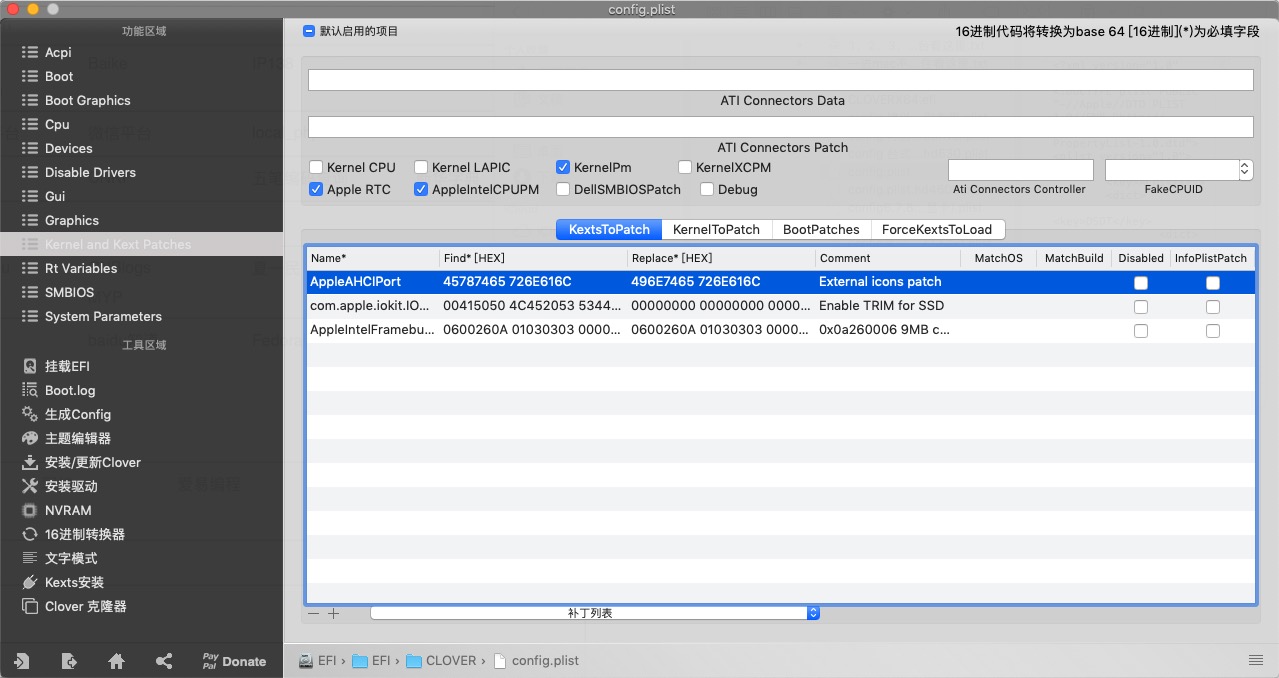

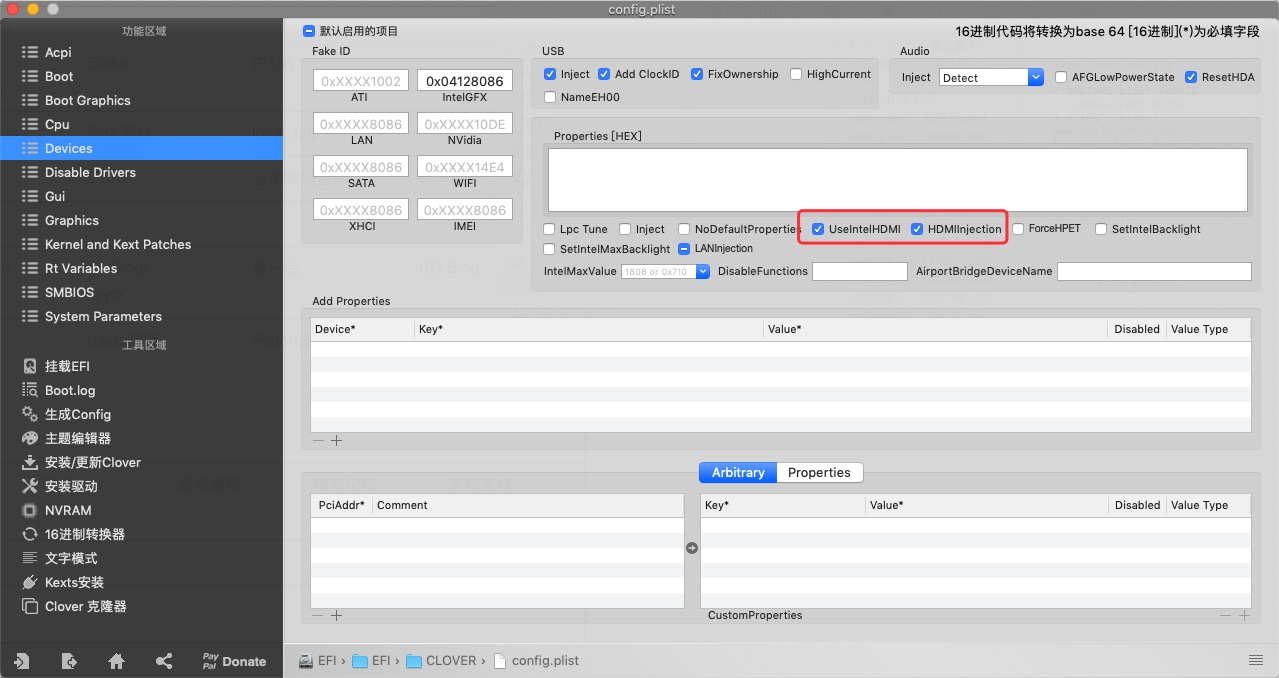

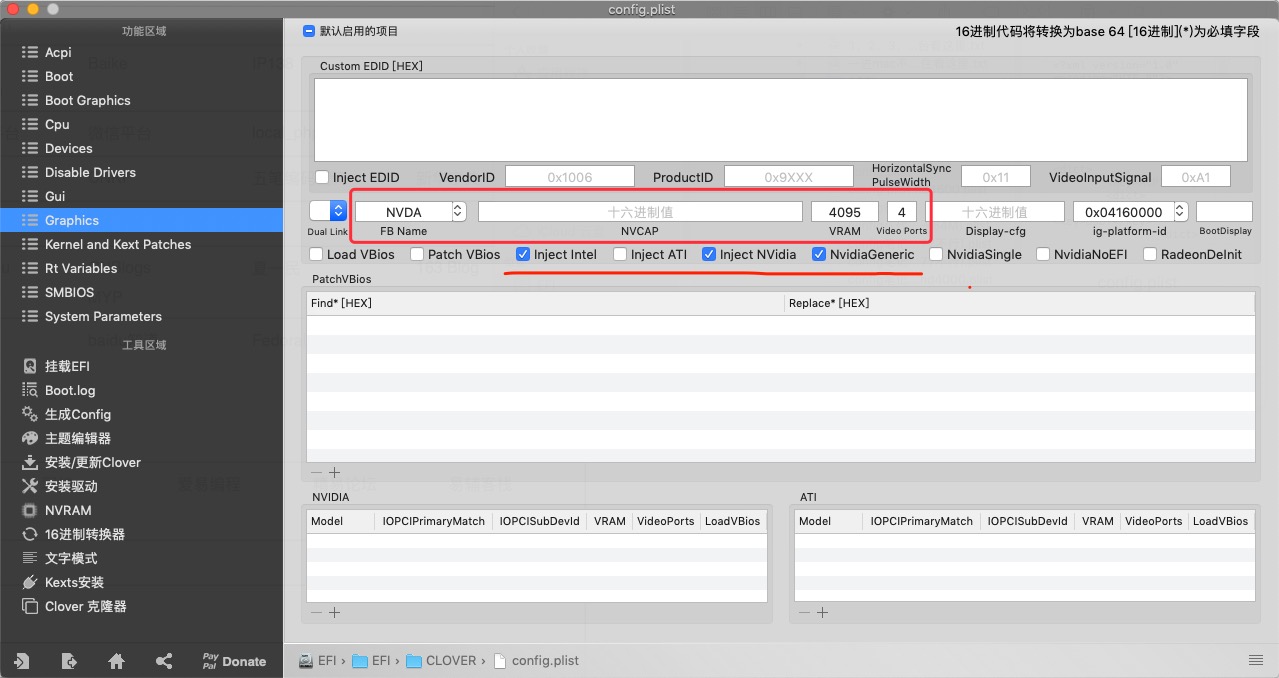

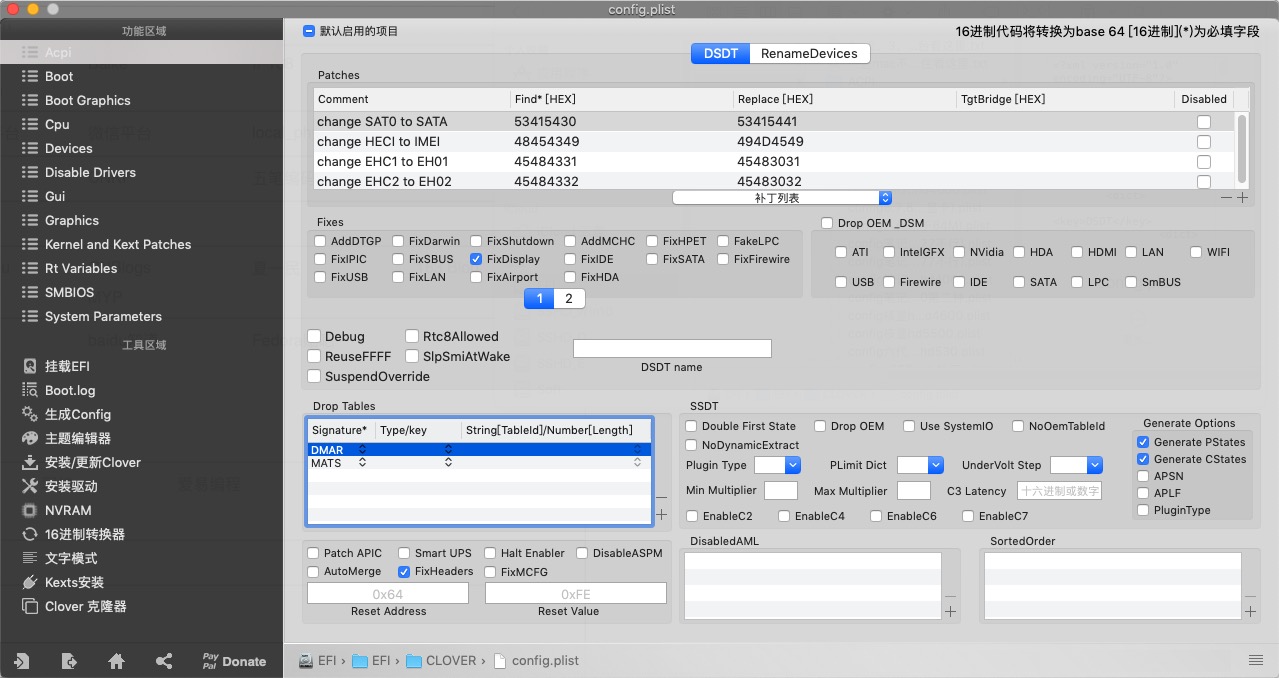

主要的配置就见图:

以上是clover configurator中的截图, 接下来放完整的config.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict><key>ACPI</key><dict><key>DSDT</key><dict><key>Debug</key><false/><key>DropOEM_DSM</key><false/><key>Fixes</key><dict><key>AddDTGP</key><false/><key>FixDisplay</key><true/><key>FixHPET</key><false/><key>FixRTC</key><false/><key>FixShutdown</key><false/></dict><key>Patches</key><array><dict><key>Comment</key><string>change SAT0 to SATA</string><key>Disabled</key><false/><key>Find</key><data>U0FUMA==</data><key>Replace</key><data>U0FUQQ==</data></dict><dict><key>Comment</key><string>change HECI to IMEI</string><key>Disabled</key><false/><key>Find</key><data>SEVDSQ==</data><key>Replace</key><data>SU1FSQ==</data></dict><dict><key>Comment</key><string>change EHC1 to EH01</string><key>Disabled</key><false/><key>Find</key><data>RUhDMQ==</data><key>Replace</key><data>RUgwMQ==</data></dict><dict><key>Comment</key><string>change EHC2 to EH02</string><key>Disabled</key><false/><key>Find</key><data>RUhDMg==</data><key>Replace</key><data>RUgwMg==</data></dict></array><key>ReuseFFFF</key><false/></dict><key>DropTables</key><array><dict><key>Signature</key><string>DMAR</string></dict><dict><key>Signature</key><string>MATS</string></dict></array><key>FixHeaders</key><true/><key>SSDT</key><dict><key>DropOem</key><false/><key>Generate</key><dict><key>CStates</key><true/><key>PStates</key><true/></dict></dict></dict><key>Boot</key><dict><key>Arguments</key><string>arch=x86_64 darkwake=8 npci=0x3000 nvda_drv=1 -disablegfxfirmware</string><key>CustomLogo</key><string>Apple</string><key>Debug</key><false/><key>DefaultVolume</key><string>Mojave_old</string><key>Legacy</key><string>PBR</string><key>NoEarlyProgress</key><true/><key>Secure</key><false/><key>Timeout</key><integer>3</integer><key>XMPDetection</key><false/></dict><key>Devices</key><dict><key>Audio</key><dict><key>Inject</key><string>Detect</string><key>ResetHDA</key><true/></dict><key>FakeID</key><dict><key>IntelGFX</key><string>0x04128086</string></dict><key>HDMIInjection</key><true/><key>USB</key><dict><key>AddClockID</key><true/><key>FixOwnership</key><true/><key>Inject</key><true/></dict><key>UseIntelHDMI</key><true/></dict><key>DisableDrivers</key><array><string>Nothing</string></array><key>GUI</key><dict><key>Hide</key><array><string>BOOTX64.EFI</string><string>Windows</string><string>Recovery</string><string>Preboot</string></array><key>Language</key><string>zh_CN:0</string><key>Mouse</key><dict><key>DoubleClick</key><integer>500</integer><key>Enabled</key><true/><key>Mirror</key><false/><key>Speed</key><integer>8</integer></dict><key>Scan</key><dict><key>Entries</key><true/><key>Legacy</key><false/><key>Linux</key><false/><key>Tool</key><true/></dict><key>ScreenResolution</key><string>1600x900</string><key>Theme</key><string>black_green</string></dict><key>Graphics</key><dict><key>FBName</key><string>NVDA</string><key>Inject</key><dict><key>ATI</key><false/><key>Intel</key><true/><key>NVidia</key><true/></dict><key>NvidiaGeneric</key><true/><key>PatchVBios</key><false/><key>VRAM</key><integer>4095</integer><key>VideoPorts</key><integer>4</integer><key>ig-platform-id</key><string>0x04160000</string></dict><key>KernelAndKextPatches</key><dict><key>AppleIntelCPUPM</key><true/><key>AppleRTC</key><true/><key>KernelPm</key><true/><key>KextsToPatch</key><array><dict><key>Comment</key><string>External icons patch</string><key>Disabled</key><false/><key>Find</key><data>RXh0ZXJuYWw=</data><key>InfoPlistPatch</key><false/><key>Name</key><string>AppleAHCIPort</string><key>Replace</key><data>SW50ZXJuYWw=</data></dict><dict><key>Comment</key><string>Enable TRIM for SSD</string><key>Disabled</key><false/><key>Find</key><data>AEFQUExFIFNTRAA=</data><key>InfoPlistPatch</key><false/><key>Name</key><string>com.apple.iokit.IOAHCIBlockStorage</string><key>Replace</key><data>AAAAAAAAAAAAAAA=</data></dict><dict><key>Comment</key><string>0x0a260006 9MB cursor bytes patch</string><key>Disabled</key><false/><key>Find</key><data>BgAmCgEDAwMAAAACAAAwAQAAYAAAAABg</data><key>InfoPlistPatch</key><false/><key>Name</key><string>AppleIntelFramebufferAzul</string><key>Replace</key><data>BgAmCgEDAwMAAAACAAAwAQAAkAAAAACA</data></dict></array></dict><key>RtVariables</key><dict><key>BooterConfig</key><string>0x28</string><key>CsrActiveConfig</key><string>0x67</string></dict><key>SMBIOS</key><dict><key>BiosReleaseDate</key><string>09/17/2018</string><key>BiosVendor</key><string>Apple Inc.</string><key>BiosVersion</key><string>IM142.88Z.0131.B00.1809171347</string><key>Board-ID</key><string>Mac-27ADBB7B4CEE8E61</string><key>BoardManufacturer</key><string>Apple Inc.</string><key>BoardSerialNumber</key><string>D25303303GUF8YLCB</string><key>BoardType</key><integer>10</integer><key>BoardVersion</key><string>1.0</string><key>ChassisAssetTag</key><string>iMac-Aluminum</string><key>ChassisManufacturer</key><string>Apple Inc.</string><key>ChassisType</key><string>0x0D</string><key>EfiVersion</key><string>133.0.0.0.0</string><key>Family</key><string>iMac</string><key>FirmwareFeatures</key><string>0xE00FE137</string><key>FirmwareFeaturesMask</key><string>0xFF1FFF3F</string><key>LocationInChassis</key><string>Part Component</string><key>Manufacturer</key><string>Apple Inc.</string><key>Mobile</key><false/><key>PlatformFeature</key><string>0x01</string><key>ProductName</key><string>iMac14,2</string><key>SerialNumber</key><string>D25K40FVF8JC</string><key>SmUUID</key><string>20F8ACB7-1CD7-49F3-B615-2BB40689C9AB</string><key>Version</key><string>1.0</string></dict><key>SystemParameters</key><dict><key>InjectKexts</key><string>Yes</string><key>InjectSystemID</key><true/><key>NvidiaWeb</key><true/></dict>
</dict>
</plist>

目前,我的电脑还存在一个问题,就是我接的是双显示器, 一个DVI接口, 完全可用, 另一个HDMI可用, 再一个DP输出没有信号, 以前用核显时是DVI和DP可用, HDMI不可用!

以上就是我的全部, 现在虽然是驱动了, 但我还是没完全搞明白, 到底怎样才能轻松驱动我的硬件, 真的是折腾折腾再折腾, 无意中搞定了, 希望对大家有所帮助!
