Activiti 简易教程

一搭建环境

1.1   JDK 6+

activiti 运行在版本 6以上的 JDK上。转到 Oracle Java SE下载页面,点击按钮“下载 JDK”。网页中也有安装说明。要核实安装是否成功,在命令行上运行 javaversion。将打印出安装的 JDK的版本。

1.2   Ant 1.8.1+

 Ant[http://ant.apache.org/bindownload.cgi]下载页面下载最新稳定版的 Ant。解压文件,确保其 bin文件夹在操作系统的 path 下。在命令行上运行 antversion 来检查 Ant是否安装成功。成功将打印安装的 Ant 版本。

1.3   Eclipse 3.7+

 Eclipse的下载页面下载 Eclipse Classic(Eclipse JEE)版的 eclipse。解压下载的文件,然后就可以运行 eclipse路径下的eclipse 文件了。

下载地址:http://www.eclipse.org/downloads/packages/release/indigo/sr2

1.4   Activiti -eclipse designer插件安装

         在安装Activiti -eclipse designer插件前先安装maven插件,m2e(eclipse)插件在Install New SoftWare安装时会出现些问题,按以下步骤安装即可。

1.4.1 先安装GEF插件

maven插件安装的时候会依赖这个插件,在Eclipse -> help -> Install New SoftWare中安装,update site:http://download.eclipse.org/tools/gef/updates/interim/

1.4.2 安装SVN插件

Eclipse -> help -> Install New SoftWare中安装,update site:http://subclipse.tigris.org/update_1.6.x

1.4.3安装Maven插件

方式一:在线安装

         Eclipse -> help -> Install New SoftWare中安装,update site:http://nexus.tesla.io:8081/nexus/content/sites/m2e.extras/m2e/1.5.0/N/LATEST/

顺便eclipse m2e支持sitehttp://www.eclipse.org/m2e/download/

         如在线安装不成功,报[the selected did not contain any resources that can run on server maven project]错误,建议采用方式二安装。

方式二:本地安装

         下载maven eclipse-maven3-plugin插件(eclipse-maven3-plugin为本人CSDN上传)

Maven site: http://ant.apache.org/bindownload.cgi

eclipse-maven3-plugin site: http://download.csdn.net/detail/yangyi22/5663245

         eclipse目录下建立myplugins目录,将eclipse-maven3-plugin解压后文件复制进去,建立links目录,新建maven.link文件(名字随意取)添加文本:

path=…/eclipse/myplugins/maven,即让eclipse启动时去寻找myplugins中的插件,如本人安装的路径:path=D:/Java~coding~site /eclipse[indigo-jee]/eclipse/myplugins/maven

1.4.4 最后安装Activiti -eclipse designer

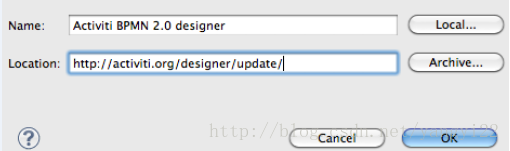

打开 HelpàInstall New Software。在如下面板中,点击Add按钮,然后填入下列字段:lNameActiviti BPMN 2.0 designer

Locationhttp://activiti.org/designer/update/



安装成功后,新建activiti项目,视图如下:



安装m2eclipse插件后,重启Eclipse,如提示

Eclipse is running in a JRE, but a JDK is required

  Some Maven plugins may not work when importing projects or updating source folders.

需要修改eclipse.ini文件,新增一项配置

-vm配置项必须在–vmargs配置项前,是因为执行到-vmargs配置项已经选择了一个默认的JVM了。

所以在–vmargs前面加上这一句:

-vm

C:/Program Files/Java/jdk1.6.0_20/bin/javaw.exe

二开始activiti 5.10的第一个demo

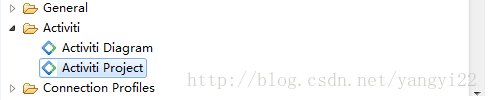

2.1   建立activiti-demo工程,选择Activiti Project

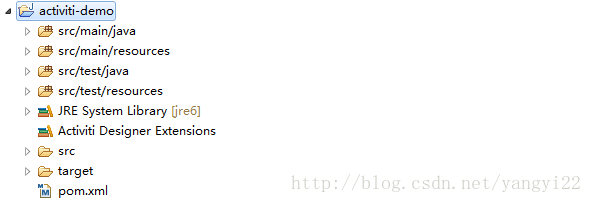

创建成功后的项目:



activiti-demo项目添加activiti依赖包,项目右键Build Path->Configure Build Path->libraries -> Add External Jars选中…\activiti-5.10\setup\files\dependencies\libs下所有包添加即可。

2.2 activiti-demo工程的数据库整合为MySQL

         …\activiti-5.10\setup\build\activiti-cfg目录下的activiti.cfg.xml配置文件复制到项目src\main\resources目录下,修改数据库配置如下:

<!-- Database configurations -->

    <propertyname="jdbcUrl"

value="jdbc:mysql://localhost:3306/test?autoReconnect=true"/>

    <propertyname="jdbcDriver"

       value="com.mysql.jdbc.Driver"/>

    <propertyname="jdbcUsername"value="root"/>

    <propertyname="jdbcPassword"value="root"/>

    <!-- Database configurations -->

    <propertyname="databaseSchemaUpdate"value="true"/>

    <!-- job executor configurations -->

    <propertyname="jobExecutorActivate"value="false"/>

2.3 设计activiti-demo工程的流程

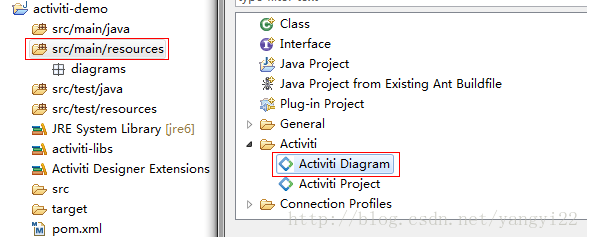

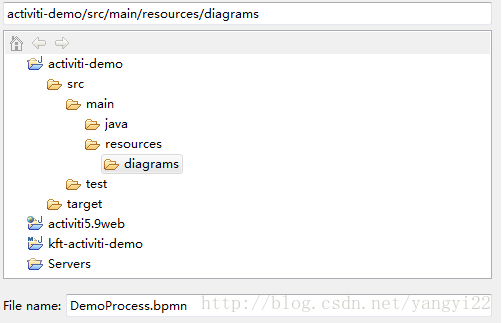

在该项目的src/main/resource/diagrams下右键创建Activiti diagram,文件名为:DemoProcess.bpmn

 -->

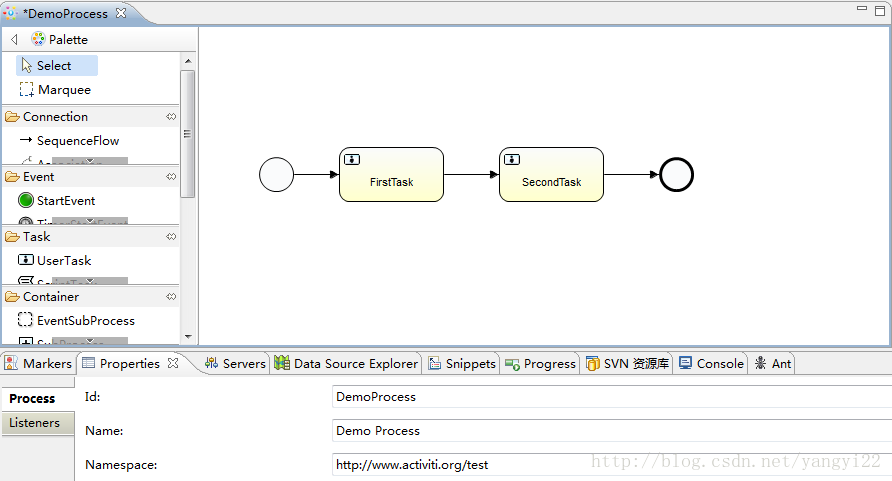

此时进入Activiti Diagram Editor,在空白处点一下,下边属性栏中设置idnameid就是这个流程的key,后边启动流程的时候使用到。



注意:Activiti 5.8升级到5.9以后,xxx.bpmn20.xmlxxx.png已不默认生成,仅仅是生成xxx.bpmn文件,xxx.bpmn中的定义内容就如xxx.bpmn20.xml一样。

        另外,快捷菜单:“Create deployment artifacts”和“Import BPMN20 file”,在5.9以后去掉了。

如需设计完成流程后自动生成一个png图片按如下处理

l  保存无法生存png图片按以下处理

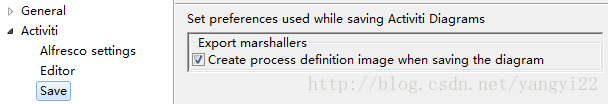

Window –> Preferences -> Activiti ->Save勾选即可

或者手动操作Activiti Designer打开xxx.bpmn文件,然后右键选择Export Diagram...,在弹出的对话框中设置图片的参数即可,一般使用默认就可以了。

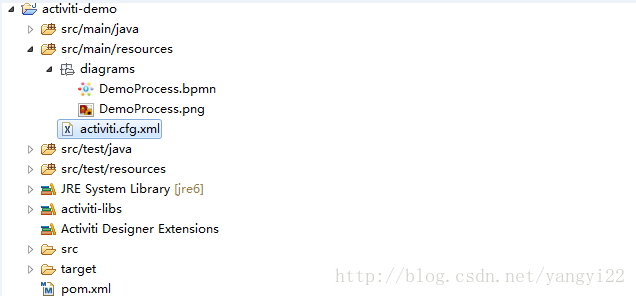

在设计编辑器中保存DemoProcess.bpmn后的项目视图如下:



测试类代码  DemoProcessTest.java

[java] view plaincopy
  1. package main.java;
  2.
  3. import java.io.FileInputStream;
  4. import java.util.List;
  5. import org.activiti.engine.HistoryService;
  6. import org.activiti.engine.ProcessEngine;
  7. import org.activiti.engine.ProcessEngineConfiguration;
  8. import org.activiti.engine.RepositoryService;
  9. import org.activiti.engine.RuntimeService;
  10. import org.activiti.engine.TaskService;
  11. import org.activiti.engine.history.HistoricProcessInstance;
  12. import org.activiti.engine.runtime.ProcessInstance;
  13. import org.activiti.engine.task.Task;
  14.
  15. /**
  16.  * Activiti 5.10 demo
  17.  * @author BruceQin
  18.  *
  19.  */
  20. public class DemoProcessTest {
  21.     // diagrams实际路径
  22.     private static String realPath =
  23.             "D:\\Java~coding~site\\J2EE-IDE\\Workspace\\workspace[indigo-jee]" +
  24.             "\\activiti-demo\\src\\main\\resources\\diagrams";
  25.     public static void main(String[] args) throws Exception {
  26.         // 创建 Activiti流程引擎
  27.         ProcessEngine processEngine = ProcessEngineConfiguration
  28.                 .createProcessEngineConfigurationFromResource("activiti.cfg.xml")
  29.                 .buildProcessEngine();
  30.
  31.         // 取得 Activiti 服务
  32.         RepositoryService repositoryService = processEngine.getRepositoryService();
  33.         RuntimeService runtimeService = processEngine.getRuntimeService();
  34.
  35.         // 部署流程定义
  36.         repositoryService
  37.                 .createDeployment()
  38.                 .addInputStream("DemoProcess.bpmn",new FileInputStream(realPath + "\\DemoProcess.bpmn"))
  39.                 .addInputStream("DemoProcess.png"new FileInputStream(realPath + <a href="file://\\DemoProcess.png">\\DemoProcess.png</a>))
  40.                 .deploy();
  41.
  42.         // 启动流程实例
  43.         ProcessInstance instance = processEngine
  44.                  .getRuntimeService().startProcessInstanceByKey("DemoProcess");
  45.         String procId = instance.getId();
  46.         System.out.println("procId:"+ procId);
  47.
  48.         // 获得第一个任务
  49.         TaskService taskService = processEngine.getTaskService();
  50.         List<Task> tasks = taskService.createTaskQuery().taskDefinitionKey("firstTask").list();
  51.         for (Task task : tasks) {
  52.             System.out.println("Following task is: taskID -" +task.getId()+" taskName -"+ task.getName());
  53.             // 认领任务
  54.             taskService.claim(task.getId(), "testUser");
  55.         }
  56.
  57.         // 查看testUser 现在是否能够获取到该任务
  58.         tasks = taskService.createTaskQuery().taskAssignee("testUser").list();
  59.         for (Task task : tasks) {
  60.             System.out.println("Task for testUser: " + task.getName());
  61.             // 完成任务
  62.             taskService.complete(task.getId());
  63.         }
  64.         System.out.println("Number of tasks for testUser: "
  65.                 + taskService.createTaskQuery().taskAssignee("testUser").count());
  66.
  67.
  68.         // 获取并认领第二个任务
  69.         tasks = taskService.createTaskQuery().taskDefinitionKey("secondTask").list();
  70.         for (Task task : tasks) {
  71.             System.out.println("Following task is : taskID -" +task.getId()+" taskName -"+ task.getName());
  72.             taskService.claim(task.getId(), "testUser");
  73.         }
  74.
  75.         //完成第二个任务结束结束流程
  76.         for (Task task : tasks) {
  77.             taskService.complete(task.getId());
  78.         }
  79.
  80.         // 核实流程是否结束
  81.         HistoryService historyService = processEngine.getHistoryService();
  82.         HistoricProcessInstance historicProcessInstance = historyService.createHistoricProcessInstanceQuery().processInstanceId(procId).singleResult();
  83.         System.out.println("Process instance end time: " + historicProcessInstance.getEndTime());
  84.     }
  85. }


教程一完毕。
