在本系列的前两个博客( 第1部分和第2部分)中 ,我演示了如何创建一段死锁的不良代码,然后使用该代码展示了进行线程转储的三种方式。 在这个博客中,我将分析线程转储以找出错误的原因。
下面的讨论同时涉及本系列第1部分中的Account
和DeadlockDemo
类,其中包含完整的代码清单。
我需要做的第一件事是从DeadlockDemo
应用程序中进行线程转储,就像他们过去在Blue Peter上所说的那样:“这是我之前准备的”。
2012-10-16 13:37:03
Full thread dump Java HotSpot(TM) 64-Bit Server VM (20.10-b01-428 mixed mode):"DestroyJavaVM" prio=5 tid=7f9712001000 nid=0x110247000 waiting on condition [00000000]
java.lang.Thread.State: RUNNABLE"Thread-21" prio=5 tid=7f9712944000 nid=0x118d76000 waiting for monitor entry [118d75000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366ee0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-20" prio=5 tid=7f971216c000 nid=0x118c73000 waiting for monitor entry [118c72000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e98> (a threads.deadlock.Account)
- locked <7f3366f58> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-19" prio=5 tid=7f9712943800 nid=0x118b70000 waiting for monitor entry [118b6f000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366f40> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-18" prio=5 tid=7f9712942800 nid=0x118a6d000 waiting for monitor entry [118a6c000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366f40> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-17" prio=5 tid=7f9712942000 nid=0x11896a000 waiting for monitor entry [118969000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366ec8> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-16" prio=5 tid=7f9712941000 nid=0x118867000 waiting for monitor entry [118866000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366ec8> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-15" prio=5 tid=7f9712940800 nid=0x118764000 waiting for monitor entry [118763000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366ef8> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-14" prio=5 tid=7f971293f800 nid=0x118661000 waiting for monitor entry [118660000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366f28> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-13" prio=5 tid=7f97129ae000 nid=0x11855e000 waiting for monitor entry [11855d000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-12" prio=5 tid=7f97129ad000 nid=0x11845b000 waiting for monitor entry [11845a000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366f40> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-11" prio=5 tid=7f97129ac800 nid=0x118358000 waiting for monitor entry [118357000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366eb0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-10" prio=5 tid=7f97129ab800 nid=0x118255000 waiting for monitor entry [118254000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-9" prio=5 tid=7f97129ab000 nid=0x118152000 waiting for monitor entry [118151000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e98> (a threads.deadlock.Account)
- locked <7f3366ec8> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-8" prio=5 tid=7f97129aa000 nid=0x11804f000 waiting for monitor entry [11804e000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
- locked <7f3366f28> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-7" prio=5 tid=7f97129a9800 nid=0x117f4c000 waiting for monitor entry [117f4b000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
- locked <7f3366e80> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-6" prio=5 tid=7f97129a8800 nid=0x117e49000 waiting for monitor entry [117e48000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366e80> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-5" prio=5 tid=7f97128a1800 nid=0x117d46000 waiting for monitor entry [117d45000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:81)
- waiting to lock <7f3366f28> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-4" prio=5 tid=7f97121af800 nid=0x117c43000 waiting for monitor entry [117c42000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e80> (a threads.deadlock.Account)
- locked <7f3366e98> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-3" prio=5 tid=7f97121ae800 nid=0x117b40000 waiting for monitor entry [117b3f000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e80> (a threads.deadlock.Account)
- locked <7f3366ef8> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"Thread-2" prio=5 tid=7f971224a000 nid=0x117a3d000 waiting for monitor entry [117a3c000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
- locked <7f3366f40> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)"RMI TCP Accept-0" daemon prio=5 tid=7f97128fd800 nid=0x117837000 runnable [117836000]
java.lang.Thread.State: RUNNABLE
at java.net.PlainSocketImpl.socketAccept(Native Method)
at java.net.PlainSocketImpl.accept(PlainSocketImpl.java:408)
- locked <7f32ee740> (a java.net.SocksSocketImpl)
at java.net.ServerSocket.implAccept(ServerSocket.java:462)
at java.net.ServerSocket.accept(ServerSocket.java:430)
at sun.management.jmxremote.LocalRMIServerSocketFactory$1.accept(LocalRMIServerSocketFactory.java:34)
at sun.rmi.transport.tcp.TCPTransport$AcceptLoop.executeAcceptLoop(TCPTransport.java:369)
at sun.rmi.transport.tcp.TCPTransport$AcceptLoop.run(TCPTransport.java:341)
at java.lang.Thread.run(Thread.java:680)"Poller SunPKCS11-Darwin" daemon prio=1 tid=7f97128fd000 nid=0x117734000 waiting on condition [117733000]
java.lang.Thread.State: TIMED_WAITING (sleeping)
at java.lang.Thread.sleep(Native Method)
at sun.security.pkcs11.SunPKCS11$TokenPoller.run(SunPKCS11.java:692)
at java.lang.Thread.run(Thread.java:680)"Low Memory Detector" daemon prio=5 tid=7f971209e000 nid=0x1173ec000 runnable [00000000]
java.lang.Thread.State: RUNNABLE"C2 CompilerThread1" daemon prio=9 tid=7f971209d000 nid=0x1172e9000 waiting on condition [00000000]
java.lang.Thread.State: RUNNABLE"C2 CompilerThread0" daemon prio=9 tid=7f971209c800 nid=0x1171e6000 waiting on condition [00000000]
java.lang.Thread.State: RUNNABLE"Signal Dispatcher" daemon prio=9 tid=7f971209b800 nid=0x1170e3000 waiting on condition [00000000]
java.lang.Thread.State: RUNNABLE"Surrogate Locker Thread (Concurrent GC)" daemon prio=5 tid=7f971209a800 nid=0x116fe0000 waiting on condition [00000000]
java.lang.Thread.State: RUNNABLE"Finalizer" daemon prio=8 tid=7f971209a000 nid=0x116d1c000 in Object.wait() [116d1b000]
java.lang.Thread.State: WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <7f3001300> (a java.lang.ref.ReferenceQueue$Lock)
at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:118)
- locked <7f3001300> (a java.lang.ref.ReferenceQueue$Lock)
at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:134)
at java.lang.ref.Finalizer$FinalizerThread.run(Finalizer.java:159)"Reference Handler" daemon prio=10 tid=7f9712099000 nid=0x116c19000 in Object.wait() [116c18000]
java.lang.Thread.State: WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <7f30011d8> (a java.lang.ref.Reference$Lock)
at java.lang.Object.wait(Object.java:485)
at java.lang.ref.Reference$ReferenceHandler.run(Reference.java:116)
- locked <7f30011d8> (a java.lang.ref.Reference$Lock)"VM Thread" prio=9 tid=7f9712096800 nid=0x116b16000 runnable"Gang worker#0 (Parallel GC Threads)" prio=9 tid=7f9712002800 nid=0x1135c7000 runnable"Gang worker#1 (Parallel GC Threads)" prio=9 tid=7f9712003000 nid=0x1136ca000 runnable"Concurrent Mark-Sweep GC Thread" prio=9 tid=7f971204d800 nid=0x116790000 runnable
"VM Periodic Task Thread" prio=10 tid=7f97122d4000 nid=0x11793a000 waiting on condition"Exception Catcher Thread" prio=10 tid=7f9712001800 nid=0x1103ef000 runnable

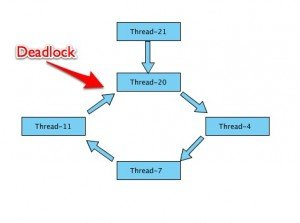

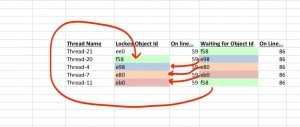

JNI global references: 1037Found one Java-level deadlock:
=============================
"Thread-21":
waiting to lock monitor 7f97118bd560 (object 7f3366f58, a threads.deadlock.Account),
which is held by "Thread-20"
"Thread-20":
waiting to lock monitor 7f97118bc108 (object 7f3366e98, a threads.deadlock.Account),
which is held by "Thread-4"
"Thread-4":
waiting to lock monitor 7f9711834360 (object 7f3366e80, a threads.deadlock.Account),
which is held by "Thread-7"
"Thread-7":
waiting to lock monitor 7f97118b9708 (object 7f3366eb0, a threads.deadlock.Account),
which is held by "Thread-11"
"Thread-11":
waiting to lock monitor 7f97118bd560 (object 7f3366f58, a threads.deadlock.Account),
which is held by "Thread-20"Java stack information for the threads listed above:
===================================================
"Thread-21":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366ee0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-20":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e98> (a threads.deadlock.Account)
- locked <7f3366f58> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-4":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e80> (a threads.deadlock.Account)
- locked <7f3366e98> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-7":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
- locked <7f3366e80> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-11":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366eb0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)Found 1 deadlock.Heap
par new generation total 19136K, used 11590K [7f3000000, 7f44c0000, 7f44c0000)
eden space 17024K, 68% used [7f3000000, 7f3b51ac0, 7f40a0000)
from space 2112K, 0% used [7f40a0000, 7f40a0000, 7f42b0000)
to space 2112K, 0% used [7f42b0000, 7f42b0000, 7f44c0000)
concurrent mark-sweep generation total 63872K, used 0K [7f44c0000, 7f8320000, 7fae00000)
concurrent-mark-sweep perm gen total 21248K, used 8268K [7fae00000, 7fc2c0000, 800000000)
快速浏览,您可以看到此线程转储分为四个部分。 这些是:
- 所有应用程序线程的完整列表
- 死锁线程列表
- 一小堆死锁线程
- 应用程序的堆摘要
线程列表
上面第一点中的线程列表是所有应用程序线程及其当前状态的列表。 从中您可以看到应用程序由一堆线程组成,您可以将它们大致分为两部分。 首先,有后台线程。 这些是每个应用程序所拥有的,而这些作为我们作为应用程序程序员通常不需要担心的肮脏工作。 它们具有诸如“ DestroyJavaVM
”, Low Memory Detector, Finalizer, Exception Catcher Thread and Concurrent Mark-Sweep GC Thread
DestroyJavaVM
Low Memory Detector, Finalizer, Exception Catcher Thread and Concurrent Mark-Sweep GC Thread
。 其次,您或我可能会在我们的代码中创建一些线程。 这些名称通常包含由单词Thread
和数字组成的名称。 例如: Thread-3, Thread-6 and Thread-20.
"Thread-20" prio=5 tid=7f971216c000 nid=0x118c73000 waiting for monitor entry [118c72000]
java.lang.Thread.State: BLOCKED (on object monitor)
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:82)
- waiting to lock <7f3366e98> (a threads.deadlock.Account)
- locked <7f3366f58> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:58)
详细查看Thread-20上提供的信息,您会发现它可以分为几部分。 这些是:
<td>线程20 <td>如上所述的线程名称。<tr> <td> prio = 5 <td>线程的优先级。 从1到10的数字,其中1是最低优先级,10是最高优先级。 <tr> <tr> <td> tid = 7f971216c000 <td>线程ID。 Thread.getId()调用返回的唯一数字。 <tr> <td> nid = 0x118c73000 <td>本机线程ID。 这映射到平台相关的线程ID。 <tr> <td>等待监视器输入[118c72000]
java.lang.Thread.State:阻塞(在对象监视器上)<td>这是线程的状态; 在这种情况下,它已被阻止。 还包括堆栈跟踪概述了线程被阻塞的位置。
请注意,线程也可以标记为守护程序。 例如:
“ RMI TCP Accept-0”守护进程prio = 5 tid = 7f97128fd800 nid = 0x117837000可运行[117836000] java.lang.Thread.State:可运行
守护程序线程是后台任务线程,例如上面列出的RMI TCP Accept-0线程。 守护程序线程是不会阻止JVM退出的线程。 仅保留守护程序线程时,JVM将退出或关闭。
但是,线程列表并不能真正帮助您找到死锁的原因,因此请快速前进...
死锁线程列表
线程转储的此部分包含死锁中涉及的所有线程的列表。
Found one Java-level deadlock:
=============================
"Thread-21":
waiting to lock monitor 7f97118bd560 (object 7f3366f58, a threads.deadlock.Account),
which is held by "Thread-20"
"Thread-20":
waiting to lock monitor 7f97118bc108 (object 7f3366e98, a threads.deadlock.Account),
which is held by "Thread-4"
"Thread-4":
waiting to lock monitor 7f9711834360 (object 7f3366e80, a threads.deadlock.Account),
which is held by "Thread-7"
"Thread-7":
waiting to lock monitor 7f97118b9708 (object 7f3366eb0, a threads.deadlock.Account),
which is held by "Thread-11"
"Thread-11":
waiting to lock monitor 7f97118bd560 (object 7f3366f58, a threads.deadlock.Account),
which is held by "Thread-20"
从上面的片段中,您可以看到有五个线程全部阻塞实例threads.deadlock.Account
类
撇开监视器ID和帐户实例,您可以看到“线程21”正在等待“线程20”,它正在等待“线程4”,而后者又正在等待“线程7”。 “线程7”正在等待“线程11”,这正在等待“线程20”:死锁循环,如下图所示:
死锁堆栈痕迹
难题的最后一部分是死锁线程堆栈跟踪的列表,如下所示:
Java stack information for the threads listed above:
===================================================
"Thread-21":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366ee0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-20":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e98> (a threads.deadlock.Account)
- locked <7f3366f58> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-4":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366e80> (a threads.deadlock.Account)
- locked <7f3366e98> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-7":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366eb0> (a threads.deadlock.Account)
- locked <7f3366e80> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-11":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f3366f58> (a threads.deadlock.Account)
- locked <7f3366eb0> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
从上一节中,我们知道Thread-20
正在通过a回路径等待Thread-11
而Thread-11
正在等待Thread-20
。 这是我们的僵局。
下一步是使用上面的线程堆栈跟踪将此死锁与代码行联系起来,我在下图中对此进行了简化。
在上图中,为清楚起见,我从对象ID中删除了7f3366
前缀; 因此,对象7f3366f58
现在是f58
。 从这个图中,可以看到该对象f58
被锁定Thread-20
上线59,并正在等待锁对象e98
上线86.箭头下来,你可以看到, Thread-7
正在等待锁eb0
上线86,而这又是通过锁定Thread-11
在线路59 Thread-11
正在等待锁f58
上线86,其,循环备份,对线58通过锁定Thread-20
。

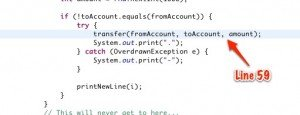

那么,这些代码行在哪里? 下面显示了第59行:
…这是第86行:
有时每个人都会感到惊讶,上面的堆栈轨迹使我感到惊讶。 我期望锁位于85和86行。 但是,它们分别在59和86上。由于第59行不包含synced关键字,因此我猜测编译器已经对transfer(…)方法的第一个synced关键字进行了一些优化。
由此可以得出的结论是,从列表中随机选择两个Account
对象的代码将它们以错误的顺序锁定在第59行和第86行。那么,解决方法是什么? 下次更多。 但是,还有最后一点需要注意,即每次在程序上生成线程转储时,死锁的组成可能都不相同。 再次运行DeadlockDemo
程序并使用kill -3
PID来获取另一个线程转储后,我获得了以下结果:
Found one Java-level deadlock:
=============================
"Thread-20":
waiting to lock monitor 7fdc7c802508 (object 7f311a530, a threads.deadlock.Account),
which is held by "Thread-3"
"Thread-3":
waiting to lock monitor 7fdc7a83d008 (object 7f311a518, a threads.deadlock.Account),
which is held by "Thread-11"
"Thread-11":
waiting to lock monitor 7fdc7c802508 (object 7f311a530, a threads.deadlock.Account),
which is held by "Thread-3"Java stack information for the threads listed above:
===================================================
"Thread-20":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:86)
- waiting to lock <7f311a530> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-3":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:87)
- waiting to lock <7f311a518> (a threads.deadlock.Account)
- locked <7f311a530> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)
"Thread-11":
at threads.deadlock.DeadlockDemo$BadTransferOperation.transfer(DeadlockDemo.java:87)
- waiting to lock <7f311a530> (a threads.deadlock.Account)
- locked <7f311a518> (a threads.deadlock.Account)
at threads.deadlock.DeadlockDemo$BadTransferOperation.run(DeadlockDemo.java:59)Found 1 deadlock.
在此线程转储中,死锁中涉及的线程数量较少,但是如果您对其进行分析,则可以得出与我的第一个示例相同的结论。
下次:修改代码…
有关更多信息,请参阅本系列中的其他博客。
该系列以及其他博客的所有源代码都可以在Github上找到,网址为git://github.com/roghughe/captaindebug.git
参考: 调查死锁-第3部分: Captain Debug博客博客中来自JCG合作伙伴 Roger Hughes 的线程转储分析 。
翻译自: https://www.javacodegeeks.com/2012/11/investigating-deadlocks-part-3.html
