我最近加入了一个新任务，在该任务中，我们必须基于WSO2工具栈实施ESB解决方案。 尽管我熟悉ESB的大多数概念以及其他一些实现（例如Mule ESB ），但这是我第一次必须使用WSO2 ESB 。 幸运的是，可以找到很多文档 ，并且该工具附带了大量示例，介绍如何使用ESB。 在这篇文章中，我展示了使第一个示例正常工作的步骤。 有关更详尽的说明，请参见此处的信息。

第一步是下载并安装ESB，这确实很容易。 您可以在此处下载zip。 下载后，只需将其解压缩到要安装该工具的位置即可。 我安装在目录中
'用户/pascal/develop/wso2esb-4.5.1？ 解压缩后，您将在解压缩的文件夹中看到文件“ INSTALL.txt”。 在此文件中，所有信息都说明了如何启动和停止ESB。 要使用样本，您必须使用以下命令启动ESB：

./wso2esb-samples.sh -sn ${sample-number}

其中“ $ {sample-number}”是您要运行的样品编号。 因此，要使用示例1运行ESB，只需使用以下命令启动ESB：

'./wso2esb-samples.sh -sn 1'

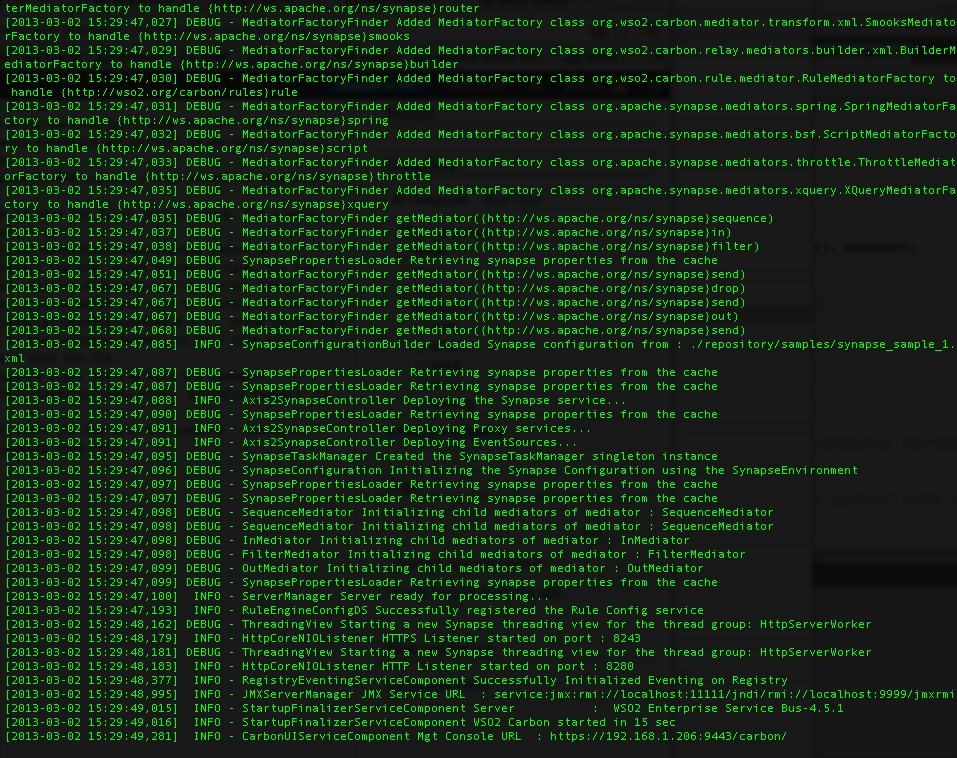

并且您将看到这样的日志记录：

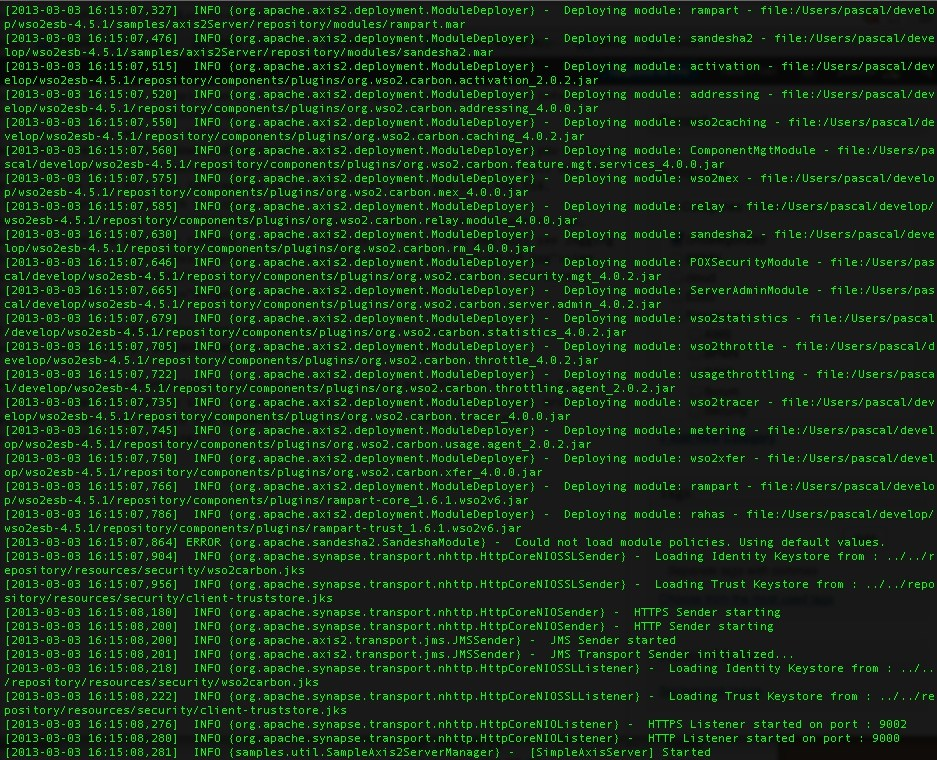

请注意，通过修改目录“ $ CARBON_HOME / repository / conf /”中的“ log4j.properties”，我将“ org.apache.synapse”包的日志级别设置为DEBUG。 第一个示例主要基于代理或重定向到现有服务。 这些服务基于Axis2，并且随WSO2 ESB的安装一起提供。 要启动Axis2服务器，请打开一个新的终端窗口，浏览至目录'$ CARBON_HOME / samples / axis2Server'，然后执行命令'./axis2server.sh'。 如在日志记录的控制台中所示，这将启动SimpleAxisServer：

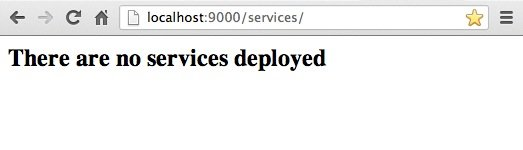

如果打开浏览器并导航到'http://localhost:9000/services' ，将会看到我们当前没有正在运行的服务：

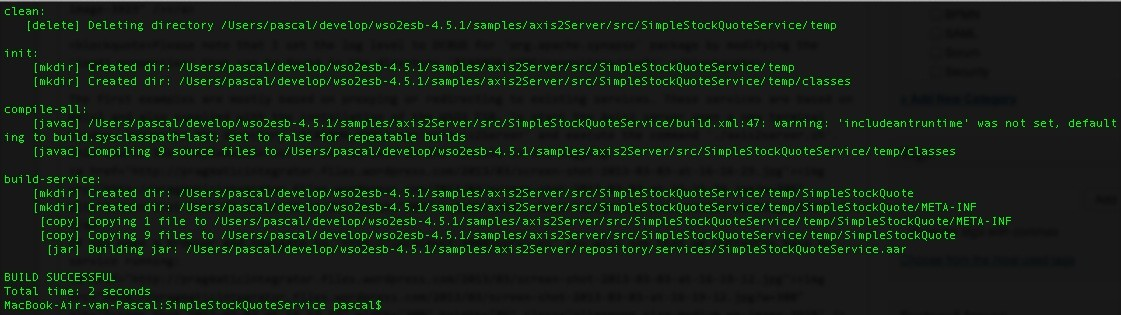

要部署服务，例如SimpleStockQuoteService，请打开一个新终端并导航到以下目录：$ CARBON + HOME / samples / axis2Server / src / SimpleStockQuoteService。 在这里，只需提供“ ant”命令，即可将服务编译，构建并部署到我们之前启动的Axis2Server：

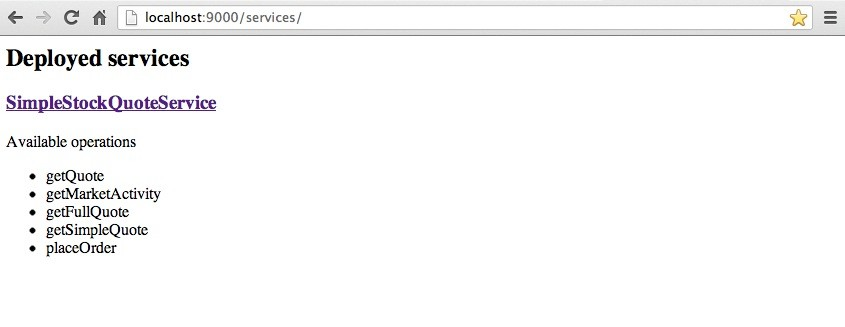

现在，如果我们查看'http://localhost:9000/services'我们将看到SimpleStockService可用于请求：

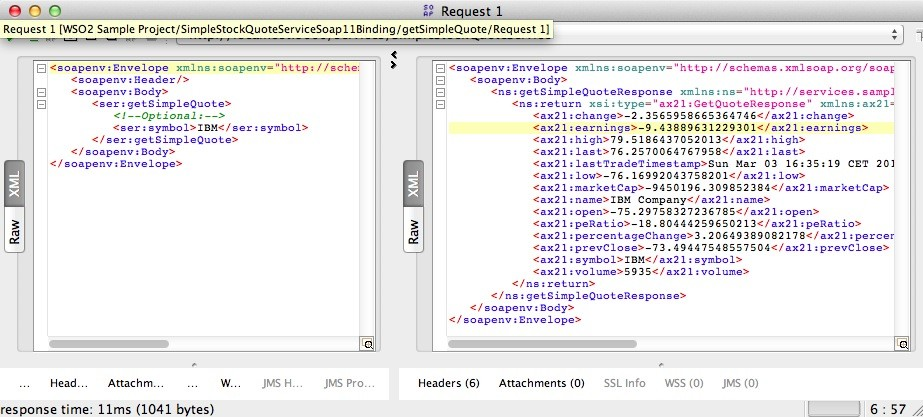

如果需要，可以使用SoapUI测试服务：

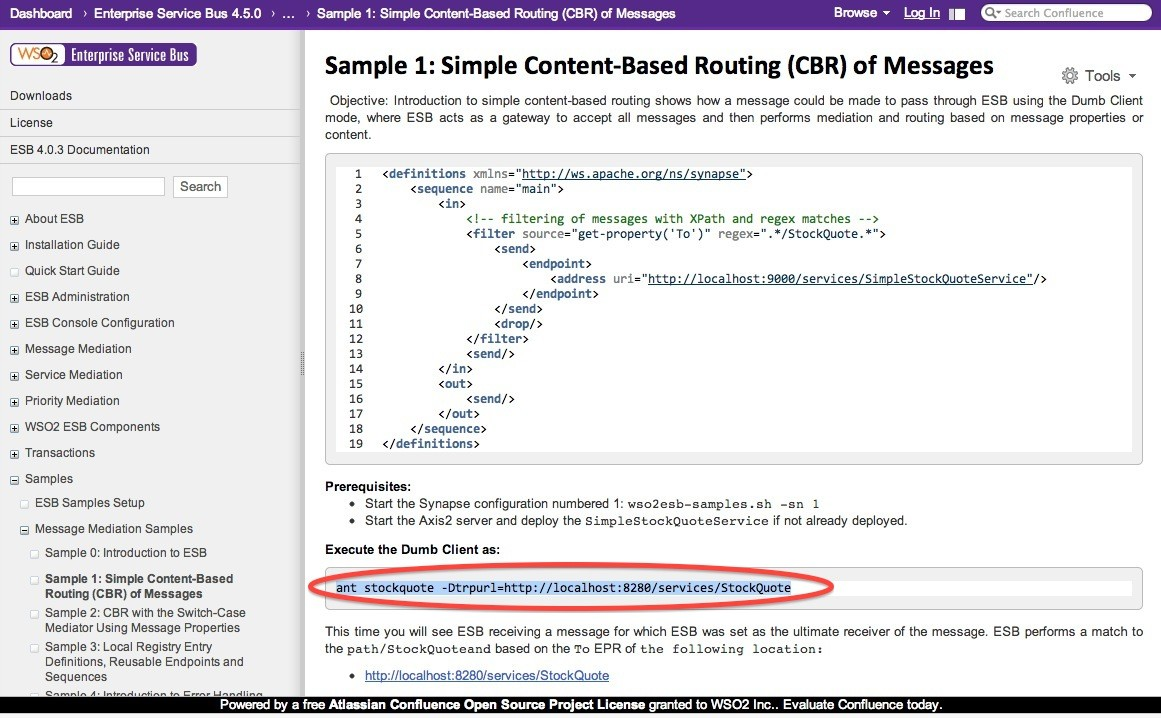

因此，现在我们已经为第一个示例准备好了服务器端。 让我们运行客户端。 每个样本都有说明如何运行Axis2客户端的文档。 对于样本1，文档显示如下：

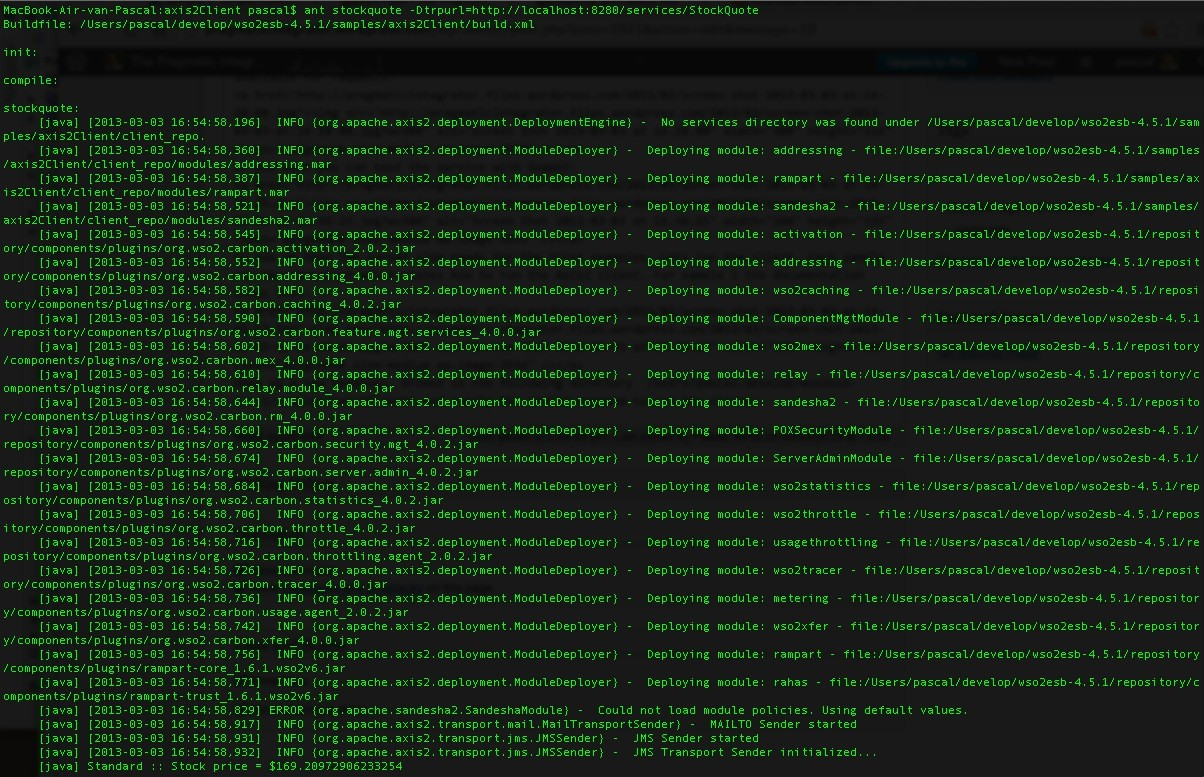

打开一个新终端，浏览到以下目录“ /Users/pascal/develop/wso2esb-4.5.1/samples/axis2Client”，并提供所述命令以运行客户端：

如您所见，我们收到了IBM股票的报价。 在运行WSO2 ESB的终端中，我们看到由传入请求引起的以下日志记录：

[2013-03-03 16:58:03,113] DEBUG - SynapseMessageReceiver Synapse received a new message for message mediation...
[2013-03-03 16:58:03,114] DEBUG - SynapseMessageReceiver Received To: /services/StockQuote
[2013-03-03 16:58:03,114] DEBUG - SynapseMessageReceiver SOAPAction: urn:getQuote
[2013-03-03 16:58:03,114] DEBUG - SynapseMessageReceiver WSA-Action: urn:getQuote
[2013-03-03 16:58:03,114] DEBUG - Axis2SynapseEnvironment Injecting MessageContext
[2013-03-03 16:58:03,115] DEBUG - Axis2SynapseEnvironment Using Main Sequence for injected message
[2013-03-03 16:58:03,115] DEBUG - SequenceMediator Start : Sequence <main>
[2013-03-03 16:58:03,115] DEBUG - SequenceMediator Sequence <SequenceMediator> :: mediate()
[2013-03-03 16:58:03,115] DEBUG - InMediator Start : In mediator
[2013-03-03 16:58:03,115] DEBUG - InMediator Current message is incoming - executing child mediators
[2013-03-03 16:58:03,115] DEBUG - InMediator Sequence <InMediator> :: mediate()
[2013-03-03 16:58:03,115] DEBUG - FilterMediator Start : Filter mediator
[2013-03-03 16:58:03,116] DEBUG - FilterMediator Source : get-property('To') against : .*/StockQuote.* matches - executing child mediators
[2013-03-03 16:58:03,116] DEBUG - FilterMediator Sequence <FilterMediator> :: mediate()
[2013-03-03 16:58:03,116] DEBUG - SendMediator Start : Send mediator
[2013-03-03 16:58:03,116] DEBUG - EndpointContext Checking if endpoint : endpoint_d06dafda969c8e11992a8e8f5366fd33203399eaae89984c currently at state ACTIVE can be used now?
[2013-03-03 16:58:03,116] DEBUG - AddressEndpoint Sending message through endpoint : endpoint_d06dafda969c8e11992a8e8f5366fd33203399eaae89984c resolving to address = http://localhost:9000/services/SimpleStockQuoteService
[2013-03-03 16:58:03,116] DEBUG - AddressEndpoint SOAPAction: urn:getQuote
[2013-03-03 16:58:03,116] DEBUG - AddressEndpoint WSA-Action: urn:getQuote
[2013-03-03 16:58:03,117] DEBUG - Axis2FlexibleMEPClient Sending [add = false] [sec = false] [rm = false] [mtom = false] [swa = false] [format = null] [force soap11=false] [force soap12=false] [pox=false] [get=false] [encoding=null] [to=http://localhost:9000/services/SimpleStockQuoteService]
[2013-03-03 16:58:03,117] DEBUG - Axis2FlexibleMEPClient Message [Original Request Message ID : urn:uuid:381071f8-c6ca-4e14-bfe4-0e53de7f7cc2] [New Cloned Request Message ID : urn:uuid:503aabca-2a04-413f-ba44-b6c623bf9db6]
[2013-03-03 16:58:03,117] DEBUG - SynapseCallbackReceiver Callback added. Total callbacks waiting for : 1
[2013-03-03 16:58:03,119] DEBUG - SendMediator End : Send mediator
[2013-03-03 16:58:03,120] DEBUG - DropMediator Start : Drop mediator
[2013-03-03 16:58:03,120] DEBUG - DropMediator End : Drop mediator
[2013-03-03 16:58:03,120] DEBUG - FilterMediator End : Filter mediator
[2013-03-03 16:58:03,120] DEBUG - InMediator End : In mediator
[2013-03-03 16:58:03,120] DEBUG - SequenceMediator End : Sequence <main>
[2013-03-03 16:58:03,130] DEBUG - SynapseCallbackReceiver Callback removed for request message id : urn:uuid:503aabca-2a04-413f-ba44-b6c623bf9db6. Pending callbacks count : 0
[2013-03-03 16:58:03,132] DEBUG - SynapseCallbackReceiver Synapse received an asynchronous response message
[2013-03-03 16:58:03,133] DEBUG - SynapseCallbackReceiver Received To: null
[2013-03-03 16:58:03,133] DEBUG - SynapseCallbackReceiver SOAPAction:
[2013-03-03 16:58:03,133] DEBUG - SynapseCallbackReceiver WSA-Action:
[2013-03-03 16:58:03,134] DEBUG - SynapseCallbackReceiver Body :
<?xml version='1.0' encoding='utf-8'?><soapenv:Envelope xmlns:soapenv='http://schemas.xmlsoap.org/soap/envelope/'><soapenv:Body><ns:getQuoteResponse xmlns:ns='http://services.samples'><ns:return xmlns:ax21='http://services.samples/xsd' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:type='ax21:GetQuoteResponse'><ax21:change>4.155006565416989</ax21:change><ax21:earnings>-8.118428276798063</ax21:earnings><ax21:high>84.31871512134151</ax21:high><ax21:last>80.49639852693167</ax21:last><ax21:lastTradeTimestamp>Sun Mar 03 16:58:03 CET 2013</ax21:lastTradeTimestamp><ax21:low>-79.94179251359746</ax21:low><ax21:marketCap>-6855110.427635921</ax21:marketCap><ax21:name>IBM Company</ax21:name><ax21:open>83.68193468970854</ax21:open><ax21:peRatio>23.68015151185118</ax21:peRatio><ax21:percentageChange>-5.440098733913549</ax21:percentageChange><ax21:prevClose>-76.37741093768571</ax21:prevClose><ax21:symbol>IBM</ax21:symbol><ax21:volume>16034</ax21:volume></ns:return></ns:getQuoteResponse></soapenv:Body></soapenv:Envelope>
[2013-03-03 16:58:03,134] DEBUG - Axis2SynapseEnvironment Injecting MessageContext
[2013-03-03 16:58:03,135] DEBUG - Axis2SynapseEnvironment Using Main Sequence for injected message
[2013-03-03 16:58:03,135] DEBUG - SequenceMediator Start : Sequence <main>
[2013-03-03 16:58:03,135] DEBUG - SequenceMediator Sequence <SequenceMediator> :: mediate()
[2013-03-03 16:58:03,135] DEBUG - InMediator Start : In mediator
[2013-03-03 16:58:03,135] DEBUG - InMediator Current message is a response - skipping child mediators
[2013-03-03 16:58:03,135] DEBUG - InMediator End : In mediator
[2013-03-03 16:58:03,135] DEBUG - OutMediator Start : Out mediator
[2013-03-03 16:58:03,136] DEBUG - OutMediator Current message is outgoing - executing child mediators
[2013-03-03 16:58:03,136] DEBUG - OutMediator Sequence <OutMediator> :: mediate()
[2013-03-03 16:58:03,136] DEBUG - SendMediator Start : Send mediator
[2013-03-03 16:58:03,136] DEBUG - SendMediator Sending response message using implicit message properties..
Sending To: http://www.w3.org/2005/08/addressing/anonymous
SOAPAction:
[2013-03-03 16:58:03,138] DEBUG - SendMediator End : Send mediator
[2013-03-03 16:58:03,138] DEBUG - OutMediator End : Out mediator
[2013-03-03 16:58:03,138] DEBUG - SequenceMediator End : Sequence <main>

最后，在Axis2Server终端中，由于示例流将请求传递到端口9000，因此将以下行添加到日志记录中：

Sun Mar 03 16:58:03 CET 2013 samples.services.SimpleStockQuoteService :: Generating quote for : IBM

这表明该示例运行正常，并且已执行所有预期的操作。 下一步将通过所有其他示例，以更好地理解WSO2 ESB的可能性。

参考： 从WSO2 ESB开始，在The Pragmatic Integrator博客上运行我们的JCG合作伙伴 Pascal Alma 的示例 。
