Spring JMS，消息自动转换，JMS模板

在我的一个项目中，我应该创建一个消息路由器，就像所有路由器都应该从一个主题中提取JMS消息并将其放入另一个主题中一样。该消息本身是JMS文本消息，实际上包含XML消息。收到消息后，我还应该添加一些其他数据来丰富消息。

我们不允许使用Spring或JAXB或任何其他有用的库，因此我决定检查使用它们进行此操作的难易程度。最初，我只想使用Spring和JAXB，但在下一篇文章中，我将尝试通过使用Apache Camel重复相同的场景（这就是为什么在包名称中会找到单词“ camel”的原因）。由于ActiveMQ消息传递服务器，JMS通信得以实现。无论如何
回到代码。我使用maven来解决依赖关系，这些是在JMS和JAXB以及消息转换方面必不可少的依赖关系：

pom.xml

<dependency><groupId>org.springframework</groupId><artifactId>spring-jms</artifactId><version>3.1.1.RELEASE</version></dependency><dependency><groupId>com.sun.xml.bind</groupId><artifactId>jaxb-impl</artifactId><version>2.2.6</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-oxm</artifactId><version>3.1.1.RELEASE</version></dependency>

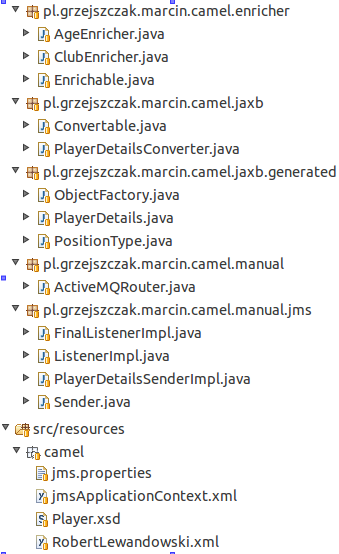

这就是我划分项目的方式（在下一篇文章中，包装的骆驼部分会更有意义）。

为了通过JAXB将消息转换为对象，我需要一个模式：

播放器

<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"><xsd:element name="PlayerDetails"><xsd:complexType><xsd:sequence><xsd:element name="Name" type="xsd:string" /><xsd:element name="Surname" type="xsd:string" /><xsd:element name="Position" type="PositionType" /><xsd:element name="Age" type="xsd:int" /><xsd:element name="TeamName" type="xsd:string" /></xsd:sequence></xsd:complexType></xsd:element><xsd:simpleType name="PositionType"><xsd:restriction base="xsd:string"><xsd:enumeration value="GK" /><xsd:enumeration value="DEF" /><xsd:enumeration value="MID" /><xsd:enumeration value="ATT" /></xsd:restriction></xsd:simpleType></xsd:schema>

我必须下载JAXB二进制文件并执行以下命令来创建我的对象：

./xjc.sh -p pl.grzejszczak.marcin.camel.jaxb.generated ~/PATH/TO/THE/SCHEMA/FILE/Player.xsd

注意

使用maven可以实现相同的目的。这种方法不在博客的存储库中，但请相信我-它确实有效

将依赖项添加到pom

<dependency><groupId>javax.xml.bind</groupId><artifactId>jaxb-api</artifactId><version>2.1</version>
</dependency>

使用插件（注意需要指定架构文件，或者默认情况下在以下位置搜索
src / main / xsd /文件夹）

<build><pluginManagement><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>2.5.1</version></plugin></plugins></pluginManagement><plugins><plugin><groupId>org.codehaus.mojo</groupId><artifactId>jaxb2-maven-plugin</artifactId><version>1.5</version><executions><execution><id>xjc</id><goals><goal>xjc</goal></goals></execution></executions><configuration><packageName>pl.grzejszczak.marcin.camel.jaxb.generated</packageName></configuration></plugin></plugins></build>

该命令或Maven插件的结果示例如下：

PlayerDetails.java

//
// This file was generated by the JavaTM Architecture for XML Binding(JAXB) Reference Implementation, v2.2.6
// See http://java.sun.com/xml/jaxb
// Any modifications to this file will be lost upon recompilation of the source schema.
// Generated on: 2012.11.05 at 09:23:22 PM CET
//package pl.grzejszczak.marcin.camel.jaxb.generated;import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;/*** Java class for anonymous complex type.* * The following schema fragment specifies the expected content contained within this class.* * * <complexType>*   <complexContent>*     <restriction base="{http://www.w3.org/2001/XMLSchema}anyType">*       <sequence>*         <element name="Name" type="{http://www.w3.org/2001/XMLSchema}string"/>*         <element name="Surname" type="{http://www.w3.org/2001/XMLSchema}string"/>*         <element name="Position" type="{}PositionType"/>*         <element name="Age" type="{http://www.w3.org/2001/XMLSchema}int"/>*         <element name="TeamName" type="{http://www.w3.org/2001/XMLSchema}string"/>*       </sequence>*     </restriction>*   </complexContent>* </complexType>*
* * */
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {"name","surname","position","age","teamName"
})
@XmlRootElement(name = "PlayerDetails")
public class PlayerDetails {@XmlElement(name = "Name", required = true)protected String name;@XmlElement(name = "Surname", required = true)protected String surname;@XmlElement(name = "Position", required = true)protected PositionType position;@XmlElement(name = "Age")protected int age;@XmlElement(name = "TeamName", required = true)protected String teamName;/*** Gets the value of the name property.* * @return*     possible object is*     {@link String }*     */public String getName() {return name;}/*** Sets the value of the name property.* * @param value*     allowed object is*     {@link String }*     */public void setName(String value) {this.name = value;}/*** Gets the value of the surname property.* * @return*     possible object is*     {@link String }*     */public String getSurname() {return surname;}/*** Sets the value of the surname property.* * @param value*     allowed object is*     {@link String }*     */public void setSurname(String value) {this.surname = value;}/*** Gets the value of the position property.* * @return*     possible object is*     {@link PositionType }*     */public PositionType getPosition() {return position;}/*** Sets the value of the position property.* * @param value*     allowed object is*     {@link PositionType }*     */public void setPosition(PositionType value) {this.position = value;}/*** Gets the value of the age property.* */public int getAge() {return age;}/*** Sets the value of the age property.* */public void setAge(int value) {this.age = value;}/*** Gets the value of the teamName property.* * @return*     possible object is*     {@link String }*     */public String getTeamName() {return teamName;}/*** Sets the value of the teamName property.* * @param value*     allowed object is*     {@link String }*     */public void setTeamName(String value) {this.teamName = value;}}

@XmlRootElement（name =“ PlayerDetails”）表示此类将在XML文件中输出一个Root节点。 JavaDoc所说的@XmlAccessorType（XmlAccessType.FIELD）意味着“除非XmlTransient注释，否则JAXB绑定类中的每个非静态，非瞬态字段都将自动绑定到XML。” 换句话说，如果您有一个由XmlTransient注释注释的字段，它将不会被序列化。然后我们有@XmlType（name =“”，propOrder = {“ name”，“ surname”，“ position”，“ age”，“ teamName”}）作为JavaDoc的“ 将类或枚举类型映射为XML模式类型 “ 。换句话说，我们的类被映射到架构中的PlayerDetails元素。最后，我们有@XmlElement（name =“ Name”，required = true）批注，它是XML节点（元素）到类中字段的映射。这是我要发送，接收，丰富和路由的消息：

RobertLewandowski.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<PlayerDetails><Name>Robert</Name><Surname>Lewandowski</Surname><Position>ATT</Position>
</PlayerDetails>

现在开始我的JMS配置-我已经配置了始发和目的地队列

jms.properties

jms.origin=Initial.Queue
jms.destination=Routed.Queue

这是我的Spring配置（我在配置中添加了解释这些组件来源的注释）：

jmsApplicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xmlns:jms="http://www.springframework.org/schema/jms" xmlns:oxm="http://www.springframework.org/schema/oxm"xsi:schemaLocation="http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/jms http://www.springframework.org/schema/jms/spring-jms-3.0.xsd http://www.springframework.org/schema/oxm http://www.springframework.org/schema/oxm/spring-oxm-3.0.xsd"><!-- Spring configuration based on annotations --><context:annotation-config /><!-- Show Spring where to search for the beans (in which packages) --><context:component-scan base-package="pl.grzejszczak.marcin.camel" /><!-- Show Spring where to search for the properties files --><context:property-placeholder location="classpath:/camel/jms.properties" /><!-- The ActiveMQ connection factory with specification of the server URL --><bean id="activeMQConnectionFactory" class="org.apache.activemq.ActiveMQConnectionFactory"><property name="brokerURL" value="tcp://localhost:61616" /></bean><!-- Spring's jms connection factory --><bean id="cachingConnectionFactory"class="org.springframework.jms.connection.CachingConnectionFactory"><property name="targetConnectionFactory" ref="activeMQConnectionFactory" /><property name="sessionCacheSize" value="10" /></bean><!-- The name of the queue from which we will take the messages --><bean id="origin" class="org.apache.activemq.command.ActiveMQQueue"><constructor-arg value="${jms.origin}" /></bean><!-- The name of the queue to which we will route the messages --><bean id="destination" class="org.apache.activemq.command.ActiveMQQueue"><constructor-arg value="${jms.destination}" /></bean><!-- Configuration of the JmsTemplate together with the connection factory and the message converter --><bean id="producerTemplate" class="org.springframework.jms.core.JmsTemplate"><property name="connectionFactory" ref="cachingConnectionFactory" /><property name="messageConverter" ref="oxmMessageConverter" /></bean><!-- Custom message sender sending messages to the initial queue --><bean id="originPlayerSender" class="pl.grzejszczak.marcin.camel.manual.jms.PlayerDetailsSenderImpl"><property name="destination" ref="origin" /></bean><!-- Custom message sender sending messages to the destination queue --><bean id="destinationPlayerSender" class="pl.grzejszczak.marcin.camel.manual.jms.PlayerDetailsSenderImpl"><property name="destination" ref="destination" /></bean><!-- Custom message listener - listens to the initial queue  --><bean id="originListenerImpl" class="pl.grzejszczak.marcin.camel.manual.jms.ListenerImpl"/><!-- Custom message listener - listens to the destination queue  --><bean id="destinationListenerImpl" class="pl.grzejszczak.marcin.camel.manual.jms.FinalListenerImpl"/><!-- Spring's jms message listener container - specified the connection factory, the queue to be listened to and the component that listens to the queue --><bean id="jmsOriginContainer" class="org.springframework.jms.listener.DefaultMessageListenerContainer"><property name="connectionFactory" ref="cachingConnectionFactory" /><property name="destination" ref="origin" /><property name="messageListener" ref="originListenerImpl" /></bean><!-- Spring's jms message listener container - specified the connection factory, the queue to be listened to and the component that listens to the queue --><bean id="jmsDestinationContainer" class="org.springframework.jms.listener.DefaultMessageListenerContainer"><property name="connectionFactory" ref="cachingConnectionFactory" /><property name="destination" ref="destination" /><property name="messageListener" ref="destinationListenerImpl" /></bean><!-- Message converter - automatically marshalls and unmarshalls messages using the provided marshaller / unmarshaller--><bean id="oxmMessageConverter" class="org.springframework.jms.support.converter.MarshallingMessageConverter"><property name="marshaller" ref="marshaller" /><property name="unmarshaller" ref="marshaller" /></bean><!-- Spring's JAXB implementation of marshaller - provided a class the JAXB generated class --><oxm:jaxb2-marshaller id="marshaller"><oxm:class-to-be-bound name="pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails" /></oxm:jaxb2-marshaller></beans>

现在让我们看一下Java代码-让我们从具有主要功能的类开始

ActiveMQRouter.java

package pl.grzejszczak.marcin.camel.manual;import java.io.File;
import java.util.Scanner;import javax.jms.JMSException;import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;import pl.grzejszczak.marcin.camel.jaxb.PlayerDetailsConverter;
import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;
import pl.grzejszczak.marcin.camel.manual.jms.Sender;public class ActiveMQRouter {/*** @param args* @throws JMSException*/public static void main(String[] args) throws Exception {ApplicationContext context = new ClassPathXmlApplicationContext("/camel/jmsApplicationContext.xml");@SuppressWarnings("unchecked")Sender<PlayerDetails> sender = (Sender<PlayerDetails>) context.getBean("originPlayerSender");Resource resource = new ClassPathResource("/camel/RobertLewandowski.xml");Scanner scanner = new Scanner(new File(resource.getURI())).useDelimiter("\\Z");String contents = scanner.next();PlayerDetailsConverter converter = context.getBean(PlayerDetailsConverter.class);sender.sendMessage(converter.unmarshal(contents));}
}

我们可以在这里看到的是，我们从类路径初始化了Spring上下文，并检索了名为originPlayerSender的bean。该组件用于将消息发送到初始队列。为了发送消息，我们从类路径中检索文件RobertLewandowski.xml，并通过Scanner类将其读取为String变量。接下来，我们使用自定义的PlayerDetailsConverter类将String内容解组到PlayerDetails对象中，该对象实际上由originPlayerSender发送到原始队列。现在让我们看一下发送者逻辑：

PlayerDetailsSenderImpl.java

package pl.grzejszczak.marcin.camel.manual.jms;import javax.jms.Destination;
import javax.jms.JMSException;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.stereotype.Component;import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;@Component
public class PlayerDetailsSenderImpl implements Sender<PlayerDetails> {private static final Logger LOGGER = LoggerFactory.getLogger(PlayerDetailsSenderImpl.class);private Destination destination;@Autowiredprivate JmsTemplate jmsTemplate;@Overridepublic void sendMessage(final PlayerDetails object) throws JMSException {LOGGER.debug("Sending [{}] to topic [{}]", new Object[] { object, destination });jmsTemplate.convertAndSend(destination, object);}public Destination getDestination() {return destination;}public void setDestination(Destination destination) {this.destination = destination;}}

此类正在实现我的Sender接口，该接口提供sendMessage函数。我们正在使用JmsTemplate对象转换消息并将其发送到通过Spring注入的给定目标。好的，现在我们已经发送了消息，有人必须检索它：

ListenerImpl.java

package pl.grzejszczak.marcin.camel.manual.jms;import java.util.List;import javax.jms.BytesMessage;
import javax.jms.Message;
import javax.jms.MessageListener;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.jms.support.converter.MessageConverter;
import org.springframework.stereotype.Component;import pl.grzejszczak.marcin.camel.enricher.Enrichable;
import pl.grzejszczak.marcin.camel.jaxb.Convertable;
import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;@Component
public class ListenerImpl implements MessageListener {private static final Logger LOG = LoggerFactory.getLogger(ListenerImpl.class);@Autowiredprivate Convertable<PlayerDetails> playerDetailsConverter;@Autowiredprivate List<Enrichable<PlayerDetails>> listOfEnrichers;@Autowiredprivate MessageConverter messageConverter;@Autowired@Qualifier("destinationPlayerSender")private Sender<PlayerDetails> sender;@Overridepublic void onMessage(Message message) {if (!(message instanceof BytesMessage)) {LOG.error("Wrong msg!");return;}PlayerDetails playerDetails = null;try {playerDetails = (PlayerDetails) messageConverter.fromMessage(message);LOG.debug("Enriching the input message");for (Enrichable<PlayerDetails> enrichable : listOfEnrichers) {enrichable.enrich(playerDetails);}LOG.debug("Enriched text message: [{}]", new Object[] { playerDetailsConverter.marshal(playerDetails) });sender.sendMessage(playerDetails);} catch (Exception e) {LOG.error("Exception occured", e);}}}

此类包含实现Enrichable接口的所有类的列表，借助该类，它可以提供消息的丰富内容，而无需知道系统中丰富程序的数量。还有一个PlayerDetailsConverter类，可帮助编组和解组PlayerDetails。丰富了消息后，它将通过实现Sender接口并具有destinationPlayerSender ID的Bean将其发送到目标队列。重要的是要记住，我们从队列中收到的是BytesMessage，因此这就是我们进行初始检查的原因。让我们看一下其中一个扩展程序（另一个是在PlayerDetails对象中设置另一个字段）

ClubEnricher.java

package pl.grzejszczak.marcin.camel.enricher;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;@Component("ClubEnricher")
public class ClubEnricher implements Enrichable<PlayerDetails> {private static final Logger LOGGER = LoggerFactory.getLogger(ClubEnricher.class);@Overridepublic void enrich(PlayerDetails inputObject) {LOGGER.debug("Enriching player [{}] with club data", new Object[] { inputObject.getSurname() });// Simulating accessing DB or some other servicetry {Thread.sleep(2000);} catch (InterruptedException e) {LOGGER.error("Exception while sleeping occured", e);}inputObject.setTeamName("Borussia Dortmund");}}

如您所见，该类只是在模拟对数据库或任何其他服务的访问，然后在输入的PlayerDetails对象中设置团队名称。现在让我们看一下转换机制：

PlayerDetailsConverter.java

package pl.grzejszczak.marcin.camel.jaxb;import java.io.ByteArrayOutputStream;
import java.io.OutputStream;import javax.xml.bind.JAXBContext;
import javax.xml.bind.JAXBException;
import javax.xml.bind.Marshaller;
import javax.xml.bind.Unmarshaller;import org.apache.activemq.util.ByteArrayInputStream;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;@Component("PlayerDetailsConverter")
public class PlayerDetailsConverter implements Convertable<PlayerDetails> {private static final Logger LOGGER = LoggerFactory.getLogger(PlayerDetailsConverter.class);private final JAXBContext jaxbContext;private final Marshaller jaxbMarshaller;private final Unmarshaller jaxbUnmarshaller;public PlayerDetailsConverter() throws JAXBException {jaxbContext = JAXBContext.newInstance(PlayerDetails.class);jaxbMarshaller = jaxbContext.createMarshaller();jaxbMarshaller.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, true);jaxbUnmarshaller = jaxbContext.createUnmarshaller();}@Overridepublic String marshal(PlayerDetails object) {OutputStream stream = new ByteArrayOutputStream();try {jaxbMarshaller.marshal(object, stream);} catch (JAXBException e) {LOGGER.error("Exception occured while marshalling", e);}return stream.toString();}@Overridepublic PlayerDetails unmarshal(String objectAsString) {try {return (PlayerDetails) jaxbUnmarshaller.unmarshal(new ByteArrayInputStream(objectAsString.getBytes()));} catch (JAXBException e) {LOGGER.error("Exception occured while marshalling", e);}return null;}}

在构造函数中，我们设置了一些JAXB组件-JAXBContext，JAXB Marshaller和JAXB Unmarshaller，它们具有必要的封送和取消封送方法。最后但并非最不重要的是FinalListenerImpl，它正在侦听来自目标队列的入站消息并关闭应用程序。

FinalListenerImpl.java

package pl.grzejszczak.marcin.camel.manual.jms;import javax.jms.BytesMessage;
import javax.jms.Message;
import javax.jms.MessageListener;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.support.converter.MessageConverter;
import org.springframework.stereotype.Component;import pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails;@Component
public class FinalListenerImpl implements MessageListener {private static final Logger LOG = LoggerFactory.getLogger(FinalListenerImpl.class);@Autowiredprivate MessageConverter messageConverter;@Overridepublic void onMessage(Message message) {if (!(message instanceof BytesMessage)) {LOG.error("Wrong msg!");return;}PlayerDetails playerDetails = null;try {playerDetails = (PlayerDetails) messageConverter.fromMessage(message);if (playerDetails.getTeamName() != null) {LOG.debug("Message already enriched! Shutting down the system");System.exit(0);} else {LOG.debug("The message should have been enriched but wasn't");System.exit(1);}} catch (Exception e) {LOG.error("Exception occured", e);}}}

通过使用MessageConverter，在确认消息的类型正确之后，我们检查团队名称是否已填写-如果是这种情况，我们将终止应用程序。

日志如下：

2012-11-05 [main] org.springframework.context.support.ClassPathXmlApplicationContext:495 Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@34fbb7cb: startup date [Mon Nov 05 21:47:00 CET 2012]; root of context hierarchy
2012-11-05 [main] org.springframework.beans.factory.xml.XmlBeanDefinitionReader:315 Loading XML bean definitions from class path resource [camel/jmsApplicationContext.xml]
2012-11-05 [main] org.springframework.beans.factory.config.PropertyPlaceholderConfigurer:177 Loading properties file from class path resource [camel/jms.properties]
2012-11-05 [main] org.springframework.beans.factory.support.DefaultListableBeanFactory:557 Pre-instantiating singletons in org.springframework.beans.factory.support.DefaultListableBeanFactory@3313beb5: defining beans [org.springframework.context.annotation.internalConfigurationAnnotationProcessor, org.springframework.context.annotation.internalAutowiredAnnotationProcessor, org.springframework.context.annotation.internalRequiredAnnotationProcessor, org.springframework.context.annotation.internalCommonAnnotationProcessor, org.springframework.context.annotation.internalPersistenceAnnotationProcessor, myRoute,AgeEnricher, ClubEnricher, PlayerDetailsConverter, finalListenerImpl, listenerImpl, playerDetailsSenderImpl, org.springframework.beans.factory.config.PropertyPlaceholderConfigurer#0, activeMQConnectionFactory, cachingConnectionFactory, origin, destination, producerTemplate, originPlayerSender, destinationPlayerSender, originListenerImpl, destinationListenerImpl, jmsOriginContainer, jmsDestinationContainer, oxmMessageConverter, marshaller, org.springframework.context.annotation.ConfigurationClassPostProcessor$ImportAwareBeanPostProcessor#0]; root of factory hierarchy
2012-11-05 [main] org.springframework.oxm.jaxb.Jaxb2Marshaller:436 Creating JAXBContext with classes to be bound [class pl.grzejszczak.marcin.camel.jaxb.generated.PlayerDetails]
2012-11-05 [main] org.springframework.context.support.DefaultLifecycleProcessor:334 Starting beans in phase 2147483647
2012-11-05 [main] org.springframework.jms.connection.CachingConnectionFactory:291 Established shared JMS Connection: ActiveMQConnection {id=ID:marcin-SR700-38535-1352148424687-1:1,clientId=null,started=false}
2012-11-05 [main] pl.grzejszczak.marcin.camel.manual.jms.PlayerDetailsSenderImpl:26 Sending  to topic [queue://Initial.Queue]
2012-11-05 [jmsOriginContainer-1] pl.grzejszczak.marcin.camel.manual.jms.ListenerImpl:49 Enriching the input message
2012-11-05 [jmsOriginContainer-1] pl.grzejszczak.marcin.camel.enricher.AgeEnricher:17 Enriching player [Lewandowski] with age data
2012-11-05 [jmsOriginContainer-1] pl.grzejszczak.marcin.camel.enricher.ClubEnricher:16 Enriching player [Lewandowski] with club data
2012-11-05 [jmsOriginContainer-1] pl.grzejszczak.marcin.camel.manual.jms.ListenerImpl:53 Enriched text message: [<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<PlayerDetails><Name>Robert</Name><Surname>Lewandowski</Surname><Position>ATT</Position><Age>19</Age><TeamName>Borussia Dortmund</TeamName>
</PlayerDetails>
]
2012-11-05 [jmsOriginContainer-1] pl.grzejszczak.marcin.camel.manual.jms.PlayerDetailsSenderImpl:26 Sending  to topic [queue://Routed.Queue]
2012-11-05 [jmsDestinationContainer-1] pl.grzejszczak.marcin.camel.manual.jms.FinalListenerImpl:35 Message already enriched! Shutting down the system

这就是通过Spring JMS模块和JAXB库，您可以轻松地为XML消息创建JMS侦听器，发送者和消息转换器的方法。

参考： Spring JMS，消息自动转换，来自我们的JCG合作伙伴 Marcin Grzejszczak的JMS模板，位于Blog上，用于编码上瘾者博客。
