技术提示＃54展示了如何Arquillianate（Arquillianize？）一个现有的Java EE项目并在WildFly在已知主机和端口上运行的远程模式下运行这些测试。 技术提示＃55展示了当WildFly在OpenShift中运行时如何运行这些测试。 这两个技巧都使用Maven配置文件来分隔“ pom.xml”中的适当Arquillian依赖关系和“ arquillian.xml”中的<container>配置，以定义WildFy在何处运行以及如何连接。
本技巧将展示如何在OpenShift中配置Jenkins以及如何从Jenkins调用这些测试。 让我们首先看看它的作用！
从OpenShift上的Jenkins连接到OpenShift上的WildFly实例所需的配置与从本地计算机到OpenShift上的WildFly连接所需的配置类似。 此配置在“ arquillian.xml”中指定，我们可以指定一些参数，然后可以在Jenkins中定义这些参数。
概括地说，这是我们要做的：
- 使用在技术提示＃54和＃55中创建的代码，并为Arquillian / Jenkins / OpenShift添加配置
- 启用詹金斯
- 创建一个新的WildFly Test实例
- 配置Jenkins在测试实例上运行测试
- 仅当测试通过测试实例时，才将应用程序推入生产环境
让我们开始吧！
- 从Tech Tip＃55中创建的WildFly git repo中删除现有的样板源代码，仅删除
src目录。mywildfly> git rm -rf src/ pom.xml rm 'pom.xml' rm 'src/main/java/.gitkeep' rm 'src/main/resources/.gitkeep' rm 'src/main/webapp/WEB-INF/web.xml' rm 'src/main/webapp/images/jbosscorp_logo.png' rm 'src/main/webapp/index.html' rm 'src/main/webapp/snoop.jsp' mywildfly> git commit . -m"removing source and pom" [master 564b275] removing source and pom7 files changed, 647 deletions(-)delete mode 100644 pom.xmldelete mode 100644 src/main/java/.gitkeepdelete mode 100644 src/main/resources/.gitkeepdelete mode 100644 src/main/webapp/WEB-INF/web.xmldelete mode 100644 src/main/webapp/images/jbosscorp_logo.pngdelete mode 100644 src/main/webapp/index.htmldelete mode 100644 src/main/webapp/snoop.jsp - 将新的远程设置为javaee7-continuous-delivery存储库：
mywildfly> git remote add javaee7 https://github.com/arun-gupta/javaee7-continuous-delivery.git mywildfly> git remote -v javaee7 https://github.com/arun-gupta/javaee7-continuous-delivery.git (fetch) javaee7 https://github.com/arun-gupta/javaee7-continuous-delivery.git (push) origin ssh://54699516ecb8d41cb8000016@mywildfly-milestogo.rhcloud.com/~/git/mywildfly.git/ (fetch) origin ssh://54699516ecb8d41cb8000016@mywildfly-milestogo.rhcloud.com/~/git/mywildfly.git/ (push) - 从新的遥控器中提取代码：
mywildfly> git pull javaee7 master warning: no common commits remote: Counting objects: 62, done. remote: Compressing objects: 100% (45/45), done. remote: Total 62 (delta 14), reused 53 (delta 5) Unpacking objects: 100% (62/62), done. From https://github.com/arun-gupta/javaee7-continuous-delivery* branch master -> FETCH_HEAD* [new branch] master -> javaee7/master Merge made by the 'recursive' strategy..gitignore | 6 +++README.asciidoc | 15 ++++++pom.xml | 197 +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++src/main/java/org/javaee7/sample/MyApplication.java | 9 ++++src/main/java/org/javaee7/sample/Person.java | 31 ++++++++++++src/main/java/org/javaee7/sample/PersonDatabase.java | 39 ++++++++++++++src/main/java/org/javaee7/sample/PersonResource.java | 29 +++++++++++src/main/webapp/index.jsp | 13 +++++src/test/java/org/javaee7/sample/PersonTest.java | 77 ++++++++++++++++++++++++++++src/test/resources/arquillian.xml | 26 ++++++++++10 files changed, 442 insertions(+)create mode 100644 .gitignorecreate mode 100644 README.asciidoccreate mode 100644 pom.xmlcreate mode 100644 src/main/java/org/javaee7/sample/MyApplication.javacreate mode 100644 src/main/java/org/javaee7/sample/Person.javacreate mode 100644 src/main/java/org/javaee7/sample/PersonDatabase.javacreate mode 100644 src/main/java/org/javaee7/sample/PersonResource.javacreate mode 100644 src/main/webapp/index.jspcreate mode 100644 src/test/java/org/javaee7/sample/PersonTest.javacreate mode 100644 src/test/resources/arquillian.xml这将带来所有源代码，包括我们的REST端点，网页，测试，更新的“ pom.xml”和“ arquillian.xml”。 更新的“ pom.xml”具有两个新的配置文件。
openshiftorg.apache.maven.pluginsmaven-war-plugin2.3falsedeploymentsROOTjenkins-openshiftmaven-surefire-plugin2.14.1jenkins-openshiftorg.jboss.arquillian.containerarquillian-openshift1.0.0.Final-SNAPSHOTtest这里要注意的几点：
- 在OpenShift上构建应用程序时使用“ openshift”配置文件。 这是创建应用程序的WAR文件并将其部署到WildFly的地方。
- 添加了新的配置文件“ jenkins-openshift”，供OpenShift中的Jenkins实例（即将启用）使用它来运行测试。
- “ arquillian-openshift”依赖项与技术提示＃55中使用的依赖项相同，并且允许在OpenShift的WildFly实例上运行Arquillian测试。
- 此配置文件引用将在“ arquillian.xml”中定义的“ jenkins-openshift”容器配置。
更新的“ src / test / resources / arquillian.xml”具有以下容器：
<container qualifier="jenkins-openshift"><configuration><property name="namespace">${env.ARQ_DOMAIN}</property><property name="application">${env.ARQ_APPLICATION}</property><property name="libraDomain">rhcloud.com</property><property name="sshUserName">${env.ARQ_SSH_USER_NAME}</property><property name="login">arungupta@redhat.com</property><property name="deploymentTimeoutInSeconds">300</property><property name="disableStrictHostChecking">true</property> </configuration> </container>此容器配置类似于技术提示＃55中添加的容器配置。 唯一的区别是域名，应用程序名称和SSH用户名已参数化。 这些属性的值在Jenkins实例的配置中定义，并允许针对单独的测试节点运行测试。
- 在将更改推送到远程存储库之前，还需要完成两件事。 首先是创建一个WildFly Test实例，该实例可用于运行测试。 可以很容易地完成，如下所示：
workspaces> rhc app-create mywildflytest jboss-wildfly-8 Application Options ------------------- Domain: milestogo Cartridges: jboss-wildfly-8 Gear Size: default Scaling: noCreating application 'mywildflytest' ... Artifacts deployed: ./ROOT.war doneWildFly 8 administrator added. Please make note of these credentials:Username: adminITJt7YhPassword: yXP2mUd1w4_8run 'rhc port-forward mywildflytest' to access the web admin area on port 9990.Waiting for your DNS name to be available ... doneCloning into 'mywildflytest'... Warning: Permanently added the RSA host key for IP address '54.205.69.88' to the list of known hosts.Your application 'mywildflytest' is now available.URL: http://mywildflytest-milestogo.rhcloud.com/SSH to: 546e3743ecb8d49ca9000014@mywildflytest-milestogo.rhcloud.comGit remote: ssh://546e3743ecb8d49ca9000014@mywildflytest-milestogo.rhcloud.com/~/git/mywildflytest.git/Cloned to: /Users/arungupta/workspaces/javaee7/mywildflytestRun 'rhc show-app mywildflytest' for more details about your app.注意这里的域是
milestogo，应用程序名称是mywildflytest，SSH用户名称是546e3743ecb8d49ca9000014。 这些将传递给Arquillian进行测试。 - 其次是启用和配置Jenkins。在您的OpenShift控制台中 ，选择“ mywildfly”应用程序，然后单击“ Enable Jenkins”链接，如下所示：
请记住，这不是您的Test实例，因为所有源代码都位于先前创建的实例上。提供适当的名称，例如jenkins-milestogo.rhcloud.com（在我的情况下），然后单击“添加Jenkins”按钮。 这将提供一个Jenkins实例（如果尚未存在的话），并使用脚本配置该项目以构建和部署该应用程序。 记下名称和密码凭据。
- 使用凭据登录到您的Jenkins实例。在这种情况下，选择适当的版本“ mywildfly-build”。 向下滚动到“ Build”部分，然后在Execute Shell中的“＃Run tests here”之后添加以下脚本：
export ARQ_DOMAIN=milestogo export ARQ_SSH_USER_NAME=546e3743ecb8d49ca9000014 export ARQ_APPLICATION=mywildflytest mvn test -Pjenkins-openshift单击“保存”以保存配置。 这将允许在Test实例上运行Arquillian测试。 如果测试通过，则将部署该应用程序。 如果测试失败，则该步骤之后的所有步骤均不会执行，因此不会部署该应用程序。
- 现在让我们将更改推送到远程仓库：
mywildfly> git push Counting objects: 68, done. Delta compression using up to 8 threads. Compressing objects: 100% (49/49), done. Writing objects: 100% (61/61), 8.85 KiB | 0 bytes/s, done. Total 61 (delta 14), reused 0 (delta 0) remote: Executing Jenkins build. remote: remote: You can track your build at https://jenkins-milestogo.rhcloud.com/job/mywildfly-build remote: remote: Waiting for build to schedule............................................................................................Done remote: Waiting for job to complete................................................................................................................................................................................................................................................................................................................................................................................................Done remote: SUCCESS remote: New build has been deployed. remote: ------------------------- remote: Git Post-Receive Result: success remote: Deployment completed with status: success To ssh://546cef93ecb8d4ff37000003@mywildfly-milestogo.rhcloud.com/~/git/mywildfly.git/e8f6c61..e9ad206 master -> master点的数量表示等待特定任务，并且很可能会因运行不同而有所不同。 而Jenkins控制台（ jenkins-milestogo.rhcloud.com/job/mywildfly-build/1/console ）将输出显示为：
-------------------------------------------------------T E S T S ------------------------------------------------------- Running org.javaee7.sample.PersonTest Nov 20, 2014 2:54:56 PM org.jboss.arquillian.container.openshift.OpenShiftContainer start INFO: Preparing Arquillian OpenShift container at http://mywildflytest-milestogo.rhcloud.com Nov 20, 2014 2:55:48 PM org.jboss.arquillian.container.openshift.OpenShiftRepository push INFO: Pushed to the remote repository ssh://546e3743ecb8d49ca9000014@mywildflytest-milestogo.rhcloud.com/~/git/mywildflytest.git/ Nov 20, 2014 2:56:37 PM org.jboss.arquillian.container.openshift.OpenShiftRepository push INFO: Pushed to the remote repository ssh://546e3743ecb8d49ca9000014@mywildflytest-milestogo.rhcloud.com/~/git/mywildflytest.git/ Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 103.056 sec Nov 20, 2014 2:56:37 PM org.jboss.arquillian.container.openshift.OpenShiftContainer stop INFO: Shutting down Arquillian OpenShift container at http://mywildflytest-milestogo.rhcloud.com Results :Tests run: 2, Failures: 0, Errors: 0, Skipped: 0[INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 3:13.069s [INFO] Finished at: Thu Nov 20 14:57:34 EST 2014 [INFO] Final Memory: 10M/101M [INFO] ------------------------------------------------------------------------ + /usr/libexec/openshift/cartridges/jenkins/bin/git_ssh_wrapper.sh 546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com 'gear stop --conditional' Warning: Permanently added 'mywildfly-milestogo.rhcloud.com,10.5.171.43' (RSA) to the list of known hosts. Stopping gear... Stopping wildfly cart Sending SIGTERM to wildfly:418673 ... + rsync --delete-after -azO -e /usr/libexec/openshift/cartridges/jenkins/bin/git_ssh_wrapper.sh /var/lib/openshift/546e46304382ec3f29000012//.m2/ '546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com:~/.m2/' Warning: Permanently added 'mywildfly-milestogo.rhcloud.com,10.5.171.43' (RSA) to the list of known hosts. + rsync --delete-after -azO -e /usr/libexec/openshift/cartridges/jenkins/bin/git_ssh_wrapper.sh /var/lib/openshift/546e46304382ec3f29000012/app-root/runtime/repo/deployments/ '546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com:${OPENSHIFT_REPO_DIR}deployments/' Warning: Permanently added 'mywildfly-milestogo.rhcloud.com,10.5.171.43' (RSA) to the list of known hosts. + rsync --delete-after -azO -e /usr/libexec/openshift/cartridges/jenkins/bin/git_ssh_wrapper.sh /var/lib/openshift/546e46304382ec3f29000012/app-root/runtime/repo/.openshift/ '546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com:${OPENSHIFT_REPO_DIR}.openshift/' Warning: Permanently added 'mywildfly-milestogo.rhcloud.com,10.5.171.43' (RSA) to the list of known hosts. + /usr/libexec/openshift/cartridges/jenkins/bin/git_ssh_wrapper.sh 546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com 'gear remotedeploy' Warning: Permanently added 'mywildfly-milestogo.rhcloud.com,10.5.171.43' (RSA) to the list of known hosts. Preparing build for deployment Deployment id is dff28e58 Activating deployment Deploying WildFly Starting wildfly cart Found 127.12.255.129:8080 listening port Found 127.12.255.129:9990 listening port /var/lib/openshift/546e36e5e0b8cd4e2a000007/wildfly/standalone/deployments /var/lib/openshift/546e36e5e0b8cd4e2a000007/wildfly /var/lib/openshift/546e36e5e0b8cd4e2a000007/wildfly CLIENT_MESSAGE: Artifacts deployed: ./ROOT.war Archiving artifacts Finished: SUCCESS可以查看Jenkins的日志文件，如下所示：
Nov 20, 2014 2:51:11 PM hudson.plugins.openshift.OpenShiftCloud provision INFO: Provisioning new node for workload = 2 and label = mywildfly-build in domain milestogo Nov 20, 2014 2:51:11 PM hudson.plugins.openshift.OpenShiftCloud getOpenShiftConnection INFO: Initiating Java Client Service - Configured for OpenShift Server https://openshift.redhat.com Nov 20, 2014 2:51:11 PM com.openshift.internal.client.RestService request INFO: Requesting GET with protocol 1.2 on https://openshift.redhat.com/broker/rest/api Nov 20, 2014 2:51:11 PM com.openshift.internal.client.RestService request INFO: Requesting GET with protocol 1.2 on https://openshift.redhat.com/broker/rest/user Nov 20, 2014 2:51:11 PM com.openshift.internal.client.RestService request. . .INFO: Checking availability of computer hudson.plugins.openshift.OpenShiftSlave@8ce21115 Nov 20, 2014 2:53:35 PM com.openshift.internal.client.RestService request INFO: Requesting GET with protocol 1.2 on https://openshift.redhat.com/broker/rest/domain/milestogo/application/mywildflybldr/gear_groups Nov 20, 2014 2:53:35 PM hudson.plugins.openshift.OpenShiftComputerLauncher launch INFO: Checking SSH access to application mywildflybldr-milestogo.rhcloud.com Nov 20, 2014 2:53:35 PM hudson.plugins.openshift.OpenShiftComputerLauncher launch INFO: Connecting via SSH '546e46304382ec3f29000012' 'mywildflybldr-milestogo.rhcloud.com' '/var/lib/openshift/546e393e5973ca0492000070/app-root/data/.ssh/jenkins_id_rsa' Nov 20, 2014 2:53:35 PM hudson.slaves.NodeProvisioner update INFO: mywildfly-build provisioningE successfully completed. We have now 2 computer(s) Nov 20, 2014 2:53:35 PM hudson.plugins.openshift.OpenShiftComputerLauncher launch INFO: Connected via SSH. Nov 20, 2014 2:53:35 PM hudson.plugins.openshift.OpenShiftComputerLauncher launch INFO: Exec mkdir -p $OPENSHIFT_DATA_DIR/jenkins && cd $OPENSHIFT_DATA_DIR/jenkins && rm -f slave.jar && wget -q --no-check-certificate https://jenkins-milestogo.rhcloud.com/jnlpJars/slave.jar Nov 20, 2014 2:53:42 PM hudson.plugins.openshift.OpenShiftComputerLauncher launch INFO: Slave connected. Nov 20, 2014 2:58:24 PM hudson.model.Run execute INFO: mywildfly-build #1 main build action completed: SUCCESS这表明该应用程序已成功部署在mywildfly-milestogo.rhcloud.com/index.jsp上 ，如下所示：
现在更改“ src / main / webapp / index.jsp”以显示不同的标题。 并更改“ src / test / java / org / javaee7 / sample / PersonTest.java”以使其中一项测试失败。 进行“ git commit”和“ git push”会在命令行上显示以下结果：
mywildfly> git commit . -m"breaking the test"
[master ff2de09] breaking the test2 files changed, 2 insertions(+), 2 deletions(-)
mywildfly> git push
Counting objects: 23, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (8/8), done.
Writing objects: 100% (12/12), 771 bytes | 0 bytes/s, done.
Total 12 (delta 5), reused 0 (delta 0)
remote: Executing Jenkins build.
remote:
remote: You can track your build at https://jenkins-milestogo.rhcloud.com/job/mywildfly-build
remote:
remote: Waiting for build to schedule.......Done
remote: Waiting for job to complete.....................................................................................................................................................................Done
remote: FAILED
remote: !!!!!!!!
remote: Deployment Halted!
remote: If the build failed before the deploy step, your previous
remote: build is still running. Otherwise, your application may be
remote: partially deployed or inaccessible.
remote: Fix the build and try again.
remote: !!!!!!!!
remote: An error occurred executing 'gear postreceive' (exit code: 1)
remote: Error message: CLIENT_ERROR: Failed to execute: 'control post-receive' for /var/lib/openshift/546e36e5e0b8cd4e2a000007/jenkins-client
remote:
remote: For more details about the problem, try running the command again with the '--trace' option.

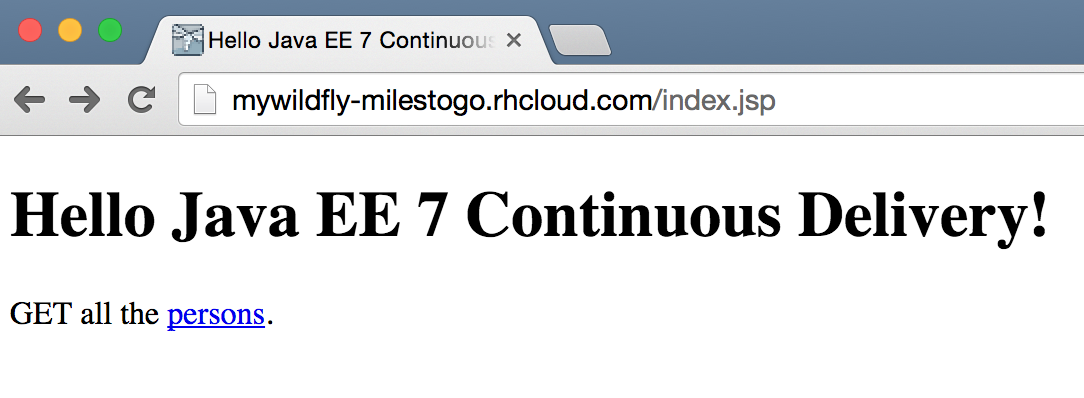

To ssh://546e36e5e0b8cd4e2a000007@mywildfly-milestogo.rhcloud.com/~/git/mywildfly.git/d618fad..ff2de09 master -> master要注意的关键声明是，测试失败后，将停止部署。 您可以通过重新访问mywildfly-milestogo.rhcloud.com/index.jsp并检查更新后的“ index.jsp”是否不可见来验证这一点。
简而言之，测试通过，网站已更新。 测试失败，该网站未更新。 因此，您已经使用WildFly，OpenShift，Arquillian和Jenkins为Java EE 7建立了一个简单的部署管道！
