css3实现雷达图

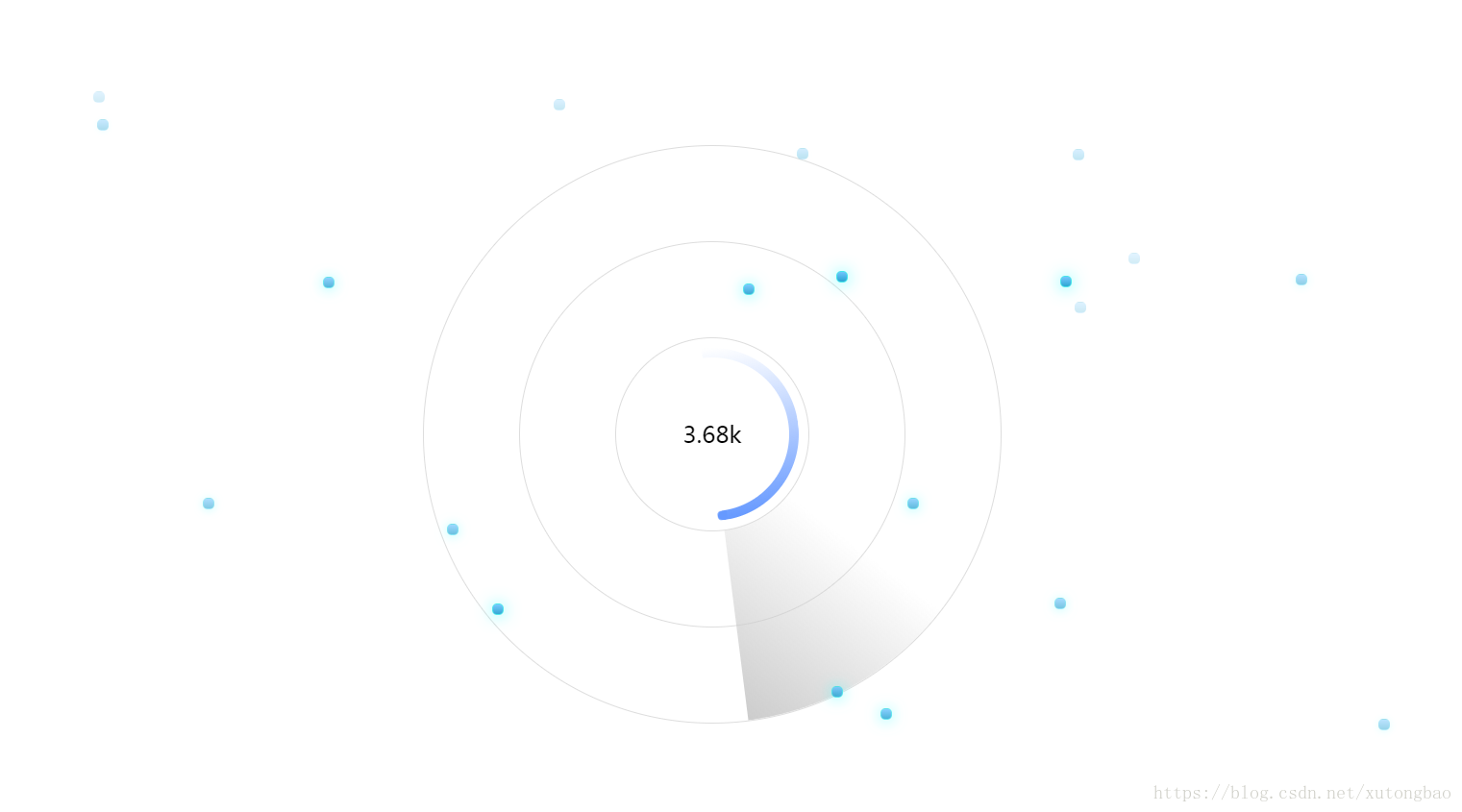

效果图：

gif图：

代码：

<!DOCTYPE html>
<html >
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=Edge,chrome=1"/>
<meta name="viewport" content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=no" />
<title>Radar</title>
<style type="text/css">
html {height: 100%;}
body {width: 100%;height: 100%;position: relative;padding: 0;margin: 0;}
.m-wrapper {position: relative;left: 50%;top: 50%;width: 600px;height: 600px;-webkit-transform: translate(-50%, -50%);transform: translate(-50%, -50%);border-radius: 50%;border: 1px solid #dddddd;overflow: hidden;text-align: center;}
.m-center{display: inline-block;position: absolute;margin: auto;top: 0; bottom: 0;left: 0;right: 0;}
.m-divison1{width: 400px;height: 400px;border: 1px solid #dddddd;border-radius: 50%;}
.m-divison2{width: 200px;height: 200px;border: 1px solid #dddddd;border-radius: 50%;background-color: #ffffff;z-index: 9;}
.m-circle {width: 180px; height: 180px;border-radius: 90px;overflow: hidden;}
.m-circle-loading {position: absolute;top: 0;left:0;width: 50%; height: 100%;background: -webkit-linear-gradient(bottom, rgba(255, 255, 255, 0), #6699ff);background: -moz-linear-gradient(top, rgba(255, 255, 255, 0), #6699ff);   background: linear-gradient(to top, rgba(255, 255, 255, 0), #6699ff);-webkit-animation: radar-beam 5s infinite;animation: radar-beam 5s infinite;-webkit-animation-timing-function: linear;animation-timing-function: linear;-webkit-transform-origin: center right;transform-origin: center right;border-top-left-radius: 90px;border-bottom-left-radius:90px;}
.m-circle-loading-radius{position: absolute;top: 0;right: 0;width: 10px;height: 10px;background: #6699ff;border-top-right-radius: 50%;border-bottom-right-radius: 50%;-webkit-transform: translateX(5px);transform: translateX(5px);}
.m-center-text{width: 160px; height: 160px;line-height: 160px;font-size: 24px; border-radius: 50%;background: #ffffff;z-index: 99;}
.m-radar {display: block;position: absolute;top: 0;left: 0;width: 300px;height: 300px;background-image: -webkit-linear-gradient(44deg, rgba(255, 255, 255, 0) 50%, #cccccc 100%);background-image: linear-gradient(44deg, rgba(255, 255, 255, 0) 50%, #cccccc 100%);-webkit-animation: radar-beam 5s infinite;animation: radar-beam 5s infinite;-webkit-animation-timing-function: linear;  animation-timing-function: linear;-webkit-transform-origin: bottom right;transform-origin: bottom right;border-radius: 100% 0 0 0;}
.m-breathe-btn {display: inline-block;position:absolute; width:10px; height:10px;border:1px solid transparent; border-radius:5px; color:#fff; font-size:20px; text-align:center;cursor:pointer; box-shadow:0 1px 2px rgba(0,0,0,.3); overflow:hidden;background-image: -webkit-gradient(linear, left top, left bottom, from(#6cc3fe), to(#21a1d0));-webkit-animation-timing-function: ease-in-out;-webkit-animation-name: breathe;-webkit-animation-duration: 2700ms;-webkit-animation-iteration-count: infinite;-webkit-animation-direction: alternate;}
@-webkit-keyframes breathe {0% { opacity: .2; box-shadow:0 1px 2px rgba(255,255,255,0.1);}100% { opacity: 1; border:1px solid rgba(59,235,235,1); box-shadow:0 1px 30px rgba(59,255,255,1);}
}
@keyframes breathe {0% { opacity: .2; box-shadow:0 1px 2px rgba(255,255,255,0.1);}100% { opacity: 1; border:1px solid rgba(59,235,235,1); box-shadow:0 1px 30px rgba(59,255,255,1);}
}
@-webkit-keyframes radar-beam {0% {-webkit-transform: rotate(0deg);transform: rotate(0deg);}100% {-webkit-transform: rotate(360deg);transform: rotate(360deg);}
}
@keyframes radar-beam {0% {-webkit-transform: rotate(0deg);transform: rotate(0deg);}100% {-webkit-transform: rotate(360deg);transform: rotate(360deg);}
}</style>
</head>
<body>
<div class="m-wrapper"><div class="m-center m-divison1"><div class="m-center m-divison2"><div class="m-center m-circle"><div class="m-center m-center-text" id="m-center-text">3.64k</div><div class="m-circle-loading"><span class="m-circle-loading-radius"></span></div></div></div></div><div class="m-radar"></div>
</div>
<script src="https://cdn.bootcss.com/jquery/1.9.0/jquery.js"></script>
<script>
$(function () {var dom = {centerText: $('#m-center-text')};var action = {initPage: function () {var height = $(document).height();var width = $(document).width();var count = 0;var myVar = setInterval(function () {var top = Math.floor(Math.random() * (height - 100) + 100);var left = Math.floor(Math.random() * (width - 200) + 100);var breatheBtn = $('<div class="m-breathe-btn js-breathe-btn"></div>');breatheBtn.css({top: top, left: left});$(document.body).append(breatheBtn);             var text = (Math.floor(Math.random() * 300) + 200) / 100 + 'k';dom.centerText.text(text);count++;if (count >= 10) {//clearInterval(myVar);var totalBreatheBtn = $('.js-breathe-btn');var length = totalBreatheBtn.length;var index = Math.floor(Math.random() * length);if (index < length) {$(totalBreatheBtn[index]).remove();}}   }, 1000); }}var init = function () {action.initPage();}();
});
</script>
</body>
</html>

转载于:https://www.cnblogs.com/xutongbao/p/9924847.html
