在此博客文章中，我想介绍一种具有最佳设计模式的Selenium测试的简洁架构：页面对象，页面元素（通常称为HTML包装器）以及自行开发的非常小巧的框架。该体系结构不限于示例中使用的Java，也可以以任何其他语言应用于Selenium测试。

定义和关系。

页面对象 。页面对象封装了网页的行为。每个网页有一个页面对象，将页面的逻辑抽象到外部。这意味着，与网页的交互被封装在page对象中。 Selenium的“ 通过”定位器来查找页面上的元素也没有对外公开。页面对象的调用者不应忙于By定位符，例如By.id ， By.tageName ， By.cssSelector等。Selenium测试类对页面对象进行操作。从网上商店举个例子：页面对象类可以称为例如ProductPage ， ShoppingCartPage ， PaymentPage等。这些始终是带有自己的URL的整个网页的类。

页面元素 （又名HTML包装器 ）。页面元素是网页的另一个细分。它表示一个HTML元素，并封装了与此元素进行交互的逻辑。我将页面元素称为HTML包装器。 HTML包装器是可重用的，因为多个页面可以包含相同的元素。例如，用于DatepickerHTML包装器可以提供以下方法（API）：“在输入字段中设置日期”，“打开日历弹出窗口”，“在日历弹出窗口中选择给定的日期”等。其他HTML包装可以例如，自动完成，面包屑，复选框，单选按钮，MultiSelect，消息等。HTML包装器可以是复合的。这意味着它可以包含多个小元素。例如，产品目录由产品组成，购物车由项目组成，等等。内部元素的Selenium的“ 按”定位符封装在复合页面元素中。

Martin Fowler描述了页面对象和HTML包装器作为设计模式。

Selenium测试类的骨骼结构。

测试类的结构良好。它以单个过程步骤的形式定义测试顺序。我建议采用以下结构：

public class MyTestIT extends AbstractSeleniumTest {@FlowOnPage(step = 1, desc = "Description for this method")void flowSomePage(SomePage somePage) {...}@FlowOnPage(step = 2, desc = "Description for this method")void flowAnotherPage(AnotherPage anotherPage) {...}@FlowOnPage(step = 3, desc = "Description for this method")void flowYetAnotherPage(YetAnotherPage yetAnotherPage) {...}...
}

MyTestIT类是用于集成测试的JUnit测试类。 @FlowOnPage是网页上测试逻辑的方法注释。 step参数定义测试序列中的序列号。计数从1开始。这意味着，将在步骤= 2的方法之前处理步骤= 1的带注释的方法。第二个参数desc表示描述该方法的作用。

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
public @interface FlowOnPage {int step() default 1;String desc();
}

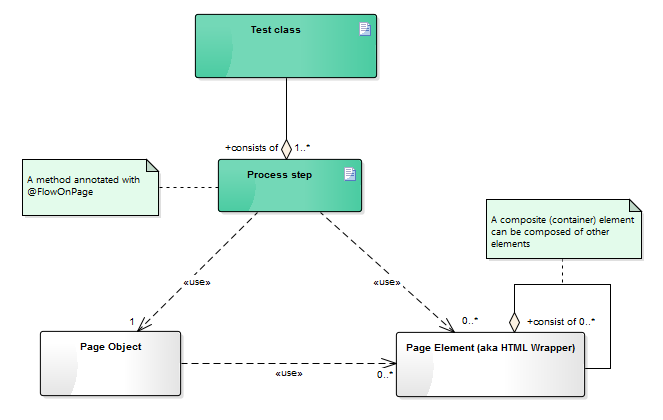

带页面对象作为方法参数调用带注释的方法。通常，每次单击按钮或链接都会切换到下一页。开发的框架应确保在调用带有下一步的带注释的方法之前，已完全加载下一页。下图说明了测试类，页面对象和HTML包装器之间的关系。

Selenium

别这样用@Test注释的JUnit方法在哪里，解析@FlowOnPage注释的逻辑在哪里？该代码隐藏在超类AbstractSeleniumTest中 。

public abstract class AbstractSeleniumTest {// configurable base URLprivate final String baseUrl = System.getProperty("selenium.baseUrl", "http://localhost:8080/contextRoot/");private final WebDriver driver;public AbstractSeleniumTest() {// create desired WebDriverdriver = new ChromeDriver();// you can also set here desired capabilities and so on...}/*** The single entry point to prepare and run test flow.*/@Testpublic void testIt() throws Exception {LoadablePage lastPageInFlow = null;List <Method> methods = new ArrayList<>();// Seach methods annotated with FlowOnPage in this and all super classesClass c = this.getClass();while (c != null) {for (Method method: c.getDeclaredMethods()) {if (method.isAnnotationPresent(FlowOnPage.class)) {FlowOnPage flowOnPage = method.getAnnotation(FlowOnPage.class);// add the method at the right positionmethods.add(flowOnPage.step() - 1, method);}}c = c.getSuperclass();}for (Method m: methods) {Class<?>[] pTypes = m.getParameterTypes();LoadablePage loadablePage = null;if (pTypes != null && pTypes.length > 0) {loadablePage = (LoadablePage) pTypes[0].newInstance();}if (loadablePage == null) {throw new IllegalArgumentException("No Page Object as parameter has been found for the method " +m.getName() + ", in the class " + this.getClass().getName());}// initialize Page Objects Page-Objekte and set parent-child relationshiploadablePage.init(this, m, lastPageInFlow);lastPageInFlow = loadablePage;}if (lastPageInFlow == null) {throw new IllegalStateException("Page Object to start the test was not found");}// start testlastPageInFlow.get();}/*** Executes the test flow logic on a given page.** @throws AssertionError can be thrown by JUnit assertions*/public void executeFlowOnPage(LoadablePage page) {Method m = page.getMethod();if (m != null) {// execute the method annotated with FlowOnPagetry {m.setAccessible(true);m.invoke(this, page);} catch (Exception e) {throw new AssertionError("Method invocation " + m.getName() +", in the class " + page.getClass().getName() + ", failed", e);}}}@Afterpublic void tearDown() {// close browserdriver.quit();}/*** This method is invoked by LoadablePage.*/public String getUrlToGo(String path) {return baseUrl + path;}public WebDriver getDriver() {return driver;}
}

如您所见，只有一种测试方法testIt可以解析批注，创建具有关系的页面对象并启动测试流程。

页面对象的结构。

每个页面对象类均从LoadablePage类继承，而该类又从Selenium的LoadableComponent类继承。这篇写得很好的文章对L oadableComponent进行了很好的解释： LoadableComponent的简单和高级用法。 LoadablePage是我们自己的类，实现如下：

import org.openqa.selenium.support.ui.WebDriverWait;
import org.junit.Assert;
import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.interactions.Actions;
import org.openqa.selenium.support.PageFactory;
import org.openqa.selenium.support.ui.ExpectedCondition;
import org.openqa.selenium.support.ui.LoadableComponent;
import org.openqa.selenium.support.ui.WebDriverWait;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.lang.reflect.Method;
import java.util.List;public abstract class LoadablePage<T extends LoadableComponent<T>> extends LoadableComponent<T> {private final static Logger LOGGER = LoggerFactory.getLogger(LoadablePage.class);private AbstractSeleniumTest seleniumTest;private String pageUrl;private Method method;private LoadablePage parent;/*** Init method (invoked by the framework).** @param seleniumTest instance of type AbstractSeleniumTest* @param method to be invoked method annotated with @FlowOnPage* @param parent parent page of type LoadablePage*/void init(AbstractSeleniumTest seleniumTest, Method method, LoadablePage parent) {this.seleniumTest = seleniumTest;this.pageUrl = seleniumTest.getUrlToGo(getUrlPath());this.method = method;this.parent = parent;PageFactory.initElements(getDriver(), this);}/*** Path of the URL without the context root for this page.** @return String path of the URL*/protected abstract String getUrlPath();/**** Specific check which has to be implemented by every page object.* A rudimentary check on the basis of URL is undertaken by this class.* This method is doing an extra check if the page has been proper loaded.** @throws Error thrown when the check fails*/protected abstract void isPageLoaded() throws Error;@Overrideprotected void isLoaded() throws Error {// min. check against the page URLString url = getDriver().getCurrentUrl();Assert.assertTrue("You are not on the right page.", url.equals(pageUrl));// call specific check which has to be implemented on every pageisPageLoaded();}@Overrideprotected void load() {if (parent != null) {// call the logic in the parent pageparent.get();// parent page has navigated to this page (via click on button or link).// wait until this page has been loaded.WebDriverWait wait = new WebDriverWait(getDriver(), 20, 250);wait.until(new ExpectedCondition<Boolean> () {@Overridepublic Boolean apply(WebDriver d) {try {isLoaded();return true;} catch (AssertionError e) {return false;}}});} else {// Is there no parent page, the page should be navigated directlyLOGGER.info("Browser: {}, GET {}", getDriver(), getPageUrl());getDriver().get(getPageUrl());}}/*** Ensure that this page has been loaded and execute the test code on the this page.** @return T LoadablePage*/public T get() {T loadablePage = super.get();// execute flow logicseleniumTest.executeFlowOnPage(this);return loadablePage;}/*** See {@link WebDriver#findElement(By)}*/public WebElement findElement(By by) {return getDriver().findElement(by);}/*** See {@link WebDriver#findElements(By)}*/public List<WebElement> findElements(By by) {return getDriver().findElements(by);}public WebDriver getDriver() {return seleniumTest.getDriver();}protected String getPageUrl() {return pageUrl;}Method getMethod() {return method;}
}

如您所见，每个页面对象类都需要实现两个抽象方法：

/*** Path of the URL without the context root for this page.** @return String path of the URL*/
protected abstract String getUrlPath();/**** Specific check which has to be implemented by every page object.* A rudimentary check on the basis of URL is undertaken by the super class.* This method is doing an extra check if the page has been proper loaded.** @throws Error thrown when the check fails*/
protected abstract void isPageLoaded() throws Error;

现在，我想显示一个具体页面对象的代码和一个测试SBB Ticket Shop的测试类，以便读者可以对页面对象进行测试。页面对象TimetablePage包含基本元素HTML包装器。

public class TimetablePage extends LoadablePage<TimetablePage> {@FindBy(id = "...")private Autocomplete from;@FindBy(id = "...")private Autocomplete to;@FindBy(id = "...")private Datepicker date;@FindBy(id = "...")private TimeInput time;@FindBy(id = "...")private Button search;@Overrideprotected String getUrlPath() {return "pages/fahrplan/fahrplan.xhtml";}@Overrideprotected void isPageLoaded() throws Error {try {assertTrue(findElement(By.id("shopForm_searchfields")).isDisplayed());} catch (NoSuchElementException ex) {throw new AssertionError();}}public TimetablePage typeFrom(String text) {from.setValue(text);return this;}public TimetablePage typeTo(String text) {to.setValue(text);return this;}public TimetablePage typeTime(Date date) {time.setValue(date);return this;}public TimetablePage typeDate(Date date) {date.setValue(date);return this;}public TimetablePage search() {search.clickAndWaitUntil().ajaxCompleted().elementVisible(By.cssSelector("..."));return this;}public TimetableTable getTimetableTable() {List<WebElement> element = findElements(By.id("..."));if (element.size() == 1) {return TimetableTable.create(element.get(0));}return null;}
}

在页面对象中，可以通过@FindBy ， @FindBys ， @FindAll批注或按需动态创建HTML包装器（简单或复合），例如，如TimetableTable.create（element） ，其中element是基础WebElement 。通常，注释不适用于自定义元素。默认情况下，它们仅与Selenium的WebElement一起使用。但是让他们也使用自定义元素并不难。您必须实现一个扩展DefaultFieldDecorator的自定义FieldDecorator 。自定义FieldDecorator允许对自定义HTML包装程序使用@FindBy ， @FindBys或@FindAll批注。此处提供了一个示例项目，其中提供了实现细节和自定义元素的示例。您还可以赶上Selenium的臭名昭著的StaleElementReferenceException在您的自定义FieldDecorator并重新创建由最初定位的基础WebElement。 框架用户看不到StaleElementReferenceException，并且即使在此期间更新了引用的DOM元素（从DOM删除并再次添加新内容）时，也可以在WebElement上调用方法。此处提供了带有代码段的想法。

好吧，让我展示测试课程。在测试班中，我们要测试当16岁以下的儿童没有父母旅行时购物车中是否出现提示。首先，我们必须输入“从”和“到”的车站，在时间表中单击所需的连接，然后在下一页添加一个子项，该子项显示所选连接的旅行报价。

public class HintTravelerIT extends AbstractSeleniumTest {@FlowOnPage(step = 1, desc = "Seach a connection from Bern to Zürich and click on the first 'Buy' button")void flowTimetable(TimetablePage timetablePage) {// Type from, to, date and timetimetablePage.typeFrom("Bern").typeTo("Zürich");Date date = DateUtils.addDays(new Date(), 2);timetablePage.typeDate(date);timetablePage.typeTime(date);// search for connectionstimetablePage.search();// click on the first 'Buy' buttonTimetableTable table = timetablePage.getTimetableTable();table.clickFirstBuyButton();}@FlowOnPage(step = 2, desc = "Add a child as traveler and test the hint in the shopping cart")void flowOffers(OffersPage offersPage) {// Add a childDateFormat df = new SimpleDateFormat("dd.MM.yyyy", Locale.GERMAN);String birthDay = df.format(DateUtils.addYears(new Date(), -10));offersPage.addTraveler(0, "Max", "Mustermann", birthDay);offersPage.saveTraveler();// Get hintsList<String> hints = offersPage.getShoppingCart().getHints();assertNotNull(hints);assertTrue(hints.size() == 1);assertEquals("A child can only travel under adult supervision", hints.get(0));}
}

HTML包装器的结构。

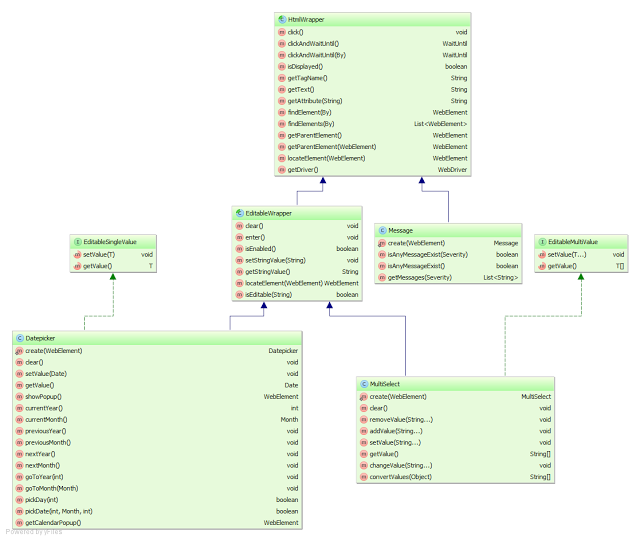

我建议为所有HTML包装器创建一个抽象基类。我们称之为HtmlWrapper 。此类可以提供一些常用方法，例如click ， clickAndWaitUntil ， findElement（s） ， getParentElement ， getAttribute ， isDisplayed ……对于可编辑元素，您可以创建一个继承自HtmlWrapper的类EditableWrapper 。此类可以为可编辑元素提供一些常用方法，例如： clear （清除输入）， enter （按下Enter键）， isEnabled （检查元素是否已启用），…。所有可编辑元素都应继承自EditableWrapper 。此外，您可以分别为单值和多值元素提供两个接口EditableSingleValue和EditableMultipleValue 。下图展示了这个想法。它显示了三个基本HTML包装的类层次结构：

日期选择器 。它继承自EditableWrapper并实现EditableSingleValue接口。
MultiSelect 。它继承自EditableWrapper并实现EditableMultiValue接口。
留言。它直接扩展HtmlWrapper，因为消息不可编辑。

包装纸

您是否需要更多有关HTML包装程序的实现细节？ jQuery Datepicker的详细信息可以在这篇出色的文章中找到。 MultiSelect是著名的Select2小部件的包装。我已经通过以下方式在项目中实现了包装器：

public class MultiSelect extends EditableWrapper implements EditableMultiValue<String> {protected MultiSelect(WebElement element) {super(element);}public static MultiSelect create(WebElement element) {assertNotNull(element);return new MultiSelect(element);}@Overridepublic void clear() {JavascriptExecutor js = (JavascriptExecutor) getDriver();js.executeScript("jQuery(arguments[0]).val(null).trigger('change')", element);}public void removeValue(String...value) {if (value == null || value.length == 0) {return;}JavascriptExecutor js = (JavascriptExecutor) getDriver();Object selectedValues = js.executeScript("return jQuery(arguments[0]).val()", element);String[] curValue = convertValues(selectedValues);String[] newValue = ArrayUtils.removeElements(curValue, value);if (newValue == null || newValue.length == 0) {clear();} else {changeValue(newValue);}}public void addValue(String...value) {if (value == null || value.length == 0) {return;}JavascriptExecutor js = (JavascriptExecutor) getDriver();Object selectedValues = js.executeScript("return jQuery(arguments[0]).val()", element);String[] curValue = convertValues(selectedValues);String[] newValue = ArrayUtils.addAll(curValue, value);changeValue(newValue);}@Overridepublic void setValue(String...value) {clear();if (value == null || value.length == 0) {return;}changeValue(value);}@Overridepublic String[] getValue() {JavascriptExecutor js = (JavascriptExecutor) getDriver();Object values = js.executeScript("return jQuery(arguments[0]).val()", element);return convertValues(values);}private void changeValue(String...value) {Gson gson = new Gson();String jsonArray = gson.toJson(value);String jsCode = String.format("jQuery(arguments[0]).val(%s).trigger('change')", jsonArray);JavascriptExecutor js = (JavascriptExecutor) getDriver();js.executeScript(jsCode, element);}@SuppressWarnings("unchecked")private String[] convertValues(Object values) {if (values == null) {return null;}if (values.getClass().isArray()) {return (String[]) values;} else if (values instanceof List) {List<String> list = (List<String> ) values;return list.toArray(new String[list.size()]);} else {throw new WebDriverException("Unsupported value for MultiSelect: " + values.getClass());}}
}

为了完整起见，还有一个Message实现的示例：

public class Message extends HtmlWrapper {public enum Severity {INFO("info"),WARNING("warn"),ERROR("error");Severity(String severity) {this.severity = severity;}private final String severity;public String getSeverity() {return severity;}}protected Message(WebElement element) {super(element);}public static Message create(WebElement element) {assertNotNull(element);return new Message(element);}public boolean isAnyMessageExist(Severity severity) {List<WebElement> messages = findElements(By.cssSelector(".ui-messages .ui-messages-" + severity.getSeverity()));return messages.size() > 0;}public boolean isAnyMessageExist() {for (Severity severity: Severity.values()) {List<WebElement> messages = findElements(By.cssSelector(".ui-messages .ui-messages-" + severity.getSeverity()));if (messages.size() > 0) {return true;}}return false;}public List<String> getMessages(Severity severity) {List<WebElement> messages = findElements(By.cssSelector(".ui-messages .ui-messages-" + severity.getSeverity() + "-summary"));if (messages.isEmpty()) {return null;}List<String> text = new ArrayList<> ();for (WebElement element: messages) {text.add(element.getText());}return text;}
}

消息将消息组件包装在PrimeFaces中。
