问题描述

今天在写mybatis和spring整合的时候，出现了个问题，其实也没有多难，就是自己没有仔细看，特此记录一下。

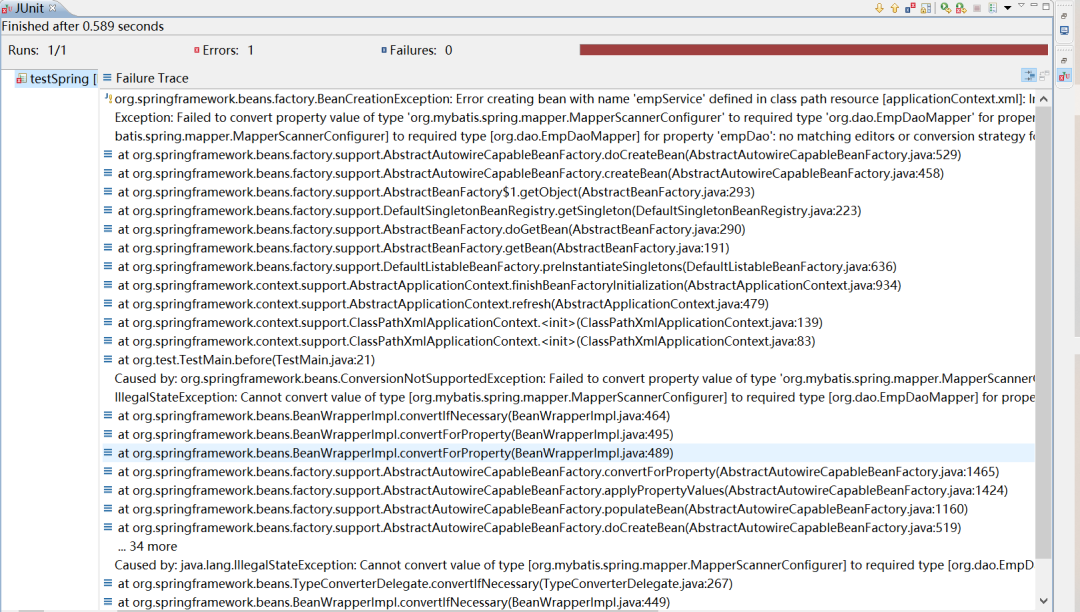

报错问题如下：

org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'empService' defined in class path resource [applicationContext.xml]: Initialization of bean failed; nested exception is org.springframework.beans.ConversionNotSupportedException: Failed to convert property value of type 'org.mybatis.spring.mapper.MapperScannerConfigurer' to required type 'org.dao.EmpDaoMapper' for property 'empDao'; nested exception is java.lang.IllegalStateException: Cannot convert value of type [org.mybatis.spring.mapper.MapperScannerConfigurer] to required type [org.dao.EmpDaoMapper] for property 'empDao': no matching editors or conversion strategy foundat org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:529)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:458)at org.springframework.beans.factory.support.AbstractBeanFactory$1.getObject(AbstractBeanFactory.java:293)at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:223)at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:290)at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:191)at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:636)at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:934)at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:479)at org.springframework.context.support.ClassPathXmlApplicationContext.<init>(ClassPathXmlApplicationContext.java:139)at org.springframework.context.support.ClassPathXmlApplicationContext.<init>(ClassPathXmlApplicationContext.java:83)at org.test.TestMain.before(TestMain.java:21)at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)at java.lang.reflect.Method.invoke(Method.java:606)at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:44)at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:15)at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:41)at org.junit.internal.runners.statements.RunBefores.evaluate(RunBefores.java:27)at org.junit.runners.BlockJUnit4ClassRunner.runNotIgnored(BlockJUnit4ClassRunner.java:79)at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:71)at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:49)at org.junit.runners.ParentRunner$3.run(ParentRunner.java:193)at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:52)at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:191)at org.junit.runners.ParentRunner.access$000(ParentRunner.java:42)at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:184)at org.junit.runners.ParentRunner.run(ParentRunner.java:236)at org.eclipse.jdt.internal.junit4.runner.JUnit4TestReference.run(JUnit4TestReference.java:50)at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:38)at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:467)at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:683)at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:390)at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:197)
Caused by: org.springframework.beans.ConversionNotSupportedException: Failed to convert property value of type 'org.mybatis.spring.mapper.MapperScannerConfigurer' to required type 'org.dao.EmpDaoMapper' for property 'empDao'; nested exception is java.lang.IllegalStateException: Cannot convert value of type [org.mybatis.spring.mapper.MapperScannerConfigurer] to required type [org.dao.EmpDaoMapper] for property 'empDao': no matching editors or conversion strategy foundat org.springframework.beans.BeanWrapperImpl.convertIfNecessary(BeanWrapperImpl.java:464)at org.springframework.beans.BeanWrapperImpl.convertForProperty(BeanWrapperImpl.java:495)at org.springframework.beans.BeanWrapperImpl.convertForProperty(BeanWrapperImpl.java:489)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.convertForProperty(AbstractAutowireCapableBeanFactory.java:1465)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.applyPropertyValues(AbstractAutowireCapableBeanFactory.java:1424)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1160)at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:519)... 34 more
Caused by: java.lang.IllegalStateException: Cannot convert value of type [org.mybatis.spring.mapper.MapperScannerConfigurer] to required type [org.dao.EmpDaoMapper] for property 'empDao': no matching editors or conversion strategy foundat org.springframework.beans.TypeConverterDelegate.convertIfNecessary(TypeConverterDelegate.java:267)at org.springframework.beans.BeanWrapperImpl.convertIfNecessary(BeanWrapperImpl.java:449)... 40 more

下面是spring的所有配置文件信息：

配置数据源信息：

<!-- 配置数据源 --><bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"><property name="driverClassName" value="com.mysql.jdbc.Driver"></property><property name="url" value="jdbc:mysql://localhost:3306/schooldb"></property><property name="username" value="root"></property><property name="password" value="root"></property></bean>

配置SqlSessionFactory信息，以及加载数据源：

<!-- 加载数据源 --><bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"><property name="dataSource" ref="dataSource"></property><!-- 配置mapper属性 --><property name="mapperLocations"><list><value>classpath:org/dao/*/*.xml</value></list></property><!-- 配置mybatis配置文件 --><property name="configLocation" value="classpath:mybatis-config.xml"></property></bean>

使用MapperScannerConfigurer注入映射器：

<!-- 使用MapperScannerConfigurer --><bean id="empDao" class="org.mybatis.spring.mapper.MapperScannerConfigurer"><property name="basePackage" value="org.dao"></property></bean>

下面就是配置Service层：

<bean id="empService" class="org.service.impl.EmpServiceImpl"><property name="empDao" ref="empDao"></property></bean>

问题就出在“配置Service层”这一步，原来在未使用MapperScannerConfigurer的时候，程序是可以正常跑起来的，但是加上MapperScannerConfigurer，程序就报错，找了好半天，终于发现，原来粗心的将对象名写错了，下面是问题的解决方式：

02

解决问题

更正MapperScannerConfigurer注入映射器和empService注入映射器，代码如下：

<!-- 使用MapperScannerConfigurer --><bean  class="org.mybatis.spring.mapper.MapperScannerConfigurer"><property name="basePackage" value="org.dao"></property></bean><bean id="empService" class="org.service.impl.EmpServiceImpl"><property name="empDao" ref="empDaoMapper"></property></bean>

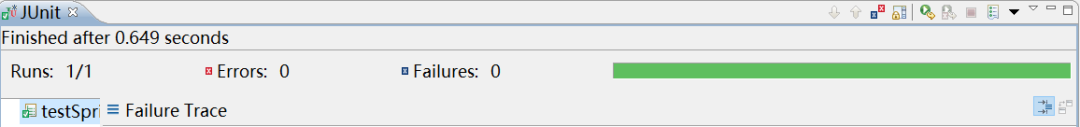

然后运行项目，正常执行：

03

分析问题

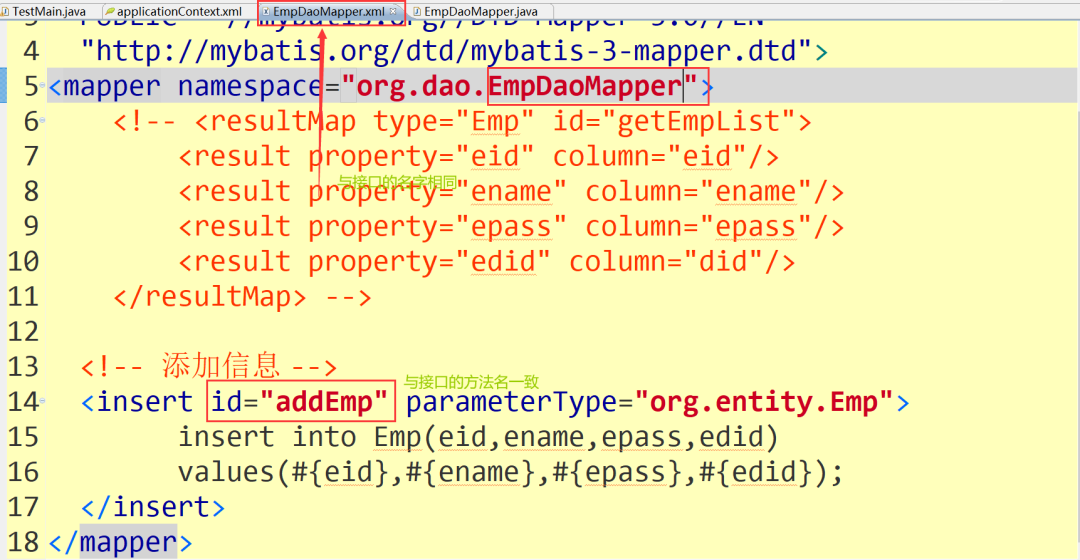

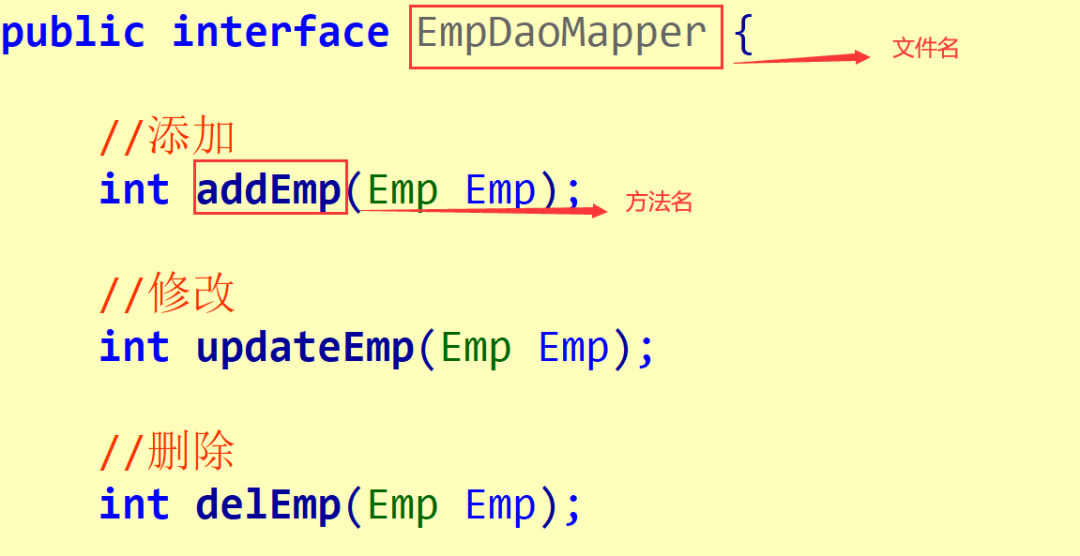

当我们使用MapperScannerConfigurer注入映射器时，可以不用Mapper的实现类，但是Mapper的接口名必须要与所对应的SQL映射文件名一模一样，且接口中的方法名需与SQL映射文件的id名相同。

通过MapperScannerConfigurer可以批量生成映射器实现，映射器被注册到Spring的容器时，spring会自动根据其接口名给其命名，默认规则是首字母小写的非完全限定名。比如上面代码中的接口名为EmpDaoMapper,那默认命名就是empDaoMapper,原来在ref引入对象的时候，写的是empDao，所以就报错。改成其默认的命名empDaoMapper问题解决。

希望大家在整合框架的时候，能认真细心，避免出现没必要的bug，耽误时间。
