.NET CORE(C#) WPF 值得推荐的动画菜单设计

阅读导航

本文背景
代码实现
本文参考
源码

1. 本文背景

YouTube上老外的一个设计，站长觉得不错，分享给大家作为参考，抽屉菜单的动画做的非常不错。

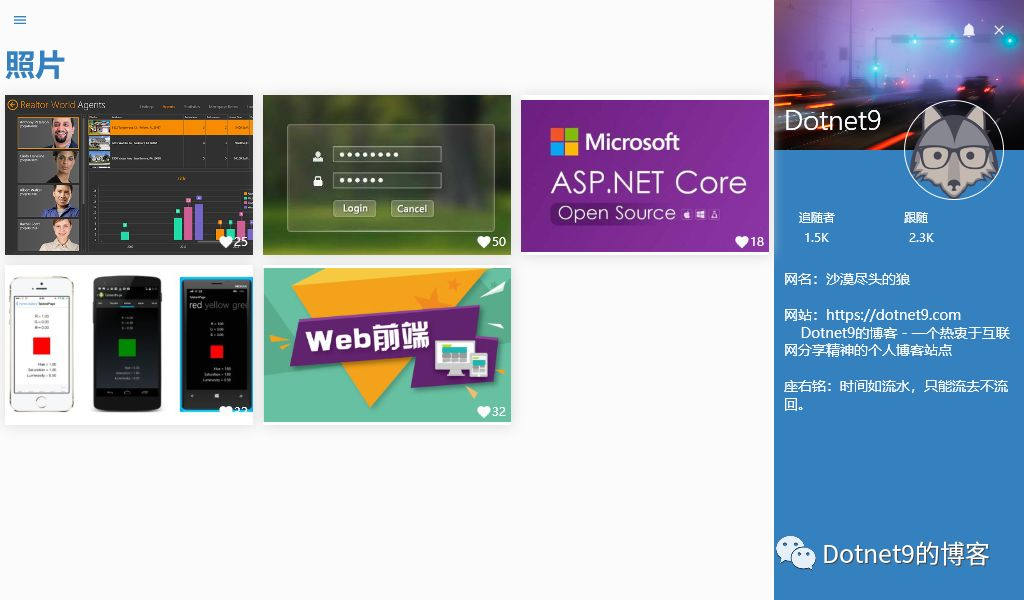

运行起始界面：

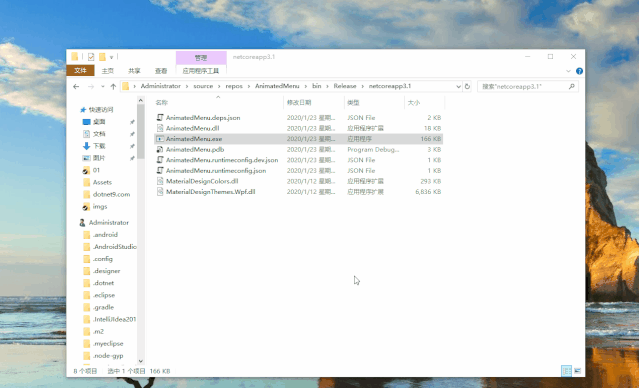

站长运行操作一遍，录制了动画大家看看：

2. 代码实现

使用 .NET CORE 3.1 创建名为 “AnimatedMenu” 的WPF模板项目，添加1个Nuget库：MaterialDesignThemes，版本为最新预览版3.1.0-ci948。

解决方案主要文件目录组织结构：

AnimatedMenu
- MainWindow.xaml.cs
- App.xaml
- MainWindow.xaml

2.1 引入样式

文件【App.xaml】，在 StartupUri 中设置启动的视图【MainWindow.xaml】，并在【Application.Resources】节点增加 MaterialDesignThemes库的样式文件：

<Application.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Dark.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.Blue.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.Blue.xaml" /></ResourceDictionary.MergedDictionaries></ResourceDictionary>
</Application.Resources>

2.2 演示窗体

文件【MainWindow.xaml】，布局代码、动画代码都在此文件中，源码如下：

<Window x:Class="AnimatedMenu.MainWindow"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"mc:Ignorable="d" MouseLeftButtonDown="MoveWindow_MouseLeftButtonDown"Height="600" Width="1024" WindowStyle="None" WindowStartupLocation="CenterScreen"><WindowChrome.WindowChrome><WindowChrome CaptionHeight="0"/></WindowChrome.WindowChrome><Window.Resources><Storyboard x:Key="OpenMenu"><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="GridMain"><EasingDoubleKeyFrame KeyTime="0" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="250"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.Y)" Storyboard.TargetName="GridMain"><EasingDoubleKeyFrame KeyTime="0" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="50"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="StackPanelMenu"><EasingDoubleKeyFrame KeyTime="0" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="250"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="listViewItem"><EasingDoubleKeyFrame KeyTime="0" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.7" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="listViewItem1"><EasingDoubleKeyFrame KeyTime="0" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.9" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="listViewItem2"><EasingDoubleKeyFrame KeyTime="0" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:1.1" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="listViewItem3"><EasingDoubleKeyFrame KeyTime="0" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:1.3" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="listViewItem4"><EasingDoubleKeyFrame KeyTime="0" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="-250"/><EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleX)" Storyboard.TargetName="button"><EasingDoubleKeyFrame KeyTime="0" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="1"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleY)" Storyboard.TargetName="button"><EasingDoubleKeyFrame KeyTime="0" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/><EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="1"/></DoubleAnimationUsingKeyFrames></Storyboard><Storyboard x:Key="CloseMenu"><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="GridMain"><EasingDoubleKeyFrame KeyTime="0" Value="250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.Y)" Storyboard.TargetName="GridMain"><EasingDoubleKeyFrame KeyTime="0" Value="50"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/></DoubleAnimationUsingKeyFrames><DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="StackPanelMenu"><EasingDoubleKeyFrame KeyTime="0" Value="250"/><EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/></DoubleAnimationUsingKeyFrames></Storyboard></Window.Resources><Window.Triggers><EventTrigger RoutedEvent="ButtonBase.Click" SourceName="ButtonOpenMenu"><BeginStoryboard Storyboard="{StaticResource OpenMenu}"/></EventTrigger><EventTrigger RoutedEvent="ButtonBase.Click" SourceName="ButtonCloseMenu"><BeginStoryboard x:Name="CloseMenu_BeginStoryboard" Storyboard="{StaticResource CloseMenu}"/></EventTrigger></Window.Triggers><Grid Background="#FF3580BF"><StackPanel x:Name="StackPanelMenu" Width="250" HorizontalAlignment="Left" Margin="-250 0 0 0" RenderTransformOrigin="0.5,0.5"><StackPanel.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></StackPanel.RenderTransform><StackPanel Orientation="Horizontal" VerticalAlignment="Top" Height="100" HorizontalAlignment="Center"><Button Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Background="{x:Null}" BorderBrush="{x:Null}" Padding="0" Width="50" Height="50" Margin="10"><materialDesign:PackIcon Kind="Settings" Width="40" Height="40"/></Button><Button x:Name="button" Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" BorderBrush="{x:Null}" Padding="0" Width="80" Height="80" Margin="10" RenderTransformOrigin="0.5,0.5"><Button.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></Button.RenderTransform><Button.Background><ImageBrush ImageSource="https://img.dotnet9.com/logo.png" Stretch="UniformToFill"/></Button.Background></Button><Button Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Background="{x:Null}" BorderBrush="{x:Null}" Padding="0" Width="50" Height="50" Margin="10"><materialDesign:PackIcon Kind="InformationOutline" Width="40" Height="40"/></Button></StackPanel><ListView><ListViewItem x:Name="listViewItem" Height="60" RenderTransformOrigin="0.5,0.5"><ListViewItem.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></ListViewItem.RenderTransform><StackPanel Orientation="Horizontal" Margin="10 0"><materialDesign:PackIcon Kind="Home" Width="30" Height="30" VerticalAlignment="Center" Margin="5"/><TextBlock Text="主页" Margin="10" VerticalAlignment="Center"/></StackPanel></ListViewItem><ListViewItem x:Name="listViewItem1" Height="60" RenderTransformOrigin="0.5,0.5"><ListViewItem.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></ListViewItem.RenderTransform><StackPanel Orientation="Horizontal" Margin="10 0"><materialDesign:PackIcon Kind="AccountSearch" Width="30" Height="30" VerticalAlignment="Center" Margin="5"/><TextBlock Text="搜索" Margin="10" VerticalAlignment="Center"/></StackPanel></ListViewItem><ListViewItem x:Name="listViewItem2" Height="60" RenderTransformOrigin="0.5,0.5"><ListViewItem.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></ListViewItem.RenderTransform><StackPanel Orientation="Horizontal" Margin="10 0"><materialDesign:PackIcon Kind="Wechat" Width="30" Height="30" VerticalAlignment="Center" Margin="5"/><TextBlock Text="微信" Margin="10" VerticalAlignment="Center"/></StackPanel></ListViewItem><ListViewItem x:Name="listViewItem3" Height="60" RenderTransformOrigin="0.5,0.5"><ListViewItem.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></ListViewItem.RenderTransform><StackPanel Orientation="Horizontal" Margin="10 0"><materialDesign:PackIcon Kind="Qqchat" Width="30" Height="30" VerticalAlignment="Center" Margin="5"/><TextBlock Text="QQ" Margin="10" VerticalAlignment="Center"/></StackPanel></ListViewItem><ListViewItem x:Name="listViewItem4" Height="60" RenderTransformOrigin="0.5,0.5"><ListViewItem.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></ListViewItem.RenderTransform><StackPanel Orientation="Horizontal" Margin="10 0"><materialDesign:PackIcon Kind="Facebook" Width="30" Height="30" VerticalAlignment="Center" Margin="5"/><TextBlock Text="脸书" Margin="10" VerticalAlignment="Center"/></StackPanel></ListViewItem></ListView></StackPanel><Grid x:Name="GridMain" Background="#FFFBFBFB" Width="1024" RenderTransformOrigin="0.5,0.5"><Grid.RenderTransform><TransformGroup><ScaleTransform/><SkewTransform/><RotateTransform/><TranslateTransform/></TransformGroup></Grid.RenderTransform><Grid.ColumnDefinitions><ColumnDefinition Width="*"/><ColumnDefinition Width="250"/></Grid.ColumnDefinitions><Grid Grid.Column="1" Background="#FF3580BF"><Image Height="150" VerticalAlignment="Top" Source="https://dotnet9.com/wp-content/uploads/2017/04/About-Header.jpg" Stretch="UniformToFill"/><Ellipse Height="100" Width="100" VerticalAlignment="Top" HorizontalAlignment="Right" Margin="20 100" Stroke="White"><Ellipse.Fill><ImageBrush ImageSource="https://img.dotnet9.com/logo.png" Stretch="UniformToFill"/></Ellipse.Fill></Ellipse><TextBlock Text="Dotnet9" Foreground="White" FontSize="28" FontFamily="Nirmala UI Semilight" Margin="10 100" VerticalAlignment="Top"/><StackPanel Margin="0 150"><Grid Height="60" Margin="20 50 20 0"><Grid.ColumnDefinitions><ColumnDefinition Width="*"/><ColumnDefinition Width="*"/></Grid.ColumnDefinitions><Grid.RowDefinitions><RowDefinition Height="30"/><RowDefinition Height="30"/></Grid.RowDefinitions><TextBlock Text="追随者" VerticalAlignment="Bottom" Foreground="#FFFBFBFB" Margin="5,0,5,5"/><TextBlock Text="1.5K" VerticalAlignment="Top" Foreground="#FFFBFBFB" Grid.Row="1" Margin="10 0"/><TextBlock Text="跟随" VerticalAlignment="Bottom" Foreground="#FFFBFBFB" Margin="5,0,5,5" Grid.Column="1"/><TextBlock Text="2.3K" VerticalAlignment="Top" Foreground="#FFFBFBFB" Grid.Row="1" Margin="10 0" Grid.Column="1"/></Grid><TextBlock TextWrapping="Wrap" Margin="10" Foreground="#FFFBFBFB" FontSize="14"><Run Text="网名：沙漠尽头的狼"/><LineBreak/><LineBreak/><Run Text="网站：https://dotnet9.com"/><LineBreak/><Run Text="    Dotnet9的博客 - 一个热衷于互联网分享精神的个人博客站点"/><LineBreak/><LineBreak/><Run Text="座右铭：时间如流水，只能流去不流回。"/></TextBlock></StackPanel></Grid><Grid><Grid.RowDefinitions><RowDefinition Height="40"/><RowDefinition Height="50"/><RowDefinition Height="*"/><RowDefinition Height="*"/><RowDefinition Height="*"/></Grid.RowDefinitions><Grid.ColumnDefinitions><ColumnDefinition Width="*"/><ColumnDefinition Width="*"/><ColumnDefinition Width="*"/></Grid.ColumnDefinitions><Button x:Name="ButtonCloseMenu" Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="30" Height="30" Padding="0" Background="{x:Null}" BorderBrush="{x:Null}" VerticalAlignment="Top" HorizontalAlignment="Left" Margin="5" Click="ButtonCloseMenu_Click" Visibility="Collapsed"><materialDesign:PackIcon Kind="Menu" Foreground="#FF3580BF"/></Button><Button x:Name="ButtonOpenMenu" Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="30" Height="30" Padding="0" Background="{x:Null}" BorderBrush="{x:Null}" VerticalAlignment="Top" HorizontalAlignment="Left" Margin="5" Click="ButtonOpenMenu_Click"><materialDesign:PackIcon Kind="Menu" Foreground="#FF3580BF"/></Button><TextBlock Text="照片" Foreground="#FF3580BF" FontSize="30" FontWeight="Bold" Margin="5" Grid.Row="1"/><Grid Margin="5" Grid.Row="2" Grid.Column="0"><Grid.Effect><DropShadowEffect BlurRadius="20" Color="#FFEEEEEE" ShadowDepth="1"/></Grid.Effect><Image Source="https://dotnet9.com/wp-content/uploads/2019/12/wpf.png" Stretch="UniformToFill"/><StackPanel Orientation="Horizontal" Margin="5" HorizontalAlignment="Right" VerticalAlignment="Bottom"><materialDesign:PackIcon Kind="Heart" Foreground="#FFFBFBFB"/><TextBlock Text="25" Foreground="#FFFBFBFB"/></StackPanel></Grid><Grid Margin="5" Grid.Row="2" Grid.Column="1"><Grid.Effect><DropShadowEffect BlurRadius="20" Color="#FFEEEEEE" ShadowDepth="1"/></Grid.Effect><Image Source="https://dotnet9.com/wp-content/uploads/2019/12/winform.png" Stretch="UniformToFill"/><StackPanel Orientation="Horizontal" Margin="5" HorizontalAlignment="Right" VerticalAlignment="Bottom"><materialDesign:PackIcon Kind="Heart" Foreground="#FFFBFBFB"/><TextBlock Text="50" Foreground="#FFFBFBFB"/></StackPanel></Grid><Grid Margin="5" Grid.Row="2" Grid.Column="2"><Grid.Effect><DropShadowEffect BlurRadius="20" Color="#FFEEEEEE" ShadowDepth="1"/></Grid.Effect><Image Source="https://dotnet9.com/wp-content/uploads/2019/12/asp-net-core.png" Stretch="UniformToFill"/><StackPanel Orientation="Horizontal" Margin="5" HorizontalAlignment="Right" VerticalAlignment="Bottom"><materialDesign:PackIcon Kind="Heart" Foreground="#FFFBFBFB"/><TextBlock Text="18" Foreground="#FFFBFBFB"/></StackPanel></Grid><Grid Margin="5" Grid.Row="3" Grid.Column="0"><Grid.Effect><DropShadowEffect BlurRadius="20" Color="#FFEEEEEE" ShadowDepth="1"/></Grid.Effect><Image Source="https://img.dotnet9.com/Xamarin.Forms.png" Stretch="UniformToFill"/><StackPanel Orientation="Horizontal" Margin="5" HorizontalAlignment="Right" VerticalAlignment="Bottom"><materialDesign:PackIcon Kind="Heart" Foreground="#FFFBFBFB"/><TextBlock Text="32" Foreground="#FFFBFBFB"/></StackPanel></Grid><Grid Margin="5" Grid.Row="3" Grid.Column="1"><Grid.Effect><DropShadowEffect BlurRadius="20" Color="#FFEEEEEE" ShadowDepth="1"/></Grid.Effect><Image Source="https://dotnet9.com/wp-content/uploads/2019/12/front-end.png" Stretch="UniformToFill"/><StackPanel Orientation="Horizontal" Margin="5" HorizontalAlignment="Right" VerticalAlignment="Bottom"><materialDesign:PackIcon Kind="Heart" Foreground="#FFFBFBFB"/><TextBlock Text="32" Foreground="#FFFBFBFB"/></StackPanel></Grid></Grid></Grid><StackPanel Orientation="Horizontal" VerticalAlignment="Top" Height="40" HorizontalAlignment="Right" Margin="10"><Button Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="30" Height="30" Padding="0" Background="{x:Null}" BorderBrush="{x:Null}"><materialDesign:PackIcon Kind="Bell"/></Button><Button x:Name="ButtonClose" Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="30" Height="30" Padding="0" Background="{x:Null}" BorderBrush="{x:Null}" Click="ButtonClose_Click"><materialDesign:PackIcon Kind="Close"/></Button></StackPanel></Grid>
</Window>

简单说明下：

"StackPanelMenu" 作为左侧菜单容器，默认是显示在窗体外，距离窗体左边缘-250，点击左上角菜单按钮图标可控制此容器的显示与隐藏，注：菜单开关由两个按钮组成 "ButtonOpenMenu" 和 "ButtonCloseMenu"。
左侧菜单项使用 "ListView" 进行布局，实际开发需要运用模板，使用MVVM做成动态菜单，方便扩展。
中间的5张演示照片，也和2类似。直接使用Grid进行的布局，实际上都需要做成模板。
抽屉菜单动画见 Window.Resouces 中的动画代码，展开抽屉菜单动画是 "OpenMenu"，左侧菜单向右、向下移动，右侧展示区域及个人信息概况界面同时也是向右、向下移动；关闭抽屉菜单动画是 "CloseMenu"，动画移动方向与展开时相反（说的是废话），这段动画代码值得好好学习、复用。

文件【MainWindow.xaml.cs】，后台关闭窗体、抽屉菜单按钮切换、窗体移动等事件处理：

private void ButtonClose_Click(object sender, RoutedEventArgs e)
{Application.Current.Shutdown();
}private void ButtonOpenMenu_Click(object sender, RoutedEventArgs e)
{ButtonOpenMenu.Visibility = Visibility.Collapsed;ButtonCloseMenu.Visibility = Visibility.Visible;
}private void ButtonCloseMenu_Click(object sender, RoutedEventArgs e)
{ButtonOpenMenu.Visibility = Visibility.Visible;ButtonCloseMenu.Visibility = Visibility.Collapsed;
}private void MoveWindow_MouseLeftButtonDown(object sender, System.Windows.Input.MouseButtonEventArgs e)
{DragMove();
}
